Osmotic Stress Effect over Carbohydrate Production in a Native Starin of Scenedesmus sp. ()
1. Introduction
Microalgae are oxygenic photosynthetic organisms that are found in diverse environments such as salt water and fresh water. They are even found in environments as extreme as desserts. The majority of these organisms are photosynthetic species, as such they are capable of producing sugars from CO2 and light [2-4]. Sugar production in these algae has been shown to increase as a response to osmotic shock generated by high salt concentrations, a mechanism known as osmoregulation [5,6].
Much is known about the large quantity of compounds that the algae produces as osmoregulators. These compounds range from simple carbohydrates to amino acids and even complex compounds such as digenosides [7,8].
Some of these osmoregulators synthesized by algae can have commercial uses. This is the case for glucose, sucrose, and trehalose which can even be fermented to produce bioethanol [1].
The production of bioethanol is a technology that has been established in countries like Brazil and the United States [9], and usually is obtained from either the fermentation of starch from different materials such as wheat or direct fermentation of carbohydrates using sugar cane or even from lignocellulose residues [10]. However, the production of bioethanol from primary sources that are food is not sustainable due to inevitable competition with human consumption. Hence, the production of bioethanol from microalgae biomass could be an attracttive alternative. One possible way to take advantage of this alternative is to increase the amount of fermentable carbohydrates in the biomass [11]. The object of this work was to calculate the production of fermentable carbohydrates during osmotic shock with NaCl by an isolated strain of Scendesmus.
2. Materials and Methods
2.1. Isolation and Cultivation
Twelve sites of four aquifers were sampled: Texcoco Lake, Guadalupe Lake, Lake Tabasco, Tames River, Canada. The pH and salinity of each sample was determined.
The samples were enriched with four culture media, according to the salinity of the site of their acquisition, BG11, BG11/saline (25 g/L) and Guillar F/2 media [12], in the culture conditions reported [1]. After replanting two times in liquid media, the algae that demonstrated the largest growth were planted in the solid culture media with 10% agar-agar. Upon isolation the colonies were replanted in liquid media.
2.2. Growth Kinetics
250 mL beakers with an operational volume of 150 mL were inoculated with 10% of a preculture of each isolated microalgae. Each culture was grown for ten days in the same conditions. Growth was monitored through absorbance (at 600 nm) in a Genesis colorimeter 10 UV and by dry weight every 24 h.
2.3. Analysis of Intraand Extracellular Sugars
The determination of extracellular sugars was done through the separation of the supernatant followed by the Dubois method [13].
To determine intracellular sugars, a modified Muller method was used for the extraction [1], followed by quantification through the Dubois method.
The sugars were identified through HPLC, through a method described by Bremauntz et al. [1].
2.4. Effects of Stress on Growth and the Effect of Osmotic Shock on the Production of Sugars
To test the effects of NaCl on growth, the strains were cultivated in BG11 with 0.2, 0.4 and 0.6 M NaCl under the previously described conditions. The intra and extracellular sugar concentrations were determined during the analysis of the growth kinetics.
The osmotic shock showed effects as previously described in Bremauntz et al. [1].
3. Results and Discussion
3.1. Isolation and Growth
The isolation of twelve strains, which were characterized by optical microscopy, was accomplished. Of the twelve strains, three were identified as cyanobacteria and nine were identified as eukaryotic microalgae. Seven of the strain showed growth greater than 1 g/L (Table 1).
Growth kinetics showed Cystcoccus sp, Synechocystis sp, Scenedesmus sp, and Clorella sp. had the largest amount of growth (Figure 1). All of these strains showed their maximum growth between days nine and elven. Specifically, Scenedesmus sp. presented a maximum growth of 1.58 g/L with a µmax of 0.0059 [14]; however, other authors reached values up to 1.069 (h−1), and growth of 2.63 g/L [15,16]. From this we are able to determine that the BG11 culture media and that cultivation conditions were appropriate for the growth of Scenedesmus sp.
3.2. Production of Sugars
For the production of sugars the efficiency of production of each isolated strains was determined (mg of sugar produced per liter of culture). These determined values established that the strains with the greatest efficiency were: Chlorella, Chrysosphaera, Trebouxi, and Scenedesmus, with values of 29.11, 6.22, 5.44, and 5.37 mg/L, respectively (Figure 2).
For the four strains the intraand extracellular sugars

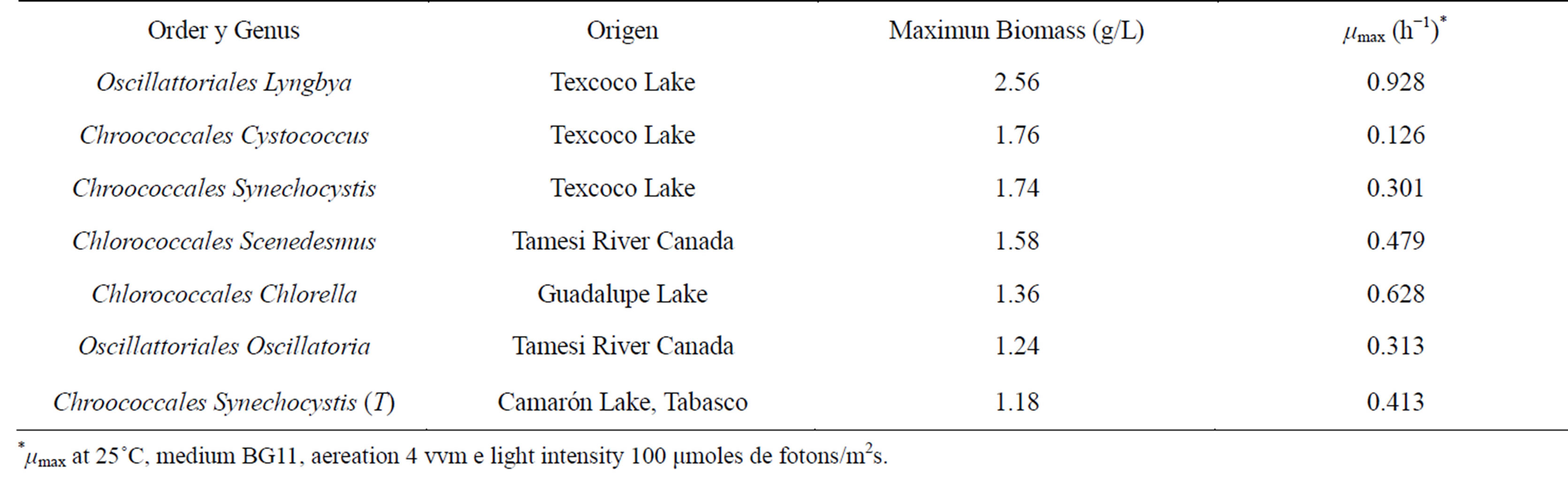

Table 1. Identification of algae that presented the most growth and their biomass production.
Figure 1. Growth of isolated strains in BG11 medium at 25˚C, 4 vvm, y 100 μmols fotons/m2s.
Figure 2. Optical Microscope images (100×) of the four strains with the greatest sugar production efficiency.
concentrations were determined. For Scenedesmus sp. only intracellular sugars, were found. The intracellular sugars a concentration of 5.48 mg/L, a sugar content of 38% g/g which is a value greater that that reported by Miranda et al. [11]. Miranda et al. reported that in studies of geometric and design optimization of bioreactors for Scenedesmus sp. reached a production of sugars of 29%; however, results reported by Shih-Hsin et al. [15] reached carbohydrate production of 46.65% with nitrogen limitations in the media. It has been observed in the literature that the formulation of the culture media as well as the quantity and intensity of the light used and even the design of the bioreactor can influence the production of sugars, lipid, proteins, and even the morphology of the genus Scenedesmus [17].
3.3. Effect of the NaCl Concentration on Growth
In all three NaCl concentrations used the growth of Scenedesmus sp. was inhibited (Figure 3). In other studies, Scenedesmus incrassatulus Bohl, growth was decreased
Figure 3. Effects of NaCl concentration on the growth of Scenedesmus sp.
with a NaCl concentration of 0.175 M [18], showing a reduction in the fixation of carbon dioxide and an increase in the production of proline. On the other hand, Demetriou et al. [19], reported inhibited growth, by measuring the production of pigments in Scenedesmus when the concentration of NaCl in the media was greater that 0.2 M; however, the production of sugars and proteins was increased when the concentration of salt was increased to 0.4 M [20]. Sheng Shu and his group completed studies with salt near metabolic levels with NaCl concentrations of 0.075 M, demonstrating that it affects photosynthetic metabolism. They found that osmotic stress inhibits the maximum production of photochemical PSII (Fv/Fm), through the competition of the receptor site of PSII. Through the addition of saline solution the destruction of thylakoids in the chloroplasts was observed [21]. This was observed through the growth experiments where after 24 h after inoculation in salt media, coloration was lost and the media went from green to white. Authors such as El-Sayed have reported a decrease of 50% of the chlorophyll content after immersion of a strain of Scenedesmus sp. in 1.5 M NaCl [22].
3.4. Effects of Osmotic Shock on Sugar Production
When the Scenedesmus sp. strain underwent osmotic shock an increase in the extracellular sugar production rate from 24 h after the shock 22 to 650 mg/g p.s. as observed 24 h after the shock (Figure 4). The osmotic solution had a concentration of 0.1 M. However, after 48 h or exposure, the increase in sugar production slows notably, where the production reaches a rate of 235 mg/g p.s. This represents a 10 times increase in the rate of production of sugars when compared to the production rate without an osmotic shock treatment and after 72 h of treatment. This matches results from experiments on the effects of salinity on the growth of this strain, where it was shown that NaCl inhibited growth after 72 h (Figure 3).
These results differ from those obtained by other authors for other species of Scenedesmus [22,23]. Kirrolia reported an increase in total carbohydrates from 0.04884
Figure 4. The effect of osmotic shock on the production of total sugars in Scenedesmus sp. in media BG11. Intracellular sugars and extracellular sugars.
to 0.06237 mg/ml in an isolated strain of Scenedesmus quadricauda in an osmotic shock solution of 0.2 M NaCl during the course of 10 days.
Analysis of both intracellular and extracellular carbohydrates (Figures 5 and 6) showed that the concentration of sucrose and trehalose increased notably in the extracellular fraction. There was 76% increase in sucrose concentration and a 37% increase in trehalose concentration. In the intracellular fraction, sucrose concentration increased 92% and there was no increase in trehalose concentration.
These results indicate that the principal osmoregulator produced by this strain of Scenedesmus sp. is sucrose and trehalose, while to a lesser extent than sucrose, also functions as an osmoregulator. The discovery of trehalose as an osmoregulator in Scenedesmus sp. has not been reported by any other group. Other groups have reported increases in the production of sucrose and trehalose in the initial phase of osmotic shock followed by stabilization after 48 h of the shock for generic Scytonema [24]. They also mentioned that the production of trehalose contributes to the stabilization of proteins in the cell membrane.
4. Conclusions
This work demonstrates that osmotic shock of Scendesmus sp. with a concentration of 0.1 M can increase the production of carbohydrates 24 h after the shock. The carbohydrates produced are sucrose (0.464 mg/g p.s.) and trehalose (0.112 mg/g p.s.). These carbohydrates were obtained in amounts larger than previously reported, or in the case of trehalose, not having been previously reported.
These simple sugars were highly attractive as possible as prime material for the production of bioethanol through simple fermentation. Direct fermentation of these sugars has been shown to be more efficient than

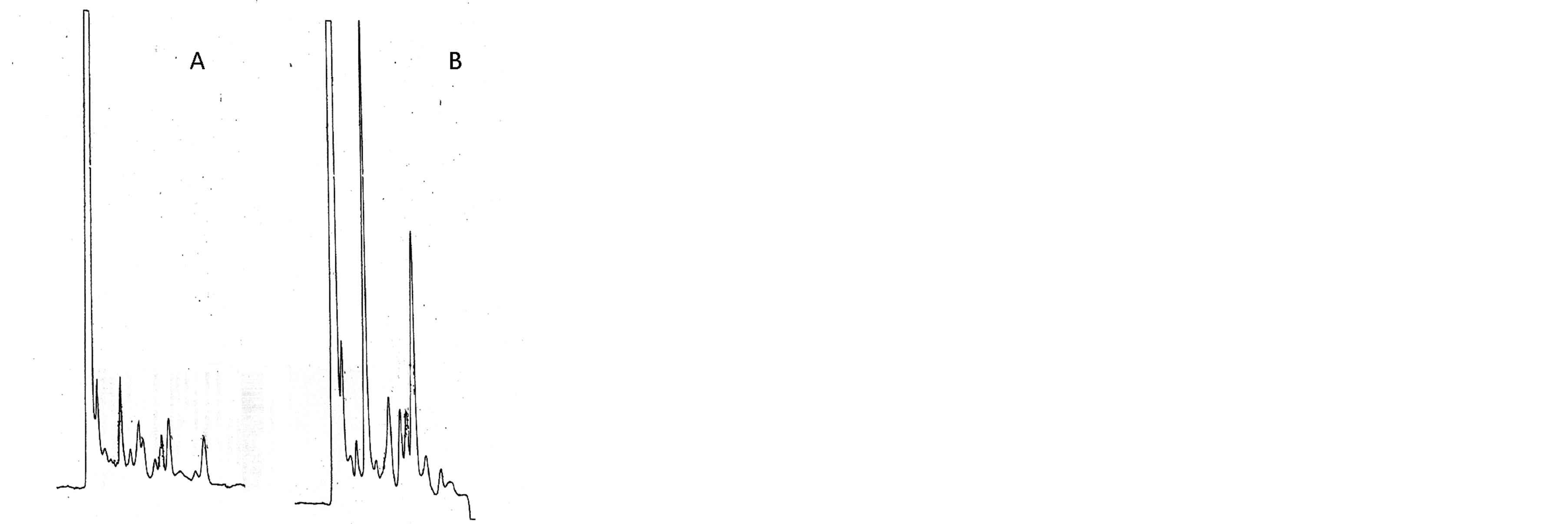

Figure 5. HPLC chromatograms of extracellular extract in Scenedesmus sp. without osmotic shock treatment (A) and with osmotic shock treatment of 0.1 M after 24h (B).

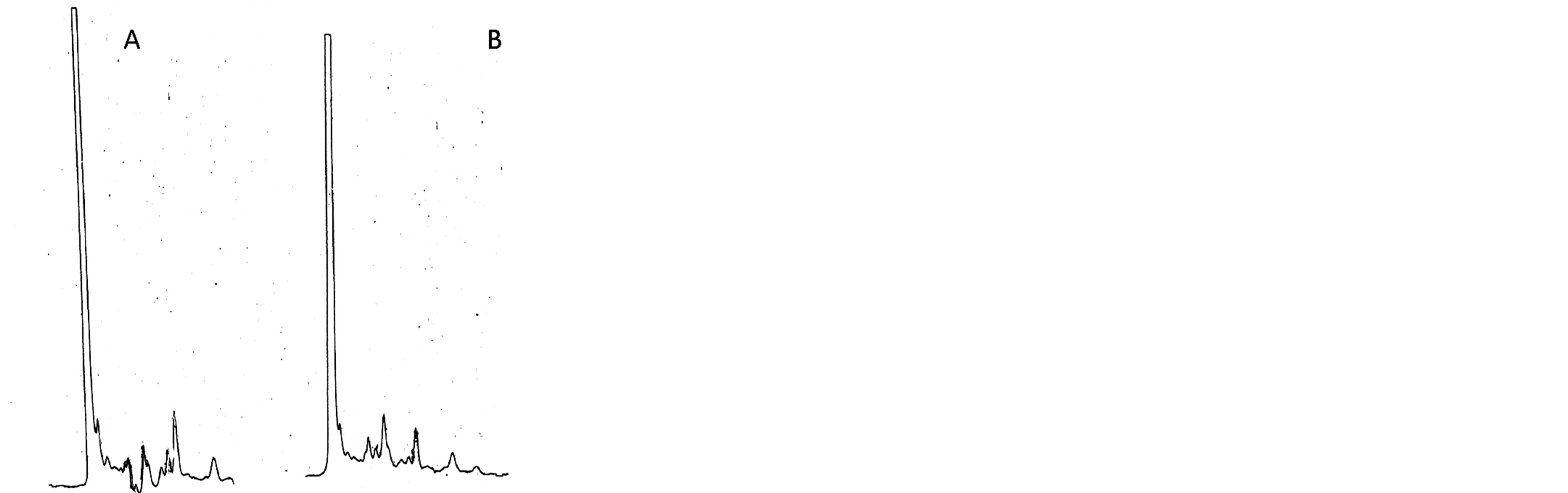

Figure 6. HPLC chromatograms of intracellular extract in Scenedesmus sp. without osmotic shock treatment (A) and with osmotic shock treatment of 0.1 M after 24 h (B).
strategies proposed by other groups who have tried producing bioethanol through an increase in cellulose/starch in the membrane of various microalgae, including Scendesmus [17,25-27].
Acknowledgements
Funding by Instituto Politecnico Nacional PIFI-20100242.
The microscopy studies and strain identificactions were led by Dr. Ma. Esther Meave from Univesidad Autónoma Metropolitana, Iztapalapa, Mexico.
HPLC analyses were made at the Central Analítica, Depto. de Biotecnología. CINVESTAV-IPN and directed by Elvira Rios, Cirino Rojas, and Gustavo Medina.
We would like to thank Alberto Bremauntz-Enriquez for reviewing the translation of the manuscript.
