Efficient Regeneration System for Genetic Transformation of Mulberry (Morus indica L. Cultivar S-36) Using in Vitro Derived Shoot Meristems

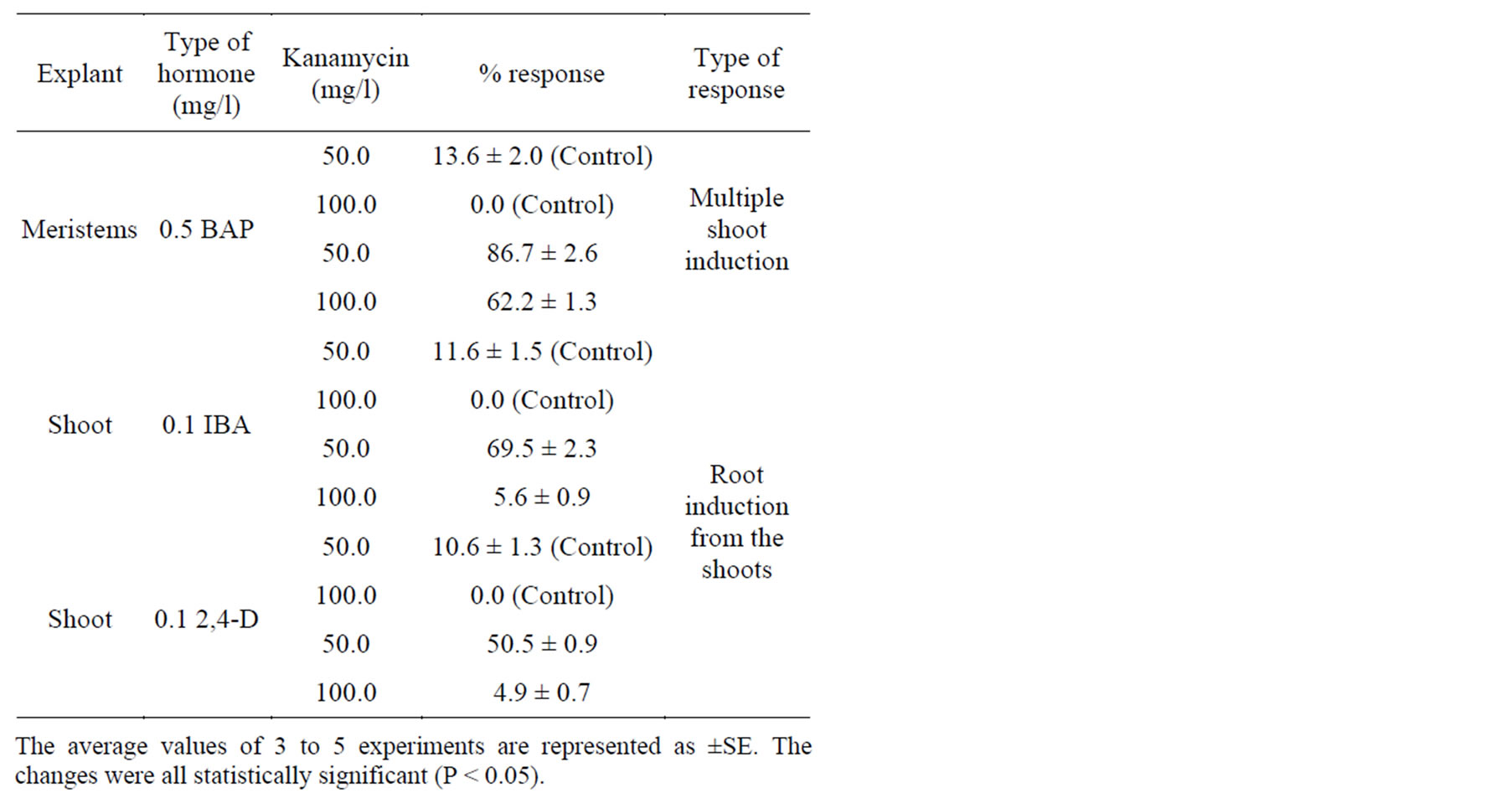

Shoot meristems used for the study were exercised from the in vitro regenerated shoots cultured on MS medium supplemented with 0.5 mg/L of BAP for multiplication. The sensitivity of the in vitro regenerated was studied using shoot meristems of 0.5 cm. Shoot meristems were cultured on medium containing 10-100 mg/l kanamycin to determine the concentration that was lethal for multiple shoot induction and root induction. The response of shoot multiplication decreased (66.2%-6.2%) as the concentration of kanamycin increased (10.0-70.0 mg/L) with complete inhibition of shoot proliferation at 100 mg/L kanamycin. The rooting phase was very sensitive to kanamycin compared to shoot multiplication. The percentage of shoots that rooted decreased (53.8%-4.8%) with increase in the concentration of kanamycin (10.0-70.0 mg/l) on IBA and 2,4-D supplemented medium. For transformation studies, the shoot tips that were infected with Agrobacterium strain were placed on selection medium containing MS medium with 0.5 mg/L BAP and 100 mg/L kanamycin and scored for the putative transformed shoots. An average of 62.2% of shoot tips developed shoot buds from the base and the shoots reached a length of 0.5-1.0 cm at the end of 30 days of culture on the selective medium in comparison to control which showed no response. An average of 66.7% of the regenerated plants showed GUS expression on selection medium where 43.2% and 65% of GUS expression was recorded in the leaves and callus. Leaves and callus induced from the controls did not show GUS activity. Stable integration of nptII gene with the genomic DNA from these transformed plants was confirmed through PCR analysis. Our result presents an efficient regeneration system using in vitro derived shoot meristems for Agrobacterium mediated gene transfer.

Share and Cite:

D. Chitra, B. Chinthapalli and G. Padmaja, "Efficient Regeneration System for Genetic Transformation of Mulberry (Morus indica L. Cultivar S-36) Using in Vitro Derived Shoot Meristems," American Journal of Plant Sciences, Vol. 5 No. 1, 2014, pp. 1-6. doi: 10.4236/ajps.2014.51001.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] T. Philip, A. Sarkar and Govindaiah, “Screening of Some Promising Genotypes of Mulberry for Leaf Spot and Rust Resistance,” Indian Journal of Sericulture, Vol. 35, No. 2, 1996, pp. 158-159.
[2] R. Ravindranan and L. G. Sita, “Micropropagation of Difficult-to-Root Elite Cultures and Induction of Embryogenesis in Mulberry (Morus indica L.),” Proceedings of XIII Plant Tissue Culture Conference, In: P. Tandon, Ed., Advances in Plant Tissue Culture in India, 1994, pp. 155-169.
[3] C. S. Gasser and R. T. Fraley, “Genetically Engineering Plants for Crop Improvement,” Science, Vol. 244, 1989, pp. 1293-1299.
[4] H. Machii, “Leaf Disc Transformation of Mulberry Plant (Mortis alba L.) by Agrobacterium Ti Plasmid,” Journal of Sericulture Science, Vol. 59, 1990, p. 105.
[5] S. Bhatnagar, K. Anita and P. Khurana, “TDZ-Mediated Differentiated in Commercially Valuable Indian Mulberry, Morus indica Cultivars K-2 and DD,” Plant Biotechnology, Vol. 18, 2001, pp. 61-65.
[6] S. Agarwal, K. Kanwar, N. Saini and R. K. Jain, “Agrobacterium Tumefaciens Mediated Genetic Transformation and Regeneration of Morus alba L.,” Scientia Horticulturae, Vol. 100, 2004, pp. 183-191.
[7] D. S. V. Chitra and G. Padmaja, “Seasonal Influence on Axillary Bud Sprouting and Micropropagation of Elite Cultivars of Mulberry,” Scientia Horticulturae, Vol. 92, 2002, pp. 55-68.
[8] L. Herrera-Estrella, A. Depicker, M. Van Montagu and J. Schell, “Expression of Chimeric Genes Transferred into Plant Cells Using a Ti-Plasmid Derived Vector,” Nature, Vol. 303, 1983, p. 209.
[9] R. A. Jefferson, T. A. Kavanagh and M. W. Bevan, “GUS Fusions: β-Glucuronidase as a Sensitive and Versatile Gene Marker in Higher Plants,” EMBO Journal, Vol. 6, 1987, pp. 3901-3907.
[10] J. J. Doyle and J. L. Doyle, “Isolation of Plant DNA from Fresh Tissue,” Focus, Vol. 12, 1990, pp. 12-14.
[11] Y. Ding, G. Aldao-Humble, E. Ludlow, M. Drayton, Y. Lin, J. Nagel, M. Dupal, G. Zhao, C. Pallaghy, R. Kalla, M. Emmerling and G. Spangenberg, “Efficient Plant Regeneration and Agrobacterium-Mediated Transformation in Medicago and Trifolium Species,” Plant Science, Vol. 165, 2003, pp. 1419-1427.
[12] E. C. Ulian, R. H. Smith, J. H. Gould and T. D. McKnight, “Transformation of Plants via the Shoot Apex,” In Vitro Cellular and Developmental Biology, Vol. 24, 1988, pp. 951-954. http://dx.doi.org/10.1007/BF02623909
[13] J. H. Gould and M. Magallanes-Codeno, “Adaptation of Shoot Apex Agrobacterium Inoculation and Culture to Cotton Transformation,” Plant Molecular Biology Reporter, Vol. 16, 1998, pp. 1-10.
[14] G. Hussey, R. D. Johnson and S. Warren, “Transformation of Meristematic Cells in the Shoot Apex of Cultured Pea Shoots by Agrobacterium tumefaciens and A. rhizogenes,” Protoplasma, Vol. 48, 1989, pp. 101-105.
[15] B. Schrammeijer, P. C. Sijmons, P. J. M. van den Elzcn and A. Hoekema, “Meristem Transformation of Sunflower via Agrobacterium,” Plant Cell Reports, Vol. 9, 1990, pp. 55-60. http://dx.doi.org/10.1007/BF00231548
[16] J. H. Gould, M. Devey, O. Hasegawa, E. C. Ulian, G. Peterson and R. H. Smith, “Transformation of Zea Mays L. Using Agrobacterium tumefacians and Shoot Apex,” Plant Physiology, Vol. 95, 1991, pp. 426-434.
[17] D. Xic and Y. Hong, “Agrobacterium Mediated Genetic Transformation of Acacia mangium,” Plant Cell Reports, Vol. 2, 2002, pp. 917-922.
[18] A. Bennici, “Cytological Analysis of Root, Shoots and Plants Regenerated from Suspension and Solid in Vitro Culture of Haploid Pelargonium,” Z. Pflanzenzuecht, Vol. 72, 1974, pp. 199-205.
[19] C. David, M. D. Chilton and J. Tempe, “Conservation of T-DNA in Plants Regenerated from Hairy Root Cultures,” Nature Biotechnology, Vol. 2, 1984, pp. 73-76.
[20] H. Yamanouchi, A. Koyama and H. Machii, “Effect of Medium Conditions on Adventitious Bud Formation in Immature Mulberry Leaves,” Japanese Agricultural Research Quarterly, Vol. 33, 1999, pp. 267-274.
[21] X. Zhan, S. Kawai, Y. Katayama and N. Morohoshi, “A New Approach Based on the Leaf Disc Method for Agrobacterium Mediated Transformation and Regeneration of Aspen,” Plant Science, Vol. 123, 1997, pp. 105-112.
