Pb-Ca-Sn-Ba Grid Alloys for Valve-Regulated Lead Acid Batteries

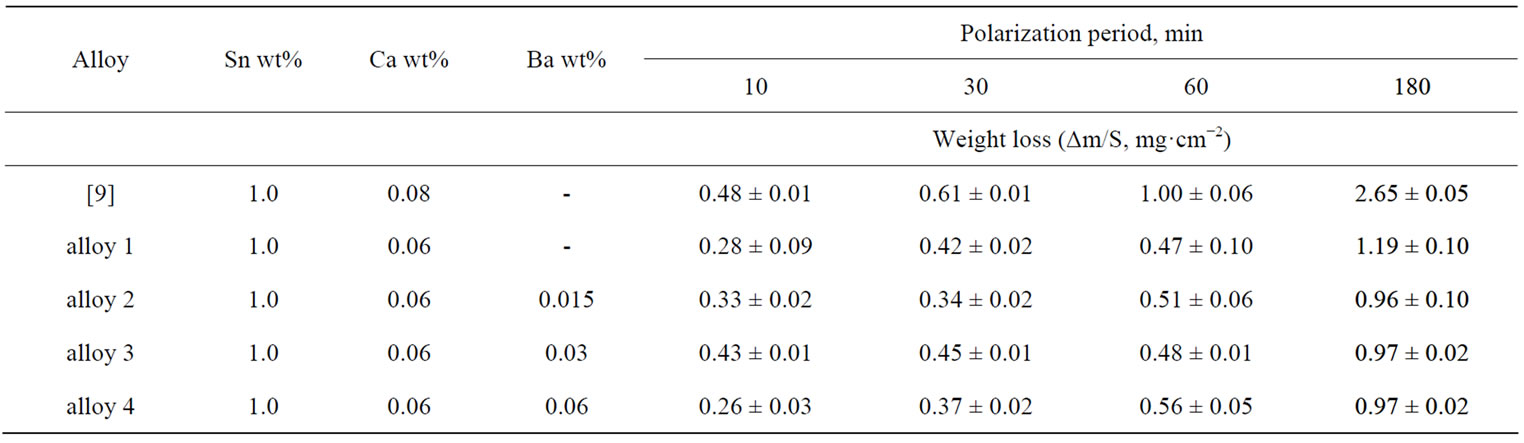

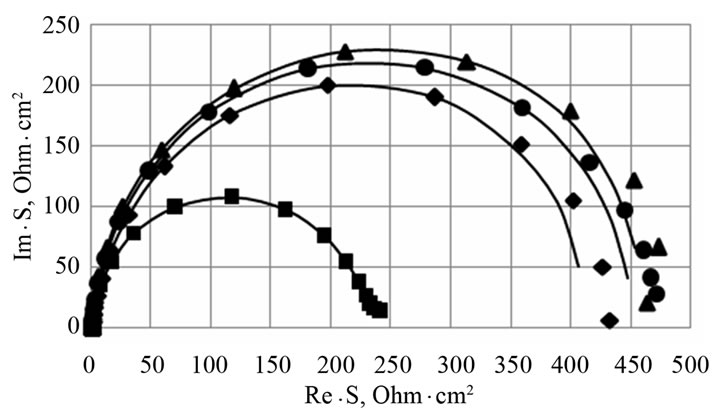

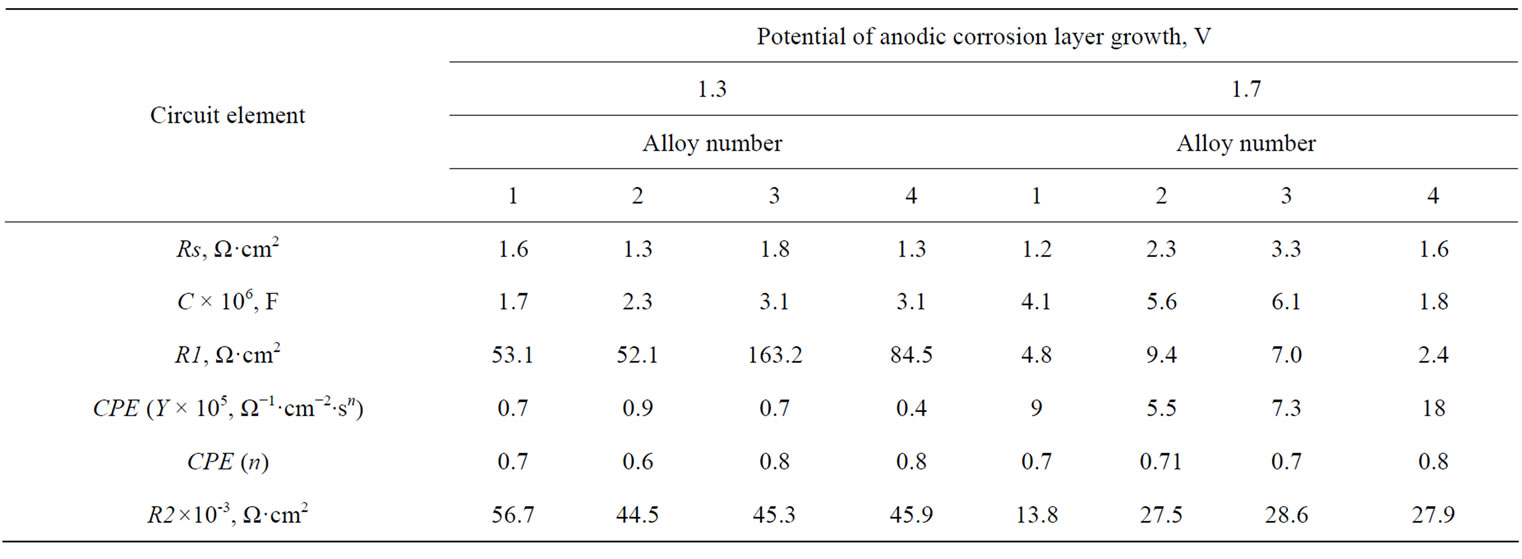

The effect of barium additives on the process of anodic corrosion of lead-tin-calcium alloys in a 4.8 М sulfuric acid solution was studied. Cyclic voltammetry, impedance spectroscopy, weight loss measurements and scanning electronic microscope analysis have allowed exploring the oxidation process and characterizing the formed corrosion layer. According to our results, barium introduction into lead-tin-calcium alloys increases their hardness, reduces their electrochemical activity, and improves their corrosion stability. Reduction of the calcium content in the alloy can be compensated by adding barium. Barium dopation at lead-tin-calcium alloys decreases the resistance of the oxide layer formed on the grid surface, in a deeply discharged state, and raises its resistance during floating conditions and at a charged state of the positive electrode.

Share and Cite:

M. Burashnikova, I. Zotova and I. Kazarinov, "Pb-Ca-Sn-Ba Grid Alloys for Valve-Regulated Lead Acid Batteries," Engineering, Vol. 5 No. 10A, 2013, pp. 9-15. doi: 10.4236/eng.2013.510A002.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] J. Furukawa, T. Hiraki, Y. Mori and Y. Nehyo, “LeadBased Alloy for Lead-Acid Battery, Grid for Lead-Acid Battery and Lead-Acid Battery,” Pat. EP1496556B1, 2008.
[2] L. D. Silva-Galvan and L. F. V. Del Mercado, “SilverBarium Lead Alloy for Lead-Acid Battery Grids,” Pat. EP1264907A1 (US20020182500, US20050142443), 2001.
[3] L. Albert and B. Madelin, “Method for the Continuous Manufacture of Positive Battery Grids and Positive Grids Obtained by Said Method,” Pat. EP0996987A1, 2000.
[4] J. Furukawa, Y. Nehyo and M. Ozaki, “Lead-Based Alloy for Lead-Acid Battery Grid (Text from WO200410 4244A1),” Pat. EP1629132A1, 2006.
[5] E. Gullian, L. Albert and J. L. Caillerie, “New Lead Alloys for High-Performance Lead-Acid Batteries,” Journal of Power Sources, Vol. 116, No. 1-2, 2003, pp. 185-192. http://dx.doi.org/10.1016/S0378-7753(02)00705-X
[6] M. M. Burashnikova, I. A. Kazarinov and I. V. Zotova, “Nature of Contact Corrosion Layers on Lead Alloys: A Study by Impedance Spectroscopy,” Journal of Power Sources, Vol. 207, 2012, pp. 19-29. http://dx.doi.org/10.1016/j.jpowsour.2011.12.042
[7] D. A. J. Rand, P. T. Moseley, J. Garche and C. D. Parker, “Valve-Regulated Lead-Acid Batteries,” ELSEVIER, Amsterdam, 2004.
[8] R. D. Prengaman, “Wrought Lead Calcium Tin Alloys for Tubular Lead-Acid-Battery Grids,” Journal of Power Sources, Vol. 53, No. 2, 1995, pp. 207-214. http://dx.doi.org/10.1016/0378-7753(94)01975-2
[9] E. V. Inozemtseva, M. M. Burashnikova and I. A. Kazarinov, “Influence of Some Components of Lead-Antimony and Lead-Calcium Alloys on Their Mechanical and Corrosion Properties,” Elektrokhimicheskaya Energetika, Vol. 7, No. 4, 2007, pp. 196-199.
[10] E. Rocca, G. Bourguignon and J. Steinmetz, “Corrosion Management of PbCaSn Alloys in Lead-Acid Batteries: Effect of Composition, Metallographic State and Voltage Conditions,” Journal of Power Sources, Vol. 161, No. 1, 2006, pp. 666-675. http://dx.doi.org/10.1016/j.jpowsour.2006.04.140
[11] H. Okamoto, “Ba-Pb (Barium-Lead),” Journal of Phase Equilibria and Diffusion, Vol. 29, No. 3, 2008, p. 293. http://dx.doi.org/10.1007/s11669-008-9310-3
