Recovery of Iron Bearing Minerals from Beneficiation Plant 2 Thickner Underflow of JSW Steel Limited


To identify and establish beneficiation techniques for slime, a comprehensive research work was carried out on beneficiation plant 2 thickener underflow (Tailing). Iron ore slimes (-45 micron ~80.0%) generated at beneficiation plant 2 assaying 46.7% Fe, 10.82% SiO2, and 4.58% Al2O3 have been subjected to various beneficiation studies like cyclone, wet high intensity magnetic separator and flotation to recover the iron bearing minerals. The effects of different operating parameters have been studied to get a product suitable for pellet making. Detailed beneficiation studies indicate that it is possible to obtain a product containing 61.8% to 66.6% Fe, 1.80% to 3.35% SiO2, and 1.65% to 2.40% Al2O3 with 8.0% to 22.3% weight recovery by adopting de-sliming followed by magnetic separation. Within this product grade range the pellet grade fines (JSW norms-minimum 63.0% Fe) consist of 63.0% Fe, 2.97% SiO2 and 2.48% Al2O3 with 16.9% weight recovery and 56.9% Fe recovery at 0.5 Tesla magnetic field intensity, pulsation rate 230 rpm and 2 min residence time.

Share and Cite:

Umadevi, T. , Singh, A. , Abhishek, K. , Suresh, B. and Sah, R. (2013) Recovery of Iron Bearing Minerals from Beneficiation Plant 2 Thickner Underflow of JSW Steel Limited. Journal of Minerals and Materials Characterization and Engineering, 1, 55-60. doi: 10.4236/jmmce.2013.12011.

1. Introduction

In JSW Steel Limited, iron ore is being beneficiated to meet the quality requirement for iron making units. JSW Steel Limited is 10 Mtpa integrated steel plant and requires nearly 25 Mtpa iron ore to produce a ton of steel. In India, Bellary-Hospet region is endowed with large reserves of good quality of iron ore. The iron ore of this region is although rich in iron content but suffers from two disadvantages. One is high alumina content in the iron ore and second is softness of the ore which generates huge quantity of fines and slimes during mining and beneficiation. JSW Steel limited operates 3.0 mtpa and 13.0 Mtpa beneficiation plant1 and beneficiation plant 2 to beneficiate medium grade and low grade iron ore fines in the range of 58% to 61% Fe and 55% to 60% Fe respectively. Beneficiation plant 2 circuits consist of crusher, scrubber, two stage classifier, spiral, and hydrocyclone and wet high intensity magnetic separator. During the beneficiation of low grade iron ore nearly 25% to 30% (3.25 to 3.90 Mtpa) of the material is disposed into the tailing ponds as slimes. The discarded slimes contain approximately 46% to 53% Fe, 7% to 8% alumina and 9% to 10% silica. These slimes contain 70% - 80% minus 25 microns material, which is unique as compared to slimes elsewhere. In order to recover additional values from these slimes, detailed beneficiation studies have been carried out on thickener U/F (Tailing) sample of beneficiation plant 2.

The beneficiation of iron ore slime produced from washing plants and tailing ponds of Kiriburu mines was studies [1] using wet high intensity magnetic separator followed by classification in a hydrocyclone. They showed that a concentrate assaying 63% Fe and 3.3% alumina could be produced with an overall iron recovery of 56%. Similarly Das et al. [2] studied iron ore slimes from Barusa, Bolani and Kiriburu using classification by hydrocyclone followed by wet high intensity magnetic separation. Their results indicated that a concentrate assaying 60% to 65% Fe with 60% to 80% recovery can be obtained. Multigravity separator is a useful technique for treating iron ore slime and particularly effective in reducing alumina content [3]. However, it is not very successful commercially due to its low capacity [4]. Studies have been carried out on two slime samples from Boloani iron ore washing plant revealed the possibility of recovering both iron as well as water effectively. The separation in hydrocyclone gives the products having 64% to 65% Fe could be obtained with less than 2.0% SiO2 and Al2O3 from feed having 59% to 60% Fe, 4.0% SiO2 and 4.80% Al2O3 [5].

The beneficiation of JSW slimes containing significant amount of Fe along with SiO2 and Al2O3 is quite difficult. It is also difficult to know the characteristics of these slimes due to finer size below 25 to 50 micron size. Hence, in the present case magnetic separation and flotation process were adopted on hydrocyclone product to study the slimes of the size 25 to 50 micron size.

2. Experimental

The sample was collected from BP2 plant thickener and transported to R&D laboratory. The average particle size of the sample was found to be 35 micron. The sample was thoroughly mixed and prepared the representative sample for different investigations. Various physicochemical, mineralogical and beneficiation studies were carried out to recover iron bearing minerals from slimes as pellet feed. Size wise analysis was carried out on slime sample to know the particle distribution and elemental distribution at different sizes using 150 to 25 micron size screen and cyclosizer.

Since the slime samples are very fine, optical microscopic study is not very convenient. However, with some care polished sections were studies by cold mounting under optical microscope. Size analysis of the sample at various beneficiation steps were carried out using Hellos particle size analyser.

The laboratory batch scale beneficiation studies were carried out using hydrocyclone, wet high intensity magnetic separator and flotation.

Bench scale hydrocyclone studies were carried out on received sample using 75 mm hydrocyclone. Total 3 numbers of experiments were carried out by varying the spigot diameter 5, 8 and 10 mm. The other operating parameters like vortex finder diameter 25 mm, cyclone operating pressure 30 Psi, percentage of solids 12% were kept constant for all experiments. The products obtained from the de-sliming cyclone separation studies were collected, dried, taken weight and sent for chemical analysis.

Bench scale magnetic separation studies were carried out with a laboratory model Slon wet high intensity (WHIMS) magnetic separator. In the bench scale separator supplied by Slon magnetic separator, China, a 1mm grid plate was selected based on the particle size of the material. The experiments were carried by varying magnetic field intensity, residence time and pulsation rate.

A Denver D-12 sub-aeration flotation cell of 1 liter capacity was used for laboratory batch scale flotation studies. The sample was conditioned at 20% solids with the desired amounts of reagents for a predetermined time. The starch, amine (Sokem 503C and 523C) and methyl isobutyl carbinol (MIBC) was used as the depressant, collector and frother respectively. Diluted sodium hydroxide of analytical grade was used as pH regulator. The concentrates and tailings of the flotation process were collected separately, dried, weighed, and analysed to access product quality and recovery.

Total 11 numbers of experiments were carried out by varying the slurry pH from 9 to 10, collector dosage from 0.4 to 1.0 kg/t with the interval of 0.2 kg/t and the depressant dosage was varied from 0.8 to 1.0 kg/t. During flotation studies 20% solids, impeller rpm 1200 and frother dosage 0.02 kg/t, conditioning time 5 min and froth collection time 4 min were kept constant for all experiments. The products obtained from the each flotation studies were collected, dried, taken weight and sent for chemical analysis.

3. Results and Discussion

3.1. Characterization Studies of Slimes

The complete chemical analysis of the slime sample is shown in Table 1. The sample contains 46.7% Fe, 10.82% SiO2, and 7.95% Al2O3. The iron oxide content in the sample is 66.8%. From the analysis it was observed that silica and alumina is the major gangue minerals present in the sample. The −10 micron size consists of 33.0% Fe. The size and chemical analysis of the individual fractions are shown in Figure 1. From the chemical analysis of the various size fractions, it is observed that Fe content at various fractions decreased with decrease in size. From the size analysis it was realized that the separation of gangue minerals from iron in the bulk ore by any classification technique, which had been used to treat typical Indian iron ore slimes where gangue materials preferentially accumulated in finer sizes, would be effective. Figure 2 shows the cumulative passing size of the bulk sample. Cumulative 80% passing size of the sample is 35 µm size.

3.2. Mineralogical Studies

Mineralogical characterization studies were carried out on polished sections using optical microscope. Hematite,

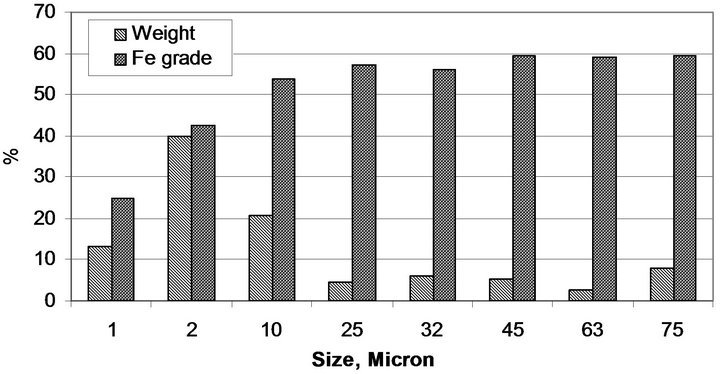

Figure 1. Size and chemical analysis of the fractions.

Table 1. Chemical analysis of the bulk sample.

goethite and martite are the major iron bearing minerals and quartz and koalinite are the major gangue minerals. Magnetite is oxidized to martite. Goethite consists of hematite and martite inclusions. Figure 3 shows the phase analysis of the bulk sample. The sample consists of 71.0% iron bearing minerals and 29.0% gangue bearing minerals in which goethite contribute 40% by area.

3.3. Beneficiation Studies

The key to successful utilization of slimes (beneficiation plant 2 tails) is to develop a beneficiation strategy, which is economical and consistent with its mineralogy and fineness of the particles. It has been found from the detail chemical and mineralogical studies that iron content in the finer size below 10 micron size is very low. Also, silica and alumina content increases with decrease in particle size. It is therefore apparent that the preliminary concentration by hydrocyclone could be achieved as silica and alumina particles are distributed at finer size. So it is decided to explore the hydrocyclone studies followed by magnetic separation and flotation studies to achieve pellet grade concentrate.

3.3.1. Separation by Hydrocyclone

The results of the hydrocyclone studies are shown in Table 2. Figure 4 shows the influence of spigot diameter on

Figure 2. Cumulative passing size of the bulk sample.

Figure 3. Phase analysis of the bulk sample.

Figure 4. Influence of cyclone spigot diameter on product weight recovery and Fe grade.

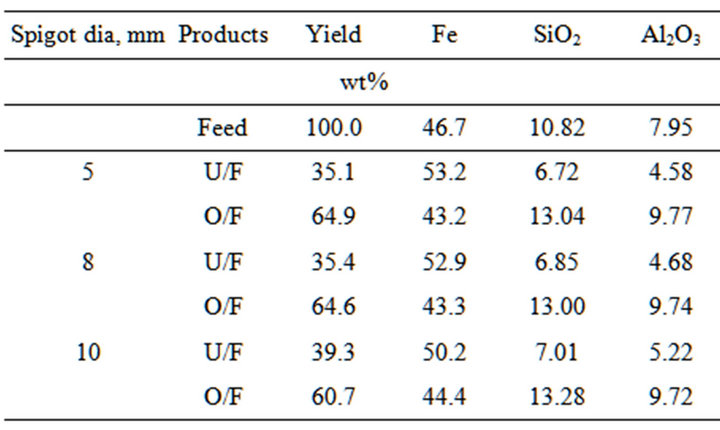

Table 2. Results of hydrocyclone studies.

product yield and Fe grade. With increase in spigot diameter from 5 to 10 mm concentrate yield increased from 35.12% to 39.28% and Fe grade decreased from 53.2% to 50.2%. For further beneficiation studies, the hydro-cyclone underflow of 8 mm spigot product was considered. The results indicate that iron grade of 52.9% Fe, 6.72% SiO2 and 4.58% Al2O3 with 35.4% yield can be obtained at 8 mm spigot diameter. With spigot diameter 5 mm and 8mm size Fe grade and recovery of the underflow product is comparable.

Figure 5 shows the d50 cut point of the de-sliming cyclone. The de-sliming cyclone d50 cut point is 12.1 micron.
