Enhancing Smart Grid with Session-Oriented Communication System to Truly Support Reliability and Robustness

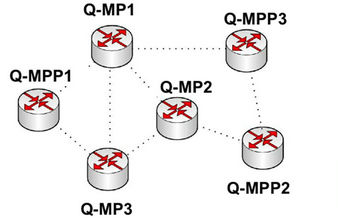

Environmental sustainability issues and the costs of new power generation and transmission have increased the interest in evolving current power grid to new technologies. The Smart Grid is a promising technology, since it allows a distributed computing approach with potentials for self-diagnosing/-healing, reliable multi-user communication and fast hard real-time control. However, the missing standardization associated with heterogeneity of legacy systems and wide-area service demands, makes very challenging to adopt Smart Grid in a cost-effective way. By considering this, we propose the Session-Oriented Communication System (SOCSys) to overcome the above issues by enhancing Smart Grid with truly reliable and robust capabilities over heterogeneous environments. SOCSys achieves this goal by orchestrating session-control with innovative network-centric facilities operating over a wireless mesh Information Network compliant with IEEE 802.11e/s standard. The simulation results show that SOCSys improved network performance in terms of bandwidth utilization and minimization of delay, while consuming low network resources. Graphical analyses showed that SOCSys supported multimedia sessions with excellent quality, where it outperforms the experiments with regular settings.

Share and Cite:

A. Neto, H. da Silva, E. Cerqueira, J. de Souza, L. Pirmez, D. Gomes, F. Delicato and R. Aguiar, "Enhancing Smart Grid with Session-Oriented Communication System to Truly Support Reliability and Robustness," Smart Grid and Renewable Energy, Vol. 3 No. 4, 2012, pp. 260-265. doi: 10.4236/sgre.2012.34036.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] C. Gellings, “Estimating the Costs and Benefits of the Smart Grid: A Preliminary Estimate of the Investment Requirements and the Resultant Benefits of a Fully Functioning Smart Grid,” Electric Power Research Institute (EPRI), Technical Report (1022519), 2011. http://www.sgiclearinghouse.org/node/3272
[2] D. Von Doller, “Report to NIST on the Smart Grid Interoperability Standards Roadmap,” Electric Power Research Institute (EPRI) and National Institute of Standards and Technology, 2009. http://www.smartgrid.gov/document/report_nist_smart_grid_interoperability_standards_roadmap
[3] ISO/IEC 9506, “Industrial Automation Systems—Manufacturing Message Specification: Service Definition,” 2003.
[4] IEEE, “IEEE 802.11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications,” 2007. doi:10.1109/IEEESTD.2007.373646
[5] IEEE Draft Standard 802.11e/D13.0, 2005. http://ieeexplore.ieee.org/servlet/opac?punumber=4040913
[6] G. Hiertz, D. Denteneer, S. Max, R. Taori, L. Berlemann and B. Walke, “IEEE 802.11s: The WLAN Mesh Standard,” IEEE Wireless Communications, Vol. 17, No. 1, 2010, pp. 104-111. doi:10.1109/MWC.2010.5416357
[7] F. Hashiesh and P. Soukal, “A Proposed Broadband Power Line Communication System for Smart Grid Applications in a Typical Egyptian Network,” 17th Telecommunications Forum TELFOR, Serbia, 24-26 Novembre 2009, pp. 433-437.
[8] Y. Yorozu, M. Hirano, K. Oka and Y. Tagawa, “Electron Spectroscopy Studies on Magneto-Optical Media and Plastic Substrate Interface,” IEEE Translation Journal on Magnetics in Japan, Vol. 2, No. 8, 1987, pp. 740-741. doi:10.1109/TJMJ.1987.4549593
[9] P. K. Lee and L. L. Lai, “A Practical Approach of Smart Metering in Remote Monitoring of Renewable Energy Applications,” Power & Energy Society General Meeting, Calgary, 26-30 July 2009, pp. 1-4.
[10] E. Cerqueira, et al., “QoS Mapping and Adaptation Control for Multi-User Sessions over Heterogeneous Wireless Networks,” ACM International Mobile Multimedia Communications Conference, Nafpaktos, August 2007.
[11] H. Yihua, et al., “On Routing Asymmetry in the Internet,” Proceedings of IEEE GLOBECOM’05, St. Louis, December 2005.
[12] K. Curtis, “DNP3 Primer, Revision A,” DNP Users Group, 2005.
[13] International Electrotechnical Commission, “IEC 61850-6: Communication Networks and Systems for Power Utility Automation—Part 6: Configuration Description Language for Communication in Electrical Substations Re lated to IEDs,” Edition 2.0, 2009.
[14] The NS-2 Home Page, 2012. http://www.isi.edu/nsnam/ns/
[15] Y. Botza, M. Shaw, P. Allen, M. Staunton and R. Cox, “Configuration and Performance of IEC 61850 for FirstTime Users—UNC Charlotte Senior Design Project,” University of North Carolina Charlotte and Schweitzer Engineering Laboratories, Inc., 2008.
[16] Evalvid, “A Video Quality Evaluation Tool-Set,” 2009. http://www.tkn.tu-berlin.de/research/evalvid/
[17] “Report to Department of Energy on the Communications Requirements of Smart Grid Technologies,” 2010.
