Texture Analysis for Makeup-Free Biometrics: A Solution for Imposture Mitigation ()
1. Introduction
The biometric system is the security system that recognizes and identifies people based on their biological and behavioral characteristics. This biometric authentication system is used for various applications like the security of computers and mobile phones, airports, banks, military bases, biometric attendance, and tracking systems. Though biometric systems improve security, like any other system, they are vulnerable and prone to threats.
Face recognition is one of the popular biometric authentication methods. The system is said to be vulnerable when it falsely identifies an individual and gives them access rights which can lead to the exploitation of information. This vulnerability is due to a variety of attacks like spoofing, obfuscation, morphing, and makeup. The solution to the spoofing attacks has already been studied in lots of papers [1].
Presentation attack detection (PAD), also referred to as “anti-spoofing” or “Liveness detection,” may be a critical capability to think about when deploying face recognition in automated authentication and identification scenarios. Whereas face recognition determines if a presented face matches a registered record, PAD determines whether the face itself may be authentic or is a copy of the face, from a photograph to a video sample on an LCD to a high-resolution 3D mask [1] [2].
Despite a good deal of progress in face recognition systems, vulnerabilities to face spoof attacks are mainly overlooked. The facial spoof attack may be a process during which a fraudulent user can subvert or attack a face recognition system by masquerading as a registered user and thereby gaining illegitimate access and advantages. Face spoofing attacks may be a major issue for companies selling face biometric-based identity management solutions. It is thus essential to develop robust, efficient, and compact face anti-spoofing (or liveness detection) methods, which are capable of generalizing well to discriminative, class-specific information and imaging conditions.
To achieve this goal, the main focus is on the attack caused by makeup, which is the makeup attack. The application of cosmetics on the face to look like other people like celebrities can sometimes confuse the biometric system. Makeup can cause variation in skin tone, skin complexion, lip color, eye shadows, the position of eyebrows, and the overall appearance of the person. This vulnerability due to the makeup attack must be addressed to improve the biometric system security. The overall flow of paper goes as first have gone through all the survey papers and got the limitations on the existing system. Second proposed structure is defined. Third, experimental results and evaluation are done. Finally, a comparison is done between models [3] [4].
The biggest limitations of such a method when applied to real-time biometric systems include data breaches, which are critical to ensure interception-free and theft-free biometric data. Light & Weather: Facial recognition might not perform very efficiently in low-light conditions as well as outdoors. Aging Biometric: Such biometrics, like a photo of the face or fingerprint from a person, may change over time, thus affecting recognition accuracy [5] [6].
2. Literature Survey
Several papers and applications on makeup detection and facial makeup removal have been studied as a reference for this work. The details that have been inferred from those applications and papers are discussed below.
2.1. Classification of Makeup
The proposed method uses a feed-forward back-propagation neural network-based classifier for classification. The classification makes use of features extracted using a discrete wavelet transform approach from face samples [7] [8]. The most commonly used neural network architecture with the back propagation algorithm is the multilayer feed-forward network. This technique is not only computationally less extensive than other techniques but also provides the best results on various images. The robustness for image variation in rotations, illuminations, etc., must be improved. The evaluation of the robustness of the largest data sets is necessary for practical use.
The vulnerability of a widely used open-source face recognition system (i.e.) Arc face, to makeup presentation attacks using makeup-induced face spoofing datasets like MIFS and FRGCv2.The success rate of makeup attacks in the MIFS datasets has an impact on the security of the face recognition system. The warping technique is used to simulate improved makeup presentation attacks, which result in a higher success rate [9] [10]. The m-PAD technique is used to compare and classify the bonafide and makeup images. Provides better performance in all the datasets.
A convolutional neural network is used to distinguish between presentation with age-induced facial makeup and without makeup. Proposed presentation attack detection provides a 6.6% Average classification error rate in the AIM (Age-induced makeup) dataset and 4% in all the datasets. AIM dataset contains 200 + video presentations of old-age makeup and original faces each [1]. AIM dataset results in a 14% decrease in the median matching scores of recent CNN-based FR systems. Overall accuracy is 93% using the AIM dataset [11] [12].
2.2. Makeup Exclusion
The WGAN-GP approach is used to remove the makeup. The dataset collected consists of five separate datasets (MIFS, FAM, YMU, VMU, MIW) of a total of 2600 images of 1300 different people. Each person has two images, one with makeup and the other without makeup. CNN model is developed to classify whether the person is with makeup or without makeup, and then a generative adversarial network (GAN) model is built to remove the makeup from the image [13] [14]. The best accuracy obtained for this model was 80% on training and 79% on testing.
The aim is to promote the existing verification system to accept or reject the claimed identity of a person with makeup in an image. A makeup robust face verification framework is proposed based upon a generative adversarial network. The proposal synthesizes non-makeup face images from makeup images. Specifically, a patch wise contrastive loss is introduced in the generative model to constrict the distance between makeup and non-makeup images [10] [15].
A bidirectional tunable de-makeup network (BTD-Net) is proposed to remove makeup effects. For tractable learning of the makeup process, which is one-to-many mapping determined by the cosmetics that are applied, a latent variable is used which reflects the style of the makeup [16] [17]. This latent variable is extracted from the de-makeup process and used as a condition of the makeup process to constrain the one-to-many mapping to a specific result. The proposed BTD-Net surpassed the state-of-the-art techniques in estimating realistic no-makeup faces that correspond to the input makeup images.
3. Proposed Method for Imposture Identification
The proposed system has two major levels of processing: first classification and second removal. In the classification phase, the first image taken as an input may consist of noise which should be removed. A Gabor filter is used to remove noise. Second, pre-processing is done to extract the features of the image. Finally, based on feature, the different convolution neural network hidden layers are used to classify the categories of makeup and no makeup images. In the removal phase generative adversarial network is used to generate real images from fake images in a cyclic fashion.
3.1. Process Work Flow of Classification of Makeup
3.1.1. Data Preparation and Pre-Processing
Data Pre-processing is one of the important steps in machine learning. Each image in the dataset (both makeup and no makeup images) is processed before being given as input to the model. The face from the image is detected using the Haar-cascade algorithm. The detected face is then cropped and saved as an image. By doing this, the images that contain no face are eliminated and only the face is extracted leaving the unwanted information as shown in Figure 7. At first, the input images are resized into 256 × 256 and the bilateral filter is applied to remove any available noise. The Gabor filter is applied to the image to extract the features. This process is shown in Figure 8. The image is then divided into 9 × 9 = 81 blocks. Uniform LBP is calculated for each of these blocks. A histogram is computed for each block and is then concatenated to form a feature vector, as shown in Figure 1.
Select a filtering technique that is dynamically according to noise characteristics. For instance, bilateral filtering can be used for moderate noise, and more sophisticated methods such as deep learning-based de-noising, can be applied for high noise levels. While the bilateral filter works well under moderate noise circumstances coupled with edge-preserving noise filtering, it may not work in all situations, especially in the case of high density noise. Combining it with adaptive-nose-specific techniques and training robust models significantly benefits the system’s overall performance.
Figure 1. Workflow of classification model.
3.1.2. Step by Step Procedure of the Proposed VGG Architecture
The proposed deep convolution neural network VGG consists of several layers to classify the makeup and on makeup image.
The extracted feature is fed to the classifier model, which classifies the given input image as makeup or as no makeup. The classifier is built using the VGG architecture mentioned in Figure 2. This classifier returns a value that ranges from 0 to 1. Since the sigmoid activation layer is used, the value below 0.75 indicates that the image belongs to class 0 which is no makeup and the value above 0.75 indicates that the image belongs to class 1 which is makeup.

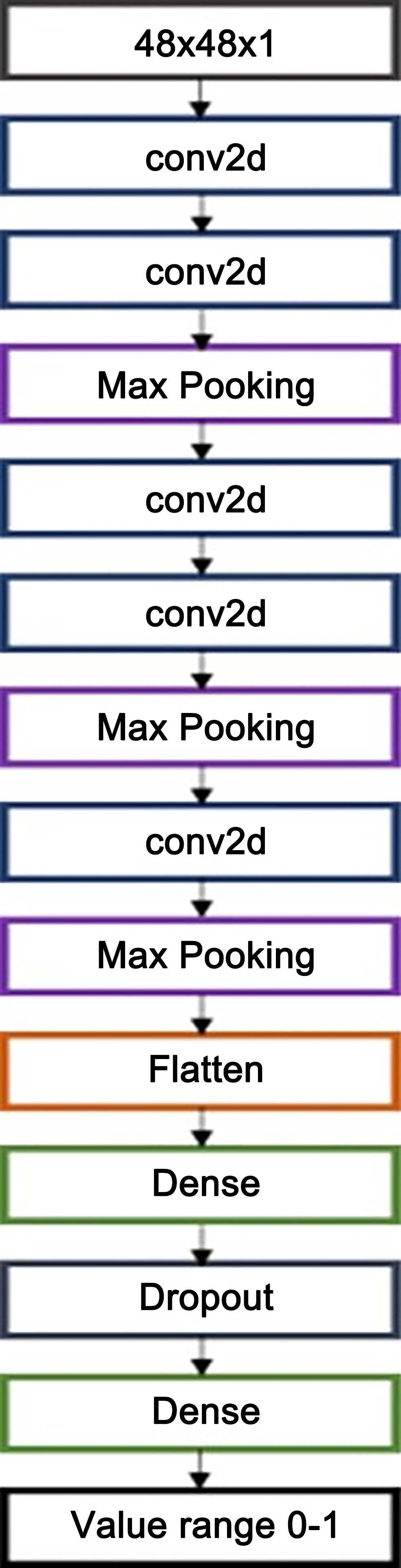

Figure 2. Proposed VGG architecture.
The cutoff of 0.75 for makeup classification is most probably the outcome of very thorough studies to reach an optimum between precision and recall, not static but to be taken again whenever applying to a dataset of different characteristics or when the application of the system changes. True Positive Rate (TPR) against False Positive Rate (FPR) for different thresholds can be drawn to find the most optimal point. The threshold chosen is high like 0.75 to minimize false positives (non-makeup is considered as makeup).
3.2. Process Work Flow for Makeup Elimination
The proposed makeup removal model uses generative adversarial network which works like a cyclic process. Back tracking can be done easier using the reverse mechanism. The working of generators and discriminators as follows.
Generator A takes makeup images as input and generates the no-makeup images.
Generator B takes the no-makeup images from generator A as input and generates makeup images.
The generated images are then passed to the discriminator models which check the plausibility of the images and update the generator models accordingly as shown in Figure 3.

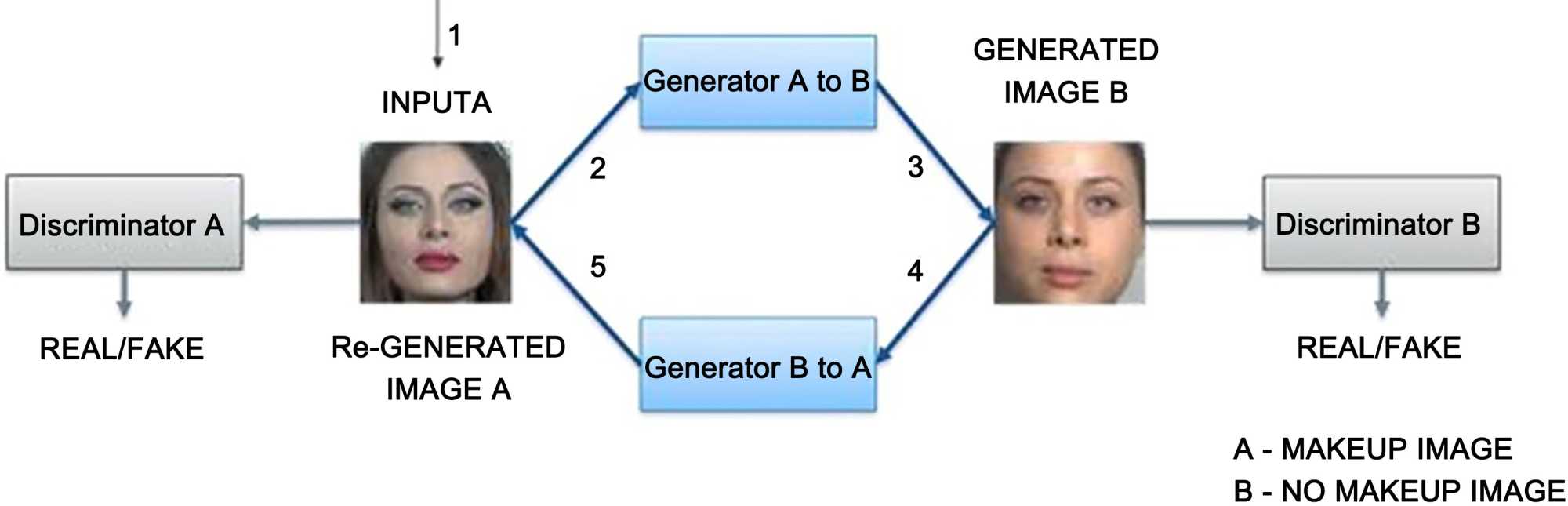

Figure 3. Workflow of makeup removal model.
Here, only the makeup to no makeup translation is required. Hence, we concentrate on generator A. The makeup image is given as an input to this model which generates the corresponding no-makeup image. After detecting whether the subject is wearing makeup or not using the presentation attack classification model, this makeup removal model is used to extract the original face. This can prevent the vulnerability caused by makeup attacks and improve the security of biometric systems.
3.2.1. Step by Step Procedure of the Proposed pix2pix GAN
The proposed Pix2pix GAN is based on the conditional generative adversarial network, where a target image is generated. The condition is placed on the given input image.
The encoder and decoder of the generator are comprised of standardized blocks of convolutional, batch normalization, dropout, and activation layers as shown in Figure 4. This standardization means that we can develop helper functions to create each block of layers and call it repeatedly to build up the encoder and decoder parts of the model. Major limitation of Pix2pix GAN is, it accepts only paired images as input for training the model. This problem is solved using Cycle GAN.
Figure 4. Encoder and Decoder of pix2pix GAN.
3.2.2. Step by Step Procedure of the Proposed Cycle GAN
This Cycle GAN is a model is for focusing unpaired images. In this proposed Cycle GAN involves in training of two generator models and two discriminator models. The process is given as follows:
3.3. Loss Functions to Improve Performance
Four loss functions have been implemented to improve the performance of the model. These loss functions are explained below.
3.3.1. Adversarial Loss
The adversarial loss is calculated based on the probabilities returned by the discriminator network. In the adversarial model, the discriminator network is fed with generated images generated by the generated network [18].
Here,
is the generated image and
represents the probability that the generated image is a real image.
3.3.2. Identity LOSS
Loss of identity is added to maintain the tone. It says that if the generator receives an image of the target class, it should return the same image.
.
λ is a term added to define the relative importance of cycle and identity losses, compared to the GAN losses.
3.3.3. Cycle Loss
From left to right: input, cycle consistency loss alone, adversarial loss alone, GAN + forward cycle loss (F(G(x)) ≈ x, labels → photos) GAN + backward cycle loss (G(F(y)) ≈ y, photos → labels, Cycle GAN (ours), and ground truth. Both Cycle alone and GAN + backward fail to produce images similar to the target domain [19].
Forward cycle loss: In forward cycle loss, the makeup image is given as an input to Generator B, which generates the no makeup image. When this no-makeup image is given to Generator A, it should generate the same makeup image. The Forward cycle loss follows the order 2 -> 3 -> 4 -> 5 as shown in Figure 3.
Backward cycle loss: The backward cycle loss is the reverse process of the forward cycle loss. It follows the order 4 -> 5 -> 2 -> 3 as shown in Figure 3.
3.4. Data Collection
For imposture identification, the dataset should contain makeup and no makeup images. Due to limited dataset available, dataset such as MIFS (Makeup Induced Face Spoofing), YMU (YouTube Makeup dataset), VMU (Video Makeup dataset), FAM (FAce Makeup), MIW (Makeup In Wild) are combined together. This combined dataset is split into two categories—(i) Makeup and (ii) No makeup images. The dataset contains 949 makeup images and 1085 no makeup contains images as shown in Figure 5 and Figure 6.
Biometric features might be related to ethnic groups (facial structures, skin textures, and iris patterns). The lack of such representation can lead to biased feature extraction. Systems designed for cross-generational applications (healthcare or education) tend to have a reduction in reliability if different ages are not considered. Gender diversity should also be analyzed in conjunction with ethnicity and age to alleviate the compounding bias and ensure fair performance for all. Achieving dataset diversity in terms of ethnicity, age, and gender would be an ethical and technical requirement for robustness, fairness, and generalizability in biometric models. Well-distributed datasets lead to inclusive, reliable systems deployable in global settings.
3.5. Model Training Step
1) The batch size is fixed at one image. Since the dataset has 949 makeup images, the batches per epoch will be 949, i.e., for one epoch 949 training iterations will be done.
2) A batch of real images and fake images from both domains (makeup and no makeup) is generated, and the fake images are updated in the discriminator’s fake image pool.
3) Then, for each iteration, both the generator and discriminator will be trained over one batch of samples, and the model will be saved.
3.6. Model Testing Step
1) The model from makeup to no makeup is loaded.
2) The input image is resized and normalized and it will be passed to the loaded model.
3) The model will generate the no-makeup image and plot it.
4. Experimental Result and Performance Analysis
4.1. Sample Images from Dataset
Figure 5. Sample makeup images.
Figure 6. Sample no makeup images.
4.2. Data Pre-Processing
Images are converted into pixel values and stored in an array. Then, normalization is applied to speed up the convergence as shown in Figure 7.
Figure 7. Pre-processed cropped images from original images.
4.3. Feature Extraction in Makeup Classification Model (Figure 8)
Figure 8. Feature extraction using gabor filter.
4.4. Sample Result of Makeup Elimination from Dataset
The detected makeup image from the classification model is passed into the makeup removal model to get the no makeup image as the output shown in Figure 9.
(A)
(B)
(C)
Figure 9. Makeup to no makeup generation (of each image A, B, and c the first row contains makeup images and the corresponding image after makeup removal is in the second row).
4.5. Analysis of Evaluation Metric in Makeup Classification Model
The classification model is used to identify whether the person is wearing makeup or not. When an image is passed to this model it outputs a value ranging from 0 to 1. The performance of the classification model is evaluated in terms of accuracy, loss, precision, recall, and f1 score (See Table 1).
Table 1. Evaluation of makeup classification model.
Evaluation metrics |
Training size = 90% Testing size = 10% |
Accuracy (%) |
97.48 |
Precision (%) |
97.44 |
Recall (%) |
96.59 |
F1 score (%) |
95.39 |
4.6. Comparison of Proposed GAN Models Based on Image Quality
By training both pix2pix GAN and Cycle GAN and comparing their image quality measure them as shown in Table 2 [20] [21]. It has been proved that Cycle GAN is more efficient than pix2pix GAN which is visually shown in Figure 10.
Table 2. Comparing the quality measure of gan models.
GAN models |
SSIM (Structural similarity index measure) |
FSIM (Feature similarity
index measure) |
FID (Frechet inception
distance) |
Pix2pix |
42.86 |
69.34 |
19.50 |
Cycle |
48.70 |
75.48 |
39.48 |
Figure 10. Image quality measure difference.
4.7. Error Analysis for Identifying Common Failure Modes
Error analysis helps understand the biometric system’s weakness, mainly the failure modes and their consequences in security consideration. The failure modes are identified, and targeted improvements are presented to increase overall performance.
4.7.1. False Acceptances (False Positives)
Poor threshold: A low threshold increases the chances of a false positive. Similar biometric characteristics exist between individuals (e.g., family members in facial recognition). Noise and artifacts simulating genuine features. Highly serious security risk because of unauthorized users. Primarily critical in access control and financial applications.
4.7.2. False Rejects (False Negatives)
Biometric data variability (e.g., changes in makeup, lighting, or expressions in facial recognition). Partial or occluded input (e.g., fingerprint smudges or incomplete face scans). Model over fitting to a specific pattern in data. Less direct security risk but damages user experience and trust. Might drive users to system circumvention or insecure alternatives.
4.7.3. Spoof Type Attacks
Lack of enough anti-spoofing mechanisms in the system. Reliance on static features that are very easily replicated by attackers. A significant risk for security because unauthorized access would be granted by attackers.
Performing a detailed error analysis is essential for identifying common failure modes in biometric systems and their impact on security. By addressing these issues through targeted mitigations, the system becomes more robust, reliable, and secure, ensuring user confidence and operational success.
5. Conclusions
Thus, by implementing this method in the existing biometric system, the real identity of the person can be identified, even though the person intends to fraudulently access the system by wearing makeup. Thus, the vulnerability caused by makeup attacks can be prevented which improves the security of the biometric system. The captured image from a live video camera is passed to the makeup classification model to identify whether the person is wearing makeup or not. After this, the identified makeup image is passed to the makeup removal model to extract the bare face.
To improve this model further, instead of an image dataset, video samples can be collected. It will be more appropriate for the biometric system since it captures real-time instances. The security of the biometric system can be increased by preventing not only the makeup attack but also other presentation attacks like spoofing and morphing which are more likely. So, a combination of all the attack prevention models can be developed.
Conflicts of Interest
The authors declare no conflicts of interest.
