1. Introduction
During the last two decades, cleaner production and pollution abatement have been developed which have made it possible to reduce the pollution load from tanneries. There are many techniques available (Riffenburg and Alison, 1941; IULTCS, 2008) [1,2] for treatment of wastewater. But less number of research are reported on pollution through air emission that give rises to bad odor and causes problem to occupational safety of the workers in Tannery. Hence the purpose of this work is to highlight sources of odor and to suggest techniques of their removal. In pre-tanning section of leather processing H2S and NH3 and VOC are evolved from process and cause bad odor. From putrefying hides also bad odor comes out. Other sources are from chemical storage in tannery (HCHO, CH4 etc. gases comes out) and some organic foul gases form hides/skins during processing. In tannery, these gases either partly dissolved in process liquor, giving rise to odor or mix with air inside (tannery) and produces bad odor. In the latter case, biofilters, bioscrubbers, activated sludge scrubbers, trickling filter scrubbers, and reactive chemicals are available to suck and remove these bad odorous gases. But in the earlier case, suitable technology must be developed which is the objective of this paper. These emissions from tannery or effluent treatment plant, generally pollute the air, soil, surface water and underground water, causing serious health problems because they lie within and around residential areas. Respiratory disorders, diarrhea, dysentery and typhoid are the most serious illnesses among the community. The limiting steps for removal of ammonia—nitrogen and hydrogen sulphide are studied in production of wet blue hides.
2. Sources of Gases
As mentioned earlier, the main constituents of odourous gases in tannery are VOC’s (evolving during the action of enzymes causes decomposition and oxidation of the hides and skin), NH3 and H2S (evolving during the unhairing and deliming process of tanning in the processing of leather). Out of these the NH3 and H2S both are toxic gases which are the responsible for the odour in the tannery. The NH3 having strong pungent and H2S having fouling smell both giving a odour in and around the tannery environment. From Zahn et al. (2001) [3] it is found that a typical tannery will have VOC—100 ppm, NH3— 40 ppm and H2S—30 ppm. Based on these loads, this work designs scrubbing systems for abatement of these toxic gases. According to ASTM standards the limits of these gases in air should be given by Table 1.
3. Methods of Removal
Different methods of removal of NH3 and H2S are available: they are generally: addition of Chemical Reagents, Passing Compressed Air, Ozone Oxidation, Biochemical method.
Table 1. Air/water discharges, odor and exposure standards.
3.1. Removal of Odor from Process Liquor
Different methods of removal of NH3 and H2S are studied: They are generally:
1) Addition of Chemical Reagents;
2) Passing Compressed Air;
3) Ozone Oxidation;
4) Passing air in counter current to liquor in a packed (activated carbon) bed;
5) Biochemical and Biological methods.
Out of the above mentioned methods, the 4th one is economic and industrially feasible. Hence, trial is undertaken to study parametric effects on performance of removal of gases and design scale up.
3.2. Passing Compressed Air & Physical Absorption by Activated Charcoal
This method is developed at Bench Scale laboratory of Chemical Engg Dept, CLRI, Chennai, India, after many experimental trials. As packing material, charcoal bed is used. Samples of tannery wastewater are collected from different region and from different tanning sectors to analyze sulphide and nitrogen contents in them. Methods of removal of these odor-sources by means of adding reactive-chemicals or passing compressed air or adsorption by activated charcoal, are studied and discussed. Engineering design aspects of the proposed devices (CSTR/Packed Bed) are discussed. The odor removal process is made continuous by designing and employing a flow controller by adjusting flow rate of air passing through the float in a cstr/packed bed.
3.2.1. Experimental Setup
For the quantitative analysis the simpler and suitable setup was made. A column taken with the passage was taken. A fresh grade of Activated Carbon is being packed into that column up to the required height of the column. A pressure gauge meter is fixed across the height of the bed to calculate the pressure crop across the total bed height. The outlet of the column, i.e., exit of the air from column is made to collect in the sample collector for the detection and analysis. A two Round Bottomed flask were made mounted with the flow controller is attached to the bottom of column. From this the gas was produced artificially and passed through the bed. The experiment was conducted with analysis of two such gases, i.e., NH3 and H2S.
3.2.1.1. For Ammonia (NH3)
The gas is artificially produced by means of heating up of the Ammonium hydroxide (NH4OH) liquid at the desired concentration. It was made pass through the bed and collected out in the 3% of 50 cc of cold Boric acid solution. All the NH3 gases passes out are caught up in the boric acid solution and the amount of ammonia in the collection sample is determined by quantitatively.
3.2.1.2. For Hydrogen sulfide (H2S)
The gas is produced artificially by means of heating up of the Na2S solution of desired concentration with the Hydrochloric acid (HCl) it produces the H2S gas as H2S + 2NaOH à NaHS + H2O NaOH + NaHS à Na2S + 2H2O The collected Na2S product can be determined by quantitatively. In both the cases, the experiment was carried out in the different concentration and different temperature. The corresponding pressure drop at each case was recovered for the detection of respective quantity of gas. The time of exposure or passage through the bed was kept constant for all the cases to determine consistency at a temperature for all the cases.
3.2.2. Quantitative Analysis of the Gases
3.2.2.1. For NH3
The collected NH3 in the boric acid solution is shaken well colded up and then it is titrated against the N/10 HCl with phenolphthalein as indicator. From this the amount of concentration of NH3 collected can be obtained.
3.2.2.2. For H2S The collected Na2S sample is titrated against the N/10 ZnSO4 solution. The titration is continued till all the Na2S will converted to ZnS and Na2SO4 as Na2S + ZnSO4 à ZnS + Na2SO4
The end point is ascertained by spotting on to the dry filter paper previously impregnated with 10% lead acetate solution and the end point is reached when no immediate brown stain is visible due to conversion of all sulfides into zinc sulfate as the above equation.
In this case, removal efficiency is observed as 83%. A mathematical program was written to evaluate the process performance. The comprehensive procedure for analysis of design can be given as below:
3.2.3. Procedure
The steps for the process design are:
1) Set on analysers (NH3 and H2S);
2) Open air inlet valve (feed is air + NH3 + H2S mixed) that comes out from factory;
3) Observe rotameter reading (about 20 psig). Air feeding rate is in gmol/min;
4) Set desired air flow, water or liquid flow rates and connect analyzers to effluent gas stream. Record rotameter readings when it comes to steady state (generally it takes 5 mins);
5) Read pressure drop across the column;
6) Calculate NTU and HTU;
7) Change the flow rates and observe the readings by repeating above steps.
4. Mathematical Development
The schematic of gas absorption is shown in Figure 1. The odor gas flows from bottom to top of tower while liquid flows down from top to bottom of the packed column in counter-current.
Material Balance:
Gas Feed = (Air + NH3 + H2S) Liquid Feed = Water Counter current Gas Phase:
(1)
With x0 = 0, we get
Figure 1. Schematic of gas absorption tower.
(2)
Here V = vapor rate in g/min and L = Liquid rate in g/min.
We consider that the air (flow rate, V gmol/min) carrying the emitted gas stream enters the column of height z and diam D where it is scrubbed with water (flow rate = L gmol/min) in counter current. The rate of mass transfer is given by Where y and x are gas and liquid phase concentrations in mole fraction y*(x) is gas phase concentration equilibrium with liquid and can be evaluated by seeing VLE data. k is mass transfer coefficient. At steady state, gas phase and liquid phase transfers become equal and we get,
(3)
Integrating from z = 0 to z = zF we get
(4)
= resistance to mass transfer. As the driving force (y − y*(x)) becomes less and less, the integral becomes larger and larger, thus, indicating the Number of Transfer Units (NTU) becoming more and more. It is necessary to know x(y) and y*(x(y)) to evaluate the integral.
The Operating Line:
or (5)
With xB = 0, the integrand reduces to
(6)
which can be evaluated in terms of y if y*(x) is known. Generally, from VLE relationship we know,
(7)
where KH is called Henry’s Law constant. Thus it is possible to find an analytical solution for the integrand and NTU and HTU can be calculated.
5. Results and Discussion
The experimental data and readings are collected and analysed that resulted information given in Table 2. The molecules of the contaminated gas attracter to and accumulate on the surface of the activated carbon. Almost of the surface area available o the internal part structure and the adsorption depend on the pore volume and pore distribution. The amount of adsorption is totally dependent on the total surface area of the activated carbon.

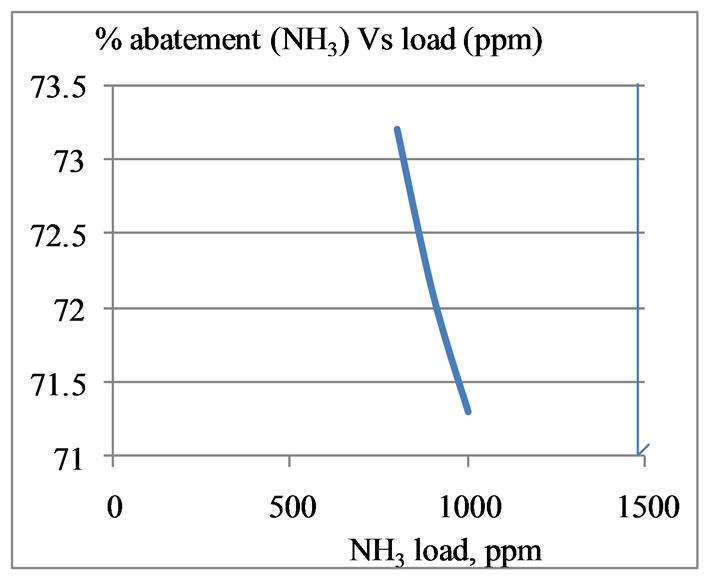

The performance of removal of odourous components from gas streams by the column is shown in Figure 2. At 40˚C, the tower can remove about 73% of NH3 and
(a)(b)(c)
Table 2. (a) Performance analysis from experimental studies of removal of odorous gases Time = 20 mins: Temperature = 40˚C; (b) Performance analysis from experimental studies of removal of odorous gases Temperature = 40˚C; (c) Performance analysis from experimental studies of removal of odorous gases Temperature = 45˚C.
70.5% of H2S from the odourous gas stream having a load of 800 ppm NH3 and 200 ppm H2S respectively. With increase in load the efficiency goes down.
The removal efficiency can be increased to 90% by recycling and by intensify driving forces. It is predicted
Figure 2. Performance of packed towers (removal efficiency of NH3 and H2S) at 40˚C.
that by increasing number of horizontal partition/segments in the packed region, residence time of gases can be increased and thereby removal efficiency can be improved.
6. Design of Column
The adsorption system is a simple one to design and it is made of a containment device, distribution and collection device to effect proper circulation of the gas stream through the activated carbon bed and a means for moving the gas stream through bed by using device like fan, blower or dispenser etc. The activated carbon bed can be conveniently configured into small drums or tanks depend on the size and application to the tannery. The superficial velocity Vs in ft/min is given by Vs = 48 (f − 1)/f where f = 1.2 (approx) and Actual gas flow rate, Qa can be calculated as: where Q is gas folw rate in mmscfd, T is temperature in F, P is pressure in psig and Cf is compressibility factor, 0.95. After finding out Qa, the column size can be determined ID = (A/0.7854)0.5 ft. The sizing for the application depends on the surface loading rate. The standard depth of minimum 4 ft carbon bed to maximum according to the gas flow rate and amount to be reduced. Larger flow of gas needs more height of bed in order to increase the surface area. The design includes the simple vessel or containment that can hold up the activated carbon.
6.1. Reactivation and Regeneration
Once the activated carbon is being used it has become saturated and therefore the adsorption decreases. In order to maintain the efficiency the activated carbon must be replaced with the fresh one after the every service of abatement. The carbon can be reactivated and regenerated by number of methods. The best method is washing the activated carbon in hot water and then dried off. It can be reused for the further process of adsorption.
The design calculations for the absorption tower is given as follows.
6.2. Calculations: Packed Tower Absorption Column
Data: Air flow rate = 7 cu ft/min
Temperature = 70 F
Pressure = 1 atm
Water flow rate = 500 ml/min
xB = 0
NH3 in air feed = 20,000 ppm
H2S in air feed = 1000 ppm
NH3 in air exit = 250 ppm
H2S in air exit = 5 ppm
V = 7(cu ft/min)(28.32 L/ft3)(gmol/22.4 L)(492/530)
= 8.125 gmol/min
L = 500(ml/min)(1 g/ml)(1 gmol/ 18 gm)
= 27.8 gmol/min
yA1 = (20,000/17)/(1,000,000/29) = 0.034
yA2 = (1000/34)/(1,000,000/29) = 0.0034
yB1 = (250/17)/(1,000,000/29) = 0.00043
yB2 = (05/34)/(1,000,000/29) = 0.0000172
Equilibrium data: From Perry Handbook,
over 0.05 mole fraction aq NH3 = 0.047
psia = 0.047/14.7 =0.0319 mole fraction NH3 and 98.15/101.325 = 0.968 mole frac H2S
For NH3: KH = y/x = 0.0319/0.050 = 0.638
For H2S: KH = y/x = 0.968/0.050 = 0.099 Operating Line:
(8)
It also looks into the possibility of the usage of controllers for effective treatment process. With variation of process recipe and quality of hides, sulphide content of process liquor may vary at the exit. Hence to balance the load changes, an air flow controller is necessary. Accordingly, air flow rate is controlled/adjusted to maintain the emission standards.
7. Conclusion
Chemical engineering methods are used to reduce odourous gas loading from leather industry. From the above study it was clear that the adsorption of the toxic gases such as ammonia and H2S are quantitatively reduced by passing through vapour phase adsorption. Here it was concluded that the application of the vapour phase adsorber with activated carbon would become the simple and economically cheaper in all the aspects from the installation to the running. And also it was clear that this method would give the better results in the reduction of odour in the effluent. This could be a better method if implemented in the end process of the effluent treatment to reduce the concentration of the contaminants and thus helpful for reducing pollution and global warming.
8. Acknowledgments
The authors are willing to acknowledge the help from network project (NWP-044) to carry-out the experiments.
