ABSTRACT

Organic solar cells using poly (copper phthalocyanine), copper tetrakis (4-cumylphenoxy) phthalocyanine, copper phthalocyanine and titanyl phthalocyanine were fabricated and characterized. Photovoltaic properties of the solar cells with inverted structures were investigated by optical absorption, current density-voltage characteristic and incident photon to current conversion efficiency. These phthalocyanines absorbed light with wavelength longer than 500 nm. A carrier transport mechanism is proposed based on the energy level diagram.

Keywords:Organic Solar Cells, Phthalocyanine, Copper, Poly Phthalocyanine

1. Introduction

Organic solar cells based on organic semiconductors have been widely studied due to their low cost and easy fabrication process. Phthalocyanines have a great advantage for carrier mobility and photo-properties by changing modification of molecular structures with various central metal and chemical substitution. Recently, phthalocyanine/fullerene solar cells have been investigated, and the conversion efficiency of ~2% was obtained [1] [2] . Phthalocyanines have a photovoltaic property, heat-resistance, light-stability, and high optical absorption in the visible range, and are applied for semiconducting devices, catalyst for fuel cells and solar cells [3] -[6] . Many studies on the modified phthalocyanine with various central metal atoms and chemical substitutions have been reported to optimize electronic structures for improving photovoltaic performance, such as open circuit voltage and conversion efficiency [7] -[10] . For example, the poly (copper phthalocyanine) (PolyCuPc) has high conductivity [11] [12] . The titanyl phthalocyanine (TiOPc) shows phase transition from H-aggregate (phase I) to J-aggregate (phase II) that absorbs at longer wavelengths by exposure vapor toluene to TiOPc over a 1 h period, which is a practical method to convert Phase I to Phase II [13] -[16] .

In spite of easy fabrication, organic solar cells are reported to be unstable because of photo-induced diffusion of O₂ into C₆₀, or the reaction of Al electrodes with oxygen and water [17] . Solar cells incorporating non-corrosive Au electrodes have been recently developed to overcome the instability. Such solar cells have an inverted device structure compared with the normal structure, in which photo-generated electrons flow through an external circuit from the transparent working electrode to Au electrode [18] .

The purpose of the present work is to fabricate organic photovoltaic cells with PolyCuPc, copper tetrakis (4- cumylphenoxy) phthalocyanine (Tc-CuPc), copper phthalocyanine (CuPc) and TiOPc as donor materials and [6,6]-phenyl-C₆₁-butyric acid methyl ester (PCBM) as an accepter material [19] [20] . Light-induced charge separation was investigated, and a mechanism of the photovoltaic properties was discussed on the basis of experimental results. The present work will suggest a guideline for optimizing the photovoltaic properties of inverted organic solar cells using PCBM/phthalocyanine.

2. Experimental Procedures

Inverted bulk-heterojunction organic solar cells were fabricated as a following process. Indium tin oxide (ITO) substrates (Xin Yan Technology, ~10 Ω/□) were cleaned by an ultrasonic bath with acetone and methanol, and were dried by nitrogen gas. The TiO_x precursor solution was prepared by adding titanium isopropoxide (TTIP, 0.46 ml) to 2-methoxyethanol (2.5 ml) and acetylacetone (0.61 ml). The TiO_x precursor solution was spin-coated on ITO glass plates and annealed at 150˚C for 60 min. The active layer was fabricated with a mixture of PolyCuPc (Sigma Aldrich Corp.) or Tc-CuPc (Sigma Aldrich Corp) and PCBM (American Dye Source, Inc) at weight ratio of 1:2 in 1 mL o-dichlorobenzene on a TiO_x layer by spin-coating method, and annealed at 140˚C for 20 min. A thin layer of poly(3,4-ethylenedioxy-thiophene):poly(4-styrene sulfonic acid) (PEDOT:PSS) was spin-coated on the active layer. Gold (Au) was evaporated thermally as a top electrode under vacuum condition, resulting in cells with an active area of 16 mm².

CuPc and TiOPc-based solar cells were fabricated as a following process. PCBM as an acceptor material was spin-coated on TiO_x layer, and phthalocyanines as a donor material were evaporated in vacuum on the acceptor layers. A TiOPc (Sigma Aldrich Corp.) film was spin coated by toluene, which changed Phase I to Phase II [13] . A thin layer of PEDOT:PSS was spin-coated on the active layer. Au was evaporated as a top electrode in a vacuum. Structure models of the starting materials are shown in Figure 1(a). Schematic structures of the inverted organic solar cells are shown in Figure 1(b) and Figure 1(c). The current density-voltage (J-V) characteristics of the photovoltaic solar cells were measured both in the dark and under illumination at 100 mW∙cm⁻² by using AM 1.5 solar simulator (San-ei Electric, XES-301S) and potentiostat (Hokuto Denko Co., HSV-110).

The photovoltaic power conversion efficiency of solar cell is determined by following formula.

V_oc is the open circuit voltage, J_sc is the short circuit current density and FF is the fill factor. Light intensity is standardized at 100 mW/cm² of AM 1.5 spectrum. V_max and J_max are the voltage and current at the maximum power point.

Optical absorption was investigated by means of ultraviolet-visible-near-infrared spectroscopy (Jasco V-670). The incident photon-to-current efficiencies (IPCE) of the solar cells were obtained from the short-circuit photocurrents under irradiation of monochromatic light.

3. Results and Discussion

Figure 2 shows X-ray diffraction patterns of TiOPc Phase I and TiOPc Phase II films. No diffraction peak of TiOPc Phase I at 26.3˚ was observed.

On the other hand, after the spin coated by toluene, a 010 diffraction peak at 2θ = 7.58˚ (1.17 nm) due to Phase II is observed, and the crystallite size was calculated to be 34 nm by using using Scherrer’s formula.

Therefore, TiOPc was transformed from Phase I to Phase II by toluene. The schematic illustrations of Phase I and Phase II structures are shown in Figure 3.

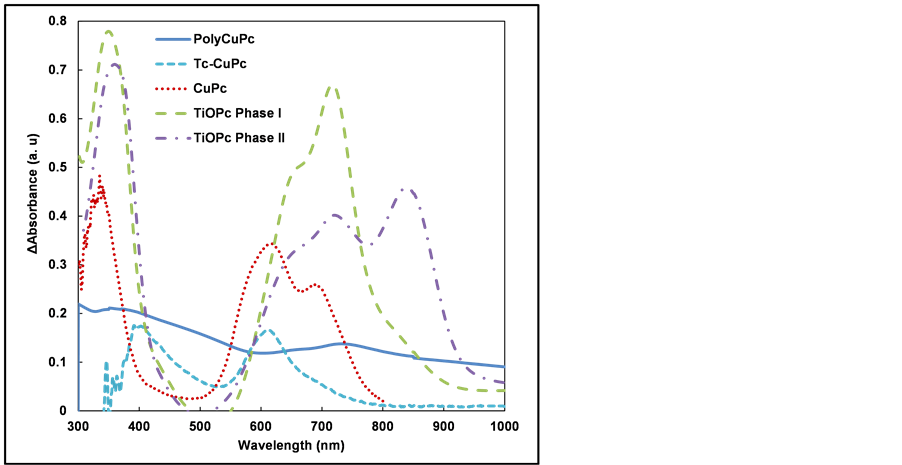

Figure 4 shows absorption spectra of PolyCuPc, Tc-CuPc, CuPc, TiOPc Phase I and TiOPc Phase II thin films. The measurement region is in the range of 300 - 1000 nm. The optical absorptions at 370, 400, 340, 350 and 360 nm correspond to those of Soret band of PolyCuPc, Tc-CuPc, CuPc, TiOPc Phase I and TiOPc Phase II, respectively.

Figure 5 shows measured J-V characteristic curves of PCBM:PolyCuPc, PCBM:Tc-CuPc, PCBM/CuPc, PCBM/TiOPc Phase I and PCBM/TiOPc Phase II solar cells. Measured parameters of the solar cells under illu-

mination are summarized in Table 1. A solar cell with a PCBM:PolyCuPc structure showed the highest power conversion efficiency (η). The PCBM:PolyCuPc solar cell provided η of 2.6 × 10⁻²%, fill factor (FF) of 0.32, and short-circuit current density (J_SC) of 0.23 mA∙cm⁻² and open-circuit voltage (V_OC) of 0.35 V.

IPCE spectra of solar cells are shown in Figure 6. IPCE peaks at 350 and 550 - 950 nm correspond to the PCBM and phthalocyanines, respectively. However, no special IPCE peak was observed from PolyCuPc, as shown in

ductor but worked as carrier transport of PCBM. An IPCE peak of TiOPc was enhanced by phase changing from I to II. Therefore, the J_SC of PCBM/TiOPc Phase II was higher than that of PCBM/TiOPc Phase I.

An energy level diagram of the present solar cells is summarized as Figure 7. Previously reported values were used for the energy levels of the figures by adjusting to the present work [21] -[23] . In the cell with the inverted structure, electrons are transported to the ITO substrate, and holes are transported to the Au electrode. V_OC of organic solar cells is related with energy gap between highest occupied molecular orbital (HOMO) of phthalo-

cyanine and lowest unoccupied molecular orbital (LUMO) of PCBM, and control of the energy levels is important to improve the photovoltaic performance. Control of HOMO and LUMO is possible by exchange of a central metal and introduction of a substituent group.

Most of heterojunction organic solar cells using phthalocyanines and C₆₀ were fabricated by a vacuum deposition method. In the present work, soluble phthalocyanine and PCBM were spin-coated by the solution process. The present method without vacuum condition is low cost and easy fabrication process. PolyCuPc was reported to provide high electronic conductivity [12] , and no data was reported on solar cells. The efficiency of PolyCuPc was higher than that of monomer CuPc and Tc-CuPc, and the PolyCuPc would be suitable for solar cells device application. The TiOPc Phase II with the shuttle cock-type structure also provided higher IPCE and FF as compared with Phase I, which would be suitable for the solar cell application [23] .

4. Conclusion

Organic solar cells using PolyCuPc, Tc-CuPc, CuPc or TiOPc were fabricated and characterized. These phthalocyanines absorbed light with wavelength longer than 500 nm, and the transition of TiOPc from Phase I to Phase II accelerated by exposure to toluene extended the absorption wavelength up to 950 nm. A device with an inverted structure using PCBM:PolyCuPc provided V_OC of 0.35 V, J_SC of 0.23 mA∙cm⁻², FF of 0.32, and η of 0.026%. A carrier transport mechanism is proposed based on the energy level diagram.
