J. Software Engineering & Applications, 2010, 3, 1005-1014
doi:10.4236/jsea.2010.311118 Published Online November 2010 (http://www.SciRP.org/journal/jsea)
Case-Based Reasoning for Reducing Software
Development Effort
Adam Brady1, Tim Menzies1, Oussama El-Rawas1, Ekrem Kocaguneli1, Jacky W. Keung2
1Lane Department of CS&EE, West Virginia University, Morgantown, USA; 2Department of Computing, The Hong Kong Polytech-
nic University, Hong Kong, China.
Received June 24th, 2010; revised July 15th, 2010; accepted July 19th, 2010.
ABSTRACT
How can we best find project changes that most improve project estimates? Prior solutions to this problem required the
use of standard software process models that may not be relevant to some new project. Also, those prior solutions suf-
fered from limited verification (the only way to assess the results of those studies was to run the recommendations back
through the standard process models). Combining case-based reasoning and contrast set learning, the W system re-
quires no underlying model. Hence, it is widely applicable (since there is no need for data to conform to some so ftware
process models). Also, W’s results can be verified (using holdout sets). For example, in the experiments reported here,
W found changes to projects that greatly reduced estimate median and variance by up to 95% and 83% (respectively).
Keywords: Sof tw are Eff ort Est i mat i on, C ase Based Reasoning , Effort Estimation
1. Introduction
Existing research in effort estimations focuses mostly
on deriving estimates from past project data using (e.g.)
parametric models [1] or case-based reasoning (CBR)
[2] or genetic algorithms [3]. That research is curiously
silent on how to change a project in order to, say, re-
duce development effort. That is, that research reports
what is and not what should be changed.
Previously [4-7], we have tackled this problem using
STAR/NOVA, a suite of AI search algorithms that ex-
plored the input space of standard software process
models to find project options that most reduced the
effort estimates. That approach had some drawbacks
including 1) the dependency of the data to be in the
format of the standard process models, 2) the imple-
mentation complexity of the Monte Carlo simulator
and the AI search engines, and 3) the lack of an inde-
pendent verification module (the only way to assess the
results of those studies was to run the recommenda-
tions back through the standard process models).
This paper describes “W”, a simpler, yet more general
solution to the problem of finding project changes that
most improves project estimates. Combining case-based
reasoning and contrast set learning, W requires no un-
derlying parametric model. Hence, W can be applied to
more data sets since there is no requirement for the
data sets to be in the format required by the standard
software process models. For example, this paper ex-
plores five data sets with W, three of which cannot be
processed using STAR/NOVA.
W is simpler to implement and easier to use than
STAR/NOVA, requiring hundreds of lines of the
scripting language AWK rather than thousands of lines
of C++/LISP. For example, we describe below a case
study that finds a loophole in Brooks’ Law (“adding
manpower [sic] to a late project makes it later”). Using
W, that study took three days which included the time
to build W, from scratch. An analogous study, based on
state-of-the-art model-based AI techniques, took two
years.
Also, the accuracy of STAR/NOVA is only as good
as the underlying model (the USC COCOMO suite [1]).
W’s results, on the other hand, are verified using
hold-out sets on real-world data. In the experiments
reported below, we show that W can find changes to
projects that greatly reduce estimate median and vari-
ance by up to 95% and 83%, respectively.
Finally, the difference between W, which finds what
to change in order to improve an estimate, and a stan-
dard case-based effort estimator, which only generates
estimates, is very small. Based on this experiment, we

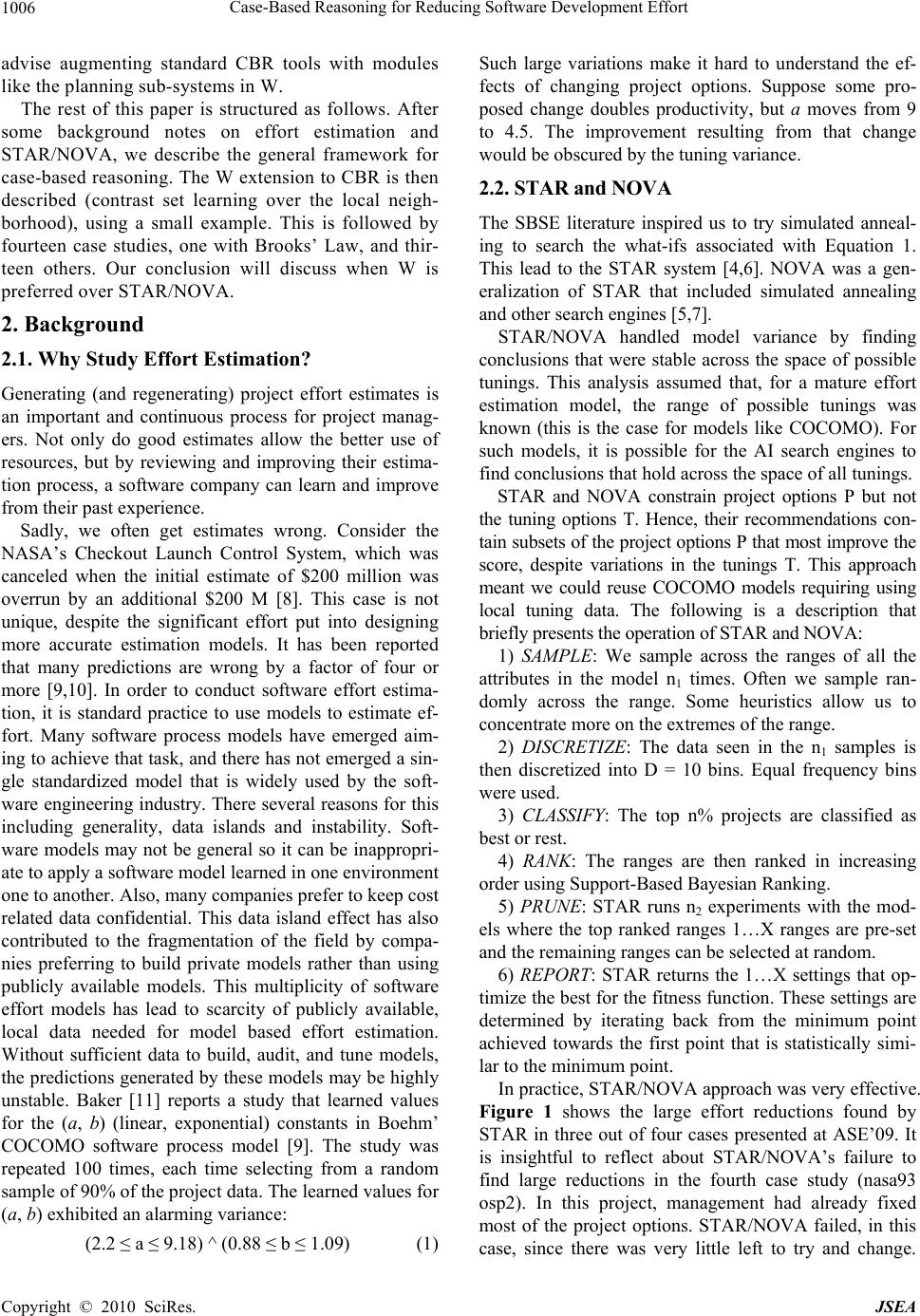

Case-Based Reasoning for Reducing Software Development Effort 1006
advise augmenting standard CBR tools with modules
like the planning sub-systems in W.
The rest of this paper is structured as follows. After
some background notes on effort estimation and
STAR/NOVA, we describe the general framework for
case-based reasoning. The W extension to CBR is then
described (contrast set learning over the local neigh-
borhood), using a small example. This is followed by
fourteen case studies, one with Brooks’ Law, and thir-
teen others. Our conclusion will discuss when W is
preferred over STAR/NOVA.
2. Background
2.1. Why Study Effort Estimation?
Generating (and regenerating) project effort estimates is
an important and continuous process for project manag-
ers. Not only do good estimates allow the better use of
resources, but by reviewing and improving their estima-
tion process, a software company can learn and improve
from their past experience.
Sadly, we often get estimates wrong. Consider the
NASA’s Checkout Launch Control System, which was
canceled when the initial estimate of $200 million was
overrun by an additional $200 M [8]. This case is not
unique, despite the significant effort put into designing
more accurate estimation models. It has been reported
that many predictions are wrong by a factor of four or
more [9,10]. In order to conduct software effort estima-
tion, it is standard practice to use models to estimate ef-
fort. Many software process models have emerged aim-
ing to achieve that task, and there has not emerged a sin-
gle standardized model that is widely used by the soft-
ware engineering industry. There several reasons for this
including generality, data islands and instability. Soft-
ware models may not be general so it can be inappropri-
ate to apply a software model learned in one environment
one to another. Also, many companies prefer to keep cost
related data confidential. This data island effect has also
contributed to the fragmentation of the field by compa-
nies preferring to build private models rather than using
publicly available models. This multiplicity of software
effort models has lead to scarcity of publicly available,
local data needed for model based effort estimation.
Without sufficient data to build, audit, and tune models,
the predictions generated by these models may be highly
unstable. Baker [11] reports a study that learned values
for the (a, b) (linear, exponential) constants in Boehm’
COCOMO software process model [9]. The study was
repeated 100 times, each time selecting from a random
sample of 90% of the project data. The learned values for
(a, b) exhibited an alarming variance:
(2.2 ≤ a ≤ 9.18) ^ (0.88 ≤ b ≤ 1.09) (1)
Such large variations make it hard to understand the ef-
fects of changing project options. Suppose some pro-
posed change doubles productivity, but a moves from 9
to 4.5. The improvement resulting from that change
would be obscured by the tuning variance.
2.2. STAR and NOVA
The SBSE literature inspired us to try simulated anneal-
ing to search the what-ifs associated with Equation 1.
This lead to the STAR system [4,6]. NOVA was a gen-
eralization of STAR that included simulated annealing
and other search engines [5,7].
STAR/NOVA handled model variance by finding
conclusions that were stable across the space of possible
tunings. This analysis assumed that, for a mature effort
estimation model, the range of possible tunings was
known (this is the case for models like COCOMO). For
such models, it is possible for the AI search engines to
find conclusions that hold across the space of all tunings.
STAR and NOVA constrain project options P but not
the tuning options T. Hence, their recommendations con-
tain subsets of the project options P that most improve the
score, despite variations in the tunings T. This approach
meant we could reuse COCOMO models requiring using
local tuning data. The following is a description that
briefly presents the operation of STAR and NOVA:
1) SAMPLE: We sample across the ranges of all the
attributes in the model n1 times. Often we sample ran-
domly across the range. Some heuristics allow us to
concentrate more on the extremes of the range.
2) DIS CRETIZE: The data seen in the n1 samples is
then discretized into D = 10 bins. Equal frequency bins
were used.
3) CLASSIFY: The top n% projects are classified as
best or rest.
4) RANK: The ranges are then ranked in increasing
order using Support-Based Bayesian Ranking.
5) PRUNE: STAR runs n2 experiments with the mod-
els where the top ranked ranges 1…X ranges are pre-set
and the remaining ranges can be selected at random.
6) REPORT: STAR returns the 1…X settings that op-
timize the best for the fitness function. These settings are
determined by iterating back from the minimum point
achieved towards the first point that is statistically simi-
lar to the minimum point.
In practice, STAR/NOVA approach was very effective.
Figure 1 shows the large effort reductions found by
STAR in three out of four cases presented at ASE’09. It
is insightful to reflect about STAR/NOVA’s failure to
find large reductions in the fourth case study (nasa93
osp2). In this project, management had already fixed
most of the project options. STAR/NOVA failed, in this
case, since there was very little left to try and change.

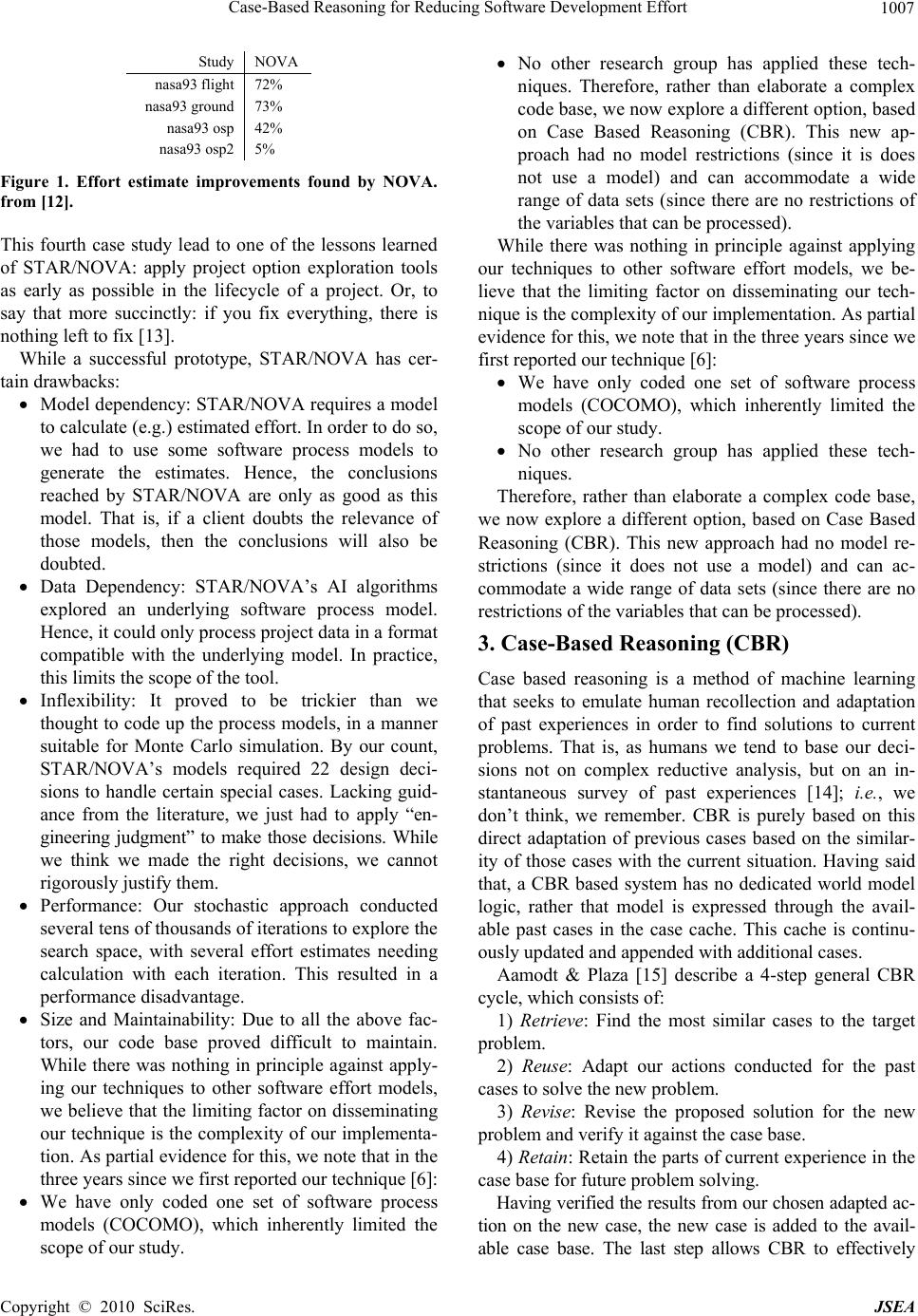

Case-Based Reasoning for Reducing Software Development Effort 1007
StudyNOVA
nasa93 flight72%
nasa93 ground73%
nasa93 osp42%
nasa93 osp25%
Figure 1. Effort estimate improvements found by NOVA.
from [12].
This fourth case study lead to one of the lessons learned
of STAR/NOVA: apply project option exploration tools
as early as possible in the lifecycle of a project. Or, to
say that more succinctly: if you fix everything, there is
nothing left to fix [13].
While a successful prototype, STAR/NOVA has cer-
tain drawbacks:
 Model dependency: STAR/NOVA requires a model
to calculate (e.g.) estimated effort. In order to do so,
we had to use some software process models to
generate the estimates. Hence, the conclusions
reached by STAR/NOVA are only as good as this
model. That is, if a client doubts the relevance of
those models, then the conclusions will also be
doubted.
 Data Dependency: STAR/NOVA’s AI algorithms
explored an underlying software process model.
Hence, it could only process project data in a format
compatible with the underlying model. In practice,
this limits the scope of the tool.
 Inflexibility: It proved to be trickier than we
thought to code up the process models, in a manner
suitable for Monte Carlo simulation. By our count,
STAR/NOVA’s models required 22 design deci-
sions to handle certain special cases. Lacking guid-
ance from the literature, we just had to apply “en-
gineering judgment” to make those decisions. While
we think we made the right decisions, we cannot
rigorously justify them.
 Performance: Our stochastic approach conducted
several tens of thousands of iterations to explore the
search space, with several effort estimates needing
calculation with each iteration. This resulted in a
performance disadvantage.
 Size and Maintainability: Due to all the above fac-
tors, our code base proved difficult to maintain.
While there was nothing in principle against apply-
ing our techniques to other software effort models,
we believe that the limiting factor on disseminating
our technique is the complexity of our implementa-
tion. As partial evidence for this, we note that in the
three years since we first reported our technique [6]:
 We have only coded one set of software process
models (COCOMO), which inherently limited the
scope of our study.
 No other research group has applied these tech-
niques. Therefore, rather than elaborate a complex
code base, we now explore a different option, based
on Case Based Reasoning (CBR). This new ap-
proach had no model restrictions (since it is does
not use a model) and can accommodate a wide
range of data sets (since there are no restrictions of
the variables that can be processed).
While there was nothing in principle against applying
our techniques to other software effort models, we be-
lieve that the limiting factor on disseminating our tech-
nique is the complexity of our implementation. As partial
evidence for this, we note that in the three years since we
first reported our technique [6]:
 We have only coded one set of software process
models (COCOMO), which inherently limited the
scope of our study.
 No other research group has applied these tech-
niques.
Therefore, rather than elaborate a complex code base,
we now explore a different option, based on Case Based
Reasoning (CBR). This new approach had no model re-
strictions (since it does not use a model) and can ac-
commodate a wide range of data sets (since there are no
restrictions of the variables that can be processed).
3. Case-Based Reasoning (CBR)
Case based reasoning is a method of machine learning
that seeks to emulate human recollection and adaptation
of past experiences in order to find solutions to current
problems. That is, as humans we tend to base our deci-
sions not on complex reductive analysis, but on an in-
stantaneous survey of past experiences [14]; i.e., we
don’t think, we remember. CBR is purely based on this
direct adaptation of previous cases based on the similar-
ity of those cases with the current situation. Having said
that, a CBR based system has no dedicated world model
logic, rather that model is expressed through the avail-
able past cases in the case cache. This cache is continu-
ously updated and appended with additional cases.
Aamodt & Plaza [15] describe a 4-step general CBR
cycle, which consists of:
1) Retrieve: Find the most similar cases to the target
problem.
2) Reuse: Adapt our actions conducted for the past
cases to solve the new problem.
3) Revise: Revise the proposed solution for the new
problem and verify it against the case base.
4) Retain: Retain the parts of current experience in the
case base for future problem solving.
Having verified the results from our chosen adapted ac-
tion on the new case, the new case is added to the avail-
able case base. The last step allows CBR to effectively

Case-Based Reasoning for Reducing Software Development Effort 1008
learn from new experiences. In this manner, a CBR sys-
tem is able to automatically maintain itself. As discussed
below, W supports retrieve, reuse, and revise (as well as
retain if the user collecting data so decides).
This 4-stage cyclical CBR process is sometimes re-
ferred to as the R4 model [16]. Shepperd [16] considered
the new problem as a case that comprises two parts.
There is a description part and a solution part forming
the basic data structure of the system. The description
part is normally a vector of features that describe the
case state at the point at which the problem is posed. The
solution part describes the solution for the specific prob-
lem (the problem description part).
The similarity between the target case and each case in
the case base is determined by a similarity measure. Dif-
ferent methods of measuring similarity have been pro-
posed for different measurement contexts. A similarity
measure is measuring the closeness or the distance be-
tween two objects in an n-dimensional Euclidean space,
the result is usually presented in a distance matrix (simi-
larity matrix) identifying the similarity among all cases
in the dataset. Although there are other different distance
metrics available for different purposes, the Euclidean
distance metric is probably the most commonly used in
CBR for its distance measures.
Irrespective of the similarity measure used, the objec-
tive is to rank similar cases from case-base to the target
case and utilize the known solution of the nearest k-cases.
The value of k in this case has been the subject of debate
[17,2]: Shepperd [2], Mendes [18] argue for k = 3 while
Li [3] propose k = 5.
Once the actual value of the target case is available it
can be reviewed and retained in the case-base for future
reference. Stored cases must be maintained over time to
prevent information irrelevancy and inconsistency. This
is a typical case of incremental learning in an organiza-
tion utilizing the techniques of CBR.
Observe that these 4 general CBR application steps
(retrieve, reuse, revise, retain) do not include any explicit
model based calculations; rather we are relying on our
past experience, expressed through the case base, to es-
timate any model calculations based on the similarity to
the cases being used. This has two advantages:
1) It allows us to operate independently of the models
being used. For example, our prior report to this confer-
ence [13] ran over two data sets. This study, based on
CBR, uses twice as many data sets.
2) This improves our performance, since data retrieval
can be more efficient than calculation, especially given
that many thousands of iterations of calculation were
needed with our traditional modeling based tool. As evi-
dence of this, despite the use of a slower language, W’s
AWK code runs faster than the C++/LISP used in
STAR/NOVA. It takes just minutes to conduct 20 trials
over 13 data sets with W. A similar trial, conducted with
NOVA or STAR, can take hours to run.
4. From CBR to W
A standard CBR algorithm reports the median class val-
ue of some local neighborhood. The W algorithm treats
the local neighborhood in a slightly different manner:
 The local neighborhood is divided into best and
rest.
 A contrast set is learned that most separates the re-
gions (contrast sets contain attribute ranges that are
common in one region, but rare in the other).
 W then searches for a subset of the contrast set that
best selects for (e.g.) the region with lower effort
estimates.
The rest of this section details the above process.
4.1. Finding Contrast Sets
Once a contrast set learner is available, it is a simple
matter to add W to CBR. W finds contrast sets using a
greedy search, where candidate contrast sets are ranked
by the log of the odds ratios. Let some attribute range x
appear at frequency N1 and N2 in two regions of size R1
and R2. Let the R1 region be the preferred goal and R2 be
some undesired goal. The log of the odds ratio, or LOR, is:
LOR(x) = log ((N1/R1) (N2/R2)) (2)
Note that when LOR(x) = 0, then x occurs with the
same probability in each region (such ranges are there-
fore not useful for selecting on region or another). On the
other hand, when LOR(x) > 0, x is more common in the
preferred region than otherwise. These LOR-positive
ranges are candidate members of the contrast set that
selects for the desired outcome.
It turns out that, for many data sets, the LOR values
for all the ranges contain a small number of very large
values (strong contrasts) and a large number of very
small values (weak contrasts). The reasons for this dis-
tribution do not concern us here (and if the reader is in-
terested in this master-variable effect, they are referred to
[19,20]). What is relevant is that the LOR can be used to
rank candidate members of a contrast set. W computes
the LORs for all ranges, and then conducts experiments
applying the top i-th ranked ranges.
For more on LOR, and their use for multi-dimensional
data, see [21].
4.2. The Algorithm
CBR systems input a query q and a set of cases. They
return the subset of cases C that is relevant to the query.
In the case of W:
 Each case Ci is an historical record of one software

Case-Based Reasoning for Reducing Software Development Effort 1009
projects, plus the development effort required for
that project. Within the case, the project is de-
scribed by a set of attributes which we assume have
been discretized into a small number of discrete
values (e.g. analyst capability ∈{1, 2, 3, 4, 5} de-
noting very low, low, nominal, high, very high re-
spectively).
 Each query q is a set of constraints describing the
particulars of a project. For example, if we were in-
terested in a schedule over-run for a complex, high
reliability projects that have only minimal access to
tools, then those constraints can be expressed in the
syntax of Figure 2.
W seeks q' (a change to the original query) that finds
another set of cases C' such that the median effort values
in C' are less than that of C (the cases found by q). W
finds q' by first dividing the data into two-thirds training
and one-third testing. Retrieve and reuse are applied to
the training set. Revising is then applied to the test set.
1) Retrieve: The initial query q is used to find the N
training cases nearest to q using a Euclidean distance
measure where all the attribute values are normalized
from 0 to 1.
2) Reuse (adapt): The N cases are sorted by effort and
divided into the K1 best cases (with lowest efforts) and
K2 rest cases. For this study, we used K1 = 5, K2 = 15.
Then we seek the contrast sets that select for the K1 best
cases with lowest estimates. All the attribute ranges that
the user has marked as “controllable” are scored and
sorted by LOR. This sorted order S defines a set of can-
didate q' queries that use the first i-th entries in S:
qi' = q∪S1∪S2…∪Si (3)
Formally, the goal of W is find the smallest i value
such qi' selects cases with the least median estimates.
According to Figure 3, after retrieving and reusing
comes revising (this is the “verify” step). When revising
q', W prunes away irrelevant ranges as follows:
1) Set i = 0 and qi' = q.
2) Let Foundi be the test cases consistent with qi' (i.e.,
that do not contradict any of the attribute ranges in qi').
3) Let Efforti be the median efforts seen in Foundi.
@project example
@attribute ?rely 3 4 5
@attribute tool 2
@attribute cplx 4 5 6
@attribute ?time 4 5 6
Figure 2. W’s syntax for descr ibing the input quer y q. Here,
all the values run 1 to 6. 4 ≤ cplx ≤ 6 denotes projects with
above average complexity. Question marks denote what can
be controlled in this case, rely, time (require d reliability and
development time).
Figure 3. A diagram describing the steps of CBR (source:
http://www.peerscience.com/Assets/cbrcycle1.gif).
4) If Found is too small then terminate (due to
over-fitting). After Shepperd [2], we terminated for
|Found| < 3.
5) If i > 1 and Efforti < Efforti-1, then terminate (due to
no improvement).
6) Print qi' and Efforti.
7) Set i = i + 1 and qi' = qi-1∪Si
8) Go to step 2.
On termination, W recommends changing a project
according to the set q' – q. For example, in Figure 2, if q'
– q is rely = 3 then this treatment recommends that the
best way to reduce the effort for this project is to reject
rely = 4 or 5.
One useful feature of the above loop is that it is not a
black box that offers a single “all-or-nothing” solution.
Rather it generates enough information for a user to
make their cost-benefit tradeoffs. In practice, users may
not accept all the treatments found by this loop. Rather,
for pragmatic reasons, they may only adopt the first few
Si changes seen in the first few rounds of this loop. Users
might adopt this strategy if (e.g.) they have limited man-
agement control of a project (in which case, they may
decide to apply just the most influential Si decisions).
Implementing W is simpler than the STAR/NOVA
approach:
 Both NOVA and STAR contain a set process mod-
els for predicting effort, defects, and project threats
as well as Monte Carlo routines to randomly select
values from known ranges. STAR and NOVA im-
plement simulated annealing while NOVA also im-
plements other search algorithms such as A*, LDS,

Case-Based Reasoning for Reducing Software Development Effort 1010
MAXWALKSAT, beam search, etc. STAR/NOVA
are 3000 and 5000 lines of C++ and LISP, respec-
tively.
 W, on the other hand, is a 300 line AWK script.
Our pre-experimental suspicion was that W was too
simple and would need extensive enhancement. However,
the results shown below suggest that, at least for this task,
simplicity can suffice (but see the future work section for
planned extensions).
Note that W verification results are more rigorous than
those of STAR/NOVA. W reports results on data that is
external to its deliberation process (i.e., on the test set).
STAR/NOVA, on the other hand, only reported the
changes to model output once certain new constraints
were added to the model input space.
5. Data
Recall that a CBR system takes input a query q and cases
C. W has been tested using multiple queries on the data
sets of Figure 4. These queries and data sets are de-
scribed below.
5.1. Data Sets
As shown in Figu re 4, our data includes:
 The standard public domain COCOMO data set
(Cocomo81);
 Data from NASA;
 Data from the International Software Benchmarking
Standards Group (ISBSG);
 The Desharnais and Maxwell data sets.
Except for ISBSG, all the data used in this study is
available at http://promisedata.org/data or from the au-
thors.
Note the skew of this data (min to median much
smaller than median to max). Such asymmetric distribu-
tions complicate model-based methods that use Gaussian
approximations to variables.
There is also much divergence in the attributes used in
our data:
 While our data include effort values (measured in
terms of months or hours), no other feature is
shared by all data sets.
 The COCOMO and NASA data sets all use the at-
tributes defined by Boehm [9]; e.g. analyst capabil-
ity, required software reliability, memory con-
straints, and use of software tools.
 The other data sets use a variety of attributes such
as the number of data model entities, the number of
basic logical transactions, and number of distinct
business units serviced.
This attribute divergence is a significant problem for
model-based methods like STAR/NOVA since those
systems can only accept data that conforms to the space
of attributes supported by their model. For example, this
study uses the five data sets listed in Figure 2. STAR/
NOVA can only process two of them (coc81 and nasa93).
CBR tools like W, on the other hand, avoid these two
problems:
 W makes no assumption about the distributions of
the variables.
 W can be easily applied to any attribute space (ca-
veat: as long but there are some dependent vari-
ables).
5.2. Queries
Figure 2 showed an example of the W query language:
 The idiom “@attribute name range “defines the
range of interest for some attribute “name”.
 If “range” contains multiple values, then this repre-
sents a disjunction of possibilities.
 If “range” contains one value, then this represents a
fixed decision that cannot be changed.
 The idiom “?x” denotes a controllable attribute (and
W only generates contrast sets from these control-
lables). Note that the “range”s defined for “?x”
must contain more than one value, otherwise there
is no point to making this controllable.
6. Case Studies
6.1. Case Study #1: Brooks’ Law
This section applies W to Brooks’ Law. Writing in the
1970s [22], Brooks noted that software production is a
very human-centric activity and managers need to be
aware of the human factors that increase/decrease pro-
ductivity. For example, a common practice at that time at
IBM was to solve deadline problems by allocating more
resources. In the case of programming, this meant
Dataset Attributes Number of cases Content Units Min MedianMean Max Skewness
coc81 17 63 NASA projects months 6 98 683 11400 4.4
nasa93 17 93 NASA projects months 8 252 624 8211 4.2
desharnais 12 81 Canadian software projects hours 546 3647 5046 23940 2.0
maxwell 26 62 Finnish banking software months 6 5189 8223 63694 3.3
isbsg 14 29 Banking projects of ISBSG minutes662 2355 5357 36046 2.6
Figure 4. The 328 projects used in this study come from 5 data sets.

Case-Based Reasoning for Reducing Software Development Effort 1011

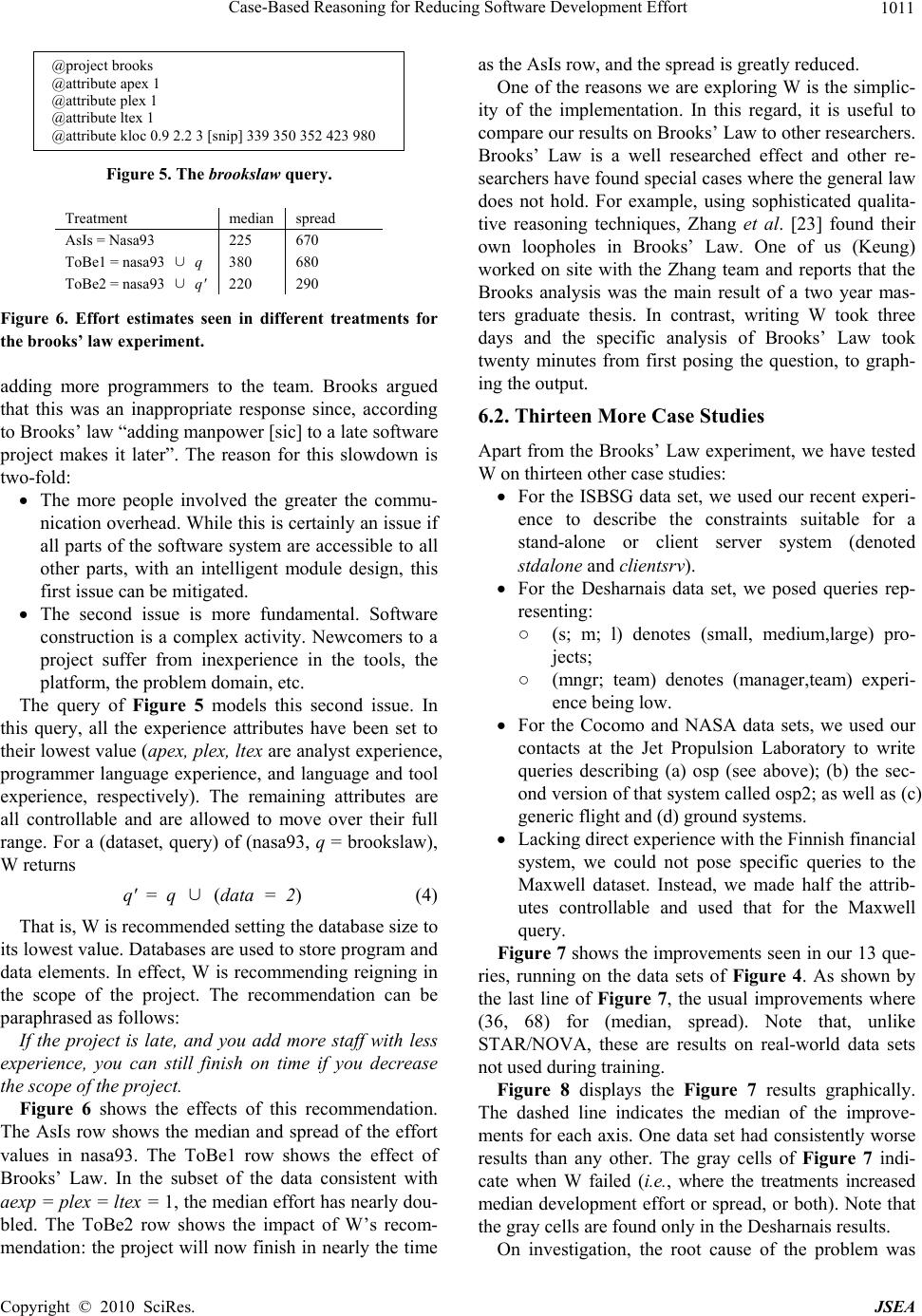

@project brooks
@attribute apex 1
@attribute plex 1
@attribute ltex 1
@attribute kloc 0.9 2.2 3 [snip] 339 350 352 423 980
Figure 5. The brookslaw query.
Treatment median spread
AsIs = Nasa93 225 670
ToBe1 = nasa93 ∪ q 380 680
ToBe2 = nasa93 ∪ q' 220 290
Figure 6. Effort estimates seen in different treatments for
the brooks’ law experiment.
adding more programmers to the team. Brooks argued
that this was an inappropriate response since, according
to Brooks’ law “adding manpower [sic] to a late software
project makes it later”. The reason for this slowdown is
two-fold:
 The more people involved the greater the commu-
nication overhead. While this is certainly an issue if
all parts of the software system are accessible to all
other parts, with an intelligent module design, this
first issue can be mitigated.
 The second issue is more fundamental. Software
construction is a complex activity. Newcomers to a
project suffer from inexperience in the tools, the
platform, the problem domain, etc.
The query of Figure 5 models this second issue. In
this query, all the experience attributes have been set to
their lowest value (apex, plex, ltex are analyst experience,
programmer language experience, and language and tool
experience, respectively). The remaining attributes are
all controllable and are allowed to move over their full
range. For a (dataset, query) of (nasa93, q = brookslaw),
W returns
q' = q ∪ (data = 2) (4)
That is, W is recommended setting the database size to
its lowest value. Databases are used to store program and
data elements. In effect, W is recommending reigning in
the scope of the project. The recommendation can be
paraphrased as follows:
If the project is late, and you add more staff with less
experience, you can still finish on time if you decrease
the scope of the project.
Figure 6 shows the effects of this recommendation.
The AsIs row shows the median and spread of the effort
values in nasa93. The ToBe1 row shows the effect of
Brooks’ Law. In the subset of the data consistent with
aexp = plex = ltex = 1, the median effort has nearly dou-
bled. The ToBe2 row shows the impact of W’s recom-
mendation: the project will now finish in nearly the time
as the AsIs row, and the spread is greatly reduced.
One of the reasons we are exploring W is the simplic-
ity of the implementation. In this regard, it is useful to
compare our results on Brooks’ Law to other researchers.
Brooks’ Law is a well researched effect and other re-
searchers have found special cases where the general law
does not hold. For example, using sophisticated qualita-
tive reasoning techniques, Zhang et al. [23] found their
own loopholes in Brooks’ Law. One of us (Keung)
worked on site with the Zhang team and reports that the
Brooks analysis was the main result of a two year mas-
ters graduate thesis. In contrast, writing W took three
days and the specific analysis of Brooks’ Law took
twenty minutes from first posing the question, to graph-
ing the output.
6.2. Thirteen More Case Studies
Apart from the Brooks’ Law experiment, we have tested
W on thirteen other case studies:
 For the ISBSG data set, we used our recent experi-
ence to describe the constraints suitable for a
stand-alone or client server system (denoted
stdalone and clientsrv).
 For the Desharnais data set, we posed queries rep-
resenting:
○ (s; m; l) denotes (small, medium,large) pro-
jects;
○ (mngr; team) denotes (manager,team) experi-
ence being low.
 For the Cocomo and NASA data sets, we used our
contacts at the Jet Propulsion Laboratory to write
queries describing (a) osp (see above); (b) the sec-
ond version of that system called osp2; as well as (c)
generic flight and (d) ground systems.
 Lacking direct experience with the Finnish financial
system, we could not pose specific queries to the
Maxwell dataset. Instead, we made half the attrib-
utes controllable and used that for the Maxwell
query.
Figure 7 shows the improvements seen in our 13 que-
ries, running on the data sets of Figure 4. As shown by
the last line of Figure 7, the usual improvements where
(36, 68) for (median, spread). Note that, unlike
STAR/NOVA, these are results on real-world data sets
not used during training.
Figure 8 displays the Figure 7 results graphically.
The dashed line indicates the median of the improve-
ments for each axis. One data set had consistently worse
results than any other. The gray cells of Figure 7 indi-
cate when W failed (i.e., where the treatments increased
median development effort or spread, or both). Note that
the gray cells are found only in the Desharnais results.
On investigation, the root cause of the problem was

Case-Based Reasoning for Reducing Software Development Effort 1012
Improvement
dataset query q median spread
coc81 ground %95 %83
coc81 osp %82 %68
93nasa ground %77 %15
ISBSG stdalone %69 %100
93nasa flight %61 %73
93nasa osp %49 %48
maxwell %44 %76
ISBSG clientserv%42 %88
desharnais mngr-l %36 %45-
81coc 2osp %31 %71
93nasa 2osp %27 %42
desharnais mngr-s %23 %85
desharnais mngr-m %23 %85
81coc flight %0 %18
desharnais team-m %0 %60
desharnais team-s %15- %206-
desharnais team-l %15- %93-
median %36 %68
Figure 7. Improvements (100 * (initial - final)/initial) for 13
queries, sorted by median improvement. Gray cells show
negative improvement.
Figure 8. Median and spread improvements for effort esti-
mation. dashed lines mark median values.
the granularity of the data. Whereas (e.g.) coc81 assigns
only one of six values to each attribute, Desharnais’ at-
tributes had a very wide range.
Currently, we are exploring discretization policies to
[24,25] reduce attributes with large cardinality to a
smaller set. Tentatively, we can say that discretization
solves the problem with Desharnais but we are still
studying this aspect of our system. Even counting the
negative Desharnais results, in the majority of cases W
found treatments that improved both the median and
spread of the effort estimates. Sometimes, the improve-
ments were modest: in the case of (coc81, flight), the
median did not improve (but did not get worse) while the
spread was only reduced by 18%. But sometimes the
improvements are quite dramatic.
 In the case of (ISBSG, stdlone), a 100% improve-
ment in spread was seen when q' selected a group of
projects that were codeveloped and, hence, all had
the same development time.
 In the case of (coc81, ground), a 95% effort im-
provement was seen when q' found that ground
systems divide into two groups (the very expensive,
and the very simple). In this case W found the fac-
tor that drove a ground system into the very simple
case.
7. Discussion
7.1. Comparisons to NOVA
Figure 9 shows that estimation improvements found by
W (in this report) to the improvements reported previ-
ously (in Figure 1). This table is much shorter than Fig-
ure 7 since, due to the modeling restrictions imposed by
the software process models, NOVA cannot be applied to
all the data sets that can be processed by W. The num-
bers in Figure 9 cannot be directly compared due to the
different the different goals of the two systems: W tries
to minimize effort while NOVA tries to minimize effort
and development time and delivered defects (we are cur-
rently extending W to handle such multiple-goal optimi-
zation tasks). Nevertheless, it is encouraging to note that
the results are similar and that the W improvements are
not always less than those found by STAR/NOVA.
Regardless of the results in Figure 9, even though we
prefer W (due to the simplicity of the analysis) there are
clear indicators of when we would still use STAR/
NOVA. W is a case-based method. If historical cases are
not available, then STAR/NOVA is the preferred method.
On the other hand, STAR/NOVA is based on the USC
COCOMO suite of models. If the local business users do
not endorse that mode, then W is the preferred method.
Treatment median spread
AsIs = Nasa93 225 670
ToBe1 = nasa93 ∪ q380 680
ToBe2 = nasa93 ∪ q' 220 290
Figure 9. Comparing improvements found by NOVA (fr om
Figure 1) and W (Figure 7).

Case-Based Reasoning for Reducing Software Development Effort 1013

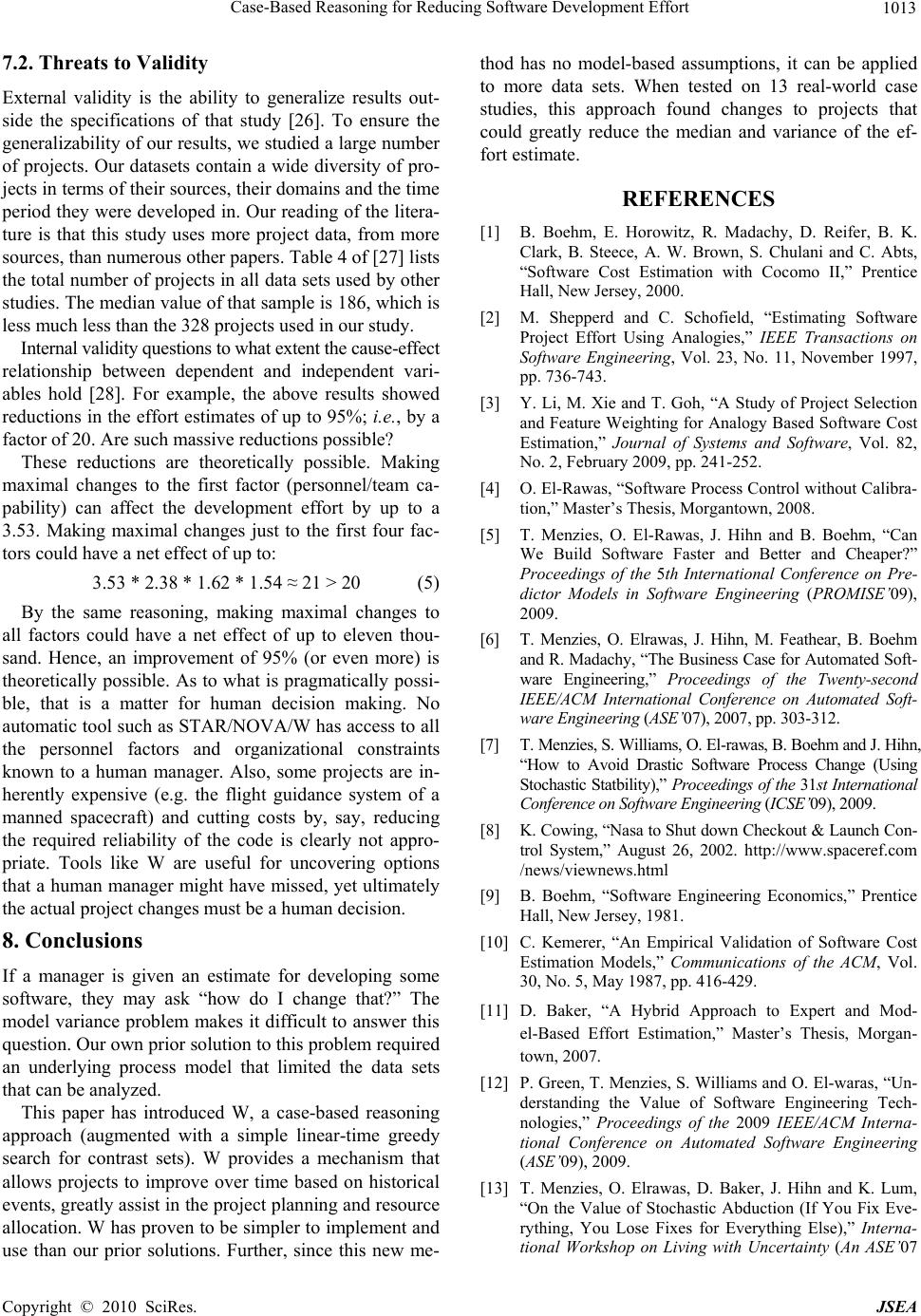

7.2. Threats to Validity
External validity is the ability to generalize results out-
side the specifications of that study [26]. To ensure the
generalizability of our results, we studied a large number
of projects. Our datasets contain a wide diversity of pro-
jects in terms of their sources, their domains and the time
period they were developed in. Our reading of the litera-
ture is that this study uses more project data, from more
sources, than numerous other papers. Table 4 of [27] lists
the total number of projects in all data sets used by other
studies. The median value of that sample is 186, which is
less much less than the 328 projects used in our study.
Internal validity questions to what extent the cause-effect
relationship between dependent and independent vari-
ables hold [28]. For example, the above results showed
reductions in the effort estimates of up to 95%; i.e., by a
factor of 20. Are such massive reductions possible?
These reductions are theoretically possible. Making
maximal changes to the first factor (personnel/team ca-
pability) can affect the development effort by up to a
3.53. Making maximal changes just to the first four fac-
tors could have a net effect of up to:
3.53 * 2.38 * 1.62 * 1.54 ≈ 21 > 20 (5)
By the same reasoning, making maximal changes to
all factors could have a net effect of up to eleven thou-
sand. Hence, an improvement of 95% (or even more) is
theoretically possible. As to what is pragmatically possi-
ble, that is a matter for human decision making. No
automatic tool such as STAR/NOVA/W has access to all
the personnel factors and organizational constraints
known to a human manager. Also, some projects are in-
herently expensive (e.g. the flight guidance system of a
manned spacecraft) and cutting costs by, say, reducing
the required reliability of the code is clearly not appro-
priate. Tools like W are useful for uncovering options
that a human manager might have missed, yet ultimately
the actual project changes must be a human decision.
8. Conclusions
If a manager is given an estimate for developing some
software, they may ask “how do I change that?” The
model variance problem makes it difficult to answer this
question. Our own prior solution to this problem required
an underlying process model that limited the data sets
that can be analyzed.
This paper has introduced W, a case-based reasoning
approach (augmented with a simple linear-time greedy
search for contrast sets). W provides a mechanism that
allows projects to improve over time based on historical
events, greatly assist in the project planning and resource
allocation. W has proven to be simpler to implement and
use than our prior solutions. Further, since this new me-
thod has no model-based assumptions, it can be applied
to more data sets. When tested on 13 real-world case
studies, this approach found changes to projects that
could greatly reduce the median and variance of the ef-
fort estimate.
REFERENCES
[1] B. Boehm, E. Horowitz, R. Madachy, D. Reifer, B. K.
Clark, B. Steece, A. W. Brown, S. Chulani and C. Abts,
“Software Cost Estimation with Cocomo II,” Prentice
Hall, New Jersey, 2000.
[2] M. Shepperd and C. Schofield, “Estimating Software
Project Effort Using Analogies,” IEEE Transactions on
Software Engineering, Vol. 23, No. 11, November 1997,
pp. 736-743.
[3] Y. Li, M. Xie and T. Goh, “A Study of Project Selection
and Feature Weighting for Analogy Based Software Cost
Estimation,” Journal of Systems and Software, Vol. 82,
No. 2, February 2009, pp. 241-252.
[4] O. El-Rawas, “Software Process Control without Calibra-
tion,” Master’s Thesis, Morgantown, 2008.
[5] T. Menzies, O. El-Rawas, J. Hihn and B. Boehm, “Can
We Build Software Faster and Better and Cheaper?”
Proceedings of the 5th International Conference on Pre-
dictor Models in Software Engineering (PROMISE’09),
2009.
[6] T. Menzies, O. Elrawas, J. Hihn, M. Feathear, B. Boehm
and R. Madachy, “The Business Case for Automated Soft-
ware Engineering,” Proceedings of the Twenty-second
IEEE/ACM International Conference on Automated Soft-
ware Engineering (ASE’07), 2007, pp. 303-312.
[7] T. Menzies, S. Williams, O. El-rawas, B. Boehm and J. Hihn,
“How to Avoid Drastic Software Process Change (Using
Stochastic Statbility),” Proceedings of the 31st International
Conferenc e on Softwar e Eng ineeri ng (ICSE’09), 2009.
[8] K. Cowing, “Nasa to Shut down Checkout & Launch Con-
trol System,” August 26, 2002. http://www.spaceref.com
/news/viewnews.html
[9] B. Boehm, “Software Engineering Economics,” Prentice
Hall, New Jersey, 1981.
[10] C. Kemerer, “An Empirical Validation of Software Cost
Estimation Models,” Communications of the ACM, Vol.
30, No. 5, May 1987, pp. 416-429.
[11] D. Baker, “A Hybrid Approach to Expert and Mod-
el-Based Effort Estimation,” Master’s Thesis, Morgan-
town, 2007.
[12] P. Green, T. Menzies, S. Williams and O. El-waras, “Un-
derstanding the Value of Software Engineering Tech-
nologies,” Proceedings of the 2009 IEEE/ACM Interna-
tional Conference on Automated Software Engineering
(ASE’09), 2009.
[13] T. Menzies, O. Elrawas, D. Baker, J. Hihn and K. Lum,
“On the Value of Stochastic Abduction (If You Fix Eve-
rything, You Lose Fixes for Everything Else),” Interna-
tional Workshop on Living with Uncertainty (An ASE’07

Case-Based Reasoning for Reducing Software Development Effort 1014
Co-Located Event), 2007.
[14] R. C. Schank, “Dynamic Memory: A Theory of Remind-
ing and Learning in Computers and People,” Cambridge
University Press, New York, 1983.
[15] A. Aamodt and E. Plaza, “Case-Based Reasoning: Foun-
dational Issues, Methodological Variations and System
Approaches,” Artificial Intelligence Communications,
Vol. 7, No. 1, 1994, pp. 39-59.
[16] M. J. Shepperd, “Case-Based Reasoning and Software
Engineering,” Technical Report TR02-08, Bournemouth
University, UK, 2002.
[17] G. Kadoda, M. Cartwright, L. Chen and M. Shepperd,
“Experiences Using Casebased Reasoning To Predict
Software Project Effort,” Keele University, Staffordshire,
2000.
[18] E. Mendes, I. D. Watson, C. Triggs, N. Mosley and S.
Counsell, “A Comparative Study of Cost Estimation Mod-
els for Web Hypermedia Applications,” Empirical Soft-
ware Engineering, Vol. 8, No. 2, June 2003, pp. 163-196.
[19] T. Menzies, D. Owen and J. Richardson, “The Strangest
Thing about Software,” IEEE Computer, Vol. 40, No. 1,
January 2007, pp. 54-60.
[20] T. Menzies and H. Singh, “Many Maybes Mean (Mostly)
the Same Thing,” In: M. Madravio, Ed., Soft Computing
in Software Engineering, Springer-Verlag, Berlin Hei-
delberg, 2003.
[21] M. Možina, J. Demšar, M. Kattan and B. Zupan, “Nomo-
grams for Visualization of Naive Bayesian Classifier,”
Proceedings of the 8th European Conference on Princi-
ples and Practice of Knowledge Discovery in Databases
(PKDD’04), Vol. 3202, 2004, pp. 337-348.
[22] F. P. Brooks, “The Mythical Man-Month,” Anniversary
Edition, Addison-Wesley, Massachusetts, 1975.
[23] H. Zhang, M. Huo, B. Kitchenham and R. Jeffery,
“Qualitative Simulation Model for Software Engineering
Process,” Proceedings of the Australian Software Engi-
neering Conference (ASWEC’06), 2006, pp. 10-400.
[24] J. Dougherty, R. Kohavi and M. Sahami, “Supervised and
Unsupervised Discretization of Continuous Features,”
International Conference on Machine Learning, 1995, pp.
194-202.
[25] Y. Yang and G. I. Webb, “A Comparative Study of Dis-
cretization Methods for Naive-Bayes Classifiers,” Pro-
ceedings of PKAW 2002: The 2002 Pacific Rim Knowl-
edge Acquisition Workshop, 2002, pp. 159-173.
[26] D. Milicic and C. Wohlin, “Distribution Patterns of Effort
Estimations,” 30th EUROMICRO Conference (EU-
ROMICRO'04), 2004.
[27] B. Kitchenham, E. Mendes and G. H. Travassos, “Cross
Versus Within-Company Cost Estimation Studies: A Sys-
tematic Review,” IEEE Transactions on Software Engi-
neering, Vol. 33, No. 5, May 2007, pp. 316-329.
[28] E. Alpaydin, “Introduction to Machine Learning,” MIT
Press, Cambridge, 2004.
