Journal of Software Engineering and Applications, 2011, 4, 688-699

doi:10.4 23 6/jse a .20 11 .4 12 08 1 Pu blishe d Onli ne December 2011 (http://www.SciRP.org/journal/jsea)

Automated Testing Framework for ODBC Driver

Dan Ye

State Grid Electric Power Institute, China Real-Time Database Co. Ltd., Nanjing, China.

Email: yedan2@sgepri.sgcc.com.cn

Received Oct ober 14th, 2011; revised November 23rd, 2011; accepted December 5 th, 2011.

ABSTRACT

At first, the core ideology, advantage and principle of Software Testing Automation Framework (STAF) are presented

in this paper. Several automated testing frameworks are summarized and analyzed. In addition, date driven automation

test framework is given more attention. Test script is the important composing part of software test automation. Then

this paper introduces several technologies of script along with their characteristics. Every technology applies to differ-

ent places. Moreover, an automated test system with an automated test script language XML which is implemented to

solve the problems in current automatic testing solutions. The design and implantation of the test script automation

framework based on apache ant is put forward. The proposed key technology details of framework are also introduced.

We take the automation test methodology of database connectivity operations by ODBC data source as example for

validation, using auto test script as the key technology. Finally, the results demonstrate that it can best increase soft-

ware test effectiveness and reduce workloads as well as save more efforts.

Keywords: Software Automation Testing , Universal Test S c ript, XML, Data-Driven, Apache Ant

1. Introduction

With testing system become more and more complicate,

software function is enriched according to this require-

ment. Based on object-oriented framework, it is the driven

for innovative software engineering technology and mo-

dern automation test to ols in the develo pment of auto ma-

tion test system. The software reuse and development ef-

ficiency is the hotspot in the research field. For the sake

of improving the utility of test script, the universal design

is the research hotspot of automation test field around the

world for reducing the cost of automation testing system.

Software is the core of automation testing system, the

task of develop the universal test script is very important

[1]. Software testing automation is an efficient way of

software quality and testing effectiveness. Framework is

the reuse design of the whole and part system which is

the interactive method [2]. A great framework can achieve

code reuse and top level design reuse while we can finish

the program by extent and cut the framework. Based on

the framework development program can reduce the work-

load and improve development efficiency.

In this paper, the automation testing framework based

on apache ant is proposed. The framework of verification

on SQL parse model can achieve high levels of reuse.

The rest of paper is organized as follows: Section 2 intro-

duces test framework of automation. Section 3 discusses

test script and test script model. Section 4 proposes soft-

ware design and system architecture implementation. Sec-

tion 5 draws the conclusion.

2. The Test Framework of Automation

2.1. Definition

The definition of automated test framework is the set of

practice of hypothesis and conceptual. The software test-

ing technology can i mprove the efficiency. T he automate d

test framework can raise the overall efficiency of testing

and reduce the software drawbacks on function and per-

formance [3].

2.2. Core Thought

The core thought of the automation is as fo llows [4]:

1) The separation of application program and automa-

tion test script.

2) The separation of test description and detail realization.

3) The separation of test script and test data.

2.3. Traits

Efficient automation test script should satisfy the following

traits [5]:

1) The separation of test framework and application

program.

2) The test framework easy to extend and maintain.

Automated Testing Framework for ODBC Driver689

3) The language of test script is independent.

4) The test script is easy to use and have low computa-

tional complexity.

2.4. The Princ ip le of Auto m ation

During the testing period, repeated work will need auto-

mation test while test with GUI will need manual test.

Test procedure is as follows:

1) T est d esi g n. T he d e si gn o f t est c a se s a nd re q uire me n t,

feature design and testability, case design, test strategy,

test arrangement, test environment are composed of test

design.

2) Result comparisons. Anal ysis the comparison of test

script if it is passed.

3) Test reports generate. By making collection of test

results generate test report, we can obtain the analysis of

failed test result by tester and developer.

2.5. Basic Software Test Automation Framework

The following five test frameworks will be demonstrated.

There are test modularity framework, test library frame-

work, keyword driven, table driven test framework and

data driven test framework, as well as mixed framework.

The test modularity framework needs creating small

and independent model as well as test script of application

progra m. The tr ee str ucture o f little t est s cript is co mpose d

of test script. As far as the automated test framework,

keyword-driven test can change into table driven test. These

datasets and keyword automation is independent with test

tool. In keyword driven testing, function of application

program and each test execution steps are put together.

The test framework produces a batch of test cases by few

codes, which is reused by using datasets. Data driven test

is a framework [6]. Input and output data is abstract from

data file. In this framework, variable can put input and

verification output. During the whole program, test script

can read data file and save test status and information, by

capture tool or manual code script load into the variable.

In table driven test, test case is included in data file. In

data driven test, data file includes test data.

Data driven test automated framework which is Plug

and play architecture include system independent, prod-

uct independent, data independent, order independent.

During test system, test data and test order change, there

is no need to change source code, data driven design sup-

port the reuse of model. Data driven test automation me-

thodology is useful for common duplicated test cases. It

can reduce the workload of coding. The test framework

is created test scenario and test data by xml documenta-

tion to make test case automation based on the realization

of all functions. Data driven by parse data file which is

needed by test cases.

The test automation framework is TAF model including

framework and common model, professional model. Frame-

work includes some common functions. Test combina-

tion is the set of test case which is aimed to accomplish

test object.

3. Test Script and Test Script Model

Based on test system and requirement analysis, propose

an extended and reusable automation test system which

can improve software reusability and develop efficiency.

The following part will base on the analysis of script.

 Linear script: take notes of manual execution test

script. Structure linear script and control script execution

instructions. These instructions are controlled structure.

 Sharing script: one or more scripts are used by mul-

tiple test cases. In every test cases, call these scripts can

fulfill the task. The sharing of script is the key criterion

of automation test case [7].

There are following merits:

1) Save the time and make script high efficiency.

2) If duplicated tasks make changes, it is needed to

change a script.

3) Script modular structure design.

Using linear and sharing script, make test automation

while data driven test will add many test cases. Data dri-

ven test is suitable for large scale testing. Keyword driven

script is to change data file into test cases, by using a

series of keywords [8]. The keyword exists in test file.

Controlled script read the keyword in test file. Using

keyword call related supporting script. Therefore, testing

method is need to change test script instead of test case

when test tool changes.

The keyword driven script is a kind of structure script,

controlled script and supporting script is to translate key-

word. All the information includes into dataset. The high-

light of this technology is the separation of test informa-

tion and realization.

The traits of script technology are well commentaries

and rational construction, easy understa nding, document-

tation a nd well maintai ned [9 ]. T he easier scr ip ts pro gra m-

ming, the more drawbacks during the automation test.

3.1. Based on XML Test Script

The generation steps of XML test script are focused on

the definition o f XML model, obtain the prepared program

using XM L test script gener ator to make X ML te st script.

XML is the high level expression of test cases which has

more advantages [10-17]:

1) Script on the form of XML with easy modify and

handle wit h.

2) Test code can build and execute to speed up the

testing efficiency on a large scale.

3) Generation test analysis and log documentation be-

sides from test code.

Automated Testing Framework for ODBC Driver 690

4) When abstract processing and interface structure

information, the definition of extended XML model make

XML test script more universal without redesign on spe-

cific model.

3.2. Example of Test Code

To make the test analysis of requirements specification is

the first step [18]. Then setup parameter is another basic

unit d uri ng the test pro cessi ng. Furthe r, make auto matio n

test software universal, which can be divided into several

layers [19].

1) Script generation model

2) Sc ript running mod el

In the following, an example of test implementation of

ODBC data source for database connectivity is demon-

strated [20]. Test script can be run on the operation sys-

tem of windows 7 and windows server 2008. Test code is

based on C++.

Code list 1.1 is part of test code for batch insert 20 W

into real-time database by ODBC data source [21-23].

Code list 1.1 ODBC _ BatchI n sertPo i n t _2 0W.cpp

// ODBC_BatchInsertPoint_20W.cpp –- Batch Insert 20W Point

sret=SQLAllocHandle(SQL_HANDLE_ENV,SQL_NULL_HAND

LE,&henv);

if(!isSuc(sret)) printf(" apply environment handle error \n" ) ;

sret=SQLSetEnvAttr(henv,SQL_ATTR_ODBC_VERSION,(void*)

SQL_OV_ODBC3,0);

sret = SQLAllocHandle(SQL_HANDLE_DBC,henv,&hdbc);

if(!isSuc(sret)) printf("apply for connection handle error \n");

printf("hdbc address before entry:%x\n", &hdbc);

fstream fsr(resu lt, fstream::in | fstream::out | fstream::tru nc);

sret= SQ LConn ect (hdbc, (SQ LCHAR* )serv erNa me,s trl en(s erver Na

me),(SQLCHAR*)user,strlenuser),(SQLCHAR*)password,

strlen(password));

cout << "SQLConnect return: " << sret << endl;

sret = SQLAllocHandle(SQL_HANDLE_STMT, hdbc, &hsmt);

cout << "results of applying for statement handle：" << sret <<

endl;

if( hsm t == NULL)

{

printf("error hstmt\n");

}

sret = SQLAllocHandle(SQL_HANDLE_STMT, hdbc, &hsmt);

cout << "Statement handle return：" << sret << endl;

if( hsm t == NULL)

{

printf("error hstmt\n");

}

int BatchNum=200000;

NAME *name = new NAME[ BatchNum];

unsigned char *archive=new unsigned char[BatchNum];

Deadband *deadband=new Deadband[BatchNum];

SQLUSMLINT*ParamStatusArray=newSQLUSMAL-

LINT[BatchNum];

SQLINTEGER *nameL enArray = new SQLINT EG ER[BatchN um] ;

SQLINTEGER * archiveL enArray = new SQLI NTEGER[BatchNum ];

SQLINTEGER *de adbandAr ray = new S QLI NTEGER[BatchN um];

for (int i = 0; i < BatchNum; i++)

{

sprintf (name[i], "'HS0100000%d'", i);

archive[i] = 1;

nameLenArray[i] = SQL_NTS;

archiveLenArray[i] = 0;

deadband[i] = 2;

}

Clock_t start = clock();

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_BIND_TYP

E, SQL_PARAM_BIND_BY_COLUMN, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAMSET_SIZE,

&BatchNum, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_ STAT US_P

TR, ParamStatusArray, 0);

sret=SQLBindParameter(hsmt,1,SQL_PARAM_INPUT,SQL_

C_CHAR, SQL_CHAR, 32, 0, (SQLPOINTER)name, 32,

nameLenArray);

sret=SQLBindParameter(hsmt,2,SQL_PARAM_INPUT,

SQL_C_BIT, SQL_BIT, 1, 0, (SQLPOINTER)archive, 0, ar-

chiveLenArray);

sret=SQLBindParameter(hsmt,3,SQL_PARAM_INPUT,SQL_

C_FLOAT, SQL_FLOAT, 1, 0, (SQLPOINTER)deadband, 0,

deadbandArray);

printf("addpoint 20W...\ n");

sret = SQLPrepare(hsmt, (SQLCHAR*)userinputsql, SQL_NTS);

sret = SQLExecute(hsmt);

Clock_t end = clock();

double elapse = (e nd - start);

printf("elapse: %f\n", elapse);

fsr << sret << endl;

fsr.close();

if (SQL_SUCCESS != sret)

{

char SqlState[6];

int NativeError = 0;

char ErrorMessage[SQL_MAX_MESSAGE_LENGTH];

int EMLen gth = SQL_M AX_M ESSAGE_LEN GTH;

int RealLength = 0;

SQLGetDia-

gRec(SQL_HANDLE_STMT,hsmt,1,(SQLCHAR*)SqlState,(S

QLINTE-

GER*)&NativeError,(SQLCHAR*)ErrorMessage,EMLength,

(SQLSMALLINT*)&RealLength);

printf("sqlstate:%s\n", SqlState);

printf("error message:%s\n", ErrorMessage);

}

SQLFreeHandle(SQL_HANDLE_STMT, hsmt);

SQLDisconnect(hdbc);

SQLFreeHandle(SQL_HANDLE_DBC, hdbc);

SQLFreeHandle(SQL_HANDLE_ENV, henv);

return 0;

printf("batch insert 20W successful！");

Code list 1.2 is part of test code for batch insert 100 W

into real-time database at single point.

Code list 1.2 ODBC_BatchInsertPointValue_100W.cpp

// ODBC_BatchInsertPointValue_100W.cpp –- Batch Insert 100W

PointValue

sret=SQLAllocHandle(S QL_HANDLE_ENV,SQL_NULL_HANDLE,&

Automated Testing Framework for ODBC Driver691

henv);

sret=SQLSetEnvAttr(henv,SQL_ATTR_ODBC_VERSION,(void*)SQL

_OV_ODBC3,0);

sret = SQLAllocHandle(SQL_HANDLE_DBC,henv,&hdbc);

sret=SQLConnect(hdbc,(SQLCHAR*)serverName,strlen(serverName),

(SQLCHAR*)user,strlenuser),(SQLCHAR*)password,strlen(password));

sret = SQLAllocHandle(SQL_HANDLE_STMT, hdbc, &hsmt);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_BIND_TYPE,

SQL_PARAM_BIND_BY_COLUMN, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAMSET_SIZE,&BatchNu

m, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_STATUS_PTR,

ParamStatusArray, 0);

sret=SQLBindParameter(hsmt,1,SQL_PARAM_INPUT,SQL_C_CHAR,

SQL_CHAR, 32, 0, (SQLPOINTER)name, 32, nameLenArray);

int BatchNum = 1 00 0000;

int k=6;

unsigned long *ids=new unsigned long[ BatchNum ];

TIME * time=new TIME[ BatchNum ];

unsigned long *status = new unsigned long[ Batc hNum ];

float *value = new float[ BatchNum ];

SQLU SMALL I N T *ParamStat usArray = new SQLUSMAL-

LINT[ BatchNum ];

SQLINTEGER *idsArray = new SQLINTEGER[ BatchNum ];

SQLINTEGER *timeArray = new SQLINTEGER[ BatchNum ];

SQLINTEGER *statusArray = new SQLINTEGER[ B atchNum ];

SQLINTEGER *valueArray = new SQLINTEGER[ BatchNum ];

for (int i = 0; i < B atchNum; i ++ )

{

ids[i] = k;

sprintf(time[i], "'2011-8-25 19:30:01.%d'", i);

status[i] = i;

value[i] = -i;

}

clock_t start = clock();

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_BIND_TYPE,

SQL_PARAM_BIND_BY_COLUMN, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAMSET_SIZE,

&BatchNum, 0);

sret=SQLSetStmtAttr(hsmt,SQL_ATTR_PARAM_STATUS_PTR,

ParamStatusArray, 0);

sret=SQLBindParameter(hsmt,1,SQL_PARAM_INPUT,SQL_C_ULON

G, SQL_INTEGER, 1, 0, (S QLPOINTE R)ids, 0, idsArray);

sret=SQLBindParameter(hsmt,2,SQL_PARAM_INPUT,

SQL_C_CHAR, SQL_ CHAR, 31, 0, (SQLPOINTER) time, 32, timeAr-

ray);

sret=SQLBindParameter(hsmt,3,SQL_PARAM_INPUT,

SQL_C_ULONG, SQL_INTEGER, 1, 0, (SQLPOINTER)status, 0,

statusArray);

sret=SQLBindParameter(hsmt,4,SQL_PARAM_INPUT,

SQL_C_FLOAT, SQL_FLOAT, 1, 0, (SQLPOINTER )value , 0, val-

ueArray);

sret = SQLPrepare(hsmt, (SQLCHAR*)userinputsql, SQL_NTS);

printf("userinputsql:%s\n",userinputsql);

printf("add value 100W into pointid=6...\n");

sret = SQLExecute(hsmt);

cloc k_t end = cloc k();

double elapse = (end - start);

printf("elapse: %f\n", elapse);

fsr << sret << endl;

fsr.close();

fo r ( i nt m = 0; m < Ba t c hNum; m + +)

{

fss << value[m]<< "\t" << status[m]<< "\t" << time[m] << endl;

fss.close();

}

if (SQL_SUCCESS != sret)

{

char SqlState[6];

int Nativ e E r ror = 0;

char ErrorMessage[SQL_MAX_MESSAGE_LENGTH];

int EMLength = SQL_MAX_MESSAGE_LENGTH;

int RealLeng t h = 0;

SQLGet DiagRec( SQL_HANDLE_STMT, hsmt, 1, (SQL-

CHAR*)SqlState,(SQLINTEGER*)&NativeError,(SQLCHAR*)ErrorM

essa ge, EMLength, (SQLSMALLINT*)&Rea lLength);

printf("sqlstate:%s\n", SqlState);

printf("error message:%s\n", ErrorMessage);

}

SQLFreeHandle(SQL_HANDLE_STMT, hsmt);

SQLDisconnect(hdbc);

SQLFreeHandle(SQL_HANDLE_DBC, hdbc);

SQLFreeHandle(SQL_HANDLE_ENV, henv);

system("pause");

Sleep(50000);

return 0;

}

4. Apache Ant Tool

Apache ant is a ja va library and co mmand-line tool whose

mission is to drive processes described in build files as

targets and extension points dependent upon each other.

The main known usage of Ant is the build of java appli-

cations. Ant supplies a number of built-in tasks allowing

to compile, assemble, test and run java applications. Ant

can also be used effectively to build non java application,

for instance C or C++ applications. More generally, Ant

can be used to pilot any type of process which can be

described in terms of targets and tasks.

The Apache Ant project is part of the Apache Software

Foundation. Ant is different from other build tools. In-

stead of a model where it is extended with shell-based

commands, Ant is extended using java classes. Instead of

writing shell commands, the configuration files are XML-

based, calling out target tree where various tasks get

executed. Each task is run by an object that implements a

particular task interface.

4.1. The Basic Usage of Apache Ant

Apache ant’s build files are written in XML. Each build

file contains one project and at least one target. Targets

contain task eleme nts. Each ta sk element o f the build file

can have an id attribute and can later be referred to by the

value supplied to this. The value has to be unique.

A project has three attributes:

Automated Testing Framework for ODBC Driver

692

Figure 2 depicts that the overall structure of file com-

position. The configuration file and xml file are included

into the cases folder. The file composition structure of

the folder of Cases, which includes t he API, log, tools as

well as the list of configuration file and xml execute

document. In the first level folder, build.xml need man-

ual configuration for test requirement. Each function

suite is written in xml document in the build.xml file.

Casesuit.ini is written for the definition of the abbrevia-

tion of the xml document name. Build.xml is the main

running document including ODBC Batch Insert Value

suite, ODBC Select Order suite, ODBC Add point suite,

ODBC Update all point suite, ODBC Select mode suite

and ODBC delete all point as well as XLS report, which

defines the running order of suite. The Doc folder struc-

ture is shown in Figure 3. Meanwhile, the co mposition o f

Etc folder is illustrated in Figure 4. Beside s, the compo -

sition of Bin folder is shown in Figure 5. Record result

presents file which store the result and the expected re-

sult of case as well as file to record case report. The Lib

folder structure is demonstrated in Figure 6. The API folder

structure includes all the interface execution programs as

shown in Figure 7. Moreover, the composition of Log

folder is illustrated in Figure 8. The log folder demon-

strates the result-list in each according case file where

include sourefile.txt and result.ini. The sourcefile.txt in-

cludes the input parameter value and the result.ini is the

judgment result of the test execution. In addition, the

MD5 compare tool and record result tool as well as the

result generation tool in the tools folder. Md5 checksum

of the source file and checksum of the destination file as

well as the file to log the compared result.

[Attribute]

Name: the name of the project.

Default: the default target to use when no target is

supplied.

Basedir: the base directory from which all path calcu-

lations are done. This attribute might be overridden by

setting the “basedir” property beforehand. When this is

done, it must be omitted in the project tag. If neither the

attribute nor the properties have been set, the parent di-

rectory of the build file will be used.

Each project defines one or more targets. A target is a

set of tasks you want to be executed. When starting Ant,

you can select which target you want to have executed.

When no target is given, the p roject ’s default is used.

[Targets]

A target can depend on other target. You might have a

target for compiling, for example, a target for creating a

distributable. You can only build a distributable when

you have complied first, so the distribute depends on the

co mpile target. Ant re solves these dependencies. It sho uld

be noted, however, the Ant’s depends attribute only spe-

cifies the order in which targets should be executed, it

does not affect whether the target that specifies the de-

pendency get executed if the dependent target did not run.

4.2. Script Implementation Architecture

A task is a piece of code that can be executed. A task has

multiple attributes. The value of an attribute might con-

tain references will be resolved before the task is exe-

cuted. All tasks share a task name attribute. The value of

this attribute will be used in the logging me ssages gener-

ated by Ant. During the research of ODBC operations, use of XML

technology construct XML model which is maintained

well to improve software flexibilit y and extendable.

The Automation script of whole structure is presented

in Figure 1. Figures 2-8 indicates separately files struc-

ture and subfolder structure.

Figure 1. Auto mation script structure.

Automated Testing Framework for ODBC Driver693

Figure 2. The overall structure of file composition.

Figure 3. The compositio n of Doc folder.

Figure 4. The co mposi t ion of Etc folder.

Automated Testing Framework for ODBC Driver 694

Figure 5. The composition of Bin folder.

Figure 6. The co mposi t ion of Lib folder.

Figure 7. The composition of structure.

Figure 8. The composition of Log folder.

4.3. Test Script Implementation

Test program generation tool is based on XML script,

C++ language code is tested. Test is composed of test

cases manage, test plan, test script writing, test execution

and test result. Tester makes test script according to the

steps of test case.

By using the test script generation model, test require-

ment can be changed into test script which can be taken

into automation test tool. The following part is XML

segment in the configuration file.

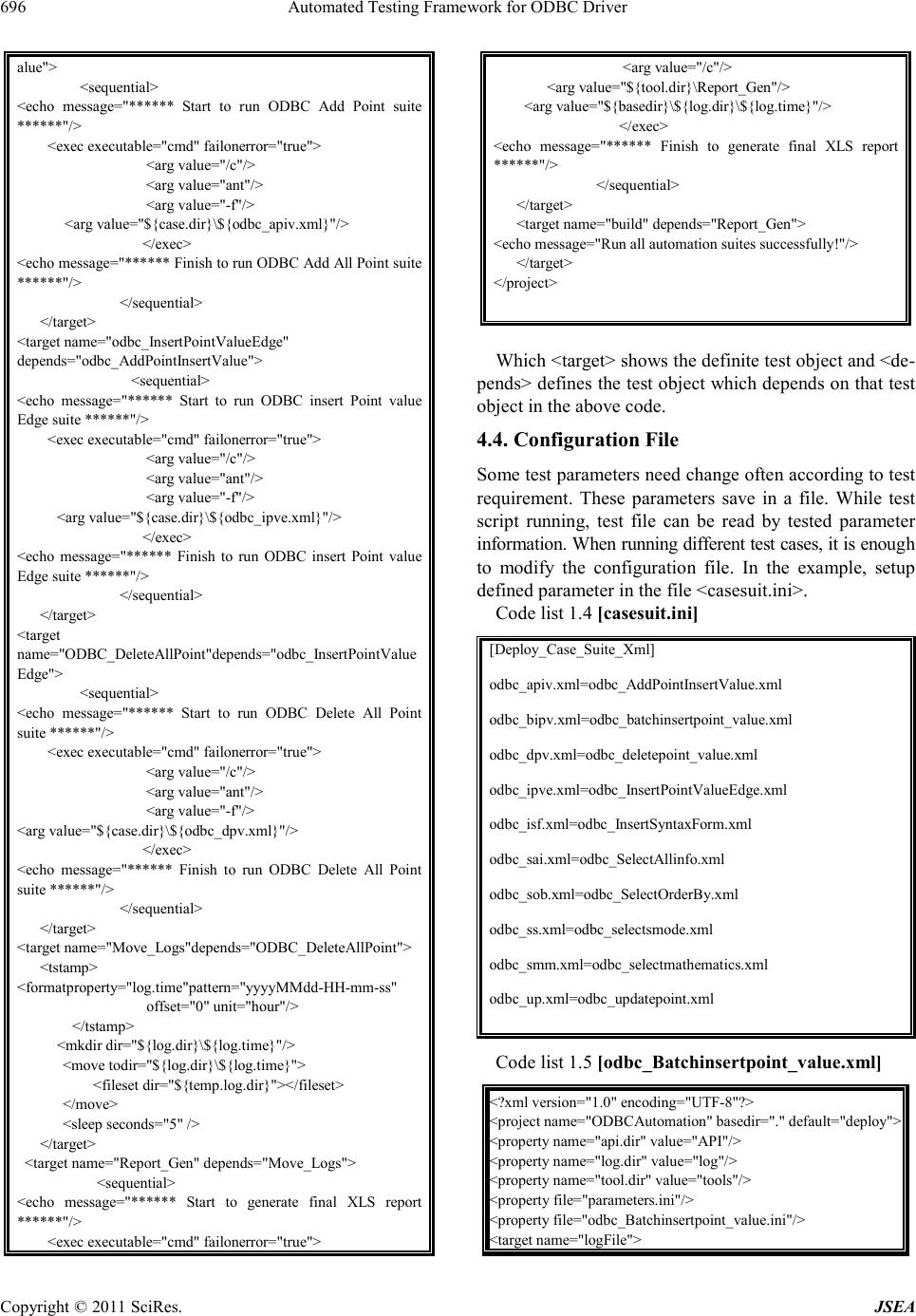

Code list 1.3 [build.xml]

Automated Testing Framework for ODBC Driver695

<?xml version="1.0" encoding="UTF-8"?>

<format property="touch.time"pattern="MM-dd-yyyy hh:mmaa"

offset="0" unit="hour"/>

</tstamp>

</target>

<echo message="****** Start to run ODBC Batch Insert Value

suite ******"/ >

<argvalue="${case.dir} \${odbc_bip v .xml}"/> </exec>

<echo message="****** Finish to run ODBC Batch Insert

Value suite ******"/>

</sequential>

</target>

<target name="ODBC_Selectsmode"depends="odbc_Batchinsert

point_value">

<echo message="****** Start to run ODBC Select Smode suite

******"/>

</exec>

<ech o message="***** * Finis h to run ODBC Select Sm ode suit e

******"/>

</sequential>

</target>

<target

na me="O DBC_ Select Ord erB y"dep end s= "ODBC _Selec ts mod e">

<ech o message= "****** Sta rt to run ODBC Selec t Ord erBy suite

******"/>

</exec>

<echo message="****** Finish to run ODBC Select OrderBy

suite ******"/ >

</sequential>

</target>

<target

name="odbc_SelectAllinfo"depends="ODBC_SelectOrderBy">

<echo message="****** Sta rt to run ODBC Select All info s uite

******"/>

</exec>

<echo message="****** Finish to run ODBC Select All info

suite ******"/ >

</sequential>

</target>

<target

name="ODBC_Updatepoint"depends="odbc_SelectAllinfo">

<echo message="****** Start to run ODBC Update All Point

info suite ******"/>

</exec>

<echo message="****** Finish to run ODBC Update All Point

info suite ******"/>

</sequential>

</target>

<target

name="ODBC_Selectmathematics"depends="ODBC_Updatepoin

t">

<echo message="****** Start to run ODBC Delete All Point

suite ******"/ >

</exec>

<echo message="****** Finish to run ODBC Delete All Point

suite ******"/ >

</sequential>

</target>

<target

name="odbc_deletepoint_value"depends="ODBC_Selectmathem

atics">

<echo message="****** Start to run ODBC Delete All Point

suite ******"/ >

</exec>

<echo message="****** Finish to run ODBC Delete All Point

suite ******"/ >

</sequential>

</target>

<target

name="odbc_AddPointInsertValue"depends="odbc_deletepoint_v

Automated Testing Framework for ODBC Driver 696

alue">

<echo message="****** Start to run ODBC Add Point suite

******"/>

</exec>

<ech o messa ge= "*** *** Fin i sh t o run ODBC Add All Poin t s uit e

******"/>

</sequential>

</target>

<target name="odbc_InsertPointValueEdge"

depends="odbc_AddPointInsertValue">

<echo message="****** Start to run ODBC insert Point value

Edge s uite ******"/>

</exec>

<echo message="****** Finish to run ODBC insert Point value

Edge s uite ******"/>

</sequential>

</target>

<target

name="ODBC_DeleteAllPoint"depends="odbc_InsertPointValue

Edge">

<echo message="****** Start to run ODBC Delete All Point

suite ******"/ >

</exec>

<echo message="****** Finish to run ODBC Delete All Point

suite ******"/ >

</sequential>

</target>

<formatproperty="log.time"pattern="yyyyMMdd-HH-mm-ss"

offset="0" unit="hour"/>

</tstamp>

</move>

</target>

<echo message="****** Start to generate final XLS report

******"/>

</exec>

<echo message="****** Finish to generate final XLS report

******"/>

</sequential>

</target>

</target>

</project>

Which <target> shows the definite test object and <de-

pends> defines the test object which depends on that test

object in the above code.

4.4. Configuration File

Some test parameters need change often according to test

requirement. These parameters save in a file. While test

script running, test file can be read by tested parameter

information. When running different test cases, it is enough

to modify the configuration file. In the example, setup

defined parameter in the file <casesuit.ini>.

Code list 1.4 [casesuit.ini]

[Deploy_Case_Suite_Xml]

odbc_apiv.xml=odbc_AddPointInsertValue.xml

odbc_bipv.xml=odbc_batchinsertpoint_value.xml

odbc_dpv.xml=odbc_deletepoint_value.xml

odbc_ipve.xml=odbc_InsertPointValueEdge.xml

odbc_isf.xml=odbc_InsertSyntaxForm.xml

odbc_sai.xml=odbc_SelectAllinfo.xml

odbc_sob.xml=odbc_SelectOrderBy.xml

odbc_ss.xml=odbc_selectsmode.xml

odbc_smm.xml=odbc_selectmathematics.xml

odbc_up.xml=odbc_updatepoint.xml

Code list 1.5 [odbc_Batchinsertpoint_value.xml]

<?xml version="1.0" encoding="UTF-8"?>

Automated Testing Framework for ODBC Driver697

<formatprop-

erty="touch.time"pattern="MM-dd-yyyyhh:mmaa"offset="0"

unit="hour"/>

</tstamp>

</target>

<target name="ODBC_BatchInsertValue100W_case1"depends=

"logFile">

<echo message="****** Start to run odbc Batch Insert value

100 W t es t case 1 ******"/>

<argvalue="${api.dir}\ODBC_BatchInsertPoint_20W"/>

</exec>

</exec>

</exec>

<echo message="****** Finished to run odbc Batch Insert value

100 W t es t case 1 ******"/>

</sequential>

</target>

<target name="ODBC_BatchInsertValue20W_case2"depends=

"ODBC_BatchInsertValue100W_case1">

<echo message="****** Start to run ODBC Batch Section Insert

value 20w test case 2 ******"/>

</exec>

</exec>

<echo message="****** Finished to run ODBC Batch Section

Insert va lue 20w test ca se 2******"/>

</sequential>

Code list 1. 6 [odbc_Batchinsertpoint_value.ini]

[Test ID 1]

1.serverName=127.0.0.1:9000:HS-1

1.user=SA

1.password=123456

2.serverName=127.0.0.1:9000:HS-1

2.user=SA

2.password=123456

1. sql="Insert into poin tinfo(name,archive,deadband) values(?,?,?);"

2.sql="Insert into pointvalue values(?,?,?,?);"

1.result = 1\\result.ini

2.result = 2\\result.ini

1.InsertValue_Src=1\\sourefile.txt

1.expect.result = 0

[Test ID 2]

1.serverName=127.0.0.1:9000:HS-1

1.user=SA

1.password=123456

3.serverName=127.0.0.1:9000:HS-1

3.user=SA

3.password=123456

1. sql="Insert into poin tinfo(name,archive,deadband) values(?,?,?);"

3.sql="Insert into pointvalue values(?,?,?,?);"

1.result = 1\\result.ini

3.result = 3\\result.ini

2.InsertValue_Src=2\\sourefile.txt

2.expect.result = 0

Code list 1.7 [parameters.ini]

[System]

serverName="127.0.0.1:9000:HS-1"

user="SA"

password="123456"

[Report]

odbc_batchinsertpoint_value.report=odbc_batchinsertpoint_value.txt

odbc_deletepoint_value.report=odbc_deletepoint_value.txt

odbc_updatepoint.report=odbc_updatepoint.txt

odbc_selectsmode.report=odbc_selectsmode.txt

odbc_selectmathematics.report=odbc_selectmathematics.txt

odbc_dynamicinsert.report=odbc_dynamicinsert.txt

odbc_selectorderby.report=odbc_selectorderby.txt

odbc_selectallinfo.report=odbc_selectallinfo.txt

In the code list 1.4, casesuit.ini depicts the abbrevia-

tion of substit ution file name. As can be seen in code list

1.5, odbc_batchinsertpoint_value.xml is for batch insert

value 100W, where it includes the parameters.ini and

odbc_batchinsertpoint.ini. Besides, server name, user and

password, SQL items are written in this configuration file.

First target is the task for batch insert 100 W value at one

point. Second target is the task is for batch insert 20 W

Automated Testing Framework for ODBC Driver 698

value at each section. As for code list 1.6, odbc_batchin-

sertpoint_value.ini includes the details of configuration

information. Code list 1 .7 describes the configuration file

parameters.ini which includes the abbreviation of report

file name and the relevant configuration o f database user

information.

4.5. Test Experimental Analysis

As for every test case, test output has its own test case

analysis. Check if it is satis fy with standard output to de-

fine the result is passed whether or not.

When running the command line to execute build. xml

by the usage of ant, the test result will be shown auto-

matica lly step by step. All the test res ult will b e scree ned i n

the execute window. During the test executio n, each task

execution result indicates that all the database operation

successful.

By the analysis for test result, it can verify that it can

best increase software test effectiveness and reduce work-

load as well as save more efforts.

5. Conclusions and Future Work

In this paper, the automation test system based on auto-

mation script generation is proposed. By the separation

of test data and script, make test case template. Let test

script reuse. Through the automation test script, automa-

tion script can generate quickly and accurately. With more

and more test cases, there are more and more test codes,

bugs can be modified in the test procedure. Test builds

use automation test show its advantage. The test tool can

run on multi-automation test platform. Meanwhile, the

automation test tool can finish the regression test of au-

tomation. Besides, the automation test tool can be app-

lied in the unit test and integrate test. In the future work:

(1) strengthen the usage of automation test tool (2) sup-

port Linux, Solaris platform using the test tool.

REFERENCES

[1] D. J. Mosley and B. A. Posey, “Software Test Automa-

tion. Just Enough Software Test Automation,” B. Zheng

L. J. Huang and Q. C. Cao Translated, Machinery Indus-

try Press, Beijing, 2003.

[2] W. Frakes and K. Kang, “Software Reuse Research:

Status and Future,” IEEE Transactions on Software En-

gineering, Vol. 31. No. 7, 20 05 , pp. 529 - 5 36.

do i:10.1109/TSE.2005.85

[3] W. Aresi and F. McGarry, “Defining Leverage Points for

Increasing Reu se,” Minnowbrook Work Shop on Software

Reuse, Blue Mountain Lake, New York, 1987.

[4] M. R. Qureshi and S. A. Hussain, “A Reusable Software

Component-Based Development Process Model,” Advan-

ces in Software Engineering, Vol. 39, No. 2, 2008, pp. 88-

94. doi:10.10161/j.advengsoft.2007.01.021

[5] C. J. M. Geisterfer and S. Ghosh, “Software Component

Specification: A Study in Perspective of Component Se-

lection and Reuse,” Fifth International Conference on

Commercial-off-the-Shelf (COTS) Based Software Sys-

tems, Washing t on, 13-16 Februa ry 2006, p. 9.

[6] M. K e lly, “C hoos ing a Test Autom a tion Fram ework,” 2003.

http://www.128.ibm.com/developerworks/rational/library/

591/html#N10223

[7] N. Carl, “Test Automation Frameworks,” 2000.

http://safsdev.sourceforge.net/FRAMESDataDrivenTestAu

tomation Frameworks.htm

[8] H. H. Sthamer, “The Automatic Generation of Software

Test Data Automatically,” Proceedings of the Interna-

tional Conference on Automated Software Engineering,

Linz , 20- 25 Se pte mber 2004, pp . 346-349.

[9] J. Al-Dallal and P. Sorenson, “Testing Software Assets of

Framework based Project Families,” During Application

Engineering Stage Journal of Software, Vol. 3, No. 5,

2008, pp. 11-25.

[10] S. A. Yahia, N. Koudas, A. Marian, D. Srivastava and D.

Toman, “Structure and Content Scoring for XML,” Pro-

ceedings of the 31st VLDB Conference, Trondheim, Au-

gust 2005, pp. 362-372.

[11] T. S. Kin, J. H. Lee, J. W. Song and D. H. Kim, “Similar-

ity Measurement of XML Documents Based on Structure

and Contents,” International Conference on Computa-

tional Science (ICCS), Springer-Verlag, Heid elberg, 2007,

pp. 902- 905 .

[12] S. C. Haw and C. S. Lee, “Twing INLAB: A Decomposi-

tion-Matching—Mering Approach to Improving XML Qu-

ery Processing,” American Journal of Applied Sciences,

Vol. 5, No. 9, 200 8, pp. 1199-12 0 5.

doi:10.3844/ajassp.2008.1199.1205

[13] V. Mihajlovic, G. Ramirez, T. Wester V eld, D. Hiemstra,

H. E. Blok and A. P. de Vries, “Vague Element Selection,

Image Search, Overlap, and Relevance Feedback,” Lec-

ture Notes in Computer Science, Vo l. 39 77 , 20 06 , pp . 7 2 -

78. doi:10.1007/11766278_6

[14] P. O. Gilivie and J. Callan, “Parameter Estimation for a

Sample Hierarchical Generative Model for XML Com-

ponent Retrieval,” Lecture Notes in Computer Science,

Vol. 3977, 2006, pp . 211- 224.

[15] B. Sigurbjournsson, J. Kamps and M. de Rijke, “The

Effect of Structured Queries and Selective Indexing on

XML Retrieval,” Lecture Notes in Computer Science, Vol.

3977, 2006, pp. 104-1 18.

[16] B. Jeong, D. Lee, H. Cho and J. Lee, “A Novel Method

for Measuring Semantic Similarity for XML Schema Ma-

tching,” Expert Systems with Applications, Vol. 24, 2008,

pp. 1651-1658. doi:10.1016/j.eswa.2007.01.025

[17] H. Z. Wang, J. Z. Li, W. Wang and X. M. Lin, “Coding-

Based Join Algorithm for Structure Queries on Graph-

Structured XML Document,” World Wide Web, Vol. 11,

No . 4, 2008, pp. 485-510. doi:10.1007/s11280-008-0050-4

[18] D. Ranjan and A. K. Tripathi, “Variablity-Based Models

for Testablity Analysis of Frameworks,” Journal of Soft-

Automated Testing Framework for ODBC Driver

699

ware Engineering and Applications, Vol. 3, No. 6, 2010,

pp. 455- 459. doi:10.4236/jsea.2010.35051

[19] D. D. Black, M. E. C. Hull and K. Jackson, “Systems

Engineering and Safety—A Framework,” Software, Vol.

5, No. 1, 2011, pp. 43-53.

[20] G. Butler, “Ob j ect -Ori ented Frameworks,” 15th Europe an

Conference on Object-Oriented Programming, Tutorial

Budapes t , 18-22 June 20 01 , pp. 1 - 70.

[21] J. Al-Dallal and D. Sorenson, “Estimating the Coverage

of the Framework Application Reusable Cluster-Based

Test Cases,” Information and Software Technology, Vol.

50, No. 6, 2008 , pp. 595-604 .

doi:10.1016/j.infsof.2007.07.006

[22] T. Conno ll y and C. Begg, “Datab ase S ystems: A Pract ical

Approach to Design, Implementation and Management,”

Pearson Education, Upper Saddle River, 2004.

[23] X. Wu and J. Feng, “A Framework and Implementation

of Information Content Reasoning in a Database,” WSEAS

Transactions on Information Science and Applications, Vol.

6, No. 4, 2009 , pp. 579-588.
