Advances in Bioscience and Biotechnology, 2011, 2, 59-67 ABB
doi:10.4236/abb.2011.22010 Published Online February 2011 (http://www.SciRP.org/journal/abb/).
Published Online February 2011 in SciRes. http://www.scirp.org/journal/ABB
Minor modifications in obtainable Arabidopsis floral dip
method enhances transformation efficiency and production of
homozygous transgenic lines harboring a single copy of
transgene
Priyanka Das, Naveen Chandra Joshi
Institute of Life Sciences Bhubaneswar Orissa India
School of Life Sciences Jawaharlal Nehru University New Delhi-110067 India.
Email: *ncjjbiotech@gmail.com
Received 10 January 2011; revised 16 January 2011; accepted 20 January 2011.
ABSTRACT
Many researchers have developed various methods
for in-planta or floral dip transformation of Arabi-
dopsis thaliana , one of the simple protocol and widely
used to produce transgenic Arabidopsis. As the effi-
ciency and ease of getting a transformant is very
much time consuming effort and less number of the
transformants people get, we have developed a little
modified transformation protocol to avoid the dis-
parities. Four types of inoculums (inoculum-1, in-
oculum-2, inoculum-3 and inoculum-4) were used to
check the transformation efficiency out of which In-
oculum-3 showed the highest rate of transformation
among the four types. 0.07% Twin-20 also acts in
same manner as silwet L-77 to increase the rate of
transformation efficiency and glucose instead of su-
crose can be used in inoculum to transform Arabi-
dopsis. After vacuum infiltration keeping the Agro-
bacterium infected plants for 7 - 8 hrs horizontally in
low light at 280C temperature condition, considered
best to get an increased number of transformed seeds.
Modified protocol produced ~ 12% - 14% increase in
transformants. Selection pots (kanamycin supple-
mented soil filled pots) in place of selection plates
(Kanamycin supplemented Murashige and Skoog
agar plates) proved beneficial as no MS medium and
no aseptic condition is required for selection of
transformed plants. This increase in transformation
efficiency consequently increased the percentage of
homozygous and single copied stable transgenic lines.
Keywords: Arabidopsis Thaliana; Floral-Dipping;
Copy Number; Homozygous; Inoculum; Transgenic
Plant
1. INTRODUCTION
Efficient study of plant gene function has been permissi-
ble through transgenic approaches. Plant transformation
is a process of genetic operation by which foreign genes
are introduced into plant genome and stably integrated
and the transformed cells are regenerated to get trans-
genic plants. A plant transformation method that ex-
cludes the use of tissue culture and plant regeneration
would greatly reduce the time required to produce
transgenic plants, and such a method was first described
as ‘‘in planta’’ transformation almost 20 years ago [1].
Much effort has been given to get stable transgenic lines.
Feldmann and Marks [1] co-cultivated germinating seeds
of Arabidopsis thaliana with an Agrobacterium tumefa-
cien strain harboring a disarmed Ti plasmid and a binary
vector, and remarkably, they got stable transgenic lines,
although the transformation rates were very low. Several
years later, the Pelletier group infiltrated flowering Ara-
bidopsis plants with Agrobacterium and dramatically
improved the transformation efficiency [2]. This account
of transformation approach was frequently named as the
‘‘Agrobacterium vacuum infiltration method’’ [3]. Brief-
ly, it involves uprooting of flowering Arabidopsis plants,
vacuum infiltration of the plants using an Agrobacterium
cell suspension, re-planting, harvesting of seed several
weeks later, and screening for primary transformants on
medium containing the appropriate selective agent (usu-
ally an antibiotic or a herbicide). These transformation
procedures were later simplified and substantially im-
proved [4]. The vacuum-aided infiltration of inflores-
cence [2] was substituted using a surfactant (Silwet
L-77), which had already been shown, in the formulation
of some pesticides, to help chemicals enter the plant tis-
sues. All these modifications simplified the initial pro-
cedure. The Arabidopsis flower buds were simply dip-
ped in an Agrobacterium cell suspension containing 5%
sucrose (wt/vol) and 0.01% - 0.05% Silwet L-77 (vol/vol)
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
60
to allow uptake of the Agrobacteria into female gametes
[5,6]. This simple transformation plan was commonly
known as ‘‘the floral dip method’’ [4]. It requires mini-
mal labor, relatively inexpensive equipment and few
specialized reagents, and can be successfully performed.
The floral dip method easily maintains genomic stability
in Arabidopsis thaliana transgenic plants, which can
otherwise be harmed by the tissue culture–based trans-
formation [7]. The success and popularity of this floral
transformation procedure is reflected by its high citation
index since its description [3,4]. Similar to floral dip,
floral spray also works very well with Arabidopsis [8].
Using a similar protocol, Curtis and Nam reported the
successful production of transgenic radish and Brassica
rapa [9], Arabidopsis lasiocarpa [10] and rape seed
Brassica napus [11].
The segregation test of transgene was useful to iden-
tify transgenic plants with single locus DNA integration
and zygosity determination. Southern blot analysis de-
termines the copy number of the transgene. But it is both
time and labor consuming and precautions were required
at the step of radioactive handling. The quantitative
RT-PCR and single step PCR method could able to
overcome those types of problems in identifying copy
number analysis.
Our wide use of the floral dip method over the years
to generate transgenic Arabidopsis plants in the labora-
tory has allowed us to adjust its various steps. However,
there is scope to improve this protocol. Many research-
ers have put their hands on modification of the previous
protocols to improve transformation process [8,12-15].
There are some steps that we found to be both
time-consuming and costly. We provide some modifica-
tions in steps of floral-dip method of Arabidopsis that
eradicates the need to screen on sterile conditions as
only agro-peat soil treated with kanamycin is a suitable
alternative to an agar substrate during the seed selection
process. In another development, we provide a descrip-
tion of modified inoculum preparation for infiltration
that supports direct dipping and plant transformation,
thereby enhancing the chance of more transformant
production having homozygous and single copy of inte-
grated target gene.
2. MATERIAL AND METHOD
2.1. Materials
Plant
Arabidopsis thaliana (Columbia-0) (Fig ure 1(a) )
Bacterium
. Agrobacterium strain: GV1301
Chemicals and Reagents
. agarose.
. MS medium
. Liquid LB medium (10 g tryptone, 5 g yeast extract,
10 g NaCl per liter)
. sucrose
. glucose
. 0.025%, 0.05%, 0.075% and 0.1% (vol/vol) Silwet
L-77 (Lehle Seeds)
. Selection plates (see reagent setup)
· Kanamycin
. ethanol
. Tween-20
. Ethidium bromide
. Standard PCR buffers and solutions.
2.2. Equipments
. Growth chambers or light room or greenhouse, ad-
justable to long-day condition of 16 h light/8h dark, 20 ±
20C
. 300C chamber
. Pots for plant growth
. Laminar-Air flow hood
. Acrodisc Syringe Filter with 0.2-mm membranes
(Pall Life Sciences)
. Petri dishes: 150 × 150 × 25 mm (Falcon 3025)
. Agarose gel running system
. Thermal cycler
2.3. Reagent Setup
MS medium and selection plates
. Autoclaved MS medium (4.3 g Murashige & Skoog
salts, 10 g sucrose, 0.5 g MES, 8 g agar per liter; pH 5.7),
cooled to approximately 500C before pouring into Petri
dishes (MS solid medium). To prepare selection plates
50mgL-1 kanamycin was added to MS medium.
Selection pots
. Autoclaved soil (agropeat)-To prepare selection pot,
50 mgL-1 kanamycin was supplemented to the pot filled
with soil until rosette leaves appeared.
Buffers
. TAE buffer for agarose gel running.
Primers
. Kanamycin gene (transgene) specific and a known
(control) single copy gene specific forward and reverse
primers were used (Table 2)
2.4. Methodology
Step 1: Growing Arabidopsis plants
Arabidopsis seeds were kept for 3 days at 40C to break
dormancy. Vernalized seeds were layered on agro-peat
filled pots. Pots were placed and well watered and al-
lowed to grow in growth chamber or green house in long
day (16hL/8hD) condition up to inflorescence or floral
stage comes up (Figu re 1(a) ).
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
61
Table 1. Composition of inoculums.
Composition Inoculum-1 Inonulum-2 Inoculum-3 Inoculum-4
MS salt 0.5X 0.5X 0.5X 0.5X
B5 vitamins 1X 1X 1X 1X
Glucose --- --- 5% 5%
Sucrose 5% 5% --- ----
Silwet L-77 0.03% ---- 0.075% 0.1%
Tween-20 --- 0.075% ----- ----
(a) (b) (c) (d)

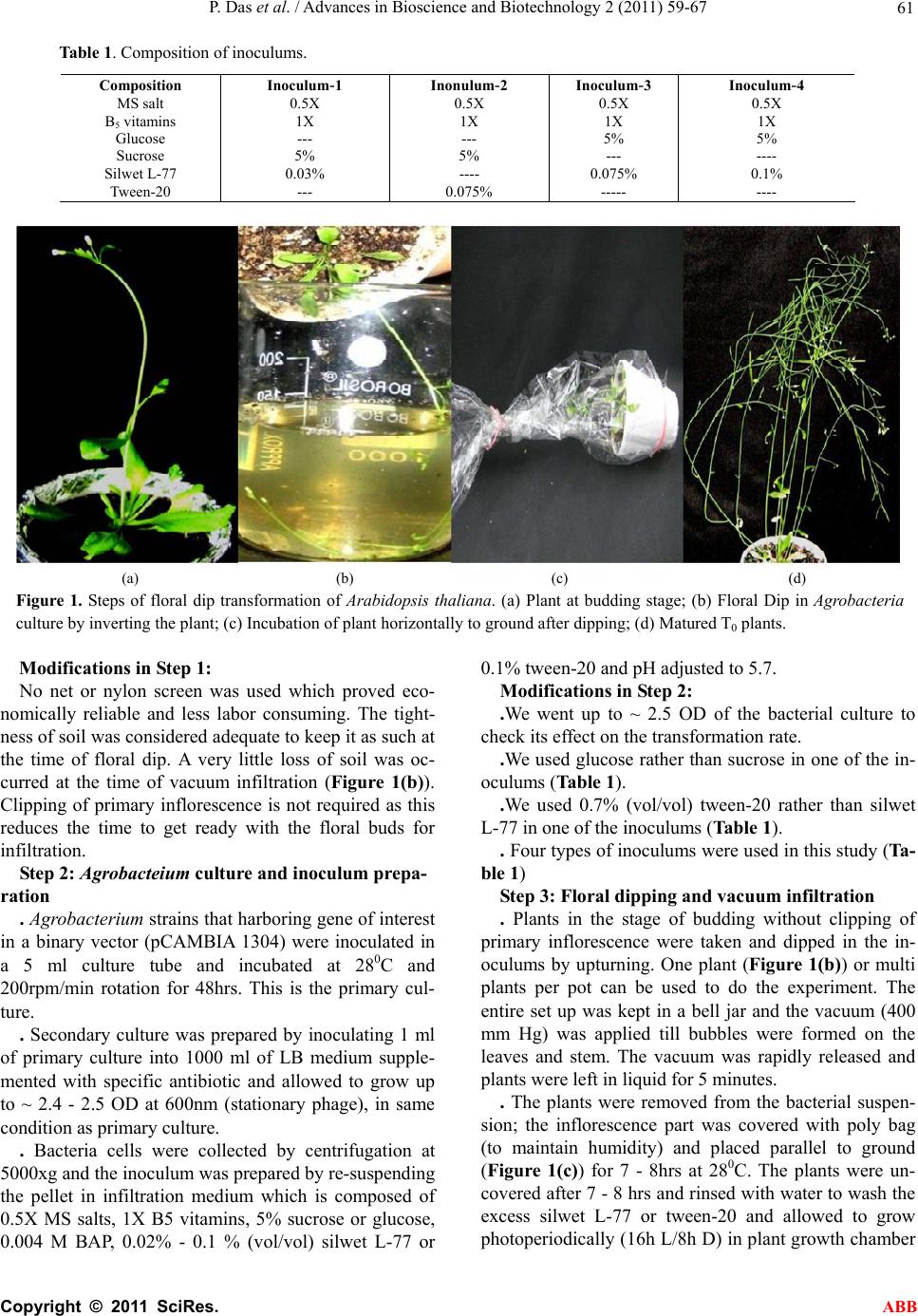

Figure 1. Steps of floral dip transformation of Arabidopsis thaliana. (a) Plant at budding stage; (b) Floral Dip in Agrobacteria
culture by inverting the plant; (c) Incubation of plant horizontally to ground after dipping; (d) Matured T0 plants.
Modifications in Step 1:
No net or nylon screen was used which proved eco-
nomically reliable and less labor consuming. The tight-
ness of soil was considered adequate to keep it as such at
the time of floral dip. A very little loss of soil was oc-
curred at the time of vacuum infiltration (Figure 1(b)).
Clipping of primary inflorescence is not required as this
reduces the time to get ready with the floral buds for
infiltration.
Step 2: Agrobacteium culture and inoculum prepa-
ration
. Agrobacterium strains that harboring gene of interest
in a binary vector (pCAMBIA 1304) were inoculated in
a 5 ml culture tube and incubated at 280C and
200rpm/min rotation for 48hrs. This is the primary cul-
ture.
. Secondary culture was prepared by inoculating 1 ml
of primary culture into 1000 ml of LB medium supple-
mented with specific antibiotic and allowed to grow up
to ~ 2.4 - 2.5 OD at 600nm (stationary phage), in same
condition as primary culture.
. Bacteria cells were collected by centrifugation at
5000xg and the inoculum was prepared by re-suspending
the pellet in infiltration medium which is composed of
0.5X MS salts, 1X B5 vitamins, 5% sucrose or glucose,
0.004 M BAP, 0.02% - 0.1 % (vol/vol) silwet L-77 or
0.1% tween-20 and pH adjusted to 5.7.
Modifications in Step 2:
.We went up to ~ 2.5 OD of the bacterial culture to
check its effect on the transformation rate.
.We used glucose rather than sucrose in one of the in-
oculums (Table 1).
.We used 0.7% (vol/vol) tween-20 rather than silwet
L-77 in one of the inoculums (Table 1).
. Four types of inoculums were used in this study (Ta-
ble 1)
Step 3: Floral dipping and vacuum infiltr atio n
. Plants in the stage of budding without clipping of
primary inflorescence were taken and dipped in the in-
oculums by upturning. One plant (Figure 1(b)) or multi
plants per pot can be used to do the experiment. The
entire set up was kept in a bell jar and the vacuum (400
mm Hg) was applied till bubbles were formed on the
leaves and stem. The vacuum was rapidly released and
plants were left in liquid for 5 minutes.
. The plants were removed from the bacterial suspen-
sion; the inflorescence part was covered with poly bag
(to maintain humidity) and placed parallel to ground
(Figure 1(c)) for 7 - 8hrs at 280C. The plants were un-
covered after 7 - 8 hrs and rinsed with water to wash the
excess silwet L-77 or tween-20 and allowed to grow
photoperiodically (16h L/8h D) in plant growth chamber
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
62
in 100 µmoles photons m-2 s-1 of light intensity.
. Watering was stopped at the starting time of pod
maturation (Figure 1(d)). Seeds were collected after the
pods turned to brown.
. Seeds can be stored at room temperature up to 3 - 4
months or in refrigerator up to 1 year.
Step 4: Screeni ng of T0 transformed seeds
. Seeds were surface sterilized under laminar hood
with 70% ethanol, washed 4 times with sterile water and
plated by pipetting method on MS plate (selection plate)
containing specific antibiotic (kanamycin in our case) or
vernalized seeds were directy layered on antibiotic con-
taining agopeat (soil) .
. ~ 150 seeds were plated for antibiotic selection on
each plate or pot.
. Plates were dried up under laminar flow, sealed and
kept three days in 40C for vernalization.
. Following vernalization they were moved to growth
chamber having long day condition and 220C tempera-
ture for germination and growth.
Modifications in Step 4:
. T0 seeds (~ 150 seeds) were vernalized and layered
on an agropeat filled soil which was pretreated with an-
tibiotic solution, without any surface sterilization.
. Soil was regularly treated with antibiotic solution
until rosette leaves come up.
Step 5: Genomic DNA isolation
Genomic DNA was isolated by CTAB method
[16] .Small piece of leaf tissue (1cm X 1cm) of primary
transformants was ground with genomic DNA extraction
buffer (2% CTAB, 1.4M NaCl, 20 mM EDTA, 100 mM
Tris-Cl and 0.1% -ME) at room temperature and kept at
600C in a water bath for 30 min. To this phenol: chloro-
form: isoamyl alcohol (24 : 24 : 1) was added and mixed
by vortexing followed by centrifugation at maximum
speed for 5 min in a microfuge at room temperature. The
aqueous layer was transferred to another fresh tube. To
the aqueous phase 2/3 volume of isopropanol was added,
mixed properly and kept at room temperature for 5 - 10
min to precipitate the genomic DNA. After precipitation
of genomic DNA samples were centrifuged at maximum
speed for 5 min at room temperature in a microfuge. The
pellet was washed 3 times with 70% ethanol, dried and
dissolved in 30 l sterile water containing 20 g/ml
RNase and incubated at 370C for 30 min and used for
analysis.
Step 6: Confirmation of T-DNA integration in Ara-
bidopsis genome
To detect the integration of T-DNA, PCR was per-
formed with kanamycin specific forward and reverse
primers (Table 2) amplifying 800bp.
Step 7: Segregation analysis and detection of ho-
mozygous stable transgenic lines
. Segregation analysis was performed to estimate the
number of copies of transgene that integrated into the
genome of transgenic Arabidopsis. Genomic DNA was
isolated from the leaves of T1, T2 and T3 generation
plants, produced from T0 lines dipped in inooculum1 and
inoculum-3. Gene specific primers were used for PCR
analysis and thermal cycling conditions were similar, as
described by Fu et al [17].
Step 8: Identification of Single copied transformants
Transgenic lines carrying single copied transgene
were identified by single step genomic PCR method
described by Kihara et al [11]. About 20 μg of genomic
DNA was used as templates in a total volume of 20 μl of
PCR mixture in individual PCR tube. The PCR mixture
consisted of Taq DNA polymerase, dNTPs and 0.5 μM
each of primer pairs targeting the transgene and a known
single copy control gene (4-hydroxyphenylpyruvate de-
oxygenase-[4HPPD;At4g03280]). The PCR reaction was
carried out with up to 22 cycles of 940C for 30s, 600C
for 30s and 720C for 1 min. After PCR, samples were
loaded onto regular agarose gel (1.5% w/v) and visual-
ized by ethidium bromide staining. Picture of gel was
taken by gel documentary system-(Bio-Rad) and the
band intensity was quantified using NIH image software
(http://rsb.info.nih .gov/nih-image). Ratio of the band
intensity of target and control was calculated to deter-
mine the copy number of the transgene.
3. RESULT
Inoculum type for vacuum infiltration and antibiotic
screening of T1 transformants:
Table 2. Sequences and Tm values used in Quantitative Dual Target PCR for determination of copy
number of T-DNA integrated into the Arabidopsis thaliana genome. 4HPPD, represents
4-hydroxyphenylpyruvate dioxygenase.
Gene Template Primer name Primer sequence (5’ - 3’) Tm(0C)
Control Genomic DNA 4HPPDF’ ATGTGTCTATCGTTAGCTTCTACAGCT 59.20
Control
Transgene
Genomic DNA
Genomic DNA
4HPPDR’
KanamycinF’
CTCTGCGAATTGGTGAAAACC
TCGACCATGGGGATTGAAC
60.0
60.10
Transgene Genomic DNA KanamycinR’ TCGACCATGGGGATTGAAC 60.10
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
63
(a) (b) (c)
(d) (e) (f)
Figure 2. Screening of kanamycin resistant T1 plants. (a), (b) and (c) showing screening of T1 transfor-
mants of inoculum-1, 2 and 3 dipped plants respectively, on kanamycin containing MS agar plates. (d), (e)
and (f) showing screening of inoculum-1, 2 and 3 dipped transformants respectively, on antibiotic irri-
gated soil filled pots.
Out of four types of inoculums, inoculum-3 gave best
result to produce increased number of transformants.
12% - 14% (18 ± 4 antibiotic resistant plants from 100
seeds) increase in the number of transformants on ka-
namycin plate was observed than the standard inoculums
used (Figure 2(c)). 0.075% silwet L-77 was considered
best to get increased number of tranformants. ~ 150
seeds were taken from each type for screening on kana-
mycin plates. Only 2% - 3 % seeds from standard in-
oculum (inoculum-1) dipped T0 plants were germinated
on kanamycin plate. Inoculum-2 Dipped plants resulted
10% - 12% (14 ± 4 antibiotic resistant plants from 100
seeds) increase in transformants (Figure 2(b)). Inocu-
lum-4 dipped T0 plants were wilted after 7 - 8hrs of in-
cubation in 280C. Screening of T0 seeds on containing
kanamycin agropeat filled pot gave similar result as on
kanamycin plates. Increase in transformation efficiency
was observed by screening on kanamycin containing
agro-peat filled pots (Figures 2(d), (e) and (f)).
Segregation and copy number analysis of transgene in
inoculum-3 dipped T2 plants compared to inoculum-1
dipped T2 transenics:
PCR analysis of genomic DNA from T1 and T2 gen-
eration plants revealed a single gene segregation pattern
of kanamycin registant gene in the Arabidopsis genome.
Kanamycin registant gene was not detected in 3 (50%)
out of 6 from inoclum1 dipped T1 progeny where as only
3 (20%) out of 17, showed kanamycin negative from
inoculum-3 dipped T1 progeny. Only one line out of 3 of
T2 generation from inoculum-1 dipped transgenic prog-
eny gave homozygous condition (Figure 3(a)). 9 plant
out of 17 from T1 generation of inoculum-2 dipped T0
plants considered kanamycin positive and 4 plants were
detected homozygous in T2 generation (Figure 3(b)). T1
generation of inoculum-3 dipped plants gave 14 trans-
genic lines detected kanamycin positive and 9 out of
them were detected homozygous (Figure 3(c)).
The only transgenic #2 of T1 generation, resulted by
inoculum-1 dipping was considered, having 4 copies of
transgene and the ratio of the PCR band intensity of the
transgene and control gene was found to be 4.2 (Figure
4(a)). The other two (#1 and#3) were considered het-
erozygous as the PCR band intensity varies between
target and control gene. From nine transgenic (T1) (#1,
#2, #3, #5, #8, #9, #10, #14 and #15) lines of inocu-
lum-2 dipped plants, 4 lines (#1, #2 and #10) considered,
having single copy of transgene (Figure 4(b)). The ratio
between transgene and control gene were found to be 1.2,
0.9, and1.1 respectively. From forteen transgenic (T1)
(#2, #3, #4, #5,#7, #8, #9, #10, #11, #12, #14, #15, #16
and #17) lines of inoculum-3 dipped plants, 4 lines (#3,
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
64
(a)
(b)
(c)
Figure 3. Segregation (survival) analysis of kanamycin resistant gene in transgenic plants devel-
oped using Inoculum-1 (a), inoculum-2 (b) and inoculum-3 (c). Zygosity of transgenic plants,
were identified in T2 generation by PCR amplification of integrated gene. X indicated self pollina-
tion. ‘+’ indicated PCR positive and ‘-’ indicated PCR negative transgenic plants.
#4, #5, #7, #8 and #9) considered, having single copy of
transgene (Figure 4(b)). The ratio between transgene
and control gene were found to be 0.9, 1.3, 1.1, 0.9, 1.0
and 1.1 respectively.
4. DISCUSSION
Here we confirmed the crucial role of silwet L-77 in the
inoculum in enhancement of rate of transgenic produc-
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
65
Figure 4. Identification of transgenic Arabidopsis plants carrying a single copy of integrated
T-DNA resulted by dipping in inoculum-1 (a), inoculum-2 (b) and inoculum-3 (c) by single
step PCR. The ratios of transgene to control (4HPPD) genes were obtained using gel images
(±SD indicated). The upper bands represent the transgene amplicons. From inoculum-1 dipped
T1 lines, no single copy was detected. From inoculum-2 dipped T1 lines #1, 2 and 10 detected
as single copy transgenic lines. From inoculum-3 dipped T1 lines #3, 4, 5, 7, 8 and 9 detected
as single copy transgenic lines.
tion. We also found the replacement of sucrose by using
glucose in the inoculum. We compared the traditional
inoculation method of submerging inflorescences in the
bacteria suspension [4] with the modified protocol (Fig-
ure 1(a)). Cough and Bent [4] described that the flow-
ering stage is suitable for transformation. Desfeux et al
[5] demonstrated that ovules are the target for transfor-
mation with Agrobacterium. During ovary development,
an open structure exists until 3 days before anthesis,
when locules are sealed by the stigma. Thus, applying
Agrobacterium inoculum to closed floral buds and not
opening flowers is important. Martinez-Trujillo et al. [18]
developed a modified method i.e. drop by drop applica-
tion of Agrobacterium suspension to the closed floral
buds. This is quite labour consuming. Here, we would
like to say that the budding stage can result more trans-
formants by modifying a little in the inoculums and only
single plant (Figure 1(a)) or multiple plants per pot can
be used for infiltration for efficient transformant produc-
tion. Dipping of Primary floral buds can be done to get
transformants earlier as it avoids clipping of primary
inflorescence and lessen the days to get transformed
seeds. 500nm OD value of the agrobacteria culture can
be increased upto ~ 2.5 to get better result of infection.
Curtis [19] explained that the surfactant plays an impor-
tant role in optimizing transformation efficiency of rad-
ish. We optimized the transformation efficiency of Ara-
bidopsis by altering the concentration of silwet L-77.
Rinsing of T0 plants after 7 - 8 hrs of infiltration avoids
any toxic effect of excess surfactant. This modification
produced 8% - 10% enhanced number of T0 transfor-
mants than the conventional method. Cough [20] said
about the use of other surfactants rather than silwet
L-77.We also tested another surfactant i. e. tween-20
instead of silwet L-77 which could also able to produce
efficient number of transformants (Figure 3(b)). This
can help us from economic view point and in case of
unavailability of silwet L-77. Use of Glucose in place of
sucrose in the inoculum proved better to give efficient
transformant.
(a)
(b)
(c)
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
66
One limitation in the identification of transgenic A.
thaliana lines after floral dip is that the seeds are often
internally contaminated with the A. tumefaciens line
used. Furthermore, there is often fungal contamination
within the seed. Davis et al [21] developed a
non-asceptic condition to avoid fungal contamination at
the time of screening of T0 transformants by using
chromatography papers treated with antibiotics. We de-
sired to establish a protocol for antibiotic selection that
could be used under non-aseptic and in soil conditions.
As an added return, this would eliminate the time needed
to surface-sterilize seed prior to agar culture and also
there would no need of chromatography papers. We were
successful in identifying transformants on soil by treat-
ing the agro-peat with kanamycin in a concentration of
50µg/μl every day up to rosette leaves come up (Figure
2). However, we were convinced that it was possible to
screen antibiotic resistance plants under non-sterile soil
conditions.
Transgenic plants derived from Agrobacterium medi-
ated transformation often carry multiple copies of inte-
grated T-DNA [22] consequently, integrated gene can
become unstable due to enhanced gene silencing as re-
sult of multiple copies of the ectopic gene [23] and zy-
gosity is also a factor for stable transgenic line [6].We
compared the zygosity and copy number of integrated
transgene following Fu and Ristic [24], taking conven-
tional (inoculum-1 dipped) and modified (inoculum-3
dipped) T1 and T2 transformants. Inoculum-3 dipped T0
plants produced enhances number of transformants con-
sequently produced more number of homozygous and
single copied transgenic lines (Figure 4) than the inocu-
lum-1 dipped T0 plants. Only one PCR positive (T1)
plant produced by conventional method proved homo-
zygous in T2 generation and it was harboring 4 copies of
transgene. From 9 PCR positive T1 lines of inoculun2
dipped plants 4 were considered homozygous T2 genera-
tion and from 9 plants 7 were tested for copy number
analysis and 3 were proved harboring single copy of
transgene (Figure 4(b)). Similarly 14 PCR positive T1
lines of inoculum-3 dipped plants 9 were considered
homozygous T2 generation and from 14 plants 7 were
tested for copy number analysis and 6 were proved har-
boring single copy of transgene (Figure 4(c)).
Here we have presented a very simplified method that
is strongly efficient in the generation and selection of
homozygous, single copied and stable transgenic Arabi-
dopsis plants, which is less time consuming, economi-
cally efficient and avoids aseptic condition.
5. ACKNOWLEDGEMENTS
Authors are thankful due to the laboratory facility pro-
vided by Prof. B. C. Tripathy, JNU, New Delhi. This
work was also supported by Prof. S.C. Sabat, Institute of
Life Sciences, Bhubaneswar. Dr. B. B. Sahu is ac-
knowledged due to his valuable suggestion.
REFERENCES
[1] Feldmann, K.A. and Marks, M.D. (1987) Agrobacterium
mediated transformation of germinating seeds of Arabi-
dopsis thaliana: a non-tissue culture approach. Molecular
Genomics and Geneicst, 208, 1-9.
doi:10.1007/BF00330414
[2] Bechtold, N., Ellis, J. and Pelletier, G. (1993) In planta
Agrobacterium-mediated gene transfer by infiltration of
adult Arabidopsis thaliana plants. C R Acad Sci Paris,
Sciences de la vie/Life sciences, 316, 1194-1199.
Bechtold, N., Jolivet. S., Voisin, R. and Pelletier, G.
(2003) The endosperm and the embryo of Arabidopsis
thaliana are independently transformed through infiltra-
tion by Agrobacterium tumefaciens. Transgenic Research,
12, 509-517. doi:10.1023/A:1024272023966
[3] Clough, S.J. and Bent, A.F. (1998) Floral dip: a simpli-
fied method for Agrobacterium mediated transformation
of Arabidopsis thaliana. Plant Journal, 16, 735-743.
doi:10.1046/j.1365-313x.1998.00343.x
[4] Desfeux, C., Clough, S. J. and Bent, A. F. (2000) Female
reproductive tissues are the primary target of Agrobacte-
rium-mediated transformation by the Arabidopsis flo-
ral-dip method. Plant Physiology, 123, 895-904.
doi:10.1104/pp.123.3.895
[5] Bechtold, N., Jolivet, S., Voisin, R. and Pelletier, G.
(2003) The endosperm and the embryo of Arabidopsis
thaliana are independently transformed through infiltra-
tion by Agrobacterium tumefaciens. Transgenic Research,
12, 509-517. doi:10.1023/A:1024272023966
[6] Labra, M. et al. (2004) Genomic stability in Arabidopsis
thaliana transgenic plants obtained by floral dip. Theo-
retical and Applied Genetics, 109, 1512-1518.
doi:10.1007/s00122-004-1773-y
[7] Chung, M.H., Chen, M.K. and Pan, S.M. (2000) Floral
spray transformation can efficiently generate Arabidopsis
transgenic plants. Transgenic Reserch, 9, 471-476.
doi:10.1023/A:1026522104478
[8] Cao M.Q. et al. (2000) Transformation of Pakchoi (Bras-
sica rapa L. ssp. chinensis) by Agrobacterium infiltration.
Molecular Breeding, 6, 67-72.
doi:10.1023/A:1009658128964
[9] Tague, B.W. (2001) Germ-line transformation of Arabi-
dopsis lasiocarpa. Transgenic Research, 10, 259-267.
doi:10.1023/A:1016633617908
[10] Wang, W.C., Menon, G. and Hansen, G. (2003) Devel-
opment of a novel Agrobacterium mediated transforma-
tion method to recover transgenic Brassica napus plants.
Plant Cell Report, 22, 274-281.
doi:10.1007/s00299-003-0691-9
[11] Harrison, S.J., Mott, E.K., Parsley, K., Aspinall, S., Gray,
J.C. and Cottage, A. (2006) A rapid and robust method of
identifying transformed Arabidopsis thaliana seedlings
following floral dip transformation. Plant Methods, 2, 19.
doi:10.1186/1746-4811-2-19
[12] Liu, N.Y., Zhang, Z.F. and Yang, W.C. (2008) Isolation of
embryo-specific mutants in Arabidopsis: Plant transfor-
P. Das et al. / Advances in Bioscience and Biotechnology 2 (2011) 59-67
Copyright © 2011 SciRes. ABB
67
mation. Methods in Molecular Biology, 427, 91-100.
doi:10.1007/978-1-59745-273-1_7
[13] Logemann, E., Birkenbihl, R.P., Ulker, B. amd Somssich,
I.E. (2006) An improved method for preparing Agrobac-
terium cells that simplifies the Arabidopsis transforma-
tion protocol. Plant Methods, 2, 16.
doi:10.1186/1746-4811-2-16
[14] Zhang, X., Henriques, R., Lin, S.S., Niu, Q.W. and Chua,
N.H. (2006) Agrobacterium mediated transformation of
Arabidopsis thaliana using the floral dip method. Nature
Protocols, 1, 641-646. doi:10.1038/nprot.2006.97
[15] Dellaporta, S.I., Wood, J. and Hicks, J.B. (1983) A plant
DNA mini preparation: Version II. Plant molecular Bi-
ology Reporter, 1, 19-21. doi:10.1007/BF02712670
[16] Fu, J., Momcilovic, I., Clemente, T.E., Nersesian, N.,
Trick, H.N. and Ristic, Z. (2008) Heterologous expres-
sion of a plastid EF-Tu reduces protein thermal eggrega-
tion and enhances CO2 fixation in wheat (Triticum aes-
tivum) following exposure to heat stress. Plant molecular
biology, 68, 277-288. doi:10.1007/s11103-008-9369-6
[17] Miguel, M.T., Veronica, L.B., Joseluis, C.P. and Luis,
H.E. (2004) Improving transformation efficiency of Ara-
bidopsis thaliana by modifying the floral dip method.
Plant Molecular Biology Repoter, 22, 63-70.
doi:10.1007/BF02773350
[18] Curtis, S.I. and Nam, G.H (2001) Transgenic radish (Ra-
phanus sativus L. longipinnatus Bailey) by floral-dip
method-plant development and surfactant are important
in optimizing transformation efficiency. Transgenic Re-
search, 10, 363-371.
doi:10.1023/A:1016600517293
[19] Cough, J.S. (2005) Floral dip: Agobacterium-mediated germ
line transformstion. Methods in Molecular Biology, 286.
[20] Davis, M.A., Hall, A., Millar, J.A., Darrah, C. and Davis,
J.S. (2009) Protocol: Streamlined sub-protocols for flo-
ral-dip transformation and selection of transformants in
Arabidopsis thaliana. Plant Methods, 5, 3.
doi:10.1186/1746-4811-5-3
[21] Grevelding, C., Fantes, V., Kemper, E., Schell, J. and
Masterson, R. (1993) Single copy T-DNA insertions in
Arabidopsis are the predominant form of integration in
root derived trnsgenics, where as multiple insertions are
found in leaf discs. Plant Moleclar Biology, 23, 847-860.
doi:10.1007/BF00021539
[22] Lechtenberg, B., Schubert, D., Forsbach, A., Gils, M. and
Schmidt, R. (2003) Inverted repeat T-DNA configuratios
nor arrengements of trigger transgene scilencing. Plant
Journal, 34, 507-517.
doi:10.1046/j.1365-313X.2003.01746.x
[23] Fu, J. and Z, Ristic. (2010) Analysis of transgenic wheat
(Triticum aestivum L.) harboring a maize (Zea mays L.)
gene for plastid EF-Tu: Segregation pattern, expression
and effects of the transgene. Plant Molecular Biology, 73,
339-347. doi:10.1007/s11103-010-9622-7
