J. Software Engineering & Applications, 2009, 2:60-65
Published Online April 2009 in SciRes (www.SciRP.org/journal/jsea)
FEL-H Robust Control Real-Time Scheduling
Bing Du1, Chun Ruan2
1School of Electrical and Information Engineering, University of Sydney, Australia, 2School of Computing and Mathematics, Uni-
versity of Western Sydney, Australia
Received January 26th, 2009; revised February 28th, 2009; accepted March 25th, 2009.
ABSTRACT
The existing scheduling algorithms cannot adequately support modern embedded real-time applications. An important
challenge for future research is how to model and introduce control mechanisms to real-time systems to improve
real-time performance, and to allow the system to adapt to changes in the environment, the workload, or to changes in
the system architecture due to failures. In this paper, we pursue this goal by formulating and simulating new real-time
scheduling models that enable us to easily analyse feedback scheduling with various constraints, overload and distur-
bance, and by designing a robust, adaptive scheduler that responds gracefully to overload with robust H∞ and feedback
error learning control.
Keywords: Robust, Real-Time Scheduling, Feedbacke, Simulation, Feedback
1. Introduction
Feedback control is a powerful tool to make real-time
scheduling robust towards external and internal distur-
bances and uncertainties. Feedback techniques were
originally proposed in time sharing systems and have
been successively applied to real-time and multimedia
systems. Seto et al. [1] proposed integrating computer-
control and real-time system design so that the perform-
ance of a task is a function of its sampling frequency, and
identified an optimization problem to find a set of opti-
mal task periods. Lu et al. [2] proposed a feedback
scheduler based on earliest-deadline first scheduling
(EDF), PID controller, and a more theoretically founded
approach. Using a PID controller is often apposite in
many industrial applications and in feedback control
scheduling, but robustness is not guaranteed. Papers [3]
integrated feedback control with model-based prediction
to anticipate and correct future delay fluctuation. [4]
proposed measuring, quantifying, adapting and bounding
miss ratio and average system utilisation. These tech-
niques addressed feedback priority-based scheduling lit-
erature to ensure that no deadlines are missed. Cervin et
al. [5] combined feedback with feedforward to allow the
scheduler to compensate for resource changing before
any overload occurred. Their techniques are tailored to
computing systems that may be modelled as sets of digi-
tal control loops.
However, no theoretical analysis has been provided
about how to model a real-time computing system that
includes the effects of the sampling rate, the jitter, actua-
tion, plant uncertainty and nonlinearity, and how to de-
sign a robust real-time controller to optimise soft real-
time system performance. The main obstacle that pre-
vents control theories from being applied effectively in
computing systems is how to construct a computing
model that works in open and unpredictable environ-
ments. On the other hand, existing feedback scheduling
approaches find it difficult to guarantee robust perform-
ance properties, as they only use a simplistic maximum
constant model and “classical” proportional-integral-
derivative PID to design a complex real-time scheduling
system. In many cases, the PID controller design tech-
niques are a satisfactory solution. It seems unnecessary to
apply more powerful tools. However, when the schedul-
ing system dynamics are complex and poorly modeled, or
when the performance specifications are particularly
stringent, no solution is forthcoming.
This paper aims at introducing advanced modern con-
trol theory to analyze and design real-time systems. The
goal of our research is to investigate a real-time schedul-
ing model that can be applied easily to different real-time
systems, and proposes a new control scheduling algo-
rithm that is more effective than PID feedback scheduling.
We present a two-tank system that is used to simulate a
dynamic real-time scheduling model and FEL-H (Feed-
back error learning and H∞ control) scheduling. The
main contributions of this paper are as follows:
1) We use modern control theory as a theoretical foun-
dation to analyze and design adaptive real-time schedul-
ing. In contrast with most of the existing feedback sched-
uling algorithms that use an ad-hoc manner or PID algo-
rithms, we employ H∞ and FEL control theory as a rig-
orous methodology to achieve faster response speed and
more robust performance guarantees in unpredictable
environments.
2) Traditional real-time scheduling theories depend on
accurate a priori knowledge of the system workload pa-

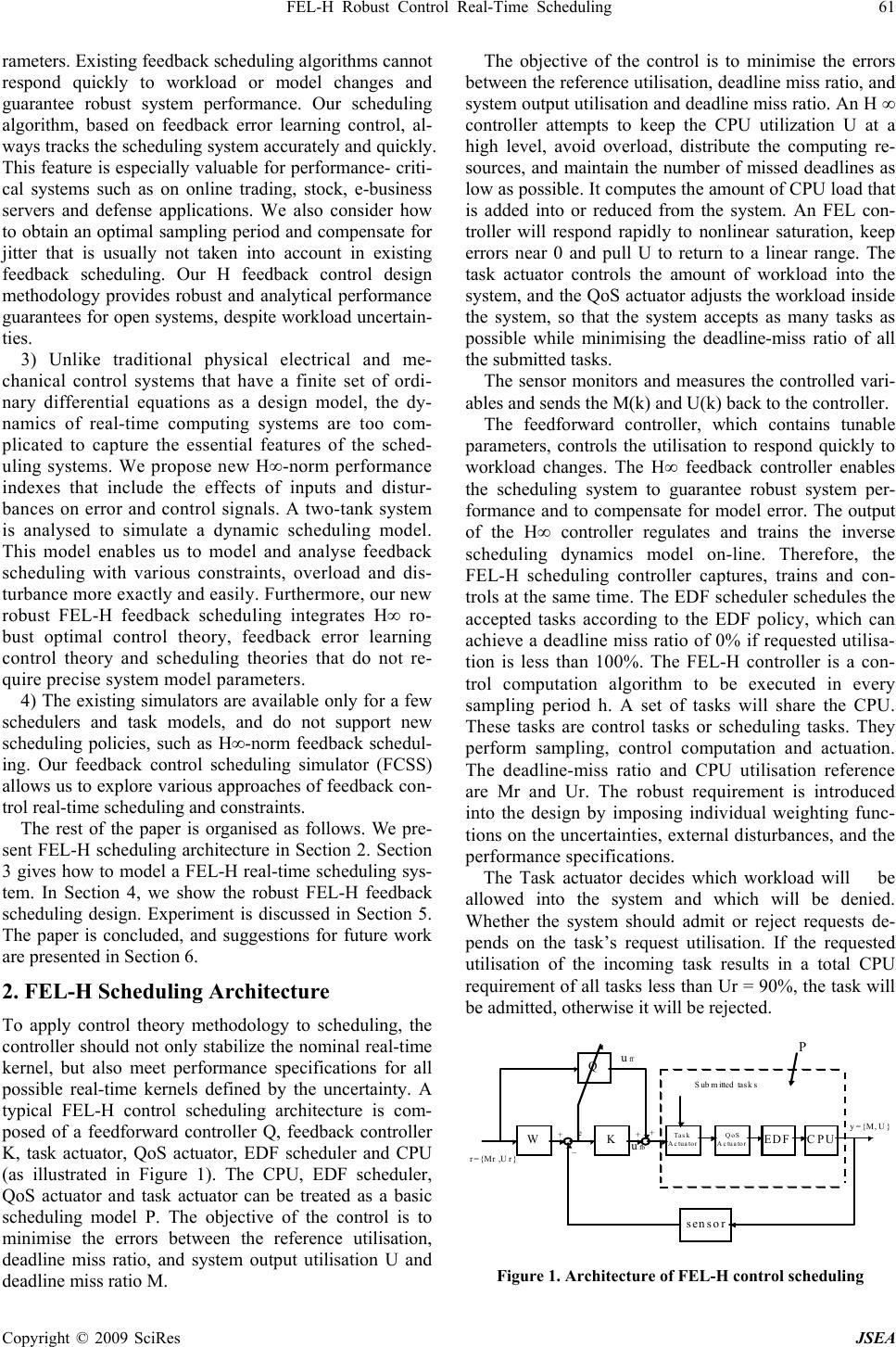

FEL-H Robust Control Real-Time Scheduling 61
rameters. Existing feedback scheduling algorithms cannot
respond quickly to workload or model changes and
guarantee robust system performance. Our scheduling
algorithm, based on feedback error learning control, al-
ways tracks the scheduling system accurately and quickly.
This feature is especially valuable for performance- criti-
cal systems such as on online trading, stock, e-business
servers and defense applications. We also consider how
to obtain an optimal sampling period and compensate for
jitter that is usually not taken into account in existing
feedback scheduling. Our H feedback control design
methodology provides robust and analytical performance
guarantees for open systems, despite workload uncertain-
ties.
3) Unlike traditional physical electrical and me-
chanical control systems that have a finite set of ordi-
nary differential equations as a design model, the dy-
namics of real-time computing systems are too com-
plicated to capture the essential features of the sched-
uling systems. We propose new H∞-norm performance
indexes that include the effects of inputs and distur-
bances on error and control signals. A two-tank system
is analysed to simulate a dynamic scheduling model.
This model enables us to model and analyse feedback
scheduling with various constraints, overload and dis-
turbance more exactly and easily. Furthermore, our new
robust FEL-H feedback scheduling integrates H∞ ro-
bust optimal control theory, feedback error learning
control theory and scheduling theories that do not re-
quire precise system model parameters.
4) The existing simulators are available only for a few
schedulers and task models, and do not support new
scheduling policies, such as H∞-norm feedback schedul-
ing. Our feedback control scheduling simulator (FCSS)
allows us to explore various approaches of feedback con-
trol real-time scheduling and constraints.
The rest of the paper is organised as follows. We pre-
sent FEL-H scheduling architecture in Section 2. Section
3 gives how to model a FEL-H real-time scheduling sys-
tem. In Section 4, we show the robust FEL-H feedback
scheduling design. Experiment is discussed in Section 5.
The paper is concluded, and suggestions for future work
are presented in Section 6.
2. FEL-H Scheduling Architecture
To apply control theory methodology to scheduling, the
controller should not only stabilize the nominal real-time
kernel, but also meet performance specifications for all
possible real-time kernels defined by the uncertainty. A
typical FEL-H control scheduling architecture is com-
posed of a feedforward controller Q, feedback controller
K, task actuator, QoS actuator, EDF scheduler and CPU
(as illustrated in Figure 1). The CPU, EDF scheduler,
QoS actuator and task actuator can be treated as a basic
scheduling model P. The objective of the control is to
minimise the errors between the reference utilisation,
deadline miss ratio, and system output utilisation U and
deadline miss ratio M.
The objective of the control is to minimise the errors
between the reference utilisation, deadline miss ratio, and
system output utilisation and deadline miss ratio. An H ∞
controller attempts to keep the CPU utilization U at a
high level, avoid overload, distribute the computing re-
sources, and maintain the number of missed deadlines as
low as possible. It computes the amount of CPU load that
is added into or reduced from the system. An FEL con-
troller will respond rapidly to nonlinear saturation, keep
errors near 0 and pull U to return to a linear range. The
task actuator controls the amount of workload into the
system, and the QoS actuator adjusts the workload inside
the system, so that the system accepts as many tasks as
possible while minimising the deadline-miss ratio of all
the submitted tasks.
The sensor monitors and measures the controlled vari-
ables and sends the M(k) and U(k) back to the controller.
The feedforward controller, which contains tunable
parameters, controls the utilisation to respond quickly to
workload changes. The H∞ feedback controller enables
the scheduling system to guarantee robust system per-
formance and to compensate for model error. The output
of the H∞ controller regulates and trains the inverse
scheduling dynamics model on-line. Therefore, the
FEL-H scheduling controller captures, trains and con-
trols at the same time. The EDF scheduler schedules the
accepted tasks according to the EDF policy, which can
achieve a deadline miss ratio of 0% if requested utilisa-
tion is less than 100%. The FEL-H controller is a con-
trol computation algorithm to be executed in every
sampling period h. A set of tasks will share the CPU.
These tasks are control tasks or scheduling tasks. They
perform sampling, control computation and actuation.
The deadline-miss ratio and CPU utilisation reference
are Mr and Ur. The robust requirement is introduced
into the design by imposing individual weighting func-
tions on the uncertainties, external disturbances, and the
performance specifications.
The Task actuator decides which workload will be
allowed into the system and which will be denied.
Whether the system should admit or reject requests de-
pends on the task’s request utilisation. If the requested
utilisation of the incoming task results in a total CPU
requirement of all tasks less than Ur = 90%, the task will
be admitted, otherwise it will be rejected.
CPU
Ta sk
Actuator
QoS
Actuator EDF
Q
KW
r={Mr ,Ur}
S ub m itted task s
+
_
e++
uff
ufb
y={M, U}
P
sensor
Figure 1. Architecture of FEL-H control scheduling

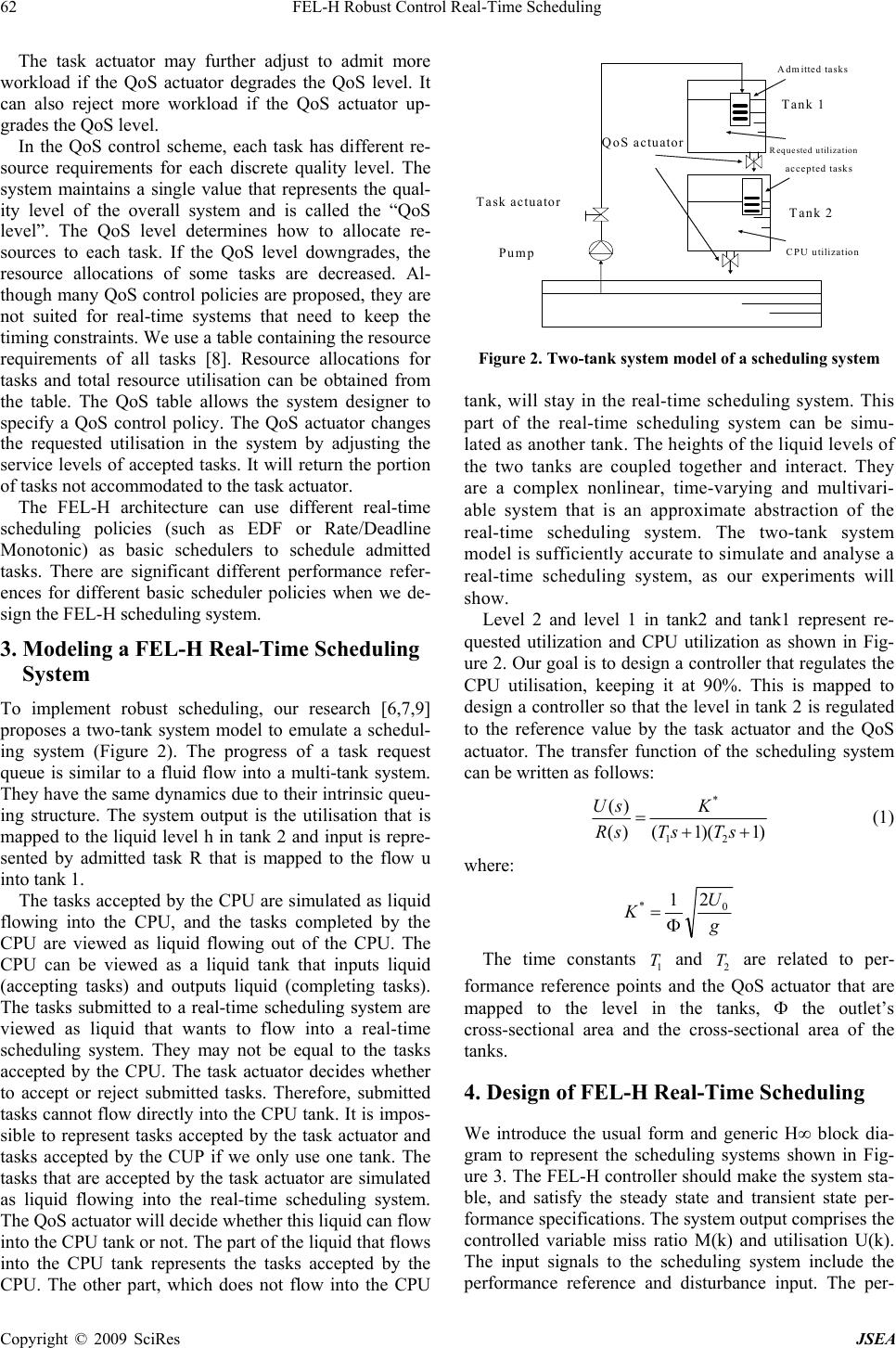

62 FEL-H Robust Control Real-Time Scheduling
The task actuator may further adjust to admit more
workload if the QoS actuator degrades the QoS level. It
can also reject more workload if the QoS actuator up-
grades the QoS level.
In the QoS control scheme, each task has different re-
source requirements for each discrete quality level. The
system maintains a single value that represents the qual-
ity level of the overall system and is called the “QoS
level”. The QoS level determines how to allocate re-
sources to each task. If the QoS level downgrades, the
resource allocations of some tasks are decreased. Al-
though many QoS control policies are proposed, they are
not suited for real-time systems that need to keep the
timing constraints. We use a table containing the resource
requirements of all tasks [8]. Resource allocations for
tasks and total resource utilisation can be obtained from
the table. The QoS table allows the system designer to
specify a QoS control policy. The QoS actuator changes
the requested utilisation in the system by adjusting the
service levels of accepted tasks. It will return the portion
of tasks not accommodated to the task actuator.
The FEL-H architecture can use different real-time
scheduling policies (such as EDF or Rate/Deadline
Monotonic) as basic schedulers to schedule admitted
tasks. There are significant different performance refer-
ences for different basic scheduler policies when we de-
sign the FEL-H scheduling system.
3. Modeling a FEL-H Real-Time Scheduling
System
To implement robust scheduling, our research [6,7,9]
proposes a two-tank system model to emulate a schedul-
ing system (Figure 2). The progress of a task request
queue is similar to a fluid flow into a multi-tank system.
They have the same dynamics due to their intrinsic queu-
ing structure. The system output is the utilisation that is
mapped to the liquid level h in tank 2 and input is repre-
sented by admitted task R that is mapped to the flow u
into tank 1.
The tasks accepted by the CPU are simulated as liquid
flowing into the CPU, and the tasks completed by the
CPU are viewed as liquid flowing out of the CPU. The
CPU can be viewed as a liquid tank that inputs liquid
(accepting tasks) and outputs liquid (completing tasks).
The tasks submitted to a real-time scheduling system are
viewed as liquid that wants to flow into a real-time
scheduling system. They may not be equal to the tasks
accepted by the CPU. The task actuator decides whether
to accept or reject submitted tasks. Therefore, submitted
tasks cannot flow directly into the CPU tank. It is impos-
sible to represent tasks accepted by the task actuator and
tasks accepted by the CUP if we only use one tank. The
tasks that are accepted by the task actuator are simulated
as liquid flowing into the real-time scheduling system.
The QoS actuator will decide whether this liquid can flow
into the CPU tank or not. The part of the liquid that flows
into the CPU tank represents the tasks accepted by the
CPU. The other part, which does not flow into the CPU
Figure 2. Two-tank system model of a scheduling system
tank, will stay in the real-time scheduling system. This
part of the real-time scheduling system can be simu-
lated as another tank. The heights of the liquid levels of
the two tanks are coupled together and interact. They
are a complex nonlinear, time-varying and multivari-
able system that is an approximate abstraction of the
real-time scheduling system. The two-tank system
model is sufficiently accurate to simulate and analyse a
real-time scheduling system, as our experiments will
show.
Level 2 and level 1 in tank2 and tank1 represent re-
quested utilization and CPU utilization as shown in Fig-
ure 2. Our goal is to design a controller that regulates the
CPU utilisation, keeping it at 90%. This is mapped to
design a controller so that the level in tank 2 is regulated
to the reference value by the task actuator and the QoS
actuator. The transfer function of the scheduling system
can be written as follows:
)1)(1()(
)(
21
*
++
=sTsT
K
sR
sU (1)
where:
g
U
K0
*2
1
Φ
=
The time constants 1 T and 2 T are related to per-
formance reference points and the QoS actuator that are
mapped to the level in the tanks, Φ the outlet’s
cross-sectional area and the cross-sectional area of the
tanks.
4. Design of FEL-H Real-Time Scheduling
We introduce the usual form and generic H∞ block dia-
gram to represent the scheduling systems shown in Fig-
ure 3. The FEL-H controller should make the system sta-
ble, and satisfy the steady state and transient state per-
formance specifications. The system output comprises the
controlled variable miss ratio M(k) and utilisation U(k).
The input signals to the scheduling system include the
performance reference and disturbance input. The per-
Tank 1
Tank 2
Task actuator
Pump
Admitted tasks
accepted tasks
CPU utilization
Requested utilization
QoS actuator

FEL-H Robust Control Real-Time Scheduling 63

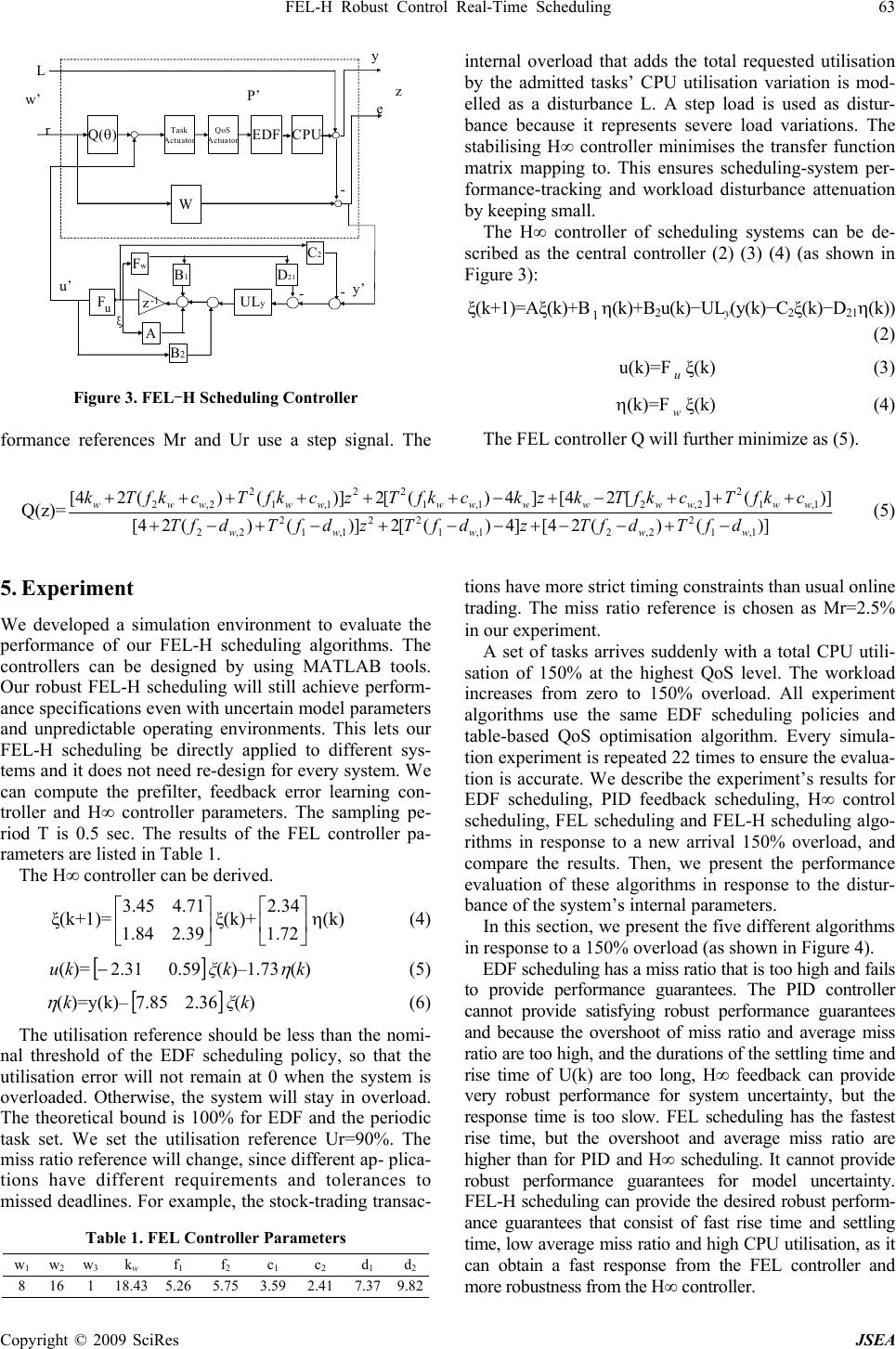

Figure 3. FEL-H Scheduling Controller
formance references Mr and Ur use a step signal. The
internal overload that adds the total requested utilisation
by the admitted tasks’ CPU utilisation variation is mod-
elled as a disturbance L. A step load is used as distur-
bance because it represents severe load variations. The
stabilising H∞ controller minimises the transfer function
matrix mapping to. This ensures scheduling-system per-
formance-tracking and workload disturbance attenuation
by keeping small.
The H∞ controller of scheduling systems can be de-
scribed as the central controller (2) (3) (4) (as shown in
Figure 3):
ξ(k+1)=Aξ(k)+B1η(k)+B2u(k)−ULy(y(k)−C2ξ(k)−D21η(k))
(2)
u(k)=Fuξ(k) (3)
η(k)=F wξ(k) (4)
The FEL controller Q will further minimize as (5).
Q(z)= )]()(24[]4)([2)]()(24[
)](][24[]4)([2)]()(24[
1,1
2
2,21,1
22
1,1
2
2,2
1,1
2
2,21,1
22
1,1
2
2,2
wwwww
wwwwwwwwwwwww
dfTdfTzdfTzdfTdfT
ckfTckfTkzkckfTzckfTckfTk
−+−−+−−+−+−+
+++−+−++++++ (5)
5. Experiment
We developed a simulation environment to evaluate the
performance of our FEL-H scheduling algorithms. The
controllers can be designed by using MATLAB tools.
Our robust FEL-H scheduling will still achieve perform-
ance specifications even with uncertain model parameters
and unpredictable operating environments. This lets our
FEL-H scheduling be directly applied to different sys-
tems and it does not need re-design for every system. We
can compute the prefilter, feedback error learning con-
troller and H∞ controller parameters. The sampling pe-
riod T is 0.5 sec. The results of the FEL controller pa-
rameters are listed in Table 1.
The H∞ controller can be derived.
ξ(k+1)= ⎥
⎦
⎤
⎢
⎣
⎡
39.284.1
71.445.3 ξ(k)+ ⎥
⎦
⎤
⎢
⎣
⎡
72.1
34.2 η(k) (4)
u(k)=
[]
59.031.2−ξ(k)–1.73
η (k) (5)
η (k)=y(k)–
[]
36.285.7 ξ(k) (6)
The utilisation reference should be less than the nomi-
nal threshold of the EDF scheduling policy, so that the
utilisation error will not remain at 0 when the system is
overloaded. Otherwise, the system will stay in overload.
The theoretical bound is 100% for EDF and the periodic
task set. We set the utilisation reference Ur=90%. The
miss ratio reference will change, since different ap- plica-
tions have different requirements and tolerances to
missed deadlines. For example, the stock-trading transac-
Table 1. FEL Controller Parameters
w1 w
2 w 3 k w f 1 f 2 c 1 c 2 d 1 d 2
8 16 1 18.43 5.26 5.75 3.59 2.41 7.379.82
tions have more strict timing constraints than usual online
trading. The miss ratio reference is chosen as Mr=2.5%
in our experiment.
A set of tasks arrives suddenly with a total CPU utili-
sation of 150% at the highest QoS level. The workload
increases from zero to 150% overload. All experiment
algorithms use the same EDF scheduling policies and
table-based QoS optimisation algorithm. Every simula-
tion experiment is repeated 22 times to ensure the evalua-
tion is accurate. We describe the experiment’s results for
EDF scheduling, PID feedback scheduling, H∞ control
scheduling, FEL scheduling and FEL-H scheduling algo-
rithms in response to a new arrival 150% overload, and
compare the results. Then, we present the performance
evaluation of these algorithms in response to the distur-
bance of the system’s internal parameters.
In this section, we present the five different algorithms
in response to a 150% overload (as shown in Figure 4).
EDF scheduling has a miss ratio that is too high and fails
to provide performance guarantees. The PID controller
cannot provide satisfying robust performance guarantees
and because the overshoot of miss ratio and average miss
ratio are too high, and the durations of the settling time and
rise time of U(k) are too long, H∞ feedback can provide
very robust performance for system uncertainty, but the
response time is too slow. FEL scheduling has the fastest
rise time, but the overshoot and average miss ratio are
higher than for PID and H∞ scheduling. It cannot provide
robust performance guarantees for model uncertainty.
FEL-H scheduling can provide the desired robust perform-
ance guarantees that consist of fast rise time and settling
time, low average miss ratio and high CPU utilisation, as it
can obtain a fast response from the FEL controller and
more robustness from the H∞ controller.
y
CPU
W
Q(θ)Task
Actu a tor
QoS
Actuator EDF
w’
L
r
z
e
u’ y’
P’
ULy
A
Fz-1
B2
FwB1
C2
D21
u
-
-
-
ξ
P’

64 FEL-H Robust Control Real-Time Scheduling
Figure 4. EDF, PID, H∞, FEL and FEL-H scheduling
Five different algorithms are in response to that the
model parameters of the scheduling system are changed
by 30%, while the new overload is 150%. (as shown in
Figure 5). This case can be used to simulate the robust-
ness of the feedback scheduling algorithms, and to dem-
onstrate whether our scheduling algorithms can be ap-
plied to different real-time scheduling applications with-
out needing to change the parameters of the controllers.
Only the FEL-H scheduling can remain in the steady state
while the utilisation U(k) remains close to 90%, and the
miss ratio M(k) remains at 0 through running.
Figure 5. EDF, PID, H∞, FEL and FEL-H scheduling with
disturbance

FEL-H Robust Control Real-Time Scheduling 65

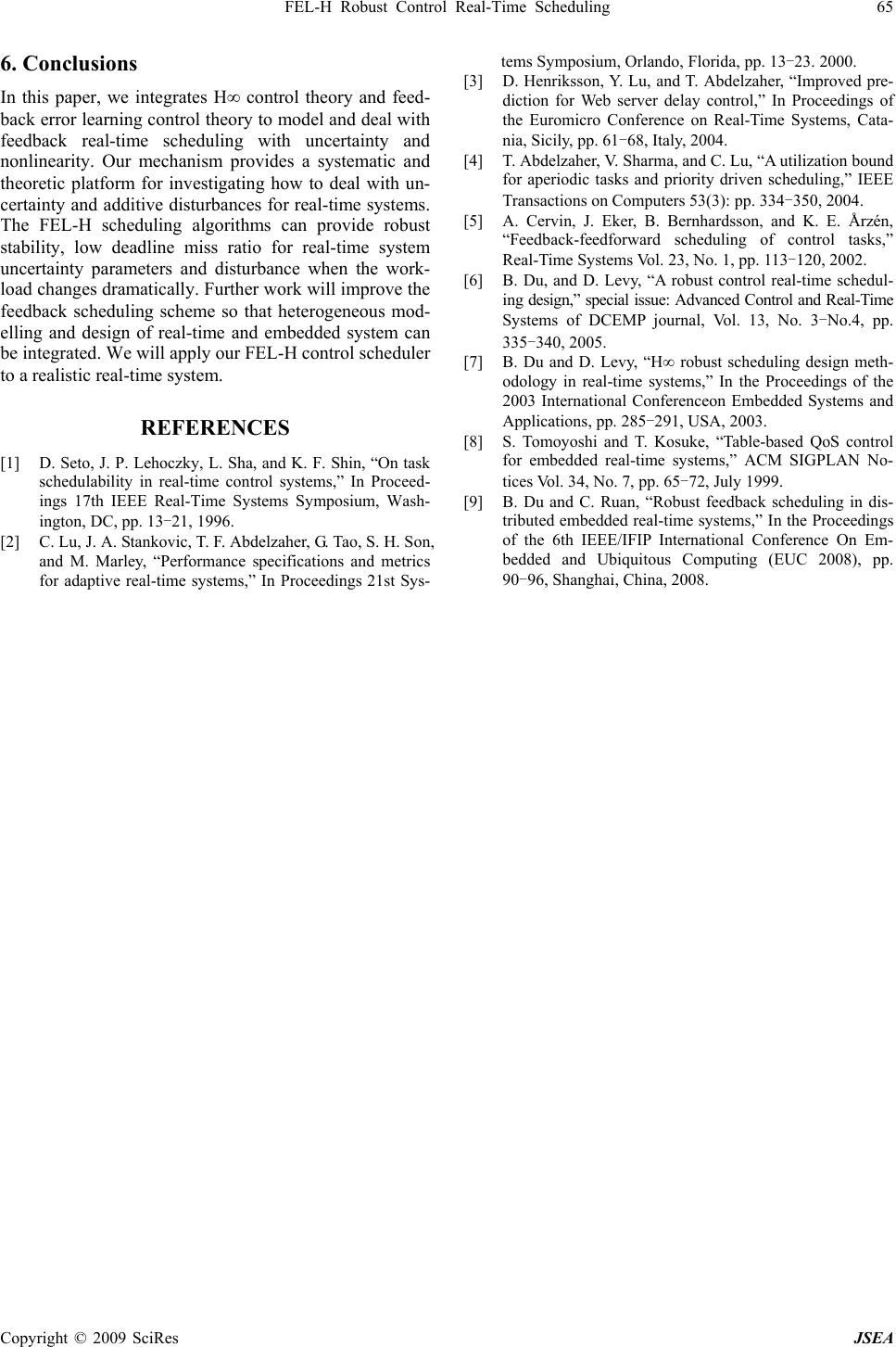

6. Conclusions
In this paper, we integrates H∞ control theory and feed-
back error learning control theory to model and deal with
feedback real-time scheduling with uncertainty and
nonlinearity. Our mechanism provides a systematic and
theoretic platform for investigating how to deal with un-
certainty and additive disturbances for real-time systems.
The FEL-H scheduling algorithms can provide robust
stability, low deadline miss ratio for real-time system
uncertainty parameters and disturbance when the work-
load changes dramatically. Further work will improve the
feedback scheduling scheme so that heterogeneous mod-
elling and design of real-time and embedded system can
be integrated. We will apply our FEL-H control scheduler
to a realistic real-time system.
REFERENCES
[1] D. Seto, J. P. Lehoczky, L. Sha, and K. F. Shin, “On task
schedulability in real-time control systems,” In Proceed-
ings 17th IEEE Real-Time Systems Symposium, Wash-
ington, DC, pp. 13-21, 1996.
[2] C. Lu, J. A. Stankovic, T. F. Abdelzaher, G. Tao, S. H. Son,
and M. Marley, “Performance specifications and metrics
for adaptive real-time systems,” In Proceedings 21st Sys-
tems Symposium, Orlando, Florida, pp. 13-23. 2000.
[3] D. Henriksson, Y. Lu, and T. Abdelzaher, “Improved pre-
diction for Web server delay control,” In Proceedings of
the Euromicro Conference on Real-Time Systems, Cata-
nia, Sicily, pp. 61-68, Italy, 2004.
[4] T. Abdelzaher, V. Sharma, and C. Lu, “A utilization bound
for aperiodic tasks and priority driven scheduling,” IEEE
Transactions on Computers 53(3): pp. 334-350, 2004.
[5] A. Cervin, J. Eker, B. Bernhardsson, and K. E. Årzén,
“Feedback-feedforward scheduling of control tasks,”
Real-Time Systems Vol. 23, No. 1, pp. 113-120, 2002.
[6] B. Du, and D. Levy, “A robust control real-time schedul-
ing design,” special issue: Advanced Control and Real-Time
Systems of DCEMP journal, Vol. 13, No. 3-No.4, pp.
335-340, 2005.
[7] B. Du and D. Levy, “H∞ robust scheduling design meth-
odology in real-time systems,” In the Proceedings of the
2003 International Conferenceon Embedded Systems and
Applications, pp. 285-291, USA, 2003.
[8] S. Tomoyoshi and T. Kosuke, “Table-based QoS control
for embedded real-time systems,” ACM SIGPLAN No-
tices Vol. 34, No. 7, pp. 65-72, July 1999.
[9] B. Du and C. Ruan, “Robust feedback scheduling in dis-
tributed embedded real-time systems,” In the Proceedings
of the 6th IEEE/IFIP International Conference On Em-
bedded and Ubiquitous Computing (EUC 2008), pp.
90-96, Shanghai, China, 2008.
