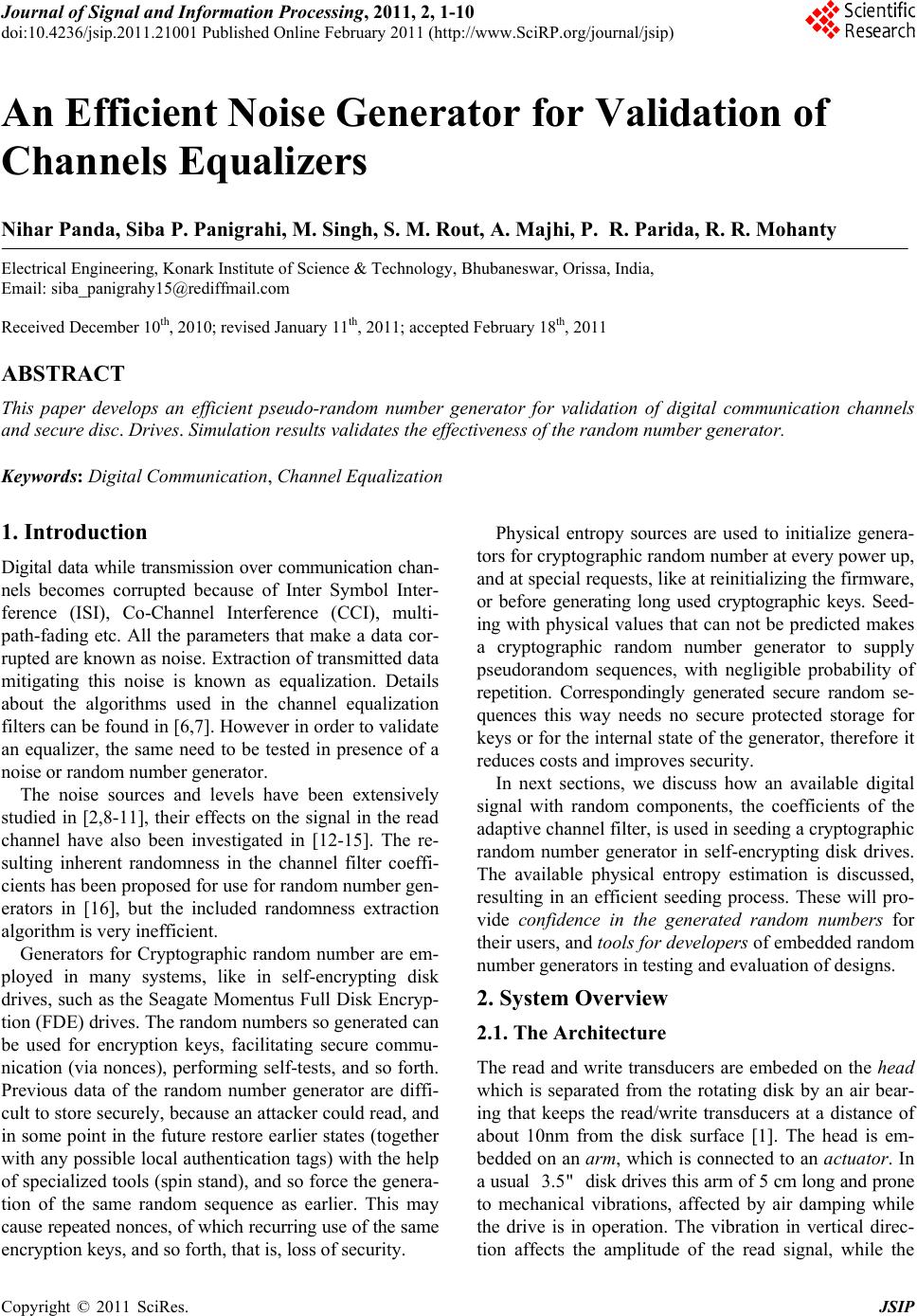

Journal of Signal and Information Processing, 2011, 2, 1-10
doi:10.4236/jsip.2011.21001 Published Online February 2011 (
Copyright © 2011 SciRes. JSIP
An Efficient Noise Generator for Validation of
Channels Equalizers
Nihar Panda, Siba P. Panigrahi, M. Singh, S. M. Rout, A. Majhi, P. R. Parida, R. R. Mohanty
Electrical Engineering, Konark Institute of Science & Technology, Bhubaneswar, Orissa, India,
Received December 10th, 2010; revised January 11th, 2011; accepted February 18th, 2011
This paper develops an efficient pseudo-random number generator for validation of digital communication channels
and secure disc. Drives. Simulation results valid ates the effectiveness of the random number generator.
Keywords: Digital Communication, Channel Equalization
1. Introduction
Digital data while transmission over communication chan-
nels becomes corrupted because of Inter Symbol Inter-
ference (ISI), Co-Channel Interference (CCI), multi-
path-fading etc. All the parameters that make a data cor-
rupted are known as noise. Extraction of transmitted data
mitigating this noise is known as equalization. Details
about the algorithms used in the channel equalization
filters can be found in [6,7]. However in ord er to validate
an equalizer, the same need to be tested in presence of a
noise or random number genera tor.
The noise sources and levels have been extensively
studied in [2,8-11], their effects on the signal in the read
channel have also been investigated in [12-15]. The re-
sulting inherent randomness in the channel filter coeffi-
cients has been proposed for use for random number gen-
erators in [16], but the included randomness extraction
algorithm is very inefficient.
Generators for Cryptographic random number are em-
ployed in many systems, like in self-encrypting disk
drives, such as the Seagate Momentus Full Disk Encryp-
tion (FDE) driv es. The rand om numbers so gener ated can
be used for encryption keys, facilitating secure commu-
nication (via nonces), performing self-tests, and so forth.
Previous data of the random number generator are diffi-
cult to store securely, because an attacker could read, and
in some point in the future restore earlier states (together
with any possible local authentication tag s) with the help
of specialized tools (spin stand), and so force the genera-
tion of the same random sequence as earlier. This may
cause repeated nonces, of which recurring use of the same
encryption keys, and so forth, that is, loss of security.
Physical entropy sources are used to initialize genera-
tors for cryp togr aphic random nu mber at ev ery power up,
and at special requests, like at reinitializing th e firmware,
or before generating long used cryptographic keys. Seed-
ing with physical values that can not be predicted makes
a cryptographic random number generator to supply
pseudorandom sequences, with negligible probability of
repetition. Correspondingly generated secure random se-
quences this way needs no secure protected storage for
keys or for the internal state of the generator, therefore it
reduces costs and improves security.
In next sections, we discuss how an available digital
signal with random components, the coefficients of the
adaptive chan nel filter, is used in seeding a cryptog raphic
random number generator in self-encrypting disk drives.
The available physical entropy estimation is discussed,
resulting in an efficient seeding process. These will pro-
vide confidence in the generated random numbers for
their u s er s, an d tools for developers of embedded random
number generators in testing and evaluation of designs.
2. System Overview
2.1. The Architecture
The read and write transducers are embeded on the head
which is separated from the rotating disk by an air bear-
ing that keeps the read/write transducers at a distance of
about 10nm from the disk surface [1]. The head is em-
bedded on an arm, which is connected to an actuator. In
a usual 3.5" disk drives this arm of 5 cm long and prone
to mechanical vibrations, affected by air damping while
the drive is in operation. The vibration in vertical direc-
tion affects the amplitude of the read signal, while the
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP

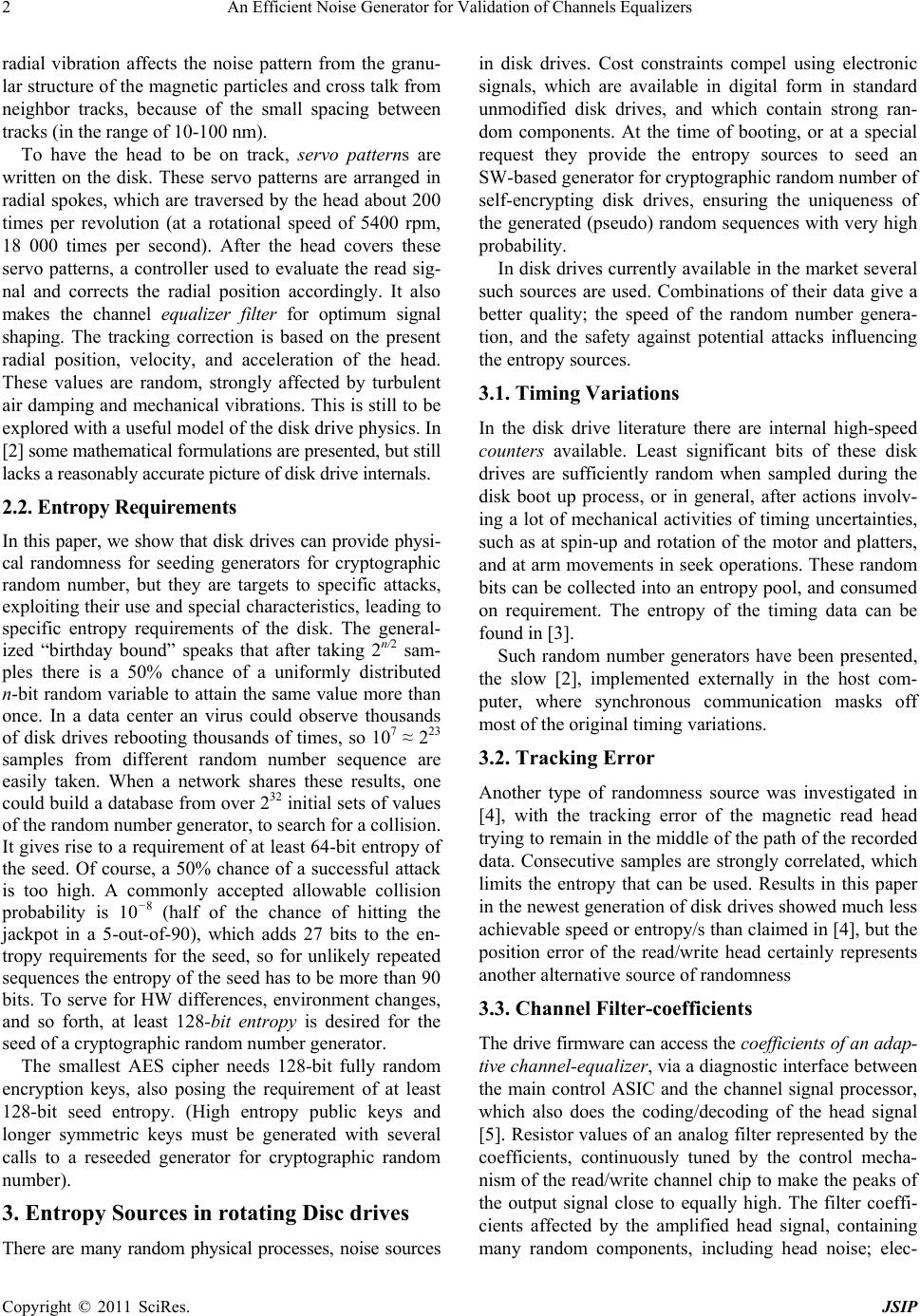

radial vibration affects the noise pattern from the granu-
lar structure of the magnetic particles and cross talk from
neighbor tracks, because of the small spacing between
tracks (in the range of 10-100 nm).
To have the head to be on track, servo patterns are
written on the disk. These servo patterns are arranged in
radial spokes, which are traversed by the head about 200
times per revolution (at a rotational speed of 5400 rpm,
18 000 times per second). After the head covers these
servo patterns, a controller used to evaluate the read sig-
nal and corrects the radial position accordingly. It also
makes the channel equalizer filter for optimum signal
shaping. The tracking correction is based on the present
radial position, velocity, and acceleration of the head.
These values are random, strongly affected by turbulent
air damping and mechanical vibrations. This is still to be
explored with a useful model of the disk drive physics. In
[2] some mathematical formulations are presented, but still
lacks a reasonably accurate picture of disk drive internals.
2.2. Entropy Requirements
In this paper, we show that disk drives can provide physi-
cal randomness for seeding generators for cryptographic
random number, but they are targets to specific attacks,
exploiting their use and special characteristics, leading to
specific entropy requirements of the disk. The general-
ized “birthday bound” speaks that after taking 2n/2 sam-
ples there is a 50% chance of a uniformly distributed
n-bit random variable to attain the same value more than
once. In a data center an virus could observe thousands
of disk drives rebooting thousands of times, so 107 223
samples from different random number sequence are
easily taken. When a network shares these results, one
could build a database from over 232 initial sets of values
of the random number generator, to search for a collision .
It gives rise to a requirement of at least 64-bit entropy of
the seed. Of course, a 50% chance of a successful attack
is too high. A commonly accepted allowable collision
probability is 108 (half of the chance of hitting the
jackpot in a 5-out-of-90), which adds 27 bits to the en-
tropy requirements for the seed, so for unlikely repeated
sequences the entropy of the seed has to be more than 90
bits. To serve for HW differences, environment changes,
and so forth, at least 128-bit entropy is desired for the
seed of a cryptographic random number generator.
The smallest AES cipher needs 128-bit fully random
encryption keys, also posing the requirement of at least
128-bit seed entropy. (High entropy public keys and
longer symmetric keys must be generated with several
calls to a reseeded generator for cryptographic random
3. Entropy Sources in rotating Disc drives
There are many random physical processes, noise sources
in disk drives. Cost constraints compel using electronic
signals, which are available in digital form in standard
unmodified disk drives, and which contain strong ran-
dom components. At the time of booting, or at a special
request they provide the entropy sources to seed an
SW-based generator for cryptographic random number of
self-encrypting disk drives, ensuring the uniqueness of
the generated (pseudo) random sequences with very high
In disk drives currently available in th e market several
such sources are used. Combinations of their data give a
better quality; the speed of the random number genera-
tion, and the safety against potential attacks influencing
the entropy sources.
3.1. Timing Variations
In the disk drive literature there are internal high-speed
counters available. Least significant bits of these disk
drives are sufficiently random when sampled during the
disk boot up process, or in general, after actions involv-
ing a lot of mechanical activities of timing uncertainties,
such as at spin-up and rotation of the motor and platters,
and at arm movements in seek operations. These random
bits can be collected into an entropy pool, and consumed
on requirement. The entropy of the timing data can be
found in [3].
Such random number generators have been presented,
the slow [2], implemented externally in the host com-
puter, where synchronous communication masks off
most of the original timing variations.
3.2. Tracking Error
Another type of randomness source was investigated in
[4], with the tracking error of the magnetic read head
trying to remain in the middle of the path of the recorded
data. Consecutive samples are strongly correlated, which
limits the entropy that can be used. Results in this paper
in the newest generation of disk drives showed much less
achievable speed or entropy/s than claimed in [4], but the
position error of the read/write head certainly represents
another alternative source of randomness
3.3. Channel Filter-coefficients
The drive firmware can access the coefficients of an adap-
tive channel-equalizer, via a diagnostic interface between
the main control ASIC and the channel signal processor,
which also does the coding/decoding of the head signal
[5]. Resistor values of an analo g filter represented by the
coefficients, continuously tuned by the control mecha-
nism of the read/write channel chip to make the peaks of
the output signal close to equally high. The filter coeffi-
cients affected by the amplified head signal, containing
many random components, including head noise; elec-
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP

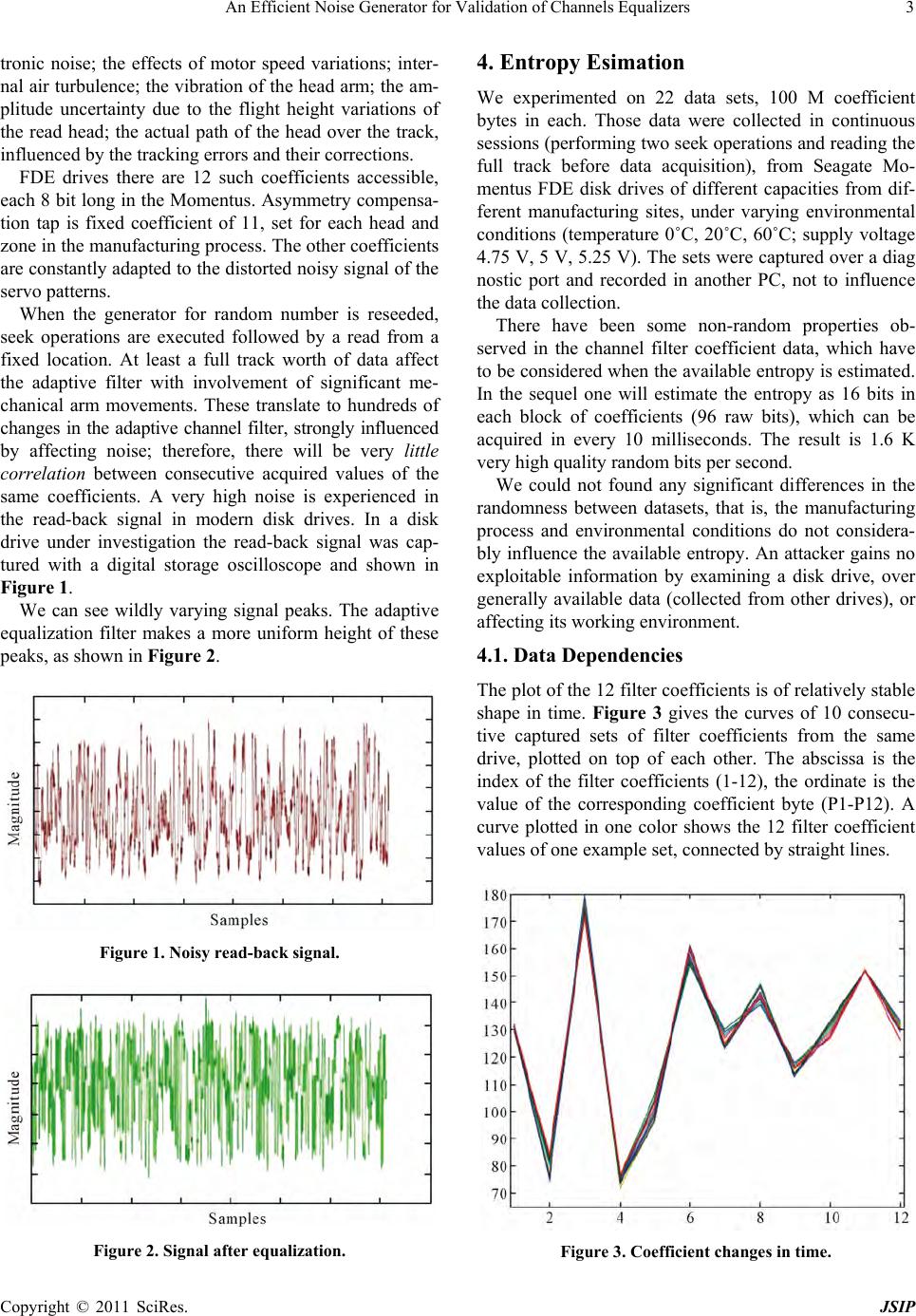

tronic noise; the effects of motor speed variations; inter-
nal air turbulence; the vibration of the head arm; the am-
plitude uncertainty due to the flight height variations of
the read head; the actual path of the head over the track,
influenced by the tracking errors and their corrections.
FDE drives there are 12 such coefficients accessible,
each 8 bit long in the Momentus. Asymmetry compensa-
tion tap is fixed coefficient of 11, set for each head and
zone in the manufacturing process. The other coefficients
are constantly adapted to the distorted noisy sig nal of the
servo patterns.
When the generator for random number is reseeded,
seek operations are executed followed by a read from a
fixed location. At least a full track worth of data affect
the adaptive filter with involvement of significant me-
chanical arm movements. These translate to hundreds of
changes in the adaptive channel filter, strongly influenced
by affecting noise; therefore, there will be very little
correlation between consecutive acquired values of the
same coefficients. A very high noise is experienced in
the read-back signal in modern disk drives. In a disk
drive under investigation the read-back signal was cap-
tured with a digital storage oscilloscope and shown in
Figure 1.
We can see wildly varying signal peaks. The adaptive
equalization filter makes a more uniform height of these
peaks, as shown in Figure 2.
Figure 1. Noisy read-back signal.
Figure 2. Signal after equalization.
4. Entropy Esimation
We experimented on 22 data sets, 100 M coefficient
bytes in each. Those data were collected in continuous
sessions (performing two seek operations and reading the
full track before data acquisition), from Seagate Mo-
mentus FDE disk drives of different capacities from dif-
ferent manufacturing sites, under varying environmental
conditions (temperature 0˚C, 20˚C, 60˚C; supply voltage
4.75 V, 5 V, 5.25 V). The sets were captured over a diag
nostic port and recorded in another PC, not to influence
the data collection.
There have been some non-random properties ob-
served in the channel filter coefficient data, which have
to be considered when the available entropy is estimated.
In the sequel one will estimate the entropy as 16 bits in
each block of coefficients (96 raw bits), which can be
acquired in every 10 milliseconds. The result is 1.6 K
very high quality random bits per second.
We could not found any significant differences in the
randomness between datasets, that is, the manufacturing
process and environmental conditions do not considera-
bly influence the available entropy. An attacker gains no
exploitable information by examining a disk drive, over
generally available data (collected from other drives), or
affecting its working environment.
4.1. Data Dependencies
The plot of the 12 filter coefficients is of relatively stable
shape in time. Figure 3 gives the curves of 10 consecu-
tive captured sets of filter coefficients from the same
drive, plotted on top of each other. The abscissa is the
index of the filter coefficients (1-12), the ordinate is the
value of the corresponding coefficient byte (P1-P12). A
curve plotted in one color shows the 12 filter coefficient
values of one example set, connected by straight lines.
Figure 3. Coefficient changes in time.
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP
One can observe that at some points (i.e., between x =
4 and 5) these segments are almost parallel. This means
if P4 increases, P5 does, too; therefore, they are posi-
tively correlated. At other segments, like the ones be-
tween x = 7 and x = 8, cross each other at roughly the
same point half way in between. This means that if P7
decreases, P8 increases by roughly the same amount.
This is an indication of negative correlation between P7
and P8, therefore, the entropy of coefficient P7 and P8
together is not much larger than that of P7 alone, or the
entropy of P4 and P5 together is close to the entropy of
P5 alone. This indicates to a potential issue: th e availab le
entropy could be less than the estimates the coefficient
samples provide in isolation.
4.2. Coefficient Distribution
By plotting the histograms of each filter coefficient from
contiguous measurement sequences of a disk drive (Fig-
ure 4) we will observe that each individual coefficient
attains only a few distinct values, and almost all their
variability is preserved in their few least significant bits
(bits [1,2]—bits [1-4]).
The widths of the bars help visually comparing the his-
tograms. Interestingly, the coefficients are not uniformly
or normally distributed, but can be well approximated by
the superposition of two normal distribution (bell) curves,
but it is irrelevant to scope of our discussions.
4.2.1. Autocorrelation of Sequences of Individual
This paper uses the discrete Fourier transform of the
same individual coefficient sequences described above
to compute many autocorrelation values at once:
 
Fx Fx
, where
xdenotes the discrete
Fourier transform of the sequence
x, its trans-
posed complex conjugate and
is its inverse.
The autocorrelation values are plotted for each of the 12
coefficient sequences in Figure 5, lags = 1–50. No value
of the autocorrelation exceeds 21%, with an average
around 13%. The small residual (large lag) autocorrela-
tion values are the artifacts of the very non-uniform dis-
tributions. The uneven distributions and short-term auto-
correlation makes overall entropy loss (which only causes
a loss of a handful bits entropy). The process d e scribed in
next subsection “hashing” will eliminate both problems.
4.3. Entropy of Coefficients
Usually, the filter coefficients carry about 3 bits of Shan-
non entropy:
There are some exceptions as: coefficient 1 carries 1.5
bit, coefficient 2 does 3.5 bits, and coefficient 4 does 2.4
bits. If all of these coefficients were independent, the
overall entropy of the 12 channel filter coefficient bytes
could be 32 bits. Statistical tests next subsection shows
less actual randomness (16–24 bit), because of the corre-
lation among them, and because of their internal auto-
4.3.1. Min Entropy
The min-entropy is better for estimating the security:
log maxi
p .
A distribution of a min-entropy of at least b bits if no
state has a probability greater than 2b. It determines the
complexity of such attack strategies, when the attacker
seeds his generator for cryptographic random number
(identical to the one in the disk drive) with the most
likely coefficient values. If it finds a match, he guessed
the seed right. If it does not, he reboots and checks the
random numbers generated by the disk drive again, until
the most likely filter coefficients appear to be the actual
seed. The attack is slow; it needs tens of seconds for each
reboot. (Working on many identical disk drives, costing
$ 50–100 each, cou ld speed up th e process pr opor tionally,
but with a very large investment.) If instead a virus feeds
various possible values of the filter coefficients to a copy
of the generator for cryptographic random number, he
can try millions of seed values in the time of one reboot.
This means, the Shannon entropy measures better the
security of physical randomness sources seeding a cryp-
tographic random number generator in disk drives, but
we have to make sure that the min-entropy is also rea-
sonable, that is, no seed occurs at exploitable frequency
(1 second trial/30 year: for 9
4.3.2. Mix-Truncate (Hash) Entropy Estimation
The entropy estimation process is as follows: hash the
bits of each channel filter coefficient dataset (12 x 8 = 96
bits) to k bit output. k Decreases from 32 (the upper
bound of the entropy from Figure 6) until the concate-
nated output blocks pass all commonly used randomness
tests. Perfect hashing results in a more uniform distribu-
tion and reduces the autocorrelations in the costs of de-
creasing the number of random bits. (W e make use of the
SHA1 hash on zero-padded input and keeping the least
significant k bits of its 160 digest bits. SHA1 has no
known exploitable weakness in this mode: an virus with
reasonable resources cannot distinguish it from a perfect
There are some other methods in use to shrink data to
improve randomness. The first of such method was the
Neumann corrector to remove bias [17], but more recent
entropy amplification techniques are all related to hash-
ing [18-20]. (A hash function maps arbitrary data to a fix
range of integers, not preserving those simple structures
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP
of the input sequences.) The used randomness tests are
very sensitive to non-uniform distribution of k-bit blocks,
but many other nonrandom properties are checked, too. If
all the tests pass with a particular choice of k, we know
that each possible k bit block in the sequence of the
hashed coefficient sets occurs at roughly the same num-
ber of times: each hashed filter coefficient set appears
independently, at about 2k
frequency. Consequently, no
filter coefficient set occurs with probability much larger
than 2k
that is the min-entropy o f one co efficient set is
about k. When n such independent blocks are used to
seed the random number generator, an virus has a search

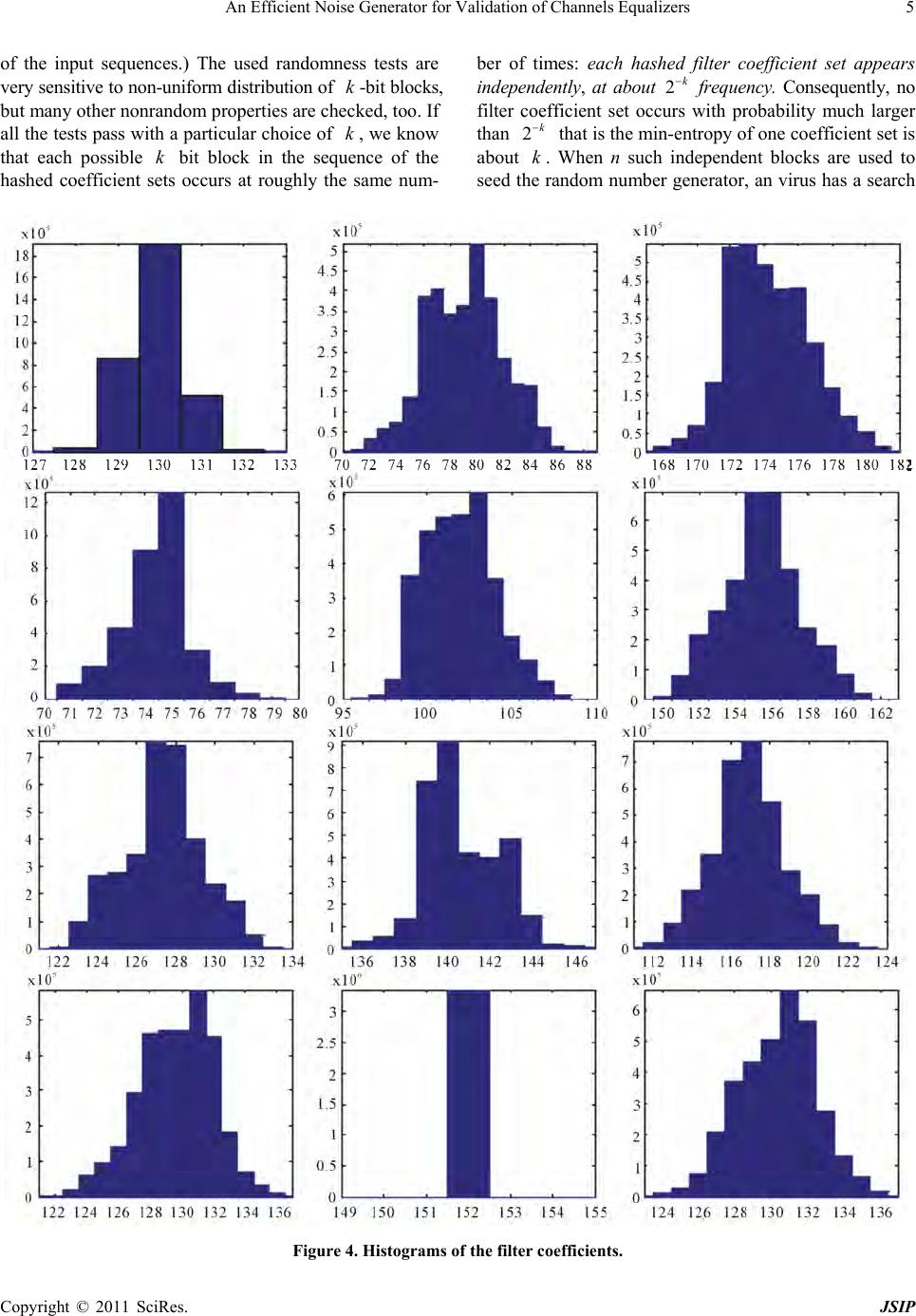

Figure 4. Histograms of the filter coefficients.
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP

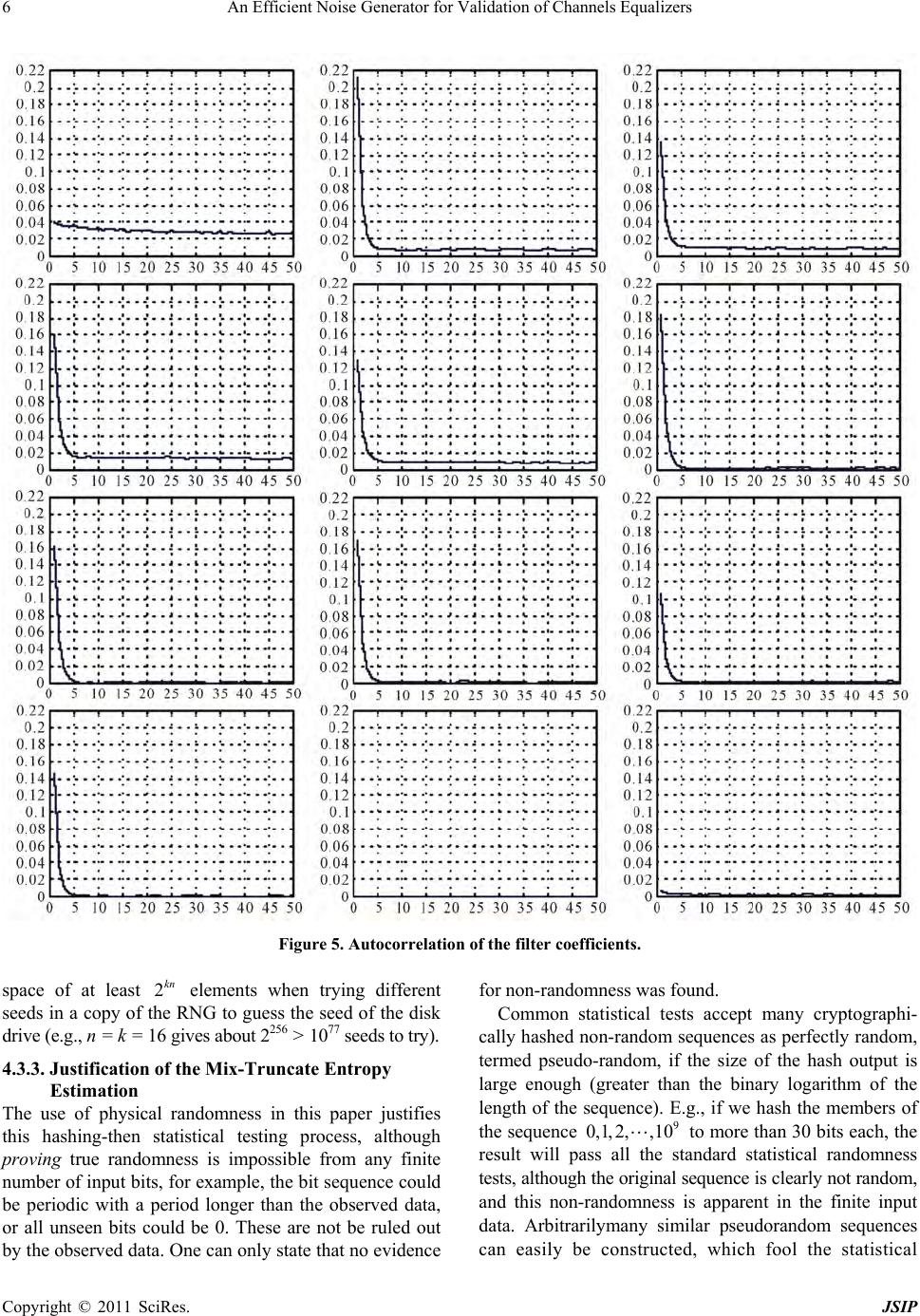

Figure 5. Autocorrelation of the filter coefficients.
space of at least 2kn elements when trying different
seeds in a copy of th e RNG to guess the seed of the disk
drive (e.g., n = k = 16 gives about 2256 > 1077 seeds to try).
4.3.3. Justifi cation of the Mi x-T runcate Entropy
The use of physical randomness in this paper justifies
this hashing-then statistical testing process, although
proving true randomness is impossible from any finite
number of input bits, for example, the bit sequence could
be periodic with a period longer than the observed data,
or all unseen bits could be 0. These are not be ruled out
by the observed data. One can only state that no evidence
for non-randomness was found.
Common statistical tests accept many cryptographi-
cally hashed non-r andom sequences as perfectly random,
termed pseudo-random, if the size of the hash output is
large enough (greater than the binary logarithm of the
length of the sequence). E.g., if we hash the members of
the sequence 9
0,1,2,,10 to more than 30 bits each, the
result will pass all the standard statistical randomness
tests, although the original sequence is clearly not random,
and this non-randomness is apparent in the finite input
data. Arbitrarilymany similar pseudorandom sequences
can easily be constructed, which fool the statistical
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP

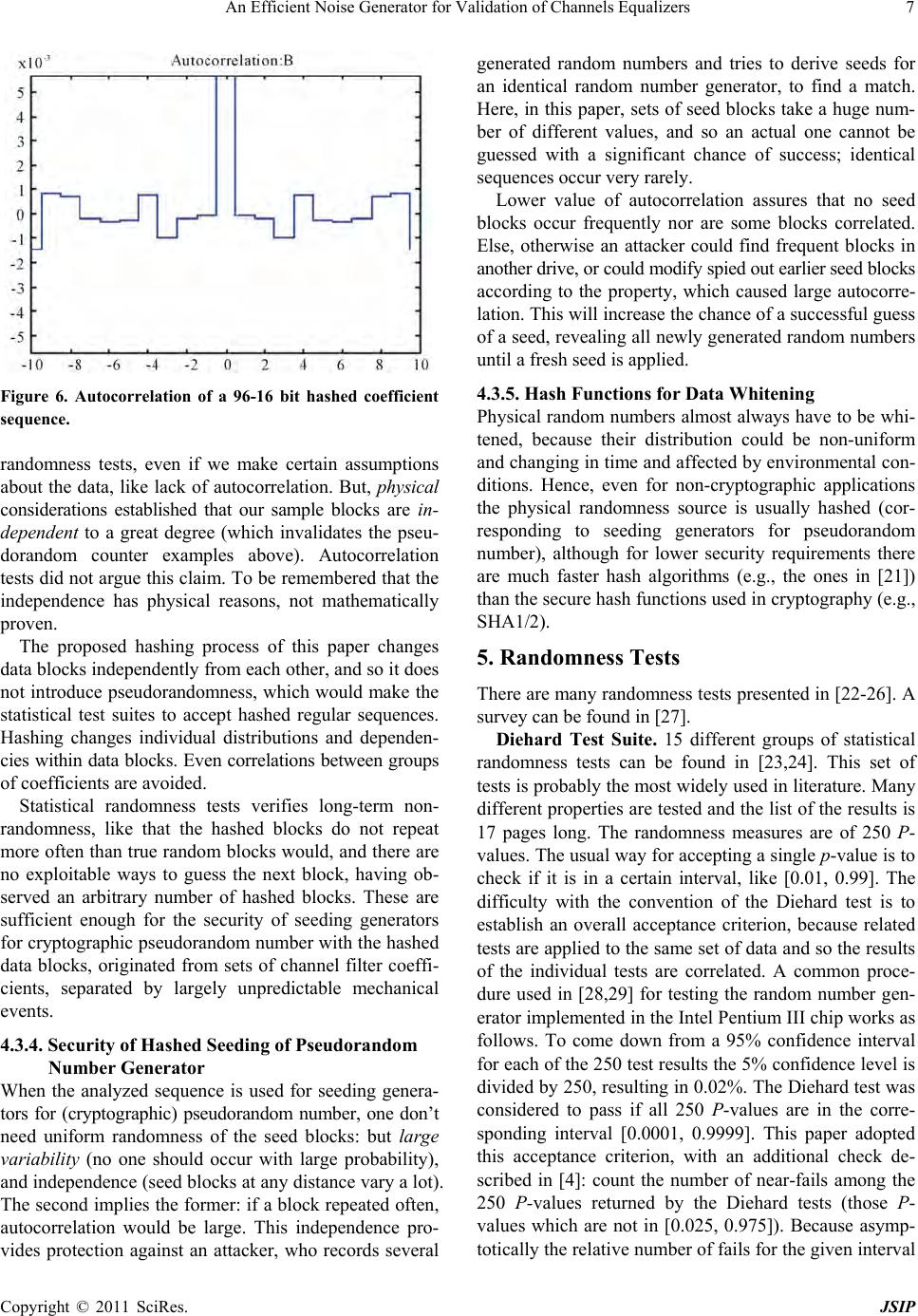

Figure 6. Autocorrelation of a 96-16 bit hashed coefficient
randomness tests, even if we make certain assumptions
about the data, like lack of autocorrelation. But, physical
considerations established that our sample blocks are in-
dependent to a great degree (which invalidates the pseu-
dorandom counter examples above). Autocorrelation
tests did not argue this claim. To be remembered that the
independence has physical reasons, not mathematically
The proposed hashing process of this paper changes
data blocks independently from each other, and so it does
not introduce pseudorandomness, which would make the
statistical test suites to accept hashed regular sequences.
Hashing changes individual distributions and dependen-
cies within data blocks. Even correlations between groups
of coefficients are avoided.
Statistical randomness tests verifies long-term non-
randomness, like that the hashed blocks do not repeat
more often than true random blocks would, and there are
no exploitable ways to guess the next block, having ob-
served an arbitrary number of hashed blocks. These are
sufficient enough for the security of seeding generators
for cryptographic pseudorandom number with the hashed
data blocks, originated from sets of channel filter coeffi-
cients, separated by largely unpredictable mechanical
4.3.4. Security of Hashed Seeding of Pseudorandom
Number Generator
When the analyzed sequence is used for seeding genera-
tors for (cryptographic) pseudorandom number, one don’t
need uniform randomness of the seed blocks: but large
variability (no one should occur with large probability),
and independence (seed blocks at any distance vary a lot).
The second implies the former: if a block repeated often,
autocorrelation would be large. This independence pro-
vides protection against an attacker, who records several
generated random numbers and tries to derive seeds for
an identical random number generator, to find a match.
Here, in this paper, sets of seed blocks take a huge num-
ber of different values, and so an actual one cannot be
guessed with a significant chance of success; identical
sequences occur very rarely.
Lower value of autocorrelation assures that no seed
blocks occur frequently nor are some blocks correlated.
Else, otherwise an attacker could find frequent blocks in
another drive, or could modify spied out earlier seed blocks
according to the property, which caused large autocorre-
lation. This will increase the chance of a successful guess
of a seed, revealing all newly generated random numbers
until a fresh seed is applied.
4.3.5. Hash Functions for Data Whitening
Physical random numbers almost always have to be whi-
tened, because their distribution could be non-uniform
and changing in time and affected by environmental con-
ditions. Hence, even for non-cryptographic applications
the physical randomness source is usually hashed (cor-
responding to seeding generators for pseudorandom
number), although for lower security requirements there
are much faster hash algorithms (e.g., the ones in [21])
than the secure hash functions used in cryptography (e.g.,
5. Randomness Tests
There are many randomness tests presented in [22-26]. A
survey can be found in [27].
Diehard Test Suite. 15 different groups of statistical
randomness tests can be found in [23,24]. This set of
tests is probably the most widely used in literature. Many
different properties are tested and the list of the results is
17 pages long. The randomness measures are of 250 P-
values. The usual way for accepting a single p-value is to
check if it is in a certain interval, like [0.01, 0.99]. The
difficulty with the convention of the Diehard test is to
establish an overall acceptance criterion, because related
tests are applied to the same set of data and so the results
of the individual tests are correlated. A common proce-
dure used in [28,29] for testing the random number gen-
erator implemented in the Intel Pentium III chip works as
follows. To come down from a 95% confidence interval
for each of the 250 test results the 5% confidence level is
divided by 250, resulting in 0.02%. The Diehard test was
considered to pass if all 250 P-values are in the corre-
sponding interval [0.0001, 0.9999]. This paper adopted
this acceptance criterion, with an additional check de-
scribed in [4]: count the number of near-fails among the
250 P-values returned by the Diehard tests (those P-
values which are not in [0.025, 0.975]). Because asymp-
totically the relative number of fails for the given interval
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP
is 5%, there must be about 12 near-fails among the 250
values. This near fails are expected, as the Diehard test
suite states in the test protocol: “Such ps happen among
the hundreds that DIEHARD produces, even with good
RNGs. So keep in mind that p happens”.
The Diehard (or the NIST) tests are not accurate
enough to autocorrelations, which occur at other than in-
teger multiples of 8 bit offsets. (Some of data sets, which
pass the Diehard tests at k = 28, but failed with k = 24
reduction.) Hence, only the tests of hashed filter coeffi-
cient set to k = 24, 16, and 8 bits can be fully trusted.
Some of data sets proved to be sufficiently random with
k = 24, but a few did not, while all of the Diehard tests
passed on our every hashed channel filter coefficient sets
at k = 16 or less.
NIST 800-22 Randomness Tests: While the Diehard
tests and Maurer’s test passed on our hashed data, the
NIST tests also accepted the input as random [26]. Ad-
vantages of the NIST test suite is that it works on data of
size other than 10 MB, needed for Diehard, but our
hashed files were large enough for Diehard. Each of the
NIST tests provides a P-value, and depending on the
length of the sequence an acceptance threshold is pro-
vided. The ratio of accepted P values for each test must
be above a certain given level. For the tests to clear the
collected P-values are assessed in the end, to verify their
uniform distribution between 0 and 1, which is similar to
the overall acceptance of Diehard.
Maurer’s Universal Randomness Test. Presented in
[25], and further investigated in [30], analyzes the statis-
tics of gaps between the closest occurrences of the same
bit blocks. A test for each block size 1-16 is to be per-
formed. Larger test blocks require huge datasets for high
confidence in the test results. e.g., the necessary size of
the data sets for 16-bit test blocks is 1000 · 216 · 12 800
MB. All of the Maurer tests with block sizes b = 1-16
passed, when the data was hashed to k = 16. In this case
virtually no memory is present, because of the many
seek-induced filter coefficient updates between data ac-
Autocorrelation.This paper used the MATLAB tstool/
autocorrelation tool, and the results (one in Figure 7)
were compared to high quality pseudorandom data. Each
of hashed channel filter coefficient dataset with k = 24 or
less provided autocorrelation curves indistinguishable
from that of uniform, true random data (we got roughly
the same maximum, average, and standard deviation).
Transform-Tests. An FFT-test is may be included
among the NIST tests. After computation the correlation
of the hashed coefficient sequences to periodic signals
(sine waves) the FFT test finds periodic components in
the hashed data. The physical model and the observed level
of autocorrelation in the individual coefficient sequences

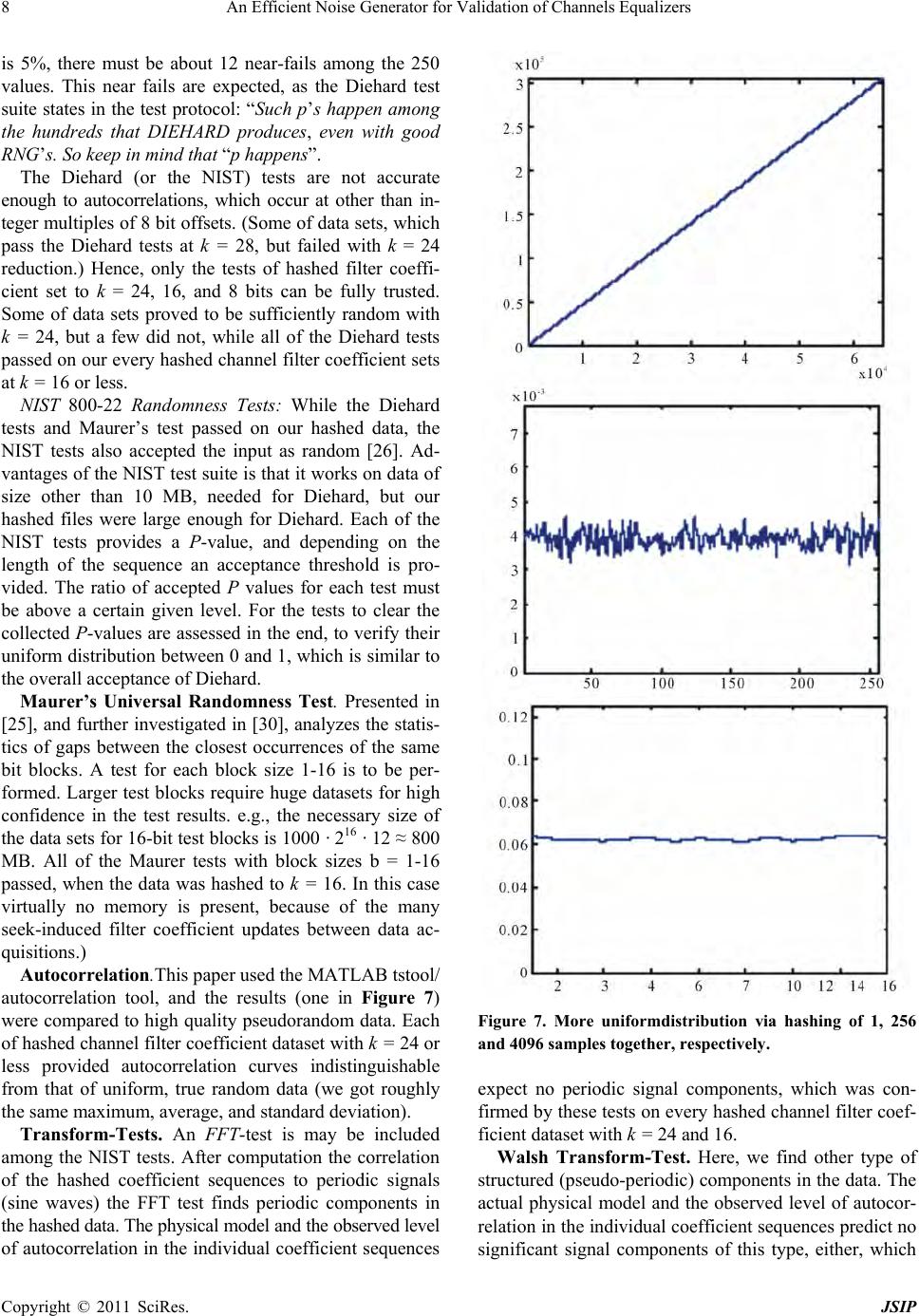

Figure 7. More uniformdistribution via hashing of 1, 256
and 4096 samples together, respectively.
expect no periodic signal components, which was con-
firmed by these tests on every hashed channel filter coef-
ficient dataset with k = 24 and 16.
Walsh Transform-Test. Here, we find other type of
structured (pseudo-periodic) components in the data. The
actual physical model and the observed level of autocor-
relation in the individual coefficient sequences predict no
significant signal components of this type, either, which
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP
was confirmed by the Walsh transform tests on every
hashed channel filter coefficient dataset with k = 24 and
16 (showing little deviation from the expected values).

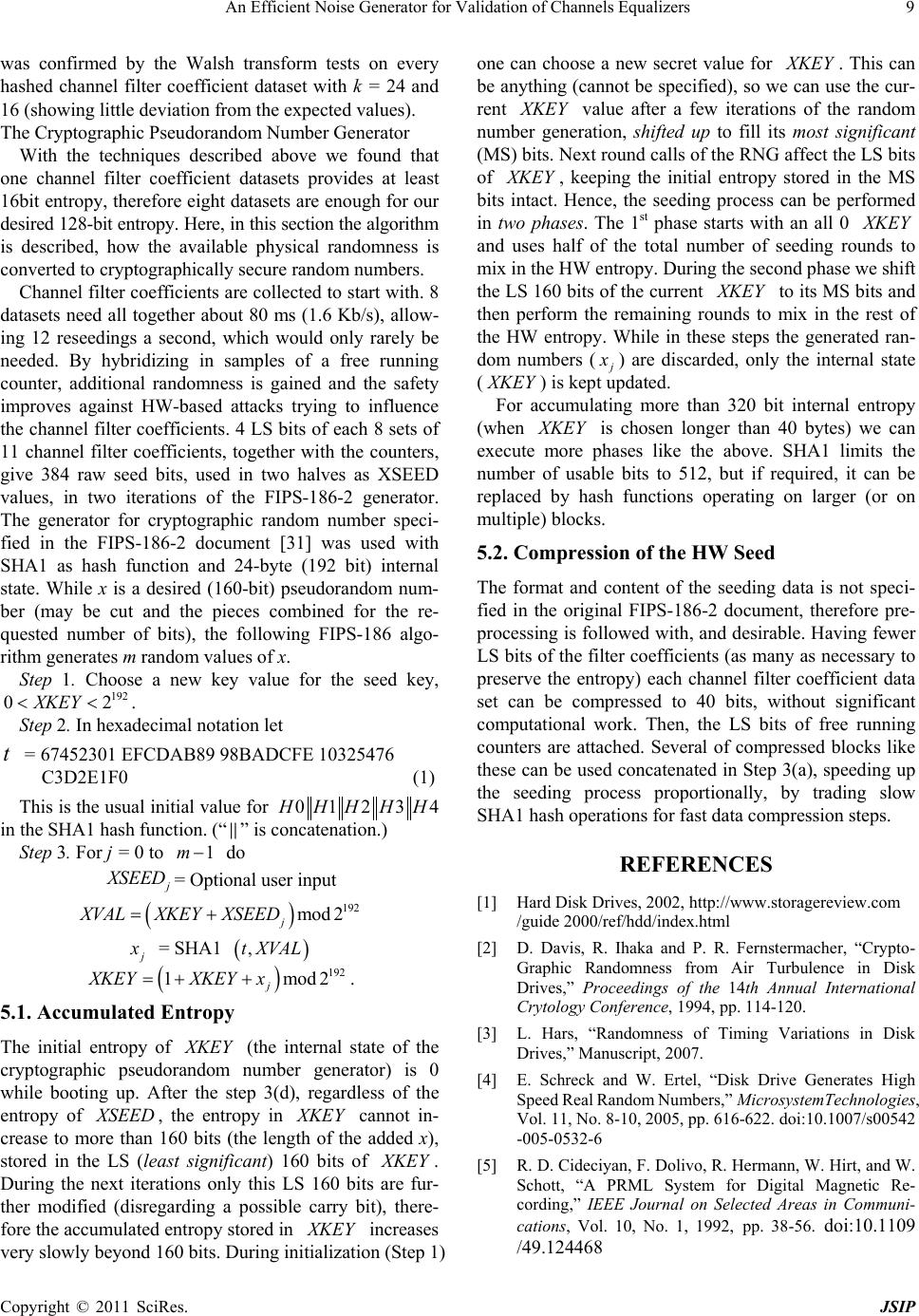

The Cryptographic Pseudorandom Number Generator
With the techniques described above we found that
one channel filter coefficient datasets provides at least
16bit entropy, therefore eight datasets are enough for our
desired 128-bit entropy. Here, in this section the algorithm
is described, how the available physical randomness is
converted to cryptographically secure random numbers.
Channel filter coefficients are collected to start with. 8
datasets need all together about 80 ms (1.6 Kb/s), allow-
ing 12 reseedings a second, which would only rarely be
needed. By hybridizing in samples of a free running
counter, additional randomness is gained and the safety
improves against HW-based attacks trying to influence
the channel filter coefficients. 4 LS bits of each 8 sets of
11 channel filter coefficients, together with the counters,
give 384 raw seed bits, used in two halves as XSEED
values, in two iterations of the FIPS-186-2 generator.
The generator for cryptographic random number speci-
fied in the FIPS-186-2 document [31] was used with
SHA1 as hash function and 24-byte (192 bit) internal
state. While x is a desired (160-bit) pseudorandom num-
ber (may be cut and the pieces combined for the re-
quested number of bits), the following FIPS-186 algo-
rithm generates m random values of x.
Step 1. Choose a new key value for the seed key,
Step 2. In hexadecimal notation let
t = 67452301 EFCDAB89 98BADCFE 10325476
C3D2E1F0 (1)
This is the usual initial value for 01234
in the SHA1 hash function. (“” is concatenation.)
Step 3. For j = 0 to 1m do
SEED = Optional user input
mod 2
= SHA1
5.1. Accumulated Entropy
The initial entropy of
KEY (the internal state of the
cryptographic pseudorandom number generator) is 0
while booting up. After the step 3(d), regardless of the
entropy of
SEED , the entropy in
KEY cannot in-
crease to more than 160 bits (the length of the added x),
stored in the LS (least significant) 160 bits of
During the next iterations only this LS 160 bits are fur-
ther modified (disregarding a possible carry bit), there-
fore the accumulated entropy stored in
KEY increases
very slowly beyond 160 bits. During initialization (Step 1)
one can choose a new secret value for
KEY . This can
be anything (cannot be specified), so we can use the cur-
KEY value after a few iterations of the random
number generation, shifted up to fill its most significant
(MS) bits. Next round calls of the RNG affect the LS bits
KEY , keeping the initial entropy stored in the MS
bits intact. Hence, the seeding process can be performed
in two phases. The 1st phase starts with an all 0
and uses half of the total number of seeding rounds to
mix in the HW entropy. During the second phase we shift
the LS 160 bits of the current
KEY to its MS bits and
then perform the remaining rounds to mix in the rest of
the HW entropy. While in these steps the generated ran-
dom numbers (
) are discarded, only the internal state
KEY ) is kept updated.
For accumulating more than 320 bit internal entropy
KEY is chosen longer than 40 bytes) we can
execute more phases like the above. SHA1 limits the
number of usable bits to 512, but if required, it can be
replaced by hash functions operating on larger (or on
multiple) blocks.
5.2. Compression of the HW Seed
The format and content of the seeding data is not speci-
fied in the original FIPS-186-2 document, therefore pre-
processing is followed with, and desirable. Having fewer
LS bits of the filter coefficients (as many as necessary to
preserve the entropy) each channel filter coefficient data
set can be compressed to 40 bits, without significant
computational work. Then, the LS bits of free running
counters are attached. Several of compressed blocks like
these can be used concatenated in Step 3(a), speeding up
the seeding process proportionally, by trading slow
SHA1 hash operations fo r fast data compression steps.
[1] Hard Disk Drives, 2002,
/guide 2000/ref/hdd/index.html
[2] D. Davis, R. Ihaka and P. R. Fernstermacher, “Crypto-
Graphic Randomness from Air Turbulence in Disk
Drives,” Proceedings of the 14th Annual International
Crytology Conference, 1994, pp. 114-120.
[3] L. Hars, “Randomness of Timing Variations in Disk
Drives,” Manuscript, 2007.
[4] E. Schreck and W. Ertel, “Disk Drive Generates High
Speed Real Rand om Numbers,” MicrosystemTechnologies,
Vol. 11, No. 8-1 0 , 20 05, pp. 616-622. doi:10.10 07/s00542
[5] R. D. Cideciyan, F. Dolivo, R. Hermann, W. Hirt, and W.
Schott, “A PRML System for Digital Magnetic Re-
cording,” IEEE Journal on Selected Areas in Communi-
cations, Vol. 10, No. 1, 1992, pp. 38-56. doi:10.1109
An Efficient Noise Generator for Validation of Channels Equalizers
Copyright © 2011 SciRes. JSIP

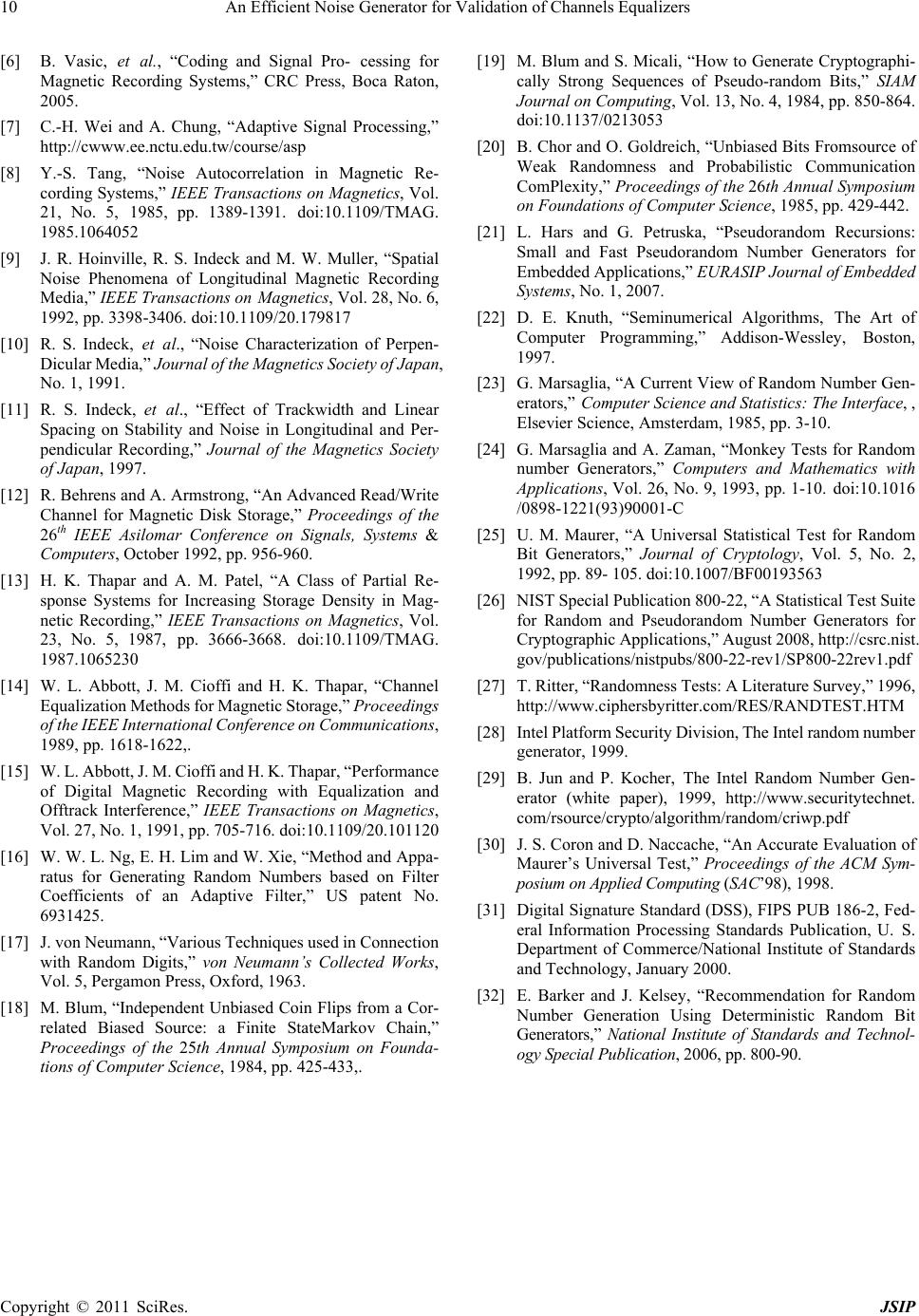

[6] B. Vasic, et al., “Coding and Signal Pro- cessing for
Magnetic Recording Systems,” CRC Press, Boca Raton,
[7] C.-H. Wei and A. Chung, “Adaptive Signal Processing,”
[8] Y.-S. Tang, “Noise Autocorrelation in Magnetic Re-
cording Systems,” IEEE Transactions on Magnetics, Vol.
21, No. 5, 1985, pp. 1389-1391. doi:10.1109/TMAG.
[9] J. R. Hoinville, R. S. Indeck and M. W. Muller, “Spatial
Noise Phenomena of Longitudinal Magnetic Recording
Media,” IEEE Transactions on Magnetics, Vol. 28, No. 6,
1992, pp. 3398-3406. doi:10.1109/20.179817
[10] R. S. Indeck, et al., “Noise Characterization of Perpen-
Dicular Media,” Journal o f the Magnetics Society of Japan,
No. 1, 1991.
[11] R. S. Indeck, et al., “Effect of Trackwidth and Linear
Spacing on Stability and Noise in Longitudinal and Per-
pendicular Recording,” Journal of the Magnetics Society
of Japan, 1997.
[12] R. Behrens and A. Armstrong, “An Advanced Read/Write
Channel for Magnetic Disk Storage,” Proceedings of the
26th IEEE Asilomar Conference on Signals, Systems &
Computers, October 1992, pp. 956-960.
[13] H. K. Thapar and A. M. Patel, “A Class of Partial Re-
sponse Systems for Increasing Storage Density in Mag-
netic Recording,” IEEE Transactions on Magnetics, Vol.
23, No. 5, 1987, pp. 3666-3668. doi:10.1109/TMAG.
[14] W. L. Abbott, J. M. Cioffi and H. K. Thapar, “Channel
Equalization Methods fo r Magnetic Storag e,” Proceedings
of the IEEE International Conference on Communications,
1989, pp. 1618-1622,.
[15] W. L. Abbott, J. M. Cioff i and H. K. Thapar, “Per formance
of Digital Magnetic Recording with Equalization and
Offtrack Interference,” IEEE Transactions on Magnetics,
Vol. 27, No. 1, 1991 , pp. 705-716 . doi:10.1109/2 0.1011 20
[16] W. W. L. Ng, E. H. Lim and W. Xie, “Method and Appa-
ratus for Generating Random Numbers based on Filter
Coefficients of an Adaptive Filter,” US patent No.
[17] J. von Neumann, “Various Techniques used in Co nnection
with Random Digits,” von Neumann’s Collected Works,
Vol. 5, Pergamon Press, Oxford, 1963.
[18] M. Blum, “Independent Unbiased Coin Flips from a Cor-
related Biased Source: a Finite StateMarkov Chain,”
Proceedings of the 25th Annual Symposium on Founda-
tions of Computer Science, 1984, pp. 425-433,.
[19] M. Blum and S. Micali, “How to Generate Cryptographi-
cally Strong Sequences of Pseudo-random Bits,” SIAM
Journal on Computing, Vol. 13, No. 4, 1984, pp. 850-864.
[20] B. Chor and O. Goldreich, “Unbiased Bits Fromsource of
Weak Randomness and Probabilistic Communication
ComPlexity,” Proceedings of the 26th Annual Symposium
on Foundations of Computer Science, 1985, pp. 429-442.
[21] L. Hars and G. Petruska, “Pseudorandom Recursions:
Small and Fast Pseudorandom Number Generators for
Embedded Applications,” EURAS IP Jo urnal o f Embedde d
Systems, No. 1, 2007.
[22] D. E. Knuth, “Seminumerical Algorithms, The Art of
Computer Programming,” Addison-Wessley, Boston,
[23] G. Marsaglia, “A Current View of Random Number Gen-
erators,” Computer Science and Statistics: The Interface, ,
Elsevier Science, Amsterdam, 1985, pp. 3-10.
[24] G. Marsaglia and A. Zaman, “Monkey Tests for Random
number Generators,” Computers and Mathematics with
Applications, Vol. 26, No. 9, 1993, pp. 1-10. doi:10.1016
[25] U. M. Maurer, “A Universal Statistical Test for Random
Bit Generators,” Journal of Cryptology, Vol. 5, No. 2,
1992, pp. 89- 105. doi:10.1007/BF00193563
[26] NIST Special Publication 800-22, “A Statistical Test Suite
for Random and Pseudorandom Number Generators for
Cryptographic App lications,” Au gust 2008, http://csrc.nist.
[27] T. Ritter, “Randomness Tests: A Literature Survey,” 1996,
[28] Intel Platform Security Division, The Intel random number
generator, 1999.
[29] B. Jun and P. Kocher, The Intel Random Number Gen-
erator (white paper), 1999, http://www.securitytechnet.
[30] J. S. Coron and D. Naccache, “An Accurate Evaluation of
Maurer’s Universal Test,” Proceedings of the ACM Sym-
posium on Applied Computing (SAC’98), 1998.
[31] Digital Signature Standard (DSS), FIPS PUB 18 6-2, Fed-
eral Information Processing Standards Publication, U. S.
Department of Commerce/National Institute of Standards
and Technology, January 2000.
[32] E. Barker and J. Kelsey, “Recommendation for Random
Number Generation Using Deterministic Random Bit
Generators,” National Institute of Standards and Technol-
ogy Special Publication, 2006, pp. 800-90.
