Advances in Remote Sensing, 2013, 2, 247257 http://dx.doi.org/10.4236/ars.2013.23027 Published Online September 2013 (http://www.scirp.org/journal/ars) Towards an Intelligent Predictive Model for Analyzing SpatioTemporal Satellite Image Based on Hidden Markov Ch ain Houcine Essid1,2, Imed Riadh Farah1,3, Vincent Barra2 1Research Laboratory in Computer Integrated Documentation and ArabizedDocumentiel Geniuses and Software, National School of Computer Science Campus, Universitaire de Manouba, Tunis, Tunisie 2Limos, Laboratory of Computer Modeling and System Optimization UMR CNRS 6158Campus Scientifique des CézeauxOffice, Aubiere, France 3TELECOMBretagne, Département ITI Technopôle Brest Iroise, Brest, France Email: Houcine.essid@isima.fr, riadh.farah@ensi.rnu.tn, vincent.barra@isima.fr Received May 5, 2013; revised June 5, 2013; accepted July 8, 2013 Copyright © 2013 Houcine Essid et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. ABSTRACT Nowadays remote sensing is an important technique for observing Earth surface applied to different areas such as, land use, urban planning, remote monitoring, real time deformation of the soil that can be associated with earthquakes or landslides, the variations in thickness of the glaciers, the measurement of volume changes in the case of volcanic erup tions, deforestation, etc. To follow the evolution of these phenomena and to predict their future states, many approaches have been proposed. However, these approaches do not respond completely to the specialists who process yet more commonly the data extracted from the images in their studies to predict the future. In this paper, we propose an innova tive methodology based on hidden Markov models (HMM). Our approach exploits temporal series of satellite images in order to predict spatiotemporal phenomena. It uses HMM for representing and making prediction concerning any ob jects in a satellite image. The first step builds a set of feature vectors gathering the available information. The next step uses a BaumWelch learning algorithm on these vectors for detecting state changes. Finally, the system interprets these changes to make predictions. The performance of our approach is evaluated by tests of spacetime interpretation of events conducted over two study sites, using different time series of SPOT images and application to the change in vegetation with LANDSAT images. Keywords: Satellite Image; Remote Sensing; Hidden Markov Model; Change Detection; Image Processing 1. Introduction During the last decade there have been many improve ments and significant technical breakthroughs in the field of remote sensing to improve the quality of available observations [1]. The use of sensors with multitemporal, multiresolution and multispectral images has yielded new data essential to understanding the mechanics of earthquakes, volcanoes dynamics and functioning of major active tectonic structures. As a result, several re searches are conducted to extract useful information and represent knowledge in order to interpret and analyze dynamic scenes. Indeed, precise measurements taken from a satellite image require a rigorous assessment of uncertainty and robust methods to achieve operational results. All these reasons have encouraged researchers to focus their studies to detect, explain, interpret and predict temporal variations in scenes of satellite images. The aim of this paper is to present a methodological framework for analyzing and predicting many joint space time events that occur in the time series of satellite im ages. This analysis is dedicated to automatically label spatiotemporal structures and discover new events. To achieve this goal, we exploit two areas: the extraction of information from satellite images and stochastic analy ses. Using satellite images that cover part of the Earth in different times for the same place we thus first use image processing and segmentation tools to get various de scriptors of satellite images. These descriptors then serve as an input of a stochastic modeling process. The hidden Markov model (HMM) allows the dynamic of objects to be represented from a sequence of images to manage the C opyright © 2013 SciRes. ARS
H. ESSID ET AL. 248 change in sensor resolution. We thus model all the hid den states and descriptors in the form of a HMM whose parameters are estimated by a learning based on time series satellite images. Once estimated, these parameters allow interpretation of variations and prediction to be performed. This article consists of three sections. The current sec tion introduces the context of our study by providing a quick review of technical information extraction and ana lysis systems by spatiotemporal stochastic tools. The se cond section deals with our contributions for the ex ploitation of time series of satellite images, in coopera tion with the techniques for extracting information for the spatiotemporal analysis based on a HMM. In the third section we present the results of two applications of our approach: SPOT imagery with various applications and LANDSAT imagery applied to vegetation variation. Now, we present a synthetic state of the art of remote sensing images interpretation. The goal is to highlight different strategies in the literature to achieve spatiotem poral modeling. These systems offer predictive analytics solutions helping photo interpreters to predict future events, and take advantage of different types of image descriptors to characterize the dynamics of objects. We focus our study on stochastic models. Several authors [2] [3,4] have proposed a comprehensive review of existing approaches to change detection in remote sensing. If me thods detecting changes using only two images are very common, methods dedicated to the temporal trajectory analysis are very few and generally correspond to adap tations of bidates methods to multiple dates. In general, two images methods are rather used for the analysis of abrupt changes at a local level and exploit data at high spatial resolution. Conversely, multi temporal methods focused on the analysis of slow changes or largescale phenomena. In the spatiotemporal domain analysis, Lazri [5] developed an analytical model of rainfall data by a Markovian approach. The data used consist of a series of images collected by weather radar. The results show that rainfall is well described by Markov chains of high order both on land and sea and whatever the climate prevailing in the region. In agriculture data mining, Mari [6] devel oped a Markov model to understand and explain the pro cess that produces the succession of crops. He used the Peano curve [7] to perform spatial segmentation of ho mogeneous geographic regions in terms of spatial densi ties of crops and he used a second order HMM to study the consequences of crops. In image recognition, Slimane [8] designed a hybrid algorithm for learning images by HMM. Aurdal et al. [9] as for them proposed a super vised classification method adapted to high dimensional data from spatially correlated with LANDSAT satellite images. The authors introduced a statistical model based on the hidden Markov random field which took into ac count spatial dependencies between data. In statistical image processing, Pieczynski [1012] introduced new systems dedicated to image segmentation by Markov models such as pairwise Markov chains and triplet Mar kov chains. These particular models can better take into account the boundaries between classes, which can be of great interest for the segmentation of satellite images. But, the complexity of these models is higher than the conventional model. An application in detecting changes between radar images was developed by Carincotte [13] based on a fuzzy Markovian segmentation of images. The same kind of idea has been studied by Derrode [14] who designed two HMMbased algorithms, a fuzzy one and a sliding windowbased one. In the same study area, Wijanarto [15] developed a technique for Markov change detection that can be used to predict future changes based on the rate of changes in the past and generating prob abilities of changes between classes. These probabilities were calculated using a transition matrix of pixels be tween the classes for two periods of time. In the field of automatic information extraction, Lacoste [16] presented a method for unsupervised extraction of line networks, such as roads or water systems, from satellite images. This system modeled the line network in the image by a Markov process. The density of this process was built to exploit the best properties of the network topology and radiometric data properties. An algorithm for Monte Car lo Markov chain reversible jump was proposed for opti mization. Most of these systems have addressed the component of change detection which aims to generate an image re presenting the areas of changes/no changes between two images I1 and I2 (or sequences of images) acquired at two different times (or time intervals), commonly called image map changes. Few of them have solved the prob lem of explanation and prediction of spacetime events from time series of satellite images. The prediction mod els are generally stochastic models using the calculation of probabilities. They can describe and predict the char acteristics of a given system under different configura tions. Once these characteristics are known, the best so lution among the alternatives evaluated is selected. This choice is simplified by a technique for detecting changes. However, we note the existence of a variety of tech niques such as spectral mixture analyses [17]. And since the digital change detection is affected by spatial, spec tral, thematic and temporal features, the selection of a suitable method or algorithm, for a given research project, is very important. Many systems use HMM in speech recognition, audiovisual detection, isolated character re cognition and degraded printed character recognition, but not in satellite image analysis. In our approach, we chose to use the HMM because the processing of satellite im ages representing natural scenes brought a large volume Copyright © 2013 SciRes. ARS
H. ESSID ET AL. 249 of information. HMM is a statistical tool allowing complex stochastic phenomena to be modeled. They are used in a lot of areas including speech recognition and synthesis, biology, scheduling, information retrieval, re cognition image, temporal series prediction. 2. Proposed Approach The main contribution of our work lies in the use of HMM for both change detection in satellite images and prediction. The proposed approach is composed of three phases. The first one is a segmentation and preprocessing step of a series of satellite images. In the second step we measure and normalize descriptors for using them in HMM learning. Finally, in the third step we use the HMM structure to predict events. Phase 1: The method begins with a processing chain that starts from the acquisition of a series of satellite images 12 ,,, n II where Ik denotes the kth image of size M × N. Each image is composed of a set of pixels each of them being represented by a vector of n radiometric com ponents xj. From these vectors, the matrix SN×M,n featur ing the all dataset can be formed. Since the large amount of data carried out by these vectors may not optimaly represent the available information, we applied a reduc tion dimension technique and more precisely a principal component analysis (PCA) [18]. PCA is a method widely used in the field of remote sensing. Besides, the images of the same scene registered according to the various spectral ranges of the sensor are highly correlated. The purpose of PCA is to condense the original data into new groups so that the variace explained by these groups is maximized. This allows to tranform the matrix SN×M,n into SN×M,d, where (d represents the number of descriptors i.e., principal components). This more infor mative matrix is then partitioned by SCFCM (spatially constrained fuzzy cmeans algorithm [19]), a fuzzy clus tering algorithm based on the optimization of a quadratic criterion of classification where each class is represented by its center. This allows the coexistence of hard pixels (obtained with the classical HMM segmentation) and fuzzy pixels (obtained with the fuzzy measure) in the same image [13]. dn SCFCM allows a fuzzy partition UN×M,C = (uik), uik in [0,1] of the image to be computed. More precisely, let C the number of classes, V = {Vi} be the set of unknown class centroids, M × N the number of individuals and m a fuzzy exponent (m > 1). The objective of the method is to find U and V minimizing the cost function: 2 11 11 2j MNC MNC mm SCFCMij jiik ji jikN ux vu with 1 11,, C ik i uk n U and V are iteratively found using 1 21 j m m ji ik kN j j i mx vu u And 1 1 MN m ij j j iMN j uX V And 11 2 11 1j m C mm jjiik kN i mxv u where Nj is the set of neighbours of pixel j (except j). The parameter β controls the tradeoff between minimizing the standard FCM objective function and obtaining smooth membership functions [20]. SCFCM allows each pixel j to be represented by a set of C membership’s uij describing the way the pixel j belongs to region i, 1 ≤ i ≤ C. We focus on classes such that harvesting of a field, the evolution of the forest in autumn, the maturation of a field of rapeseed and the changing river. Following this segmentation, each image is quantified; isolated objects are measured by the descriptors chosen. This information is collected to form the raw data set of our Markov model. Phase 2: During this phase, measurements of descriptors are stored as vectors describing each region of the study area at a time t. These vectors will serve to build the database of our model. We perform a smoothing and a normaliza tion of the data to obtain the characteristic vectors. The feature vectors obtained are continuous and they can be quantified using a dictionary coding. The alterna tive is to include densities of continuous observations in the model using a continuous HMM. But the large num ber of parameters to be determined is a serious drawback of the model. Feature vectors are thus discretized using a Kohonen network [21]. This allows obtaining a dozen possible observations. Some of these observations serve as input for the HMM training phase. The choice is pro portional to the surface of each class (see Figure 1). The obtained data are then used in a hidden Markov chain to model the variation of the tracked object. A first order stationary hidden Markov model corresponds to two stochastic processes: one is a homogeneous Markov chain and the second depends on the first process. Let be 1,, p hh the set of P hidden states of the system. Let 1,, T SS S be a Tuple of random Copyright © 2013 SciRes. ARS
H. ESSID ET AL. Copyright © 2013 SciRes. ARS 250 R1 R2 R4 R3 R5 R6 R1 R2 R4 R3 R5 R6 R1 R2 R4 R3 R5 R6 Image T1 Image T2 Image Tn …………………………………………..… R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 ………… R1 at t1 R1 at t2 R1 att n ………… R2 at t1 R2 at t2 R2 at t n ………………………… ………… R6 at t1 R6 at t2 R6 at t n Filtering Ve c tors extraction Vectors / imagesRegions/ imagesVectors / regions Image afterthe FCMImage afterthe FCMImage afterthe FC 100 150 50 100 150 50 50 100 150 50 100150 50100 150 50 100 150 ……………………………..………………….. ………… ………… Coding Classification SOM Class A, Class B, Class C… ………… R1 at t1 C R1 at t2 A R1 at tn B R2 at t1 D R2 at t2 B R2 at tn B R6 at t1 E R6 at t2 A R6 at tn C Coded vectors (HMM Observations) Construction of observations Figure 1. Extraction and selection of training data. variables defined on S. Let be the set of 1,, q Oo o 1i PS s Q symbols that can be emitted by the system. Let the probabilities of transiting between two states: 1,, T Vv v be a Tuple of random variables defined 1tjt i PSs Ss on V. A hidden Markov model is then defined by the following probabilities: the probabilities of emitting a particular symbol for a particular state: the probabilities of starting the sequence with a par ticular state:
H. ESSID ET AL. 251 tjti PVv Ss If the HMM is a first order stationary hidden Markov model then many simplifications can be done. Let: 1 iip with it PSs i ,1, ij ij p Aa with ,1ijtj ti aPSsS s , 1,1 iip jq Bbj with itjti bjPV vSs A first order stationary hidden Markov model is then completely defined by the triple (A,B,∏). In the fol lowing, we will consider the notation = (A,B,∏) and we note HMM a first order stationary. We note a hidden state se 1,, T T Qqq S quence and an observed sequence 1,, T T Ooo V of symbols. The probability that a state sequence Q and an observed sequence of symbols O occurs given a HMM is ,VOSQ . Probability dependencies allow to write: ,,,PVOSQPVOSQPS Q With 1 ,, T tttt t PVOSQPVo Sq and 1 111 1 1 , T tttt t PSQPSqPSqSq From a HMM , a state sequence Q and an observed sequence of symbols O, we can compute the adequacy between the model and the two sequences Q and O. For so, we need to compute the probability ,PVOS Q . When the state sequence is un known, it is possible to compute the likelihood of the observed sequence O given a model by evaluating the probability: , QS PV OPVOSQ When manipulating hidden Markov models, we com monly need to solve three kind of problems (for a given HMM ) : computing the likelihood, O determining the state sequence * Q that is the most likely followed to emit the observed sequence O: the state sequence * Q defined by the following equation is efficiently computed by the Viterbi algorithm with a complexity of 2 OpT; *arg max, T Qs QPVOSQ Adjusting one or many HMMs from one or many observed sequences when the number of hidden state in HMMs is known: training can be viewed as a con strained optimization problem for which we try to maximize some criterion. There exist many criteria used for HMMs training [8]. When considering the maximization of the likelihood, we search a HMM * satisfying the equation *arg maxPV O Up to now, there is no general solution to this problem but algorithms, such as the BaumWelch algorithm [22] which is an iterative reestimation which counted the number of times each state, each transition and each sym bol was attached to the statements used in all sequences. We can also use the gradient descent [23] to improve an initial solution. Training algorithm for HMMs are iterative methods such that when iterating the algorithm, only a local optimum of the criterion can be found. This article attempts to show that it is reasonable to adopt a new pol icy of learning so that the time series of satellite images provide a good prediction of spacetime events. Note that change detection may be of different types of origin and of varying lengths, which allows distinguish ing different families of applications: Monitoring of land use, which corresponds to the characterization of the development of vegetative tis sue, or the detection of seasonal changes in vegeta tion; The management of natural resources, which corre sponds to the characterization of urban development, monitoring of deforestation... Mapping of damages, which corresponds to the loca tion of the damages caused by natural disasters e.g. a volcanic eruption, a tsunami, an earthquake, a flood. Thus the hidden states of our model change depending on the application domain. Let consider the database system already constructed from phase 1 and containing a set V of data vectors describing each region in the study area at a time t: PV , of an ob served sequence O given a model : this problem is efficiently solved by the Forward algorithm or by the Backward algorithm with a complexity of 2 OpT [22]; 11211 12 at ,at ,,at;;at,at,,at mnnm VRtRtRtRtRt Rt n Following an unsupervised classification by Kohonen network, we obtain a set C of classes including the vec Copyright © 2013 SciRes. ARS
H. ESSID ET AL. 252 tors previously calculated: Class ,vector ,,,Class ,vector , ii CA XZY The use of hidden Markov model requires a series of observations already calculate O: 1,, n OX X m Y and a set of hidden states , which vary with field of application. 1,,EY To adjust the parameters of HMM, we apply the BaumWelch training. This allows for a transition matrix and an emission matrix to be computed (see Figure 2). Phase 3: Now that the HMM is known, we used its structure to either predict or decode events: given a HMM λ and o a sequence of observations, we seek to calculate the prob ability of this sequence o with the HMM λ, i.e. with what probability the HMM generates the sequence o. This value is denoted by P(O=o, λ): this probability is effec tively determined by the Forward or Backward algo rithm. For this we developed a tool dedicated to the evaluation to calculate the probability of a particular se quence to predict the end of spatiotemporal changes. Recognition involves finding the most likely sequence of hidden states that led to the generation of an output ob served sequence. We then measure the recognition accu racy for each region, which is the percentage of events recognized at each time t relative to the total number of events in each region. 3. Experimentation To validate our methodology, we conducted two applica tions. The first is generic based on SPOT images and the second is specific to the change in vegetation and uses a vegetation index in terms of variation and speed variation on Landsat images. Overall architecture of the learning system The base of characteristic vecto r s VectorR1 att1 VectorR2 att1 …….. VectorRn att1 …….. VectorRi atti …….. VectorRn attn Classification: Kohonen network Class A:{Vectors Xi …} Class B :{VectorsYj…} …….. Class Z :{Vectors Zk…} Use: HMM Observations:{X1…Xn} Hidden states:{Y1…Ym} Markov model Learning: BaumWelch Adjustsettings =<S, , ,A,B> Interpretati on Subsystem Figure 2. Learning and classification with HMM. Copyright © 2013 SciRes. ARS

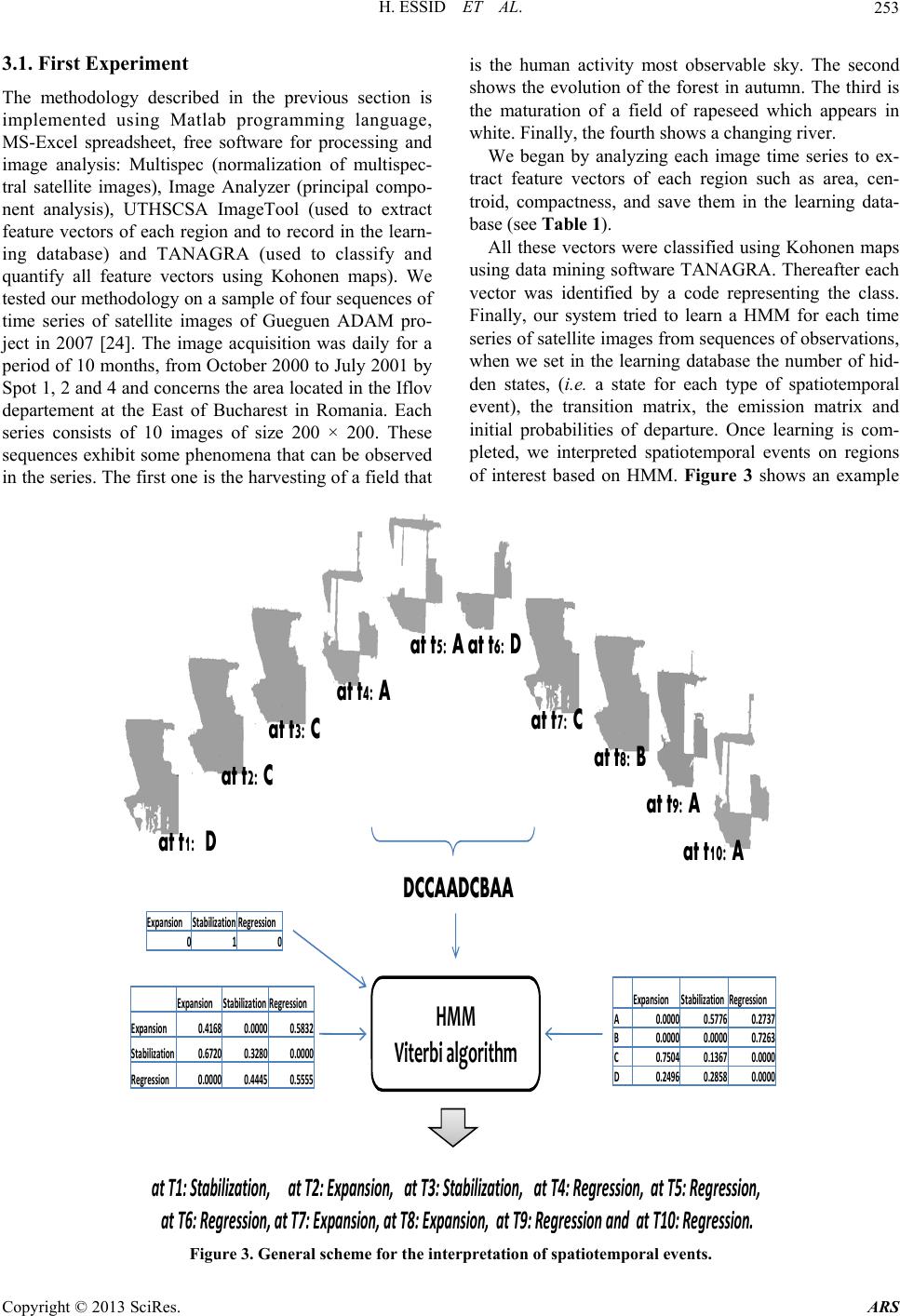

H. ESSID ET AL. 253 3.1. First Experiment The methodology described in the previous section is implemented using Matlab programming language, MSExcel spreadsheet, free software for processing and image analysis: Multispec (normalization of multispec tral satellite images), Image Analyzer (principal compo nent analysis), UTHSCSA ImageTool (used to extract feature vectors of each region and to record in the learn ing database) and TANAGRA (used to classify and quantify all feature vectors using Kohonen maps). We tested our methodology on a sample of four sequences of time series of satellite images of Gueguen ADAM pro ject in 2007 [24]. The image acquisition was daily for a period of 10 months, from October 2000 to July 2001 by Spot 1, 2 and 4 and concerns the area located in the Iflov departement at the East of Bucharest in Romania. Each series consists of 10 images of size 200 × 200. These sequences exhibit some phenomena that can be observed in the series. The first one is the harvesting of a field that is the human activity most observable sky. The second shows the evolution of the forest in autumn. The third is the maturation of a field of rapeseed which appears in white. Finally, the fourth shows a changing river. We began by analyzing each image time series to ex tract feature vectors of each region such as area, cen troid, compactness, and save them in the learning data base (see Table 1). All these vectors were classified using Kohonen maps using data mining software TANAGRA. Thereafter each vector was identified by a code representing the class. Finally, our system tried to learn a HMM for each time series of satellite images from sequences of observations, when we set in the learning database the number of hid den states, (i.e. a state for each type of spatiotemporal event), the transition matrix, the emission matrix and initial probabilities of departure. Once learning is com pleted, we interpreted spatiotemporal events on regions of interest based on HMM. Figure 3 shows an example HMM Viterbi algorithm ExpansionStabilization Regression A0.0000 0.5776 0.2737 B0.0000 0.0000 0.7263 C0.7504 0.1367 0.0000 D0.2496 0.2858 0.0000 ExpansionStabilization Regression 010 ExpansionStabilization Regression Expansion0.4168 0.0000 0.5832 Stabilization0.6720 0.3280 0.0000 Regression0.00000.4445 0.5555 at t1: D att2: C att3: C att4: A att5: A att7: C att6: D att8: B att9: A att10: A DCCAADCBAA at T1: Stabilization, at T2: Expansion, atT3: Stabilization, at T4: Regression, at T5: Regression, atT6: Re ression at T7: Ex ansion, atT8: Ex ansion, atT9: Re ression and at T10: Re ression. Figure 3. General scheme for the interpretation of spatiotemporal events. Copyright © 2013 SciRes. ARS
H. ESSID ET AL. 254 Table 1. Some feature vectors of region R11 (the harvesting of a field) of the first sequence. Object Area Perimeter Major Axis Length …… Roundness Feret Diameter R11 at t1 9668 44.66 164.2 … 0.63 110.95 R11 at t2 11071 505.71 182.66 … 0.54 118.73 ……. ….… …….. …….. … ………. ……….. R11 at t10 7449 464.63 144.42 … 0.43 97.39 of spatiotemporal analysis for a region that represents the harvest of a field, the recognition of different events (Stabilization (S), Expansion (E) and Regression (R) that led to the generation of the output data “DCCAAD CBAA” resolved with the Viterbi algorithm based on the training set containing previously constructed the transition ma trix, the emission the matrix and probabilities of depar ture. ABCD was obtained by Kohonen network (see Figure 2). This classification depends on descriptors value for each region. We can use interpretation system to predict the most likely event to a future date. For example, we want to re cognize the most probable event at t = 11 and we al ready know the series of events for t = 10. For example the sequence of observations “DACCCDABAD” creates a series of events “SRREEERRSE”, so we must calculate the probability of observing the sequences “DACCCDABADA”, “DACCCDABADB”, “DACCCDABADC” and “DACCCDABADD”. We then distinguish the set of observations that most likely occurs and therefore we can predict the event date t = 11 using the recognition task in our system of interpretation. We present below (Table 2) the results of experiment al tests. To specify each level of interpretation of events spatiotemporal length 10%, we present the rate and num ber of corresponding regions. Table 2 shows examples of spatiotemporal analysis of some regions and their recog nition accuracies. Tables 3 and 4 present the results of recognition and forecasting. Note that using the evaluation function of our system, we can predict the state of the region. For example, class C is the most likely observation at t = 11 of the region R11 including the log of the probability of observing the corresponding sequence is “−17.4511”, and then we can estimate that the state provided the region R11 to t = 11 is the “stabilization”. 3.2. Second Experiment The second application involved the analysis and moni toring changes in vegetation. We began by defining the various states the forest can be in. These states were de fined relative to the change in forest area. The intervene tion of an expert for the definition of these states is es sential. But for operational reasons for implementation, we define the following states (see Figure 4): Table 2. Experimental results. Accuracy of interpretation of events Rate regions Number of regions 90% ≤ p ≤ 100% 15.625% 5 80% < p < 90% 28.125% 9 70% < p ≤ 80% 31.25% 10 60% < p ≤ 70% 9.375% 3 50% < p ≤ 60% 6.25% 2 40% < p ≤ 50% 6.25% 2 30% < p ≤ 40% 3.125% 1 20% < p ≤ 30% 0% 0 10% < p ≤ 20% 0% 0 0% < p ≤ 10% 0% 0 0% 0% 0 100% 32 Table 3. Example of results of recognition. Time seriesType analysis Precision Serie n 1 Observation of a field crop 100% Serie n 2 Changes in forest 70% Serie n 3 Maturation of a field of rapeseed 80% Serie n 4 Changes in river 90% Table 4. Example of forecasting results of region R11 of the first sequence. An expected observation 11 oProbabilities of 11 E Expansion 0.0000 Stabilisation 0.6281 A Regression 0.3719 Expansion 0.0000 Stabilisation 0.0000 B Regression 1.0000 Expansion 0.0000 Stabilisation 1.0000 C Regression 0.0000 Expansion 0.0000 Stabilisation 1.0000 D Regression 0.0000 Copyright © 2013 SciRes. ARS

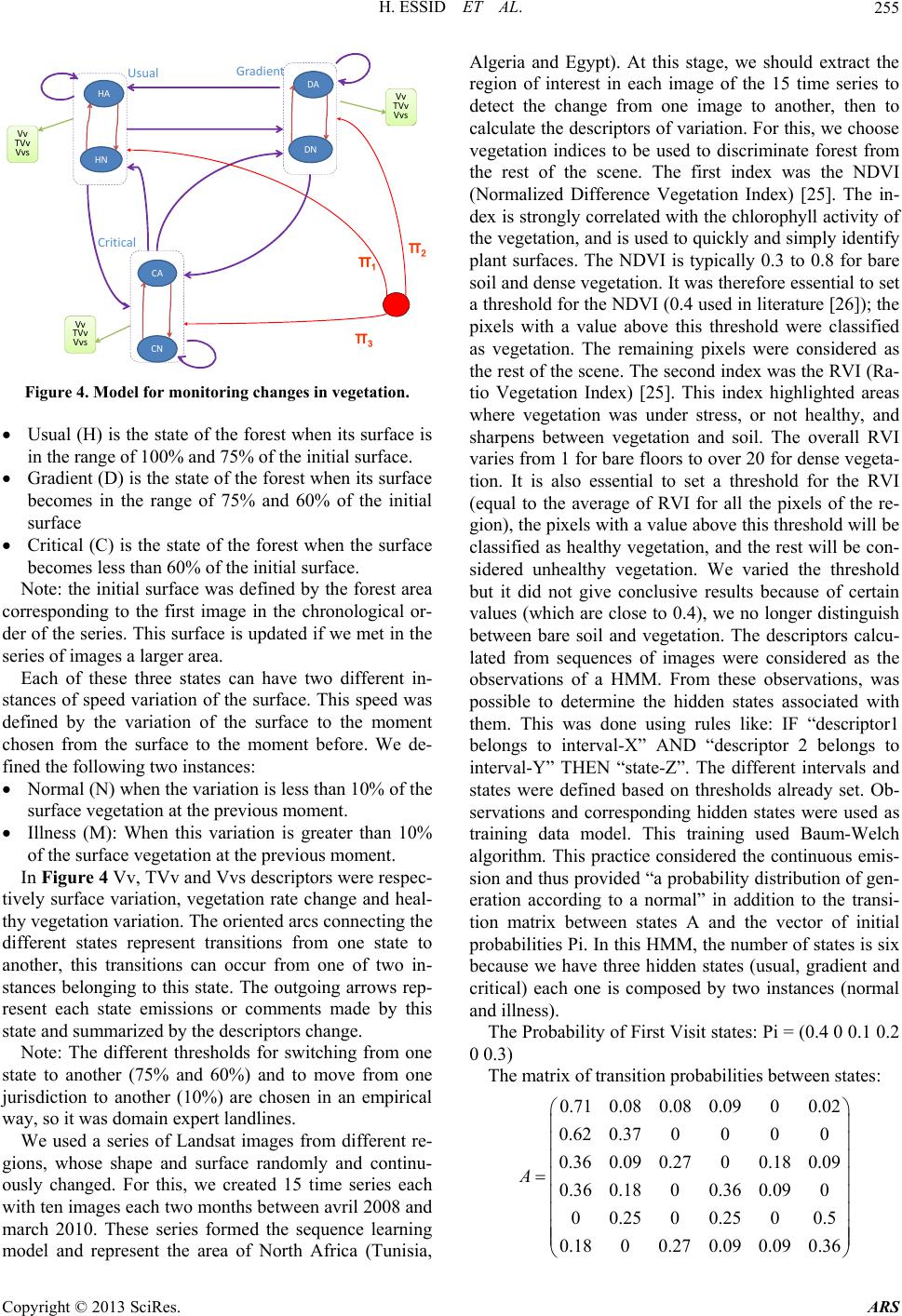

H. ESSID ET AL. 255 CA DN HN Vv TVv Vvs π 1 π 2 π 3 HA DA CN Usual Critical Gradient Vv TVv Vvs Vv TVv Vvs Figure 4. Model for monitoring changes in vegetation. Usual (H) is the state of the forest when its surface is in the range of 100% and 75% of the initial surface. Gradient (D) is the state of the forest when its surface becomes in the range of 75% and 60% of the initial surface Critical (C) is the state of the forest when the surface becomes less than 60% of the initial surface. Note: the initial surface was defined by the forest area corresponding to the first image in the chronological or der of the series. This surface is updated if we met in the series of images a larger area. Each of these three states can have two different in stances of speed variation of the surface. This speed was defined by the variation of the surface to the moment chosen from the surface to the moment before. We de fined the following two instances: Normal (N) when the variation is less than 10% of the surface vegetation at the previous moment. Illness (M): When this variation is greater than 10% of the surface vegetation at the previous moment. In Figure 4 Vv, TVv and Vvs descriptors were respec tively surface variation, vegetation rate change and heal thy vegetation variation. The oriented arcs connecting the different states represent transitions from one state to another, this transitions can occur from one of two in stances belonging to this state. The outgoing arrows rep resent each state emissions or comments made by this state and summarized by the descriptors change. Note: The different thresholds for switching from one state to another (75% and 60%) and to move from one jurisdiction to another (10%) are chosen in an empirical way, so it was domain expert landlines. We used a series of Landsat images from different re gions, whose shape and surface randomly and continu ously changed. For this, we created 15 time series each with ten images each two months between avril 2008 and march 2010. These series formed the sequence learning model and represent the area of North Africa (Tunisia, Algeria and Egypt). At this stage, we should extract the region of interest in each image of the 15 time series to detect the change from one image to another, then to calculate the descriptors of variation. For this, we choose vegetation indices to be used to discriminate forest from the rest of the scene. The first index was the NDVI (Normalized Difference Vegetation Index) [25]. The in dex is strongly correlated with the chlorophyll activity of the vegetation, and is used to quickly and simply identify plant surfaces. The NDVI is typically 0.3 to 0.8 for bare soil and dense vegetation. It was therefore essential to set a threshold for the NDVI (0.4 used in literature [26]); the pixels with a value above this threshold were classified as vegetation. The remaining pixels were considered as the rest of the scene. The second index was the RVI (Ra tio Vegetation Index) [25]. This index highlighted areas where vegetation was under stress, or not healthy, and sharpens between vegetation and soil. The overall RVI varies from 1 for bare floors to over 20 for dense vegeta tion. It is also essential to set a threshold for the RVI (equal to the average of RVI for all the pixels of the re gion), the pixels with a value above this threshold will be classified as healthy vegetation, and the rest will be con sidered unhealthy vegetation. We varied the threshold but it did not give conclusive results because of certain values (which are close to 0.4), we no longer distinguish between bare soil and vegetation. The descriptors calcu lated from sequences of images were considered as the observations of a HMM. From these observations, was possible to determine the hidden states associated with them. This was done using rules like: IF “descriptor1 belongs to intervalX” AND “descriptor 2 belongs to intervalY” THEN “stateZ”. The different intervals and states were defined based on thresholds already set. Ob servations and corresponding hidden states were used as training data model. This training used BaumWelch algorithm. This practice considered the continuous emis sion and thus provided “a probability distribution of gen eration according to a normal” in addition to the transi tion matrix between states A and the vector of initial probabilities Pi. In this HMM, the number of states is six because we have three hidden states (usual, gradient and critical) each one is composed by two instances (normal and illness). The Probability of First Visit states: Pi = (0.4 0 0.1 0.2 0 0.3) The matrix of transition probabilities between states: 0.710.080.080.09 0 0.02 0.620.370 0 0 0 0.36 0.090.2700.18 0.09 0.36 0.1800.36 0.090 0 0.25 00.25 00.5 0.1800.27 0.09 0.09 0.36 A Copyright © 2013 SciRes. ARS

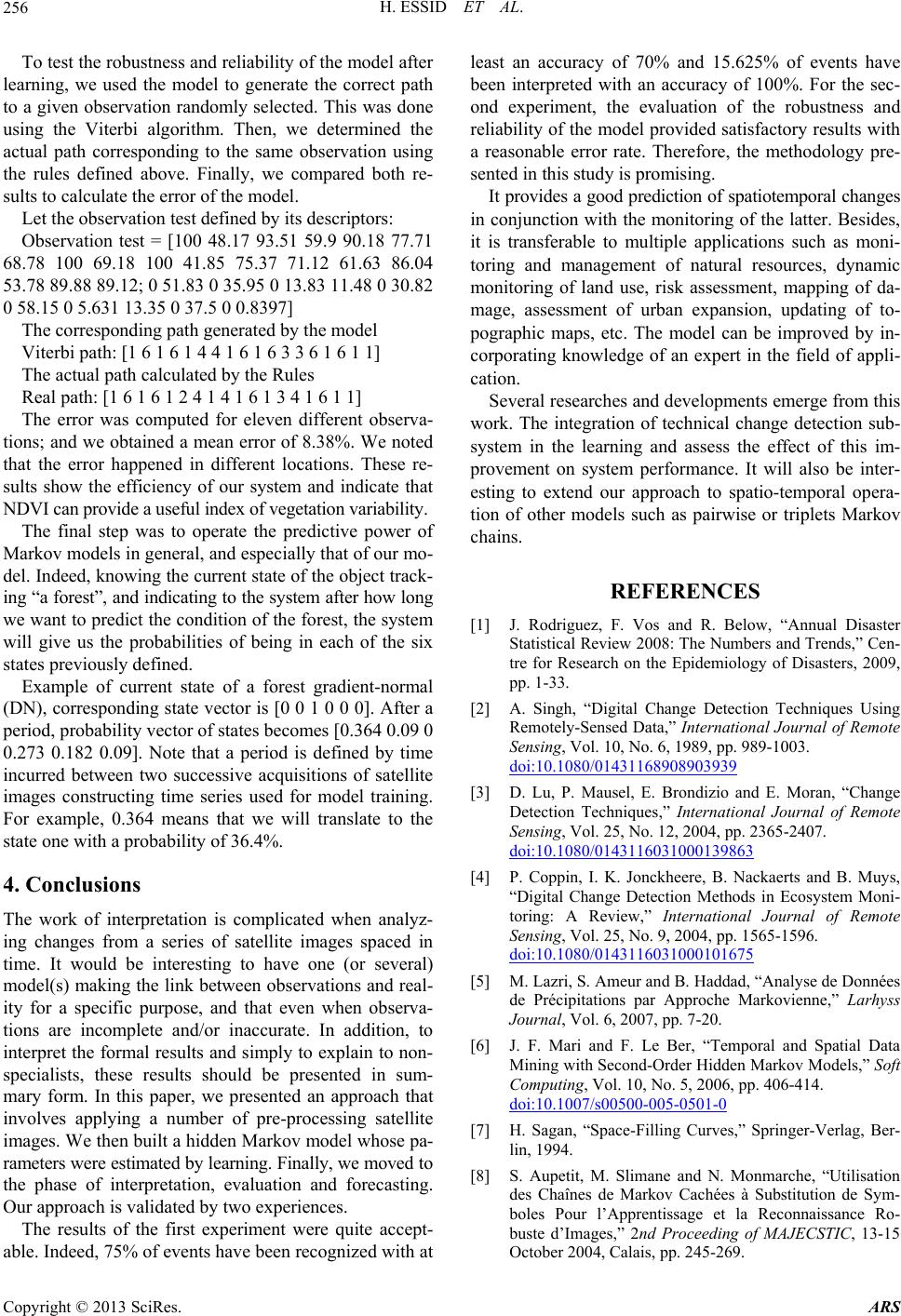

H. ESSID ET AL. 256 To test the robustness and reliability of the model after learning, we used the model to generate the correct path to a given observation randomly selected. This was done using the Viterbi algorithm. Then, we determined the actual path corresponding to the same observation using the rules defined above. Finally, we compared both re sults to calculate the error of the model. Let the observation test defined by its descriptors: Observation test = [100 48.17 93.51 59.9 90.18 77.71 68.78 100 69.18 100 41.85 75.37 71.12 61.63 86.04 53.78 89.88 89.12; 0 51.83 0 35.95 0 13.83 11.48 0 30.82 0 58.15 0 5.631 13.35 0 37.5 0 0.8397] The corresponding path generated by the model Viterbi path: [1 6 1 6 1 4 4 1 6 1 6 3 3 6 1 6 1 1] The actual path calculated by the Rules Real path: [1 6 1 6 1 2 4 1 4 1 6 1 3 4 1 6 1 1] The error was computed for eleven different observa tions; and we obtained a mean error of 8.38%. We noted that the error happened in different locations. These re sults show the efficiency of our system and indicate that NDVI can provide a useful index of vegetation variability. The final step was to operate the predictive power of Markov models in general, and especially that of our mo del. Indeed, knowing the current state of the object track ing “a forest”, and indicating to the system after how long we want to predict the condition of the forest, the system will give us the probabilities of being in each of the six states previously defined. Example of current state of a forest gradientnormal (DN), corresponding state vector is [0 0 1 0 0 0]. After a period, probability vector of states becomes [0.364 0.09 0 0.273 0.182 0.09]. Note that a period is defined by time incurred between two successive acquisitions of satellite images constructing time series used for model training. For example, 0.364 means that we will translate to the state one with a probability of 36.4%. 4. Conclusions The work of interpretation is complicated when analyz ing changes from a series of satellite images spaced in time. It would be interesting to have one (or several) model(s) making the link between observations and real ity for a specific purpose, and that even when observa tions are incomplete and/or inaccurate. In addition, to interpret the formal results and simply to explain to non specialists, these results should be presented in sum mary form. In this paper, we presented an approach that involves applying a number of preprocessing satellite images. We then built a hidden Markov model whose pa rameters were estimated by learning. Finally, we moved to the phase of interpretation, evaluation and forecasting. Our approach is validated by two experiences. The results of the first experiment were quite accept able. Indeed, 75% of events have been recognized with at least an accuracy of 70% and 15.625% of events have been interpreted with an accuracy of 100%. For the sec ond experiment, the evaluation of the robustness and reliability of the model provided satisfactory results with a reasonable error rate. Therefore, the methodology pre sented in this study is promising. It provides a good prediction of spatiotemporal changes in conjunction with the monitoring of the latter. Besides, it is transferable to multiple applications such as moni toring and management of natural resources, dynamic monitoring of land use, risk assessment, mapping of da mage, assessment of urban expansion, updating of to pographic maps, etc. The model can be improved by in corporating knowledge of an expert in the field of appli cation. Several researches and developments emerge from this work. The integration of technical change detection sub system in the learning and assess the effect of this im provement on system performance. It will also be inter esting to extend our approach to spatiotemporal opera tion of other models such as pairwise or triplets Markov chains. REFERENCES [1] J. Rodriguez, F. Vos and R. Below, “Annual Disaster Statistical Review 2008: The Numbers and Trends,” Cen tre for Research on the Epidemiology of Disasters, 2009, pp. 133. [2] A. Singh, “Digital Change Detection Techniques Using RemotelySensed Data,” International Journal of Remote Sensing, Vol. 10, No. 6, 1989, pp. 9891003. doi:10.1080/01431168908903939 [3] D. Lu, P. Mausel, E. Brondizio and E. Moran, “Change Detection Techniques,” International Journal of Remote Sensing, Vol. 25, No. 12, 2004, pp. 23652407. doi:10.1080/0143116031000139863 [4] P. Coppin, I. K. Jonckheere, B. Nackaerts and B. Muys, “Digital Change Detection Methods in Ecosystem Moni toring: A Review,” International Journal of Remote Sensing, Vol. 25, No. 9, 2004, pp. 15651596. doi:10.1080/0143116031000101675 [5] M. Lazri, S. Ameur and B. Haddad, “Analyse de Données de Précipitations par Approche Markovienne,” Larhyss Journal, Vol. 6, 2007, pp. 720. [6] J. F. Mari and F. Le Ber, “Temporal and Spatial Data Mining with SecondOrder Hidden Markov Models,” Soft Computing, Vol. 10, No. 5, 2006, pp. 406414. doi:10.1007/s0050000505010 [7] H. Sagan, “SpaceFilling Curves,” SpringerVerlag, Ber lin, 1994. [8] S. Aupetit, M. Slimane and N. Monmarche, “Utilisation des Chaînes de Markov Cachées à Substitution de Sym boles Pour l’Apprentissage et la Reconnaissance Ro buste d’Images,” 2nd Proceeding of MAJECSTIC, 1315 October 2004, Calais, pp. 245269. Copyright © 2013 SciRes. ARS
H. ESSID ET AL. Copyright © 2013 SciRes. ARS 257 [9] L. Aurdal, R.B. Huseby, D. Vikhamar, L. Eikvil and A. Solberg, “Use of Hidden Markov Models and Phenology for Multitemporal Satellite Image Classification: Applica tions to Mountain Vegetation Classification,” 3rd Inter national Workshop on the Analysis of MultiTemporal Remote Sensing Images, Biloxi, 1618 May 2005, pp. 220224. [10] W. Pieczynski, “Triplet Markov Chains and Image Seg mentation,” Draft of Chapter 4 in Inverse Problems in Vi sion and 3D Tomography, Wiley, Hoboken, 2010. [11] W. Pieczynski, “Pairwise Markov Chains,” IEEE Trans actions on Pattern Analysis and Machine Intelligence, Vol. 25, No. 5, 2003, pp. 634639. doi:10.1109/TPAMI.2003.1195998 [12] W. Pieczynski, C. Hulard and T. Veit, “Triplet Markov Chains in Hidden Signal Restoration,” Proceedings of SPIE 4885, Image and Signal Processing for Remote Sensing VIII, Crete, 2227 September 2002, pp. 5868. [13] C. Carincotte, S. Derrode and S. Bourennane, “Unsuper vised Change Detection non SAR Images Using Fuzzy Hidden Markov Chains,” IEEE Transactions on Geo sciences and Remote Sensing, Vol. 44, No. 2, 2005, pp. 432441. [14] S. Derrode and W. Pieczynski, “Signal and Image Seg mentation Using Pairwise Markov Chains,” IEEE Trans actions on Signal Processing, Vol. 52, No. 9, 2004, pp. 24772489. doi:10.1109/TSP.2004.832015 [15] A. B. Wijanarto, “Application of Markov Change Detec tion Technique for Detecting Landsat ETM Derived Land Cover Change over Banten Bay,” Jurnal Ilmiah Geo matika, Vol. 12, No. 1, 2006, pp. 1121. [16] C. Lacoste, X. Descombes, J. Zerubia and N. Baghdadi, “Extraction Automatique des Réseaux Linéiques à Partir d’Images Satellitaires et Aériennes par Processus Markov Objet,” Bulletin de la SFPT, Vol. 170, 2003, pp. 1322. [17] C. Song, “Spectral Mixture Analysis for Subpixel Vege tation Fractions in the Urban Inveronment: How to In corporate Endmember Variability?” Remote Sensing of Inveronment, Vol. 95, No. 2, 2005, pp. 248263. doi:10.1016/j.rse.2005.01.002 [18] V. Michel, “Analyse des Données,” 4th Edition, Eco nomica, Paris, 1997. [19] B.Y. Kang, D.W. Kim and Q. Li, “Spatial Homogene ityBased Fuzzy cMeans Algorithm for Image Segmen tation,” Proceedings of Second International Conference on Fuzzy Systems and Knowledge Discovery, Changsha, 2729 August 2005, Part I. [20] D. L. Phum, “Spatial Models for Fuzzy Clustering,” Computer Vision and Image Understanding, Vol. 84, No. 2, 2001, pp. 285297. doi:10.1006/cviu.2001.0951 [21] T. Kohonen, “SelfOrganizing Maps,” SpringerVerlag, Berlin, 1995. [22] L. R. Rabiner, “A Tutorial on Hidden Markov Models and Selected Applications in Speech Recognition,” Pro ceeding of the IEEE, Vol. 77, No. 2, 1989, pp. 257286. doi:10.1109/5.18626 [23] S. Kapadia, “Discriminative Training of Hidden Markov Models,” Ph.D. Dissertation, Downing CollegeUniver sity of Cambridge, Cambridge, 1998. [24] L. Gueguen, “Extraction d’Information et Compression Conjointes des Séries Temporelles d’Images Satelli taires,” Ph.D. Dissertation, l’École Nationale Supérieure des Télécommunications de Paris, Paris, 2007. [25] J. G. Lyon, D. Yuan, R. S. Lunetta and C. D. Elvidge, “A Change Detection Experiment Using Vegetation Indices,” Photogrammetric Engineering and Remote Sensing, Vol. 64, 1998, pp. 143150. [26] B. M. Ranga, G. H. Forrest, J. S. Piers and L. M. Alex ander, “The Interpretation of Spectral Vegetation In dexes,” IEEE Transactions on Geosiences and Remote Sensing, Vol. 33, No. 2, 1995, pp. 481486.
