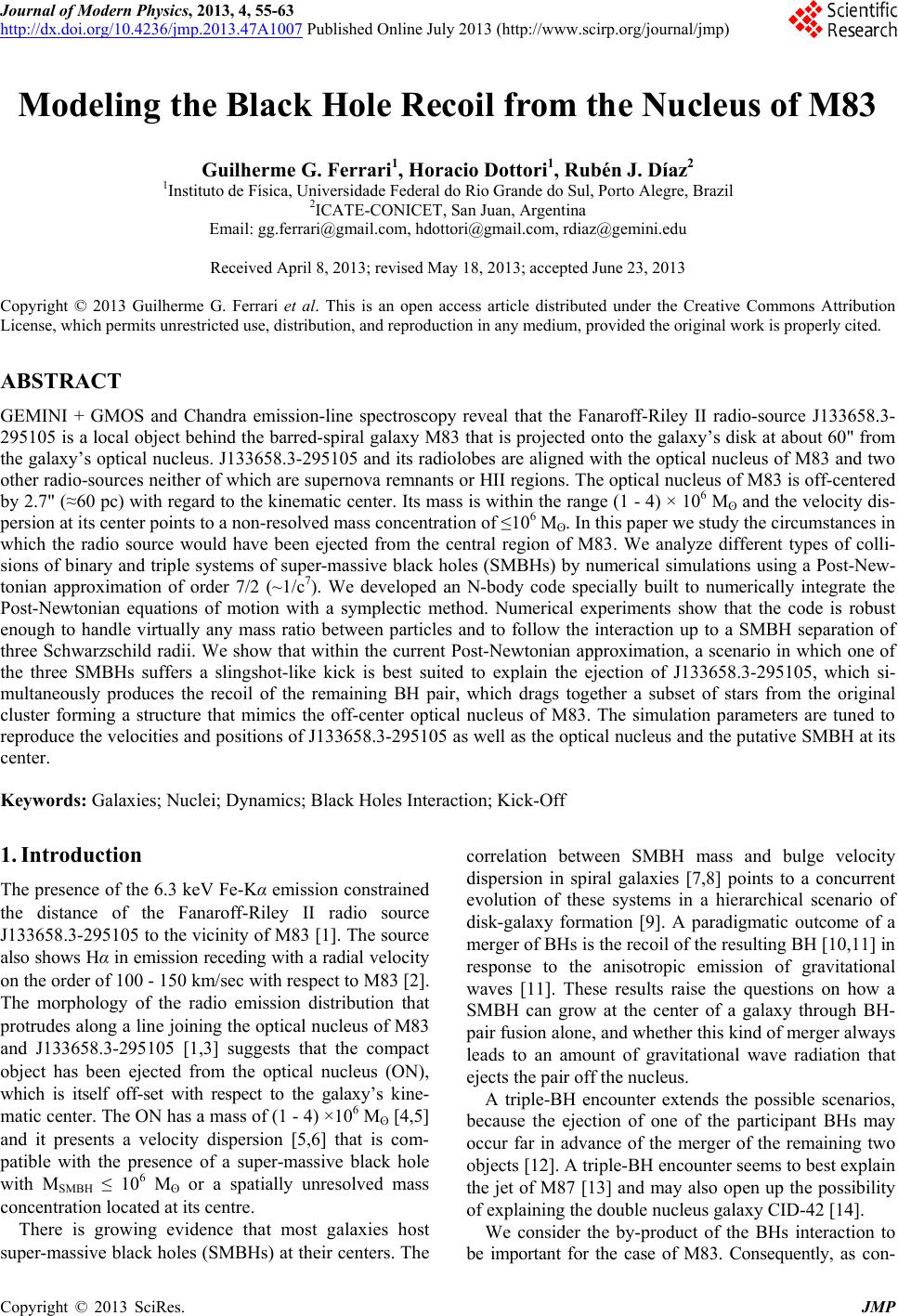

Journal of Modern Physics, 2013, 4, 5563 http://dx.doi.org/10.4236/jmp.2013.47A1007 Published Online July 2013 (http://www.scirp.org/journal/jmp) Modeling the Black Hole Recoil from the Nucleus of M83 Guilherme G. Ferrari1, Horacio Dottori1, Rubén J. Díaz2 1Instituto de Física, Universidade Federal do Rio Grande do Sul, Porto Alegre, Brazil 2ICATECONICET, San Juan, Argentina Email: gg.ferrari@gmail.com, hdottori@gmail.com, rdiaz@gemini.edu Received April 8, 2013; revised May 18, 2013; accepted June 23, 2013 Copyright © 2013 Guilherme G. Ferrari et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. ABSTRACT GEMINI + GMOS and Chandra emissionline spectroscopy reveal that the FanaroffRiley II radiosource J133658.3 295105 is a local object behind the barredspiral galaxy M83 that is projected onto the galaxy’s disk at about 60" from the galaxy’s optical nucleus. J133658.3295105 and its radiolobes are aligned with the optical nucleus of M83 and two other radiosources neither of which are supernova remnants or HII regions. The optical nucleus of M83 is offcentered by 2.7" (≈60 pc) with regard to the kinematic center. Its mass is within the range (1  4) × 106 Mʘ and the velocity dis persion at its center points to a nonresolved mass concentration of ≤106 Mʘ. In this paper we study the circumstances in which the radio source would have been ejected from the central region of M83. We analyze different types of colli sions of binary and triple systems of supermassive black holes (SMBHs) by numerical simulations using a PostNew tonian approximation of order 7/2 (~1/c7). We developed an Nbody code specially built to numerically integrate the PostNewtonian equations of motion with a symplectic method. Numerical experiments show that the code is robust enough to handle virtually any mass ratio between particles and to follow the interaction up to a SMBH separation of three Schwarzschild radii. We show that within the current PostNewtonian approximation, a scenario in which one of the three SMBHs suffers a slingshotlike kick is best suited to explain the ejection of J133658.3295105, which si multaneously produces the recoil of the remaining BH pair, which drags together a subset of stars from the original cluster forming a structure that mimics the offcenter optical nucleus of M83. The simulation parameters are tuned to reproduce the velocities and positions of J133658.3295105 as well as the optical nucleus and the putative SMBH at its center. Keywords: Galaxies; Nuclei; Dynamics; Black Holes Interaction; KickOff 1. Introduction The presence of the 6.3 keV FeKα emission constrained the distance of the FanaroffRiley II radio source J133658.3295105 to the vicinity of M83 [1]. The source also shows Hα in emission receding with a radial velocity on the order of 100  150 km/sec with respect to M83 [2]. The morphology of the radio emission distribution that protrudes along a line joining the optical nucleus of M83 and J133658.3295105 [1,3] suggests that the compact object has been ejected from the optical nucleus (ON), which is itself offset with respect to the galaxy’s kine matic center. The ON has a mass of (1  4) ×106 Mʘ [4,5] and it presents a velocity dispersion [5,6] that is com patible with the presence of a supermassive black hole with MSMBH ≤ 106 M ʘ or a spatially unresolved mass concentration located at its centre. There is growing evidence that most galaxies host supermassive black holes (SMBHs) at their centers. The correlation between SMBH mass and bulge velocity dispersion in spiral galaxies [7,8] points to a concurrent evolution of these systems in a hierarchical scenario of diskgalaxy formation [9]. A paradigmatic outcome of a merger of BHs is the recoil of the resulting BH [10,11] in response to the anisotropic emission of gravitational waves [11]. These results raise the questions on how a SMBH can grow at the center of a galaxy through BH pair fusion alone, and whether this kind of merger always leads to an amount of gravitational wave radiation that ejects the pair off the nucleus. A tripleBH encounter extends the possible scenarios, because the ejection of one of the participant BHs may occur far in advance of the merger of the remaining two objects [12]. A tripleBH encounter seems to best explain the jet of M87 [13] and may also open up the possibility of explaining the double nucleus galaxy CID42 [14]. We consider the byproduct of the BHs interaction to be important for the case of M83. Consequently, as con C opyright © 2013 SciRes. JMP

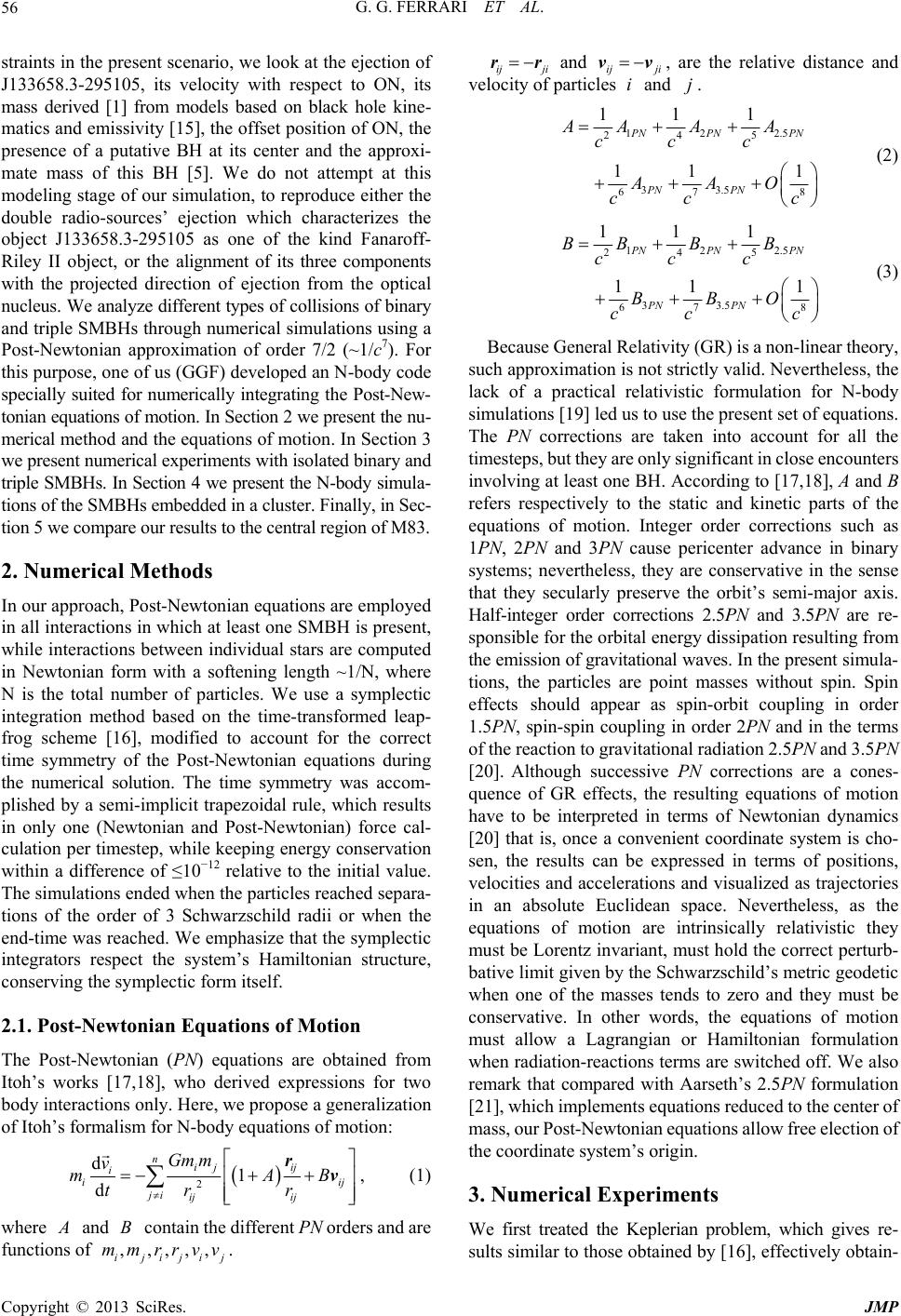

G. G. FERRARI ET AL. 56 straints in the present scenario, we look at the ejection of J133658.3295105, its velocity with respect to ON, its mass derived [1] from models based on black hole kine matics and emissivity [15], the offset position of ON, the presence of a putative BH at its center and the approxi mate mass of this BH [5]. We do not attempt at this modeling stage of our simulation, to reproduce either the double radiosources’ ejection which characterizes the object J133658.3295105 as one of the kind Fanaroff Riley II object, or the alignment of its three components with the projected direction of ejection from the optical nucleus. We analyze different types of collisions of binary and triple SMBHs through numerical simulations using a PostNewtonian approximation of order 7/2 (~1/c7). For this purpose, one of us (GGF) developed an Nbody code specially suited for numerically integrating the PostNew tonian equations of motion. In Section 2 we present the nu merical method and the equations of motion. In Section 3 we present numerical experiments with isolated binary and triple SMBHs. In Section 4 we present the Nbody simula tions of the SMBHs embedded in a cluster. Finally, in Sec tion 5 we compare our results to the central region of M83. 2. Numerical Methods In our approach, PostNewtonian equations are employed in all interactions in which at least one SMBH is present, while interactions between individual stars are computed in Newtonian form with a softening length ~1/N, where N is the total number of particles. We use a symplectic integration method based on the timetransformed leap frog scheme [16], modified to account for the correct time symmetry of the PostNewtonian equations during the numerical solution. The time symmetry was accom plished by a semiimplicit trapezoidal rule, which results in only one (Newtonian and PostNewtonian) force cal culation per timestep, while keeping energy conservation within a difference of ≤10−12 relative to the initial value. The simulations ended when the particles reached separa tions of the order of 3 Schwarzschild radii or when the endtime was reached. We emphasize that the symplectic integrators respect the system’s Hamiltonian structure, conserving the symplectic form itself. 2.1. PostNewtonian Equations of Motion The PostNewtonian (PN) equations are obtained from Itoh’s works [17,18], who derived expressions for two body interactions only. Here, we propose a generalization of Itoh’s formalism for Nbody equations of motion: 2 d1 d nij i i ji ij Gm m v r ij ij ij mA B tr rv , (1) where and contain the different PN orders and are functions of . B ,,,,, jiji j rrvv i mm ij ji rr and ij ji vv ij , are the relative distance and velocity of particles and . 122.5 24 5 33.5 67 8 111 11 1 PN PNPN PN PN AA AA ccc AAO cc c (2) 122.5 24 5 33.5 678 111 11 1 PN PNPN PN PN BB BB ccc BBO cc c (3) Because General Relativity (GR) is a nonlinear theory, such approximation is not strictly valid. Nevertheless, the lack of a practical relativistic formulation for Nbody simulations [19] led us to use the present set of equations. The PN corrections are taken into account for all the timesteps, but they are only significant in close encounters involving at least one BH. According to [17,18], A and B refers respectively to the static and kinetic parts of the equations of motion. Integer order corrections such as 1PN, 2PN and 3PN cause pericenter advance in binary systems; nevertheless, they are conservative in the sense that they secularly preserve the orbit’s semimajor axis. Halfinteger order corrections 2.5PN and 3.5PN are re sponsible for the orbital energy dissipation resulting from the emission of gravitational waves. In the present simula tions, the particles are point masses without spin. Spin effects should appear as spinorbit coupling in order 1.5PN, spinspin coupling in order 2PN and in the terms of the reaction to gravitational radiation 2.5PN and 3.5PN [20]. Although successive PN corrections are a cones quence of GR effects, the resulting equations of motion have to be interpreted in terms of Newtonian dynamics [20] that is, once a convenient coordinate system is cho sen, the results can be expressed in terms of positions, velocities and accelerations and visualized as trajectories in an absolute Euclidean space. Nevertheless, as the equations of motion are intrinsically relativistic they must be Lorentz invariant, must hold the correct perturb bative limit given by the Schwarzschild’s metric geodetic when one of the masses tends to zero and they must be conservative. In other words, the equations of motion must allow a Lagrangian or Hamiltonian formulation when radiationreactions terms are switched off. We also remark that compared with Aarseth’s 2.5PN formulation [21], which implements equations reduced to the center of mass, our PostNewtonian equations allow free election of the coordinate system’s origin. 3. Numerical Experiments We first treated the Keplerian problem, which gives re sults similar to those obtained by [16], effectively obtain Copyright © 2013 SciRes. JMP

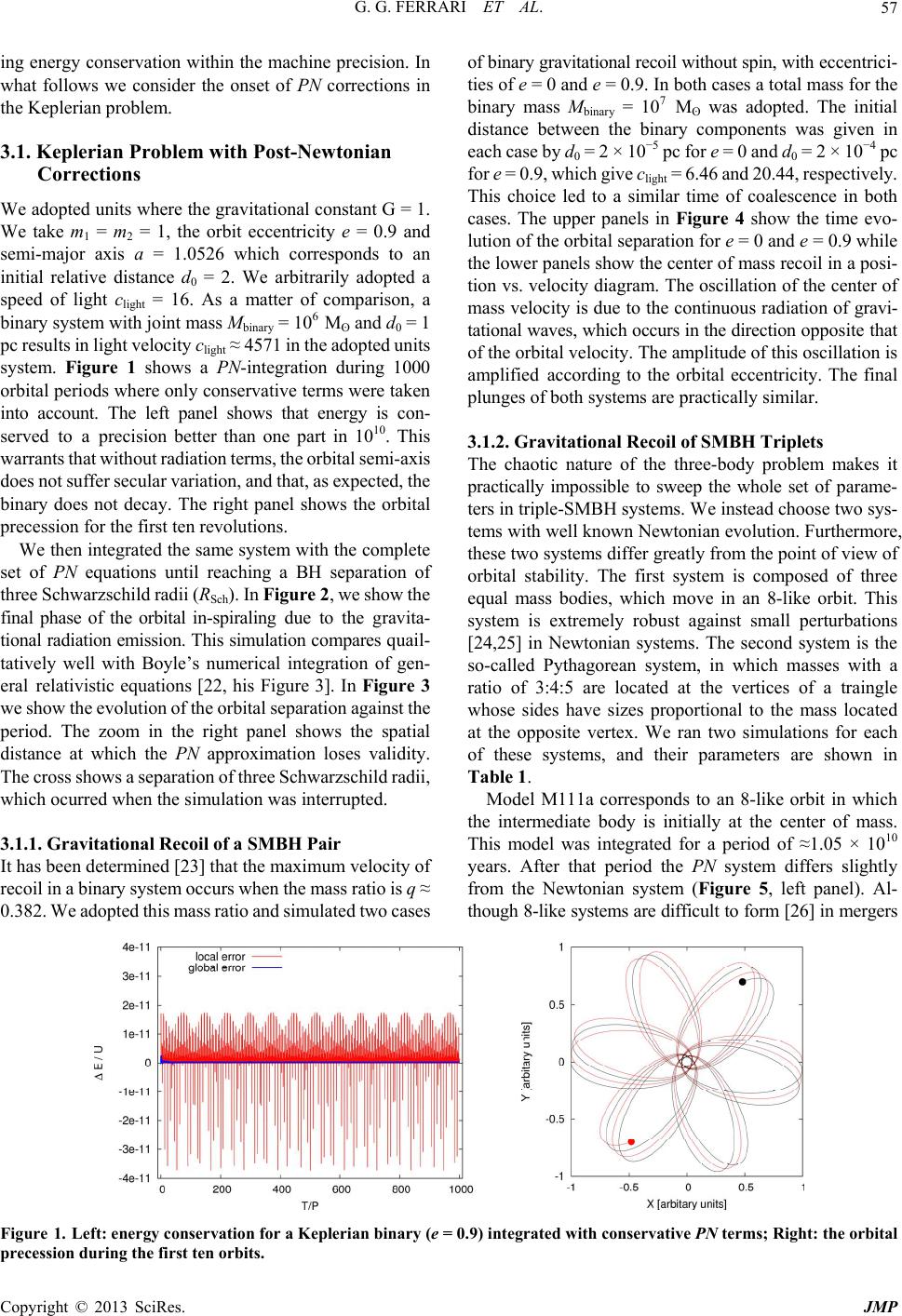

G. G. FERRARI ET AL. Copyright © 2013 SciRes. JMP 57 of binary gravitational recoil without spin, with eccentrici ties of e = 0 and e = 0.9. In both cases a total mass for the binary mass Mbinary = 107 M ʘ was adopted. The initial distance between the binary components was given in each case by d0 = 2 × 10−5 pc for e = 0 and d0 = 2 × 10−4 pc for e = 0.9, which give clight = 6.46 and 20.44, respectively. This choice led to a similar time of coalescence in both cases. The upper panels in Figure 4 show the time evo lution of the orbital separation for e = 0 and e = 0.9 while the lower panels show the center of mass recoil in a posi tion vs. velocity diagram. The oscillation of the center of mass velocity is due to the continuous radiation of gravi tational waves, which occurs in the direction opposite that of the orbital velocity. The amplitude of this oscillation is amplified according to the orbital eccentricity. The final plunges of both systems are practically similar. ing energy conservation within the machine precision. In what follows we consider the onset of PN corrections in the Keplerian problem. 3.1. Keplerian Problem with PostNewtonian Corrections We adopted units where the gravitational constant G = 1. We take m1 = m2 = 1, the orbit eccentricity e = 0.9 and semimajor axis a = 1.0526 which corresponds to an initial relative distance d0 = 2. We arbitrarily adopted a speed of light clight = 16. As a matter of comparison, a binary system with joint mass Mbinary = 106 Mʘ and d0 = 1 pc results in light velocity clight ≈ 4571 in the adopted units system. Figure 1 shows a PNintegration during 1000 orbital periods where only conservative terms were taken into account. The left panel shows that energy is con served to a precision better than one part in 1010. This warrants that without radiation terms, the orbital semiaxis does not suffer secular variation, and that, as expected, the binary does not decay. The right panel shows the orbital precession for the first ten revolutions. 3.1.2. Gravitational Recoil of SMBH Triplets The chaotic nature of the threebody problem makes it practically impossible to sweep the whole set of parame ters in tripleSMBH systems. We instead choose two sys tems with well known Newtonian evolution. Furthermore, these two systems differ greatly from the point of view of orbital stability. The first system is composed of three equal mass bodies, which move in an 8like orbit. This system is extremely robust against small perturbations [24,25] in Newtonian systems. The second system is the socalled Pythagorean system, in which masses with a ratio of 3:4:5 are located at the vertices of a traingle whose sides have sizes proportional to the mass located at the opposite vertex. We ran two simulations for each of these systems, and their parameters are shown in Table 1. We then integrated the same system with the complete set of PN equations until reaching a BH separation of three Schwarzschild radii (RSch). In Figure 2, we show the final phase of the orbital inspiraling due to the gravita tional radiation emission. This simulation compares quail tatively well with Boyle’s numerical integration of gen eral relativistic equations [22, his Figure 3]. In Figure 3 we show the evolution of the orbital separation against the period. The zoom in the right panel shows the spatial distance at which the PN approximation loses validity. The cross shows a separation of three Schwarzschild radii, which ocurred when the simulation was interrupted. Model M111a corresponds to an 8like orbit in which the intermediate body is initially at the center of mass. This model was integrated for a period of ≈1.05 × 1010 years. After that period the PN system differs slightly from the Newtonian system (Figure 5, left panel). Al though 8like systems are difficult to form [26] in mergers 3.1.1. Gravitational Recoil of a SMBH Pair It has been determined [23] that the maximum velocity of recoil in a binary system occurs when the mass ratio is q ≈ 0.382. We adopted this mass ratio and simulated two cases Figure 1. Left: energy conservation for a Keplerian binary (e = 0.9) integrated with conservative PN terms; Right: the orbital precession during the first ten orbits.

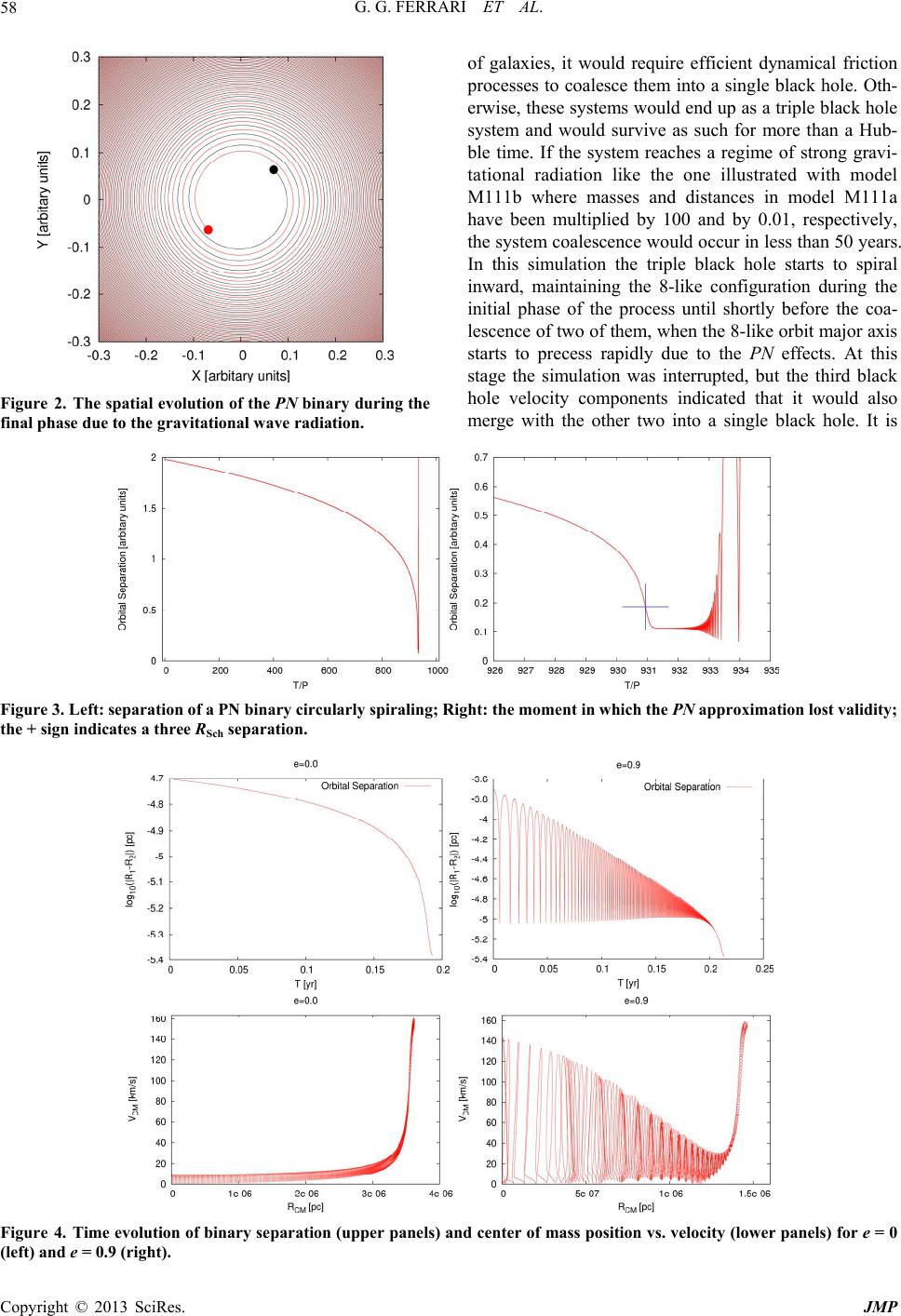

G. G. FERRARI ET AL. 58 Figure 2. The spatial evolution of the PN binary during the final phase due to the gravitational wave radiation. of galaxies, it would require efficient dynamical friction processes to coalesce them into a single black hole. Oth erwise, these systems would end up as a triple black hole system and would survive as such for more than a Hub ble time. If the system reaches a regime of strong gravi tational radiation like the one illustrated with model M111b where masses and distances in model M111a have been multiplied by 100 and by 0.01, respectively, the system coalescence would occur in less than 50 years. In this simulation the triple black hole starts to spiral inward, maintaining the 8like configuration during the initial phase of the process until shortly before the coa lescence of two of them, when the 8like orbit major axis starts to precess rapidly due to the PN effects. At this stage the simulation was interrupted, but the third black hole velocity components indicated that it would also merge with the other two into a single black hole. It is Figure 3. Left: separation of a PN binary circularly spiraling; Right: the moment in which the PN approximation lost validity; the + sign indicates a three RSch separation. Figure 4. Time evolution of binary separation (upper panels) and center of mass position vs. velocity (lower panels) for e = 0 (left) and e = 0.9 (right). Copyright © 2013 SciRes. JMP

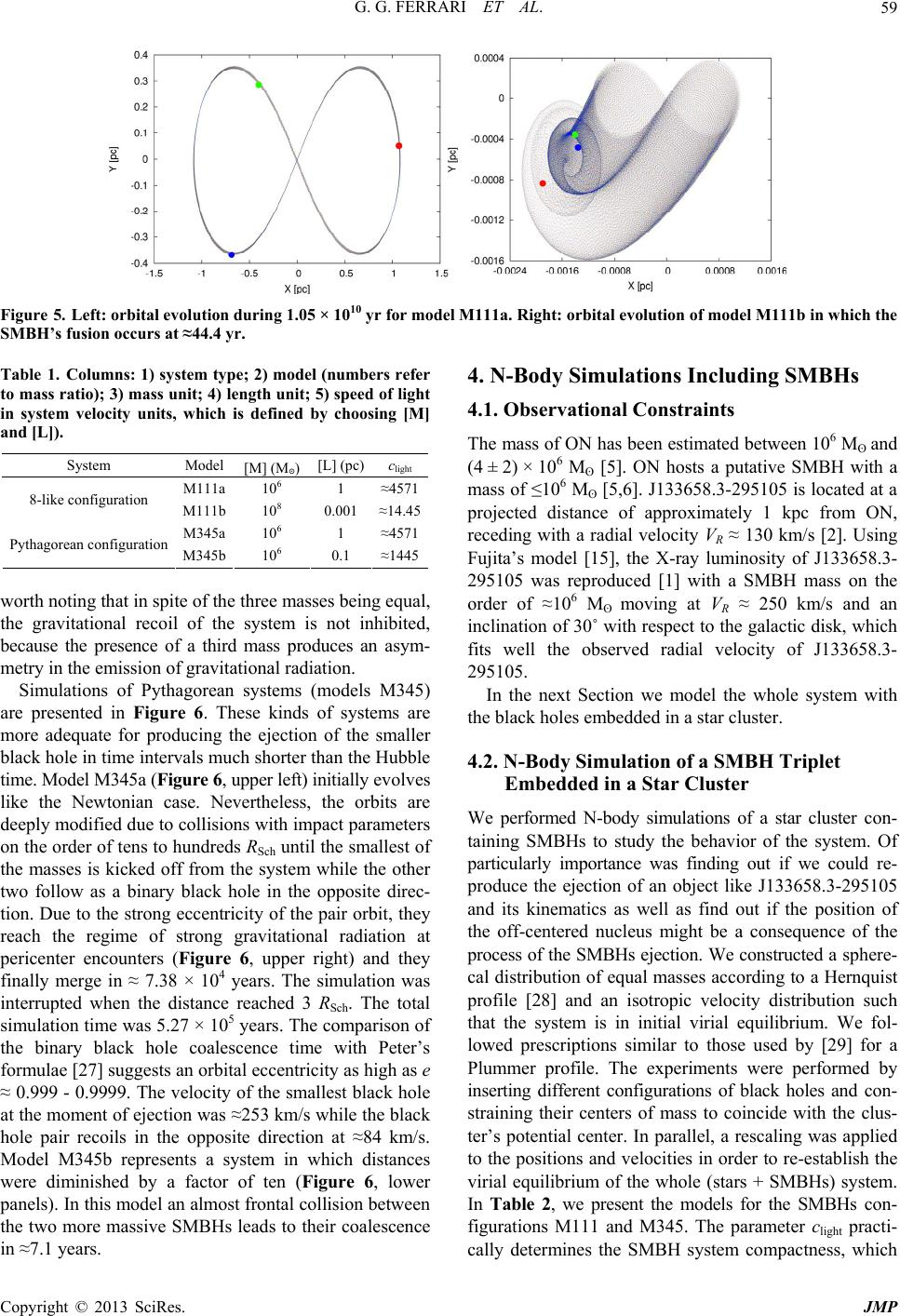

G. G. FERRARI ET AL. 59 Figure 5. Left: orbital evolution during 1.05 × 1010 yr for model M111a. Right: orbital evolution of model M111b in which the SMBH’s fusion occurs at ≈44.4 yr. Table 1. Columns: 1) system type; 2) model (numbers refer to mass ratio); 3) mass unit; 4) length unit; 5) speed of light in system velocity units, which is defined by choosing [M] and [L]). System Model[M] (M◎) [L] (pc)clight M111a 106 1 ≈4571 8like configuration M111b108 0.001≈14.45 M345a 106 1 ≈4571 Pythagorean configuration M345b106 0.1 ≈1445 worth noting that in spite of the three masses being equal, the gravitational recoil of the system is not inhibited, because the presence of a third mass produces an asym metry in the emission of gravitational radiation. Simulations of Pythagorean systems (models M345) are presented in Figure 6. These kinds of systems are more adequate for producing the ejection of the smaller black hole in time intervals much shorter than the Hubble time. Model M345a (Figure 6, upper left) initially evolves like the Newtonian case. Nevertheless, the orbits are deeply modified due to collisions with impact parameters on the order of tens to hundreds RSch until the smallest of the masses is kicked off from the system while the other two follow as a binary black hole in the opposite direc tion. Due to the strong eccentricity of the pair orbit, they reach the regime of strong gravitational radiation at pericenter encounters (Figure 6, upper right) and they finally merge in ≈ 7.38 × 104 years. The simulation was interrupted when the distance reached 3 RSch. The total simulation time was 5.27 × 105 years. The comparison of the binary black hole coalescence time with Peter’s formulae [27] suggests an orbital eccentricity as high as e ≈ 0.999  0.9999. The velocity of the smallest black hole at the moment of ejection was ≈253 km/s while the black hole pair recoils in the opposite direction at ≈84 km/s. Model M345b represents a system in which distances were diminished by a factor of ten (Figure 6, lower panels). In this model an almost frontal collision between the two more massive SMBHs leads to their coalescence in ≈7.1 years. 4. NBody Simulations Including SMBHs 4.1. Observational Constraints The mass of ON has been estimated between 106 Mʘ and (4 ± 2) × 106 Mʘ [5]. ON hosts a putative SMBH with a mass of ≤106 Mʘ [5,6]. J133658.3295105 is located at a projected distance of approximately 1 kpc from ON, receding with a radial velocity VR ≈ 130 km/s [2]. Using Fujita’s model [15], the Xray luminosity of J133658.3 295105 was reproduced [1] with a SMBH mass on the order of ≈106 M ʘ moving at VR ≈ 250 km/s and an inclination of 30˚ with respect to the galactic disk, which fits well the observed radial velocity of J133658.3 295105. In the next Section we model the whole system with the black holes embedded in a star cluster. 4.2. NBody Simulation of a SMBH Triplet Embedded in a Star Cluster We performed Nbody simulations of a star cluster con taining SMBHs to study the behavior of the system. Of particularly importance was finding out if we could re produce the ejection of an object like J133658.3295105 and its kinematics as well as find out if the position of the offcentered nucleus might be a consequence of the process of the SMBHs ejection. We constructed a sphere cal distribution of equal masses according to a Hernquist profile [28] and an isotropic velocity distribution such that the system is in initial virial equilibrium. We fol lowed prescriptions similar to those used by [29] for a Plummer profile. The experiments were performed by inserting different configurations of black holes and con straining their centers of mass to coincide with the clus ter’s potential center. In parallel, a rescaling was applied to the positions and velocities in order to reestablish the virial equilibrium of the whole (stars + SMBHs) system. In Table 2, we present the models for the SMBHs con figurations M111 and M345. The parameter clight practi cally determines the SMBH system compactness, which Copyright © 2013 SciRes. JMP

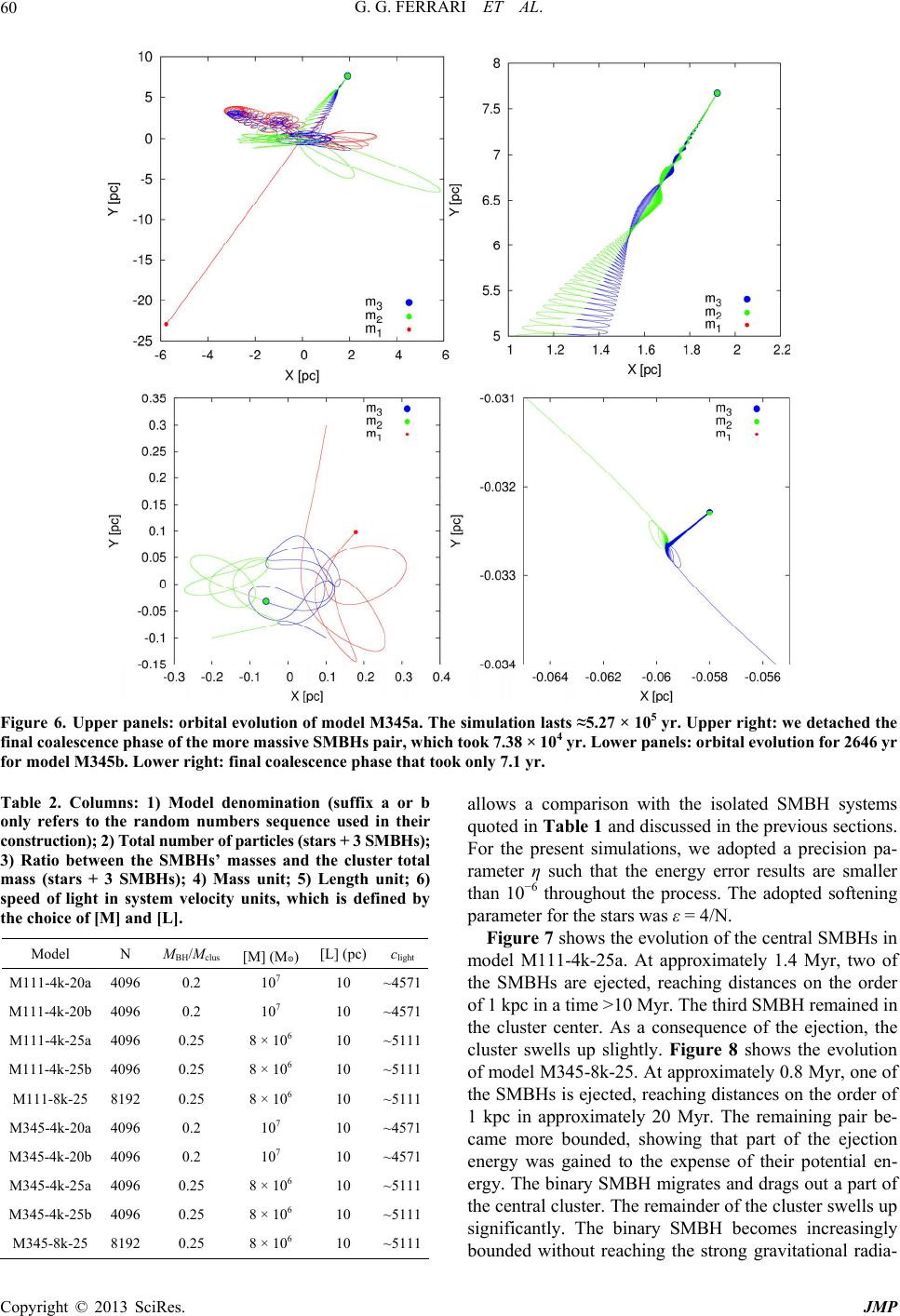

G. G. FERRARI ET AL. 60 Figure 6. Upper panels: orbital evolution of model M345a. The simulation lasts ≈5.27 × 105 yr. Upper right: we detached the final coalescence phase of the more massive SMBHs pair, which took 7.38 × 104 yr. Lower panels: orbital evolution for 2646 yr for model M345b. Lower right: final coalescence phase that took only 7.1 yr. Table 2. Columns: 1) Model denomination (suffix a or b only refers to the random numbers sequence used in their construction); 2) Total number of particles (stars + 3 SMBHs); 3) Ratio between the SMBHs’ masses and the cluster total mass (stars + 3 SMBHs); 4) Mass unit; 5) Length unit; 6) speed of light in system velocity units, which is defined by the choice of [M] and [L]. Model N MBH/Mclus [M] (M◎) [L] (pc)clight M1114k20a 4096 0.2 107 10 ~4571 M1114k20b 4096 0.2 107 10 ~4571 M1114k25a 4096 0.25 8 × 106 10 ~5111 M1114k25b 4096 0.25 8 × 106 10 ~5111 M1118k25 8192 0.25 8 × 106 10 ~5111 M3454k20a 4096 0.2 107 10 ~4571 M3454k20b 4096 0.2 107 10 ~4571 M3454k25a 4096 0.25 8 × 106 10 ~5111 M3454k25b 4096 0.25 8 × 106 10 ~5111 M3458k25 8192 0.25 8 × 106 10 ~5111 allows a comparison with the isolated SMBH systems quoted in Table 1 and discussed in the previous sections. For the present simulations, we adopted a precision pa rameter η such that the energy error results are smaller than 10−6 throughout the process. The adopted softening parameter for the stars was ε = 4/N. Figure 7 shows the evolution of the central SMBHs in model M1114k25a. At approximately 1.4 Myr, two of the SMBHs are ejected, reaching distances on the order of 1 kpc in a time >10 Myr. The third SMBH remained in the cluster center. As a consequence of the ejection, the cluster swells up slightly. Figure 8 shows the evolution of model M3458k25. At approximately 0.8 Myr, one of the SMBHs is ejected, reaching distances on the order of 1 kpc in approximately 20 Myr. The remaining pair be came more bounded, showing that part of the ejection energy was gained to the expense of their potential en ergy. The binary SMBH migrates and drags out a part of the central cluster. The remainder of the cluster swells up significantly. The binary SMBH becomes increasingly bounded without reaching the strong gravitational radia Copyright © 2013 SciRes. JMP

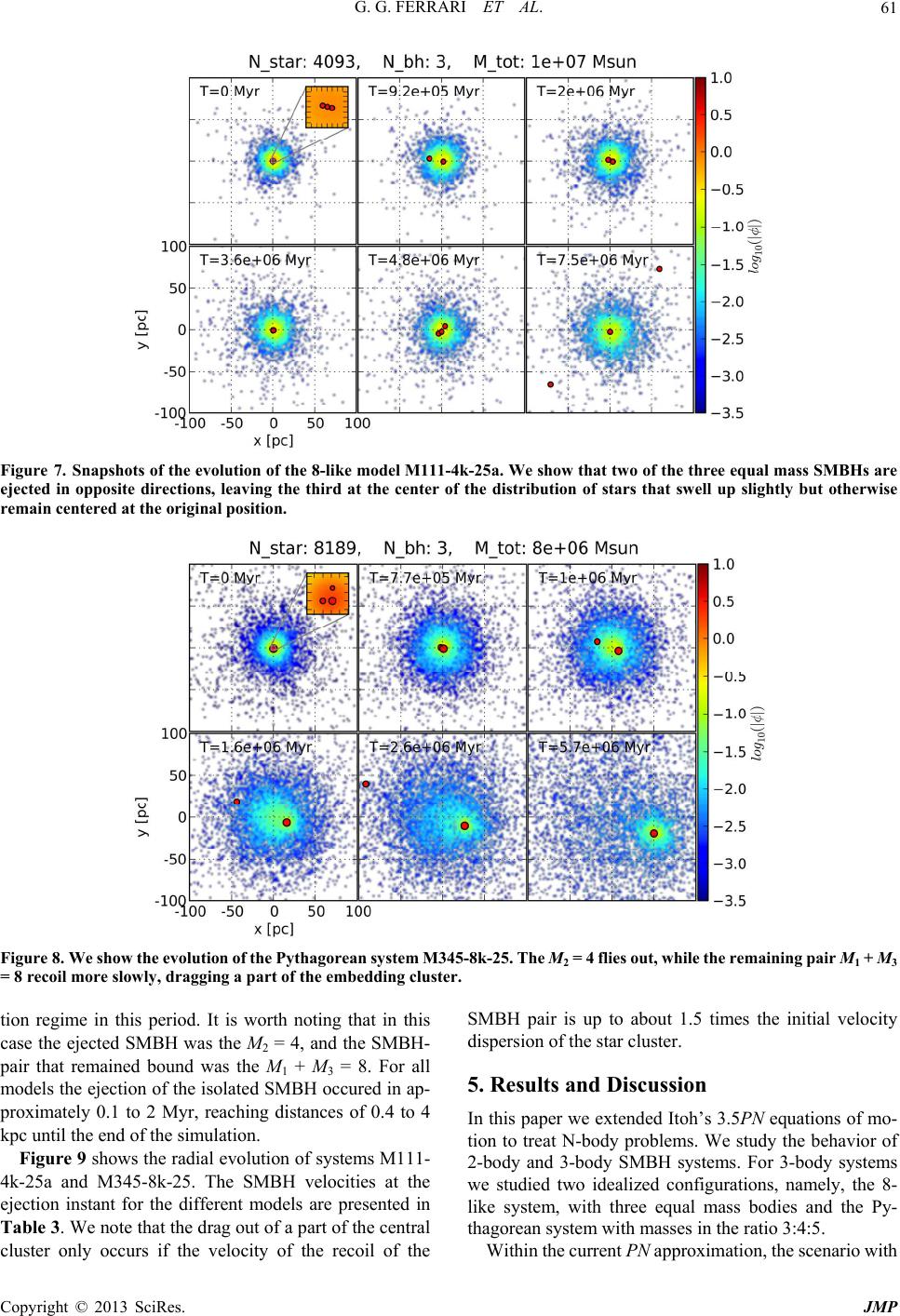

G. G. FERRARI ET AL. 61 Figure 7. Snapshots of the evolution of the 8like model M1114k25a. We show that two of the three equal mass SMBHs are ejected in opposite directions, leaving the third at the center of the distribution of stars that swell up slightly but otherwise remain centered at the original position. Figure 8. We show the evolution of the Pythagorean system M3458k25. The M2 = 4 flies out, while the remaining pair M1 + M3 = 8 recoil more slowly, dragging a part of the embedding cluster. tion regime in this period. It is worth noting that in this case the ejected SMBH was the M2 = 4, and the SMBH pair that remained bound was the M1 + M3 = 8. For all models the ejection of the isolated SMBH occured in ap proximately 0.1 to 2 Myr, reaching distances of 0.4 to 4 kpc until the end of the simulation. Figure 9 shows the radial evolution of systems M111 4k25a and M3458k25. The SMBH velocities at the ejection instant for the different models are presented in Table 3. We note that the drag out of a part of the central cluster only occurs if the velocity of the recoil of the SMBH pair is up to about 1.5 times the initial velocity dispersion of the star cluster. 5. Results and Discussion In this paper we extended Itoh’s 3.5PN equations of mo tion to treat Nbody problems. We study the behavior of 2body and 3body SMBH systems. For 3body systems we studied two idealized configurations, namely, the 8 like system, with three equal mass bodies and the Py thagorean system with masses in the ratio 3:4:5. Within the current PN approximation, the scenario with Copyright © 2013 SciRes. JMP

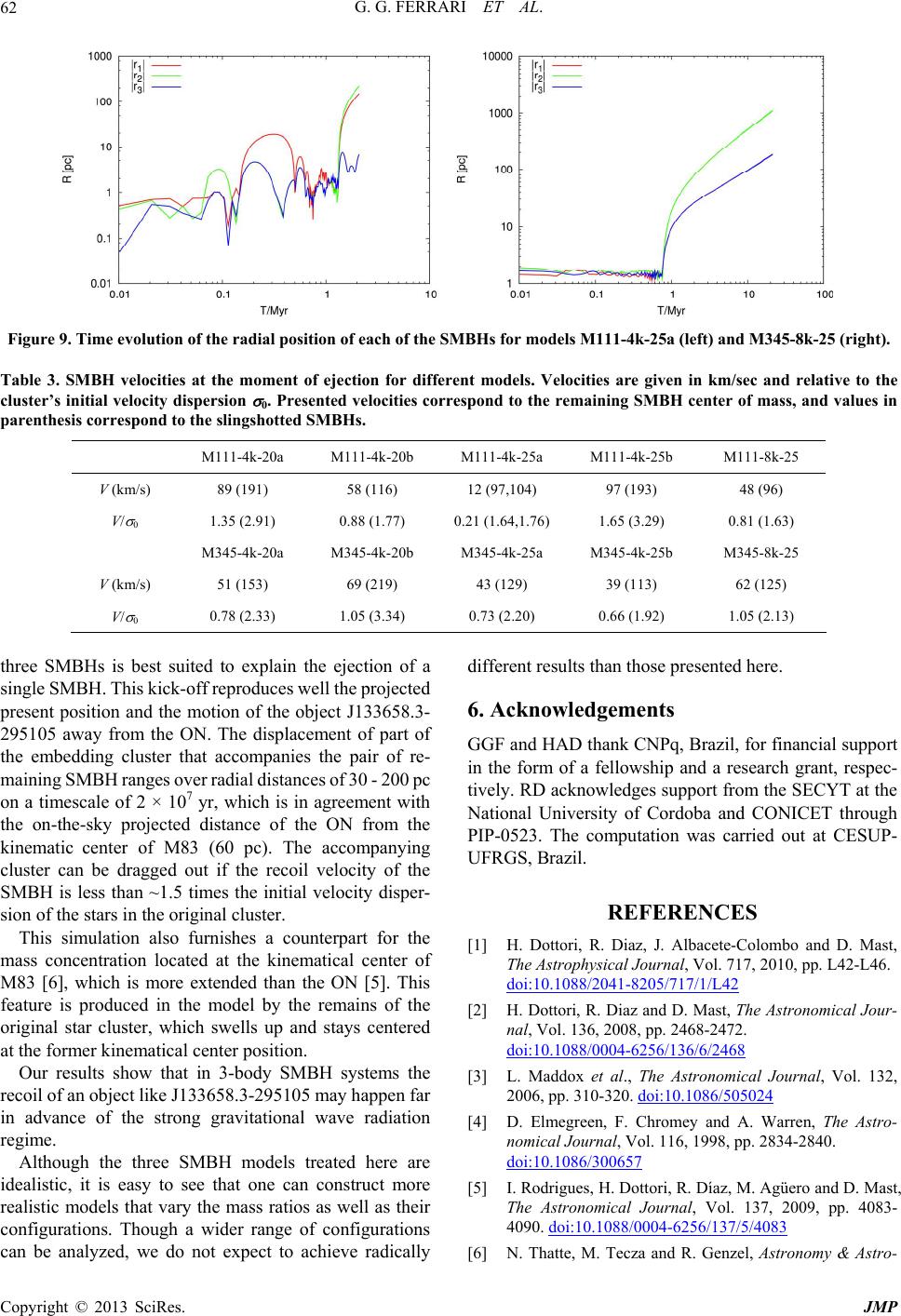

G. G. FERRARI ET AL. 62 Figure 9. Time evolution of the radial position of each of the SMBHs for models M1114k25a (left) and M3458k25 (right). Table 3. SMBH velocities at the moment of ejection for different models. Velocities are given in km/sec and relative to the cluster’s initial velocity dispersion 0. Presented velocities correspond to the remaining SMBH center of mass, and values in parenthesis correspond to the slingshotted SMBHs. M1114k20a M1114k20b M1114k25a M1114k25b M1118k25 V (km/s) 89 (191) 58 (116) 12 (97,104) 97 (193) 48 (96) V/ 0 1.35 (2.91) 0.88 (1.77) 0.21 (1.64,1.76) 1.65 (3.29) 0.81 (1.63) M3454k20a M3454k20b M3454k25a M3454k25b M3458k25 V (km/s) 51 (153) 69 (219) 43 (129) 39 (113) 62 (125) V/ 0 0.78 (2.33) 1.05 (3.34) 0.73 (2.20) 0.66 (1.92) 1.05 (2.13) three SMBHs is best suited to explain the ejection of a single SMBH. This kickoff reproduces well the projected present position and the motion of the object J133658.3 295105 away from the ON. The displacement of part of the embedding cluster that accompanies the pair of re maining SMBH ranges over radial distances of 30  200 pc on a timescale of 2 × 107 yr, which is in agreement with the onthesky projected distance of the ON from the kinematic center of M83 (60 pc). The accompanying cluster can be dragged out if the recoil velocity of the SMBH is less than ~1.5 times the initial velocity disper sion of the stars in the original cluster. This simulation also furnishes a counterpart for the mass concentration located at the kinematical center of M83 [6], which is more extended than the ON [5]. This feature is produced in the model by the remains of the original star cluster, which swells up and stays centered at the former kinematical center position. Our results show that in 3body SMBH systems the recoil of an object like J133658.3295105 may happen far in advance of the strong gravitational wave radiation regime. Although the three SMBH models treated here are idealistic, it is easy to see that one can construct more realistic models that vary the mass ratios as well as their configurations. Though a wider range of configurations can be analyzed, we do not expect to achieve radically different results than those presented here. 6. Acknowledgements GGF and HAD thank CNPq, Brazil, for financial support in the form of a fellowship and a research grant, respec tively. RD acknowledges support from the SECYT at the National University of Cordoba and CONICET through PIP0523. The computation was carried out at CESUP UFRGS, Brazil. REFERENCES [1] H. Dottori, R. Diaz, J. AlbaceteColombo and D. Mast, The Astrophysical Journal, Vol. 717, 2010, pp. L42L46. doi:10.1088/20418205/717/1/L42 [2] H. Dottori, R. Diaz and D. Mast, The Astronomical Jour nal, Vol. 136, 2008, pp. 24682472. doi:10.1088/00046256/136/6/2468 [3] L. Maddox et al., The Astronomical Journal, Vol. 132, 2006, pp. 310320. doi:10.1086/505024 [4] D. Elmegreen, F. Chromey and A. Warren, The Astro nomical Journal, Vol. 116, 1998, pp. 28342840. doi:10.1086/300657 [5] I. Rodrigues, H. Dottori, R. Díaz, M. Agüero and D. Mast, The Astronomical Journal, Vol. 137, 2009, pp. 4083 4090. doi:10.1088/00046256/137/5/4083 [6] N. Thatte, M. Tecza and R. Genzel, Astronomy & Astro Copyright © 2013 SciRes. JMP
