ABSTRACT

This work aims to establish a scientific and engineering background in the production of cast multicomponent alloys and metal-martix composite (MMCs) via Self-Propagating High Temperature Synthesis (SHS, combustion synthesis) which is a novel process technique regarding fast and low-cost production ability. We carried out the search for reactive systems and process parameters that would ensure preparation of cast multicomponent materials in a single process. The principles and methods of the SHS thermite-type reaction processes have been investigated under high-gravity values applying loads up to 1000 g with special centrifuge set-up. In this way we expected to improve the yield of target product, remove gaseous byproducts, diminish the grain size in the product, and make product composition more uniform. The obtained results can be expected to make a theoretical background for industrial-scale manufacturing of heat-resistant intermetallic alloys, master alloys, catalysts, MMCs etc.

1. Introduction

Intermetallic alloys (IAs) and metal-martix composites (MMCs) based on them are considered as most promising candidates in designing modern wear-resistant and high-strength materials. Due to attractive functional properties the intermetallic based materials are promising candidates for use in marine and aerospace propulsion engineering, power engineering, gas/oil transportation, as heavy-current electric contacts, structural engineering materials etc. [1-6].

One of the most widely used intermetallides is nickel, cobalt and titanium based. The materials based on the intermetallides have attracted great interests over the years for their use in wide range of applications starting from steel modifiers in extractive metallurgy to the advanced purposes such as special materials which are resistant to specific corrosion media and/or elevated operating temperatures even in high load, intense friction, and also abrasive conditions (e.g. as superalloys for gas-turbines, aviation engines, pressure vessels, heat-resisting alloys or as their coatings etc.). However homogeneous intermetallic materials exhibit low ductility at room temperature and inadequate yield strength at high temperatures prevents them from wide industrial application. One of possible approach to increase the properties is forming heterogeneous intermetallic materials and MMCs by macro and micro alloying and incorporate metallurgicallly stable, hard and fine ceramic particles. In the case the best service parameters can be realized by uniform, regular, spatially ordered structure with controllable size/ shape of structural units [2-6] and a sufficiently high volume fraction of hard component. Another promising applicable field for intermetallic based materials is manufacturing multi-purpose catalysts [7,8].

Currently, the main methods for the production of intermetallic alloys and the composites on them are classical vacuum furnace and/or powder metallurgy technologies. The classical furnace metallurgy uses metal oxides and their ores for the production of precursors for production such alloys. One of the main problems occurs especially when the specific weights of alloy and slag phases are close to each other since it results in a high level of impurity in alloys. Powder metallurgy uses, for example, expensive gas or water atomization etc. methods which also start with melting of these alloys in special furnaces prior to the following atomization stage. The common disadvantages for the commercial methods are high-energy consumptions, operating time, and the quantity/quality of suitable gas or vacuum needed along with the operation time.

One of energy and cost saving processing method for the synthesis of a wide variety of materials, including intermetallics, carbides, borides, silicides etc. is SelfPropagating High Temperature Synthesis (SHS) [9] frequently named as Combustion Synthesis. In the SHS process, after initiation, highly exothermic reaction becomes self-sustaining. The chemical conversion takes place in a combustion wave which moves over mixtures producing the desired product. Initial mixtures of metals and nonmetals (C, Si, B etc.) are used for SHS. To obtain cast materials in the combustion mode high exothermic initial mixtures of metal oxides, metal reducer and nonmetals are used. The approach combines two material production methods, namely an aluminothermic process [10] and SHS and is called as metallothermic SHS or SHS-metallurgy [11,12]. Since the adiabatic combustion temperatures (T_ad) of the SHS reactions obtained by the high energetic precursor mixtures change between 2500 and 3500 K, the combustion products (alloy and oxide) are in liquid-phase state.

This work aims to establish a scientific and engineering background for high energy efficient, fast and lowcost production manufacturing technology. Some cast intermetallic alloys and MMC are based on via combined centrifugal casting—SHS. The authors have a more than 20 years’ experience in the field.

2. Experimental Procedure

2.1. Raw Materials and Processing Conditions

The SHS reaction yielding cast materials based on intermetallic alloys can be represented in the form:

where Ох_i—oxides of Ni, Co, Ti, Cr, Nb, Mo, W, V, Mn and so on, B_k—elements (B_, C, Si, Zr, etc.), R—metal reducer (Al, Ti), FA—functianal additives (CaO₂, CaF₂ etc.), [polymetallic material]—(intermetallic alloy and MMCs based on Ni, NiAl₃, NiAl, CoAl, TiAl etc.) Q— thermal effect of the process.

Figure 1 schematically illustrates the SHS process for fabrication of cast materials. After initiation with an igniting coil, the reaction frontally propagates downward. Because the attained temperatures (up to 3000˚C) are well above the m.p. of reaction products, the melt represents a mixture of mutually insoluble metallic (alloy) and oxide (Al₂O₃) phases. Due to strongly different specific weights, these phases undergo gravity-assisted phase separation and subsequent crystallization. As the result the lower layer is polymetallic material (IAs, MMCs) while the upper one, Al₂O₃.

Some characteristics of commercial powders used in our experiments are given in Table 1. Intermixing was performed in a TS-1 planetary mixer for 20 min. The blends were then placed in cylindrical graphite containers (inner diameter 80 or 40 mm) lined up with an alumina coating to minimize interaction with carbon. Burning velocity was determined in experiments with transparent silica containers.

As is known [13-16], the process can be made much more effective when carried out in conditions of high artificial gravity. In this way we can 1) improve the yield of target product, 2) remove gaseous byproducts, 3) diminish the grain size in the product, and 4) make product composition more uniform. Our present experiments were carried out using a centrifugal machine shown in Figure 2. Combustion was performed under normal pressure of atmospheric air at centrifugal acceleration a = 10 - 500 g. The assigned rotor (4) rotation velocity allows creation of the required overloads (centrifugal acceleration) from 1 to 1000 g during synthesis (a/g = 1 - 1000, where a is a centrifugal acceleration, g is a free fall acceleration). The changeable chambers were volume. Thus alloy ingots from green mixture from 0.1 kg up to 2 kg can be produced.

2.2. Characterizations

In our experiments, we measured the burning velocity (U), material loss caused by sputtering (η_sput), and the yield of target material (η_ingot) using the following relationships:

where h is the sample height, t duration of combustion, m, m_c measured and estimated ingot weight, and М₀ and М initial and final sample weight.

Combustion products were characterized by SEM/EDS (Zeiss Ultra plus microscope) and XRD (DRON-3 apparatus, Cu-K_α radiation, 2θ = 10˚ - 80˚). Vickers hardness

(H_V) was measured using an HVS-50 testing machine. Prior to examination, metallographic specimens were etched in acid to remove matrix material.

3. Results and Discussion

3.1. Synthesis of (Ni, Co, Mn) Alx Intermetallic Alloys

Deep oxidation of CO and hydrocarbons as well as NO_x reduction is the key problem in purification of exhaust gas from internal combustion engines and effluent gas flows from different industrial enterprises. To solve this problem, they now make use of systems for catalytic purification of exhaust gases whose main working element is a catalyst comprising noble metals such as Pt, Rh, and Pd. The limited resources of these metals and their high price in a constantly expanding consumer market motivate searches for new, more accessible materials with a high catalytic activity and stability. Highly porous multicomponent metallic catalysts (Raney metals or skeletal catalysts [7,8] obtained from intermetallides of 3d metals can serve as an alternative.

The main goal of the item our research to study the possibility of synthesizing multicomponent 46Ni-10Co- 3Mn-Al (rest) and 56Ni-3Mn-Al (rest), wt% metallic materials based on using the SHS technique and subsequently processing them with the aim of using them as catalysts in the process of complete CO and hydrocarbons oxidation.

The general scheme of investigations consists of the following stages:

1) Study of the effect of synthesis conditions (ratio of source components, effect of overload, introduction of functional additions, etc.) on the combustion (synthesis) mode and formation of the phase composition and intermetallide structure.

2) Preparation of catalysts by grinding the synthesized intermetallide alloy and subsequent leaching of aluminum to obtain metallic materials with a branched surface.

3) Study of catalytic activity and stability of the obtained catalysts using a laboratory facility. On the basis of a comparative analysis of data on activity and stability of catalysts, the intermetallide composition was adjusted and the materials most promising for further investigations were revealed. The key emphasis in the work is placed on searching for optimal synthesis conditions.

For the investigation we selected three alloy composition. The general schemes of the chemical conversions for synthesis (Ni, Co, Mn) Al_x polymetallic alloys can be written as:

     1—

     2—

     3—

Preliminary experiments under normal gravity (1 g) with different ratios of aluminum concentrations showed that the compounds are capable of combustion in the SHS regime within a range at α > 0.4. With an increase in Al content in the source compound, the value of v decreases, and at α > 0.4, combustion becomes impossible. In our case a high content of aluminum (over 45%) is desirable since intense leaching and formation of a branched surface is possible just for such compounds.

The density of the metallic phase decreases with an increase in aluminum content in the source charge and in the produced alloy. In addition, the temperature of the reaction drops as well. This leads to deceleration of the phase separation and it does not have time to complete. The degree of separation (h_sp) (spread of products during combustion due to gasification of impurities and formation of lower oxides) of liquid metal and oxide phases after combustion under normal gravity is determined by a ratio of characteristic times of phase separation (t_s) and cooling (t_c) which is function of combustion temperature (T_c) and gravity (a = g).

Here a is the centrifugal acceleration (under normal gravity a = g), T_c the combustion temperature, T_ar the temperature at which the phase separation is arrested (the melting point of oxide phase), d_m the diameter of the metal drop, a₁ the heat transfer coefficient, E_v the activetion energy of the viscosity, m₀ the pre-exponential factor of the viscosity, and r the sample radius. So variation of a is affective parameter for control of the synthesis process parameters.

Variations in the combustion velocity (U) and mass losses (h_sp) depending on the aluminum content in the source compound is illustrated in Figure 3 by example of the NiO + MnO₂ + α Al mixture under g-condition 400 g. So overloads higher than 400 g allow expansion of the combustion interval up to α > 0.6 and obtainment of ingots with a high content of Al. Thus source compositions were combusted under the effect of centrifugal forces (a = 500 g).

Formation of sample macrostructure depends significantly on completeness of the phase separation. As a rule, at low overloads (less than 100 g), a sintered composition with a cermet structure is formed; here, the matrix is formed by an oxide phase where metallic drops are uniformly distributed. Overloads higher than 400 g allow two-layer products with a close-cut separation of layers to be obtained where the lower layer is an ingot of the desired metallic alloy and the upper layer mainly consists of aluminum oxide (corundum). When phase separation is complete, the lower metallic layer is easily separated from the upper one after a slight mechanical action.

A study of intermetallide sample surface sections with an electron microscope (Figures 4 and 5) revealed several intermetallide phases. On microphotos magnified up to 1000 times (Figures 4(a), (b) and 5(a), (b)), it is seen that the volumetric distribution of structural components is fairly uniform and does not have local nonuniformities. The XRD analysis of the Ni-Mn-Al intermetallide revealed five main phases, namely, NiAl₃, Ni₂Al₃, Mn₄Al₁₁, Mn₅Al₈, and Mn₆Al; for Ni-Co-Mn-Al, a CoAl₃ phase is observed in addition to the above-mentioned phases. A microanalysis of the sample surface (Figures 4(c) and 5(c)) showed that the phases of manganese aluminides are mainly concentrated in the dark gray regions, i.e., at the boundaries of the grains which consist of nickel and cobalt aluminides (light gray and gray regions).

The data obtained with scanning electron microscopy show that the entire surface of leached samples is covered with a thin film of d-metal oxides, but their presence in the samples is not confirmed by the roentgen-phase analysis. The total concentration of oxides is likely to be less than 5 wt%, which is lower than the sensitivity threshold of the roentgen-phase analysis. The catalyst surface begins oxidizing in the process of leaching and finishes in the air during drying. Figure 6 shows the microstructure of surface sections under different magnifycation for Ni-Co-Mn catalysts. Their surface geometry is highly eroded. On some sample sections, we can easily see a thick layer of nanosized fibers 1 - 2 μm long and 80 - 90 nm thick. However, the formation of this structure

does not yield a significant increase in the specific surface of the catalysts owing to its relatively small portion in the material volume. A microanalysis of such sections showed that the content of oxygen in this layer is significant. These nanofibers seem to be oxide or metal oxide formations.

The studies of the obtained catalysts showed that the samples under analysis are characterized by high catalytic activity. The samples of Ni-Co catalysts obtained at the initial stage are highly active, but their stability is far from satisfactory [17]. An addition of manganese yielded a significant improvement of the results concerning all parameters. In the Ni-Mn-Al system, the temperature of a 100% conversion of CO is 175˚C for the most active catalyst sample. For propane, a 90% conversion is achieved at 250˚C. The Ni-Co-Mn-Al catalyst demonstrated better results as far as its activity and stability are concerned. With an increase in the Mn content in the source intermetallide, its structure becomes even more complex; as a result, after leaching, the active surface of the catalyst covered with nanosized fibers increases. However, the specific surface of these samples varies only slightly.

3.2. Synthesis of Ni-Cr-Al-Si-C and Co-V-Al-Si-C Multi-Component Master Alloys

Master alloys are used worldwide. Invariably they are found in plants where metal is melted, alloyed with various elements and then cast into shapes. This can be aluminium, superalloys, steels and even precious metals.

One of the main applications is composition adjustment, i.e. changing the composition of the liquid metal to achieve the desired chemical specification. Another important application is structure control-influencing the microstructure of a metal during casting and solidification in order to change its properties. Owing to the alloying metallic materials acquire a complex of properties such as: high strength, corrosion resistance, wear resistance under high temperatures, loads and intense friction. These properties have multi-component alloys (superalloys) based on Ni, Co and Fe of which produce the most loaded items of machinery, for example items of the power setups of gas turbine type.

Reasons for using a master alloy instead of a pure metal can be economical, technical or both. Some elements show high losses or poor yield when added in pure form. Others will not dissolve at all at the furnace temperature prevailing in a casthouse. A master alloy often provides the solution, as it dissolves much quicker at lower temperatures, saving valuable energy and production time. Now most often for production of the superalloys are used bicomponent master alloys (ingots, balls, etc.). The complexity and high energy consumption of the technologies define high cost of such alloys and scale down of their application.

The application of multi-component master alloys in metallurgy of the alloys can promote a decline a operation time of vacuum furnace and simplify exist comercial technology. So, the item of the work focused on explores the feasibility of obtaining cast multi-component master alloys by SHS. Below for instance of Ni-Cr-Al-Si and Co-V-Al-Si system it will be demonstrated.

The basic chemical reactions for synthesis of the selected systems are follow:

a NiO + b Cr₂O₃ + c Al + d Si =>

(1)

a Co₃O₄ +b V₂O₅ + c Al + d Si =>

(2)

A thermodynamic analysis (Figure 7) revealed that the range of the combustion temperatures that could happen at variation of the ratio of initial mixtures is high. All component of the alloys are in melt stage. Realization such high temperature in combustion wave makes it possible to obtain cast alloys.

For both system under study, comparative the microstructure alloys obtained with the different values of the overload  (up to 1000 g) realized by centrifuge and under normal gravity (1 g) showed that chemical composition and microstructure formation dependent of gravity during combustion (Figures 8(a), (b) and 9(a), (b)). The action of gravity is observed depth of chemical conversion for V, Si and Cr. Most effect is observed for Si content. High gravity leads to increase of Si content. Samples obtained under 1 g include oxide phase bubbles (Al₂O₃). Across samples obtained under g > 500 consist

of target component only. So effect of gravity increase product capacity and it quality.

3.3. Synthesis of Ti-Al and Ti-Al-Nb Intermetallic Alloys

Gamma-Titanium Aluminides, have desirable mechanical and physical attributes at temperatures up to 800˚C. With properties that include a high melting point, high strength, minimal creep and low density, they are ideal candidates for high-performance gas turbine blades.

Using titanium aluminide would result in a 50% weight reduction of turbine components compared to current Nibased alloys, leading to improved thrust-to-weight ratios of aero-engines, higher efficiency, reduced fuel consumption and lower exhaust emissions. However, advances in the development of TiAl alloys [18,19] are held back by the lack of a successful process for their manufacture at an appropriate quality and acceptable cost. Existing processes for fabrication of titanium aluminides are multistage and time-consuming. In this context, elaboration of new cost-effective methods or simplification of existing ones seems to be of current importance.

The item of the work focused on explores the feasibility of preparing Ti-50Ala and Ti-46Al-8Nb (indicated are at.%) ingots as precursors for following treatment by vacuum arc melting (VAM).

The general schemes of the chemical conversions during Ti-Al and Ti-Al-Nb intermetallic alloys synthesis can be written as

(1) ν₁ [TiO₂ + Al] + ν₂ [CaO₂+Al] =>

=> ν₃ Ti_xAl_y + ν₄ [Al₂O₃ – CaO]

and

(2) ν₁ [TiO₂ + Nb₂O₅ + Al] + ν₂ [CaO₂ + Al] =>

=> ν₃ Ti_xNb_yAl_z + ν₄ [Al₂O₃ – CaO]

A prerequisite for SHS casting materials is that the attained combustion temperature T_c must be higher than the melting point T_m of combustion products: T_с > T_m. The data of thermodynamic calculations (Figure 10) show that the T_ad values for the both selected product forming mixtures are insufficient for the purpose: T_ad ≤ T_m. In the presence of unavoidable heat losses, the real T_c values are still lower. To obtain cast alloys in the mode of autowave synthesis, the burning temperature must be increased. Apart from that, the “power” admixture introduced into the targeted mix-of its reaction must not take part in formation of the alloy compound and must have high exothermicity. Thermodynamic analysis of many systems has shown that, for these requirements, the reaction of alumothermal reduction of calcium peroxide is optimal:

Upon admission of the energy-producing mixture CaO₂-Al into our systems, T_ad, markedly grows (Figure 10), which opens up a route to producing cast aluminides in the mode of combustion. For n₂ > 0.2, all the products can be expected to appear in the form of melt. In addition, the selected mixture yields the products which are inert toward the target products. With increasing T_c, the amount of gaseous products (suboxides, Al vapor) can increase, which may lead to melt splashing. As a result, an optimum for n₂ can be expected to happen in the range 0.2 - 0.4 With increasing n₂, the splash of melted material becomes more and more probable. In preliminary experiments under normal conditions [Р = 0.1 MPa (air), T₀ = 293 K, a = 1 g], we determined the optimal values of n₂ for each product-forming mixture. Within these ranges of the relative amount of energy-producing component n₂ (0.3 - 0.45), dense titanium aluminides could be prepared in a high yield (good separation of phases). The outward appearance of the samples burned at different a is shown in Figure 11. It follows that the extent of phase separation grows with increasing a. The samples obtained at a = 300 – 1000 g represented a cylindrical ingot with the readily separated metallic and oxide layers.

Cast titanium aluminides can be readily prepared within

the range of optimal n₂. Varying the relative amount of components in the product-forming mixture, we can change the chemical composition of ingots and thus come to the target composition (atom %) Ti-Al(46)-Nb(8).

The synthesized ingots were examined with analytical chemical tests and SEM. It was found that rising overload lead to increase of Ti and Nb content in the ingots (Table 2).

This influence explains by the fact that under the action of gravity the densification of reaction zone occurs [9]. Growth of the completeness of chemical interaction in the redox reactions of titanium (TiO₂ + Al) and the oxide of niobium (Nb₂O₅) leads to increasing in their content in the ingots. Calculation of the influence of the completeness of the output of the purposeful elements from the value of gravity allowed obtaining ingots with the required composition.

Despite the fact that the synthesis was carried out to the atmosphere of air of the noticeable isolations of nitrogen it is not discovered. This indicates, but that, that the forming oxide (slag) layer as a result of the phase separation on it ensured the protection of products from the oxidation to the surface of metallic fusion in air and the possible nitration of titanium.

According to XRD data, no Nb-containing intermetallics were detected, despite a high Nb content. The obtained diffraction patterns (Figure 12) exhibit the presence of γ’-TiAl and a₂-Ti₃Al. All the peaks are shifted toward greater interplanar distances, which can be associated with formation of a solid solution of Ni in the TiAl lattice. According to the literature data, the solubility of Nb in TiAl attains a value of 11 at.% (in our case, 8 at.%).

No nitrogen-containing products were detected, which can be attributed to the protection of the melt from nitridation with atmospheric nitrogen by the slag layer formed on the melt surface.

The above data confirmed the prediction of thermodynamic calculations about the inertness of the products formed upon combustion in the CaO₂ + Al system towards the melt. The aluminides contained no Ca-containing products even for relative amount of energyproducing component n₂ > 50%.

Comparative studies the microstructure of the ingots of those obtained with the different values of the overload

revealed that grain size decrease with growth g-forces. The action of gravity is observed reduction in the heterogeneity and under the influence of gravity an alloy has most homogenous structure. The alloys obtained under 300 - 400 g has high heterogeneity in composition (liquation) Figure 13.

3.4. Synthesis of Cast Mo₂NiB₂ and Mo₂FeB₂ Metal-Matrix Composites (MMCs)

Systematic theoretical and experimental studies on MoNi-B, Mo-Fe-B, W-Ni-B, W-Co-B, etc. phase diagrams have shown [20-30] that the complex borides Mo₂NiB₂, Mo₂FeB₂, W₂NiB₂, and MoCoB may come in thermodynamic equilibrium with a metal matrix of Ni, Fe or Co. This gives hopes for preparation of stable MMCs in the form of a ductile metal matrix containing uniformly distributed particles of hard and refractory transitionmetal borides. Such MMCs have been found to show a unique combination of properties: high strength and excellent corrosion resistance in conditions of heavy loading and friction at high temperatures. Nevertheless, these materials have not yet found their wide application largely because of complicated technology for their production. Their high melting point is an obstacle for using conventional metallurgical processes. These materials are normally fabricated by the methods of powder metallurgy, hot isostatic pressing, reactive sintering, spark sintering, etc. [20,22,24-28,30] whose drawbacks are high energy requirements, complexity, and expensive equipment.

In this part of the work, we attempted to fabricate cast

MMCs containing Mo₂NiB₂ and Mo₂FeB₂ by combined centrifugal casting—SHS process. This research aimed at investigation for reactive systems and process parameters that would ensure simultaneous preparation of both metal matrix and boride filler in a single process. The SHS reaction yielding cast MMCs based on Mo₂NiB₂ and Mo₂FeB₂ can be represented in the form:

where MMC = Mo₂NiB₂ – αNi or Mo₂FeB₂ – βFe, alloying agent AA = Cr₂O₃, V₂O₅, MnO₂, etc., and α, β stand for respective mass fractions.

3.4.1. Combustion and Phase Segregation

As showed by preliminary experiments the complex borides Мо₂NiB₂ and Мо₂FeB₂ can be obtained within a wide range of parameters α and β (roughly characterizing the mass fraction of matrix material). Thus prepared MMCs exhibited no residual porosity, that is, had a character of cast materials, with a small contraction cavity at the center. An increase in α and β was found to have only slight influence on U: it increased from 4 to 5 cm/s.

It is well known that complete melting of system components is a prerequisite for good sensitivity of the process to gravity forces [13-16,31]. Figure 14 shows the burning velocity (U), material loss (h_sput), and product yield (h_ingot) as a function of a/g. The U values are seen to grow with increasing a/g. The effect is most pronounced within the range of a = 1 – 100 g.

Strong influence of mass forces on burning velocity was associated [13-16] with intensification of convection and deformation within the reaction zone, which improves the completeness of combustion reaction. An in-

crease in a/g is also accompanied by a decrease in material loss (h_sput) and an increase in the yield of target product (h_ingot). Above 150 g, the h_ingot values get close to theoretical ones.

All sampled prepared at a > 100 g, were cut into pieces and characterized by chemical analysis and XRD. Below, we will present the results obtained for the following two MMCs:

(1 – α)Мо₂NiB₂– αNi    (α = 0.21)           MMC I

(1 – β)Мо₂FeB₂– βFe   (β = 0.25)          MMC II The above compositions seem most promising for practical implementation as a hardfacing material. In this work, we focused on the synthesis of the compositions enumerated in Table 3.

3.4.2. MMC I—Ni-58Mo-6B

The results of chemical analysis are presented in Table 3. The amounts of Mo and Ni are close to nominal values. The B content is slightly lower (by 0.2%) probably due to occurrence of redox reactions with metal oxides competing for Al. This also explains the presence of Al (~1

wt%) in the resultant ingots.

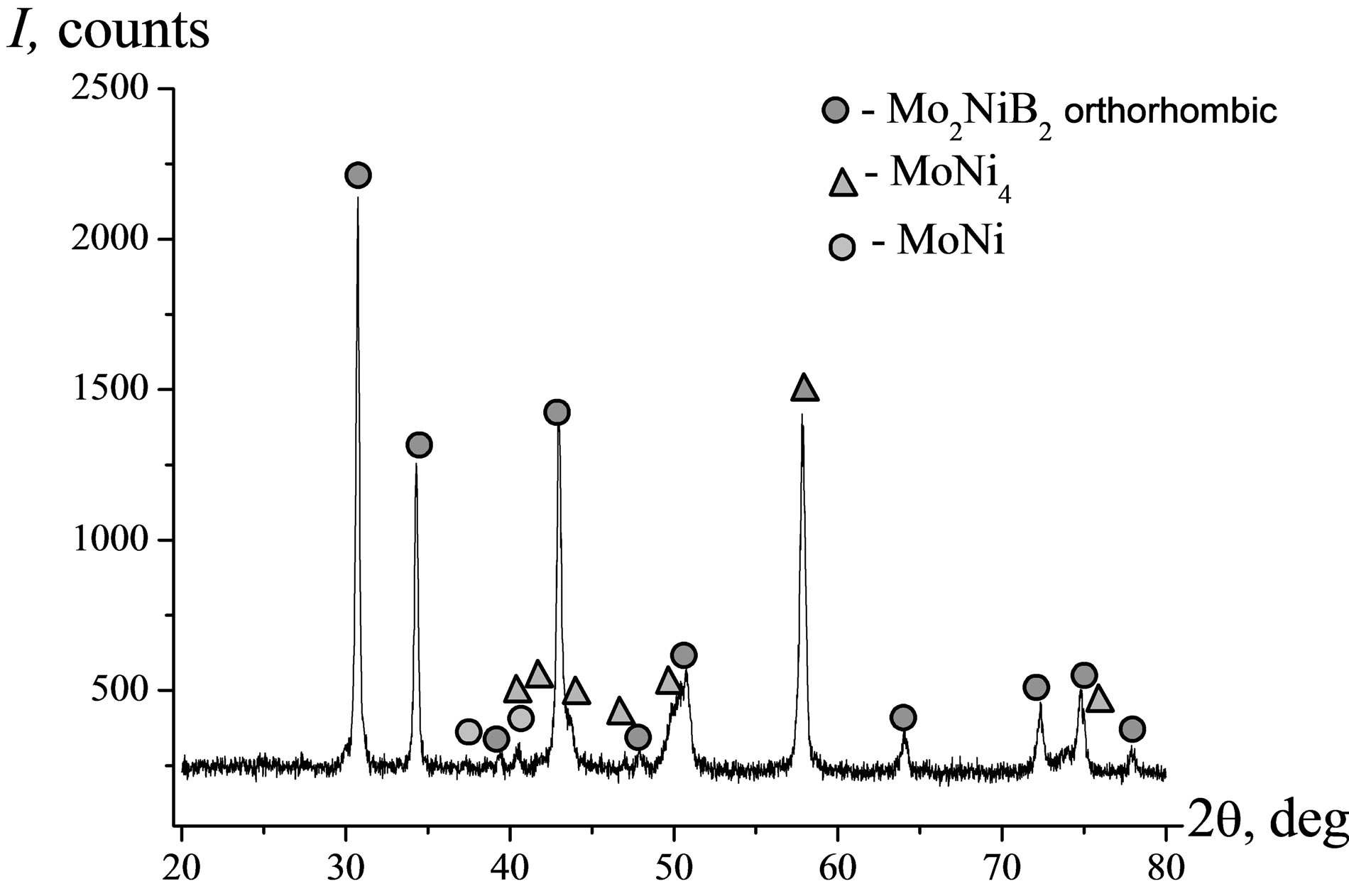

The XRD and SEM data in Figure 15 suggest that the cast MMC I is formed by orthorhombic Mo₂NiB₂ and intermetallic compound MoNi₄ with insignificant admixture of the MoNi phase. The material has a clearly pronounced composite structure. Detailed SEM/EDX element distribution analysis has confirmed (Figure 15(b)) that the material of matrix is largely Ni filled with Мо₂NiB₂ particles 20 - 30 µm in their size uniformly distributed over the volume of cast material. The Al-rich areas were found to coincide with the Ni-rich ones.

3.4.3. MMC II—Fe-49Mo-6B-2.5Cr-2.5V

Figure 16 characterizes the phase composition and microstructure of MMC II. Here dark areas correspond to a matrix material while the brighter one, to hard filler. Comparative analysis of the XRD data (Figure 16(a)) and SEM/EDX element distribution images (Figure 16(b)) clearly shows that the material has a Fe matrix impregnated with Cr and Ni in the form of sold solutions (F_ss). The boride Мо₂FeB₂ acts as a filler. Its particles about 10 µm in size are uniformly distributed all over the volume of cast material. The alloying agents, Сr and Ni, are distributed largely in a metal matrix and tabular eutectic deposits. Again, the Al-rich areas were found to coincide with the matrix ones (Fe and Ni-rich areas).
