Journal of Minerals & Materials Characterization & Engineering, Vol. 2, No.1, pp1-9, 2003, printed in the USA. All rights reserved
Characterization and Flotation of Sulfur from Chalcopyrite
Concentrate Leaching Residue
H. K. Lin
Mineral Industry Research Laboratory
University of Alaska Fairbanks, Fairbanks, AK 99775-7240
Elemental sulfur produced by chloride leaching of sulfide ores or
concentrates contains selenium and tellurium usually too high to be used in
various industrial or agricultural uses. The sulfur in the leaching residue can be
upgraded to 90% in grade by froth flotation and the sulfur concentration can be
followed by sulfur purification and selenium and tellurium removal. The sulfur in
the leaching is in a form of discrete particles with a size range of 5 to 10 microns.
The sulfur particles tend to agglomerate in the pulp and hence mechanically
entrap gangue minerals. With sodium silicate as the dispersant as well as the
depressant for siliceous material, a sulfur concentrate of 90% in grade and 90% in
recovery can be obtained with a single-stage froth flotation. The flotation reagent
consumptions are minimum. The majority of chalcopyrite remains in the sulfur
flotation tailings and can be readily recovered by flotation with different flotation
reagents. When amyl xanthate is used, 85% of chalcopyrite can be recovered
with a copper grade of 14.5% in a single-stage froth flotation. The chalcopyrite
flotation concentrate can be sent back to chloride leaching circuits.
Keywords: Elemental sulfur, sodium silicate, dispersant, depressant.
Frash process, a solution mining method operated at an elevated temperature and
pressure, has been the major process for producing elemental sulfur in the United States for
many decades. But byproduct sulfur produced by petroleum refineries and natural gas processing
plants is replacing Frash sulfur in the market. The byproduct sulfur has increased to 60% of the
sulfur production in 1991 from 17% in 1971 in the United States [1].
Mineral processing played only a small role in the elemental sulfur industry. When a
sulfur ore was selected, a typical method was grinding the sulfur ore to about 28 mesh followed
by froth flotation. Flotation concentrates were melted and filtered to produce sulfur products
with a grade of 99.5%. These plants basically operated before 1960s [2].
Hydrometallurgical processes are playing an increasingly important role in primary
production of copper. Copper produced by leaching-solvent extraction-electrowinning accounted
for about 30% of primary refined copper [3].
As early as 1923, ferric chloride leaching was applied to one sulfide ore and was
recognized as a highly efficient process [4]. Chloride leaching has become more practical during
2 H. K. Lin Vol. 2, No1
the past three decades as corrosion problems posed by concentrated chloride solution have been
at least partially overcome by the advent of modern materials of construction.
The U. S. Bureau of Mines has conducted extensive tests on ferric chloride leaching of
chalocopyrite concentrates [5,6]. Many chloride-based hydrometallurgical processes such as:
Clear Cymet, Elken, Phelps Dodge and Cuprex processes have been developed to treat copper,
copper-lead-zinc concentrates.
Chalcopyrite dissolves in ferric chloride solution and the reactions, depending on the
ferric concentration, may be simplified as:
CuFeS2 + 4Fe+3 = Cu+2 + 5Fe+2 + 2S (1)
CuFeS2 + 3Fe+3 = Cu+ + 4Fe+2 + 2S (2)
In the case of pyrite dissolution, the reaction can be expresses as:
4FeS2 + 4Fe+3 + O2 + 2H2O = 8Fe+2 + 4 OH- + 8S (3)
Elemental sulfur, which is the predominant solid product of the reactions, can account for
more than 50% by weight of the leaching residue. An economically successful recovery of
sulfur will be a great asset to chloride-based hydrometallurgical processes.
Elemental sulfur produced by hydrometallurgical processes usually contains 50-2000
parts per million of selenium and a lesser amount of tellurium; hence, it is not suitable for many
industrial or agricultural uses. If the hydrometallurgical sulfur is to be marketable, selenium and
tellurium may have to be removed. Otherwise, the sulfur may be considered as an industrial
waste rather than a by-product. Dissolution of the sulfur with solvents such as carbon disulfide,
xylenes, and tetrachloro-ethylene followed by evaporation fails to remove selenium and
tellurium from the sulfur [7].
In recent studies, a process to remove selenium and tellurium from sulfur has been
developed [7,8]. In the process, the Se- and Te-containing sulfur was dissolved in an organic
solvent such as xylene or tetrachloro-ethylene followed by mixing the solvent with an aqueous
solution of a high redox potential. The mixing can be effectively conducted in a mixer-settler
unit for a typical solvent extraction operation. Both selenium and tellurium were oxidized in the
mixing and thus became very hydrophilic. After the separation of the organic phase from the
aqueous phase, sulfur remained in the organic phase and selenium and tellurium in the aqueous
phase. A sulfur product with high purity was obtained by crystallization from the organic phase.
However, the cost of the process of removing selenium and tellurium is relatively high.
To make the process more economically feasible, the feed to the process should have a high
sulfur content.
The objective of this study is to upgrade the sulfur content of the leaching residue of
sulfide ores or concentrates through froth flotation technique. The upgraded flotation concentrate
Vo1. 2, No.1 Characterization and Flot ation of S ulfu r fro m Cha lcopy rite Conc entra te Le achi ng 3
can serve as the feed for the above-mentioned or similar processes to produce selenium- and
tellurium-free sulfur product.
Experimental Work
Materials. The chalcopyrite leaching residue used in this study was produced from a
chalcopyrite concentrate leaching similar to the leaching circuit of the Cuprex process [9]. The
leaching conditions are: two-stage countercurrent leaching with 6 hours of retention time on each
stage, leaching temperature of 95oC, and 2.0 moles per liter of ferric chloride. The copper
dissolution is 95%.
Chemical analyses of the leaching residue indicate the residue contains: 52% sulfur, 5%
iron, 2.5% copper and 31% SR, where SR indicates the solid leaching residue of aqua regia
digestion. Sulfide sulfur and trace elements balance the composition. Elemental sulfur was
analyzed by solvent dissolution followed by evaporation of the solvent. Copper and iron were
analyzed by aqua regia digestion followed by an atomic absorption spectrometric method.
Pretreatment of the Leaching Residue. Prior to the flotation tests, the sample of the
leaching residue was repulped with water to remove residue chemicals which may be carried
over from leaching circuits. The clear supernatant was decanted after settlement. The
procedures were repeated for 4 times. The repulped sample was then filtered and the cake was
fed to the flotation tests.
Flotation Procedure. All flotation tests were conducted at room temperature with a
1000 ml Denver laboratory flotation machine. Pulp density was adjusted to about 30% solid by
weight. The pulp was conditioned in the flotation cell for 10 minutes for each test before air was
introduced. Flotation (concentrate collecting) time was set at 4 minutes for each test.
Results and Discussion
Sulfur Occurrence in the Leaching Residue. While sulfur coating, either porous or
protective, on the surface of the sulfide minerals as the results of chloride leaching has been the
subject of discussion [10-13], it is clear that the sulfur in this leaching residue is in a form of
discrete crystals or crystal agglomerates. Mineralogical examinations on the leaching residue
were conducted with scanning electron microscope and microprobe methods. The results reveal
that elemental sulfur is in a form of discrete crystal (Figure 1) and the particles tend to
agglomerate (Figure 2). No sulfur coating on sulfide minerals or gangues was observed.
Chalcopyrite was essentially liberated from gangues or pyrite (Figure 3). The solid residue of
aqua regia digestion was mainly quartz with a minor amount of silicates. It is worth noting that a
complete dissolution of chalcopyrite particles, of course will produce pure sulfur particles even if
sulfur coating occurs initially. However, the size of the sulfur particles, 5-10 microns, is about
an order of magnitude smaller than the chalcopyrite or pyrite particles, 40-70 microns, in the
leaching residue. It is either that the sulfur coating breaks down as the dissolution progresses or
4 H. K. Lin Vol. 2, No1
the sulfur coating does not occur under the leaching conditions. In either case, the sulfur
particles should responds well in the flotation tests.
In the pulp, the fine sulfur particles agglomerate intensely. The agglomeration could
result in mechanical entrapment of gangue minerals and thus dilute the grade of the concentrate.

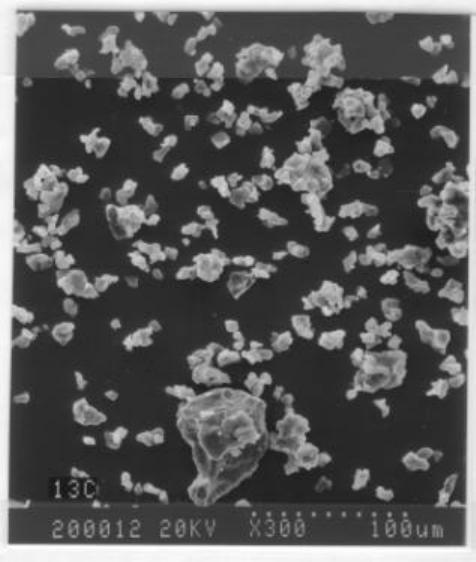

Figure 1. SEM image of sulfur particles in chloride leaching residue.
Vo1. 2, No.1 Characterization and Flot ation of S ulfu r fro m Cha lcopy rite Conc entra te Le achi ng 5

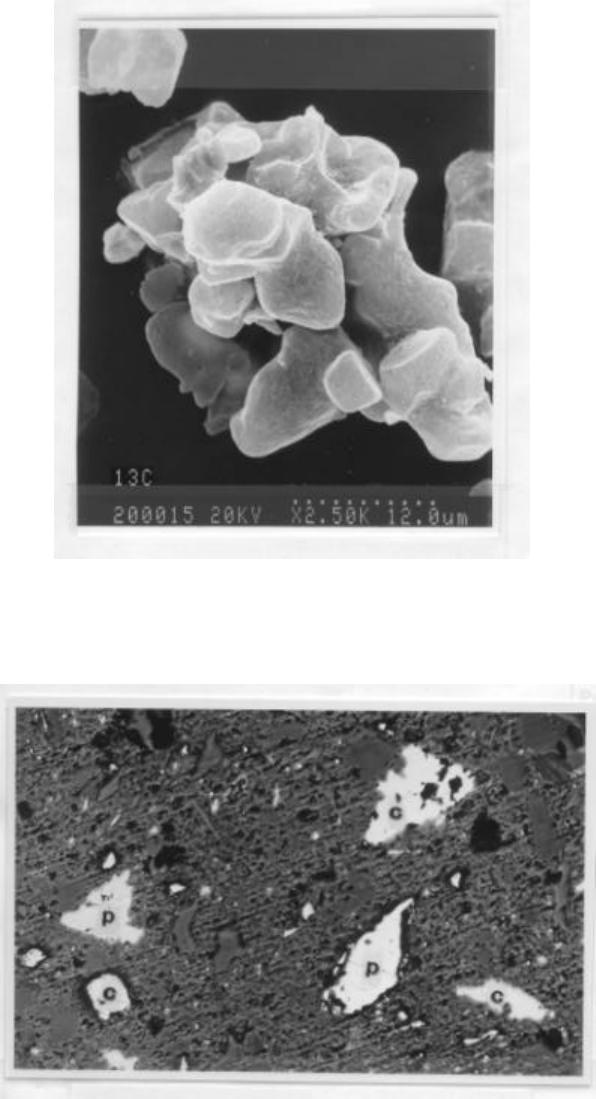

Figure 2. SEM image of sulfur agglomerates.
Figure 3. Liberated chalcopyrite and pyrite particles in the leaching residue.
c-chalcopyrite, p-pyrite.
6 H. K. Lin Vol. 2, No1
Flotation Tests. Collector, dispersant and pH are among the parameters examined in the
sulfur flotation tests. The tailings from the sulfur flotation were subjected to chalcopyrite
flotation to recover copper value.
(a) Effect of collector. Sulfur is known for its hydrophobicity in nature. Discrete sulfur
particles can be expected to possess excellent flotability with a small amount of
flotation reagent. Preliminary tests show that pine oil and kerosene are effective
frother and collector, respectively. The effect of kerosene with 20 g/t pine oil at pH 6
is given in Table I.
A kerosene dosage of 20 g/t gives a high sulfur recovery of 94%. However, the high
grade of siliceous material in the sulfur flotation concentrate dilutes the sulfur grade.
The agglomeration of the fine sulfur particles in the pulp with the entrapped gangue
minerals results in the relatively low sulfur grade of the concentrate.
Table I. The effect of kerosene on sulfur flotation
No. Kerosene,
g/t Grade, %
S Cu SR Recovery, %
1 10 71 1.5 9.5 85 38 18
2 20 68 1.6 10.2 94 49 23
3 40 67 1.5 9.9 94 44 23
SR indicates solid residue of aqua regia digestion.
(b) Effect of dispersants. Additions of dispersants to the sulfur flotation system may be
effective to minimize the sulfur agglomeration. Sodium silicate (Na2SiO3), sodium
lignin sulfonate and A-23 of Diamond Shamrock product were tested as dispersants.
The tests results indicate that sodium silicate is more effective in improving the sulfur
grades of concentrate and maintaining high sulfur recoveries than sodium lignin
sulfonate or A-23. This is probably due to the fact that sodium silicate not only has a
dispersing effect but is also known for its depression effect on quartz and silicates in
flotation circuits [14].
Additions of three various dosages of sodium silicate to the sulfur flotation were
tested. Pine oil of 20 g/t and kerosene of 20 g/t were also added in each test. Pulp pH
was maintained at about 6. The flotation results are shown in Table II.
Table II. The effect of sodium silicate on sulfur flotation.
No. Sodium
Grade, %
Recovery, %
1 25
84 1.2 4.1
93 29 8
2 50 89 0.9 2.9 91 21 5
3 75
90 0.7 3.0
92 17 6
SR indicates solid residue of aqua regia digestion.
Vo1. 2, No.1 Characterization and Flot ation of S ulfu r fro m Cha lcopy rite Conc entra te Le achi ng 7
A sodium silicate dosage of 50 g/t increases the sulfur grade of the concentrate to
89% with a recovery of 91%. The grade of both copper and siliceous material has
been reduced significantly, indicating a lesser amount of chalcopyrite and siliceous
material entrapment in the sulfur agglomeration.
(c) Effect of pH. Slurry pH decreases gradually during pulping of the sulfur-containing
sample. The pH indicated in the flotation tests is the pH measured at the start of
collecting flotation concentrate. Lime, sodium hydroxide and sodium carbonate were
tested as the pH regulators in the sulfur flotation. Lime was shown to be slightly
more effective than the other two pH regulators. The effect of pH adjusted by lime is
presented in Table III. The experimental conditions include 20 g/t of pine oil, 20 g/t
of kerosene and 50 g/t of sodium silicate.
Table III. The effect of pulp pH on sulfur flotation.
SR indicates solid residue of aqua regia digestion.
Sulfur grade decreases slightly with increase of the pulp pH in the pH range of 4.9-
8.1. However, sulfur recovery remains high. Both recovery and grade for
chalcopyrite and siliceous material in the sulfur concentrates are low. The decreases
of the sulfur grade with increase of the pulp pH in the tested range may be due to
elemental sulfur being more stable at a lower pH in the tested range, while it is more
likely to be oxidized to sulfate at a higher pH [15].
(d) Chalcopyrite flotation on tailings of sulfur flotation. The tailings of sulfur flotation
conducted at close to neutral pH with pine oil, kerosene and sodium silicate as the
frother, the collector and the dispersant, respectively contain about 4% copper and
10% sulfur. Quartz is the major component in the tailings. Copper in the mineral
form of chalcopyrite in the tailings was tested for flotation. The copper flotation tests
were conducted at about 30% solid by weight, 10g/t of pine oil, 10 g/t of copper
sulfate and 25 g/t of potassium amyl xanthate. The pH of the pulp was adjusted to
about 7. The result of chalcopyrite flotation on the tailings of sulfur flotation is given
in Table IV.
Table IV. Results of chalcopyrite flotation on tailings of sulfur flotation.
Wt % Grade, %
Cu S Recovery, %
Cu S
Conc. 24 14.5 20.8 85 51
Tailings 76 0.8 6.3 15 49
Calc. Feed 100 4.1 9.8 100 100
No. Pulp pH
Grade, %
S Cu SR Recovery, %
1 4.9 90
1.3 3.8
92 29 7
2 5.9 88 1.1 2.8 90 23 5
3 7.2
88 1.2 3.3
89 27 6
4 8.1 83 0.9 4.1 92 22 7
8 H. K. Lin Vol. 2, No1
The chalcopyrite in the tailings of sulfur flotation responds well in the chalcopyrite
flotation with a copper recovery of 85%. The flotation also recovers about half of the
elemental sulfur from the sulfur flotation tailings. The copper concentrate can be
directed back to the chloride leaching circuits.
The elemental sulfur formed during the ferric chloride leaching is discretely crystalline in
nature. The size of the sulfur particles is in the range of 5 to 10 microns and is about an order of
magnitude smaller than the size of chalcopyrite or pyrite (40-70 microns). The sulfur particles
tend to agglomerate intensely in the pulp.
The sulfur responds well to the sulfur flotation at high recoveries, but dispersants are
needed to produce flotation concentrates of high sulfur grades. A sulfur flotation with 90%
sulfur grade and 90% recovery can be achieved. The sulfur flotation concentrate can be treated
with an innovative process [7,8] to purify the sulfur to +99.9% and simultaneously remove
selenium and tellurium.
The residue chalcopyrite of the ferric chloride leaching responds well to flotation in
chalcopyrite flotation tests. The chalcopyrite flotation concentrate can be directed back to the
leaching circuit. The recovery of chalcopyrite should be taken into consideration when sulfur is
further purified from the sulfur flotation concentrates.
1 Edmonson, N., 1994, “North American Sulfur Market: Structure and Outlook”, Mining
Engineering, Vol 46, No 6, pp563-567.
2 Weiss, N. L., 1985, “SME Mineral Processing Handbook”, Society of Mining
Engineering, American Institute of Mining, Metallurgical and Petroleum Engineers, Inc.,
New York, NY, Section 28.
3 U. S. Bureau of Mines, 1990, “Mineral Industry Surveys”, Copper Monthly, March, 20p.
4 Christiansen, N. C., 1923, “Process of Treating Ores Containing Galena”, U. S. Patent
5 Haver, F. P., Baker, R. D., and Wong, M. M., 1975, “Improvements in Ferric Chloride
Leaching of Chalcopyrite Concentrate”, U. S. Bureau of Mines, RI8007.
6 Philips, T. A., 1976, “Economic Evaluation of a Process for Ferric Chlorite Leaching of
Chalcopyrite”, U.S. Bureau of Mines IC8699.
7 Lin, H. K., 1996, “Simultaneous Oxidation and Stripping for Separating Se and Te from
Sulfur”, JOM, Vol 48, No 3., pp50-52.
8 Lin, H. K., and Rao, P. D., 1995, “Process for Removing Selenium form Sulfur”, U. S.
Patent, 5,378,488.
9 Dalton, R. F., Price, R., Hermana, E., and Hoffman, B., 1988, “Cuprex-New Chloride-
based Hydrometallurgy to Recover Copper from Sulfide Ores”, Mining Engineering, Vol
40, No 1, pp24-28.
Vo1. 2, No.1 Characterization and Flot ation of S ulfu r fro m Cha lcopy rite Conc entra te Le achi ng 9
10 Palmer, B. R., Nebo, C. O., Rau, M. F., and Fuerstenau, M. C., 1981, “Rate Phenomena
Involved in the Dissolution of Chalcopyrite in Chloride-bearing Lixiviants”,
Metallurgical Transaction, Vol 12B, pp595-601,
11 Haver, F. P., and Wong, W. W., 1971, “Recovery of Copper, Iron and Sulfur from
Chalcopyrite Concentrate Using a Ferric Chloride Leach”, Journal of Metals, Vol 23, No
2, pp25-29.
12 Parker, A. J., Paul R. L., and Power G. C., 1981, “Electrochemical Aspects of Leaching
Copper from Chalcopyrife in Ferric and Cupric Salt Solutions”, Aust. J. of Chemistry,
Vol 34, pp13-34.
13 Dutrizac, J. E., and MacDonald, R. J. C., 1974, “Ferric Ion as a Leaching Medium”,
Minerals Sci. Engng., Vol 6, No 2, pp59-100.
14 Weiss, N. L., 1985, “SME Mineral Processing Handbook”, Society of Mining
Engineering, American Institute of Mining, Metallurgical and Petroleum Engineers, Inc.,
New York, NY, Section 5.
15 Pourbaix, M., 1974, “Atlas of Electrochemical Equilibria in Aqueous Solutions”,
National Association of Corrosion Engineers, Houston, Texas, p551.
