ABSTRACT

In the present study the catalytic steam gasification of biomass to produce hydrogen-rich gas with calcined dolomite and Nano-NiO/γ-Al₂O₃ as catalyst in an externally heated fixed bed reactor was investigated. The influence of the catalyst and reactor temperature on yield and product composition was studied at the temperature range of 700˚C - 900˚C. Over the ranges of experimental conditions examined, calcined dolomite revealed better catalytic performance, at the presence of steam, tar was completely decomposed as temperature increases from 800˚C to 900˚C. Higher temperature resulted in more H₂ and CO₂ production, and dry gas yield. The highest H₂ content of 51.02 mol%, and the highest H₂ yield of 1.66 m³/kg biomass were observed at the highest temperature level of 900˚C.

1. Introduction

With the increase of energy consumption and escalating energy crisis, energy supply has become a particular concern around the world. So it is necessary to carefully consider that there is a need to minimize the consumption rate of non-renewable energy. The energy policy in future should be based on renewable energy, improving energy efficiency, energy conservation, relieving the contradiction between energy supply and demand, reducing environmental pollution.

As a kind of chemical material, hydrogen plays an important role in the petrochemical industry, but hydrogen will be a kind of efficient, clean and new renewable energy in the 21st century. It is estimated that humankind will enter the age of hydrogen economy in the near future. Although the hydrogen energy can’t be in practical application, but it has the unique characteristics, as a clean, renewable energy, hydrogen energy will be attracted more and more attention.

Biomass is a kind of renewable resource, it is not only rich in natural but also has the low levels of ash content and sulfur content, and it will also not increase the total amount of natural carbon cycle [1-4] .

Biomass gasification is a popular technology to produce hydrogen, it uses the air or oxygen-enriched air and steam together as the gasifying agent to gasify the biomass. The product gas mainly includes hydrogen, carbon monoxide, a small amount of non-condensable gas such as carbon dioxide, and high-molecular-weight hydrocarbons which can coagulate in normal temperature (pyrolysis oil). This pyrolysis oil is cracked to inflammable gas such as hydrogen. In the end it will become hydrogen-enriched non-condensable gas through a reforming reaction.

There are three processes included in the biomass gasification process. The catalytic conversion process, the syngas separation and purification process, and they will decide the production and quality of hydrogen.

Biomass thermal chemical gasification means that the pretreatment of biomass is heated up to 700˚C in the medium such as air, pure oxygen, steam or the mixture of them. Then the biomass is decomposed to syngas. The main products of biomass gasification are H₂, CO₂, CO and CH₄, the components vary with gasification temperature, pressure, residence time and catalyst. The choice of gasification reactors is also an important factor of deciding the components.

In the recent years, hydrogen production by biomass gasification caused the attention of the world. Researchers of overseas have done a lot of work for it, and receive the conclusion that nickel-based catalysts and dolomite can promote the quality of syngas [5] . Guangzhou Institute of Energy Conversion Chinese Academy of Sciences, Tsinghua University, Zhejiang University and other research institutes did some researches about it, and got good effects. Guangzhou Institute of Energy Conversion Chinese Academy of Sciences developed the new technology of biomass gasification to produce hydrogen. The innovation is that the technology connects the biomass gasification, tar catalytic cracking with steam reforming transformation [6] .

2. Experimental Section

2.1. Biomass Samples

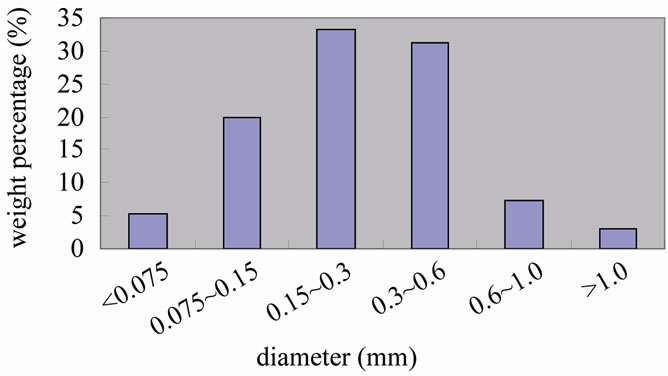

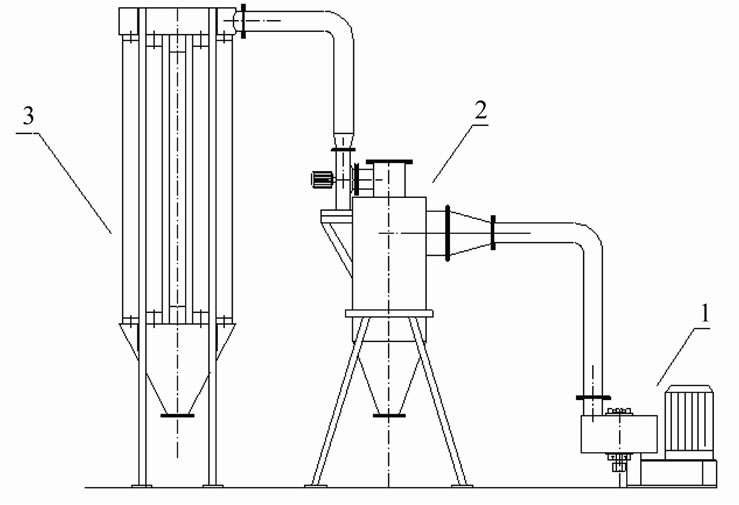

The biomass samples were pine sawdust and were collected from the furniture factory in Huazhong University of Science and Technology. The biomass samples wereshredded into particles by the crasher which was designed and manufactured by our lab, the sizes of the samples were approximately 0.15 - 0.6 mm and is shown in the Figure 1. The crasher system is shown in the Figure 2. The proximate and ultimate analyses of biomass are shown in Table 1" target="_self"> Table 1.

2.2. Catalyst

Generally, there are three main groups of catalysts implemented to remove tar from the producer gas [7,8] : 1) Natural catalysts such as dolomite and olivine; 2) Alkali-based catalysts such as Li, Na, K, Rb, Cs and Fr; 3) Metal-based catalyst such as nickel catalysts.

Dolomite is the most commonly used catalyst which effectively removes heavy hydrocarbons from the gas stream [8] , and reduces the tar content of the effluent stream and enhancing the gas yield [9,10] . Because it is inexpensive and abundant. But it is significantly active only above 800˚C [11] .

Natural dolomite powder was granulated, the particle with a size of 5 - 10 mm, and they were calcined in muffle oven at 900˚C for 4 h. Calcined dolomite was used as a catalyst in this study.

Natural dolomite powder was granulated, the particle with a size of 5 - 10 mm, and they were calcined in muffle oven at 900˚C for 4 h. Calcined dolomite was used as a catalyst in this study. The surface characteristics and XRD patterns of the calcined dolomite were listed in Table 2 and Figures 3 and 4, respectively.

2.3. Apparatus and Procedures

A process flow diagram of catalytic gasification in externally heated gasifier process is shown schematically in Figure 5. In this process, the biomass gasification was conducted on a bench-scale fixed bed reactor, and used calcined dolomite as the catalyst. During the experiments, the biomass sample was continuously fed into the pyrolysis room by means of a sealing cylinder system. The catalytic gasification system consists essentially of a OCr₂₅Ni₂₀ stainless tube (i.d. 90 mm, height 720 mm), a gas cleaning section containing a cyclone solid collector and a fiber wool filter, a cooling system for the separation of water and condensable organic vapors (tar), and various gas measurement devices. The catalytic reforming room and pyrolysis room were heated by the biomass combustion in the combustion room.

In this study, the reaction temperature was controlled from 700˚C to 900˚C in 50˚C increments for every group

of particle size, and the operating pressure in the reactor was close to the atmospheric pressure. Prior to each test, catalyst was held in the catalytic reforming room.

The procedure for steam catalytic gasification in externally heated gasifier experiment is described below. Prior to each experiment, calcined dolomite was filled in the catalytic reforming room. The biomass micro fuel (BMF) was blew into the pipe by fan, then it was combusted in the combustion room. When the desired temperature was reached, the biomass powder was loaded in sealing cylinder system, the biomass feedstock and steam were continuously fed into the gasifier simultaneously with the rates of steam flow rate = 0.165 g/min/g of biomass, respectively. The solid char residue was mostly collected on the bottom of the pyrolysis room, the produced gas and fine particles passed through the fiber wool filter, thereby the fine particles were removed. The condensable matter was quenched as the gas passed through the water condenser. Subsequently, the product gas was dried after entering into a gas meter and a gas dryer. At last the fan was closed and the heating was stopped, the steam generator was turned off, and the reactor was cooled to the ambient temperature.

After every experiment, the char residues collected on the on the bottom of the pyrolysis room were weighed to determine the amount unconverted solid char. The weight of liquid produced in the condenser was weighed and recorded. The gas produced was combusted after sampling and analysis. The data reported in this paper are average values of two times.

2.4. Method of Sampling and Analysis

The low heating value of the biomass samples was estimated using a bomb calorimeter (6300, Parr Inc.) with accuracy of <0.15%. Ultimate analysis of the biomass samples was obtained with a CHNS/O analyzer (Vario Micro cube, Elementar). Such analysis gives the weight percent of carbon, hydrogen, oxygen, nitrogen, and sulphur in the samples simultaneously. A TA Instruments system (TGA 2000, Las Navas) was used to obtain proximate analysis of the biomass samples (that is, moisture, volatile matter, fixed carbon, and ash content of the material).

X-ray diffraction (XRD) (X’Pert PRO, PANalytical B.V.) measurements of catalysts were carried out to determine main components and investigate the catalytic performance before and after the experiment. Furthermore, the surface characteristics of catalysts were determined using an accelerated surface area porosimetry (ASAP 2010, Micrometrics) instrument, which used liquid nitrogen at 77 K, was applied to measure the BET surface area of catalyst.

The product gas volume was measured using a gas meter (J1.6-II, Wuhan Apollo), and sampled discontinuously using gas bags at regular time intervals. Gas compositions analysis was conducted with a dual channel micro-gas chromatography (Micro-GC 3000A, Agilent) that was able to provide precise analysis of the principal gas components (H₂, CO, CO₂, CH₄, C₂H₄ and C₂H₆). The instrument was equipped with TCD and FID detectors, and the carrier gas was helium in all analyses.

2.5. Methods of Data Processing

The lower heating value (LHV) of hydrogen-rich gas is calculated by,

where, CO, H₂, CH₄, C₂H₄ and C₂H₆ are the molar percentages of components of hydrogen-rich gas. The carbon conversion efficiency (%) is calculated by,

where, Y is the dry gas yield (Nm³/kg), C% is the mass percentage of carbon in ultimate analysis of biomass feedstock, and the other symbols are the molar percentage of components of hydrogen-rich gas.

The molecular formula of biomass can be expressed as CH_0.611O_0.245 based on the ultimate analysis (Table 1). The stoichiometric yield of H₂ from biomass char is 124.67 mol H²/kg biomass char calculated by the follow equations:

(1)

(2)

H₂ potential yield is defined as the sum of measured hydrogen in product gas and the theoretical hydrogen that could be formed by completely shifting carbon monoxide as in reaction Equation (2) and completely reforming hydrocarbon species in product gas according to reaction Equation (3), given below[12] :

(3)

3. Results and Discussion

3.1. Mechanism of Catalytic Steam Gasification of Biomass

In general, steam gasification reactions include two steps. The first step is a thermo-chemical decomposition of biomass with production of tar, char and volatiles, this step termed primary pyrolysis, could perform at a lower temperature –300˚C, and last until a temperature of 700˚C or even higher. The second step includes reactions of CO, CO₂, H₂ and H₂O with the hydrocarbon gases and carbon in biomass, thereby producing gaseous products. The catalytic steam gasification mechanism of biomass might be described by the following reactions as shown in Equations (2)-(10) [12,13] :

(4)

(5)

(6)

(7)

(8)

(9)

(10)

Calcined dolomite can accelerate the reaction rate of the steam with tar and char, also participate in the secondary reactions [14] . Furthermore, as shown in Figures 3 and 4, calcined dolomite consists of CaO, and MgO, which convert to Ca(OH)₂ and Mg(OH)₂ quickly at the presence of moisture, some Ca(OH)₂ and Mg(OH)₂ can convert to CaCO₃ and MgCO₃ using CO₂ as a sorbent by reacting with CO₂ produced during gasification reaction[15,16] , CO₂ absorbing contributes to water gas shift reaction (Equation (2)) and carbon gasification reaction (Equation (4)), which lead to production of hydrogen-rich gas and high content of combustible gas.

3.2. Catalyst Activity

Dolomite is the most commonly used catalyst which effectively removes heavy hydrocarbons from the gas stream [8] . It also decreases agglomeration in fluidized bed while using biomass with high alkali content. The catalytic activity of calcined dolomite was extensively investigated in different reactors such as fixed bed [14-16] and fluidized bed reactors [12,14-17] .

In Table 3, H₂, CO, CO₂ and CH₄ contents are represented for the pyrolysis and.steam gasification which includes Nano-NiO/γ-Al₂O₃ catalytic and dolomite catalytic. There was a great difference between pyrolysis and steam gasification, it was concluded that compared with pyrolysis, the contents of H₂, CO₂ were increased, and the content of CH₄ was decreased in the steam gasification. And the same time, the tar yield and char yield decreased, and dry gas yield increased. The heating value of CH₄ is high, so the decrease of CH₄ contents led to the decrease the LHV of syngas.

Nano-NiO/γ-Al₂O₃ and calcined catalytic improve the quality of the product gas and diminishes significantly

the tar yield. At the presence of Nano-NiO/γ-Al₂O₃ and calcined catalytic, the results of catalytic steam gasification were compared with results of pyrolysis, a crucial increase of 21.43% and 11.01% in H₂ content and 15.74% and 17.34% in CO₂ content respectively, as well as a remarkable decrease of CO contents was achieved, which attributed to water gas shift reaction and steam reforming of hydrocarbon reactions. More tar and char participated in steam gasification, which led to a rapid increase of dry gas yield and carbon conversion efficiency. And there was no tar detected during catalytic steam gasification reaction owing to steam and catalytic significantly eliminating the tar, which agreed with the results of several authors [18] .

The presence of the Nano-NiO/γ-Al₂O₃ and calcined dolomite can both increase H₂ content, CO₂ content and the dry gas yield, while CO, CH₄ contents diminished. And the H₂ content was higher when we used Nano-NiO/γ-Al₂O₃ as the catalytic.

3.3. Influence of Temperature

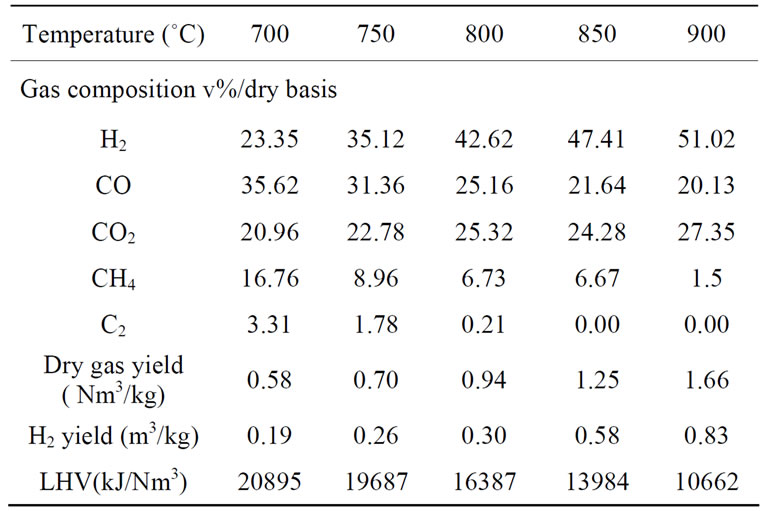

The gas component distribution profile from catalytic steam gasification of biomass at different reactor temperatures with calcined dolomite was shown in Table 4. It indicated that the main components are H₂, CO, CO₂, CH₄ and small quantities of low molecular hydrocarbons, such as C₂H₄ and C₂H₆.

Water gas shift reaction (Equation (2)) is exothermic and thus less important at higher temperature. The main reactions (Equations (2), (4)-(7)) are endothermic strengthened by increasing temperature. Therefore, the reactor temperature had a significant influence on the syngas compositions. As shown in Table 1" target="_self"> Table 1, with temperature rising from 700˚C to 900˚C, H₂ content increased significantly from 23.35% (V) to 51.02% (V), CO₂ content increased from 20.96% (V) to 27.35% (V), CO content decreased from 35.62% (V) to 20.13% (V), hydrogen yield increased from 0.19 to 0.83 m³/kg, and LHV decreased from 20895 to 10662 kJ/kg, and the dry gas yield increased from 0.58 to 1.66 Nm³/kg.

It can be concluded that Boudouard reactions (Equation (4)), carbon gasification reaction (Equation (5)), together with the secondary cracking reactions of tar (Equation (7)), were the main factors responsible for the increase in H₂ and CO₂ contents. H₂ content more than

doubled from 23.35% (V) to 51.02%(V), CO₂ content dcreased by 6.39%, while CO content decreased by 15.49%, because of some CO reacting with H₂O. Methane decomposition (Equation (4)) was favored at higher temperature, which accounted for a significant decrease of 15.26% in CH₄ content as temperature increases. C₂H₄ and C₂H₆ content were relatively small, and slightly decreased. This shown that temperature had strong influence on the decomposition of CH₄, that agreed with Turn et al., higher temperature provided more favorable conditions for thermal cracking and steam reforming, so steam decomposition and dry gas yield increased. Furthermore, temperature had remarkable influence on H₂ yield, H₂ yield significantly increased from 0.19 to 0.83 m³/kg.

Furthermore, the lower heating value (LHV) of syngas decreased from 20895 kJ/Nm³ to 10662 kJ/Nm³, when the reactor temperature increased from 700˚C to 900˚C. Methane had the highest heating value in syngas, the sharp decrease of methane content led to decrease the LHV of syngas.

4. Conclusions

In the present work, the steam gasification of biomass using calcined dolomite as a catalyst, was performed at atmospheric pressure in externally heated gasifier over the temperature range of 700˚C - 900˚C.

Temperature played a great role on the yield and product composition. A higher temperature resulted in a higher conversion of biomass into hydrogen-rich gas with a significant increase of H₂ content from 23.35% to 51.02 %. With temperature increasing from 700˚C - 900˚C, the yield of char and tar decreased while dry gas yield increased and LHV of syngas decreased. At the presence of steam, Nano-NiO/γ-Al₂O₃ revealed better catalytic performance, and played an important role in lowering the rate of tar formation.

The results indicated that there is a strong potential for producing hydrogen-rich gas from biomass by a simple steam gasification process with inexpensive and abundant dolomite as a catalyst. Moreover, this paper aims to convert biomass which is essentially waste material to useful and valuable product gas such as hydrogen-rich gas.
