Popliteal Venous Pseudoaneurysm and Arteriovenous Fistula after Orthopedic Surgery

Bertrand Saint-Lèbes1*, Emilie Chastonay1, Olivier Borens2, Céline Dubuis1, Sébastien Déglise1, François Saucy1, Hervé Rousseau3, Jean-Marc Corpataux1

1Department of Thoracic and Vascular Surgery, Lausanne University Hospital, Lausanne, Switzerland

2Department of Orthopaedic and Trauma Surgery, Lausanne University Hospital, Lausanne, Switzerland

3Department of Vascular Interventional Radiology, University Hospital, Toulouse, France

Email: *

Received December 6, 2012; revised January 12, 2013; accepted January 25, 2013

Keywords: Arthroscopy; Complication; Arteriovenous Fistula; Anterior Cruciate Ligament; Venous Aneurysm


Arthroscopically assisted reconstruction of the anterior cruciate ligament (LCA) is generally a safe and effective procedure with a low rate of vascular complications. We report on a case of a 33-year-old woman with a combined arteriovenous fistula (AVF) and venous popliteal aneurysm that developed 6 months after arthroscopic anterior cruciate ligament reconstruction. At clinical exam the patient presented with left popliteal and calf pain, a tender pulsatile mass posterior to her left knee, popliteal bruit and a thrill at the popliteal fossa. CT scan showed an AVF arising from the left popliteal artery. An aneurysm was seen to fill at the same time as the popliteal vein. Findings at open surgical revision included AVF between the tibioperoneal trunk and the popliteal vein and a venous popliteal aneurysm at the level of the arteriovenous communication. The aneurysm and fistula were repaired. The patient had an uneventful follow up with complete recovery. We also report an endovascular treatment of a iatrogenic arterio-venous fistula.

1. Introduction

Arthroscopy of the knee, the most commonly performed orthopaedic procedure, has become a very effective and safe procedure when performed by experienced arthroscopists [1,2]. Conversely, the actual incidence of complications from arthroscopic knee surgery is rather low. The overall complications rate in knee arthroscopy ranges from 0.56% to 8.2% [3]. Vascular complications are reported to occur even more rarely, in less than 0.005 per cent of cases [3], with the majority of these injuries to the popliteal artery and/or vein. Aneurysms following arthroscopic procedures including meniscectomy and meniscal repair have also been described. Popliteal artery injury following arthroscopic ACL reconstruction is quite rare [4-6]. The cause of arterial lesions in ACL surgery is mostly related to the type of surgery and the method of graft fixation. There are few published studies reporting the occurrence of popliteal artery injury during arthroscopic ACL reconstruction [7,8]. AVF is thus an uncommon complication after arthroscopy, but the conesquences can be severe if not diagnosed quickly. Arteriovenous fistula (AVF) is defined as an abnormal communication between an artery and a vein and can be congenital or acquired; in the latter case, AVFs are always pathological and must be quickly recognized. Their diagnosis can be difficult [9]. We report the case of a popliteal venous pseudoaneurysm secondary to AVF 6 months after arthroscopically assisted ACL reconstructtion, and a fibular AVF secondary to an orthopedic surgery.

2. Case Report

2.1. Case Report 1

A 33-year-old woman in good general health presented to our emergency department with increasing and invalidating pain in the left popliteal fossa. 6 months before she had undergone arthroscopically assisted ACL reconstruction of her left knee.

On first post-operatives controls, she did not show any vascular symptoms. The pulses were present, the lower limb was warm and she had a slight oedema due to orthopedic surgery. After 6 months she complained of some tension and discomfort at the level of the popliteal fossa.

On physical exam of the patient, the knee was stable in the frontal and sagittal plan, Lachmann’s test was normal compared to the controlateral side and no anterior drawer was found. The surgical scars were almost invisible and no swelling or joint effusion could be found. The patient was afebrile and hemodynamically stable. All pulses were present with a normal neurological status. She presented with significant edema of her calf and foot as well as a tender, pulsatile mass measuring 3 × 5 cm with audible bruit in her popliteal fossa. There were both a thrill and bruit over this mass. A bruit was audible over the peroneal artery and a thrill associated with the anterior tibial artery pulse at the ankle.

Initial investigation by venous duplex ultrasound scan showed no deep venous thrombosis and confirmed a left popliteal pseudoaneurysm lying to the popliteal artery and vein. There was no thrombus noted in the deep veins. Angiogram slighty CT scan showed an AVF arising from the left popliteal artery (Figure 1). An aneurysm measuring 3 × 5 cm was seen to fill at the same time as the popliteal vein (Figure 2). Left femoral angiography showed an AVF starting from the popliteal artery (Figures 3(a) and (b)), while retrograde flow into anterior and posterior popliteal veins was seen at the time of filling of adjacent arteries.

Under general anesthesia, the patient underwent open primary repair of the traumatic AVF and aneurysm through a posterior approach. Surgical findings included AVF between popliteal artery and vein and a large venous pseudoaneurysm arising from the popliteal vein at the level of the arteriovenous communication (Figure 4). The popliteal vein pseudoaneurysm was directly repaired and a short saphenous vein graft was then harvested and used as a bypass with end-to-end anastomoses for the popliteal artery (Figure 5).

Immediate recovery was uneventful. Some left leg oedema developed, likely because of reperfusion effect.

2.2. Case Report 2

Two years after a serious polytraumatism, a 32-yearold patient presented a venous pseudoaneurysm and an

Figure 1. CT angiogram, demonstrating early popliteal venous filling with AVF.

Figure 2. Angio-CT planar reconstruction, an early filling makes suspect a popliteal AVF, with a venous popliteal aneurysm.


Figure 3. Angiogram, anteroposterior (a) and lateral (b) view of the AVF with popliteal vein pseudoaneurysm.


Figure 4. (a) Dilatation of the popliteal vein at the site of AVF (è).The vein is on the blue lacette, the popliteal artery on the red one and the tibial nerve on the yellow; (b) Fistula being resected (✖); (c) Popliteal artery (✚) and vein (★) separated after resection of the arteriovenous fistula.

arteriovenous fistula at the level of the fibular artery, half way on the calf. This young man had a comminuted open fracture of the lower limb, treated with external fixator and osteosynthesis plates. In the same time, a fracture of the femur with a third fragment had benefited from an osteosynthesis with centromedullar nailing. This fracture

Figure 5. Popliteal vein pseudoaneurysm is directly repaired and we performed an end to end popliteal anastomosis bypass (è).

caused a shortening of the lower limb that was treated by surgery two years after the initial traumatism. During post-operative care following a persistent pain, a lateroexternal mass of the lower limb was discovered with a sensation of thrill. An echo-doppler confirmed the presence of a post-traumatic arteriovenous fistula, which was located at the level of the posterior tibial artery, half way on the calf with a 2.6 cm-wide pseudoaneurysm.

The patient had an arteriography to visualize this fistula at best and discuss an endovascular treatment (Figure 6). In the absence of a neck it was impossible to perform an embolization. He was treated with an injection of thrombine in the aneurysm by way of the skin with echographic localization, and occlusion of the pedicule by endovascular way in the same time (Figure 7). The operation went well; it was followed by a thrombosis of the fibular artery and vein. The patient was under curative anticoagulant treatment for 6 weeks. The compression band was removed after 24 hours, and the patient was back home after 24 hours as well. In the followup, the patient was asymptomatic, he did not show any new complications and the ultrasound remained stable.

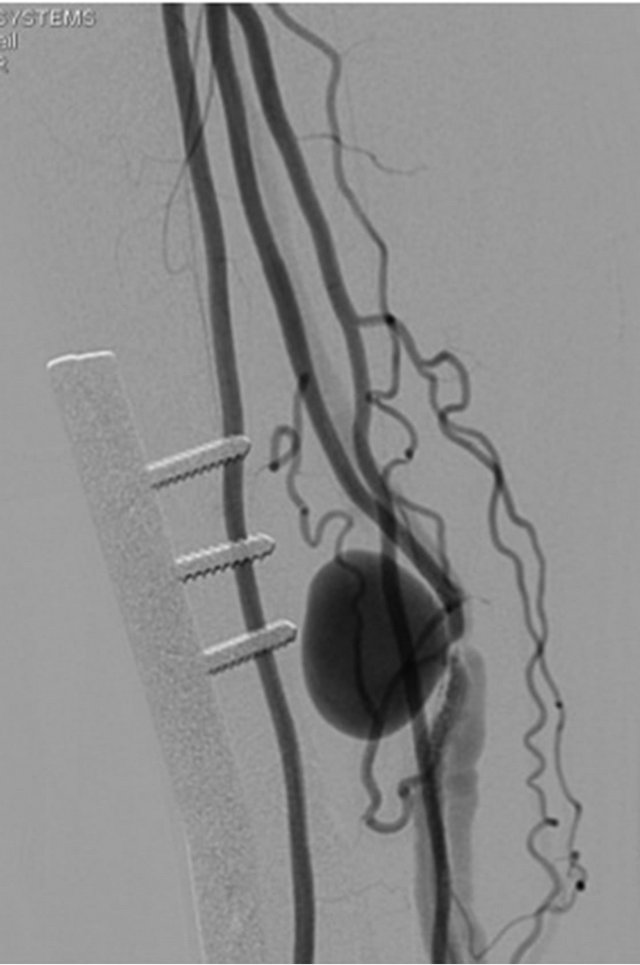

Figure 6. Angiogram, anteroposterior view of the AVF with vein pseudoaneurysm.

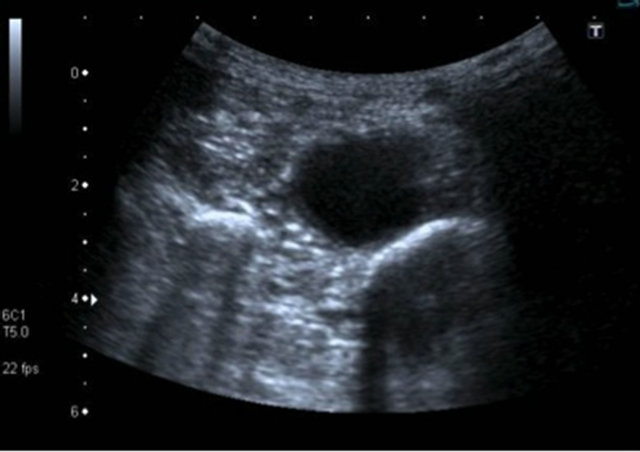

Figure 7. Ultrasound scan, (a) Before thrombin injection; (b) After thrombin injection.

3. Discussion

AVF arises as a result of combined injury of an artery and vein in close proximity [10]. Blood flow follows the path of least resistance, resulting in an endothelialized communication between the two vessels. Popliteal AVF may occur following penetrating trauma, either by missile or stab injuries or following blunt trauma associated with comminuted femur and proximal tibia fractures due to combined artery and vein laceration by bone fragments [11]. They can also be related to iatrogenic factors, such as surgical procedures, percutaneous arterial diagnostic or therapeutic intervention. Iatrogenic popliteal AVF has been reported following orthopaedic procedures including arthroscopy, arthrodesis and arthroplasty.

Vascular complications during orthopaedic surgery, although rare, do occur. Most vascular complications occur intraoperatively, immediately postoperatively or in the late postoperative period; they most commonly include lacerations, pseudoaneurysms, thrombosis, and arteriovenous fistulas. The operations most commonly associated with vascular injuries are knee arthroplasty, followed by hip arthroplasty, spinal surgery, and knee arthroscopy. Most commonly the popliteal artery is involved, followed by the tibial, superficial femoral, iliac, common and profunda femoral arteries. Color Doppler ultrasound is the initial imaging method used to evaluate a vascular injury.

Vascular injuries after arthroscopy of the knee are very rare, and several large series have reported an incidence of less than 0.005%. Most vascular injuries involve the popliteal artery or vein, or both [12]. Despite the increasing number of arthroscopies performed annually and a greater exposure to them in orthopaedic training programs, occasional cases of vascular injury and arterial pseudoaneurysms after arthroscopic procedures in the knee [13-21] continue to be reported. Those in the knee may be due to the fact that the popliteal artery lies in very close vicinity to the posterior knee capsule and that internal rotation moves the vascular funicle relatively laterally, but external rotation stretches it across the attachment of the posterior horn of the medial meniscus, putting the vessel more at risk for iatrogenic injury.

The susceptibility of the popliteal artery and its branches to injury during arthroscopically assisted ACL reconstruction is due to several factors, including the surgical technique as well as the operator’s experience [22]. The popliteal artery is close to the posterior capsule of the joint and it is moved forward during knee flexion. It can thus be injured during preparation of the femoral tunnel or by an unsecured K-wire. Visualization of this posterior region during knee arthroscopy is limited and possible injury is often not immediately recognized especially if a tourniquet is being used.

Traumatic AVF most commonly occur following penetrating trauma, either by missile or stab injuries. AVF can also develop following blunt trauma because of combined artery and vein laceration by bone fragments [11].

Many factors play a role regarding the presentation and subsequent potential complications of AVF, like the nature of the trauma, the anatomic location (diameter of the artery and vein), the adequacy of the collateral circulation and the competence of the valves in the distal veins. Although some AVFs have a benign evolution with spontaneous closure, in most cases the fistulous opening enlarges which lead to degenerative changes in the arterial wall [23].

The effects of a fistula and how it is tolerated depend on two factors: the size and the duration of the shunt: Some fistulas can remain unnoticed and do not become apparent for several years [24]. Two clinical entities can be distinguished: an acute form and a chronic form resulting from an unrecognized or neglected fistula.

The classic signs of AVF (pulsatile swelling and a continuous thrill) are occasionally found in the acute phase, particularly in high-flow fistulas, but are not often looked for. Signs of arterial (pallor, coldness) or venous (edema, warmth, cyanosis, etc.) insufficiency, as well as pulsatile varicose veins, may also be present. The pulse may be absent, but is more often present but decreased [25].

Nevertheless, the formation of combined venous pseudoaneurysm and AVF after knee arthroscopy is extremely rare. Only one such case has been previously reported [10].

When a patient has popliteal swelling, mass, bruit, thrill, recurrent hemarthrosis, pain, calf edema after a knee arthroscopy, the possibility of a vascular injury should be considered early on in the diagnostic process. AVF can have serious consequences if not quickly diagnosed and treated. In a case series by Potter [18] the diagnosis of iatrogenic vascular injury was delayed in three of five patients. Complications in this group included massive bleeding, permanent foot drop, and above knee amputation. Unrecognized AVF may also result in severe complications such as high-output cardiac failure [26,27], pulmonary oedema [28], or chronic ischemic leg ulcer [29].

Once vascular injury is suspected, the diagnosis can be confirmed by arterial Color Doppler sonography followed by arteriography if doubt on the diagnosis persists. CT-scan or MRI may provide additional information regarding bone and soft tissue involment.

Small, asymptomatic AVF is usually not treated and followed until its spontaneous closure.

For many years, the treatment option available for iatrogenic popliteal AVF was surgical, through an open posterior approach that aimed for separation of the arterial and the venous system. Repair may be achieved by simple ligation or by disconnecting the vessels and repairing them by suturing the vessel walls, vein patch, or interposition graft. Nowadays endovascular treatment gain importance with better outcomes, because of material improving.

Endovascular and surgical procedures have both been described and proven effective in the treatment of iatrogenic AVF. Surgical interventions through an open posterior approach aim for separation of the arterial and the venous system. Repair may be achieved by simple ligation or by disconnecting the vessels and repairing them by suturing the vessel walls, vein patch, or interposition graft or endovascular stenting. Open repair is recommended to healthy and/or young patients and to patients whose lesions or anatomy is unsuitable for endovascular repair. In the first case an open procedure was selected, taking into account the young age of the patient and the fact that she was an athlete in excellent general health [27].

Endovascular techniques have been described and proven effective in the treatment of iatrogenic AVF, with the use of covered stent or metallic coils [30,31], glu and thrombin. It may play an even larger role in patients who are poor operative candidates or in reoperative procedures [1,32].

Regarding the second case, we chose this technique because of the patient’s past medical history and because of the unfavourable localization of the fistula, and the possibility of compensation by the other arterial axes in case of thrombosis.

4. Conclusions

However degenerative arterial changes due to AVF are well described, reports on the presence of concomitant venous aneurysm are really scarced. Open surgery for iatrogenic AVF with venous aneurysm allows the ligation of the fistula and the reconstruction of the popliteal vein, without sign of venous thrombosis in the follow-up. AVF is an uncommon complication after arthroscopically assisted ACL reconstruction, but the consequences can be severe if not diagnosed quickly.

The initial injury causing AVF often results in subtle clinical signs, which may be easily overlooked. Importantly, the presence of peripheral pulses does not exclude arterial injury. Diagnosis and recent treatment reports have emphasized the importance of prompt diagnosis and treatment.

Endovascular treatment has proven its efficiency and should play a more important role in the future for the care of these patients.

5. Acknowledgements

The authors declared no conflicts of interest with respect to the authorship and/or publication of this article.

The authors received no financial support for the research and/or authorship of this article.
