asswares used for gold nanoparticle synthesis were washed with freshly prepared aqua regia solution (three parts HCl, one part HNO3) and rinsed with deionized water. The same deionized water was used throughout the experiments.
2.2. Gold Nanoparticle Synthesis
For the gold nanoparticle synthesis, first of all 1% and 5% aqueous stocks of chloroauric acid and TA respectively were prepared. Further, the molarities of HAuCl4 and TA were calculated accurately. The gold chloride concentration was varied between 0.2 to 2 mM by accurately picking gold chloride solution from the 1% stock. The TA to gold (III) molar ratios (MR) ranged from 2:1 to 12:1 by adding fitting amount of TA from the 5% aqueous stock to the 0.2 - 2 mM solutions of boiling gold chloride28. Boiling was continued for 2 minutes. The solutions were kept under continuous stirring for 20 to 30 minutes depending on the appearance of ruby red colour.
2.3. Dynamic Light Scattering (DLS) Measurements
In order to gauge the average hydrodynamic diameter of the as-synthesized GNPs, DLS spectroscopy was performed with the samples of the obtained GNP solutions on a Malvern Zetasizer Nano ZS (Malvern, Southborough, MA). GNP samples were stored at 4˚C and aliquots were taken to repeat the experiment three times for monitoring the size of GNPs by DLS. The average of all DLS measurements was calculated for each GNP sample and the resulting hydrodynamic diameters were recorded.
2.4. Transmission Electron Microscopy (TEM)
In order to validate the results obtained by DLS, microscopic analysis of the various samples of the prepared GNPs was performed using a transmission electron microscope (1200 EX, JOEL Inc, Peabody, MA) following a method described elsewhere . A drop of GNP solution from each of the sample was put on a negative carbon-coated copper grid which was further dried before being transferred to the transmission electron microscope.
3. Results and Discussion
Citrate mediated reduction of chloroauric acid for the generation of GNPs has been well studied with respect to the effect of various concentrations of citrate, effect of pH and temperature, effect of incubation time and more recently reports of the effect of higher gold concentrations on the generation of GNPs by citrate mediated reduction have started appearing. Nevertheless, despite TA mediated synthesis of GNPs being an old approach, studies on the variations in synthesis conditions using TA as the reductant have not been explored much and our understanding of the nature of GNPs synthesized using TA under different conditions remains in its infancy. In the present study, taking a lead from a recent report on the effect of high gold chloride concentrations on the size of GNPs prepared by citrate reduction of gold salt , we studied the variation in the size of GNPs produced using TA as the reducing and stabilizing agent with different initial molarities of HAuCl4 solution (ranging from 0.2 to 2mM) and taking TA to HAuCl4 molar ratios in the range of 2:1 to 12:1. DLS and TEM analyses were used to perform the study.
3.1. DLS Studies
DLS studies exhibiting the effect of the initial gold salt concentration on the size of GNPs synthesized are displayed by the Figures 1-4. Figures 1 and 2 show the trends of the hydrodynamic diameter of the generated

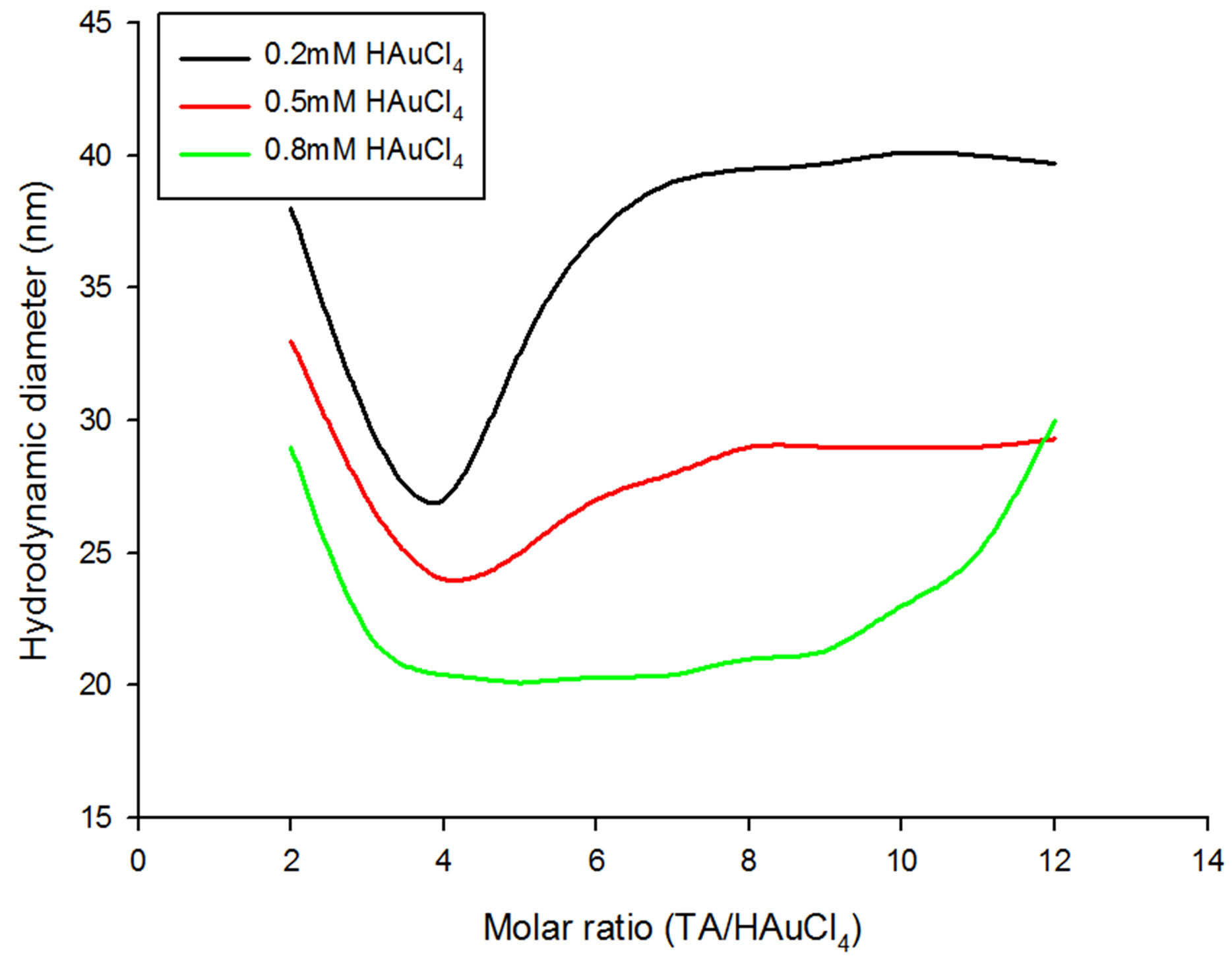

Figure 1. Variation of GNP size as a function of tannic acid to chloroauric acid ratios at gold chloride concentrations less than 1 mM.
Figure 2. Size variation of GNPs with respect to increasing molar ratios of tannic acid/gold chloride at various concentrations of chloroauric acid below and equal to 1 mM.
Figure 3. Diameter of GNPs as a function of various concentrations of chloroauric acid at different tannic acid to HAuCl4 ratios ranging from 2:1 to 6:1.
Figure 4. Size of GNPs with respect to HAuCl4 concentrations at various tannic acid/HAuCl4 ratios ranging from 7:1 to 12:1.
GNPs as a function of TA to HAuCl4 molar ratios at various molarities of HAuCl4 solution taken. Under varying initial gold chloride concentration, the size evolution of the generated GNPs exhibited two different patterns; one for HAuCl4 molarities less than 1 mM (Figure 1) and the other for the HAuCl4 molarities greater than or equal to 1mM (Figure 2).
Variation of hydrodynamic diameters of GNPs as a function of various TA to chloroauric acid ratios at different initial concentrations of HAuCl4
The GNPs synthesized from 0.2 and 0.5 mM chloroauric acid solutions exhibit large hydrodynamic diameters (around 38 and 33 nm respectively) when a TA/ HAuCl4 ratio of 2:1 is used (Figure 1). The size of GNPs was found to abruptly decrease and reach a minimum diameter at TA/HAuCl4 ratio of 4:1 for both 0.2 and 0.5 mM chloroauric acid solution, however, the sizes were found to increase again as the TA/HAuCl4 molar ratios increased and finally saturation was achieved beyond the molar ratio 8:1. While the evolution of the GNP sizes followed similar fashions for 0.2 and 0.5 mM chloroauric acid solutions, for the same TA/HAuCl4 ratios, the GNPs generated from 0.5 mM chloroauric acid solutions were found to be smaller in size than those prepared using 0.2 mM chloroauric acid solutions. The differential sizes become more apparent while moving towards higher ratios as exhibited by the wide gap in the size profile of GNPs produced by 0.2 mM and 0.5 mM chloroauric acid (Figure 1). As seen in the Figure 2, the size of GNPs synthesized using 0.2 mM chloroauric acid reaches saturation at diameters of around 39 nm whereas the hydrodynamic diameter profile for 0.5 mM HAuCl4 plateaus around 29 nm. These results overlap with those observed by Zabetakis et al. for GNPs formed using citrate and chloroauric acid less than 0.8 mM. They too observed that for chloroauric concentrations below 0.8 mM, higher HAuCl4 concentrations generate saturation with smaller sized particles. However, in their case the saturation was achieved at higher molar ratios (>14:1) but in the present study, tannic to chloroauric acid ratio of 9:1 induced plateau formation. Moreover, the particle size at a particular TA/HAuCl4 ratio was found to be around 10nm larger than induced by the same citrate/HAuCl4 ratio. Larger particle size and smaller saturation ratio can be explained as TA is a more aggressive reducing agent that consumes rapidly all the chloroauric acid to form GNPs.
GNPs prepared from 0.8mM chloroauric acid solution exhibit a mid-way pattern as shown with 0.2 and 0.5 mM chloroauric acid solutions and those displayed with chloroauric acid concentrations beyond or equal to 1 mM. It is observed that 0.8 mM gold solutions form smaller GNPs than the GNPs formed with 0.2 and 0.5 mM gold solutions. However, at 12:1 ratio, the particle size for 0.8 mM solution was found to be greater than 0.6 mM choloroauric acid solution. Till ratio 4:1, the particle size continuously decreases, forms plateau from 5:1 to 7:1 and again rises and the particles attain 30nm diameter at the TA/HAuCl4 ratio of 12:1 (Figure 1).
Formation of GNPs from 1 - 2 mM chloroauric acid solutions with respect to TA/HAuCl4 ratios is displayed by Figure 2. In a manner similar to lower HAuCl4 concentrations, first with increasing TA/HAuCl4 ratios, hydrodynamic diameter of GNPs formed from 1 - 2 mM chloroauric acid solution decrease until they reach a minimum size at around 6:1 ratio and then again increase as the ratio is increased. Interestingly, in contrast to chloroauric acid concentration less than 0.8 mM, in none of the ratios saturation is observed except a short plateau for 2 mM gold solution along 11:1 and 12:1 ratios. Moreover, the slopes for decrease and increase in diameter become steeper with increase in concentration of choloroauric acid that renders formations of large sized GNPs. Furthermore, the least hydrodynamic diameter obtained for 1, 1.2 and 1.5 mM HAuCl4 ranged between 21 - 22 nm but with 2mM concentration, it was found to be 24 nm. Also, the highest diameter of 40 nm was observed for 2 mM chloroauric acid solution (Figure 2).
Size variation of GNPs in response to various initial molarities of chloroauric acid at different TA to HAuCl4 ratios
Variation of hydrodynamic diameter of as-synthesized GNPs with respect to initial molarity of HAuCl4 has also been studied at different TA to HAuCl4 molar ratios (Figures 3 and 4). As exhibited by Figure 4, with increase in chloroauric acid concentration, the hydrodynamic diameters for ratios 2:1 and 3:1 first decrease, reach a minima at 0.8 mM concentration and again increase steeply till 1.2 mM concentration but further the rise in diameter is not sharp rather a slow growing slope is observed from 1.2 to 2 mM concentration. For each of the slope from 4:1 to 6:1 ratios, as the HAuCl4 concentration increases, first the hydrodynamic diameter decreases to reach a minimum value at 1 mM concentration and further the slope rises slowly with increasing concentration of HAuCl4. Moreover, when the TA/HAuCl4 ratio is increased from 2:1 to 6:1, a universal decrease in the hydrodynamic diameter of GNPs is seen across the choloroauric acid concentrations ranging from 0.2 to 2 mM.
As the TA/HAuCl4 ratios were further increased from 7:1 to 12:1, a common increase in the size of GNPs was observed across the range of chloroauric acid concentrations taken. For the ratios from 7:1 to 10:1, with increase in HAuCl4 concentration, the particle size was observed to decrease unless it reached minima at 0.8 or 1mM concentration and then slowly increased with increasing chloroauric acid concentration. Interestingly, at 12:1 ratio, as the HAuCl4 concentration increased although the size decreased steeply but it did not increase in sharply with further increase in chloroauric acid concentration rather increase slowly till 1.2 mM concentration and then levelled off beyond this (Figure 4).
Of note, for the same TA/HAuCl4 ratio, with different initial HAuCl4 concentrations GNPs of different diameter are produced as observed in the Figures 4 and 5.
For example, for the ratio 7:1, at the concentrations 1.2, 1.5 and 2.0, GNPs with diameter 12, 13 and 16nm are formed respectively. The results discussed above are more or less similar to the findings obtained for effect of higher gold concentrations on the synthesis of citrate mediated GNPs, although with slight variations at some instances. This may happen since TA behaves similarly to citrate as a reducing and stabilizing agent in GNP synthesis.
Figure 5. Representative TEM images of GNPs synthesized using initial chloroauric acid concentrations of 0.2, 0.5, 1 and 2 mM at tannic acid to HAuCl4 ratios of 4:1, 6:1, 9:1 and 12:1.
3.2. TEM Analysis
In order to ascertain the size pattern of GNPs obtained by DLS, TEM analysis was also done. GNP samples prepared with initial chloroauric acid concentrations of 0.2, 0.5, 1.0, and 2 mM were chosen. TEM images were captured for each of these concentrations for TA/HAuCl4 ratios of 4:1, 6:1, 9:1 and 10:1. Particle sizes were measured for each of the 16 samples (Figure 5) and a comparative study was performed with the measurements observed by DLS. The sizes measured by TEM were time and again found to be smaller than the hydrodynamic diameter measured by DLS (in solution) which was quite expected. Nevertheless, the pattern of sizes observed by TEM analysis was in well concordance with the sizes obtained by DLS.
As observed in Figure 5, samples with TA/HAuCl4 ratios 4:1, 6:1, 9:1 and 12:1 gave almost similar sizes for 0.2mM concentration with respect to corresponding 2.0 mM concentration HAuCl4 which very well match the hydrodynamic diameters exhibited by DLS. The size obtained for 0.2 mM HAuCl4 at 12:1 ratio was found to largest (36 nm) followed by the size measured for 2 mM concentration at 12:1 ratio (34.4 nm) amongst all the samples tested. The ratio 9:1 at 1mM HAuCl4 concentration exhibited the smallest size (14 nm) followed by the size obtained for 0.5 mM concentration at the same ratio and for 1 mM concentration at the ratio 6:1(17.2 nm). The sizes measured for the ratios 4:1, 6:1 and 12:1 at the concentrations 0.5, 0.2 and 1 mM respectively are observed to be almost same i.e. of 21 nm. The results obtained by TEM are in complete agreement with the sizes measured by DLS.
The data of the present study elaborate that HAuCl4 solutions exhibit two different patterns, one at a concentration below 1 mM and other with molarities higher than or equal to 1 mM with respect to TA/HAuCl4. With increasing concentration of HAuCl4, a general decrease in the size of GNPs is observed whereas the sizes obtained for HAuCl4 molarities greater than 1 mM present a different pattern; as the concentration of chloroauric acid increased, a general increase in the size of as-synthesized GNPs is observed. GNPs synthesized from HAuCl4 concentrations below 0.8 mM exhibit a minimum in their size at the ratio 4:1 followed by an increase in size which further levels off beyond the ratio 8:1. However, this trend is not followed by the size of GNPs synthesized above 1 mM concentration wherein except for a minimal saturation from ratios 10:1 to 12:1 for 2 mM concentration, all other gold solutions with molarities less than 2 mM exhibit a general pattern of first decrease in size, reaching a minimum and then increase in diameters as a function of TA/HAuCl4 ratios. So, from the results obtained in this study, it can be concluded that the higher ionic strength as a result of high molarities of HAuCl4 leave a significant impact on the size of gold nanoparticles obtained. Moreover, the findings demonstrated in the present study are very much similar to those reported earlier for gold nanoparticles synthesized using citrate under higher concentrations of gold chloride . Hence, it can be said that TA behaves similar to citrate in controlling the GNP size when higher concentrations of HAuCl4 are used. TA may render a “similar” effect since it behaves as a reducing and stabilizing agent in GNP synthesis as citrate does but the effect might not be “same” owing to the greater aggressiveness of TA as a reductant than citrate.
