Wireless Sensor Network, 2010, 2, 208-217
doi:10.4236/wsn.2010.23028 Published Online March 2010 (http://www.scirp.org/journal/wsn)
Copyright © 2010 SciRes. WSN
Modeling of Circuits within Networks by fMRI
G. de Marco, A. le Pellec
Université Paris X, Laboratoire du contrôle moteur et d’analyse du mouvement, Paris, France
E-mail: demarco.giovanni@gmail.com
Received November 24, 2009; revised December 19, 2009; accepted January 8, 2010
Abstract
In this review, the authors describe the most recent functional imaging approaches used to explore and iden-
tify circuits within networks and model spatially and anatomically interconnected regions. After defining the
concept of functional and effective connectivity, the authors describe various methods of identification and
modeling of circuits within networks. The description of specific circuits in networks should allow a more
realistic definition of dynamic functioning of the central nervous system which underlies various brain functions.
Keywords: fMRI, CNS, Modeling, Network, Effective Connectivity
1. Introduction
Imaging can be used to locate the brain areas involved in
various forms of motor behavior, attention, vision or
emotion, self-awareness and awareness of others, but
brain network modeling probably remains the greatest
challenge in the field of imaging data analysis [1].
Neuroimaging first allowed researchers to describe the
cortical and subcortical activity of regionally segregated
functional regions during a variety of experimental or
cognitive tasks. More recently, functional integration
studies have described how these functionally special-
ized areas, i.e., areas whose activity is temporally modi-
fied, interact within a highly distributed neural network.
By using functional magnetic resonance imaging (fMRI),
which has become the method most commonly used to
investigate human brain functions and define neural
populations as distributed local networks transiently,
linked by large-scale reciprocal dynamic connections [2].
After defining the concept of functional and effective
connectivity, various approaches to the identification and
modeling of circuits into networks will be presented in
order to more realistically define the dynamics of the
central nervous system which underlies various cerebral
functions. A distinction should be made between meth-
ods that only consider correlations and ignore issues of
causality and influence and methods that attempt to de-
scribe or draw inferences concerning the direction of
influence between regions. Methodological approaches
to the study of connectivity using fMRI data may be
broadly divided into those that are more data-driven and
attempt to map connectivity in the whole brain and those
that use prior knowledge or hypotheses-driven, limited to
a restricted set of regions [3]. These two categories of
analysis are described, as indicated below, as functional
connectivity and effective connectivity, respectively
[4-6]. Techniques in the first group that consider only
correlations between regions include mapping using
seed-voxel correlations. Techniques in the second group
use more elaborate models and additional assumptions
applied to calculate correlations or covariances to ad-
dress questions about directional influences and include
mapping based on structural equation modeling (SEM),
multivariate autoregressive (MAR) modeling, dynamic
causal modeling (DCM).
2. Functional and Effective Connectivity
The dichotomy between local and large-scale networks
serves as a neural basis for the key assumption that brain
functional architecture abides by two principles: func-
tional segregation and functional integration [2,3,7]. A
large-scale brain network can be defined as a set of seg-
regated and integrated regions that share strong ana-
tomical connections and functional interactions. Whether
top-down or bottom-up, connections and interactions are
quintessential aspects of networks [8,9]. Cognitive and
sensorimotor processes depend on complex dynamics of
temporally and spatially segregated brain activities.
While the segregation principle states that some func-
tional processes specifically engage well-localized and
specialized brain regions, it is now thought that brain
functions are most likely to emerge through integration
of information flows across widely distributed regions
[2,10,11]. According to this approach, it is not only iso-
lated brain areas that are presumed to process informa-
G. de Marco ET AL.209
tion but rather a large-scale network, i.e. a set of brain
regions interacting in a coherent and dynamic way.
Hence, according to the functional integration concept,
cortical areas and therefore functions are integrated
within specific dynamic networks.
This concept supposes the existence of a dynamic in-
teraction between interconnected, active areas and that
the brain areas are expressed as networks within inte-
grated systems. In such a system, localized areas are in-
cluded in networks which become dynamic according to
the cognitive task. Brain areas underlie several functions
and can belong successively to several different func-
tional networks. In other words, a given brain area does
not have a single function; its resources can be exploited
in several different cognitive strategies. The principle of
functional integration which is also known in the field of
electrophysiology was used to analyze the event poten-
tials obtained from multielectrode recordings [12]. Thus,
based on the functional integration principle, the rela-
tionships between several brain areas may be examined.
Effective connectivity, closer to the intuitive notion of
a connection, can be defined as the influence that one
neural system exerts over another, either at a synaptic
level (synaptic efficacy) or a cortical level [13,14]. This
approach emphasizes that determining effective connec-
tivity requires a causal model of the interactions between
the elements of the neural system of interest. In electro-
physiology, there is a close relationship between effec-
tive connectivity and synaptic efficacy [15]. Effective
connectivity can be estimated from linear models to test
whether a theoretical model seeking to explain a network
of relationships can actually fit the relationships esti-
mated from the observed data. In the case of fMRI, the
theoretical model is an anatomically constrained model
and the data are interregional covariances of activity
[16].
Consequently, effective connectivity represents the
dynamic influence that cortical and subcortical regions
exert on each other via a putative network of interde-
pendent areas [5,12]. This approach might be based on
linear time-invariant models that relate the time-course
of experimentally controlled manipulations to BOLD
signals in a voxel-specific fashion. Although various
statistical models have been proposed [17], these stan-
dard models treat the voxels throughout the brain as iso-
lated black boxes, whose input-output functions are
characterized by BOLD responses evoked by various
experimental conditions [18]. fMRI provides simultane-
ous recordings of activity throughout the brain evoked by
cognitive and sensorimotor challenges, but at the ex-
pense of ignoring temporal information, i.e., the history
of the experimental task (input) or physiologic variable
(signal). This is important, as interactions within the
brain, whether over short or long distances, take time and
are not instantaneous which is implicit within regression
models. Furthermore, the instantaneous state of any brain
system that conforms to a dynamic system will depend
on the history of its input.
3. Data-Driven Approaches
The first category of methods includes seed-voxel corre-
lations, Granger causality derived autoregressive models
[19], fuzzy clustering which assumes that brain voxels
can be grouped into clusters sharing similar activity pat-
terns [20–22], hierarchic0 sc0 ls0 ws3">Vol. 25, No. 5, pp. 684–694, 2007.
[34] V. D. Calhoun, et al., “Latency (in) sensitive ICA. Group
independent component analysis of fMRI data in the
temporal frequency domain,” Neuroimage, Vol. 20, No. 3,
pp. 1661–1669, 2003.
[35] M. J. Jafri, et al., “A method for functional network con-
nectivity among spatially independent resting-state com-
ponents in schizophrenia,” Neuroimage, Vol. 39, No. 4,
pp. 1666–1681, 2008.
[36] A. Hyvärinen, “Fast and robust fixed-point algorithms for
independent component analysis,” IEEE Transactions on
Neural Networks, Vol. 10, pp. 626–634, 1999.
[37] F. Esposito, et al., “Spatial independent component
analysis of functional MRI time-series: To what extent do
results depend on the algorithm used?” Human Brain
Mapping, Vol. 16, No. 3, pp. 146–157, 2002.
[38] C. F. Beckmann and S. M. Smith, “Probabilistic inde-
pendent component analysis for functional magnetic reso-
nance imaging,” IEEE Transactions on Medical Imaging,
Vol. 23, No. 2, pp. 137–152, 2004.
[39] M. J. McKeown and T. J. Sejnowski, “Independent com-
ponent analysis of fMRI data: Examining the assump-
tions,” Human Brain Mapping, Vol. 6, No. 5–6, pp.
368–372, 1998.
[40] M. J. McKeown, et al., “Analysis of fMRI data by blind
separation into independent spatial components,” Human
Brain Mapping, Vol. 6, No. 3, pp. 160–188, 1998.
[41] D. Hu, et al., “Unified SPM-ICA for fMRI analysis,”
Neuroimage, Vol. 25, No. 3, pp. 746–755, 2005.
[42] B. Hong, G. D. Pearlson, and V. D. Calhoun, “Source
density-driven independent component analysis approach
for fMRI data,” Human Brain Mapping, Vol. 25, No. 3,
pp. 297–307, 2005.
[43] M. J. McKeown, “Detection of consistently task-related
activations in fMRI data with hybrid independent com-
ponent analysis,” Neuroimage, Vol. 11, No. 1, pp. 24–35,
2000.
[44] F. T. Sun, L. M. Miller, and M. D'Esposito, “Measuring
interregional functional connectivity using coherence and
partial coherence analyses of fMRI data,” Neuroimage,
Vol. 21, No. 2, pp. 647–458, 2004.
[45] L. J. Marchini and B. D. Ripley, “A new statistical ap-
proach to detecting significant activation in funtional
MRI,” Neuroimage, Vol. 12, pp. 366–380, 2000.
[46] C. Andrew and G. Pfurtscheller, “Event-related coher-
ence as a tool for studying dynamic interaction of brain
regions,” Electroencephalography and Clinical Neuro-
physiology, Vol. 98, No. 2, pp. 144–148, 1996.
[47] J. Classen, et al., “Integrative visuomotor behavior is
associated with interregionally coherent oscillations in the
human brain,” Journal of Neurophysiology, Vol. 79, No. 3,
pp. 1567–1573, 1998.
[48] F. G. Andres, et al., “Functional coupling of human cor-
tical sensorimotor areas during bimanual skill acquisi-
tion,” Brain, Vol. 122, No. Pt 5, pp. 855–870, 1999.
[49] P. Rappelsberger and H. Petsche, “Probability mapping:
Power and coherence analyses of cognitive processes,”
Brain Topography, Vol. 1, No. 1, pp. 46–54, 1988.
[50] T. Locatelli, et al., “EEG coherence in Alzheimer's dis-
ease,” Electroencephalography and Clinical Neurophysi-
ology, Vol. 106, No. 3, pp. 229–237, 1998.
[51] K. Le Roc'h, “EEG coherence in Alzheimer disease, by
Besthorn et al.,” Electroencephalography and Clinical
Neurophysiology, Vol. 91, No. 3, pp. 232–233, 1994.
[52] C. Besthorn, et al., “EEG coherence in Alzheimer dis-
ease,” Electroencephalography and Clinical Neurophysi-
ology, Vol. 90, No. 3, pp. 242–245, 1994.
[53] N. K. Logothetis, et al., “Neurophysiological investiga-
tion of the basis of the fMRI signal,” Nature, Vol. 412,
No. 6843, pp. 150–157, 2001.
[54] V. Haughton and B. Biswal, “Clinical application of basal
regional cerebral blood flow fluctuation measurements by
fMRI,” Advances in Experimental Medicine and Biology,
Vol. 454, pp. 583–590, 1998.
[55] D. Cordes, et al., “Mapping functionally related regions
of brain with functional connectivity MR imaging,”
American Journal of Neuroradiology, Vol. 21, No. 9, pp.
Copyright © 2010 SciRes. WSN
G. de Marco ET AL.215

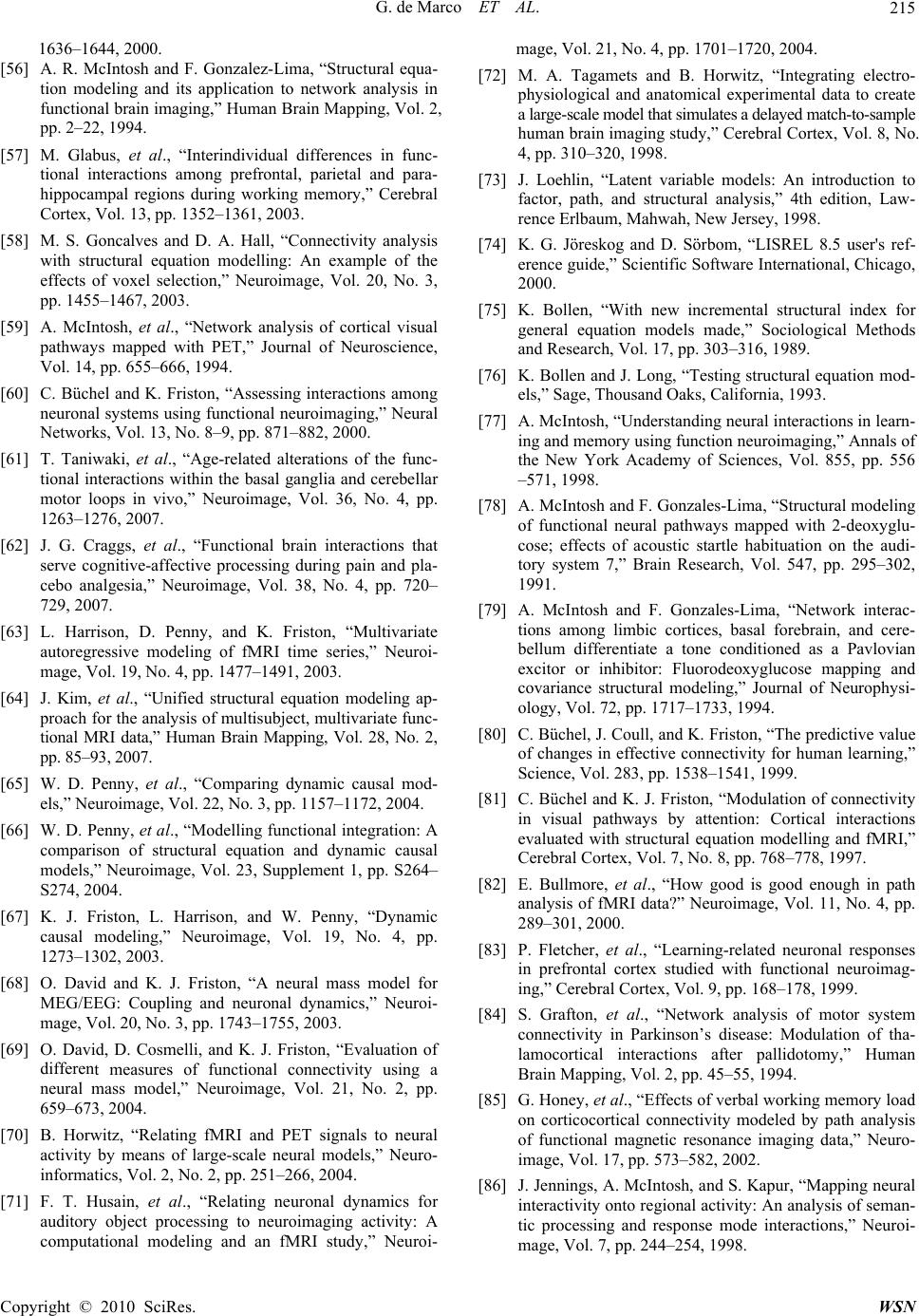

1636–1644, 2000.
[56] A. R. McIntosh and F. Gonzalez-Lima, “Structural equa-
tion modeling and its application to network analysis in
functional brain imaging,” Human Brain Mapping, Vol. 2,
pp. 2–22, 1994.
[57] M. Glabus, et al., “Interindividual differences in func-
tional interactions among prefrontal, parietal and para-
hippocampal regions during working memory,” Cerebral
Cortex, Vol. 13, pp. 1352–1361, 2003.
[58] M. S. Goncalves and D. A. Hall, “Connectivity analysis
with structural equation modelling: An example of the
effects of voxel selection,” Neuroimage, Vol. 20, No. 3,
pp. 1455–1467, 2003.
[59] A. McIntosh, et al., “Network analysis of cortical visual
pathways mapped with PET,” Journal of Neuroscience,
Vol. 14, pp. 655–666, 1994.
[60] C. Büchel and K. Friston, “Assessing interactions among
neuronal systems using functional neuroimaging,” Neural
Networks, Vol. 13, No. 8–9, pp. 871–882, 2000.
[61] T. Taniwaki, et al., “Age-related alterations of the func-
tional interactions within the basal ganglia and cerebellar
motor loops in vivo,” Neuroimage, Vol. 36, No. 4, pp.
1263–1276, 2007.
[62] J. G. Craggs, et al., “Functional brain interactions that
serve cognitive-affective processing during pain and pla-
cebo analgesia,” Neuroimage, Vol. 38, No. 4, pp. 720–
729, 2007.
[63] L. Harrison, D. Penny, and K. Friston, “Multivariate
autoregressive modeling of fMRI time series,” Neuroi-
mage, Vol. 19, No. 4, pp. 1477–1491, 2003.
[64] J. Kim, et al., “Unified structural equation modeling ap-
proach for the analysis of multisubject, multivariate func-
tional MRI data,” Human Brain Mapping, Vol. 28, No. 2,
pp. 85–93, 2007.
[65] W. D. Penny, et al., “Comparing dynamic causal mod-
els,” Neuroimage, Vol. 22, No. 3, pp. 1157–1172, 2004.
[66] W. D. Penny, et al., “Modelling functional integration: A
comparison of structural equation and dynamic causal
models,” Neuroimage, Vol. 23, Supplement 1, pp. S264–
S274, 2004.
[67] K. J. Friston, L. Harrison, and W. Penny, “Dynamic
causal modeling,” Neuroimage, Vol. 19, No. 4, pp.
1273–1302, 2003.
[68] O. David and K. J. Friston, “A neural mass model for
MEG/EEG: Coupling and neuronal dynamics,” Neuroi-
mage, Vol. 20, No. 3, pp. 1743–1755, 2003.
[69] O. David, D. Cosmelli, and K. J. Friston, “Evaluation of
different measures of functional connectivity using a
neural mass model,” Neuroimage, Vol. 21, No. 2, pp.
659–673, 2004.
[70] B. Horwitz, “Relating fMRI and PET signals to neural
activity by means of large-scale neural models,” Neuro-
informatics, Vol. 2, No. 2, pp. 251–266, 2004.
[71] F. T. Husain, et al., “Relating neuronal dynamics for
auditory object processing to neuroimaging activity: A
computational modeling and an fMRI study,” Neuroi-
mage, Vol. 21, No. 4, pp. 1701–1720, 2004.
[72] M. A. Tagamets and B. Horwitz, “Integrating electro-
physiological and anatomical experimental data to create
a large-scale model that simulates a delayed match-to-sample
human brain imaging study,” Cerebral Cortex, Vol. 8, No.
4, pp. 310–320, 1998.
[73] J. Loehlin, “Latent variable models: An introduction to
factor, path, and structural analysis,” 4th edition, Law-
rence Erlbaum, Mahwah, New Jersey, 1998.
[74] K. G. Jöreskog and D. Sörbom, “LISREL 8.5 user's ref-
erence guide,” Scientific Software International, Chicago,
2000.
[75] K. Bollen, “With new incremental structural index for
general equation models made,” Sociological Methods
and Research, Vol. 17, pp. 303–316, 1989.
[76] K. Bollen and J. Long, “Testing structural equation mod-
els,” Sage, Thousand Oaks, California, 1993.
[77] A. McIntosh, “Understanding neural interactions in learn-
ing and memory using function neuroimaging,” Annals of
the New York Academy of Sciences, Vol. 855, pp. 556
–571, 1998.
[78] A. McIntosh and F. Gonzales-Lima, “Structural modeling
of functional neural pathways mapped with 2-deoxyglu-
cose; effects of acoustic startle habituation on the audi-
tory system 7,” Brain Research, Vol. 547, pp. 295–302,
1991.
[79] A. McIntosh and F. Gonzales-Lima, “Network interac-
tions among limbic cortices, basal forebrain, and cere-
bellum differentiate a tone conditioned as a Pavlovian
excitor or inhibitor: Fluorodeoxyglucose mapping and
covariance structural modeling,” Journal of Neurophysi-
ology, Vol. 72, pp. 1717–1733, 1994.
[80] C. Büchel, J. Coull, and K. Friston, “The predictive value
of changes in effective connectivity for human learning,”
Science, Vol. 283, pp. 1538–1541, 1999.
[81] C. Büchel and K. J. Friston, “Modulation of connectivity
in visual pathways by attention: Cortical interactions
evaluated with structural equation modelling and fMRI,”
Cerebral Cortex, Vol. 7, No. 8, pp. 768–778, 1997.
[82] E. Bullmore, et al., “How good is good enough in path
analysis of fMRI data?” Neuroimage, Vol. 11, No. 4, pp.
289–301, 2000.
[83] P. Fletcher, et al., “Learning-related neuronal responses
in prefrontal cortex studied with functional neuroimag-
ing,” Cerebral Cortex, Vol. 9, pp. 168–178, 1999.
[84] S. Grafton, et al., “Network analysis of motor system
connectivity in Parkinson’s disease: Modulation of tha-
lamocortical interactions after pallidotomy,” Human
Brain Mapping, Vol. 2, pp. 45–55, 1994.
[85] G. Honey, et al., “Effects of verbal working memory load
on corticocortical connectivity modeled by path analysis
of functional magnetic resonance imaging data,” Neuro-
image, Vol. 17, pp. 573–582, 2002.
[86] J. Jennings, A. McIntosh, and S. Kapur, “Mapping neural
interactivity onto regional activity: An analysis of seman-
tic processing and response mode interactions,” Neuroi-
mage, Vol. 7, pp. 244–254, 1998.
Copyright © 2010 SciRes. WSN
G. de Marco ET AL.
216

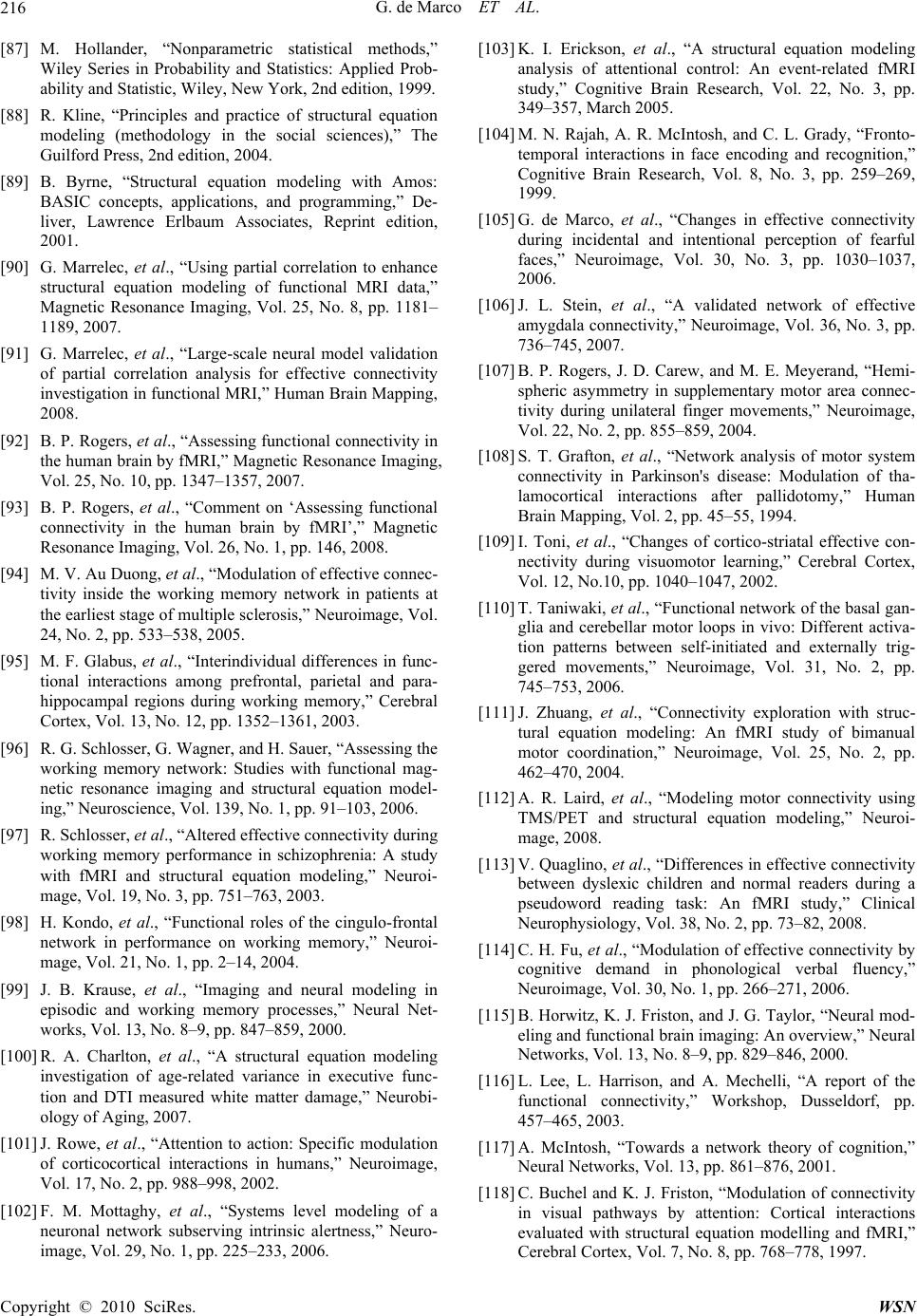

[87] M. Hollander, “Nonparametric statistical methods,”
Wiley Series in Probability and Statistics: Applied Prob-
ability and Statistic, Wiley, New York, 2nd edition, 1999.
[88] R. Kline, “Principles and practice of structural equation
modeling (methodology in the social sciences),” The
Guilford Press, 2nd edition, 2004.
[89] B. Byrne, “Structural equation modeling with Amos:
BASIC concepts, applications, and programming,” De-
liver, Lawrence Erlbaum Associates, Reprint edition,
2001.
[90] G. Marrelec, et al., “Using partial correlation to enhance
structural equation modeling of functional MRI data,”
Magnetic Resonance Imaging, Vol. 25, No. 8, pp. 1181–
1189, 2007.
[91] G. Marrelec, et al., “Large-scale neural model validation
of partial correlation analysis for effective connectivity
investigation in functional MRI,” Human Brain Mapping,
2008.
[92] B. P. Rogers, et al., “Assessing functional connectivity in
the human brain by fMRI,” Magnetic Resonance Imaging,
Vol. 25, No. 10, pp. 1347–1357, 2007.
[93] B. P. Rogers, et al., “Comment on ‘Assessing functional
connectivity in the human brain by fMRI’,” Magnetic
Resonance Imaging, Vol. 26, No. 1, pp. 146, 2008.
[94] M. V. Au Duong, et al., “Modulation of effective connec-
tivity inside the working memory network in patients at
the earliest stage of multiple sclerosis,” Neuroimage, Vol.
24, No. 2, pp. 533–538, 2005.
[95] M. F. Glabus, et al., “Interindividual differences in func-
tional interactions among prefrontal, parietal and para-
hippocampal regions during working memory,” Cerebral
Cortex, Vol. 13, No. 12, pp. 1352–1361, 2003.
[96] R. G. Schlosser, G. Wagner, and H. Sauer, “Assessing the
working memory network: Studies with functional mag-
netic resonance imaging and structural equation model-
ing,” Neuroscience, Vol. 139, No. 1, pp. 91–103, 2006.
[97] R. Schlosser, et al., “Altered effective connectivity during
working memory performance in schizophrenia: A study
with fMRI and structural equation modeling,” Neuroi-
mage, Vol. 19, No. 3, pp. 751–763, 2003.
[98] H. Kondo, et al., “Functional roles of the cingulo-frontal
network in performance on working memory,” Neuroi-
mage, Vol. 21, No. 1, pp. 2–14, 2004.
[99] J. B. Krause, et al., “Imaging and neural modeling in
episodic and working memory processes,” Neural Net-
works, Vol. 13, No. 8–9, pp. 847–859, 2000.
[100]
R. A. Charlton, et al., “A structural equation modeling
investigation of age-related variance in executive func-
tion and DTI measured white matter damage,” Neurobi-
ology of Aging, 2007.
[101] J. Rowe, et al., “Attention to action: Specific modulation
of corticocortical interactions in humans,” Neuroimage,
Vol. 17, No. 2, pp. 988–998, 2002.
[102] F. M. Mottaghy, et al., “Systems level modeling of a
neuronal network subserving intrinsic alertness,” Neuro-
image, Vol. 29, No. 1, pp. 225–233, 2006.
[103] K. I. Erickson, et al., “A structural equation modeling
analysis of attentional control: An event-related fMRI
study,” Cognitive Brain Research, Vol. 22, No. 3, pp.
349–357, March 2005.
[104] M. N. Rajah, A. R. McIntosh, and C. L. Grady, “Fronto-
temporal interactions in face encoding and recognition,”
Cognitive Brain Research, Vol. 8, No. 3, pp. 259–269,
1999.
[105] G. de Marco, et al., “Changes in effective connectivity
during incidental and intentional perception of fearful
faces,” Neuroimage, Vol. 30, No. 3, pp. 1030–1037,
2006.
[106] J. L. Stein, et al., “A validated network of effective
amygdala connectivity,” Neuroimage, Vol. 36, No. 3, pp.
736–745, 2007.
[107] B. P. Rogers, J. D. Carew, and M. E. Meyerand, “Hemi-
spheric asymmetry in supplementary motor area connec-
tivity during unilateral finger movements,” Neuroimage,
Vol. 22, No. 2, pp. 855–859, 2004.
[108] S. T. Grafton, et al., “Network analysis of motor system
connectivity in Parkinson's disease: Modulation of tha-
lamocortical interactions after pallidotomy,” Human
Brain Mapping, Vol. 2, pp. 45–55, 1994.
[109] I. Toni, et al., “Changes of cortico-striatal effective con-
nectivity during visuomotor learning,” Cerebral Cortex,
Vol. 12, No.10, pp. 1040–1047, 2002.
[110] T. Taniwaki, et al., “Functional network of the basal gan-
glia and cerebellar motor loops in vivo: Different activa-
tion patterns between self-initiated and externally trig-
gered movements,” Neuroimage, Vol. 31, No. 2, pp.
745–753, 2006.
[111] J. Zhuang, et al., “Connectivity exploration with struc-
tural equation modeling: An fMRI study of bimanual
motor coordination,” Neuroimage, Vol. 25, No. 2, pp.
462–470, 2004.
[112] A. R. Laird, et al., “Modeling motor connectivity using
TMS/PET and structural equation modeling,” Neuroi-
mage, 2008.
[113] V. Quaglino, et al., “Differences in effective connectivity
between dyslexic children and normal readers during a
pseudoword reading task: An fMRI study,” Clinical
Neurophysiology, Vol. 38, No. 2, pp. 73–82, 2008.
[114] C. H. Fu, et al., “Modulation of effective connectivity by
cognitive demand in phonological verbal fluency,”
Neuroimage, Vol. 30, No. 1, pp. 266–271, 2006.
[115] B. Horwitz, K. J. Friston, and J. G. Taylor, “Neural mod-
eling and functional brain imaging: An overview,” Neural
Networks, Vol. 13, No. 8–9, pp. 829–846, 2000.
[116] L. Lee, L. Harrison, and A. Mechelli, “A report of the
functional connectivity,” Workshop, Dusseldorf, pp.
457–465, 2003.
[117] A. McIntosh, “Towards a network theory of cognition,”
Neural Networks, Vol. 13, pp. 861–876, 2001.
[118] C. Buchel and K. J. Friston, “Modulation of connectivity
in visual pathways by attention: Cortical interactions
evaluated with structural equation modelling and fMRI,”
Cerebral Cortex, Vol. 7, No. 8, pp. 768–778, 1997.
Copyright © 2010 SciRes. WSN
G. de Marco ET AL.
Copyright © 2010 SciRes. WSN
217

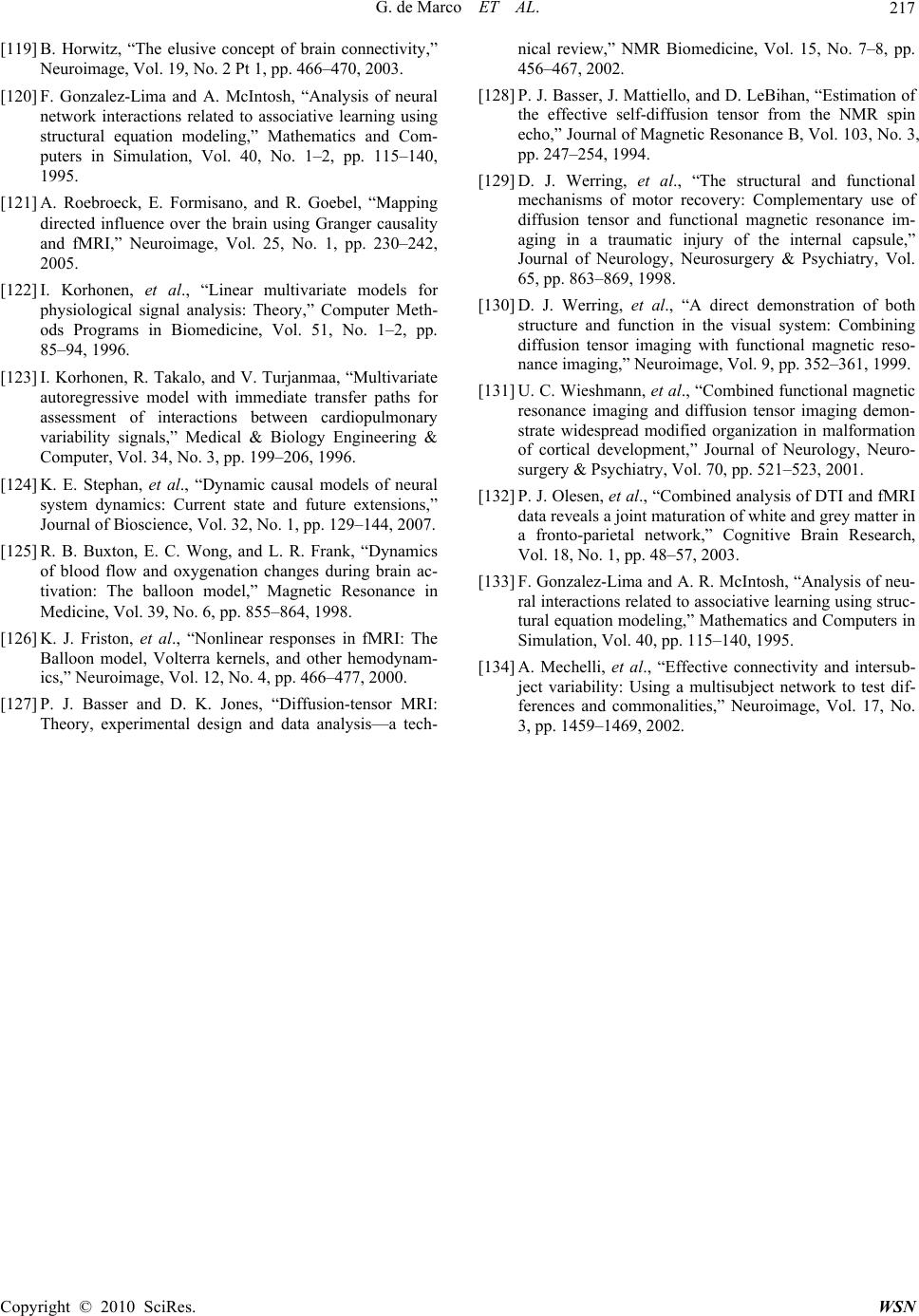

[119] B. Horwitz, “The elusive concept of brain connectivity,”
Neuroimage, Vol. 19, No. 2 Pt 1, pp. 466–470, 2003.
[120] F. Gonzalez-Lima and A. McIntosh, “Analysis of neural
network interactions related to associative learning using
structural equation modeling,” Mathematics and Com-
puters in Simulation, Vol. 40, No. 1–2, pp. 115–140,
1995.
[121] A. Roebroeck, E. Formisano, and R. Goebel, “Mapping
directed influence over the brain using Granger causality
and fMRI,” Neuroimage, Vol. 25, No. 1, pp. 230–242,
2005.
[122] I. Korhonen, et al., “Linear multivariate models for
physiological signal analysis: Theory,” Computer Meth-
ods Programs in Biomedicine, Vol. 51, No. 1–2, pp.
85–94, 1996.
[123] I. Korhonen, R. Takalo, and V. Turjanmaa, “Multivariate
autoregressive model with immediate transfer paths for
assessment of interactions between cardiopulmonary
variability signals,” Medical & Biology Engineering &
Computer, Vol. 34, No. 3, pp. 199–206, 1996.
[124] K. E. Stephan, et al., “Dynamic causal models of neural
system dynamics: Current state and future extensions,”
Journal of Bioscience, Vol. 32, No. 1, pp. 129–144, 2007.
[125] R. B. Buxton, E. C. Wong, and L. R. Frank, “Dynamics
of blood flow and oxygenation changes during brain ac-
tivation: The balloon model,” Magnetic Resonance in
Medicine, Vol. 39, No. 6, pp. 855–864, 1998.
[126] K. J. Friston, et al., “Nonlinear responses in fMRI: The
Balloon model, Volterra kernels, and other hemodynam-
ics,” Neuroimage, Vol. 12, No. 4, pp. 466–477, 2000.
[127] P. J. Basser and D. K. Jones, “Diffusion-tensor MRI:
Theory, experimental design and data analysis—a tech-
nical review,” NMR Biomedicine, Vol. 15, No. 7–8, pp.
456–467, 2002.
[128] P. J. Basser, J. Mattiello, and D. LeBihan, “Estimation of
the effective self-diffusion tensor from the NMR spin
echo,” Journal of Magnetic Resonance B, Vol. 103, No. 3,
pp. 247–254, 1994.
[129] D. J. Werring, et al., “The structural and functional
mechanisms of motor recovery: Complementary use of
diffusion tensor and functional magnetic resonance im-
aging in a traumatic injury of the internal capsule,”
Journal of Neurology, Neurosurgery & Psychiatry, Vol.
65, pp. 863–869, 1998.
[130] D. J. Werring, et al., “A direct demonstration of both
structure and function in the visual system: Combining
diffusion tensor imaging with functional magnetic reso-
nance imaging,” Neuroimage, Vol. 9, pp. 352–361, 1999.
[131] U. C. Wieshmann, et al., “Combined functional magnetic
resonance imaging and diffusion tensor imaging demon-
strate widespread modified organization in malformation
of cortical development,” Journal of Neurology, Neuro-
surgery & Psychiatry, Vol. 70, pp. 521–523, 2001.
[132] P. J. Olesen, et al., “Combined analysis of DTI and fMRI
data reveals a joint maturation of white and grey matter in
a fronto-parietal network,” Cognitive Brain Research,
Vol. 18, No. 1, pp. 48–57, 2003.
[133] F. Gonzalez-Lima and A. R. McIntosh, “Analysis of neu-
ral interactions related to associative learning using struc-
tural equation modeling,” Mathematics and Computers in
Simulation, Vol. 40, pp. 115–140, 1995.
[134] A. Mechelli, et al., “Effective connectivity and intersub-
ject variability: Using a multisubject network to test dif-
ferences and commonalities,” Neuroimage, Vol. 17, No.
3, pp. 1459–1469, 2002.
