Investigation into Failure in Mining Wire Ropes—Effect of Crystallinity ()
1. Introduction
Mining wire ropes are used for high modulus/high load bearing applications and are exposed to extreme weather conditions. The mining wire ropes are subjected to continued bending and tensile stresses and fluctuating loads, e.g., in drag rope, and shovel hoist rope applications. Historically wire ropes were made of only steel chains with a record of mechanical failure. The flaws in chain links or solid steel bars lead to catastrophic failure. Friction between the individual wires and strands, as a consequence of their twist, cause strand wear and heat resulting in accelerated rust and potential premature rope failure. Mining wire rope consists of several strands of steel wire laid (or “twisted”) into a helix featuring a 6 or 8 steel strand construction. The steel is normally made of non-alloy carbon steel with carbon content between 0.4% and 0.95%. The size and number of wires in each strand, as well as the size and number of strands in the rope greatly affect the characteristics of the rope. In general, a large number of small size wires and strands produce a flexible rope with good resistance to bending fatigue. The rope construction is important for tensile loading (static, live or shock), abrasive wear, crushing, corrosion and rotation. Plastic infusion helps achieve reduced rope fatigue from bending stresses by reducing the internal contact stresses between the strands and the core and provides improved fatigue and abrasion resistance and increased corrosion protection. A plastic-infused core provides a cushion for the outer strand and virtually eliminates interlayer contact wear. The plastic-infused core adds to the core support for the outer strands, further reducing internal stresses and promoting longer service life and under extreme conditions. Plastic-Infusion involves injecting specially engineered polymers under high temperature and pressure into the wire rope. Both the polymer and the wire rope are heated when the polymer is infused as the wire rope is drawn through specially designed dies. Passing the rope through a series of cooling troughs then solidifies the plastic. This plastic will not melt or soften from the heat of normal operating temperatures when in service and is also virtually unaffected by sunlight or cold weather during their life time (6 to 12 weeks). A set of plasticised ropes is expected to typically last between 6 - 12 weeks. Benchmark for these wire rope is identified visually as-all plastic still intact at the end of the ropes life, which only wears away due to mechanical abrasion to expose the crown of the strand (the highest point of the strand on a rope which has the thinnest plastic cover) on certain sections of the rope instead of peeling off entirely. Plastic delamination causes a hassle as it trips the machine off when the plastic pieces activate the slack rope indicator in the machine. A typical rope section is shown in Figure 1. There has been recent commercial interest in blends based on isotactic PP and polyolefins (PP-polyolefins) blends, which exhibit improved mechanical strength, tensile strength, enivironmental stress cracking, and low temperature impact properties. Homopolymer of polypropylene (PP) are used for high modulus and long exposure applications, hence find applications in mining wire ropes.
Other plastics of interest in wire ropes include, HMPE (High Modulus Polyethylene), Nylon®, Perlon® (Polyamide), Dacron®, Terylene® (Polyester), Polyolefins: Polypropylene and Polyethylene; Kevlar®, Twaron®, and Technora® (Aramid): Vectran® (LCAP—(Liquid Crystal Aromatic Polyester)): Zylon® (PBO-Poly-pphenylenebenzobisoxazole), Poly Vinyl Chloride, Low Density Poly Ethylene, High Density Poly Ethylene, P, nylon 6 (PA6), nylon 11 (PA11), polyvinylidenedifluoride and more [1]. Properties of these wire rope materials based on manufacturer’s specifications have been summarised by Barry Cordage [2].
Homopolymer of polypropylene (PP) are homogeneous with single phase, exhibiting large spherulite dimension which affect their mechanical properties adversely. However, the polymer blends/copolymers e.g., polypropylene-polyethylene (PP-PE) are immiscible in each other, and show decline in their mechanical properties due to their incompatibility. They show remarkable phase separation during crystallization. Phase segregation hastens yielding and fracture at interphase boundaries. The micro structure of the polymer matrix greatly influences the mechanical behaviour of the polymer products. Higher crystallinity leads to brittle fracture in polymers as opposed to the amorphous nature of the polymer. The factors affecting the crystallinity include the polymer processing, e.g., during polymer extrusion the slow cooling or the rapid cooling greatly affects the crystallinity in polymers [3]. In this study we focus on if the crystallinity behaviour of the polypropylene-polyethylene blend affects the performance of the mining wire ropes.
2. Objectives
The present study involves the characterisation of a set of plastic component of the mining wire ropes to correlate
their performance characteristics. Following properties are investigated in this study:
• Chemistry of the bulk plastic used in wire rope
• Crystallinity
• Morphology
3. Experimental
3.1. Samples
The Moly-Cop Ropes supplied the mining wire rope samples and the information on their mechanical performance as listed below: wire rope A > wire rope B > wire rope C - wire rope D > wire rope E. The manufacturers of these wire ropes have not released chemical compositions, structures of these wire ropes.
3.2. ATR-FTIR Measurements
The chemical composition and the crystallinity of the plastic component of the mining wire ropes were studied using Perkin Elmer Spotlight 400 FTIR Microscope, a Fourier Transform Infrared (FTIR) spectrometer fitted with Harrick Grazing Angle ATR accessories. This technique probes the surface of a sample (up to 2 microns deep) with infrared energy of varying wavelengths. The detection limit of IR has been noted to be between 2% and 3% by weight of the total analysed sample. The technique allows transmittance or absorbance to be measured. The spectra were accumulated for 4 scans at a resolution of 4 cm−1 over the spectral range 500 - 4000 cm−1 at ambient temperature.
3.3. Scanning Electron Microscope (SEM) Tests
The morphology and X-ray microanalysis of the samples were studied using Hitachi S3400 SEM. These instruments are fitted with secondary and backscatter electron detectors that allow for topographic and compositional (atomic number contrast) surface imaging of samples. Samples were carbon coated to render them more conductive.
4. Results and Discussions
4.1. Chemistry of the Bulk Plastic Used in Wire Rope
Figure 2 shows the ATR-FTIR spectra of all the samples between 4000 - 650 cm−1. Figures 3-5 highlight different spectral regions of significance. The samples were identified to be comprised of copolymer of polyethylene (PE) and isotactic polypropylene (PP) based on the characteristic peaks of PP and PE presented in Tables 1 and 2.
The CH3 bands at 2958 cm−1, 2885 cm−1 and 1380 cm−1, the CH2 bands at 2838 cm−1 and 1461 cm−1, and the
Figure 2. FTIR spectra of all the samples studied.

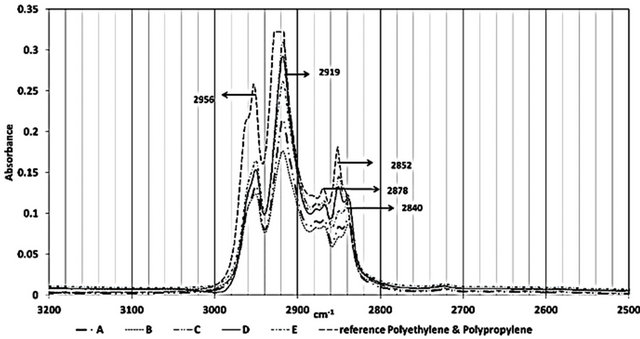

Figure 3. FTIR spectral region between 3200 and 2500 cm−1 of all the samples studied
Figure 4. FTIR Spectral region between 1600 and 1000 cm−1 of all samples
three isotactic bands at 1165 cm−1, 997 cm−1 and 977 cm−1 confirmed the presence of the isotactic polypropylene component in all the wire ropes studies. The presence of following CH2 bands at 2917 cm−1, 2860 cm−1, 1464 cm−1 and 718 cm−1, and the CH3 band at 731 cm−1, and 1379 cm−1 confirmed the presence of polyethylene component of these wire ropes. A reference spectra of PE-PP from FTIR library is included in the figures to corroborate the presence of PP-PE in the wire samples.
Figure 5. FTIR Spectral region between 1100 and 600 cm−1 of all samples
Table 1. Assignment of IR absorption peaks for PP1,15.

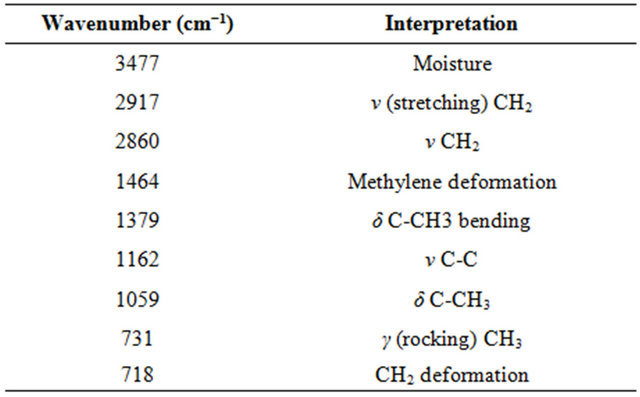

Table 2. Assignment of IR Absorption Peaks for PE16.
4.2 Crystallinity
4.2.1. Crystallinity of Polypropylene
Crystallinity, Xc, for isotactic polypropylene can be evaluated considering a crystalline peak at 841 cm−1 and a peak insensitive to phase content, at 973 cm−1 using Lambert and Beer’s law [4,5] (Figure 6).
The relative areas of the absorption bands for the groups of interest in the spectra can be quantified using Equation (1).
(1)
Acr = absorbancies of crystalline fraction Aav = absorbancies of peak insensitive to phase content aav = absorptivities of peak insensitive to phase content acr = absorptivities of crystalline fraction.
For isotactytic polypropylene av = 973 cm−1, cr = 841 cm−1 and a973/a841 = 0.57. The crystallinity determined using Equation (1) is presented in Figure 7.
The crystallinity, Xc, for isotactic polypropylene of the wire ropes showed following trend: B < E < C < A < D. The evolution of crystallinity and the associated mechanical properties during polymer processing in the extruded polymer samples are attributed to different cooling rates. The crystallinity increases when the polymer sample is slow cooled [3]. It is believed that in slow cooling, the polymer chains are exposed near the maximum crystallization temperature for a longer period, and therefore, the crystallization is activated. In fast cooling, the polymer melt go through the maximum crystallization temperature very quickly, leaving most of the molecular chains in amorphous form. What this means is higher crystallinity results in a harder and more thermally stable, but also more brittle material, whereas the amorphous regions provide certain elasticity and impact resistance. Samples cooled slowly from the melt state, form larger and denser microstructures. Based on the mechanical performance trend of the samples, where sample A performed better than sample B showing following trend, A > B > C - D > E, the trend observed in the crystallinity, Xc of the samples could not be correlated with the performance trend.
Figure 6. Crystalline and amorphous region in Polypropylene for different samples.
Figure 7. Crystallinity in various wire ropes tested.
4.2.2. Crystallinity of Polyethylene
Crystallinity of Polyethylene is estimated from the ratio of 731 cm−1 to 719 cm−1 absorbancies (ASTM D5576). Figure 8 represents the crystalline and amorphous region of PE. The crystallinity in PE is given by A731/A719. Figure 8 shows samples A, D and C to contain higher amorphous content than the crystalline phase. Samples E and B also show higher amorphous content than the crystalline content but only slightly higher. Again the performance trend of the wire ropes and the trend observed in the PE crystallinity could not be correlated.
4.2.3. Percent Polypropylene in the Sample
Though the samples were identified to be copolymer of PP and PE, the ratio of the PP and PE in the wire rope samples have not been released. In order to investigate if the PP:PE could have bearing on the mechanical performance of the wire ropes, the proportion of polypropylene (PP) in the copolymer (Figures 9 and 10) was determined using the ATR-FTIR technique. The relative ratio of the absorbance (integrated area) of two peaks in the rocking wagging region, a peak at 1168 cm−1 characteristic for methyl group wagging in PP and a peak at 720 cm−1 arising from ethylene rocking and typical for HDPE were chosen [6,7].
The PP content is estimated using the expression A1168/(A1168 + A720).
The results show that the sample E exhibited the high-
Figure 8. Figure crystalline and amorphous region in polyethylene.
Figure 9. Polypropylene and polyethylene regions.
est PP content compared to the other samples, followed by sample B and A leading to the proposition that the amount of PP could perhaps affect the performance of these wire ropes, that is high PP content as found in sample E could lead to the early failure in these samples.
Crystallinity in PP was plotted against % PP to determine the effect of PP content of the matrix on the crystallinity (Figure 11). A general decreasing trend in crystallinity was observed as the % PP increased.
4.2.4. Scanning Electron Microscope (SEM) Test
SEM images of sample E shown in Figures 12(a) and (b) appear to be flaky, non-compatibilized exhibiting broken texture with large crystallites.
On the contrary, the SEM images of sample A and B, Figures 13 and 14 appear to be orderly, uniformly distributed with smaller spherulite structures. Sample A exhibited smaller spherulite structures than sample B and E.
4.3 Effect of % PP in Matrix
The results indicate that perhaps the PP content of the matrix could be responsible for the observed differences in the behaviour in different mining wire ropes. In the present study it is observed from the SEM images (Figures 12-14) that as the % PP increased, the spherulite size increased, the crystallinity (Figure 11) decreased and the overall performance of the mining rope deteriorated.
High modulus applications of homopolymer of polypropylene exhibiting homogeneous single phase, is limited by their large spherulite dimension affecting their mechanical properties adversely. This has led to a great deal of commercial interest In recent years in blends based on isotactic polypropylene and other polyolefins in nature due to improved mechanical strength, tensile strength, enivironmental stress cracking, low temperature impact properties exhibited by these blends.
The PP and PE blends are generally known to be incompatible [8,9] due to their crystallinities preventing their complete homogeneous blending. Decrease in me
Figure 11. Crystallinity vs. % polypropylene.
(a)
(b)
(c)
Figures 12. Morphology of sample E showing non-compatibilized sample rupture, wide voids and gaps.
chanical properties, including impact strength, strain at break and ductile to brittle transition, especially related to morphology are attributed to the strong phase separation leading to a coarse phase structure and low interfacial adhesion between the two phases. Previous studies on mechanical properties of the PE-PP blends reveal direct
Figure 13. SEM image of surface of sample B.
Figure 14. SEM image of surface of sample A.
correlation between the morphology and the tensile properties, the spherulite size and the crystallinity being controlled by the PE-PP ratio. The impact strength and adhesion are improved when the particles are smaller with narrower particles size distributions, and when there is stronger adhesion between particle and the matrix [10- 17]. Lovinger and Williams [18] correlated the morphological effects, such as spherulite sizes, inter crystalline links between lamellae, and the detailed structure of the two incompatible phases and of their mutual boundaries, with the tensile behaviour of PE/PP blends. They reported deterioration of mechanical properties as a result of incompatibility and phase segregation which hastens yielding and fracture at interphase boundaries. Studies have shown that yield stress and ultimate strength are improved with decreasing spherulite size, primarily because yielding and failure are commonly initiated at inter spherulitic boundaries. The PE in the blends reduce the average spherulite size, increase the overall crystallinity, promoting formation of intercrystalline links, and increases modulus and strength [13,19-21].
Padden and Keithz [22,23] have shown that in contrast to PE in which there is a very high density of inter crystalline links, PP has only a few such links, primarily because of the slow growth of its spherulites. In this manner, and because of its higher crystallinity and its role in reducing spherulite sizes, PE functions as a stiffener for the PP matrix. It is reported that a higher PP content in a blend leads to a higher void fraction compared to samples with a lower PP content [24,25].
In present study the higher PP content in the sample E, with lower crystallinity but larger spherulite size is determined to be contributing to the observed early failure, as well as the higher void fraction compared to samples with lower polypropylene content (e.g., samples A and B).
5. Conclusion
The study pertaining to failure in mining wire ropes revealed all the samples were made of copolymer of polyethylene and Polypropylene, with different PP:PE content. Sample E exhibited higher polypropylene content, lower crystallinity and bigger spehrulite size compared to the other samples. The SEM results showed highly ruptured and segregated morphology for sample E. SEM images of samples A and B with lower % PP are ordered/ homogenised and well plasticised with uniformly distributed microcellular structures. Even though the crystallinity (crystalline content) results from FTIR study of all the samples appear to be comparable and not correlated to their performance characteristics, the spherulite size of samples could be directly correlated to their performance behaviour. The % PP had direct influence on the spherulite size with higher % PP showing larger spherulite structure and lower crystallinity while the higher PE content increased the crystallinity of the samples. It is concluded the larger spherulite size of sample E compared to the samples A and B, which showed smaller spherulite structures and relatively homogenised morphology samples contributes to the early failure in the sample E, as the higher PP content increases the viscosity and void fraction in samples. Performance characteristics of samples A and B are superior to sample E attributable to higher PE content resulting in smaller spherulite size. It is also concluded that sample with 50:50 PP: PE performed the best (sample A), where the microcellular structure uniformly distributed.
