Abstract

We study the distribution of quasars on the celestial sphere according to ground-based SDSS and space-based WISE and Gaia observations. All distributions as a function of galactic latitude, b, exhibit a decrease in quasar frequency well outside the dust in and near the galactic plane. We prove that the observed decrease in quasar frequency at high galactic latitudes is not accompanied by reddening, meaning that it can not be caused by dust. The scattering of light by the circumgalactic gas is negligible because the Thomson scattering cross section is very small. We conclude the observed scattering of light must be caused by dark matter in the galactic halo. We determine the mass and charge of dark matter particles. If the dark matter particle is a fermion its mass, $m_{DM}$ and charge $e_{DM}=\delta e$ , where e is the elementary charge are: $m_{DM}=3.2\times {10}^{-2}$ eV and $\delta =3.856\times {10}^{-5}$ . If however the dark matter particle is spinless then: $m_{DM}=0.511$ eV and $\delta =2.132\times {10}^{-4}$ . These values for the charge of a dark matter particle are orders of magnitude higher than the upper limit of the neutrino charge according to laboratory experiments. Consequently, dark matter particles are not charged neutrinos. Since dark matter particles are charged, they must emit and absorb electromagnetic radiation. However, $P_{DM}~{\delta }^2$ , or: $P_{DM}~1.487\times {10}^{-9}{P}_e$ , where $P_e$ is the power output of a single electron.

Keywords

Milky Way Dark Matter Halo (1049)

Share and Cite:

1. Introduction

This work has three primary objectives: 1) to determine why the observed distribution of quasars on the celestial sphere is highly anisotropic, 2) to demonstrate that the extinction of light is taking place in the halo of the Milky Way, and 3) to ascertain what component of the galactic halo is the cause of the observed extinction.

Our results are based on the following observations and assumptions: 1) the observed distribution of quasars as a function of galactic latitude, b. 2) The assumption that quasars are distributed homogeneously in space. 3) The galactic halo contains only stars, hot plasma, dark matter and dust. 4) We provisionally assume that dark matter neither absorbs nor emits light.

Our approach to accomplish our three primary objectives is to first develop a theoretical expression, which allows us to compute the expected isotropic distribution of quasars. We then compare the theoretical isotropic distributions with observations of the distribution of quasars on the celestial sphere, which are highly anisotropic. We conclude that the discrepancy between theory and observation is caused by the extinction of quasar light. We then investigate a number of circumstances, which could possibly cause the extinction.

Extinction consists of absorption plus scattering of light. All observational evidence to date, suggests that dark matter neither absorbs nor emits light. So what happens when visible photons collide with dark matter particles? Below we present evidence that the light is scattered, that is, it is responsible for the observed extinction of quasar light.

It is known that matter in local spaces of the universe is not homogeneously distributed. It occurs in spatially limited structural units—galaxies, clusters of galaxies and superclusters, which are separated by voids. It is however thought that if one considers large spaces with redshift, $z>0.2$ , then the matter in the universe is homogeneously distributed. However, it is difficult to confirm homogeneity because there are very few types of celestial sources that can be detected at such distances. One type that can be is quasars.

Gattano et al. [1] found that quasars appear not to be isotropically distributed on the celestial sphere. This result was obtained by dividing their data into rather large intervals of 10˚. They explicitly noted that their results were chiefly based on ground-based data that are severely limited by the lack of observations from the southern hemisphere. In our study of the distribution of quasars on the celestial sphere, we use much larger data sets, which allows us to divide the data into intervals of 0.1˚. In addition to ground-based observations from SDSS we also analyze space-based observations from both the WISE and Gaia spacecraft. The space-based data shows that the observed distribution of quasars on the celestial sphere is highly anisotropic.

However, one of the basic assumptions that standard cosmological theory is based on is: The matter in the universe is homogeneously distributed. If this assumption can be shown to be incorrect, then the current widely accepted theory of cosmology must be revised or even discarded. Thus, it is crucially important that it be demonstrated that this assumption is indeed correct.

We see that theory demands that quasars be distributed is otropically on the celestial sphere, whereas observations show they are not. How are we going to resolve this discrepancy between theory and observations? To make clear our answer to this question, we present a well known historical analogy. In the geocentric theory the assumption is made that the observed daily solar motion across the sky is real. Aristarchus of Samos however maintained in his heliocentric theory that the observed diurnal solar motion is apparent motion caused by the rotation of the earth. Similarly, we show below that the observed anisotropic distribution of quasars on the celestial sphere is apparent and does not correspond to the real homogeneous distribution that one would observe from intergalactic space. What then is the cause of the apparent anisotropic distribution of quasars that is actually observed? The extinction of quasar light in the galactic halo, which distorts the original isotropic distribution.

The above shows that the main topics touched on in our investigation are: Galactic extinction, the spatial distribution of quasars and the cosmological principle, which asserts that the matter in the universe is homogeneously and isotropically distributed on large scales. In addition our investigation will involve the question of whether alternate gravitational theories, that are employed to explain many of the phenomenon associated with dark matter, are tenable. Finally, our work concerns dark matter particles, specifically the scattering of light by dark matter particles.

Extinction in the Milky Way has been studied extensively by Green et al. [2]. Previously, Schlegel et al. [3] created two-dimensional maps of reddening due to dust. Their work was followed by a number of authors, who improved the high galactic latitude portion, namely: York et al. [4], Schlafly et al. [5], Peek & Graves [6], Jones et al. [7], Schlafly & Finkbeiner [8], Peek & Schiminovich [9], Yuan et al. [10] and Wang & Jiang [11]. In addition Pelgrims [12] has investigated the influence of Galactic dust on the polarization of quasar radiation. The extinction considered by these authors is caused by Galactic dust, which is always accompanied by reddening. Below we show that the observed extinction of quasar light is not caused by dust.

The spatial distribution of quasars has been investigated by Pâris et al. [13], Gattano et al. [1], Pilipenko [14] and Dravskikh & Dravskikh [15]. Hartwick & Schade [16] reviewed the space distribution of quasars and Arp [17] pointed out that bright quasars are concentrated in the direction of the local group.

The cosmological principle has been discussed by Zhao & Santo [18], who found that angular anomalies in cosmological data are not due to a violation of the cosmological principle, but appear to be associated with the motion of our local group of galaxies relative to the cosmic microwave background. Marocco & Eisenhardt [19] found that the galaxy distribution, as traced by luminous red galaxies, appears to be isotropic to every comoving observer in the universe if the averaging scale is larger than a specific value. Maartens [20] emphasizes that homogeneity cannot be confirmed via observations because all astronomical data is light-cone based, whereas isotropy can be confirmed by observations. Observationally, Pelgrims [21] argues that the polarization of quasar radiation can be employed to explore the validity of the isotropic principle. In our investigation we do not contribute to the discussion of the cosmological principle, homogeneity and isotropy rather instead we assume their validity.

The existence or reality of dark matter has been debated for many decades. For a review see: Bertone & Tait [22]. Alternative gravitational theories, which do not invoke the existence of dark matter, have successfully explained many of the gravitational effects commonly associated with dark matter (Milgrom [23], Miller & Bregman [24], Moffat [25], Brownstein & Moffat [26], Ghaffarnejad & Dehghani [27], Milgrom [23] [28]). In particular they explain the rotational curves of hundreds of spiral galaxies and the Tully-Fisher relationship between the luminosity and rotational velocity of spiral galaxies. The most successful relativistic alternative gravitational theory was published by Bekenstein [29]. It is commonly referred to as the Tensor-Vector-Scalar (TeVeS) theory. TeVeS appears to successfully explain gravitational lensing and specific cosmological problems such as structure formation and the cosmological microwave background.

Kroupa [30] [31] and Kroupa et al. [32] pointed out that a number of observational tests contradict the standard cosmological model, which assumes the existence of dark matter. In 2016 two papers were published which gave strong support to alternative gravitational theories. López-Corredoira & Kroupa [33] found a correlation between the number of tidal dwarf satellite galaxies as a function of the bulge index in agreement with alternative gravitational theories and in disagreement with the prediction of dark matter theory. McGaugh et al. [34] found a strong correlation between the radial acceleration associated with rotation curves and the observed distribution of baryonic mass without invoking the existence of dark matter.

In general alternative gravitational theories are chiefly viable because of the failure to detect dark matter particles in the laboratory despite decades of effort with over twenty experiments (Bekenstein [29], Graham et al. [35], Kamaha [36], Undagoitia & Rauch [37], Irastorza & Redondo [38], Schumann [39], Heros [40]). Alternative gravitational theories explain this failure by simply maintaining that dark matter does not exist. Our investigation contributes to this debate in that it presents observational data, which indicates that dark matter scatters light.

In the literature Bertone et al. [41], Bertone & Hooper [42], Bertone & Tait [22] many non-baryonic dark matter candidates are being or have been discussed: Standard model axions (Safarzadeh & Spergel [43], Glennon et al. [44]), neutrinos and sterile neutrinos. In addition there are the supersymmetric candidates: Neutralinos, Sneutrinos, Gravitinos and Axinos. We have mentioned only some of the most popular candidates. There are many more candidates. Today, however, the leading class of dark matter candidates is weakly interacting massive particles, WIMPs, Arcadi et al. [45]. Most of these dark matter candidates have in common is that they do not participate in the electromagnetic interaction. However, it has been suggested that they may be mini-charged dark matter (Alexander et al. [46], Cline et al. [47], Munoz & Loeb [48]). In this work we attempt to answer some of the fundamental questions associated with dark matter particles: What are their charge, mass and spin?

Even though to date the scattering of light by dark matter particles has not been demonstrated, nevertheless the hypothetical non-zero photon-dark matter cross section has been discussed by Cline et al. [47], Davis & Silk [49], Wilkinson et al. [50], McDermott et al. [51] and Foot & Volkas [52]. Below we present the first observational evidence of the interaction of dark matter and light.

2. Theory

The assumption that matter in the universe is distributed homogeneously means that it must also be isotropically distributed. Thus, independent of the direction we observe, we should see the same number of quasars/deg². We will derive a mathematical expression in spherical coordinates, which expresses this circumstance. But, first we start with a more general expression, which assumes that quasars are anisotropically distributed on the celestial sphere. From the well-known expression for the differential surface area on a sphere it is clear that the differential number of quasars, dn, on the celestial sphere is given by:

$\text{d}n=\zeta \left(\mu ,\nu \right)\frac{n}{4\pi }\sin \left(\mu \right)\text{d}\mu \text{d}\nu ,$ (1)

where μ is the polar angle and ν, the azimuthal angle. Integration over the entire sphere gives n, which is the total number of quasars in the sample. Equation (1) applies to the general case of an anisotropic distribution. The anisotropy is described mathematically via the function, $\zeta \left(\mu ,\nu \right)$ . The special case of a homogeneous distribution is given when $\zeta \left(\mu \mathrm{,}\nu \right)=1$ . In this case Equation (1) becomes:

$\text{d}n=\frac{n}{4\pi }\sin \left(\mu \right)\text{d}\mu \text{d}\nu .$ (2)

We want to compare this differential equation with observations, which are expressed in finite intervals. So we must integrate Equation (2). To facilitate this we introduce two auxiliary quantities, ∆ and m. The first quantity, ∆, is the size of the finite interval, which we set at 0.1˚. The second quantity, m, is an integer. It represents the finite interval under consideration. The polar coordinate possesses the range: $-{90}^{\circ }\le \mu \le {90}^{\circ }$ , so $1\le m\le 1800$ . Integration of Equation (2) for the distribution in polar coordinate, μ, yields:

$\frac{n}{4\pi }{\displaystyle {\int }_0^{2\pi }}{\displaystyle {\int }_{m\Delta }^{m\Delta +\Delta }}\sin \left(\mu \right)\text{d}\mu \text{d}\nu =\frac{n}{2}\cos \left(m\Delta \right)-\frac{n}{2}\cos \left[\left(1+m\right)\Delta \right]\mathrm{.}$ (3)

Summing over all intervals leads to the total number of sources in the dataset:

${\displaystyle \sum _1^{1800}}\frac{n}{2}\cos \left(m\Delta \right)-\frac{n}{2}\cos \left[\left(1+m\right)\Delta \right]=n\mathrm{.}$ (4)

As an example, the right side of Equation (3) is plotted in Figure 1 for the

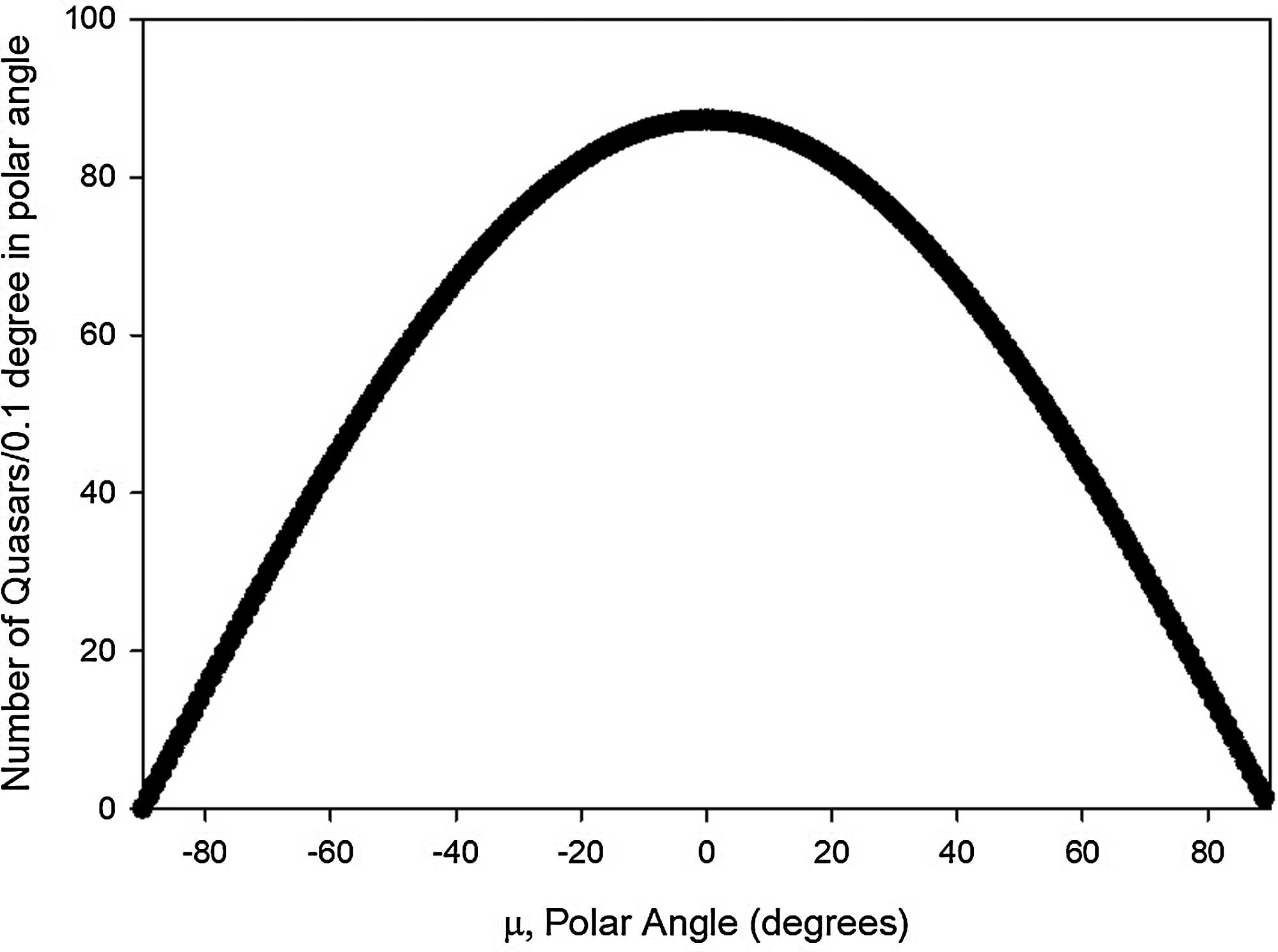

Figure 1. Theoretical Quasar Distribution Assuming Homogeneity.

case of $n=100000$ . This plot represents the theoretical distribution assuming isotropy and it is independent of the spherical coordinate system employed. If we do not have isotropy, $\zeta \left(\mu \mathrm{,}\nu \right)\ne 1$ , then $\zeta$ will be different in the various spherical coordinate systems. Most importantly, Figure 1 shows that the beginning and end of the distribution is practically a straight line. We will use this circumstance below to compute the expected theoretical isotropic distributions for the SDSS, WISE and Gaia datasets.

3. Observations

The black filled circles in Figure 2 show the distribution of the quasars from the Sloan Digital Sky Survey (SDSS) as a function of galactic latitude, b. $n=1373629$ ground-based observations of quasars from SDSS, as compiled in the MILLIQUAS—Million Quasars Catalog, Version 6.2, Flesch [53], which includes SDSS-DR15 (Aguado et al. [54]) were used in Figure 2. Striking is the lack of quasars around $b\approx 0^{\circ }$ . This is due to galactic extinction and to the lack of observations in the southern sky. In addition we note that the figure is highly asymmetric relative to $b=0^{\circ }$ . This is due to the paucity of observations in the southern sky. Finally, we note that the number of quasars starts decreasing at a galactic latitude much larger than $b={15}^{\circ }$ , which is the limit of extinction caused by dust.

Depicted in Figure 3 is the quasar distribution as a function of galactic latitude, b, according to Gaia observations. The black filled circles in Figure 3 show the distribution of 555,934 quasars from DR-2 (Brown et al. [55], Andrae et al. [45], Arenou et al. [56]). Dominant is galactic extinction, which leads to no quasars on the galactic equator. Thus, the theoretical curve will not match observations,

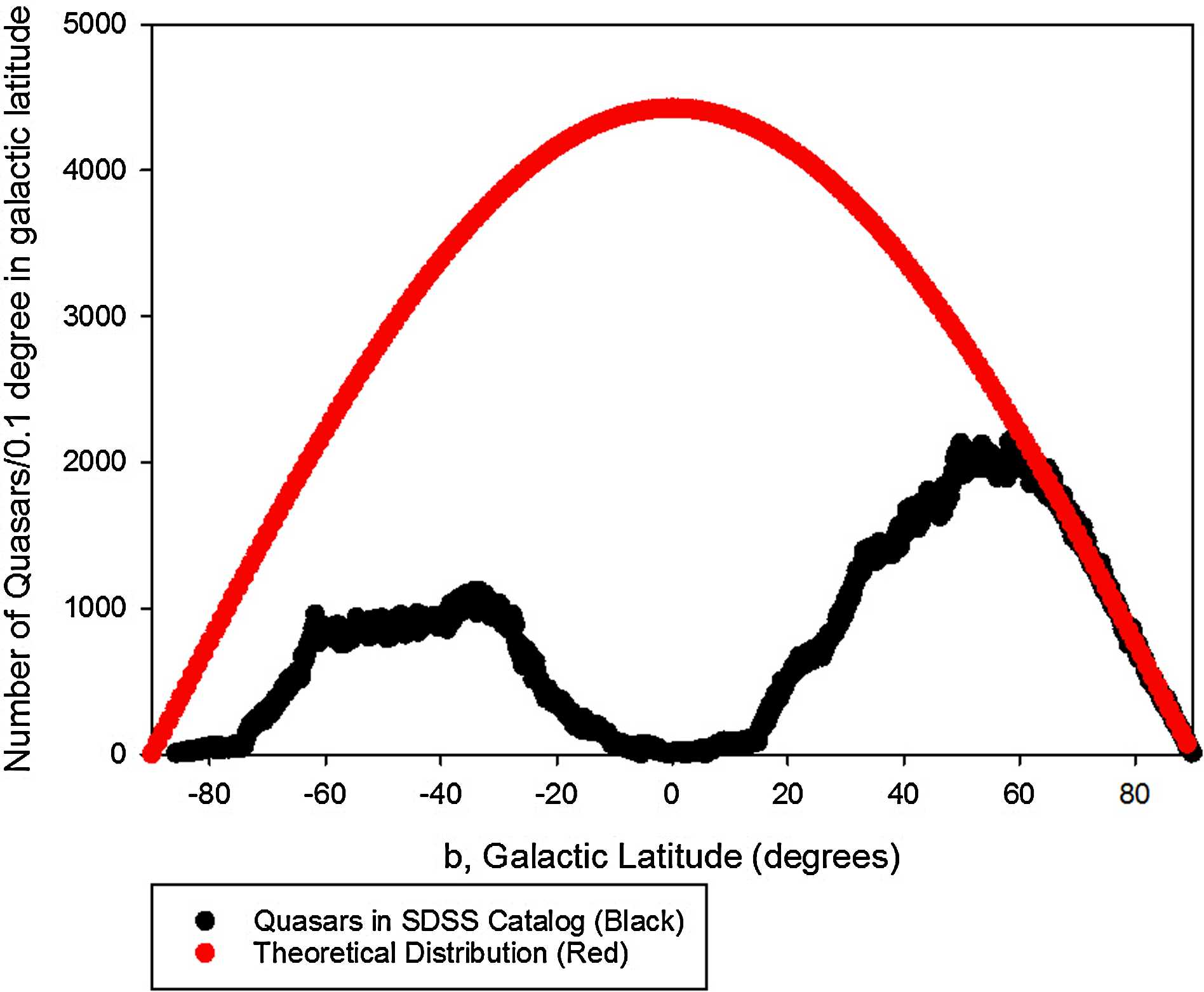

Figure 2. Quasars in SDSS DR-15 Catalog vs. Galactic Latitude.

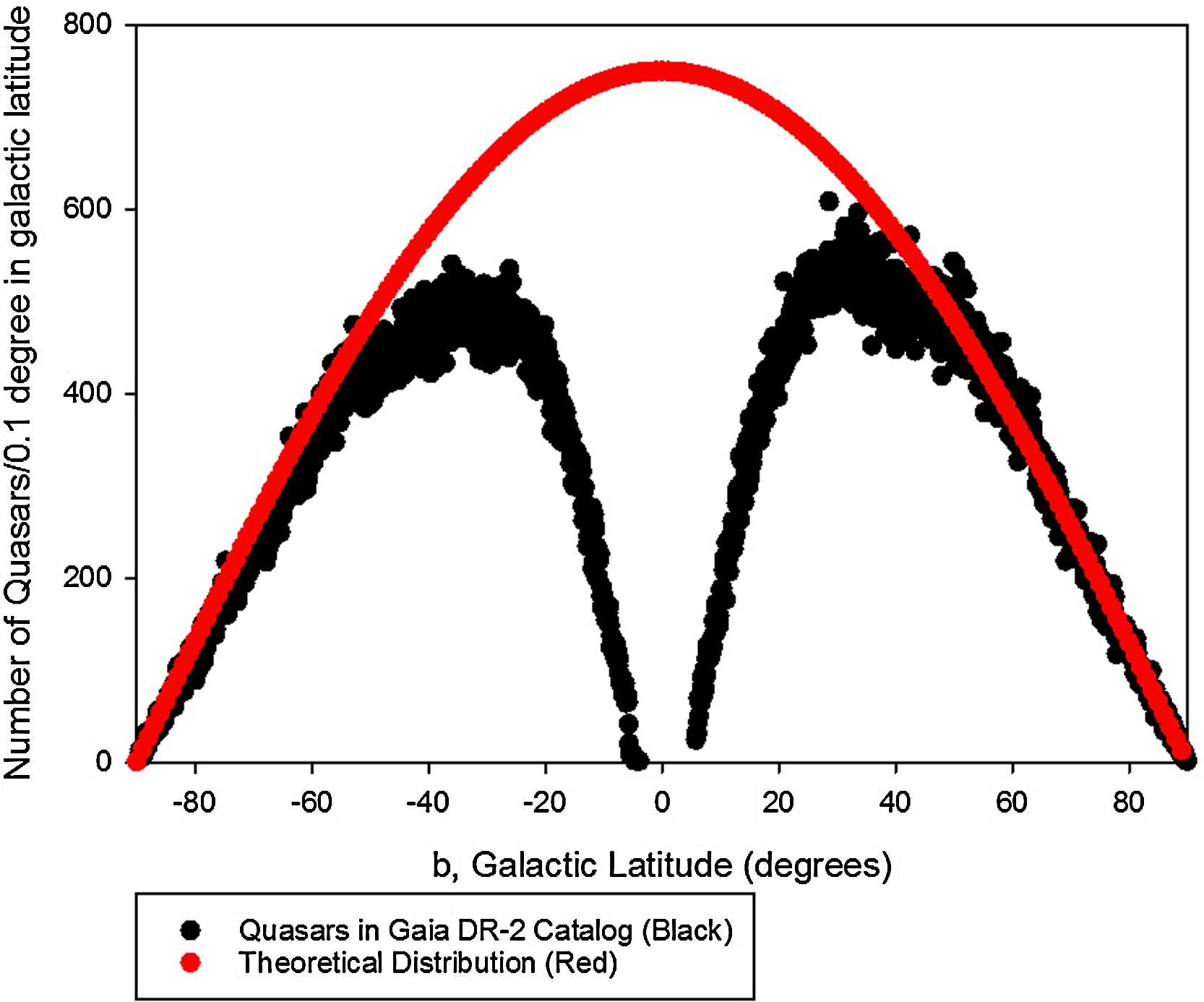

Figure 3. Quasars in Gaia DR-2 Catalog vs. Galactic Latitude.

as Figure 3 makes clear. Finally, just like SDSS observations we note that number of quasars starts decreasing at a galactic latitude, which is far beyond the limit of the extinction caused by dust at $b\approx {15}^{\circ }$ . We also note that for $b<0^{\circ }$ , the number of quasars starts decreasing at much smaller values in galactic latitude than $b\approx -{15}^{\circ }$ .

Assef et al. [57] have composed two AGN catalogs from the Wide-field Infrared Survey (WISE) Explorer’s AllWISE Data Release. Their R90 catalog is estimated to be 90% reliable and their C75 catalog 75% complete. The original datasets along with their extensions contain a large number of quasars, $n=4543530$ in R90 and $n=20907127$ in C75. We do not find any significant differences in the quasar distributions from these catalogs as a function of galactic latitude, so we will only present results for the larger C75 catalog.

In Figure 4 we see the data (filled black circles) from the C75 catalog as a function of galactic latitude, b. As we look toward the galactic center at $b=0^{\circ }$ , the number of quasars decreases, whereby in the region $-{10}^{\circ }\le b\le {10}^{\circ }$ has no quasars whatsoever. This is not caused by galactic extinction. Instead the cause is the method employed to identify quasars, Assef et al. [58], which can not distinguish between quasars and brown dwarfs, which are galactic objects. This is a major reason, why the C75 catalog is only 75% complete. We see clearly in Figure 4 that for $b<0^{\circ }$ , the number of quasars observed starts to decrease at $b\ll -{15}^{\circ }$ . For $b>0^{\circ }$ we also see that the number of quasars decreases starting at $b\gg {15}^{\circ }$ .

We summarize this section by noting that in all three datasets—SDSS, Gaia and WISE, the number of quasars observed starts to decrease for $b>0^{\circ }$ at values far beyond $b\approx {15}^{\circ }$ and continues to do so until low galactic latitudes, whereas for $b<0^{\circ }$ the number of quasars starts decreasing in both the Gaia and WISE datasets at much smaller values than $b\approx -{15}^{\circ }$ , where the extinction

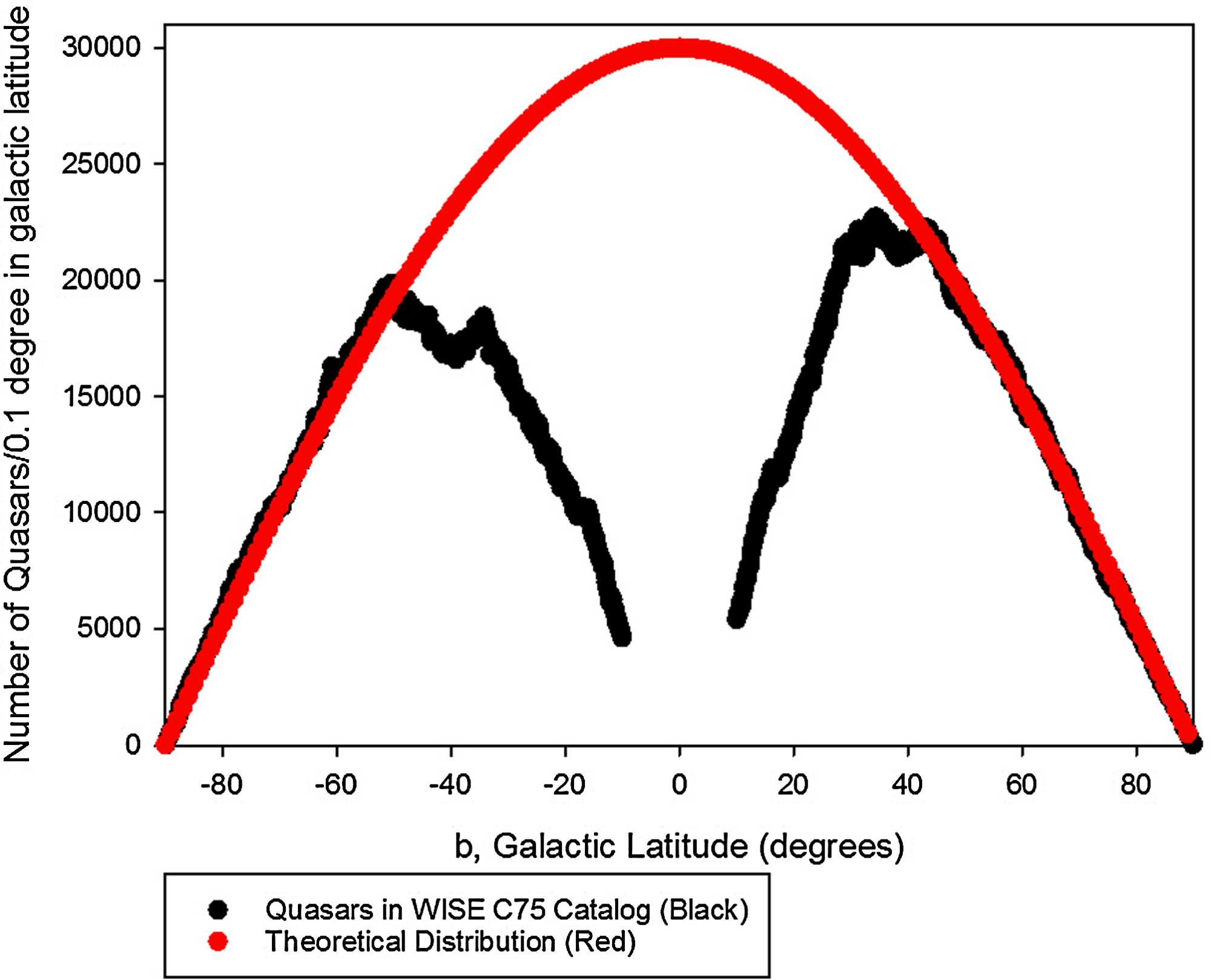

Figure 4. Quasars in WISE C75 Catalog vs. Galactic Latitude.

caused by dust initiates. Accurate values of these peaks taking into account the dependency on bin size are computed in Appendix A. This latter behavior is not exhibited in the SDSS dataset due to the lack of observations in the southern hemisphere. These features of the observed distributions of quasars on the celestial sphere are crucial because they will lead us to the conclusions drawn in the final section of this publication.

4. Comparison of Theory with Observations

In section 2 we derived an equation for the distribution of quasars assuming that they are isotropically distributed on the celestial sphere. In this section we compare the theoretical distributions with ground-based SDSS observations (Figure 2) and with space-based Gaia (Figure 3) and WISE (Figure 4) observations.

To obtain the theoretical curves based on the assumption of isotropy in Figures 2-4, we note that both the beginning ($b>-{90}^{\circ }$ ) and the end ($b<{90}^{\circ }$ ) of the observed distributions are practically straight lines in agreement with the theoretical distribution of Figure 1. In Figures 5-7 we plot the data from the end of the observed distributions for SDSS, Gaia and WISE observations respectively. Now we employ the right side of Equation (3) to the data in Figures 5-7 to find the values of n, the total number of sources assuming an isotropic distribution for SDSS, Gaia and WISE observations respectively. These theoretical isotropic distributions are plotted in Figures 2-7 as red lines. Note how well the isotropic distributions fit the beginning of the observed distributions for both the Gaia and WISE observations (Figure 3 and Figure 4) even though they were

Figure 5. End of SDSS Quasar Distribution vs. Galactic Latitude.

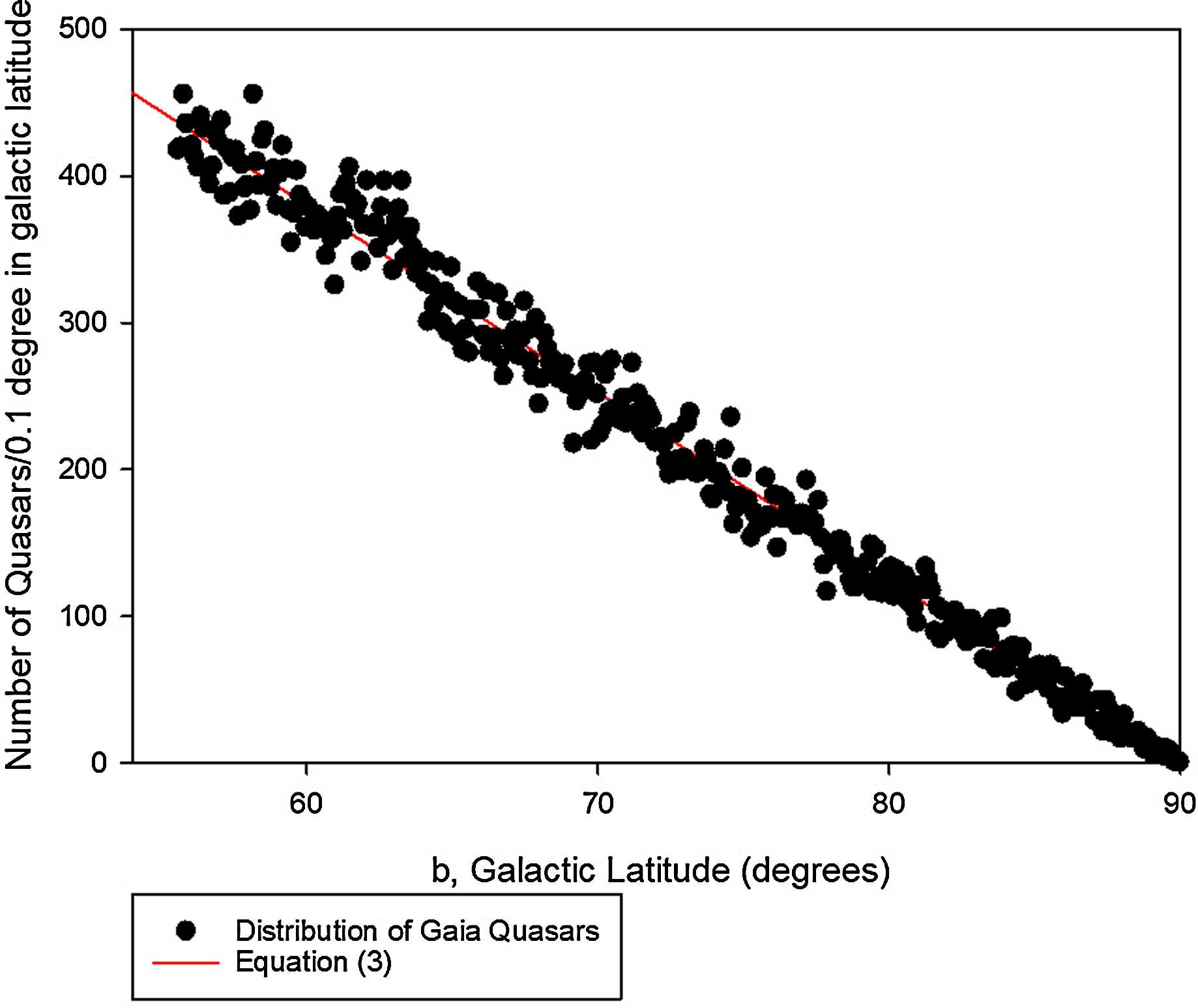

Figure 6. End of Gaia Quasar Distribution vs. Galactic Latitude.

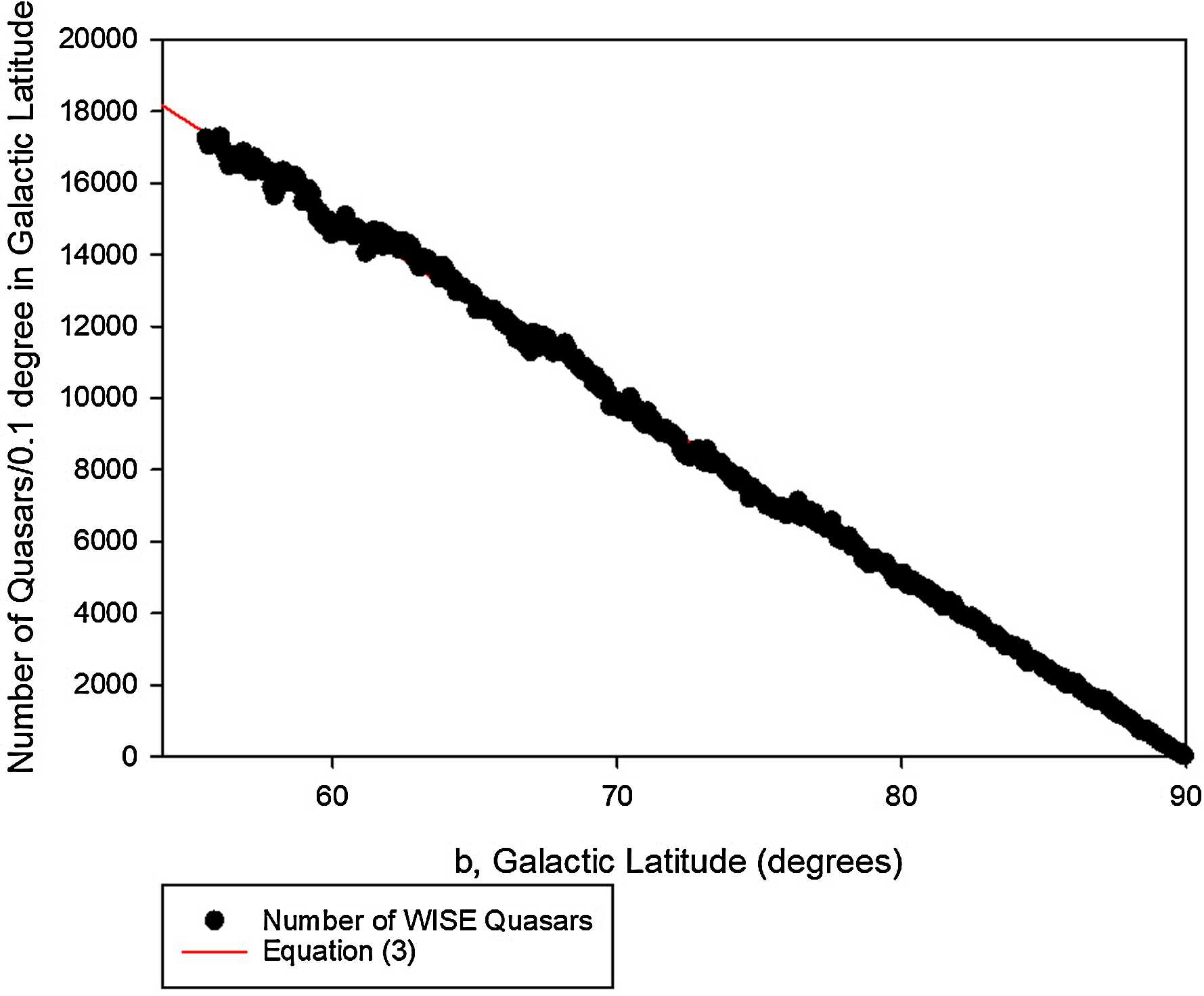

Figure 7. End of WISE Quasar Distribution vs. Galactic Latitude.

not employed in the calculation of the theoretical distributions. This agreement confirms that the calculated theoretical distributions are indeed correct. For the SDSS data however, the beginning of the distribution does not fit the observed distribution. This is due to the paucity of observations in the southern sky.

We now consider the space-based observations from Gaia and WISE in Figure 3 and Figure 4 in comparison to the theoretical distributions, which are calculated based on the assumption of isotropy. Striking is the decrease in the number of observed quasars compared to that expected from the theoretical distribution in both Figure 3 and Figure 4. This decrease in the number of quasars as a function of galactic latitude, b, is depicted in Figure 8 ($b<0^{\circ }$ ) and Figure 9 ($b>0^{\circ }$ ) for the quasars in the Gaia catalog and in Figure 10 ($b<0^{\circ }$ ) and Figure 11 ($b>0^{\circ }$ ) for the quasars in the WISE C75 catalog. The black data points in the figures were computed by taking the difference between the theoretical values based on the assumption of isotropy and the observed number of quasars as depicted in Figure 3 and Figure 4. The loss of quasars in Figures 8-11 is exponential.

We do not present the loss of quasars, L, in Figure 8 for $b<-{50}^{\circ }$ , in Figure 9 for $b>{45}^{\circ }$ , in Figure 10 for $b<-{50}^{\circ }$ and in Figure 11 for $b>{42.9}^{\circ }$ because $L\approx 0$ . Mathematical details of the exponential curves are in Appendix C.

For SDSS data the analysis is more complicated because of the loss of quasars due to interstellar extinction and a lack of observations from the southern celestial sphere. For this reason we consider only $b>0^{\circ }$ . Interstellar extinction also influences galactic latitudes with $b>0^{\circ }$ . We can however clearly delineate, where this occurs. Figure 12 shows the (Theory - Observation) diagram for SDSS observations in the range, $0^{\circ }\le b\le {20}^{\circ }$ . A careful analysis shows that at $b<{14.8}^{\circ }$ , the slope changes abruptly in Figure 12, where interstellar extinction is known to be effective in the region: $b\lesssim {15}^{\circ }$ . The red line in Figure 12 is the linear regression computed from the range: ${14.8}^{\circ }\le b\le {20}^{\circ }$ . We conclude: at $b<{14.8}^{\circ }$ interstellar extinction dominates.

Figure 8. Loss of Gaia Quasars vs. Galactic Latitude, 0˚ < b ≥ −50˚.

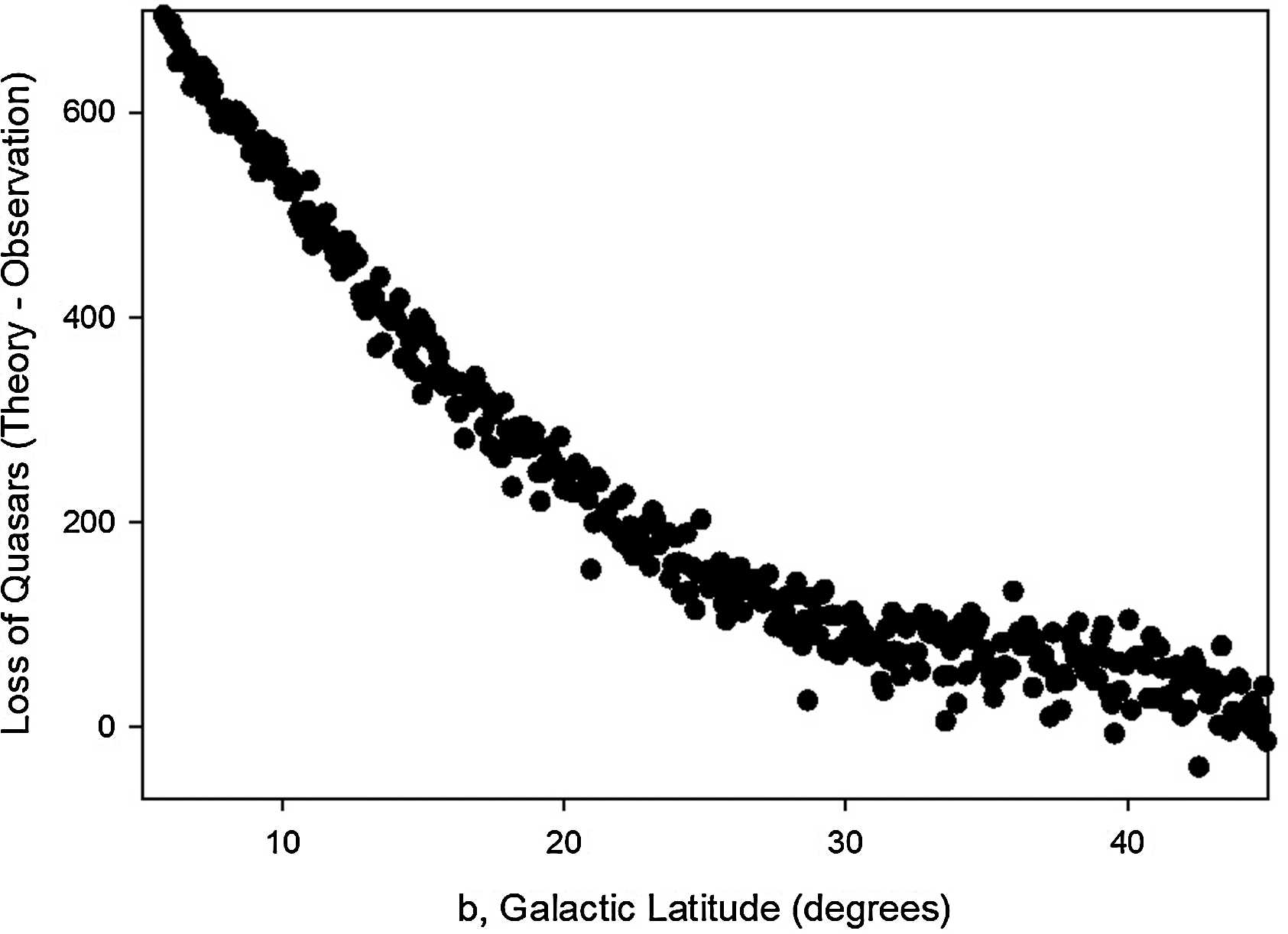

Figure 9. Loss of Gaia Quasars vs. Galactic Latitude, 0˚ < b < 45˚.

Figure 10. Loss of WISE Quasars vs. Galactic Latitude, b > −50˚.

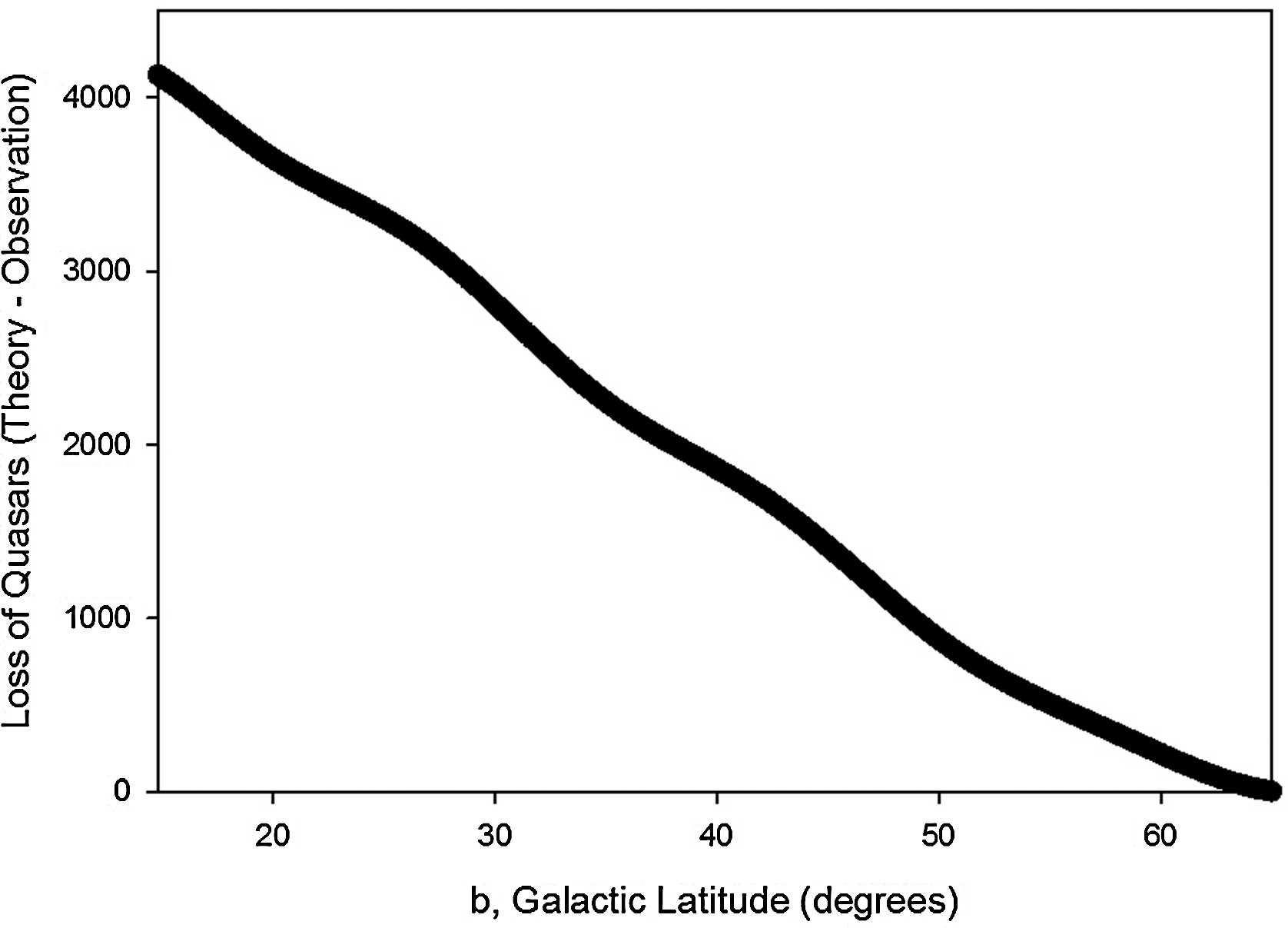

Figure 13 shows the loss of quasars in the range: ${14.8}^{\circ }\le b\le {65}^{\circ }$ for SDSS data. We do not present the loss of quasars in Figure 13 for $b>{65}^{\circ }$ , because $L\approx 0$ .

5. Possible Causes of the Lost of Quasars

Our comparison of theory and observations has lead us to conclude that the number of quasars observed on the celestial sphere is less than that expected from an isotropic distribution of quasars. In this section we explore a number of

Figure 11. Loss of WISE Quasars vs. Galactic Latitude, 10˚ < b < 42.9˚.

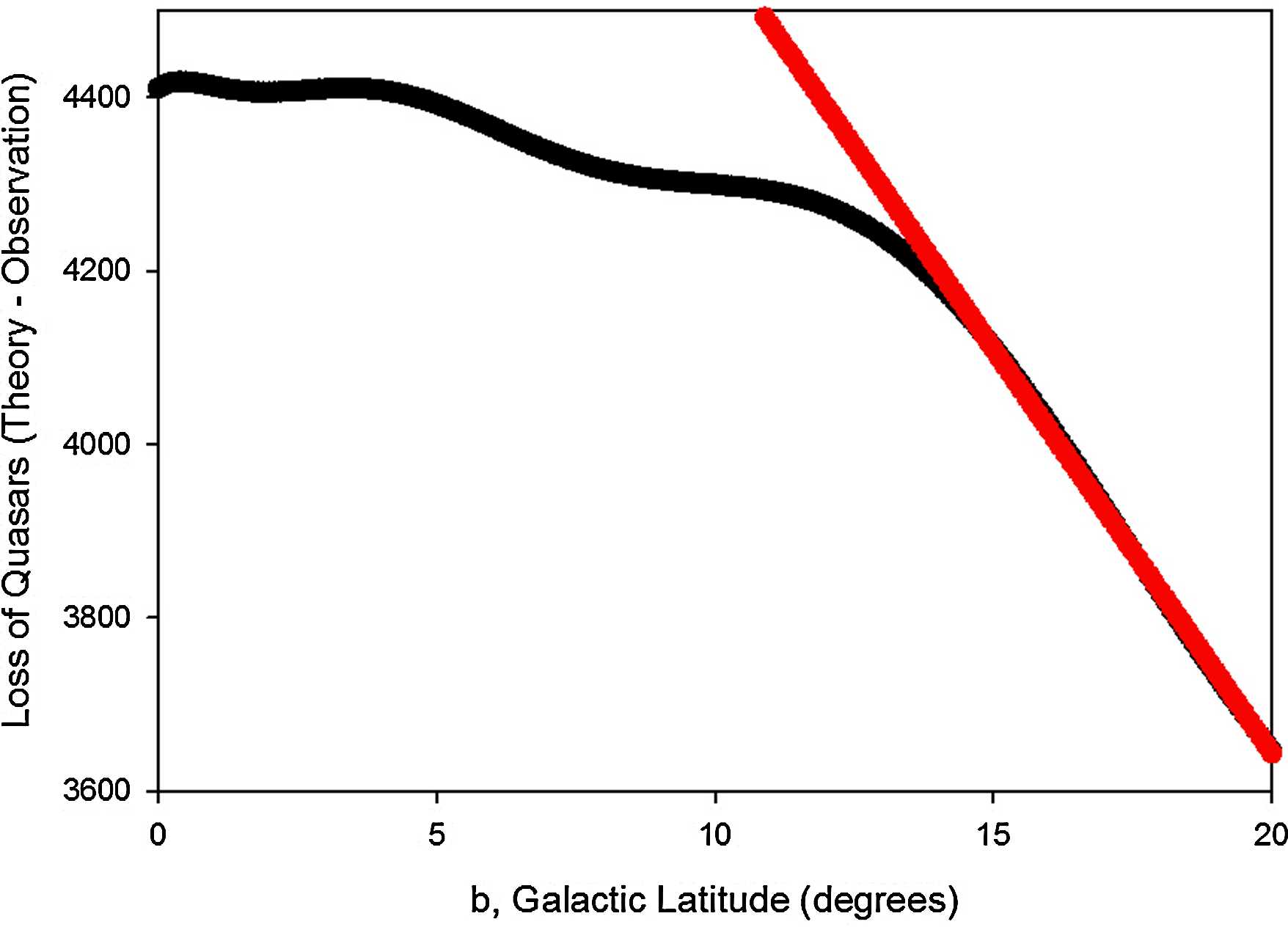

Figure 12. Loss of SDSS Quasars vs. Galactic Latitude (0˚ < b < 20˚).

possible causes for the decrease in the number of quasars observed.

First we consider the fundamental question: Is just subtracting the observed quasar distribution from the expected theoretical isotropic distribution statistically justified? The answer to this question is “yes’’. We prove this in Appendix D.

Is the observed decrease in the number of quasars caused by selection effects pertinent to spacecraft? For example the WISE spacecraft is known to have higher coverage at high values of ecliptic latitude and high density regions at the

Figure 13. Loss of Quasars in SDSS Catalog vs. Galactic Latitude (0˚ < b < 65˚).

South Atlantic Anomaly declinations (Assef et al. [58], Wright et al. [59]). Assef et al. [57] attributed source crowding as the cause of the decrease in quasar frequency in the WISE data. To answer this question we consider Figure 2, which is constructed from ground-based SDSS observations. In Figure 2, we see the same decrease in the number of quasars relative to that expected from an isotropic distribution. Thus, this feature does not appear to be caused by selection effects associated with spacecraft.

Is the observed decrease in the number of quasars caused by inhomogeneities in the distribution of quasars in intergalactic space and therefore not associated with our galaxy? To answer this question we consider the distributions in supergalactic latitude. The black filled circles in Figures 14-16 present these distributions for SDSS, Gaia and WISE observations respectively and for comparison along with the isotropic theoretical distributions (red) for the corresponding galactic coordinates. In section 2 we pointed out that isotropic distributions are independent of the spherical coordinate system employed.

None of these figures show any decrease in the number of quasars like that seen in Figures 2-4. In addition in the space-based distributions in Figure 15 and Figure 16 we see that the galactic theoretical distributions possess the same shape as the observed distributions in supergalactic coordinates. For the SDSS data in Figure 14 this is not the case because of the dearth of observations in the southern sky.

We conclude: the observed decrease in the number of quasars is associated with our galaxy and not with any inhomogeneities in the distribution of quasars in intergalactic space. Consequently, extinction of quasar light must be taking place in our galaxy.

Since quasars are extragalactic sources, it is clear that the extinction of quasar

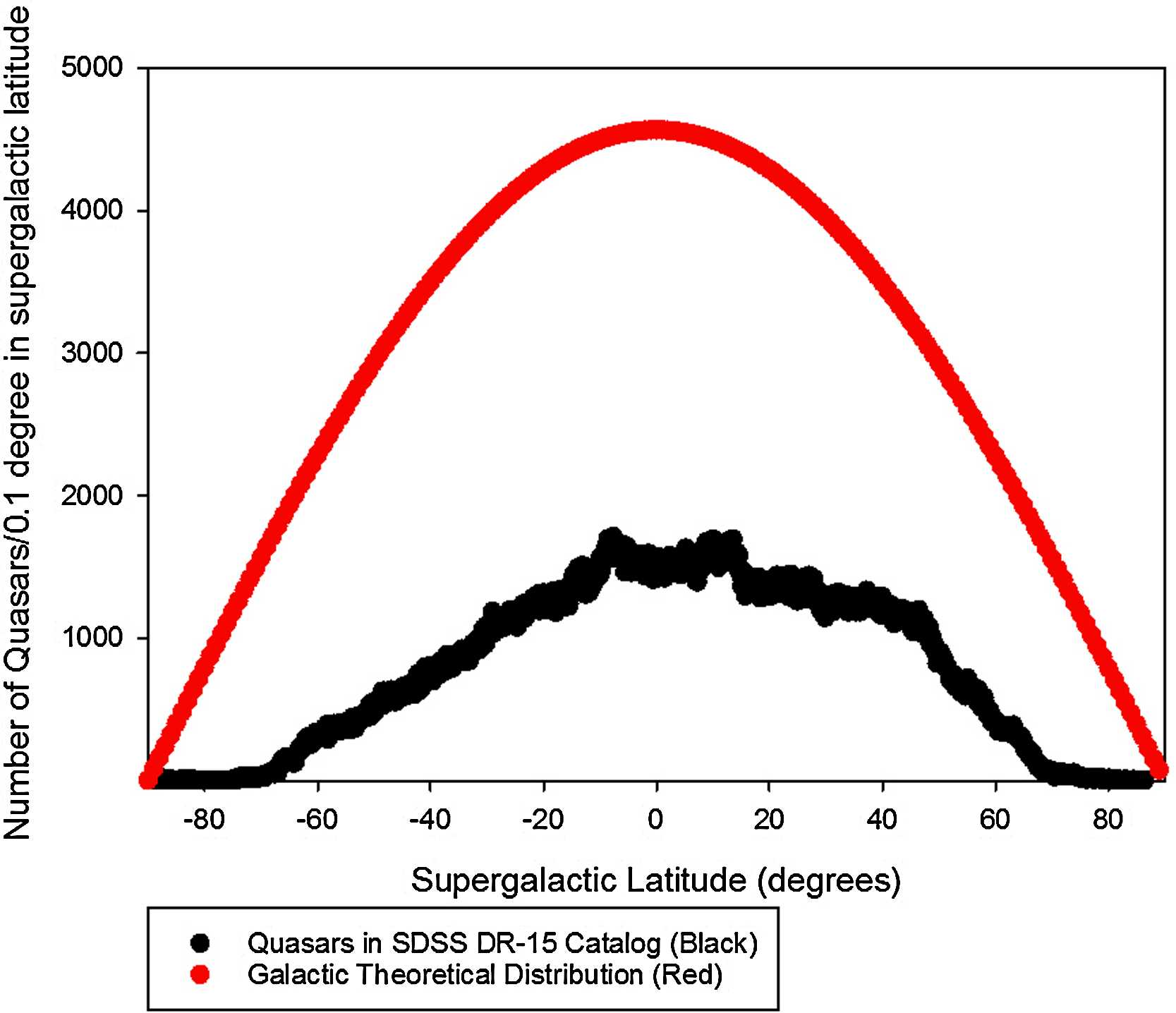

Figure 14. Quasars in SDSS DR-15 vs. Supergalactic Latitude.

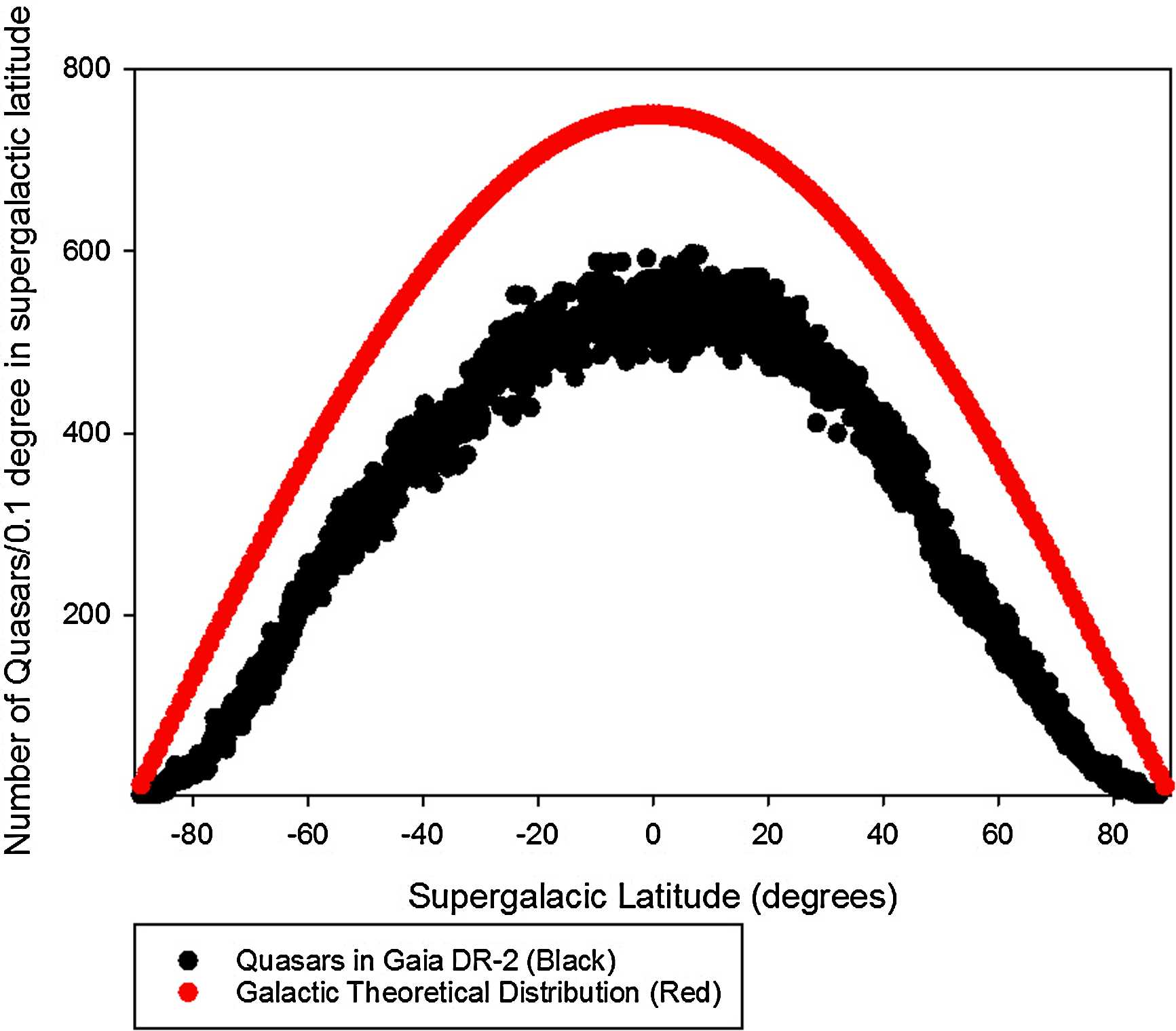

Figure 15. Quasars in Gaia DR-2 vs. Supergalactic Latitude.

Figure 16. Quasars in WISE C75 vs. Supergalactic Latitude.

light by matter takes place in intergalactic space. However, this matter is homogeneously distributed, (Gonalves et al. [60], Alonso et al. [61], Scrimgeour et al. [62]) and therefore does not change the spatial distribution of quasars.

Having established that the observed decrease in quasar frequency in Figures 2-4 is associated with our galaxy, we ask: What component of our galaxy is responsible for the observed extinction of quasar light at $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ ? Clearly, at these galactic latitudes only a component of the galactic halo can be the cause of the observed extinction.

There is evidence that the Milky Way possesses circumgalactic gas in the form of hot plasma. The idea of a hot galactic corona was first proposed by Spitzer [63] whereby Spitzer [63], Weisheit & Collins [64], Chevalier & Oegerle [65], Sturrock & Stern [66] followed up with theoretical work. Observationally however, it was not conclusively detected until decades later by Marshall & Clark [67], Sembach & Savage [68], Savage [69], Shull & Slavin [70], Lehner & Howk [71], Miller & Bregman [72] [24], Nakashima et al. [73]. See Putman et al. [74] for a review.

Could the hot plasma of the galactic halo be responsible for the observed extinction of quasar light? Since the energy of an optical photon is much less than the electron rest mass, Thomson scattering (Sheffield [75]) is responsible for the extinction of quasar light in the plasma in the Milky Way halo. It is well known that a beam of light traversing plasma of length, l, suffers a fractional loss, f, of incident photons given by:

$f={\sigma }_t{n}_{e}l$ (5)

where ${\sigma }_t=6.65\times {10}^{-25}$ cm² is the Thomson scattering cross section and $n_e$ is the electron density.

Different approaches (Troitsky [76]) lead to an estimate of the halo electron density, $n_e\approx {10}^{-4}$ cm⁻³. If we along with Fang et al. [77] assume that the viral radius of the Milky Way is $l=260$ kpc, then the above equation gives the fractional loss of incident photons of $f~{10}^{-4}$ , which is much too small to explain the observed decrease in the number of quasars. In our calculation of f, we have not taken into account the density profile in the halo Einasto [78], Burkert [79], Navarro et al. [80], possible dark matter substructures Blumenthal et al. [81], Alexander et al. [83], the ellipsoidal shape of the halo Smith et al. [84], Ibata et al. [85], Vera-Ciro et al. [86], Wegg et al. [86] or the fact that a number of authors estimate the extent of the circumgalactic gas in the Milky Way halo to be much smaller than 260 kpc (Yao et al. [87], Hagihara et al. [88], Gupta et al. [89]). This later point means that. This later point means that we may have overestimated f by as much an order of magnitude. We therefore consider our estimate of f to be conservative.

6. Dust

Is halo dust responsible for the observed decrease in quasar frequency? In this section we present arguments that make clear that dust can not be the source of the observed extinction at high galactic latitudes.

It is known that dust is responsible for the extinction of light not far from the galactic plane in the galactic range, $-{15}^{\circ }\lesssim b\lesssim {15}^{\circ }$ . Greenberg et al. [90] predicted that dust should be present in galactic halos too. Dust has been detected in the halo of other galaxies and analyzed by: Zaritsky [91], Holwerda et al. [92], Roussel et al. [93], Fukugita [94], Peek & Schiminovich [9], Hodges-Kluck & Bregman [95] and Mnard [96]. Extinction due to dust in the Milky Way has been studied extensively by Green et al. [2], Schlafly & Finkbeiner [8] and Schlegel et al. [3].

Is dust responsible for the observed extinction in the galactic halo? Below we present a number of arguments showing that dust, which is indeed present in the galactic halo, can not explain the observed extinction of quasar light.

First, we consider infrared observations of the number of quasars as a function of galactic latitude. If we assume that the dust particles in the galactic halo are smaller than the wavelength of scattered light, then the wavelength dependency of scattered light is given by the Rayleigh scattering cross section, ${\sigma }_R~{\lambda }^{-4}$ . Consequently, infrared is scattered much less than light. The WISE infrared data, Figure 4, however exhibits a similar decrease in the quasar frequency at high galactic latitudes as is observed in the optical (Gaia and SDSS, Figure 2 and Figure 3). Just from this fact alone, we would normally conclude that dust can not be responsible for the observed extinction at $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ .

The C75 catalog is based on the ALLWISE data, which contains 747,634,026 sources. The number of C75 quasars candidates in the catalog is 20,907,127 or 2.3%. Source crowding is now recognized to play a major role in the number of sources detected in the ALLWISE data. According to Assef et al. [57] the decrease in quasar frequency is not due to extinction rather to the fact that C75 captures only a fraction of the quasars that are actually in the WISE data set. This circumstance is ameliorated in the CatWISE2020 catalog Marocco et al. [19], which contains 1,890,715,640 sources. There is no equivalent to the C75 catalog constructed from the CatWISE2020 catalog. So we created a quasar catalog from the CatWISE2020 catalog by employing the Assef et al. [57] quasar criteria:

$W_1-W_2>0.71$ (6)

where W₁ is the magnitude centered at 3.1 μm and W₂ is the magnitude centered at 4.6 μm. We found 194,333,306 quasars candidates in the CatWISE2020 catalog or 10.3%. Sources that fulfill Equation (6) and lie in the range ${10}^{\circ }\le b\le {10}^{\circ }$ are not included because they may be brown dwarfs.

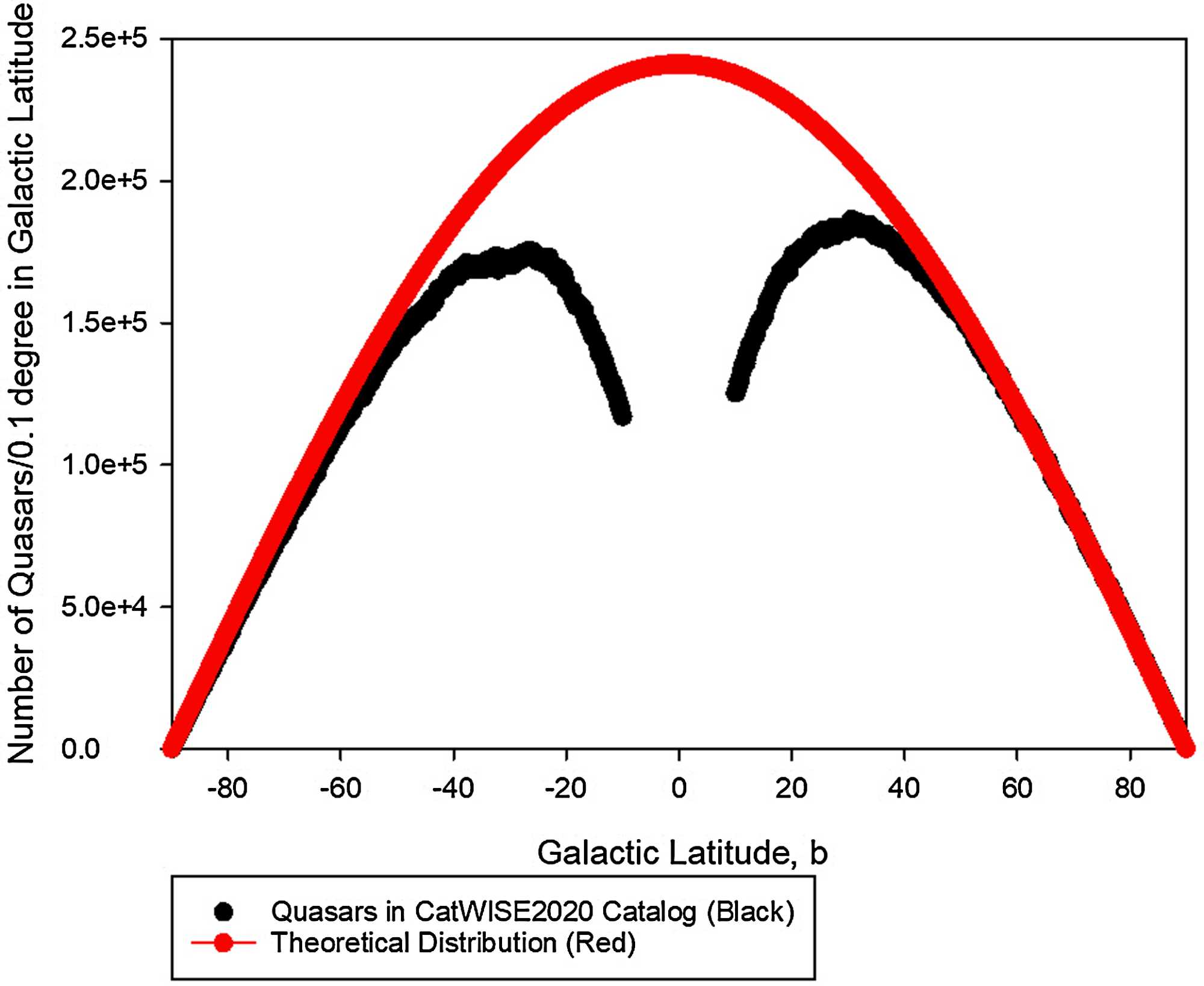

In Figure 17 the number of quasar candidates from the CatWISE2020 catalog (black) are plotted as a function of galactic latitude, b. In addition Figure 17 contains the theoretical distribution (red), which was calculated based on the assumption of isotropy. We note that the observational curve is much smother than the corresponding curve in Figure 4. Striking in Figure 17 is the decrease in the number of observed quasars compared to that expected from the theoretical distribution. This circumstance appears to make it more likely that the observed decrease in quasar frequency is not chiefly due to source crowding, however,

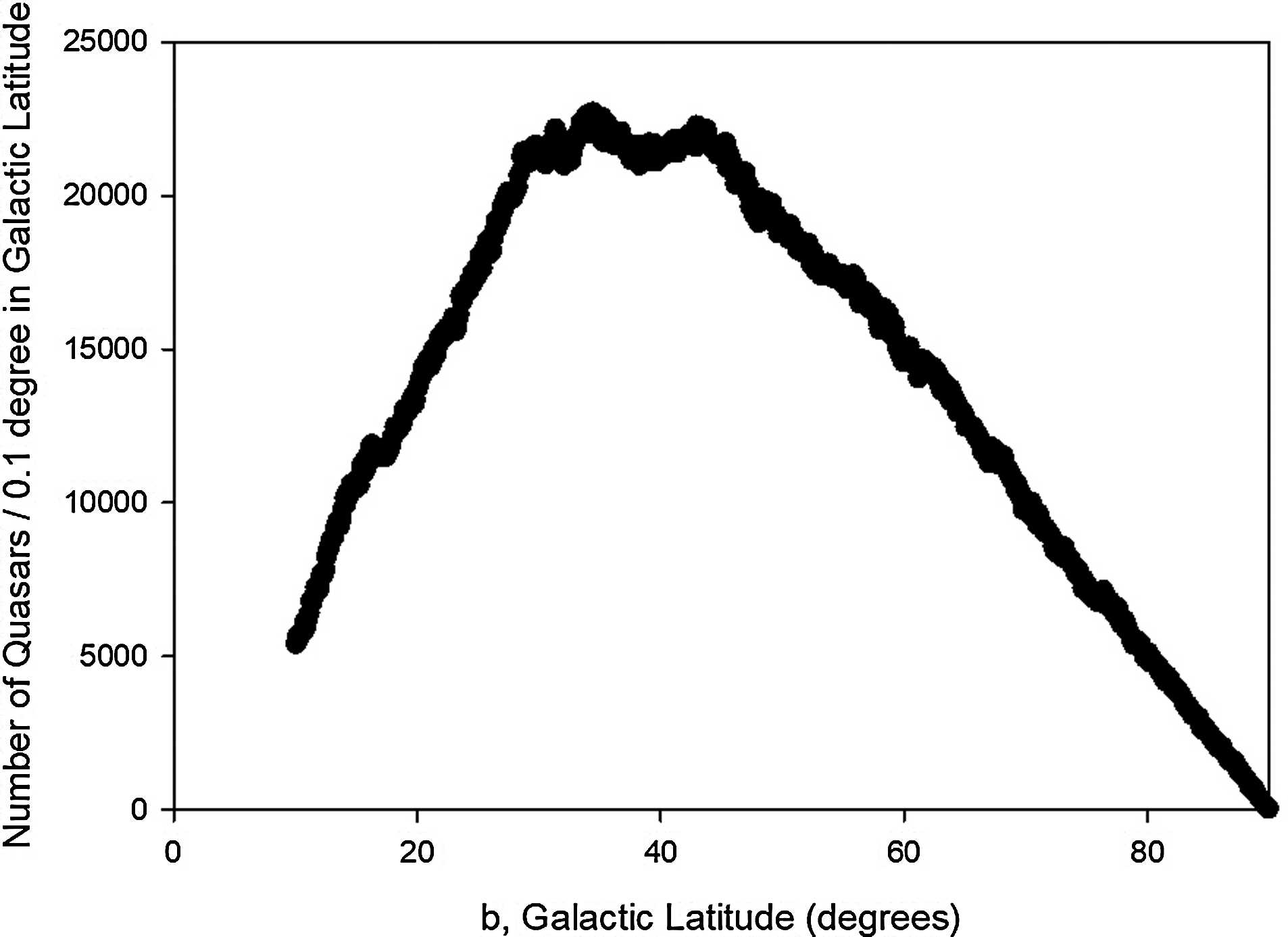

Figure 17. Quasars in CatWISE2020 vs. Galactic Latitude.

it does not completely eliminate source crowding. Therefore, despite the much larger number of quasars detected and the similiarity to the SDSS and Gaia quasar distributions, we can not conclude from Figure 17 that dust is not the major source of observed decrease in quasar frequency.

Is dust responsible for the observed extinction at high galactic latitudes? Infrared observations have not given us an unequivocal answer. So to answer this question we turn to optical observations, where we note that extinction via dust is always associated with reddening. We can not determine the reddening of an individual quasar because we do not know its intrinsic color. However, if we make the assumption that the mean intrinsic color of a large number of quasars in any specific region of the celestial sphere is not dependent on the celestial coordinates, that is it is isotropic (angular independent), then we can detect the presence of dust by considering the mean colors of a large number of quasars. This idea is similar to the proposal of Vanden Berk [97]. Figure 18 shows the mean (B-R) values as a function of 0.1˚ in galactic latitude for the quasars in the MILLIQUAS—Million Quasars Catalog, Version 6.4, Flesch [53].

We see that starting around $b=-{15}^{\circ }$ and $b={15}^{\circ }$ as we approach the galactic equator the reddening increases. However, for $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ it remains relatively constant, whereas the loss of quasars in both regions increases exponentially as shown in Figures 8-11. This mismatch appears to mean that reddening plays little or no role in the ranges $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ .

According to Green et al. [2] galactic dust is not evenly distributed in longitude rather dust is thick at some longitudes and thin in others. We now investigate the quasar frequency at longitudes, where the dust is thin. Figure 19 shows the reddening, $E\left(g-r\right)$ , as a function of galactic longitude calculated using the data of Green et al. [2]. The figure shows that at large longitudes, $l>{250}^{\circ }$ , the

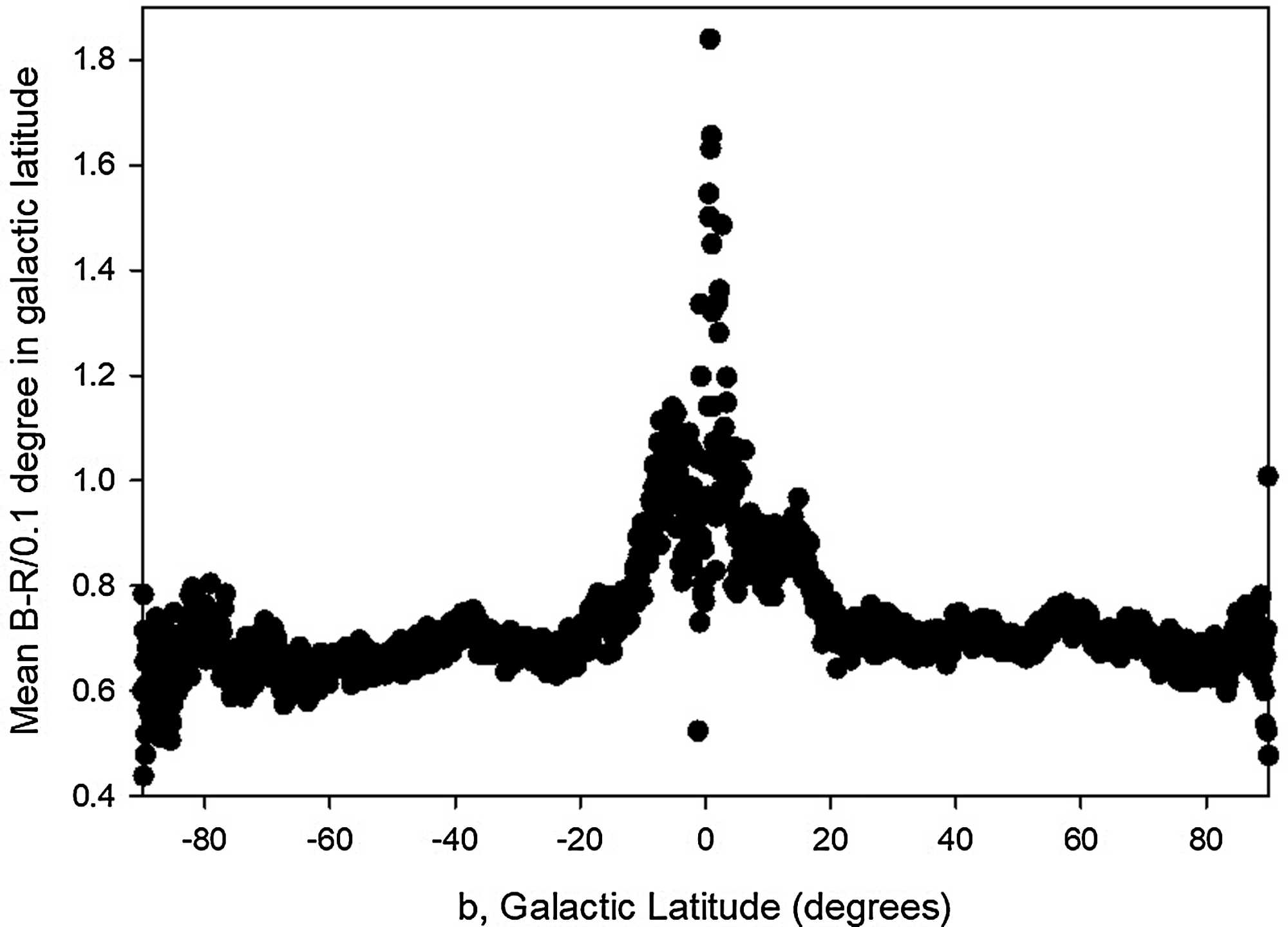

Figure 18. Mean Milliquas B-R vs. Galactic Latitude.

reddening is low, $E\left(g-r\right)<0.1$ . In Figure 20 we plot the quasar frequency as a function of galactic latitude (black) in this region of large longitudes along with the theoretical isotropic distribution for the quasars in the MILLIQUAS—Million Quasars Catalog, Version 6.2, Flesch [53]. It is clear that theory and observation do not agree even in this region of negligible dust. We conclude dust is not the cause of the extinction at high galactic latitudes.

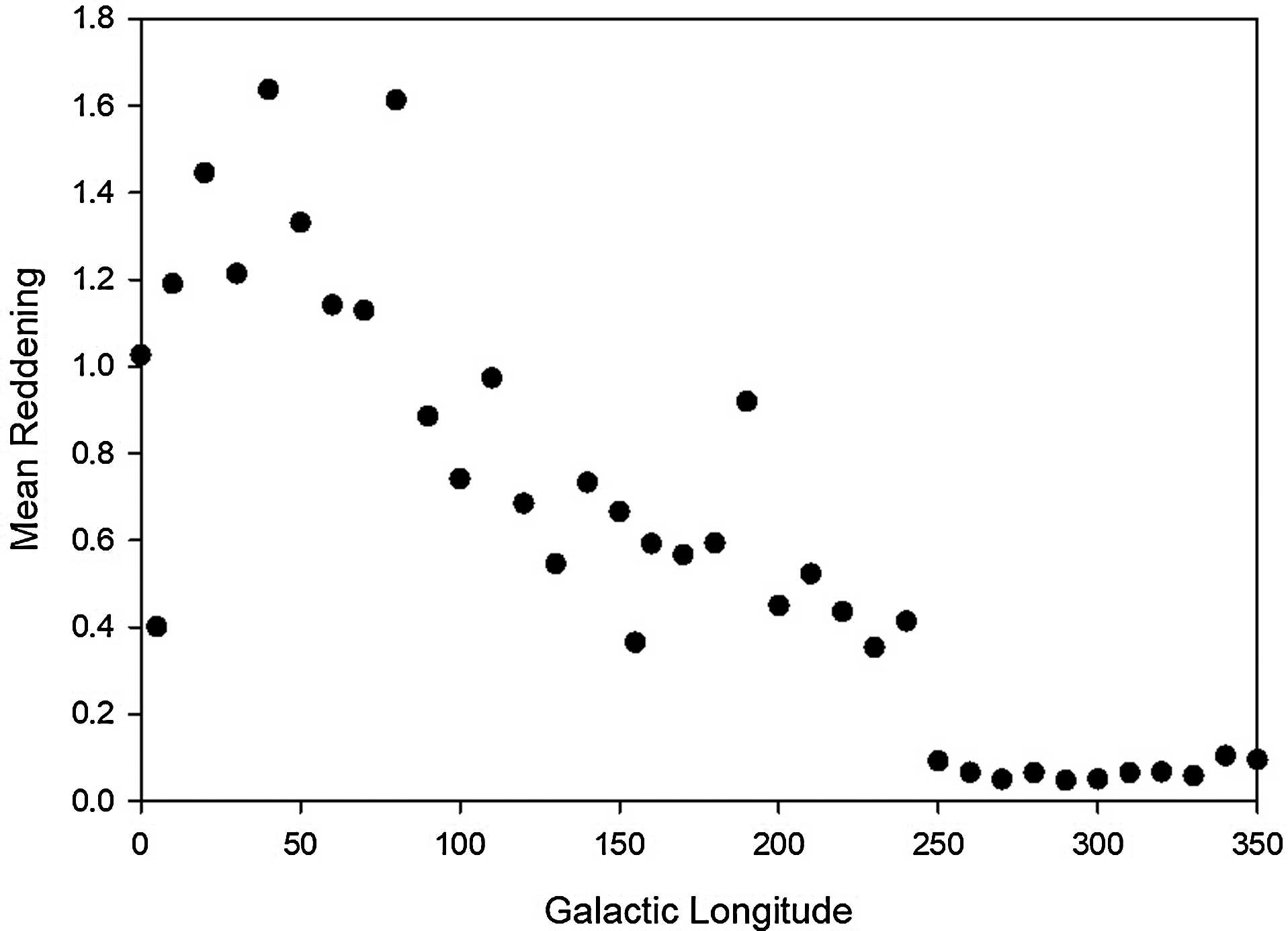

Figure 19. Mean Reddening vs. Galactic Longitude.

Figure 20. Quasar Frequency vs. Galactic Latitude.

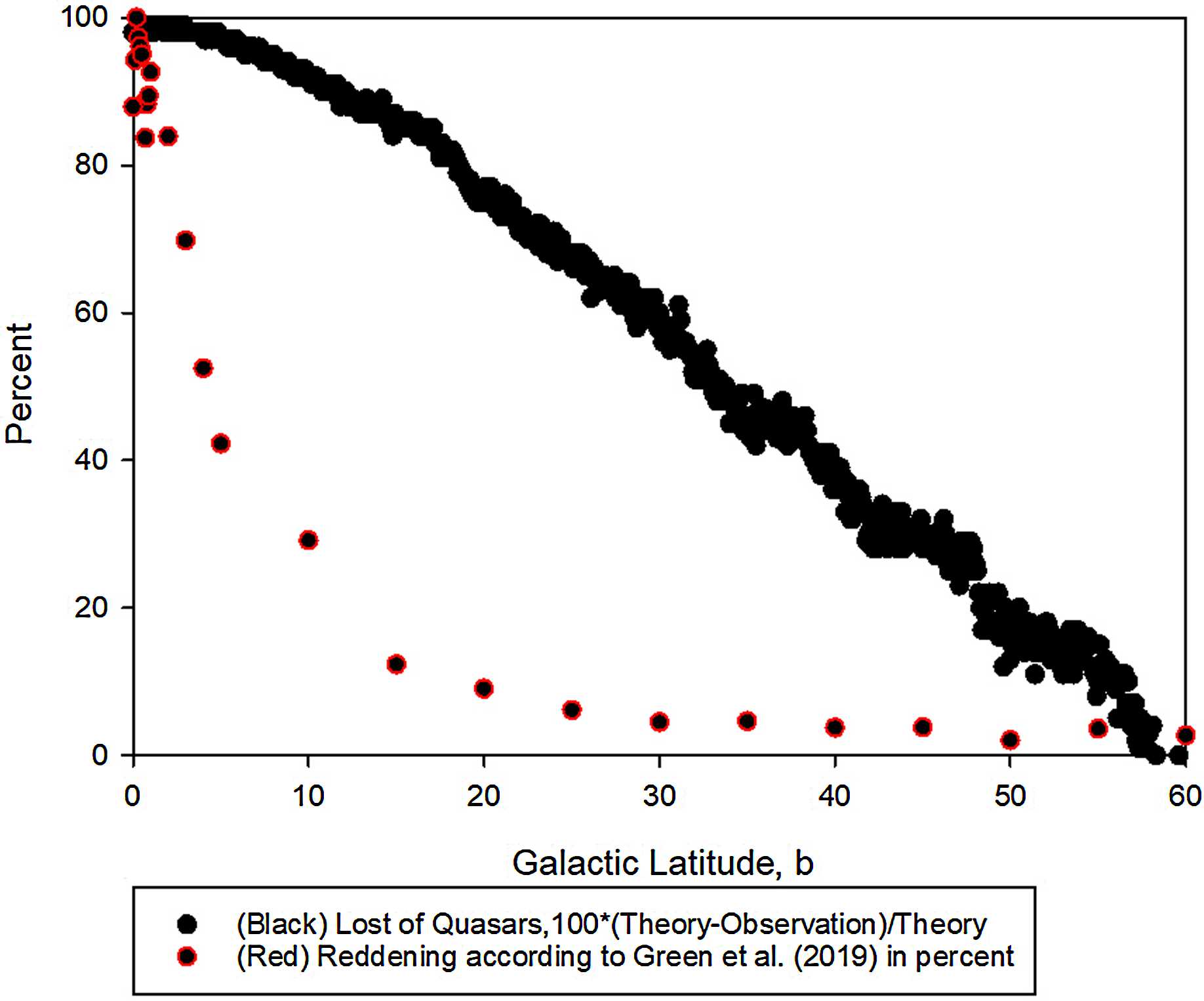

Figure 21. Lost of Quasars and Reddening.

We now present another argument that the extinction at high galactic altitudes is not caused by dust. We calculate the effect of dust for each galactic latitude by calculating the mean reddening, $E\left(g-r\right)$ , over all galactic longitudes. Since there is a linear relationship between reddening and extinction, if dust is the cause of the extinction we would expect to see the mean reddening values increase with increasing quasar losses. In Figure 21 for $b>0$ we show the percentage loss (black data points), 100*((Theory - Observation)/Theory), for the quasars in the MILLIQUAS—Million Quasars Catalog, Version 7.2, Flesch [98]. Also plotted in this figure (red data points) is the mean reddening (in %) calculated from the Green et al. [2] data. Striking is the very pronounced increase in the loss of quasars at $b<{57.5}^{\circ }$ , which is clearly not accompanied by a significant increase in reddening in the range of high galactic latitude, ${15}^{\circ }\le b\le {60}^{\circ }$ . We conclude dust is not the cause of the extinction at high galactic latitudes.

After some mathematical preparation at the end of the next section we present an additional argument proving that dust is not responsible for the observed decrease in quasar frequency at high galactic latitudes.

7. Wavelength Dependency of the Scattering of Light by Dark Matter Particles

It is well known that the scattering of light depends upon the wavelength. Therefore, if the observed difference in quasar frequency between theory and observation, is due to the scattering of light, we expect to observe a color dependency. To test for color dependency we divide our quasar sample into two parts, those with colors greater than the mean color (redder) and those with colors less than the mean color (bluer). The quasars in the MILLIQUAS—Million Quasars Catalog, Version 7.2, Flesch [98], have a mean $B-R$ value of 0.221. Figure 22 is a plot of the loss of quasars, 100*((Theory - Observation)/Theory), for quasars with $B-R<0.221$ (blue data points) and for quasars with $B-R>0.221$ (red data points). The two distributions of quasars as a function of galactic latitude are clearly separated whereby the blue quasars experience a larger loss of quasars than the red quasars. We assume that the mean intrinsic color of a large number of quasars in any specific region of the celestial sphere is not dependent on the celestial coordinates. Consequently, the observed color dependency must be due to extinction, which is consistent with the scattering of light.

We return to the discussion in the previous section, where we could not be sure if the observed decrease at high galactic latitudes in the WISE datasets is due to extinction or crowd sourcing. Crowd sourcing is wavelength independent. We have divided the C75 catalog into red and blue quasars as described above. Figure 23 is a plot of the loss of quasars as a function of galactic latitude. It is clear that blue quasars experience a larger loss than red quasars. This wavelength dependency means that crowd sourcing is not the major cause of the loss of quasars, rather it is extinction of quasar light.

Next we quantify the wavelength dependency of the observed scattering of light by dark matter particles. To achieve this we develop an approach to derive the wavelength dependency, applying it first to dust. We start by assuming that

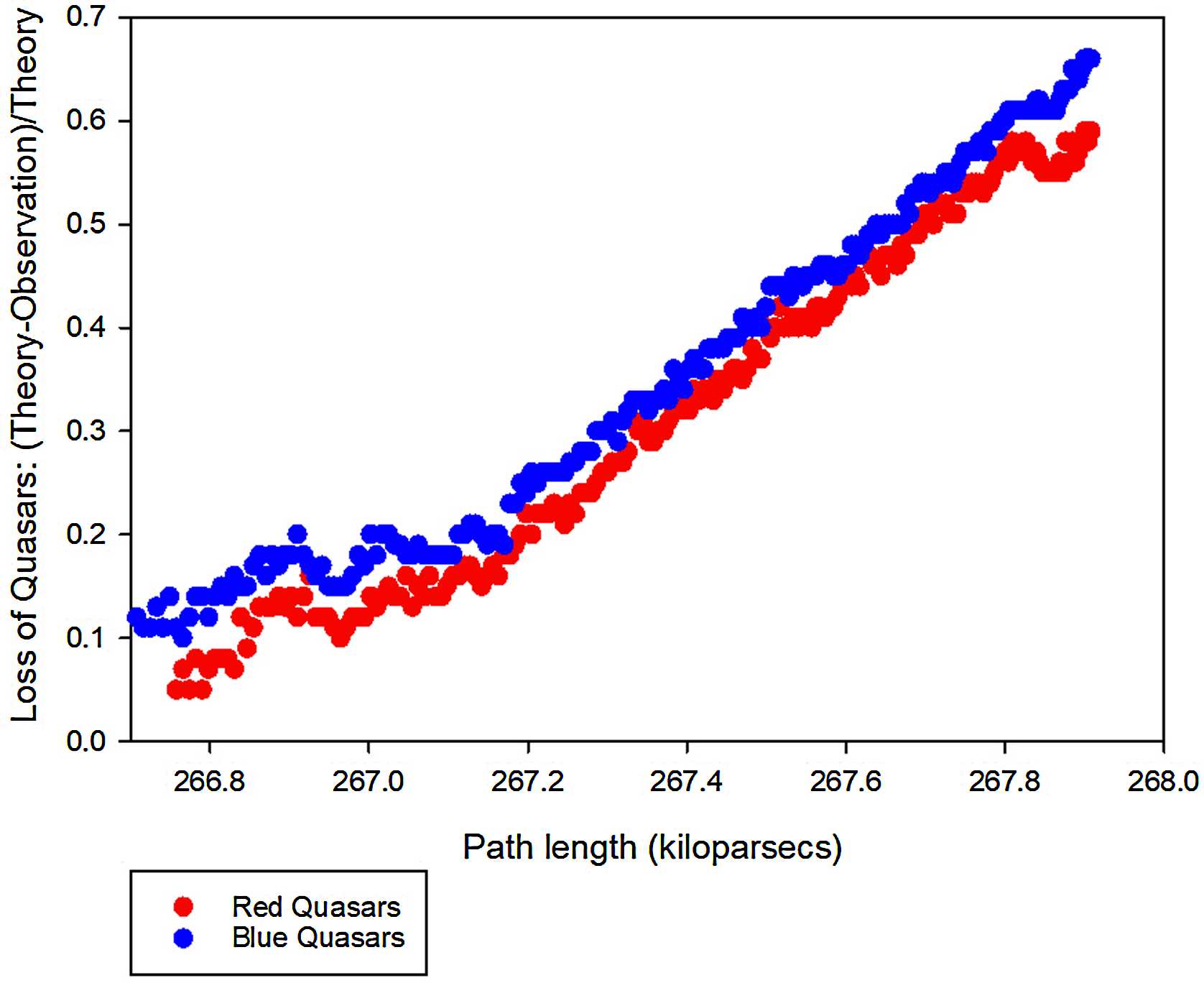

Figure 22. Loss of red and blue quasars.

Figure 23. Loss of blue and red Quasars in WISE C75.

the attenuation of light by dark matter particles is a exponential function of the path length through the galactic halo, which is turn is a function of the galactic latitude, b, because the sun is not located in the center of the galaxy. The basic governing equation is:

$I=I_{0}ex{p}^{-n\sigma \left(\lambda \right)f\left(b\right)}$ (7)

where I and I₀ are the final and initial intensities respectively, σ is the scattering coefficient, which is a function of the wavelength of light, λ and n is the number of scattering particles per unit volume.

In section 4 of this work, we showed that the lost of quasars is given by exponential functions of b. In this case the general governing equation is:

$N=N_{0}ex{p}^{-\nu f\left(b\right)}$ (8)

where N is the number of quasars observed and N₀ the number of quasars according to the isotropic distribution of quasars. Clearly, the loss of quasars is related to the attenuation of light by dark matter particles.

First we determine the wavelength dependency of the scattering of light in the range, $0^{\circ }\le b\le {15}^{\circ }$ , where according to section 4 of this work and general astronomical knowledge dust is the major cause of extinction of light. To determine the wavelength dependency we follow the procedure described above, that is we divide the detected quasars from the MILLIQUAS—Million Quasars Catalog, Version 7.2, Flesch [98], into two groups. Those with B-R colors smaller than the mean color (blue quasars) and those with colors larger than the mean (red quasars).

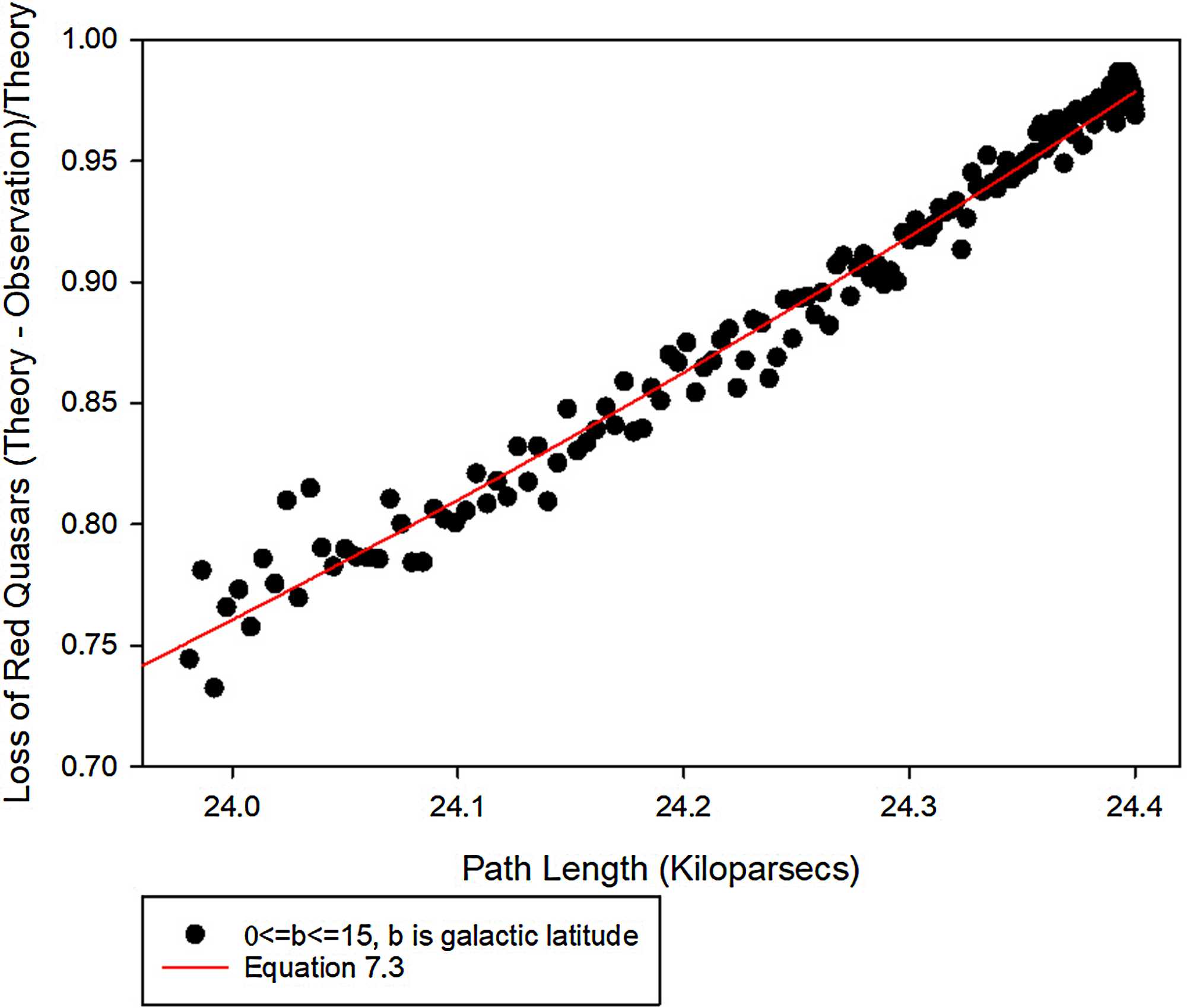

Figure 24. Loss of red quasars due to dust.

In Figure 24 the black data points are the loss of red quasars, (Theory - Observation)/Theory as a function of the path length. We find that the best fit to the data is the red line in the figure, which corresponds to the equation:

$N=ex{p}^{\alpha +\beta f\left(b\right)}$ (9)

where $\alpha ={\alpha }_r=-15.36\pm 0.18$ , $\beta ={\beta }_r=0.6288\pm 0.0072$ . $f\left(b\right)$ is the path length, which from Euclidean geometry is:

$f\left(b\right)=\frac{1}{2}{R}_s\cos \left(b\right)+\frac{\sqrt{2}}{2}\sqrt{2R_{my}-R_s^2\left[\cos \left(2b\right)-1\right]}$ (10)

where $R_s=8.2$ kpc is the distance of the earth from the center of the galaxy and $R_{my}=16.2$ kpc is the estimated radius of the extension of dust. In Figure 25 the black data points are the loss of blue quasars, (Theory - Observation)/Theory. The red line is Equation (9):

Where $\alpha ={\alpha }_b=-15.364\pm 0.065$ , $\beta ={\beta }_b=0.0764\pm 0.0027$ .

The values of ${\beta }_r$ and ${\beta }_b$ are determined by their wavelength dependency, that is: ${\beta }_r\left(\lambda \right)=\zeta {\left({\lambda }_r\right)}^{\eta }$ and ${\beta }_b\left(\lambda \right)=\zeta {\left({\lambda }_b\right)}^{\eta }$ . Our task is to determine the value of η. The ratio of these two equations leads to:

$\eta =\frac{\log \left[\left(\frac{{\beta }_r}{{\beta }_b}\right)\right]}{\log \left[\left(\frac{{\lambda }_r}{{\lambda }_b}\right)\right]}$ (11)

where log is the natural logarithm. The range of blue filters is: 420 nm to 495 nm, so we approximate ${\lambda }_b$ as the mean, ${\lambda }_b=457.5$ nm. For red filters we have: 620 nm to 950 nm that is: ${\lambda }_r=785$ nm. From Equation (11) we obtain: ${\eta }_D=3.90\pm 0.08$ . This value is not sensitive to the value of $R_{my}$ . Figure 26,

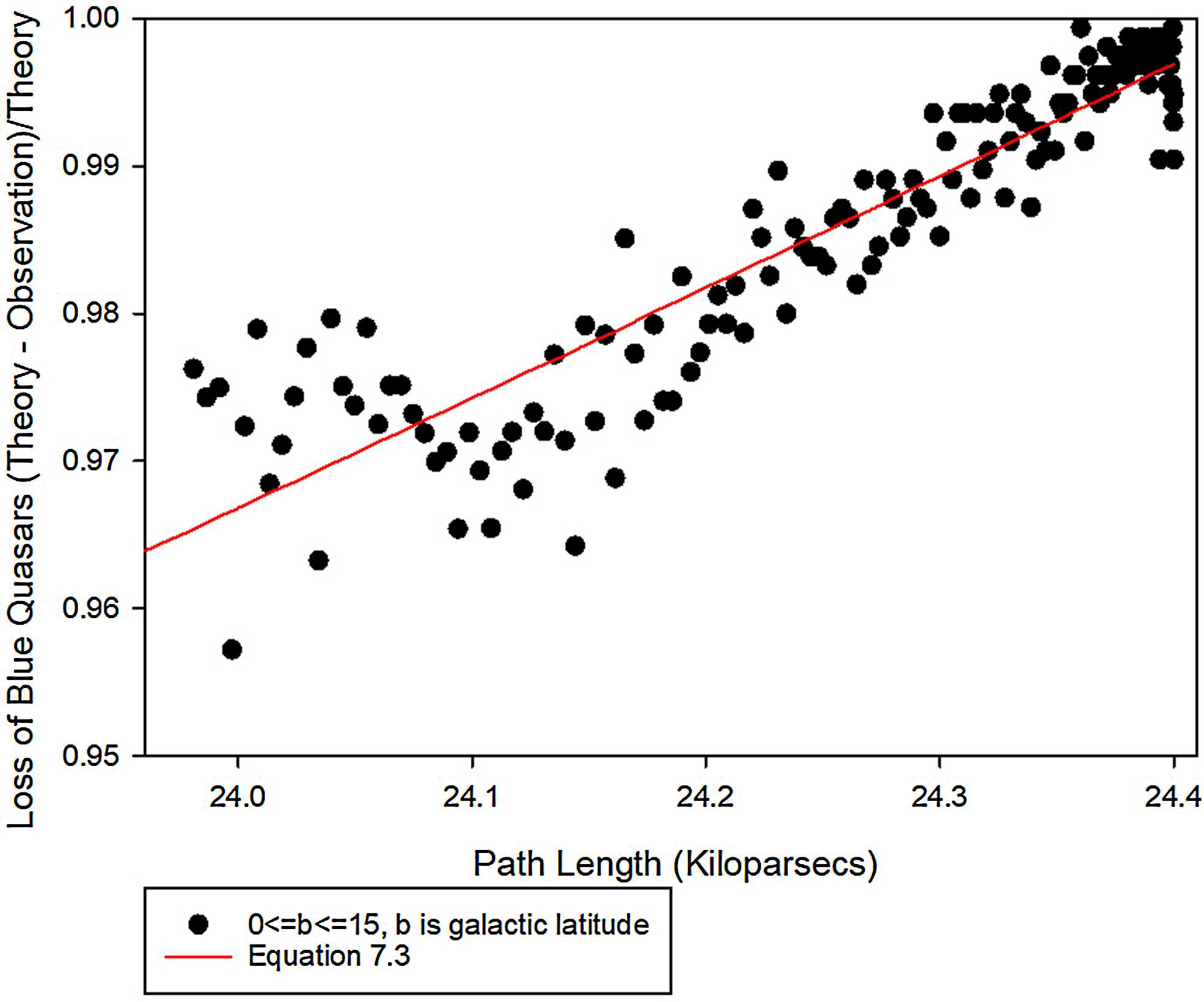

Figure 25. Loss of blue quasars due to dust.

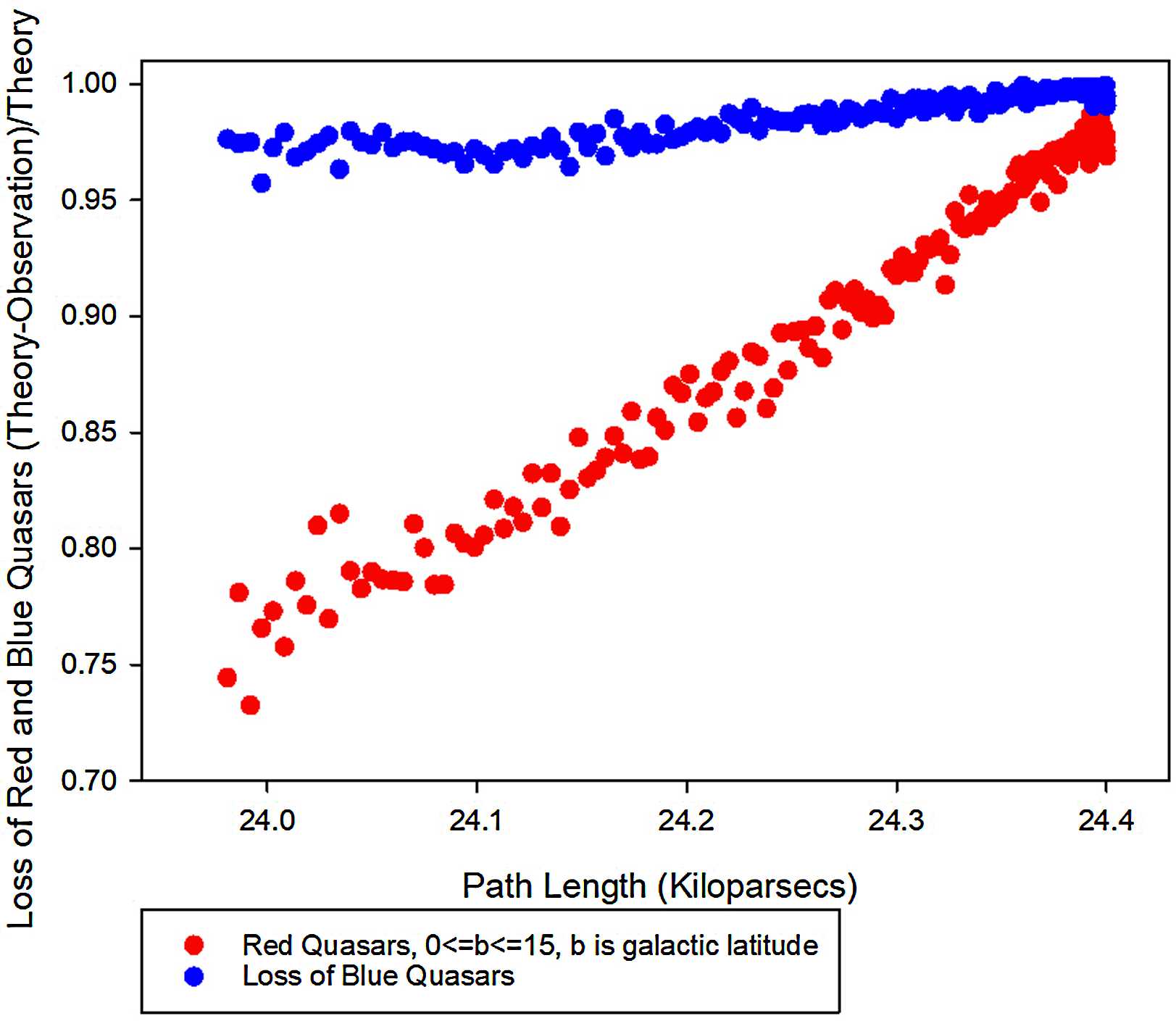

Figure 26. Loss of red and blue quasars due to dust.

which is a plot of both the red and blue quasars, makes graphically clear how the very significant difference in their slopes, ${\beta }_r$ and ${\beta }_b$ , leads to such a large value of ${\eta }_D$ .

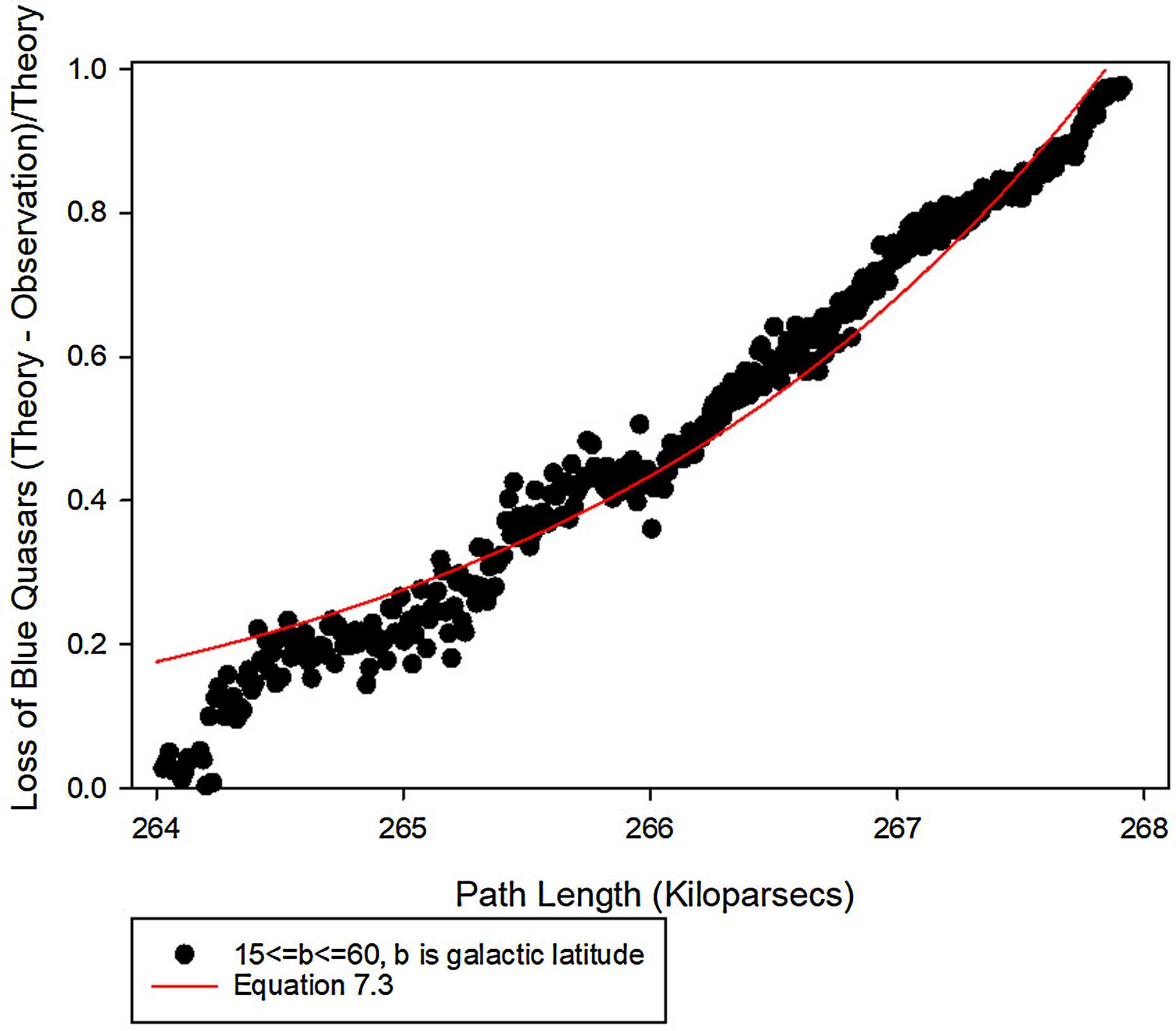

We now turn to determining the wavelength dependency in the range ${15}^{\circ }\le b\le {60}^{\circ }$ , where dark matter is dominant with $R_{my}=260$ kpc. Consider Figure 27 and Figure 28, which contain the red and blue quasars respectively in this region of galactic latitude. Employing Equation (9) we have: $\alpha ={\alpha }_r=-186.8\pm 1.7$ , $\beta ={\beta }_r=0.6963\pm 0.0064$ ,$\alpha ={\alpha }_b=-121.1\pm 1.5$ , $\beta ={\beta }_b=0.4521\pm 0.0057$ . Equation (11) yields: ${\eta }_{DM}=0.79\pm 0.04$ . Thus, ${\eta }_{DM}\ne {\eta }_D$ meaning that dust can not be the cause of the extinction of quasar light at high galactic latitudes. ${\eta }_{DM}$ is an important quantity. We will employ it in the next section to derive the mass and charge of dark matter particles.

8. Mass, Charge and Spin of Dark Matter Particles

The particles that make up normal matter—electrons, protons and neutrons are characterized individually by just three quantities: mass, charge, and spin. We do not know the values of these three properties for dark matter particles, although there have been a number of attempts to derive a range of mass values. One of the most recent is Calmet & Kuipers [99]. We assume that these properties characterize dark matter particles too. Further we assume they are quantum mechanical particles, specifically that they obey the laws of quantum electrodynamics. Below we do not derive a range of values rather we derive specific values for the

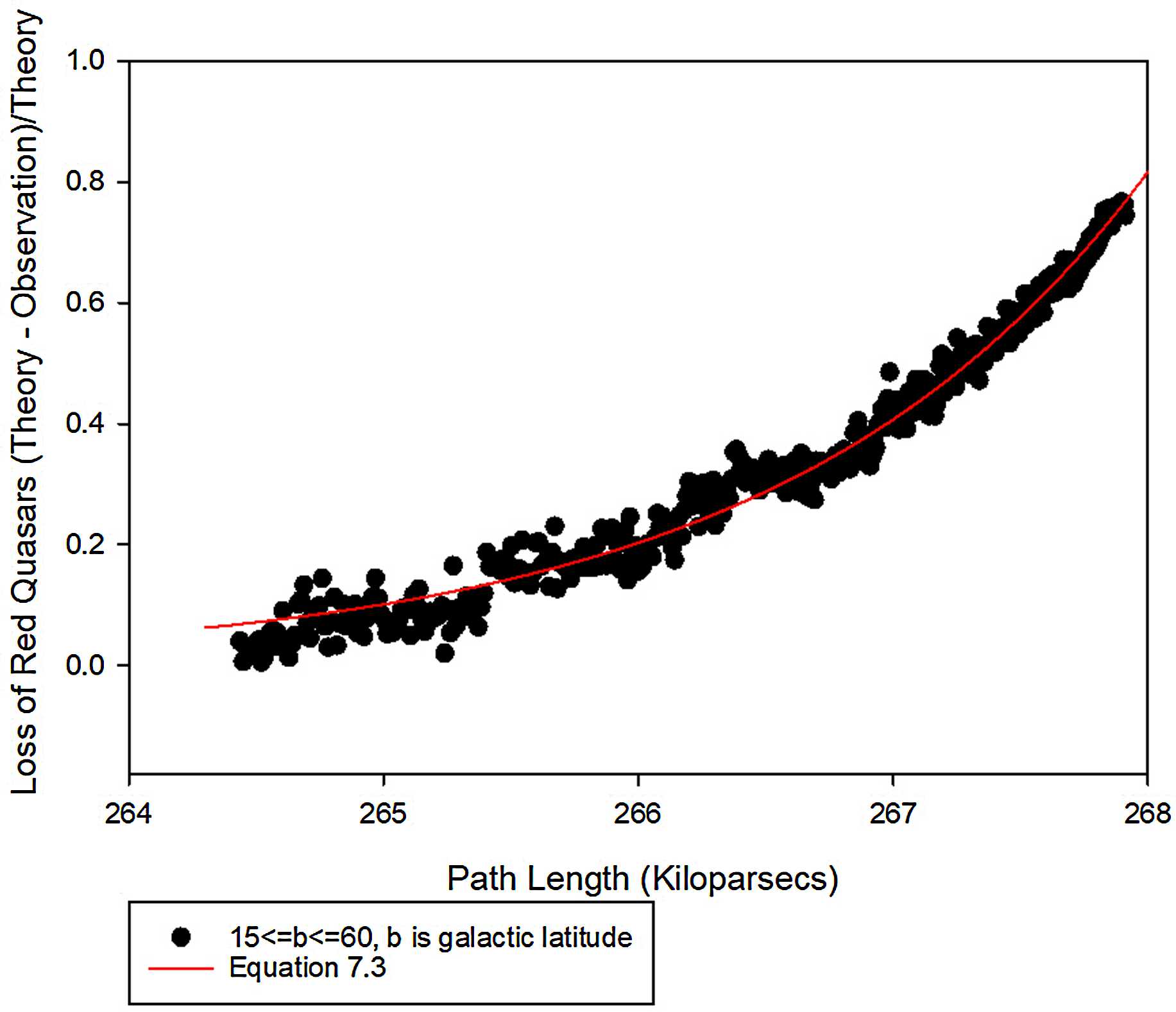

Figure 27. Loss of red quasars due to dark matter.

Figure 28. Loss of blue quasars due to dark matter.

charge and mass of dark matter particles for spin 1/2 and for spinless particles. This is possible because the loss of quasars is determined by the scattering of light by dark matter particles. Comparison of Equation (9) with Equation (7) shows that:

$\beta \left(\lambda \right)=n\sigma \left(\lambda \right)$ (12)

where n is the number of dark matter particles per unit volume in the Milky Way halo:

$n\left(\gamma \right)=\frac{\rho }{\gamma m_e}$ .(13)

For ρ we use the estimated mass of dark matter in the Milky Way halo, $M_{DM}={10}^{12}{M}_{\odot }$ , divided by the assumed spherical shape the Milky Way dark matter halo with a radius of R = 260 kpc. $m_{DM}=\gamma m_e$ , where $m_e$ is the mass of the electron. In our calculation of f, we have not taken into account the density profile in the halo Einasto [78], Burkert [79], Navarro et al. [80], possible dark matter substructures Blumenthal et al. [81], Alexander et al. [82] and the ellipsoidal shape of the halo Smith et al. [83], Ibata et al. [84], Vera-Ciro et al. [85], Wegg et al. [86].

First, we assume that dark matter particles are fermions, that is spin 1/2 particles. Initially, we assume that they posses the elementary charge, $e_{DM}=e$ . Then the scattering coefficient of light is given by the well known Klein-Nishina formula [100] of quantum electrodynamics, which is:

$\begin{array}{c}\sigma \left(\gamma ,\lambda \right)=\frac{3}{4}{\sigma }_T\left(\gamma \right)[\frac{1+x\left(\gamma ,\lambda \right)}{x{\left(\gamma ,\lambda \right)}^3}\frac{2x\left(\gamma ,\lambda \right)\left(1+x\left(\gamma ,\lambda \right)\right)}{1+2x\left(\gamma ,\lambda \right)}\\ -\log \left[1+2x\left(\gamma ,\lambda \right)\right]+\frac{1}{2x\left(\gamma ,\lambda \right)}\log \left[1+2x\left(\gamma ,\lambda \right)\right]-\frac{1+3x\left(\gamma ,\lambda \right)}{1+2x{\left(\gamma ,\lambda \right)}^2}]\end{array}$ (14)

where λ is the wavelength of incoming light, ${\sigma }_T\left(\gamma \right)$ is the Thompson scattering coefficient and $x\left(\gamma \mathrm{,}\lambda \right)$ is the ratio of the energy of the incoming light, $E\left(\lambda \right)$ , to the rest energy of the dark matter particle, $\gamma m_e$ .

For $E\left(\lambda \right)\ll \gamma m_e$ , $\sigma \left(\gamma \mathrm{,}\lambda \right)\to \sigma \left(\gamma \right)={\sigma }_T\left(\gamma \right)$ . That is σ is independent of the wavelength of the incoming radiation, which is contrary to our findings. Consequently, $E\left(\lambda \right)\ll \gamma m_e$ is not possible. That is $\gamma \ll 1$ since $E\left(\lambda \right)$ is the order of eV. Following Gould [101] this circumstance is valid for neutral particles too.

To obtain an explicit value of γ, we employ the above equation for σ and Equation (11) for η. Specifically, we determine the value of γ through trial and error, that is we insert in Equation (14) various values of γ to achieve the correct value, ${\eta }_{DM}=0.79$ . Figure 29 shows how the η varies with the logarithm of γ.

We obtain: $\gamma ={10}^{-7.2}$ . Thus, the mass of a dark matter particle is: $m_{DM}=3.2\times {10}^{-2}$ eV, which is within the range, ${10}^{-3}\text{eV}\lesssim m_{DM}\lesssim {10}^7\text{eV}$ , established by [99], even though their work is based on the assumption that the only force acting on dark matter is gravity. The possibility of ultralight dark matter has been discussed before Glennon et al. [44], Alexander et al. [46], Ferreira [102] and Hui et al. [103]. Figure 30 is a graph of the right side of Equation (12) in cgs units as a function of the wavelength, λ, of the incoming radiation.

Figure 29. η vs. γ.

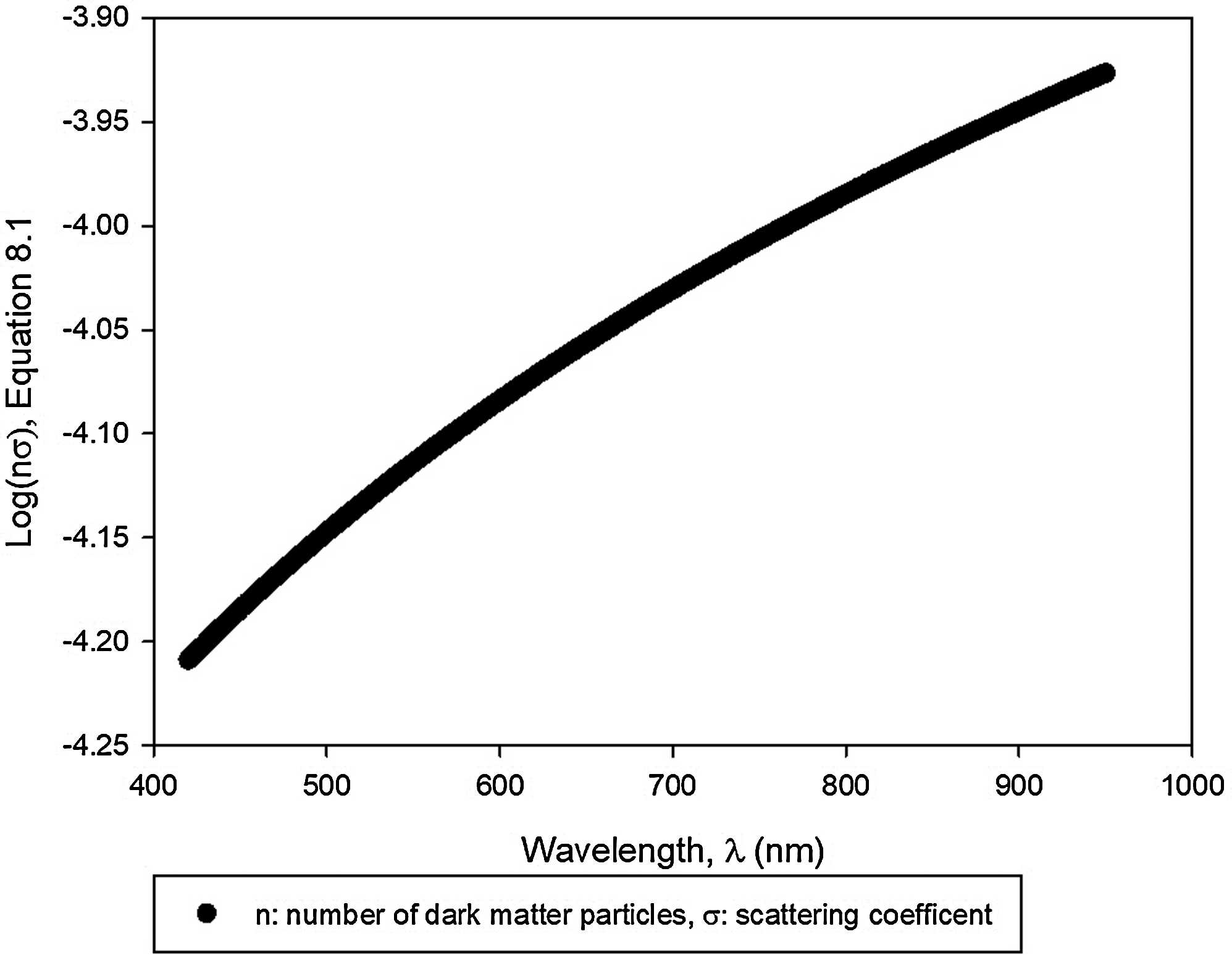

Figure 30. Log(nσ) vs. Wavelength.

Equation (13) leads to: $n=1.6\times {10}^7$ cm⁻³.

We now turn our attention to the left side of Equation (12). ${\beta }_r$ and ${\beta }_b$ were introduced in the previous section. In cgs units they are: ${\beta }_b=1.4653\times {10}^{-22}$ cm⁻¹ and ${\beta }_r=2.2566\times {10}^{-22}$ cm⁻¹. On the right side of Equation (12), inserting ${\lambda }_a$ and ${\lambda }_b$ from the previous section, we obtain: ${\beta }_b=6.6256\times {10}^{-5}$ cm⁻¹, ${\beta }_r=1.0203\times {10}^{-4}$ cm⁻¹. These values for the same quantities differ from each other by many orders of magnitude. In order to achieve equality we must drop our assumption that $e_{DM}=e$ . The Thompson scattering coefficient employed in Equation (14) is proportional to the square of the classical electron radius, $r_e$ , which is proportional to the square of elementary charge. Thus, ${\sigma }_T~e^4$ leading to $\sigma ~e^4$ . To achieve equality in Equation (12) we introduce: $e_{DM}=\delta e$ . Consequently, the classical radius of a dark matter particle is:

$r_{DM}=\frac{{\delta }^2}{\gamma }{r}_e$ (15)

and ${\sigma }_T~{\delta }^4{e}^4$ and $\sigma ~{\delta }^4{e}^4$ .

Equation (12) leads to two equations, one for ${\beta }_r$ and the other for ${\beta }_b$ . Both equations lead to the same value: $\delta =3.856\times {10}^{-5}$ . The idea that dark matter particles do not possess the elementary charge is not original. See: Alexander et al. [46], Cline et al. [47] and Munoz & Loeb [48]. What is new is that we have derived a specific value of the charge of a dark matter particle. The values of γ and δ lead to the value of the classical dark matter radius of: $r_{DM}=2.357\times {10}^{-2}{r}_e=6.641\times {10}^{-15}$ cm.

Assuming that the dark matter particles are moving non-relativistically then the mean free path, ζ, of a photon with wavelength, λ, is:

$\zeta \left(\gamma \mathrm{,}\lambda \right)=\frac{1}{{\delta }^{4}n\left(\gamma \right)\sigma \left(\gamma \mathrm{,}\lambda \right)}\mathrm{.}$ (16)

In Figure 31 we plot $\zeta \left(\lambda \right)$ using the above values of γ and δ. We see that the mean free path is kiloparsecs in length for optical photons. Consequently, the scattering of optical photons by dark matter particles would be very difficult to detect in a laboratory setting.

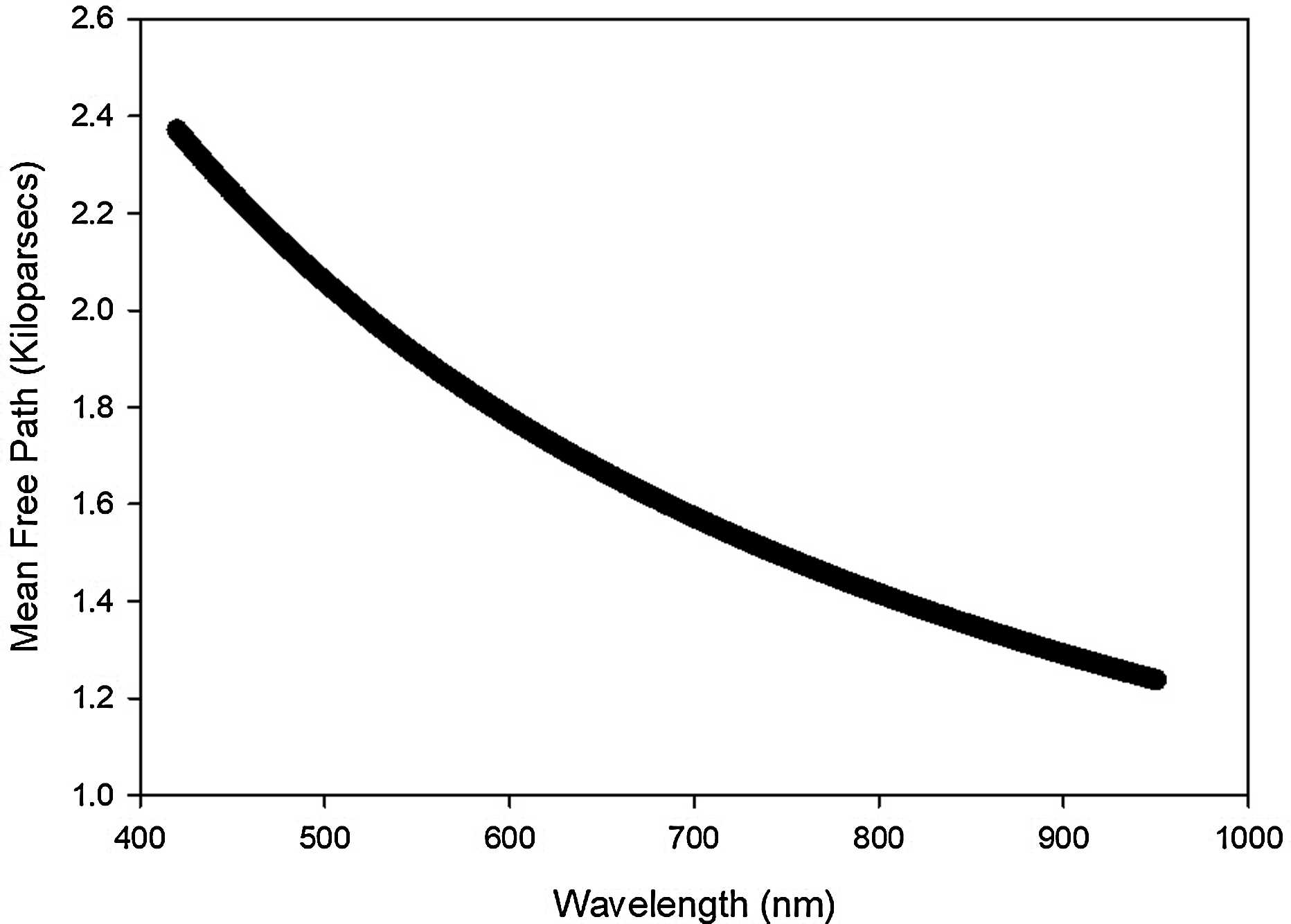

Figure 31. Mean free path.

Finally, we point out two circumstances. First, because $\sigma ~e^4$ we cannot ascertain the sign of the charge of any particular dark matter particle. Secondly, we have shown that dark matter particles are charged, so they do emit and absorb electromagnetic radiation. However, if they are non-relativistic and quantum effects can be ignored then the well-known Larmor formula for the power radiated by a single dark matter particle is proportional to the charge squared, that is: $P_{DM}~{\delta }^2$ , or: $P_{DM}=1.487\times {10}^{-9}{P}_e$ , where $P_e$ is the power output of a single electron.

We have derived the mass and charge of a spin 1/2 dark matter particle. We now do the same for a spinless particle. The scattering coefficient is given by a an equation derived by Dirac [104]

$\sigma \left(\gamma ,\lambda \right)=\frac{3}{4}{\sigma }_T\left(\gamma \right)\left[\frac{1+x\left(\lambda ,\gamma \right)}{x{\left(\lambda ,\gamma \right)}^2}\left(\frac{2\left(1+x\left(\lambda ,\gamma \right)\right)}{1+2x\left(\lambda ,\gamma \right)}-\frac{1}{x\left(\lambda ,\gamma \right)}\log \left[1+2x\left(\lambda ,\gamma \right)\right]\right)\right].$ (17)

We apply the same procedure as above to obtain $\gamma ={10}^{-6.0}$ , $m_{DM}=0.511$ eV, $\delta =2.136\times {10}^{-4}$ , $n=1.01\times {10}^6$ cm⁻³ and the classical radius of a dark matter particle is: $r_{DM}=4.563\times {10}^{-2}{r}_e=1.286\times {10}^{-14}$ cm.

9. Discussion

In the above section we found that dark matter particles do not posses the elementary charge. Particles with $\delta <1$ are referred to as millicharged particles (MCP). The discussion of this possibility has a rather long history. Starting with Davidson et al. [105], who pointed out that MCPs are possible in the standard model of particle physics. Recently, constraints under specific assumptions have been discussed by Buen-Abad et al. [106]. The idea that dark matter particles do not possess the elementary charge is therefore not original. See also: Cline et al. [47], Alexander et al. [46] and Muñoz & Loeb [107]. Recent experimental work can be found in Gorbunov et al. [108], Feng et al. [109] and Prabhu & Blanco [110]. What is new in our work is that we have derived a specific value of the charge of a dark matter particle.

There are a number of authors, who have constrained the value of δ. We do not know how dark matter particles interact with their environment. Yet most of these constraints are derived by assuming a particular interaction of MCPs with their environment. There are however two constraints which do not assume a specific interaction of dark matter particles. They are: Gardner & Latimer [111] and

Caputo et al. [112]. A dark matter particle with our value of $\frac{\delta }{m}=1.205\times {10}^{-3}$ eV⁻¹ (spin 1/2) or 4.18 × 10⁻⁴ eV⁻¹ (spin 0) differs from the Caputo et al. [113], 10⁻⁸ eV⁻¹, by orders of magnitude, where as the difference between our values and that of Gardner and Latimer, $\frac{\delta }{m}={10}^{-5}$ eV⁻¹ is much smaller. However the Caputo et al. value scales as; ${\rho }^{-1/2}$ , where ρ is the poorly known dark matter density. If however the Caputo et al. value is confirmed then it would mean that there are at least two different types of dark matter particles in our universe. For comparison we remind the reader that normal matter has two stable particles, the electron and the proton with $\frac{\delta }{m}=1.95695\times {10}^{-6}$ eV⁻¹ and $1.06579\times {10}^{-9}$ eV⁻¹ respectively.

Our result of a specific mass for dark matter particles means that they are ultralight. The mass of a dark matter particle is: $m_{DM}=3.2\times {10}^{-2}$ eV, which is within the range, ${10}^{-3}\text{eV}\le m_{DM}\le {10}^7\text{eV}$ , established by Calmet & Kuipers [99], even though their work is based on the assumption that the only force acting on dark matter is gravity. The possibility of ultralight dark matter has been discussed before (Glennon et al. 2023; Alexander et al. 2021; Ferreira 2021; Hui et al. 2017).

10. Conclusions

Figures 2-4 show the distribution of quasars on the celestial sphere according to SDSS, Gaia and WISE data respectively. All three distributions are highly anisotropic, whereas the basic assumption of homogeneity in cosmological theory demands that the distributions be isotropic. What is the cause of the observed anisotropy? We conclude it is caused by extinction in the galactic halo.

Since, as shown in section 6, dust is not the cause of the observed decrease in the number of quasars at $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ , we are left with the only other known components of the Milky Way halo—stars, hot plasma and dark matter as the possible cause of the observed extinction of quasar light in the galactic halo. It is manifest that stars can not cause the observed extinction of quasar light. Light does scatter off of the hot circumgalactic gas, but it is caused by Thomson scattering, which has an extremely small cross section of 6.65 × 10⁻²⁵ cm². Consequently, the scattering of light by the hot plasma in the galactic halo is insignificant, as shown in section 5. We are left with dark matter as the cause of the extinction of quasar light in the galactic halo. But, all observational evidence to date suggests that dark matter does not absorb or emit light (Bertone & Hooper [42]). Consequently, we conclude dark matter scatters light and is responsible for the observed decrease in the number of quasars at $b<-{15}^{\circ }$ and $b>{15}^{\circ }$ .

We investigated the wavelength dependency of the scattering of light by dark matter particles. We employed the dependency to determine the mass and charge of dark matter particles. If the dark matter particle is a fermion its mass, $m_{DM}$ and charge $e_{DM}=\delta e$ , where e is the elementary charge, are: $m_{DM}=3.2\times {10}^{-2}$ eV and $\delta =3.856\times {10}^{-5}$ . If however the dark matter particle is spinless then: $m_{DM}=0.511$ eV and $\delta =2.132\times {10}^{-4}$ .

The wavelength dependency of dust and dark matter differ significantly. Following Davis & Silk [49] this circumstance means that electromagnetic radiation scattered by dark matter particles can be detected even if it is less intense than the scattered radiation from dust.

Are dark matter particles charged neutrinos? Recent results of laboratory experiments: Shiva Sankar et al. [113], Khan [114] and Bonet et al. [115] have found that: $\delta <{10}^{-13}$ . This upper limit for the charge of a neutrino is orders of magnitude lower than δ of a dark matter particle according to our result. Consequently dark matter particles are not charged neutrinos.

We turn to answering the question, whether dark matter in the disk of the Milky Way contributes significantly to the scattering of light of extragalactic sources. This question is associated with the specific question of the density of dark matter in the galactic disk, which is important because it provides constraints on galaxy formation models, on the merger history of the Milky Way, on alternative gravitational theories and most importantly on direct detection of dark matter particles in terrestrial laboratories. Numerical estimates of the dark matter density in the solar neighborhood have been discussed by: Read [116], de Salas et al. [117] and Eilers et al. [118].

In order to answer our question we return to Figure 12. We now know that the red line in this figure is determined by the scattering of light due to dark matter. But, the actual observations (black line in Figure 12) show that for $b<{14.8}^{\circ }$ , interstellar extinction rather suddenly takes over meaning that dark matter contributes insignificantly to the scattering of light in the disk of the Milky Way.

Next we turn to the question of the viability of alternative gravitational theories. Until now we only knew of the existence of dark matter through its gravitational effects, which could be explained by alternative gravitational theories. Our result however shows that dark matter interacts with light, meaning that dark matter not only interacts gravitationally. Consequently, alternative gravitational theories, which pertain only to gravitational phenomena, can not explain the scattering of light by dark matter particles and are therefore untenable.

Finally, we note that most non-baryonic dark matter particle candidates do not interact electromagnetically. Our results show on the contrary that dark matter does scatter light. We conclude: Most non-baryonic dark matter candidates are not viable candidates.

We emphasize that the above conclusions on the scattering of light by dark matter particles are based on the assumptions enunciated in the second paragraph of the introduction. In addition the derivation of the mass and charge of dark matter particles is based on the assumptions enunciated in the first paragraph of section 8. If any one of these assumptions can be shown to be invalid, then our conclusions are erroneous. Similarly, if any one of the arguments presented in section 5 and 6 can be shown to be false then the above conclusions are incorrect. Finally, we note that our conclusions must be validated by future work before they can be considered what one may call scientific fact. On the other hand, if it is confirmed that dark matter scatters light, then it means that the measured apparent magnitudes of extragalactic sources are incorrect, that is they are actually brighter than the measured values indicate, meaning they are not as distant as calculated.

Acknowledgements

Many thanks to Dr. and Mrs. William McCormick, whose generous support has provided the prerequisite financial basis and most importantly the necessary time to complete this project. Thanks also to my son, Dr. Chima McGruder, who was very helpful in the submission process.

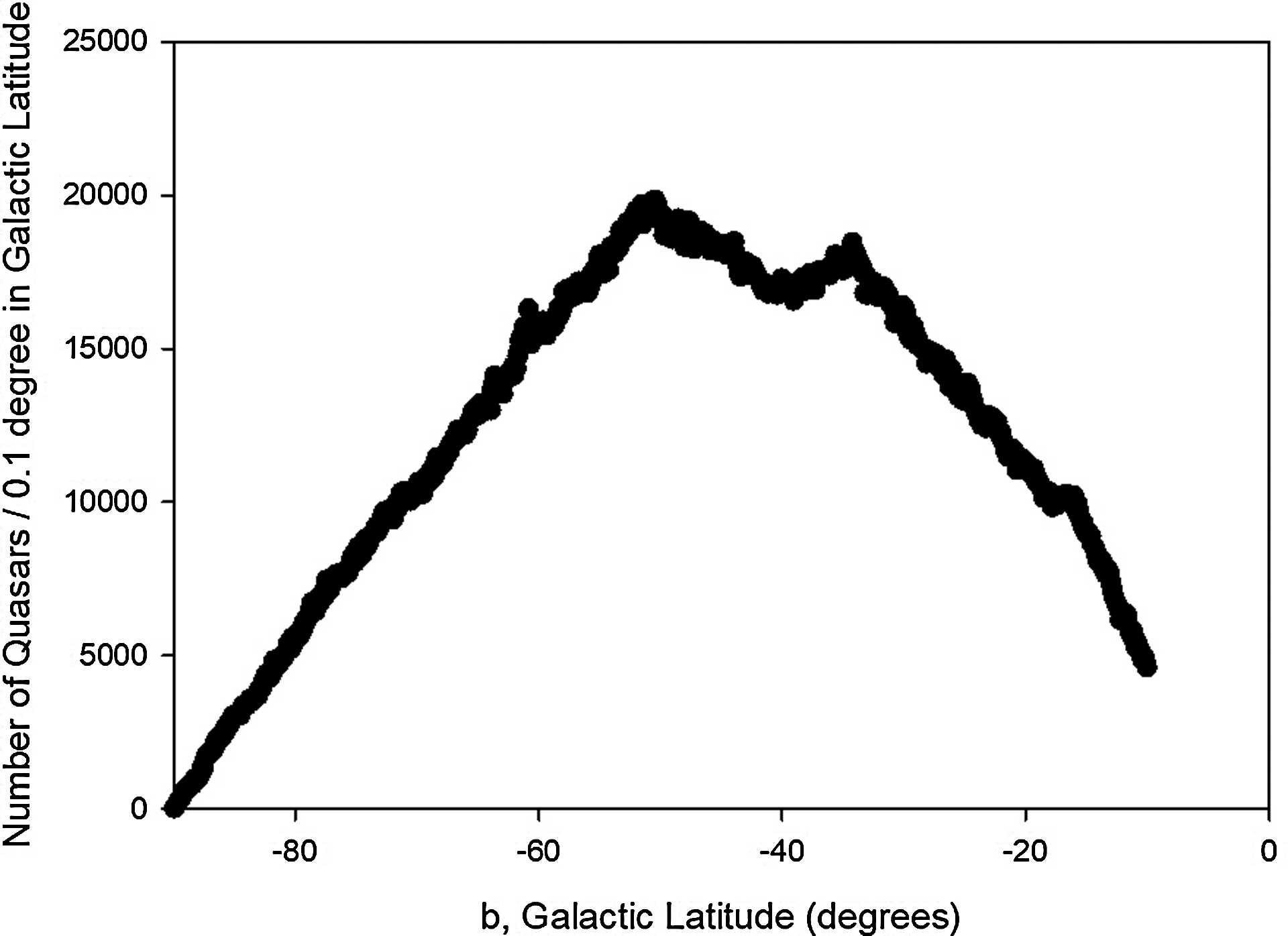

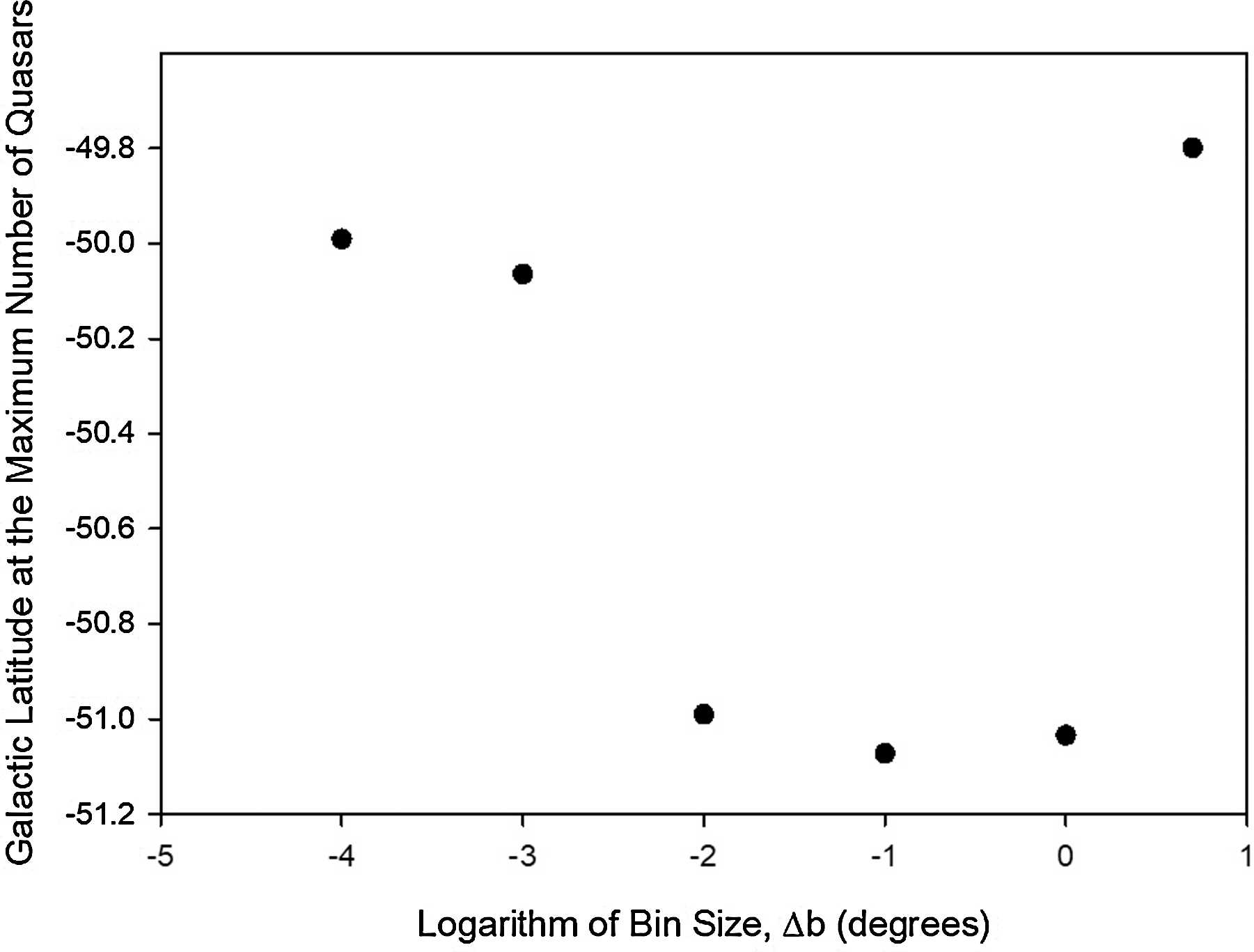

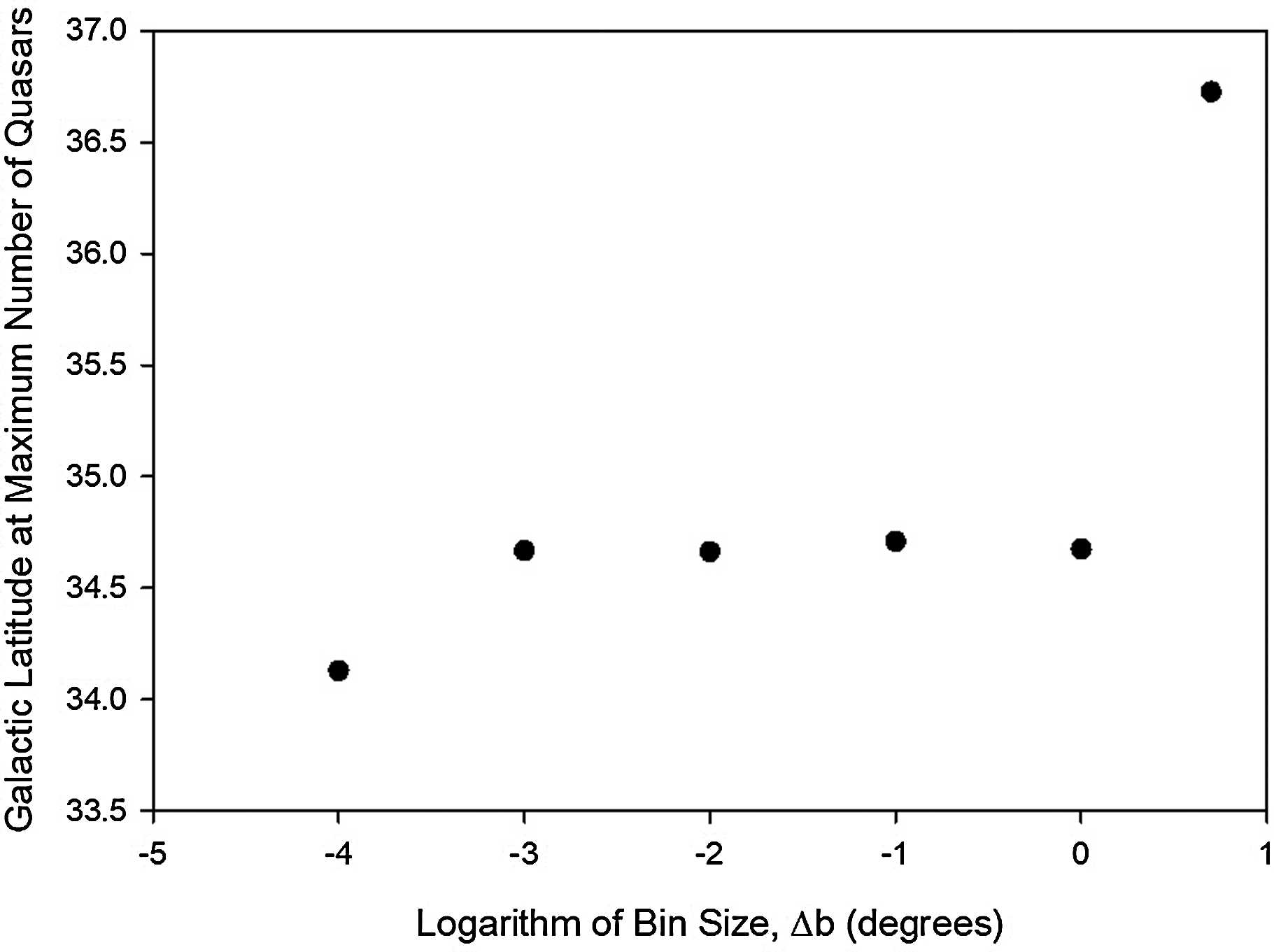

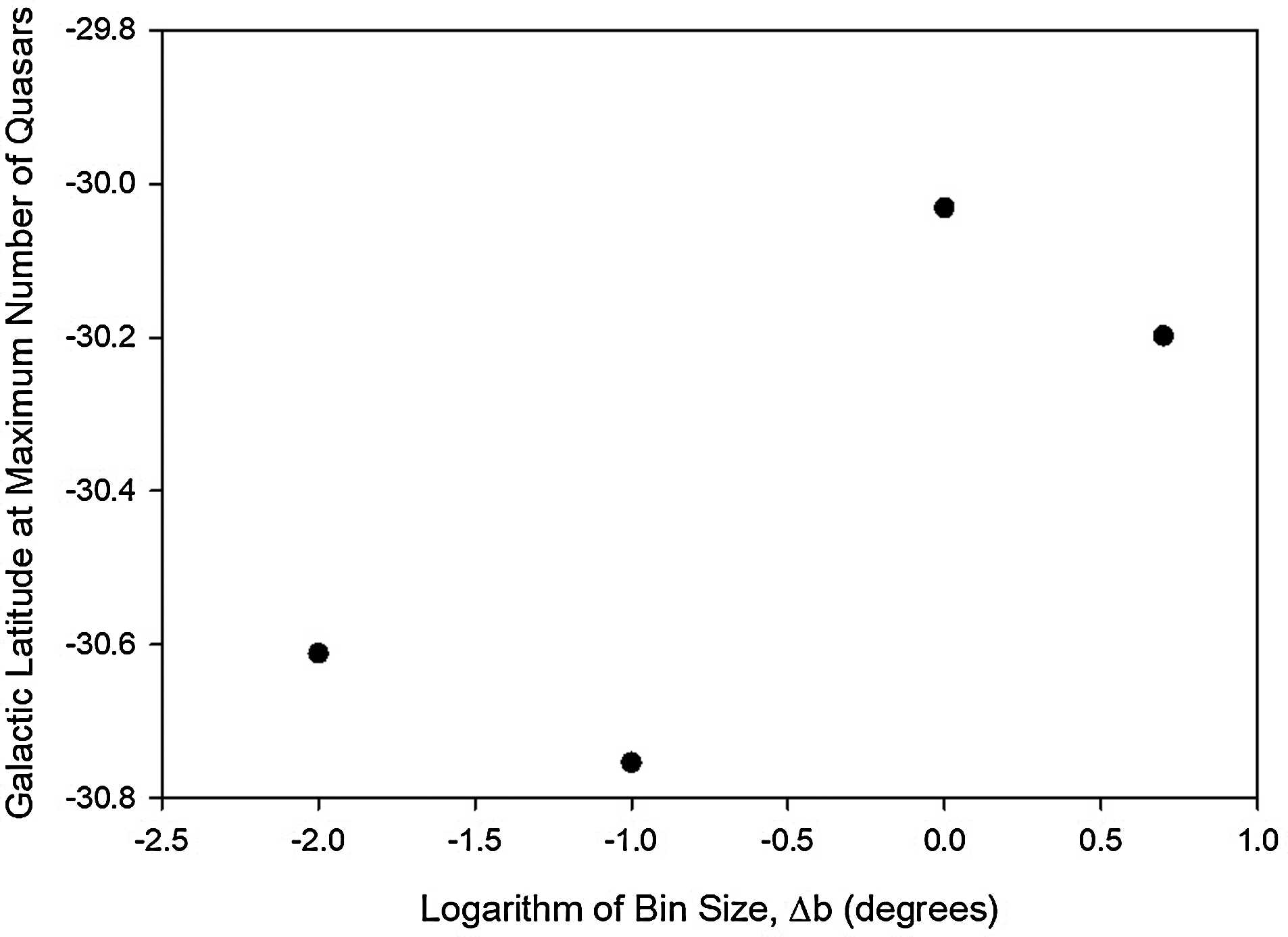

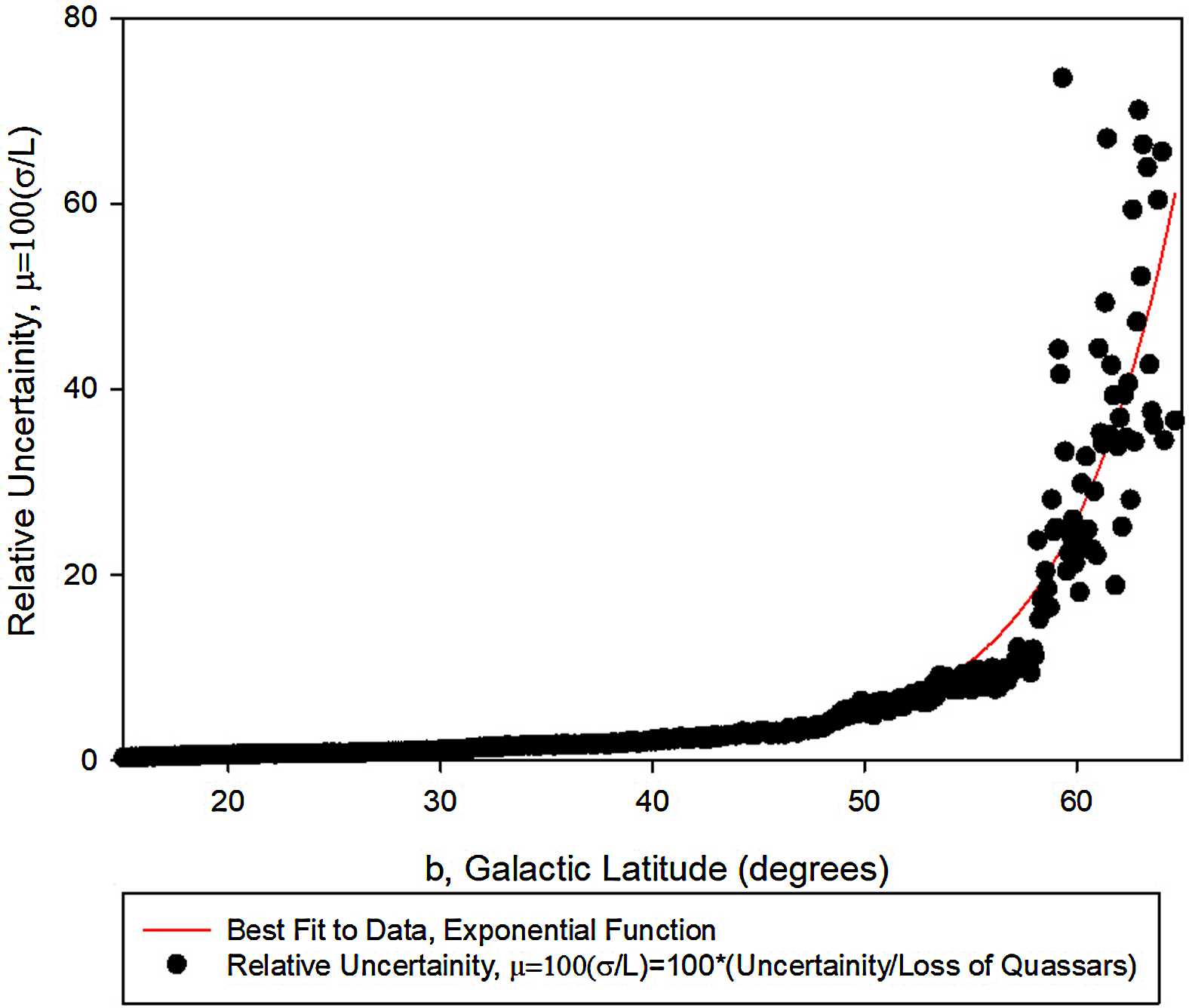

Appendix A: Maximum Values of the Observed Quasar Distributions

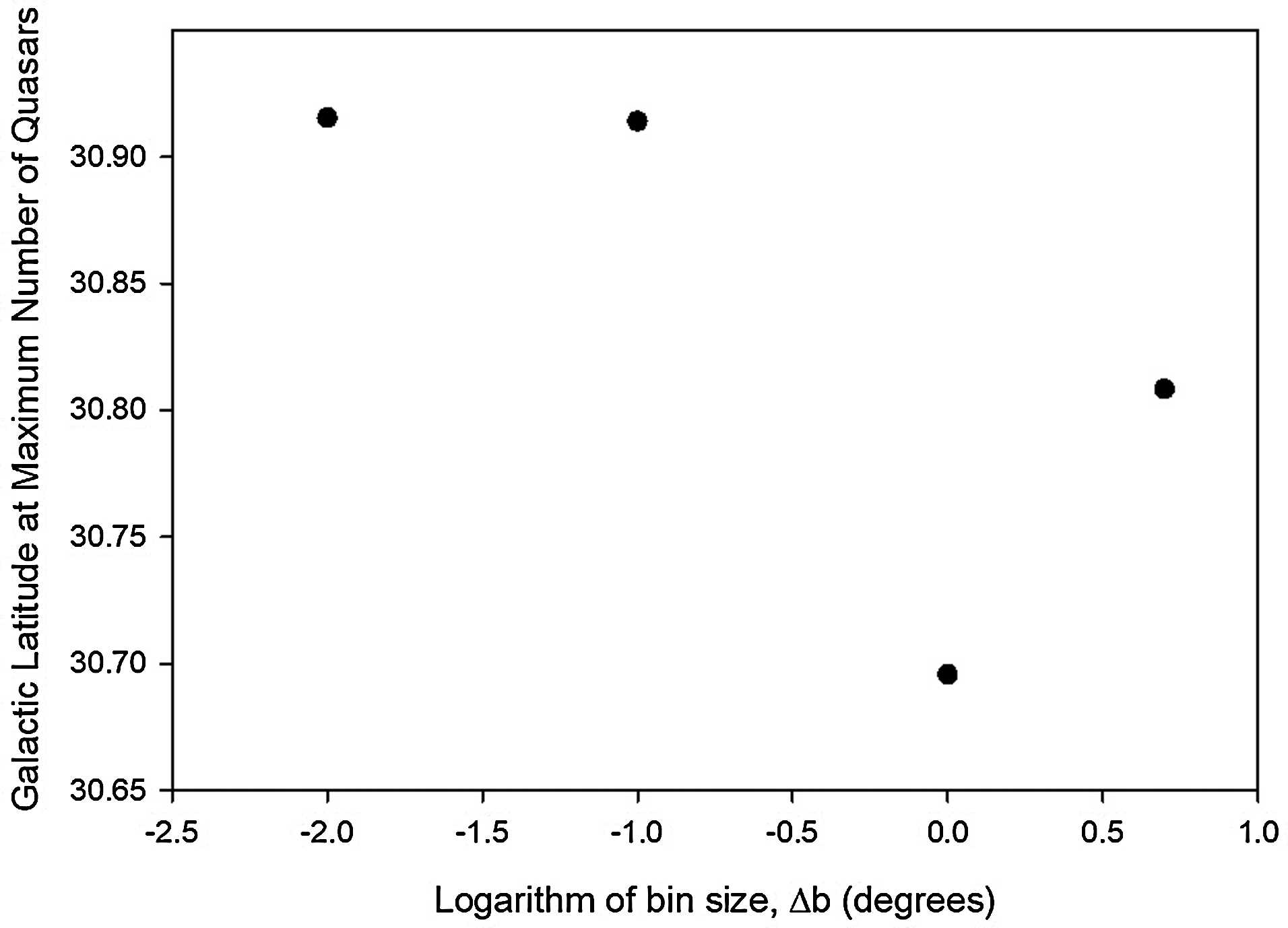

In this appendix we will derive accurate values for the galactic latitudes, b_max, at which the distribution of quasars in the Gaia and WISE data is a maximum. We do not consider the SDSS data because it is characterized by non-uniform sky coverage. Figure A1 ($b>0^{\circ }$ ) and Figure A2 ($b<0^{\circ }$ ) show the distributions of

Figure A1. Quasars in Gaia Catalog vs. Galactic Latitude, b > 0˚.

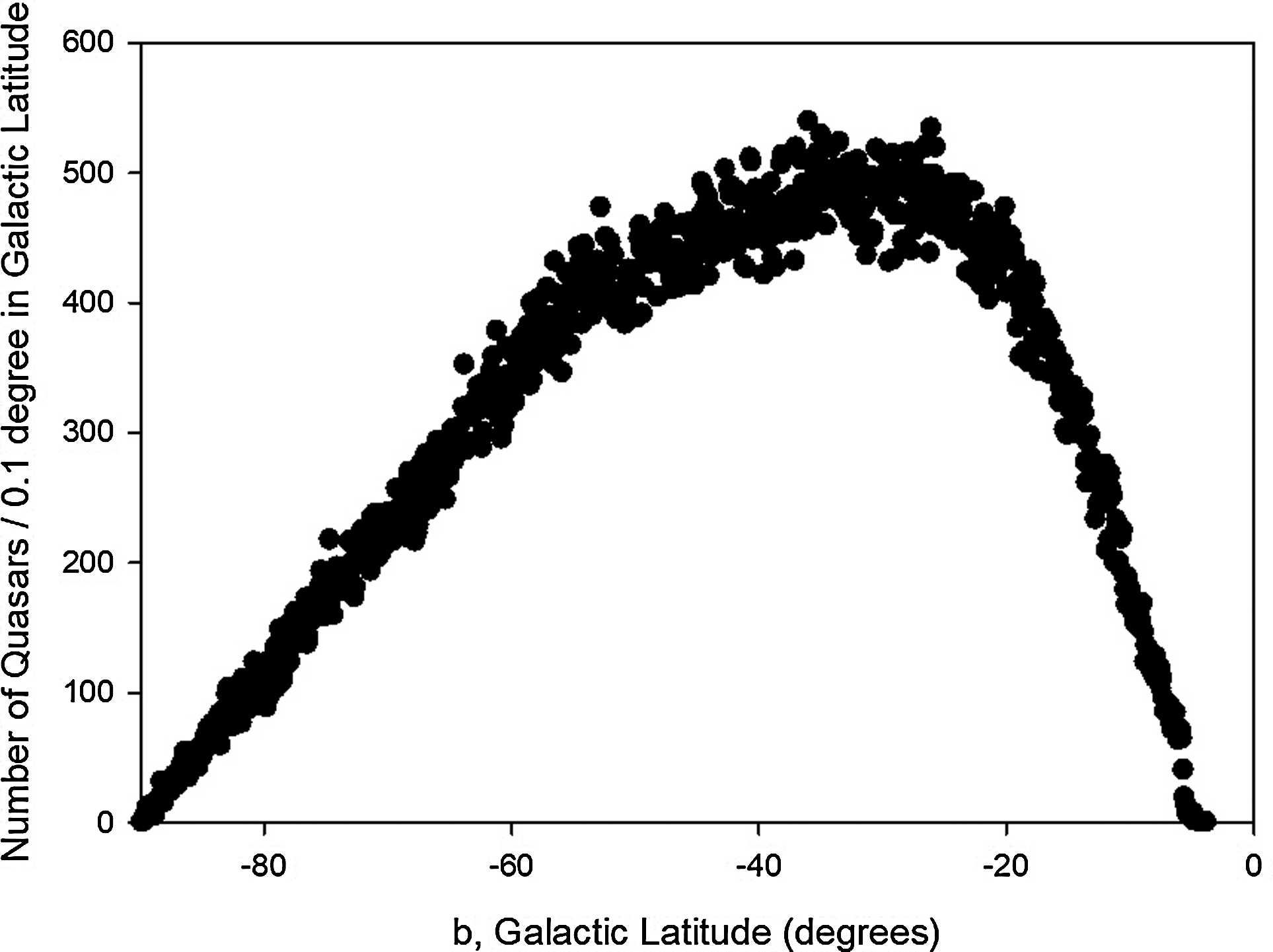

Figure A2. Quasars in Gaia Catalog vs. Galactic Latitude, b < 0˚.

quasars in the Gaia catalog as a function of galactic latitude with a bin size of $\Delta b={0.1}^{\circ }$ , whereas Figure A3 ($b>0^{\circ }$ ) and Figure A4 ($b<0^{\circ }$ ) represent the distributions for the WISE data.

To determine the maxima in all four figures we approximated each distribution with a polynomial. However, the value of b_max can be different for different bin sizes, ∆b, so we must consider these distributions as a function of ∆b. For the Gaia distributions as a function of the logarithm of $\Delta b\mathrm{,}{b}_{\max }$ is shown in Figure A5

Figure A3. Quasars in WISE Catalog vs. Galactic Latitude, b > 0˚.

Figure A4. Quasars in WISE Catalog vs. Galactic Latitude, b < 0˚.

Figure A5. b_max at maximum number of quasars in Gaia Catalog, b > 0˚.

Figure A6. b_max at maximum number of quasars in Gaia Catalog, b < 0˚.

($b>0^{\circ }$ ) and Figure A6 ($b<0^{\circ }$ ), whereas Figure A7 ($b>0^{\circ }$ ) and Figure A8 ($b<0^{\circ }$ ) represent the maxima for the WISE data.

For the Gaia data Figure A5 exhibits a clear distinction between the two smaller bin sizes (mean: 30.9˚) and the two larger bin sizes (mean: 30.7˚) with an offset of 0.2˚. Figure A6 also possesses a clear distinction between the two smaller bin sizes (mean: −30.7˚) and the two larger bin sizes (mean: −30.1˚) with an offset of 0.6˚.

Figure A7. b_max at maximum number of quasars in WISE Catalog, b > 0˚.

Figure A8. b_max at maximum number of quasars in WISE Catalog, b < 0˚.

The WISE data in Figure A7 however does not possess a dichotomy between the smaller and larger values of bin sizes, although the point with the largest bin size is far from the other points in Figure A7. According to Chauvenet’s criterion (Taylor [119]) only this point in any of the Figures A1-A4 can be rejected. For this point the expected number as deviant as its value is 0.286, which is significantly less than Chauvenet’s criterion of 0.5. It is therefore justified to consider this point in Figure A7 to be an outlier and we do not include it in our calculation of the mean b_max.

Figure A8 is more complex. There is a clear difference in b_max between the first two smallest values of ∆b (mean: −50.0˚) and the next three (mean: −51.0˚) giving a large offset of 1˚. The point with the largest bin size is 1.2˚ away from the previous three points, but it is only 0.2˚ from the first two points with the smallest ∆b values. For this reason the expected number as deviant as its value is 1.484, which is much larger than Chauvenet’s criterion of 0.5. Thus, it is not justified to consider it as an outlier.

We obtain the following mean values for the galactic latitudes at which a maximum of the number of quasars is observed. Figure A5: $b_{\max }={30.83}^{\circ }\pm {0.05}^{\circ }$ , Figure A6: $b_{\max }=-{30.4}^{\circ }\pm {0.2}^{\circ }$ , Figure A7: $b_{\max }={34.6}^{\circ }\pm {0.1}^{\circ }$ , Figure A8: $b_{\max }=-{50.5}^{\circ }\pm {0.2}^{\circ }$ . We note that the Gaia peaks are basically symmetrical relative to the galactic plane ($b=0^{\circ }$ ), whereas this is not the case for the WISE peaks.

We conclude: The bin size has a negligible effect on the peak of the distributions.

Appendix B: Linearity at the End of the Observed and Theoretical Quasar Distributions

In section 4 we compared theory with observations. Crucial for our analysis is the circumstance that both the theoretical and observed quasar distributions (Figures 2-4) are linear at the end of the distributions. In this Appendix we quantify this circumstance by showing that the end of both the theoretical and observed distributions are linear. Application of the equation of a straight line:

$y=\alpha +\beta b$ (18)

to the end of the theoretical and observed quasar distributions yields the correlations in the table.

DataCorrelation

SDSS Observations0.9983

SDSS Theory0.9999

Gaia Observations0.9895

Gaia Theory0.9999

WISE Observations0.9992

WISE Theory0.9997

These extremely high values of the correlation mean that the end of both the theoretical as well as the observed quasar distributions are indeed highly linear.

The details are:

SDSS Observations: $\alpha =6838\pm 23$ or 0.3%, $\beta =-76.0\pm 0.3$ or 0.4%, Standard Error: 31

SDSS Theory: $\alpha =6779\pm 4$ or 0.07%, $\beta =-75.24\pm 0.06$ or 0.08%, Standard Error: 6

Gaia Observations: $\alpha =1106\pm 9$ or 0.8%, $\beta =-12.3\pm 0.1$ or 0.9%, Standard Error: 13

Gaia Theory: $\alpha =1099.5\pm 0.8$ or 0.08%, $\beta =-12.20\pm 0.01$ or 0.09%, Standard Error: 1.4

WISE Observations: $\alpha =45495\pm 81$ or 0.2%, $\beta =-506\pm 1$ or 0.2%, Standard Error: 203

WISE Theory: $\alpha =44720\pm 49$ or 0.1%, $\beta =-494.7\pm 0.7$ or 0.1%, Standard Error: 127

Appendix C: Exponential Curves for Deviation of the Observations from Theory

In section 4 we computed the loss of quasars by subtracting the observed number of quasars from the theoretical values based on the assumption of isotropy. We showed graphically that the loss of quasars is given in all three cases, (Gaia, WISE and SDSS), by exponential curves. In this section we quantify these curves. Specifically, we find the loss in the number of quasars, L, is given by:

$L=\gamma +\delta ex{p}^{-\frac{b}{\epsilon }}\mathrm{.}$ (19)

Gaia catalog with $-5^{\circ }>b\ge -{50}^{\circ }$ (Figure 8): $\gamma =17\pm 3$ , $\delta =998\pm 7$ , $\epsilon =-14.3\pm 0.2$

Gaia catalog with $5^{\circ }\le b\le {45}^{\circ }$ (Figure 9): $\gamma =-20\pm 5$ , $\delta =11191\pm 11$ , $\epsilon =13.7\pm 0.3$

WISE C75 catalog with $-{50}^{\circ }\le b\le -{10}^{\circ }$ (Figure 10): $\gamma =-18662\pm 1148$ , $\delta =52706\pm 930$ , $\epsilon =-50\pm 2$

WISE C75 catalog with ${10}^{\circ }<b\le {42.9}^{\circ }$ (Figure 11): $\gamma =-9624\pm 716$ , $\delta =51496\pm 333$ , $\epsilon =24.9\pm 0.9$

SDSS catalog with ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ (Figure 13): $\gamma =-13061\pm 1262$ , $\delta =18851\pm 1229$ , $\epsilon =170\pm 14$

Appendix D: Statistical Justification for Subtracting Observed Quasar Distribution from the Theoretical Isotropic Distribution

In order to provide the statistical justification it is necessary to quantify the uncertainty of the number of quasars in each bin. It is appropriate to assume the applicability of the Poisson distribution because it is generally employed to give the statistical uncertainty of a given number of events, which occur in a fixed interval of time or space. The statistical uncertainty is given simply by the square root of the number of measured events, that is in our case the number of quasars in each bin, with a bin size of 0.1˚. If the uncertainly, σ, that is the square root of the number of quasars in each bin, is significantly smaller than the difference between theory and observation, that is the loss of quasars L, then our approach of subtracting observation from theory is statistically justified. We introduce the relative uncertainty, μ. In terms of percentage we have:

$\mu =100\frac{\sigma }{L}\mathrm{.}$ (20)

If $\mu \ll 100$ then it is clear that subtracting the observed distribution from the theoretical isotropic distribution is statistically justified.

First we consider the quasars with $b>0^{\circ }$ in the Gaia catalog. Before we present the statistical justification, it is crucial to determine the galactic latitude, $b_s$ , at which the observed number of quasars starts to deviate from the predicted values. The transition point, $b_s$ , occurs where the loss of quasars, $L\approx 0$ transits to $L>0$ . We determined $b_s={45}^{\circ }$ from a visual inspection of L vs. b for the Gaia quasars with $b>0^{\circ }$ . This value of $b_s$ is confirmed through a visual inspection of Figure 3, which shows the lost of quasars in the Gaia catalog as a function of galactic latitude. Figure 9 shows the loss of quasars, L vs. b in the range: $0^{\circ }\le b\le {45}^{\circ }$ .

In Figure D1 we show the frequency distribution of the μ values for the Gaia catalog with $0^{\circ }\le b\le {45}^{\circ }$ in bins of $\Delta \mu =5$ . This figure tells us that values of $\mu \ll 100$ appear with much higher frequency than large values of μ. In fact the best fit to the data points is an exponential curve (Equation (7)) with $\gamma =-26\pm 24$ , $\delta =156\pm 16$ and $\epsilon =-0.3\pm 0.1$ . Next in Figure D2 we plot the values of μ as a function of the galactic latitude, b, from the Gaia catalog in the range, $0^{\circ }\le b\le {45}^{\circ }$ . The red line in Figure D2 is the best fit to the data, which is given by Equation (7) with $\gamma =-0.5\pm 1.5$ , $\delta =0.02\pm 0.15$ , and $\epsilon =2.1\pm 0.2$ . Figure D2 shows that out to $b\approx {31}^{\circ }$ , we have $\mu \ll 100$ . Thereafter the scatter increases significantly, but as the best fit red line shows at $b={45}^{\circ }$ , $\mu <60$ .

We conclude from Figure D1 and Figure D2 that the computation of the loss of quasars, L, for the quasars in the Gaia catalog in the range $0^{\circ }\le b\le {45}^{\circ }$ is

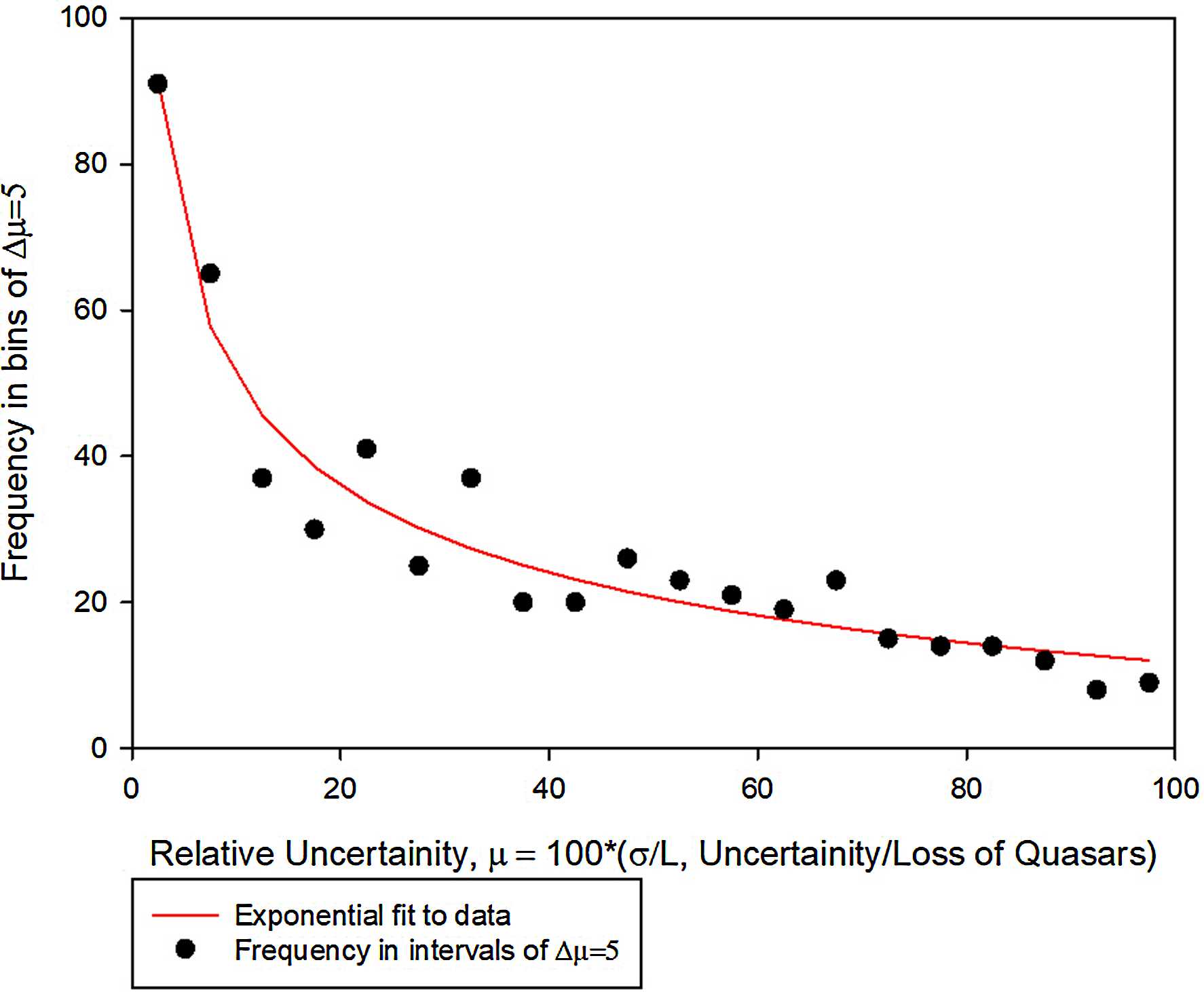

Figure D1. Frequency vs. Relative Uncertainty for Gaia 0˚ < b < 45˚.

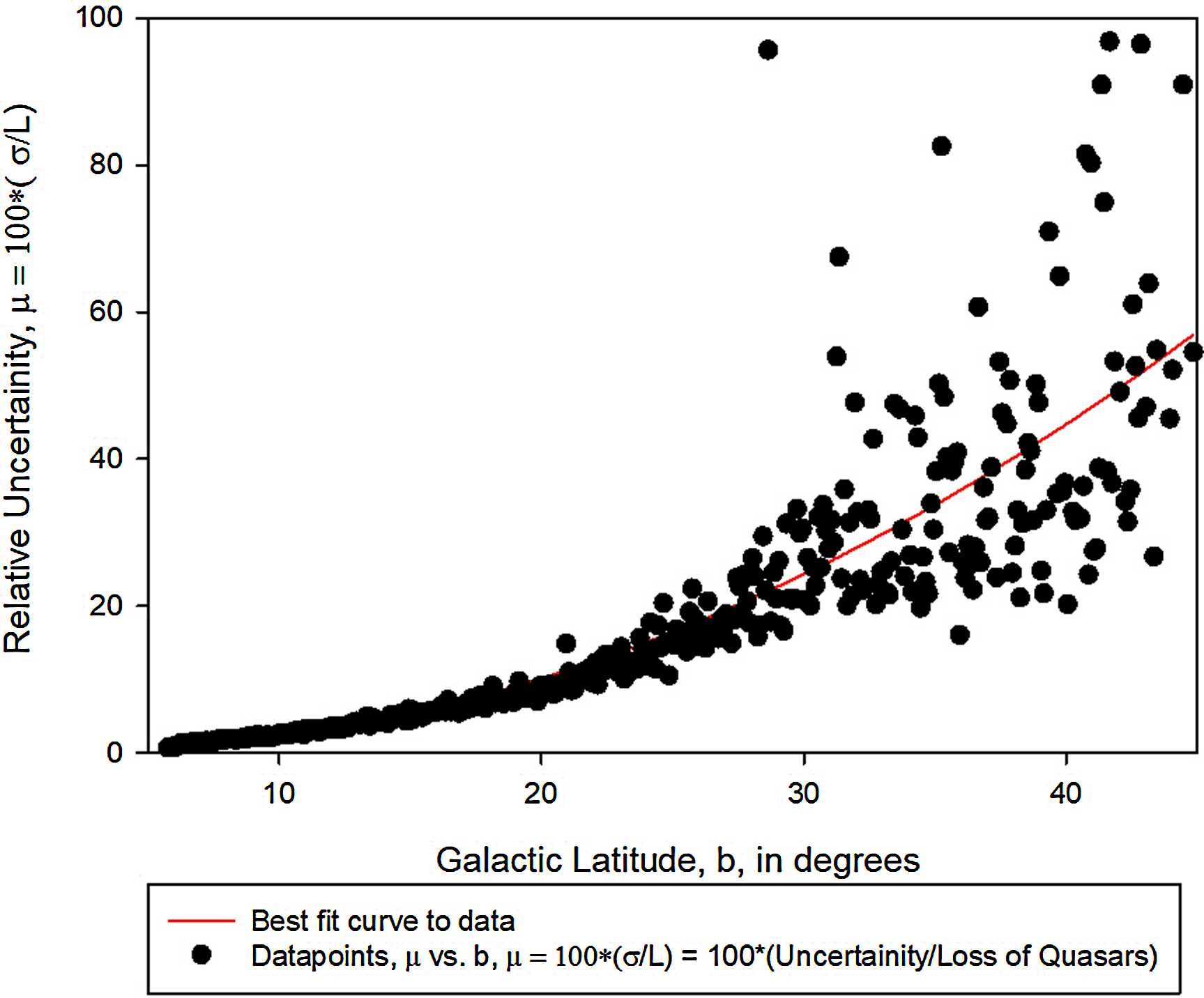

Figure D2. Relative Uncertainty vs. Galactic Latitude for Gaia 0˚ < b < 45˚.

statistically justified. There is however a major drawback in employing the concept of relative uncertainty, μ. It is inversely proportional to L, the loss of quasars, meaning that when L is small μ can become large even though the uncertainty, σ may be small too. In fact 6% of the data points in the range, $0^{\circ }\le b\le {45}^{\circ }$ possess $\mu >100$ . These points however are located at $b>{33.5}^{\circ }$ , where L is relatively small. So we do not reject these 22 data points.

Next we consider the quasars with $b<0^{\circ }$ in the Gaia catalog. Following the procedure outlined above we determined: $b_s=-{50}^{\circ }$ . This value of $b_s$ is confirmed through a visual inspection of Figure 3, which shows the lost of quasars in the Gaia catalog as a function of galactic latitude. Figure 8 shows the loss of quasars, L vs. b in the range: $0>b\ge -{50}^{\circ }$ . In Figure D3 we show the frequency distribution of the μ values for the Gaia catalog with $0^{\circ }>b\ge -{50}^{\circ }$ in bins of $\Delta \mu =5$ . This figure tells us that values of $\mu \ll 100$ appear with much higher frequency than large values of μ. In fact the best fit to the data points is an exponential curve (Equation (7)) with $\gamma =-2.5\pm 2.8$ , $\delta =126\pm 6$ and $\epsilon =20\pm 2$ . Next in Figure D4 we plot the values of μ as a function of the galactic latitude, b, from the Gaia catalog in the range, $0^{\circ }>b\ge -{50}^{\circ }$ . The red line in Figure D4 is the best fit to the data, which is given by Equation (7) with $\gamma =-6.3\pm 2.5$ , $\delta =5.8\pm 1.6$ , and $\epsilon =22.2\pm 2.4$ . Figure D4 shows that out to $b\approx -{35}^{\circ }$ , we have $\mu \ll 100$ . Thereafter the scatter increases significantly, but as the best fit red line shows at $b=-{50}^{\circ }$ , $\mu <50$ .

We conclude from Figure D3 and Figure D4 that the computation of the loss of quasars, L, for the quasars in the Gaia catolog in the range $0^{\circ }\mathrm{<mo>></mo>}b\ge -{50}^{\circ }$ is

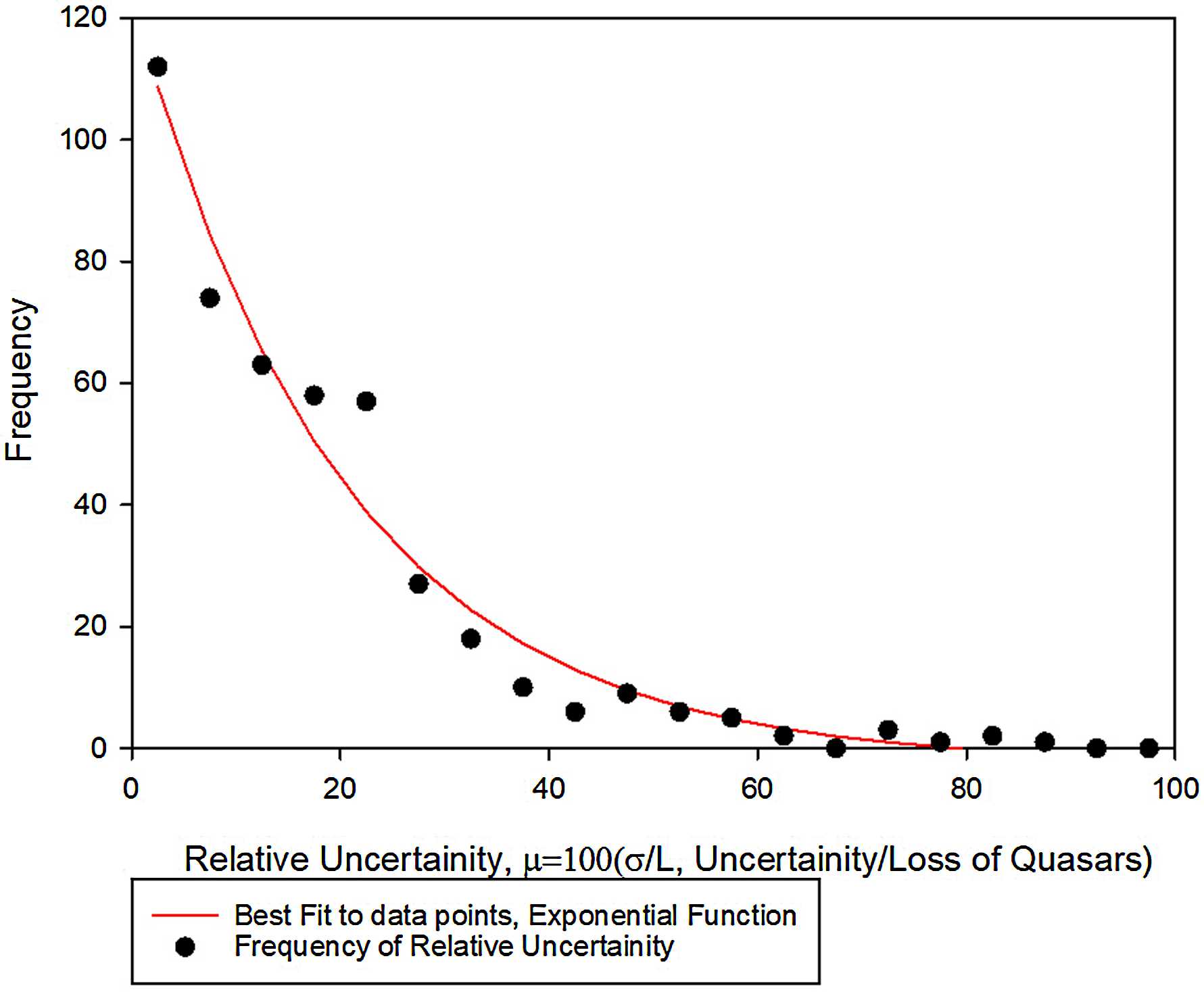

Figure D3. Frequency of Relative Uncertainty for Gaia Quasars 0˚ > b > −50˚.

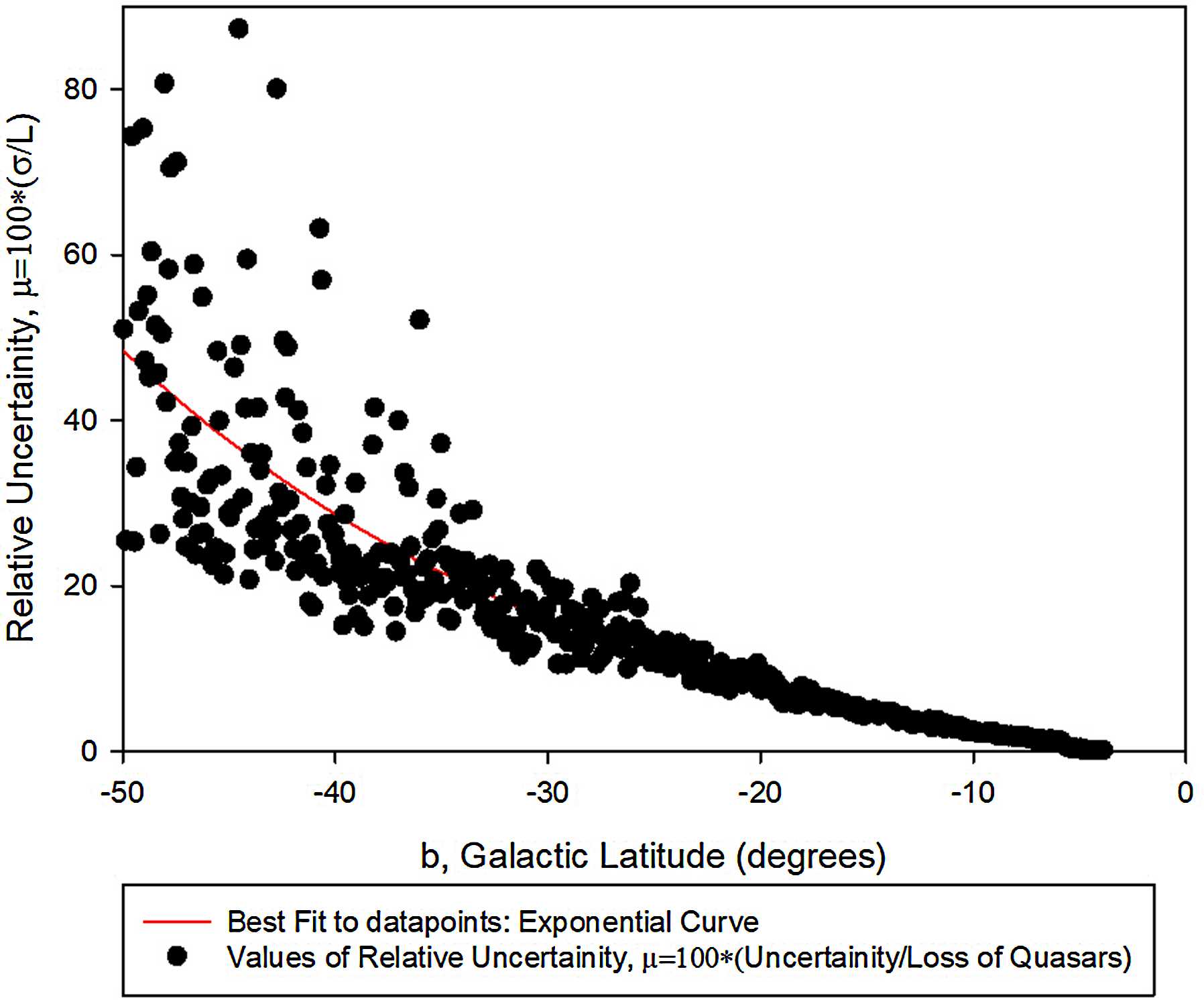

Figure D4. Relative Uncertainty vs. Galactic Latitude for Gaia 0˚ > b > −50˚.

statistically justified. There is however a major drawback in employing the concept of relative uncertainty, μ. It is inversely proportional to L, the loss of quasars, meaning that when L is small μ can become large even though the uncertainty, σ may be small too. In fact 1% of the data points in the range, $0^{\circ }>b\ge -{50}^{\circ }$ possess $\mu >100$ . These points however are located at $b<-{44.6}^{\circ }$ , where L is relatively small. So we do not reject these five data points.

Next we consider the quasars with $b>0^{\circ }$ in the WISE catalog. Following the procedure outlined above, we determine that: $b_s={42.9}^{\circ }$ . This value of $b_s$ is confirmed through a visual inspection of Figure 4, which shows the lost of quasars in the WISE catalog as a function of galactic latitude. Figure 11 shows the loss of quasars, L vs. b in the range: $0\le b\le {42.9}^{\circ }$ .

In Figure D5 we show the frequency distribution of the μ values for the WISE catalog with $0^{\circ }<b\le {42.9}^{\circ }$ in bins of $\Delta \mu =5$ . This figure tells us that values of $\mu \ll 100$ appear with much higher frequency than large values of μ. In fact the best fit to the data points is an exponential curve (Equation (7)) with $\gamma =0.4\pm 0.3$ , $\delta =456\pm 6$ and $\epsilon =3.75\pm 0.06$ . Next in Figure D6 we plot the values of μ as a function of the galactic latitude, b, from the WISE catalog in the range, $0^{\circ }<b\le {42.9}^{\circ }$ . The red line in Figure D6 is the best fit exponential curve with: $\gamma =1.9\pm 0.1$ , $\delta =1.9\times {10}^{-8}\pm 1.4\times {10}^{-8}$ and $\epsilon =-1.99\pm 0.07$ . Figure D6 shows that out to $b\approx {40}^{\circ }$ , we have $\mu \ll 100$ . Thereafter up to $b={42.9}^{\circ }$ , $\mu <52$ .

We conclude from Figure D5 and Figure D6 that the computation of the loss of quasars, L, for the quasars in the WISE catalog in the range $0^{\circ }\le b\le {42.9}^{\circ }$ is statistically justified. There is however a major drawback in employing the concept of relative uncertainty, μ. It is inversely proportional to L, the loss of quasars, meaning that when L is small μ can become large even though the uncertainty, σ may be small too. In fact 1% of the data points in the range, $0^{\circ }<b\le {42.9}^{\circ }$

Figure D5. Frequency of Relative Uncertainty for WISE Quasars 0˚ < b ≤ 42.9˚.

Figure D6. Relative Uncertainty vs. Galactic Latitude for WISE Quasars 0˚ > b > 42.9˚.

possess $\mu >100$ . These points however are located at $b>{42.3}^{\circ }$ , where L is relatively small. So we do not reject these three data points.

Next we consider the quasars with $b<0^{\circ }$ in the WISE catalog. Following the procedure outlined above, we determine that: $b_s=-{50}^{\circ }$ . This value of $b_s$ is confirmed through a visual inspection of Figure 4, which shows the lost of quasars in the WISE catalog as a function of galactic latitude. Figure 10 shows the loss of quasars, L vs. b in the range: $0^{\circ }>b\ge -{50}^{\circ }$ . In Figure D7 we show the frequency distribution of the μ values for the WISE catalog with $0^{\circ }>b\ge -{50}^{\circ }$ in bins of $\Delta \mu =5$ . This figure tells us that values of $\mu \ll 100$ appear with much higher frequency than large values of μ. In fact the best fit to the data points is an exponential curve (Equation (7)) with $\gamma =30.8\pm 3.3$ , $\delta =10804\pm 267012$ and $\epsilon =0.7\pm 5$ . Next in Figure D8 we plot the values of μ as a function of the galactic latitude, b, from the WISE catalog in the range, $0^{\circ }>b\ge -{50}^{\circ }$ . Equation (7) fits the data well with: $\gamma =1.26\pm 0.01$ , $\delta =1.5\times {10}^{-11}\pm 1.8\times {10}^{-11}$ and $\epsilon =1.76\pm 0.07$ . Figure D8 shows that out to $b\approx -{48}^{\circ }$ , we have $\mu \ll 100$ . Thereafter up to $b=-{50}^{\circ }$ , $\mu \precsim 35$ .

We conclude from Figure D7 and Figure D8 that the computation of the loss of quasars, L, for the quasars in the WISE catalog in the range $0^{\circ }>b\ge -{50}^{\circ }$ is statistically justified. There is however a major drawback in employing the concept of relative uncertainty, μ. It is inversely proportional to L, the loss of quasars, meaning that when L is small μ can become large even though the uncertainty, σ may be small too. In fact 0.5% of the data points in the range, $0^{\circ }>b\ge -{50}^{\circ }$ possess $\mu >100$ . These points however are located at $b<-{49.8}^{\circ }$ , where L is

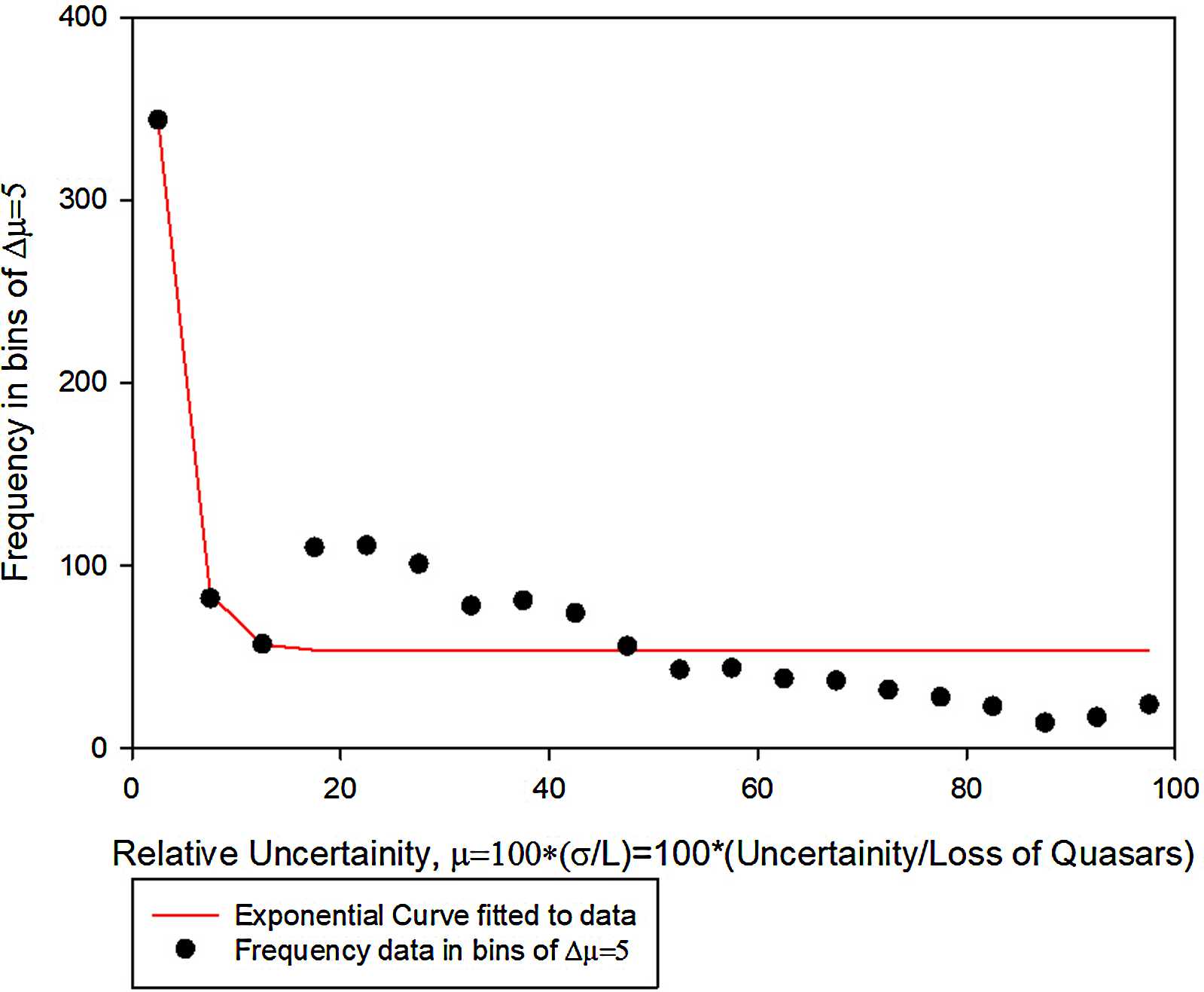

Figure D7. Frequency vs. Relative Uncertainty for WISE Quasars 0˚ > b ≥ −50˚.

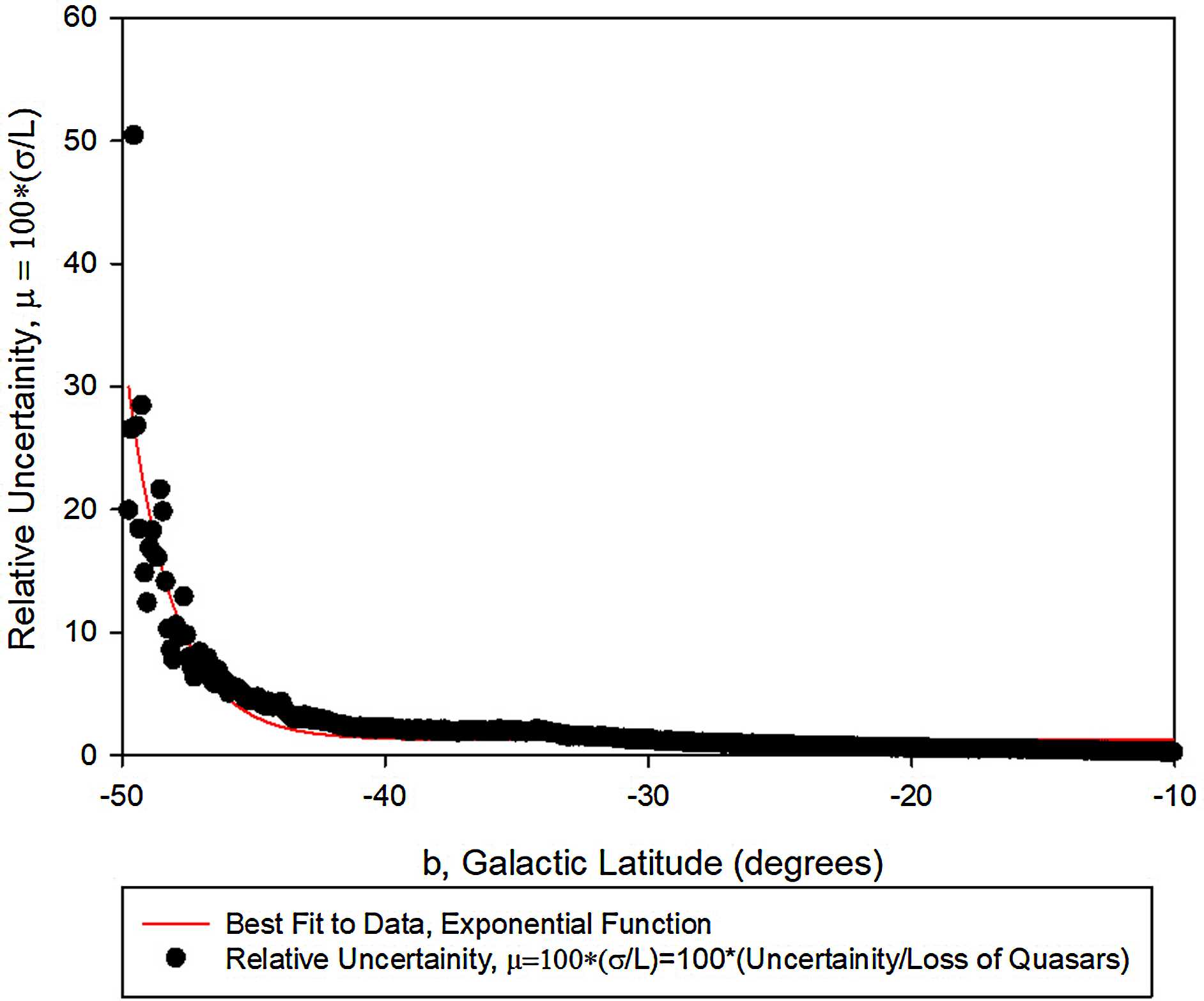

Figure D8. Relative Uncertainty vs. Galactic Latitude for WISE Quasars 0˚ > b > −50˚.

relatively small. So we do not reject these two data points.

Finally, we turn to quasars in the SDSS catalog with $b>0^{\circ }$ . Following the procedure outlined above, we determine that: $b_s={64.66}^{\circ }$ . This value of $b_s$ is

Figure D9. Frequency vs. Relative Uncertainty for SDSS Quasars 14.8˚ > b ≥ 64.66˚.

Figure D10. Relative Uncertainty vs. Galactic Latitude for SDSS Quasars 14.8˚ > b ≥ 64.66˚.

confirmed through a visual inspection of Figure 2, which shows the lost of quasars in the SDSS catalog as a function of galactic latitude. Figure 13 shows the loss of quasars in the range: ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ for SDSS data. In Figure D9 we show the frequency distribution of the μ values for the SDSS catalog with ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ in bins of $\Delta \mu =5$ . This figure tells us that values of $\mu \ll 100$ appear with much higher frequency than large values of μ. In fact the best fit to the data points is an exponential curve (Equation (7)) with $\gamma =53\pm 6$ , $\delta =892\pm 480$ and $\epsilon =2.2\pm 1$ . Next in Figure D10 we plot the values of μ as a function of the galactic latitude, b, from the SDSS catalog in the range, ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ . An excellent fit for these data points is an exponential function (Equation 7) with: $\gamma =1.0\pm 0.3$ , $\delta =0.0003\pm 0.0001$ and $\epsilon =-5.3\pm 0.2$ . Figure D10 shows that out to $b\approx {58}^{\circ }$ , we have $\mu \ll 100$ . Thereafter up to $b={64.66}^{\circ }$ , $\mu \precsim 60$ .

We conclude from Figure D9 and Figure D10 that the computation of the loss of quasars, L, for the quasars in the SDSS catalog in the range ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ is statistically justified. There is however a major drawback in employing the concept of relative uncertainty, μ. It is inversely proportional to L, the loss of quasars, meaning that when L is small μ can become large even though the uncertainty, σ may be small too. In fact 1.4% of the data points in the range, ${14.8}^{\circ }\le b\le {64.66}^{\circ }$ possess $\mu >100$ . These points however are located at $b>{63.2}^{\circ }$ , where L is relatively small. So we do not reject these seven data points.

Conflicts of Interest

The author declares no conflicts of interest regarding the publication of this paper.

References
