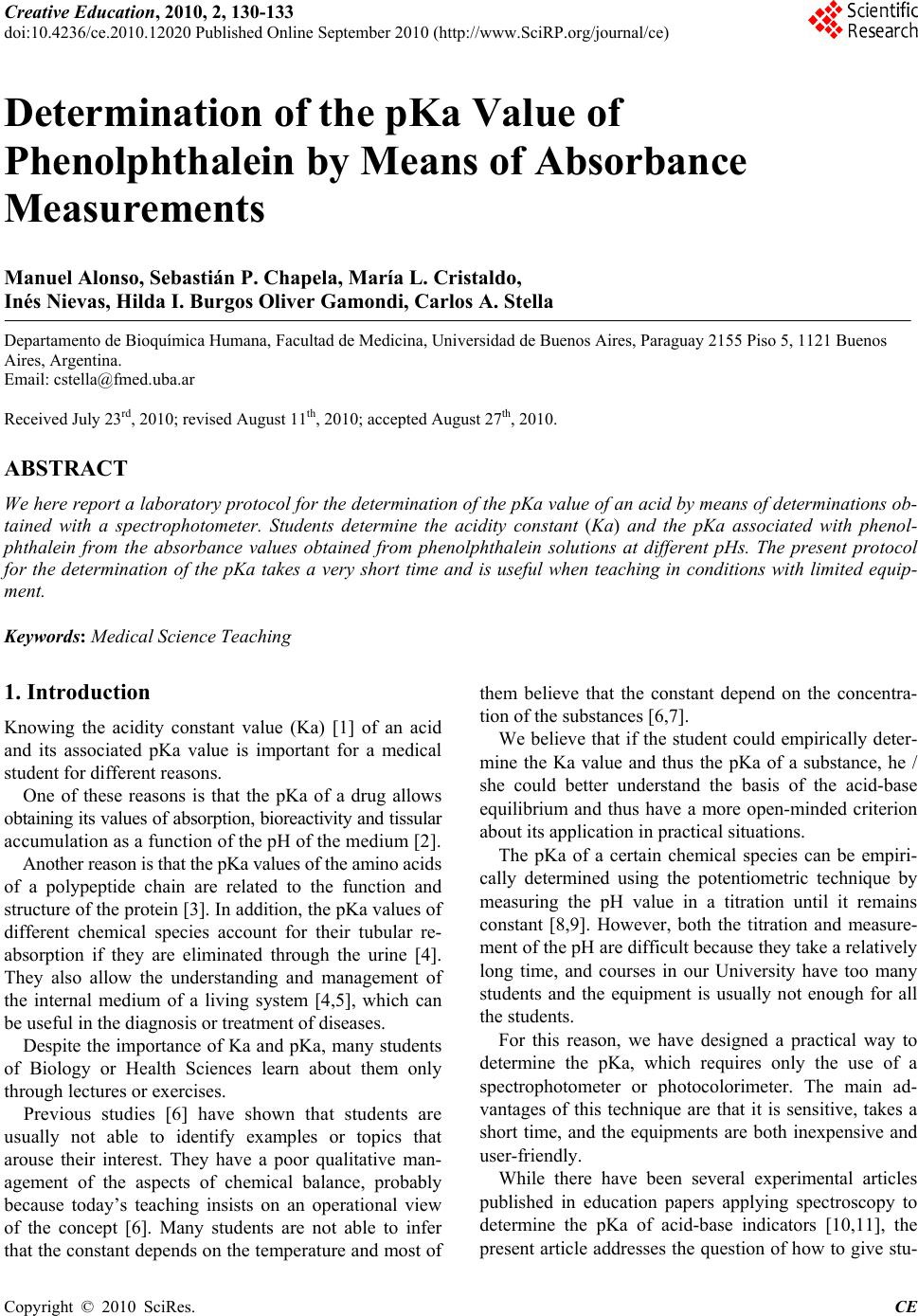

Creative Education, 2010, 2, 130-133
doi:10.4236/ce.2010.12020 Published Online September 2010 (http://www.SciRP.org/journal/ce)
Determination of the pKa Value of
Phenolphthalein by Means of Absorbance
Measurements
Manuel Alonso, Sebastián P. Chapela, María L. Cristaldo,
Inés Nievas, Hilda I. Burgos Oliver Gamondi, Carlos A. Stella
Departamento de Bioquímica Humana, Facultad de Medicina, Universidad de Buenos Aires, Paraguay 2155 Piso 5, 1121 Buenos
Aires, Argentina.
Received July 23rd, 2010; revised August 11th, 2010; accepted August 27th, 2010.
ABSTRACT
We here report a laboratory protocol for the determination of the pKa value of an acid by means of determinations ob-
tained with a spectrophotometer. Students determine the acidity constant (Ka) and the pKa associated with phenol-
phthalein from the absorbance values obtained from phenolphthalein solutions at different pHs. The present protocol
for the determination of the pKa takes a very short time and is useful when teaching in conditions with limited equip-
ment.
Keywords: Medical Science Teaching
1. Introduction
Knowing the acidity constant value (Ka) [1] of an acid
and its associated pKa value is important for a medical
student fo r di fferent reasons.
One of these reasons is that the pKa of a drug allows
obtaining its values of absorption, bioreactivity and tissular
accumulation as a function of the pH of th e mediu m [2].
Another reason is that the pKa values of the amino acids
of a polypeptide chain are related to the function and
structure of the protein [3]. In addition , the pKa values of
different chemical species account for their tubular re-
absorption if they are eliminated through the urine [4].
They also allow the understanding and management of
the internal medium of a living system [4,5], which can
be useful in the diagnosis or treatment of diseases.
Despite the importance of Ka and pKa, many students
of Biology or Health Sciences learn about them only
through lectures or exercises.
Previous studies [6] have shown that students are
usually not able to identify examples or topics that
arouse their interest. They have a poor qualitative man-
agement of the aspects of chemical balance, probably
because today’s teaching insists on an operational view
of the concept [6]. Many students are not able to infer
that the constant depends on the temperature and most of
them believe that the constant depend on the concentra-
tion of the substances [6,7].
We believe that if the student could empirically deter-
mine the Ka value and thus the pKa of a substance, he /
she could better understand the basis of the acid-base
equilibrium and thus have a more open-minded criterion
about its application in practical situations.
The pKa of a certain chemical species can be empiri-
cally determined using the potentiometric technique by
measuring the pH value in a titration until it remains
constant [8,9]. However, both the titration and measure-
ment of the pH are difficult because they take a relatively
long time, and courses in our University have too many
students and the equipment is usually not enough for all
the students.
For this reason, we have designed a practical way to
determine the pKa, which requires only the use of a
spectrophotometer or photocolorimeter. The main ad-
vantages of this technique are that it is sensitive, takes a
short time, and the equipments are both inexpensive and
user-friendly.
While there have been several experimental articles
published in education papers applying spectroscopy to
determine the pKa of acid-base indicators [10,11], the
present article addresses the question of how to give stu-

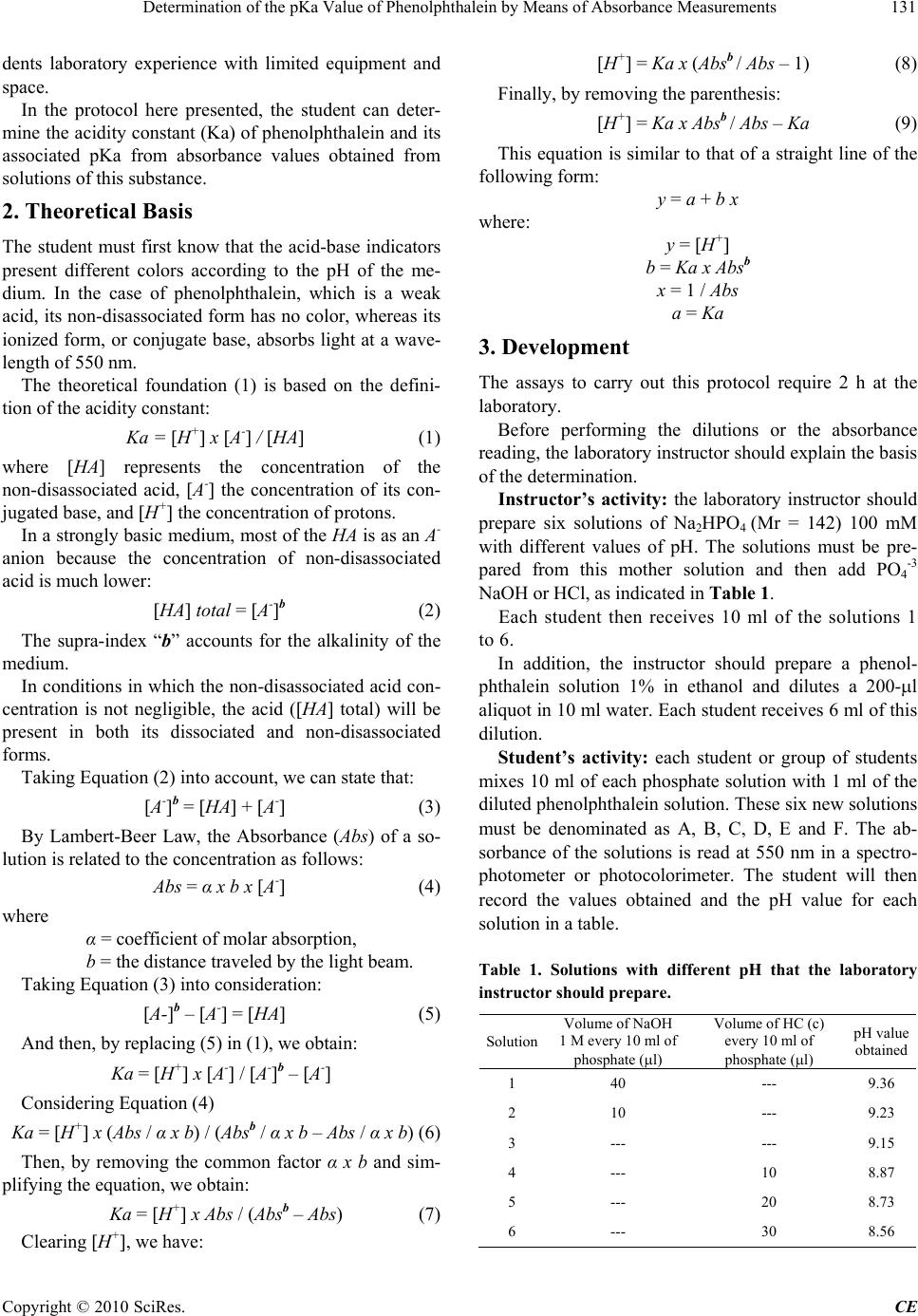

Determination of the pKa Value of Phenolphthalein by Means of Absorbance Measurements
131
dents laboratory experience with limited equipment and
space.
In the protocol here presented, the student can deter-
mine the acidity constant (Ka) of phenolphthalein and its
associated pKa from absorbance values obtained from
solutions of this substance.
2. Theoretical Basis
The student must first know that the acid-base indicators
present different colors according to the pH of the me-
dium. In the case of phenolphthalein, which is a weak
acid, its non-disassociated form has no color, whereas its
ionized form, or conjugate base, absorbs light at a wave-
length of 550 nm.
The theoretical foundation (1) is based on the defini-
tion of the acidity constant:
Ka = H+ x A- / HA (1)
where [HA] represents the concentration of the
non-disassociated acid, A- the concentration of its con-
jugated base, and H+ the concentration of protons.
In a strongly basic medium, most of the HA is as an A-
anion because the concentration of non-disassociated
acid is much lower:
HA total = A-b (2)
The supra-index “b” accounts for the alkalinity of the
medium.
In conditions in which the non-disassociated acid con-
centration is not negligible, the acid (HA total) will be
present in both its dissociated and non-disassociated
forms.
Taking Equation (2 ) into account, we can state that:
A-b = HA + A- (3)
By Lambert-Beer Law, the Absorbance (Abs) of a so-
lution is related to th e concentration as follows:
Abs = α x b x A- (4)
where
α = coefficient of molar absorption,
b = the distance traveled by the light beam.
Taking Equation (3) into consideration:
A-b – A- = HA (5)
And then, by replacing (5) in (1), we obtain:
Ka = H+ x A- / A-b – A-
Considering Equation (4)
Ka = H+ x (Abs / α x b) / (Absb / α x b – Abs / α x b) (6)
Then, by removing the common factor α x b and sim-
plifying the equation, we obtain:
Ka = H+ x Abs / (Absb – Abs) (7)
Clearing H+, we have:
H+ = Ka x (Absb / Abs – 1) (8)
Finally, by removing the parenthesis:
H+ = Ka x Absb / Abs – Ka (9)
This equation is similar to that of a straight line of the
following form:
y = a + b x
where:
y = H+
b = Ka x Absb
x = 1 / Abs
a = Ka
3. Development
The assays to carry out this protocol require 2 h at the
laboratory.
Before performing the dilutions or the absorbance
reading, the laboratory instructor should explain th e basis
of the determination.
Instructor’s activity: the laboratory instructor should
prepare six solutions of Na2HPO4 (Mr = 142) 100 mM
with different values of pH. The solutions must be pre-
pared from this mother solution and then add PO4-3
NaOH or HCl, as indicated in Table 1.
Each student then receives 10 ml of the solutions 1
to 6.
In addition, the instructor should prepare a phenol-
phthalein solution 1% in ethanol and dilutes a 200-l
aliquot in 10 ml water. Each student receives 6 ml of this
dilution.
Student’s activity: each student or group of students
mixes 10 ml of each phosphate solution with 1 ml of the
diluted phenolphthalein solution. These six new solutions
must be denominated as A, B, C, D, E and F. The ab-
sorbance of the solutions is read at 550 nm in a spectro-
photometer or photocolorimeter. The student will then
record the values obtained and the pH value for each
solution in a table.
Table 1. Solutions with different pH that the laboratory
instructor should prepare.
Solution Volume of NaOH 1 M every 10 ml of
phosphate (l)
Volume of HC (c)
every 10 ml of
phosphate (l)
pH value
obtained
1 40 --- 9.36
2 10 --- 9.23
3 --- --- 9.15
4 --- 10 8.87
5 --- 20 8.73
6 --- 30 8.56

Determination of the pKa Value of Phenolphthalein by Means of Absorbance Measurements
132

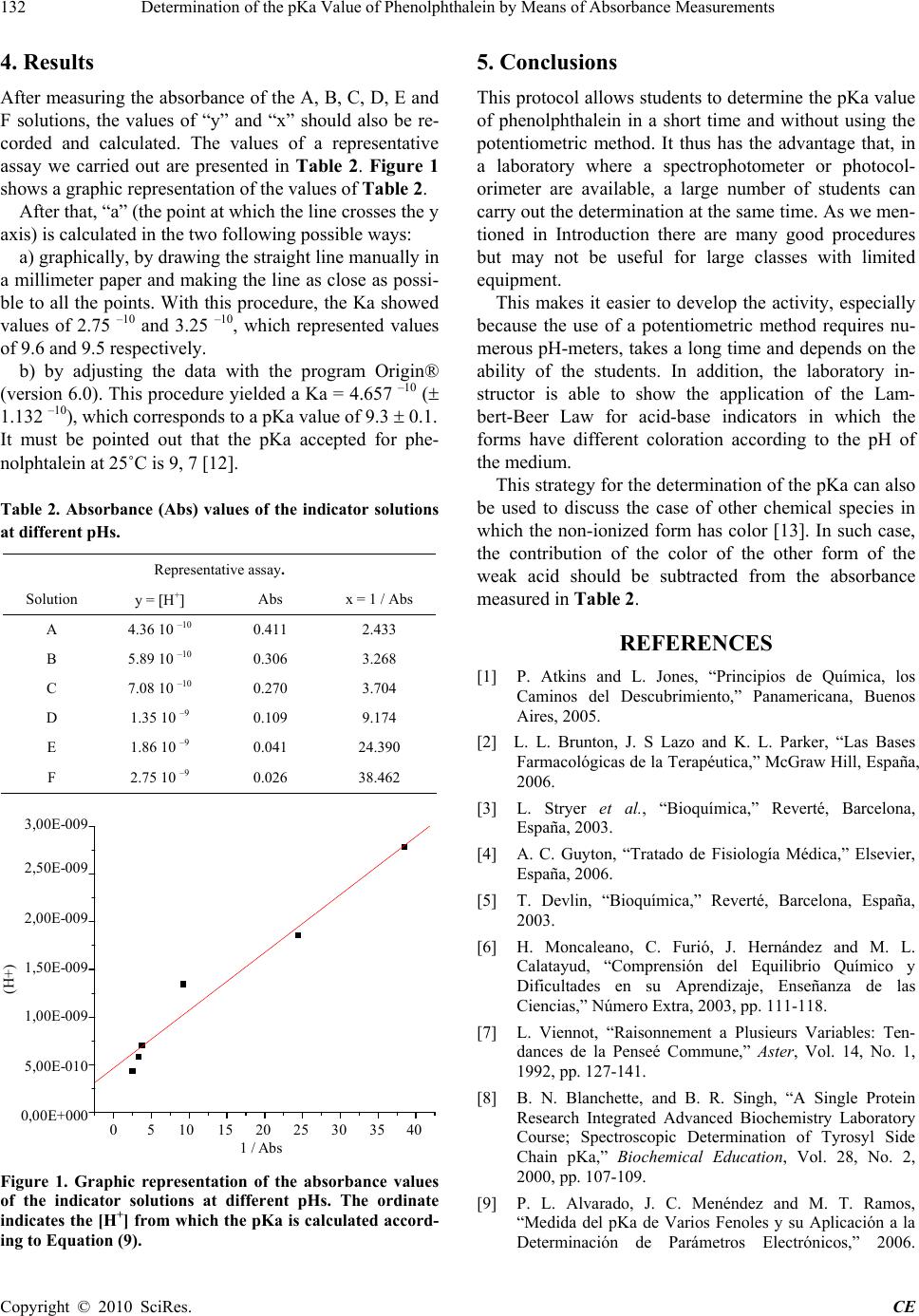

4. Results
After measuring the absorbance of the A, B, C, D, E and
F solutions, the values of “y” and “x” should also be re-
corded and calculated. The values of a representative
assay we carried out are presented in Table 2. Figure 1
shows a graphic representation of the values of Table 2.
After that, “a” (the point at which the line crosses th e y
axis) is calculated in the two following possible ways:
a) graphically, by drawing the straight line manually in
a millimeter paper and making the line as close as possi-
ble to all the points. With this procedure, the Ka showed
values of 2.75 –10 and 3.25 –10, which represented values
of 9.6 and 9.5 respectively.
b) by adjusting the data with the program Origin®
(version 6.0). This procedure yielded a Ka = 4.657 –10 (
1.132 –10), which corresponds to a pKa value of 9.3  0.1.
It must be pointed out that the pKa accepted for phe-
nolphtalein at 25˚C is 9, 7 [12].
Table 2. Absorbance (Abs) values of the indicator solutions
at different pHs.
Representative assay.
Solution y = H+ Abs x = 1 / Abs
A 4.36 10
–10 0.411 2.433
B 5.89 10
–10 0.306 3.268
C 7.08 10
–10 0.270 3.704
D 1.35 10
–9 0.109 9.174
E 1.86 10
–9 0.041 24.390
F 2.75 10
–9 0.026 38.462
0510 15 20 25 30 35 40
0,00E+000
5,00E- 010
1,00E- 009
1,50E- 009
2,00E- 009
2,50E- 009
3,00E- 009
(H+)
1/Abs
(H+)
3,00E-009
2,50E-009
2,00E-009
1,50E-009
1,00E-009
5,00E-010
0,00E+000 0 5
10 15 20 25 30 35 40
1 / Abs
Figure 1. Graphic representation of the absorbance values
of the indicator solutions at different pHs. The ordinate
indicates the [H+] from which the pKa is calculated accord-
ing to Equation (9).
5. Conclusions
This protocol allows students to determine the pKa value
of phenolphthalein in a short time and without using the
potentiometric method. It thus has the advantage that, in
a laboratory where a spectrophotometer or photocol-
orimeter are available, a large number of students can
carry out the determination at the same time. As we men-
tioned in Introduction there are many good procedures
but may not be useful for large classes with limited
equipment.
This makes it easier to develop the activity, especially
because the use of a potentiometric method requires nu-
merous pH-meters, takes a long time and depends on the
ability of the students. In addition, the laboratory in-
structor is able to show the application of the Lam-
bert-Beer Law for acid-base indicators in which the
forms have different coloration according to the pH of
the medium.
This strategy for the determination of the pKa can also
be used to discuss the case of other chemical species in
which the non-ionized form has color [13]. In such case,
the contribution of the color of the other form of the
weak acid should be subtracted from the absorbance
measured in Table 2.
REFERENCES
[1] P. Atkins and L. Jones, “Principios de Química, los
Caminos del Descubrimiento,” Panamericana, Buenos
Aires, 2005.
[2] L. L. Brunton, J. S Lazo and K. L. Parker, “Las Bases
Farmacológicas de la Terapéutica,” McGraw Hill, España,
2006.
[3] L. Stryer et al., “Bioquímica,” Reverté, Barcelona,
España, 2003.
[4] A. C. Guyton, “Tratado de Fisiología Médica,” Elsevier,
España, 2006.
[5] T. Devlin, “Bioquímica,” Reverté, Barcelona, España,
2003.
[6] H. Moncaleano, C. Furió, J. Hernández and M. L.
Calatayud, “Comprensión del Equilibrio Químico y
Dificultades en su Aprendizaje, Enseñanza de las
Ciencias,” Número Extra, 2003, pp. 111-118.
[7] L. Viennot, “Raisonnement a Plusieurs Variables: Ten-
dances de la Penseé Commune,” Aster, Vol. 14, No. 1,
1992, pp. 127-141.
[8] B. N. Blanchette, and B. R. Singh, “A Single Protein
Research Integrated Advanced Biochemistry Laboratory
Course; Spectroscopic Determination of Tyrosyl Side
Chain pKa,” Biochemical Education, Vol. 28, No. 2,
2000, pp. 107-109.
[9] P. L. Alvarado, J. C. Menéndez and M. T. Ramos,
“Medida del pKa de Varios Fenoles y su Aplicación a la
Determinación de Parámetros Electrónicos,” 2006.

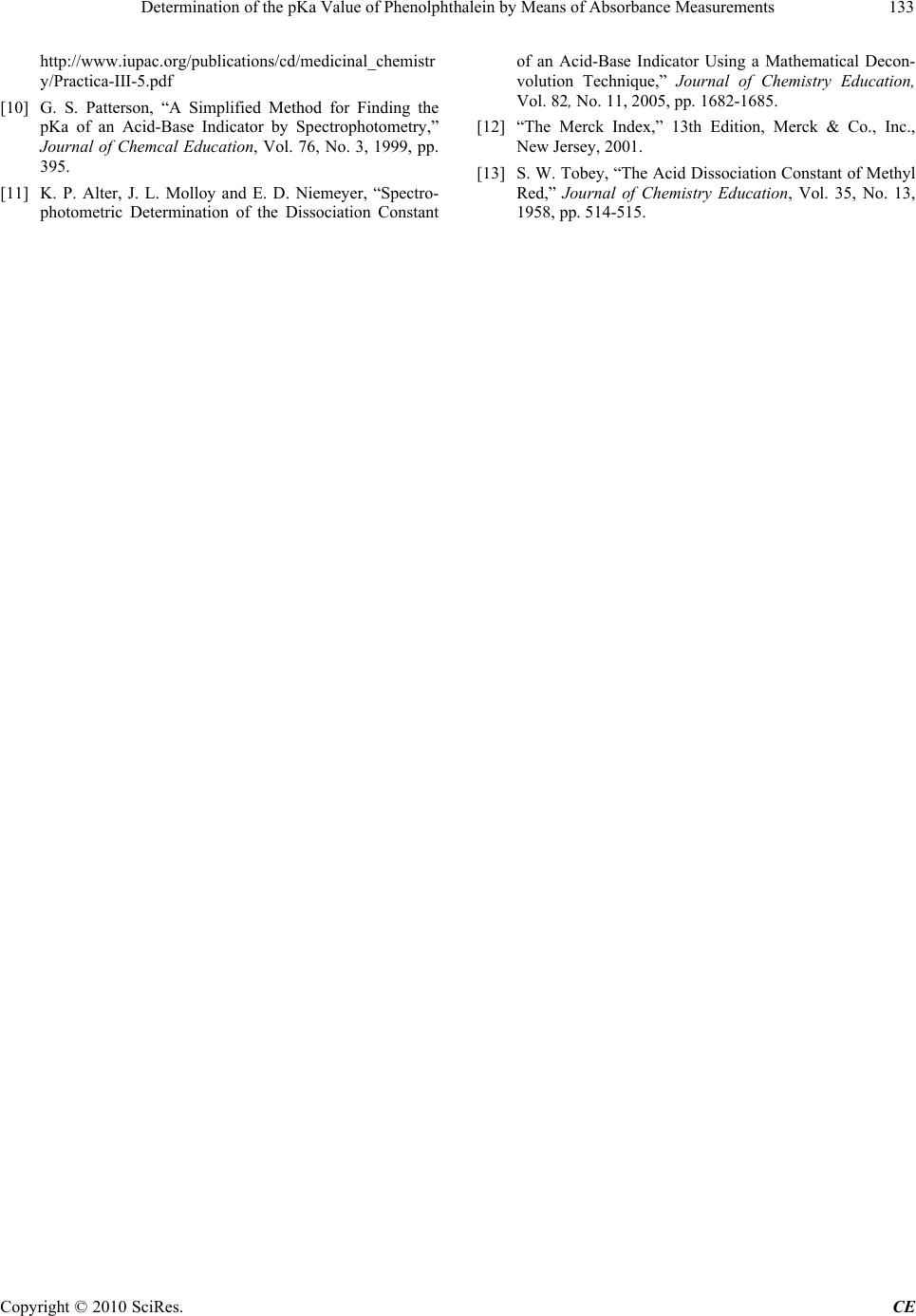

Determination of the pKa Value of Phenolphthalein by Means of Absorbance Measurements
133
http://www.iupac.org/publications/cd/medicinal_chemistr
y/Practica-III-5.pdf
[10] G. S. Patterson, “A Simplified Method for Finding the
pKa of an Acid-Base Indicator by Spectrophotometry,”
Journal of Chemcal Education, Vol. 76, No. 3, 1999, pp.
395.
[11] K. P. Alter, J. L. Molloy and E. D. Niemeyer, “Spectro-
photometric Determination of the Dissociation Constant
of an Acid-Base Indicator Using a Mathematical Decon-
volution Technique,” Journal of Chemistry Education,
Vol. 82, No. 11, 2005, pp. 1682-1685.
[12] “The Merck Index,” 13th Edition, Merck & Co., Inc.,
New Jersey, 2001.
[13] S. W. Tobey, “The Acid Dissociation Constant of Methyl
Red,” Journal of Chemistry Education, Vol. 35, No. 13,
1958, pp. 514-515.
