Influence of Aggregate Grain Size on the Formulation of Sand Concrete in the Construction Industry in Congo ()
1. Introduction
Over the past 40 years, the use of sand concrete has become more and more common. Indeed, this material made from sand, cement, water and other admixtures tries to replace traditional common concrete in certain construction fields (bricks, cinder blocks, roughcasts, paving stones, low-stress structures, etc.), not only because of the rarity of gravel in certain areas, but also because of the technical performance that this material offers, particularly its low cracking properties and good workability [1]. However, its durability and resistance are closely linked to the physicochemical and mechanical properties of its components [2]. For more than a dozen years, Congo has been living in an era of high socio-economic development ambitions and basic infrastructure (roads, hospitals, schools, etc.), despite the recession it has experienced in recent years. However, the construction industry, in terms of regulation and standardization, is still in its infancy. Thus, we often see self-construction in the construction of single-family homes or even other public infrastructure. Several structures made or prefabricated products with sand concrete are used in the construction of buildings without precaution in the formulation of the said concretes. And, according to preconceived ideas, the field of building construction remains dominated by a sector qualified as informal or semi-informal. Indeed, in some developing countries, this sector contributes to nearly 90% of housing production [3], and at the same time the quality assurance of the works or structures carried out is not always guaranteed, thus causing early damage [4]. However, according to Turcy et al. (2003), concrete formulation is understood as the process of selecting constituent materials in their appropriate proportions in order to obtain the required properties (consistency, strength, durability, etc.), but in most cases, this is still done empirically [5]. However, the main concern of this study remains in the formulation of sand concretes in order to obtain good workability and good characteristics [1], since the quality of a structure necessarily depends on the physicochemical and mechanical performance of the construction materials used. Sand concrete is highly appreciated for its compressive strength. However, it is necessary to specifically consider each of its components, among which is sand. Sand has various characteristics that influence the good behaviour of concrete [6]. And, in several countries, sand concrete is becoming increasingly important in the construction industry thanks to its qualities, particularly its workability, its lack of segregation and its aesthetic qualities [7]. It is currently one of the most widely used building materials in the world (for nearly two thirds of all homes in the world). But, the perpetual quest for suitable aggregates, mainly sand, leads to improvements sometimes by adding another type of sand that is more suitable. Moreover, crushing sands are very often the only alternative. However, they must meet the criteria of cleanliness quality and be available, otherwise, this ipso facto leads to an increase in the dosage of cement (not economical), which releases much more heat of hydration, and causes damage to massive structures. In addition, the very fine grains of sand can lower the activity of cement, which significantly reduces the mechanical strength of concrete. In addition, due to the large specific surface area of the cement, capillary absorption increases, reducing the impermeability of hardened concrete and increasing the shrinkage phenomenon. As a simple approximation, this sand concrete can be represented as a three-phase system; a phase comprising colloidal particles (mainly cement), the granular phase composed of non-colloidal particles (sand) and the liquid phase which corresponds to the mixing water loaded with ions from the dissolution of the cement and dissolved polymers. Thus, the liquid phase can be assimilated to the interstitial fluid of an evolving porous medium saturated with water, composed of the two solid phases (colloidal and non-colloidal). This system, referred to as cemented granular material or cementitious matrix, is subject to external water and thermal stresses. In addition, it is applied on a support that will also be considered as a porous medium. Thus, the mortar loses its mixing water due to evaporation and suction of the substrate [8]. If the water loss is too high, cracking and loss of adhesion are the two main pathologies observed [9]. In other words, it is necessary to control the technical performance of the aggregates (sands) and even the mechanical characteristics of the concretes.
In our work, we are first interested in the characterization of different types of sand taken from different quarries and improved with crushing sand. Then, concrete is manufactured whose compressive and tensile strength is evaluated or assessed to ensure quality assurance of the structures. The main aim of this study is to achieve good mechanical strength of sand concrete and correct handling by using CEM II cement.
2. Materials and Methods
2.1. Geographical Coordinates and Materials Used
All aggregates (sands) were collected from the following quarries, including extraction from the Congo River.
Table 1 lists the geographical coordinates of the four (4) quarries from which we sampled. These sands are all O/D aggregates that comply with NF P18-101 and NF P18-301 standards. They can be of various origins, natural sand (alluvial, river or dune) with its equivalent of sand as a specific criterion [10].
2.2. Geotechnical Characterization of Sands
For sand identification and characterization, the following tests were performed:
- Granulometric analysis [NF P933-1 Standards];
- The bulk density [Standard EN 1097-6];
- The measurement of specific weight [Standard NF EN 94-054];
- The sand equivalent test [Standard NF EN 933-8; XP18-540];
- Tests on cement [Standard EN 197-1];
- The methylene blue test [NFP 18-592].
The binder used throughout this study is CEM II 42.5 cement.
2.3. The Formulation of Sand Concrete
This formulation is carried out in accordance with EN-196-1. It requires the use of small diameter aggregates (≤5 mm). However, the addition of coarse aggregates is possible but in a G/S ratio (Gravel/Sand less than 1) [1].
The different formulations were proposed according to the natural sand material including the improvements according to Table 2.
Table 1. Geographical coordinates of quarries and sand sampling sites.
Table 2. Various proposals for improved sand.
Note: 405 SC + 945 Mfilou represents 405 grams of crushed sand and 945 grams of sand from Mfilou, Djiri or the Congo River.
3. Results and Discussions
3.1. Interpretation of the Results of Physicomechanical Tests
• Sand identification tests
Table 3 and Table 4 represent the granularity of the local sands used and the spindle of the normalized sand. These results show that not all the sands from the Brazzaville quarries used enter the normalized sands spindle. However, the crushing sand enters the spindle, but it does not contain all the possible elements. In addition, the sands of the river, Mfilou and the Djiri quarry are very far from the spindle and including many others (Annex 1). There is also the similarity between Djiri sand and Mfilou sand in that they do not have particles of 1 mm or more in size and are practically confused, suggesting that river sand, Djiri sand and Mfilou sand are carried by wind or rainwater. Thus, they have fine sand characteristics. Some corrections have been made to the Mfilou, Djiri, and river sands to allow them to enter the normalized sands spindle (Annex 2).
All other parameters relevant for the characterization of these types of sand are presented in Table 5 and Appendix 3. It can be seen that the fineness modules for the Djiri and Mfilou quarries and the Congo River quarries are less than 2.22, except for the one resulting from crushing. In view of these different percentages of fines and their granularity, we can deduce that these same sands are very fine.
• Methylene blue value
The methylene blue values are all well below 1, which confirms that these sands are not contaminated with clay. There is practically no clay activity in these sands (Table 6).
Table 3. Granulometric analysis of quarry sands.
Table 4. Improved sand particle size analysis.
Table 5. The characteristic parameters of granulometric analysis.
• The bulk density
The samples were collected manually from the various quarries. During this test, we obtained the results shown in Table 7 and Appendix 4.
Table 7. Results of the apparent densities of the different sands.
The values of the different apparent densities obtained vary between 1.40 and 1.60, which shows that the materials used meet the requirements of cleanliness and shape. However, only crushed sand 0/4 has a specific weight of 1.39.
• Specific weight measurement:
The results obtained during this test of the different samples are shown in Table 8 and Annex 5. The values obtained from the different specific weights of these materials comply with the standard (values between 2.35 and 2.65). Therefore, these materials can be used for a concrete formulation.
• Sand equivalent test
The sands used in this test are: Congo River sand; Mfilou quarry sand, Djiri white quarry sand and 0/4 crushed sand. The results obtained are shown in Table 9. The sand equivalent shows that the sands of Djiri, Mfilou and Le Fleuve are very clean, and can be used in concrete. On the other hand, crushing sand has a low equivalent (ES = 65), less than 70, so it has more impurities and is not suitable for concrete.
• Physico-mechanical tests on the cement used (CEM II 42.5)
The results obtained during these tests are summarized in Table 10 and Table 11. These binders can, therefore, be used for the formulation of concretes because they meet the requirements of the standard. The tests are carried out according to the standards (EN 196-1) and (EN 196-3) and the results of the physico-mechanical tests obtained comply with the specifications of the standard (EN 197-1).
- Evolution of compressive strength (CEM II 42.5 cement)

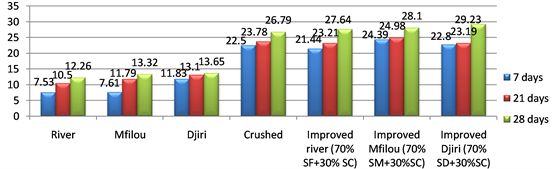

The results of compressive strength tests with CEM II 42.5 cement are shown in Figure 1, which shows the variation in compressive strength for the different types of mortars as a function of the immersion time in water. It shows that improved sands have the highest compressive strength, improved Djiri sand has the highest strength (29.23 MPa) followed by improved Mfilou (28.1 MPa) and then improved river sand (27.64 MPa).
The natural sands of Djiri, Mfilou and du Fleuve have low compressive strength (≤15 MPa). Compressive strength with crushed sand is higher (26.79 MPa), than that of other sands: Djiri, Mfilou, and River, and have values of 13.65; 13.32; 12.26 Mpa respectively.
Table 8. Results of the specific weights of the different sands.
Table 9. Results of sand equivalents of different types of sand.
Table 10. Physical properties of cement CEM II 42.5.
Table 11. Mechanical characteristics of CEM II cement 42.5.
- Evolution of tensile strength by bending (CEM II 42.5 cement)
The results of bending tensile strength tests with CEM II cement are shown in Figure 2.
Figure 2. Tensile strength by bending of cement CEM II 42.5.
From Figure 2, it can be seen that bending tensile strength increases with age for all types of concrete. This is due to the development of cement hydration as a function of time. The best resistance observed corresponds to the mortar of the improved sand, the improved Djiri sand seems to have the highest bending strength (6.28 MPa), followed by crushed sand (5.78 Mpa). It should also be noted that the improved sands of the river and Mfilou show a similar evolution of tensile strength at 28 days in the order of (5.12 MPa) and (5.27 MPa) respectively. The natural sands (Mfilou and Djiri and du Fleuve) have low tensile strength values.
Based on the results obtained, it appears that the physical properties of sand influence the mechanical characteristics of sand concretes. Although the natural sands (Djiri, Mfilou and Congo River sands) are improved with 0/4 crushed sand, they are still rich in fine elements. We can, therefore, conclude that the improvement of natural fine sands with crushed sand is an important mixture in the formulation of these concretes. These observations are in line with those already available in the literature. In short, the compressive strength and tensile strength increases with time regardless of the type of cement or sand.
3.2. Interpretation of the Results of Descriptive Statistics
• Compressive strength (cement CEM II 42.5)
The reinforcement of natural sand by crushed sand has improved the normal compressive strength of sand concrete. On the other hand, mechanical strength is little affected by age. Indeed, for natural sand concretes, by observing the confidence intervals of the mean values of normal compressive strength, it appears from our results that their mean evolutions are statistically the same between 7 days, 21 days and 28 days (Table 12).
For improved sand concretes, it is noted that between 7 days and 21 days, the average compressive strength did not statistically change (see their confidence intervals). However, between 21 and 28 days, there is a significant difference between the two averages (Table 12).
Data on Tensile Deflections
• Tensile strength by bending cement CEM II
For the bending tensile strength illustrated in Table 13, it can be seen that the addition of crushed sand in natural sands only improved the strength of 7-day and 21-day curing concrete because according to these results, the best normal compressive strengths are given by the improved sands (for 7-day and 21-day curing concretes). For concretes with 28 days of curing, we performed a statistical test. The latter revealed that there is no significant difference between the two average resistances (3.74 MPa and 5.56 MPa).
The analyses in the table below also revealed that regardless of the type of sand (natural or improved), the bending strength did not change significantly on average.
4. Discussion
Several studies have been carried out in the context of the formulation and upgrading of sand concretes. These works have been the subject of several publications, including those found in the literature [1] [4] [5] [8] [11] - [22]. All this research work has first highlighted the importance and influence of the physicochemical properties of sands, which have a dominant effect on the quality of the sand concretes to be produced. Then, these studies reveal that fine sand taken as an aggregate is not suitable. Also, according to Hasdemir et al. (2016), the strength of concrete is related to the composition of the sands used in formulations. The presence of clay, for example, which reflects the impurity of natural sand, reduces this resistance [20]. Similarly, sand is a material of choice for the preparation of mortar and concrete. It plays a major role in the composition of the mixture. These aspects were also mentioned by these authors and the results
Table 12. Descriptive statistics of normal compressive strengths by hardening age and sand type with CIMAF cement.
Table 13. Descriptive statistics of bending strength by age of hardening and type of sand (CEM II cement 42.5).
reported in the literature are also consistent with our research findings in this study. However, when natural sand does not meet the performance criteria of concrete, the approach to remedy it is to replace it.
Crushing sand is often used, which fits well into the spindle in accordance with the standard. Thus, the physical and chemical properties of crushed sand meet the requirements of fine aggregates, but the only major limitation is the decrease in manoeuvrability that can be overcome by the use of additives [21] [22]. Similarly, the effect of marble powder and green as a substitute for fine aggregates on the strength and durability of sand concrete is convincing.
Also, macroscopic studies have also confirmed the viability of using green sand and marble as fine aggregates [23]. On the other hand, studies conducted by (Opara et al. 2018) have also shown that river sand concrete has a higher density and compressive strength than quarry dust concrete for all curing ages. Indeed, after 28 days of curing, river sand concrete exceeded the target compressive strength by 36% [24].
Crushed granite has also been used as a substitute sand for sand concretes, but although compressive strength seems interesting, its production requires a higher cement to water ratio [25]. Taking into account the few weaknesses noted for natural sand in terms of physical properties, the use of crushing sand as a solution for improving these qualities is recommended. This sand can be considered as an alternative to improve quarry and river sand [24] [26]. In addition, from the point of view of the drying kinetics of sand concrete, the sorption/desorption rate is low. Surface stress gradients are low and the resulting cracking stress is low. This particular kinetics of sand concrete drying explains the non-cracking nature of the material.
5. Conclusion
The objective of this work was to study the influence of the grain size of the sands of the Mfilou, Djiri and Congo River quarries and crushing on the performance of sand concrete.
The method adopted consists of a physicomechanical characterization of the selected sands taken as aggregates by the following tests: granulometric analysis, bulk density, specific gravity, sand equivalent. These sands have been improved with crushing sand since they do not enter the normalized sand spindle, we have improved three sands (Mfilou, Djiri, and Congo River) so that they enter the spindle (30% of the crushed sand + 70% of natural sand). In addition, the concretes were prepared from each of these natural sands and improved to appreciate their mechanical strength. The results obtained indicate that sand concrete resists compression well and its characteristic strength was reached after 28 days. These results obtained after improvement by crushing sand are about 50% higher than those obtained from natural fine sand.
In the results obtained, it appeared that crushed sand concrete (0/4) has the best compressive strength and bending tensile strength due to its good granularity. Quarry sands (Mfilou and Djiri), and river sands gave very low resistances (<15 MPa) for both cement classes (42.5 and 32.5) due to the absence of elements with sizes greater than 0.63.
In addition, the E/C ratio of 0.5 does not provide the best mechanical strength results for natural sands. This requires an increase in mixing water. On the other hand, the resistances with improved sands gave the best resistances with the same amount of water.
In short, the presence of a high level of fine elements increases the amount of water to be incorporated; the finer the sand, the more water it absorbs. Also, crushed sand also contains a high level of fine elements, which results in a high absorption of mixing water. The workability of sand concrete increases with the increase of the E/C ratio regardless of the cement dosage.
Acknowledgements
This work was carried out as part of a collaboration between the National Higher Polytechnic Schooland the Office of Control of Buildings and Public Works. The authors would like to express their gratitude to the managers and agents who contributed to the development of this work.
Appendix
Annex 1. AG curve of natural sands.
Annex 3. Calculation note granulometric analysis of Mfilou sand.
The module of fineness of this sand is Mf = 0.87.
Annex 4. Calculation note for the bulk density test of Djiri sand.
Annex 5. Calculation note of the specific weight of Mfilou sand.
