Development of Biobased Poly(Lactic Acid)/Epoxidized Natural Rubber Blends Processed by Electrospinning: Morphological, Structural and Thermal Properties ()
Received 17 March 2016; accepted 21 April 2016; published 27 April 2016
1. Introduction
Electrospinning has been received considerable attention due to its high efficiency in producing nonwoven mats from fibers that are micro or sub-micron in diameter [1] - [3] . Such mats are effective in providing large surface area-to-volume and length-to-diameter ratios, thereby being used in numerous applications like tissue engineering scaffolds [4] - [7] , sensors [8] , protective clothing [9] , separation membranes [10] , wound healing [11] , release of drugs [12] , etc.
In the electrospinning process a polymer solution is usually pumped through a metal capillary, acting as an electrode to which a high intensity electric field is applied. Initially, the solution is maintained by its surface tension in the form of a drop at the end of the capillary. As the electric forces overcome the surface tension of the solution, a polymeric jet is generated from the surface of the droplet and travels towards to the grounded target. During the trajectory of the jet, the solvent evaporates and consequently polymer fibers can be collected [13] - [15] .
Recently, the use of biodegradable and biocompatible polymers has become increasingly important due to their fascinating characteristics such as natural abundance, low costs, and wide range of applications [16] . Moreover, biodegradable polymers and their blends have been concerned to overcome the environmental issues which arise from the nondegradable polymers. Electrospinning has been applied in producing numerous biodegradable polymers mats for biomedical applications, such as poly(lactic acid) (PLA) [17] [18] , poly(ε-caprolac- tone) (PCL) [19] , poly(glycolic acid) (PGA) [20] , poly(lactide-co-glycolide) (PLGA) [21] .
This work reports the production of a new biomaterial based on electrospun PLA/NR blends which combine the properties of a very well-established polymer as PLA with those of NR, which has been cited as an interesting biomaterial due to its recently discovered biological properties [22] [23] . In this approach, important properties of PLA as solubility in common solvents, biodegradability, good mechanical properties, and biocompatibility [24] [25] are combined with those of natural rubber (NR) as recently demonstrated applications in stimulating wound healing, angiogenesis, and tissue regeneration [22] [23] . The electrospinning method is chosen due to its capability of providing membranes with a very large surface area which can offer ideal space for cell adhesion and proliferation, also the porous structures can provide windows for oxygen and nutrients transfer when the scaffolds are used in tissue engineering applications.
A previous work reported the fabrication of a biocompatible material of PCL/NR blend by electrospinning [23] with potential application in tissue engineering. Authors found out membranes with high porosity and a decreasing in fiber diameter with the increase of NR content in the blends.
However, difference in electrical polarity between these PLA and NR may hamper the compatibility between two polymers. As NR is an unsaturated polymer with a large number of double bonds in the backbones that are reactive, epoxidized natural rubber (ENR) can be prepared in latex stage by reacting natural rubber with peroxide [26] [27] forming epoxy groups of ENR that would improve the polarity of rubber and hence promoting compatibility with PLA. Nghia et al. [28] investigated the compatibility of the ENR/PLA solution blend; they concluded that the reaction occurred between the epoxy groups of ENR and the ester groups of PLA. In this way, a new biomaterial based on PLA/ENR electrospun blends was obtained by electrospinning approach and the effect of ENR content on the blends was studied with the help of characterization techniques such as scanning electronic microscopy (SEM), Fourier transform infrared spectroscopy (FTIR), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA) and dynamic mechanical analysis (DMA).
2. Experimental
2.1. Materials
PLA (Poly(lactic acid) (polylactide resin 4042D) with a molecular weight of 66,000 g/mol was acquired from Nature Works LLC (Minnetonka, MN). Natural rubber latex (solid content 61.9%) was kindly supplied by Teadit Indústria e Comércio Ltda. (Rio de Janeiro, Brazil). Chloroform, formic acid (98% purity), hydrogen peroxide (30% - 32%), sodium carbonate and ethanol were purchased from Sigma-Aldrich (São Paulo, Brazil). Ultranex NP 95 (nonylphenylpoly(ethylene glycol)) of 9.5 EO (number of ethylene oxide molecules) was supplied by Oxiteno S. A. Indústria e Comércio (São Paulo, Brazil). The polymers and all chemicals were used without further purification.
2.2. Epoxidation of Natural Rubber in the Latex
Epoxidized natural rubber (ENR), containing 20 mol % epoxy groups, was obtained as described elsewhere [26] . Briefly, NR latex was diluted to 20% DRC (dry rubber content) and stabilized with 5 phr of Ultranex NP 95. The epoxidation reaction was carried out in a thermostatic bath to control the reaction temperature. Formic acid was added and the temperature was raised to 40˚C. Subsequently, the hydrogen peroxide solution was added and the reaction medium was then kept at 70˚C for 8 h. After epoxidation, the reaction medium was neutralized with 10% aqueous sodium carbonate solution. The product was coagulated in ethanol and dried.
2.3. Samples Preparation
Polymer solutions were previously prepared at room temperature under magnetic stirring. PLA/ENR (a blend polymer consisting of PLA and ENR in the ratios 100/0, 90/10, 75/25 and 50/50 wt. %) solutions were prepared by dissolving in chloroform to obtain a 15% w/v polymer concentration. The solution was then poured in a 5 mL BD Luer-Lok tip plastic syringe having a stainless-steel needle with 25 gauge 90˚ blunt end. The electrospinning was carried out by means of a high voltage power supply (Model PS/FC60P02.0-11, Glassman High Voltage Inc., NJ, USA) and a digitally controlled syringe pump (Model 100, KD Scientific Inc., Holliston, MA) in the following conditions: flow rate 0.5 mL/h and applied voltage 17.5 kV. Electrospun mats were collected onto a metallic plate colector grounded covered with aluminum foil at 12 cm from the blunt tip of the capillary.
2.4. Characterization
Morphology of PLA and PLA/ENR electrospun mats was obtained by scanning electron microscopy (SEM) in a JEOL JSM-5300 microscope at an acceleration voltage of 18 kV. Samples were previously sputter-coated with gold. Fibers diameters were analyzed from the images with the help of ImageJ® software.
Fourier transform infrared (FTIR) spectra of PLA and the blends were obtained using VARIAN spectrometer (model FTIR 3100) over the wave number range of 4000 - 500 cm−1, at an accumulation of 32 scans with a resolution of 4 cm−1.
Thermal properties of PLA and PLA/ENR blends were measured by a differential scanning calorimeter (Q1000, TA Instruments). Samples of 6 - 7 mg were taken in an aluminum pan and sealed tightly with an aluminum cover. The samples were first cooled to −80˚C and then heated to 180˚C at a rate of 10˚C/min under a nitrogen atmosphere. The glass transition temperature, cold crystallization and melting temperatures denoted as Tg, Tc and Tm, respectively, were obtained from the DSC curves. The crystallinity (χ) of PLA in the PLA/ENR blend was evaluated from the DSC data by using the Equation (1) [29] :
(1)
where ΔHm, ΔHcc and
are respectively the enthalpies of cold crystallization, melting and melting for 100% crystalline PLA. The value used for
is 93.1 J/g [30] . ϕENR is the content of ENR in PLA/ENR blends.
The thermal stability of the samples (about 4 mg) was investigated with a TGA instrument (TA-Q600) under nitrogen atmosphere from 30˚C to 700˚C at a heating rate of 10˚C/min.
Dynamic mechanical analysis (DMA) was performed using a DMA Q800, TA Instrument. Specimens were analyzed in tensile mode at a constant frequency of 1 Hz, a strain of 0.01%, and a temperature ranging from −80˚C to 100˚C at a heating rate of 2˚C/min.
3. Results and Discussion
3.1. Morphology of the Electrospun Mats
In order to study the effect of ENR on the morphology of electrospun PLA/ENR fibers, blends with PLA/ENR ratios of (0/100), (90/10), (75/25) and (50/50) were investigated. Figure 1 shows SEM images of the electrospun PLA/ENR blend mats at 1000x magnification. The average diameter values of the fibers were determined based on 50 measurements of individual fibers randomly chosen from each SEM image with the same magnification. As shown in Figures 1(a)-(d), when the PLA/ENR ratios were 100/0, 90/10, 75/25 and 50/50, the diameters of electrospun fibers were 1889 (±327), 1474 (±432), 1241 (±229), 858 (±198), e 2671 (±359) nm, respectively.
![]()
Figure 1. SEM images of (a) 100/0, (b) 90/10, (c) 75/25, (d) 50/50 PLA/ENR electrospun blends with magnification of 1000×.
Note that all of these fibers had smooth surface, and the mats contained no beaded-fibers. It can be seen that increasing the ENR content up to 25 wt.% resulted in the decrement of the fiber size. Costa et al. [25] reported similar observation in which the increase in NR concentrations resulted in a reduction of fiber diameters of PCL/NR electrospun blends, also enhancing the total surface area and porosity of membranes.
3.2. Fourrier Transform Infrared Spectroscopy-FTIR
Figure 2 exhibits the FTIR spectra in the region 4000 - 500 cm−1 of ENR, PLA and PLA/ENR blends. From the FTIR spectra of ENR, the peaks at 2961, 2917, and 2854 cm−1 are attributed to C-H stretching from −CH2 group. The absorption bands at 1448 and 1377 cm−1 are originated from C-H stretching from −CH3 group. The characteristic peaks at 870 cm−1 and 836 cm−1 are assigned to the asymmetric and symmetric vibration of the epoxy ring [31] . In the case of PLA, the absorptions at 1450, 1360 and 1267 cm−1 are attributed to C-H deformation from ?CH2. The bands at 1182, 1128, 1084 and 1044 cm−1 are originated from C-O-C bending vibrations [32] . The bands at 869 and 755 are due to C-C stretching vibrations. The absorption peak at 1750 cm−1 is attributed to the stretching vibration of carbonyl groups of PLA [31] . Figure 2 also shows that the peaks of the blends consist of PLA and ENR characteristic peaks. The peak position at 1750 cm−1 of PLA shifted to higher wave numbers in the blends as the ENR content increased, which suggests some interaction between the carboxylic end group of PLA chains and oxirane group of ENR.
3.3. Thermal Properties of PLA/ENR Electrospun Blends
Differential scanning calorimetry was used to investigate the effect of the ENR addition on the thermal properties of PLA. The thermal properties of PLA and PLA/ENR electrospun blends are presented in Figure 3 and the corresponding data are summarized in Table 1. Glass transition temperature (Tg) is obtained from the inflection of glass transition based by the second heating scan. The Tg of PLA/ENR blends is located at the almost same temperature around 57˚C, indicating that there is no evident effect on the Tg of PLA by the addition of ENR. This same behavior was observed when Zhang et al. [27] studied the thermal properties of PLA/ENR by melt blending. Bitinis et al. [33] also stated that there were no changes in the glass transition temperature of PLA with the NR content.
As PLA used in this work was crystalline poly (L-lactide), the effect of the incorporation of the epoxidized
![]()
Figure 2. FTIR spectra of PLA, ENR and PLA/ENR electrospun blends.
![]()

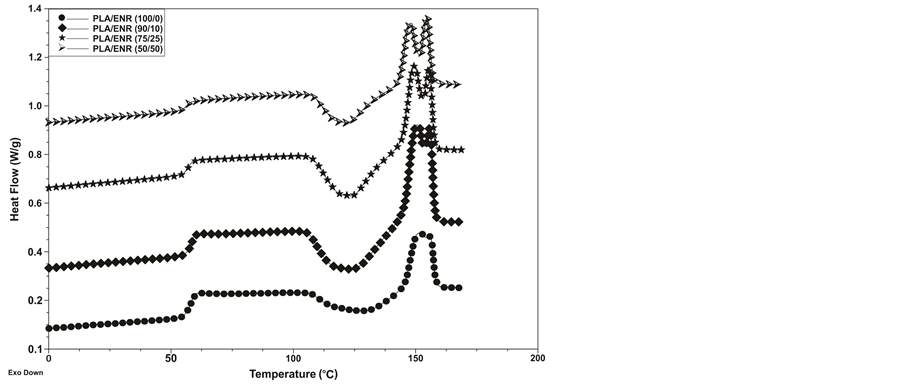

Figure 3. DSC thermograms of PLA/ENR electrospun blends.
natural rubber in the degree of crystallinity of PLA was studied. As expected electrospun PLA mats develops lower crystallinity values [34] . Thermal data in Table 1 show an enhancement on the degree of crystallinity of the PLA with the ENR content. Kaavessina et al. [35] studied the crystallization behavior of poly (lactic acid)/ elastomer blends. According to the authors, elastomers may act as diluent agent on the crystallization process of poly (lactic acid) by giving the extra mobility of its chains to form crystal. This is especially significant for electrospun samples during the fast solvent evaporation and polymer solidification, which favors the crystal growth formation and increasing in the degree of crystallinity. These results suggest that the blends started to crystallize at lower temperatures than neat PLA, which is an indication that the presence of ENR can act as nucleating agent on the crystallization of PLA [36] and also indicates that ENR induced less perfect PLA crystals under the rate used in this heating process. Similar findings was reported by Wahit et al. [37] in which nucleating effect led to decrease in Tc and increase in the crystallinity of the PLA/ENR blends.
Melting endotherms of PLA and PLA/ENR blends are shown in Figure 3 and Table 1. It can be seen that the melting temperature decreases with the incorporation of ENR. Besides, all the samples revealed two melting peaks. Sarasua et al. [38] have explained the double-peak melting point of PLA in their previous report. They stated that the melting peak at higher temperature corresponded to more perfect crystalline form than that at lower temperature. Double melting endotherms can be attributed to the melt recrystallization mechanism of PLA, which is originated from PLA crystal growth. The less perfect crystals (α’-form crystal) of PLA have sufficient time to melt and reorganize into perfect crystals (α-form crystals) before giving a second endotherm at higher temperature [38] - [40] . The presence of ENR may retard the formation of perfect crystallites of PLA, thus, double-melting peak can be associated with formation of different lamellae thickness and the melt-recrystalliza- tion mechanism [32] .
Thermal stability of PLA and PLA/ENR electrospun blends determined by thermogravimetric analysis is shown in Table 2. PLA and PLA/ENR sample with 10 wt.% of ENR presented an one-stage weight loss during thermal decomposition. The addition of more than 10 wt.% of ENR resulted two stages of degradation which is associated with different polymer phases of the blends. Noticeably, the thermal stability of the blends decreased as ENR content increased in the blends. Wahit et al. [36] have studied the thermal stability of PLA/ENR blends in their previous report. They attributed the reduction of the thermal stability to the oxidation of the epoxide groups at high temperatures. Moreover, ENR can act as an auto oxidant and initiate a free radical reaction. Subsequently, the free radicals generated start the oxidation of the PLA in the blend.
3.4. Dynamic Mechanical Analysis-DMA
Viscoelastic behavior of a polymer blend under dynamic conditions can reveal important information on microstructure and interfacial interactions of the blends [41] . Storage moduli of PLA/ENR blends over a wide temperature range of ?80˚C to 100˚C is shown in Figure 4. As one can see, the storage modulus (E’) of the
![]()
Table 1. Thermal characteristics of PLA/ENR electrospun blends recorded by DSC.
![]()
Table 2. Decomposition temperatures for PLA/ENR electrospun blends obtained from TGA curves.
![]()
Figure 4. Storage Modulus (E’) versus temperature for PLA/ENR electrospun blends.
blends had an initial decrement (around ?40˚C) as consequence of the segmental mobility (Tg) of ENR chains and then dropped dramatically after the Tg of PLA, which resulted from the softening or segmental mobility of PLA molecules. Interestingly, the addition of ENR to PLA increase E’ values with the ENR content. This effect is closely related to the interaction between the epoxy groups of ENR and carbonyl groups of PLA, which can produce a percolation network which prevents the PLA chains from free moving, and leads to the increase of storage modulus [27] .
Moreover, the enhancement of storage modulus can be related to the increase in the stiffness (tanδ peak increased with the ENR content, see Figure 5) as consequence of increased crystallinity fraction confirmed by DSC data findings. Figure 5 presents the temperature dependences of tanδ of PLA/ENR electrospun blends. Tan delta peaks of all types were remarkably observed in the region 70˚C with Tg values of 69.20˚C (0/100), 70.04˚C (90/10), 69.45˚C (75/25) and 70.04˚C (50/50). Such a result supports the findings from the DSC data that the Tg values of PLA/ENR blends are located at the almost same temperature, indicating that there is no evident effect on the Tg of PLA by the addition of ENR.
4. Conclusion
In this work polymer compositions with poly(lactic acid) (PLA) and epoxidized natural rubber (ENR) were processed by electrospinning. The effect of ENR on the morphological, structural, thermal and dynamic mechanical properties of the blends was found to be pronounceable. SEM results revealed that mats with micrometer- and submicrometer-sized fibers were obtained with no bead structures and the addition of 25 wt.% of ENR content reduced the fiber diameters. FTIR studies showed some level of interaction between carboxylic end group of PLA chains and epoxi group of ENR. Results of thermal properties showed that the increasing in ENR content surprisingly caused the increase in crystallinity fraction. Further, dynamic mechanical properties showed that the molecular interaction between the epoxy groups of ENR and carbonyl groups of PLA, and the increased crystallinity may have been responsible by the enhancement of the rigidity and the storage modulus. The obtained results showed that electrospinning was suitable for producing PLA/ENR blends suitable for biomedical applications such as tissue engineering. Considering the importance of developing new biomaterials
![]()
Figure 5. Tanδ curves versus temperature for PLA/ENR electrospun blends.
derived from renewable sources, the advantage of adding of ENR to PLA is reported. As consequences decrease the fiber diameter with enhancing the total surface area and porosity of mats and proportional increase in storage modulus over a usable temperature range is understood as interesting material for future applications.
Acknowledgements
The authors gratefully acknowledge the Brazilian Agencies CNPq (Grant No. 475533/2013-5), CAPES and FAPERJ (Grant No. E-26/110.895/2013) for supporting this work.
