Barrier, Adsorptive, and Mechanical Properties of Containers Molded from PET/PP Blends for Use in Pharmaceutical Solutions


In this study, the adsorptive properties of L-menthol, moisture vapor transmission rate, and mechanical properties of poly (ethylene terephthalate) (PET), polypropylene (PP), and their blends were evaluated in containers fabricated by injection molding without a compatibilizing agent. These containers intended to hold pharmaceutical solutions containing lipophilic chemicals such as L-menthol. By the addition of a small amount of PP, the moisture barrier properties of PET were effectively improved, but its anti-adsorptive property was reduced. The strength of the PET/PP blends was reduced, but some PET/PP blends were still able to bear the experimental load required for application in eye-drop containers. PET/PP = 9/1 and PET/PP = 8/2 were found to be most applicable for using in the fabrication of containers for medicinal solutions.

Share and Cite:

T. Otsuka, A. Kurosawa, M. Maeda, K. Yamada, M. Murakami and H. Hamada, "Barrier, Adsorptive, and Mechanical Properties of Containers Molded from PET/PP Blends for Use in Pharmaceutical Solutions," Materials Sciences and Applications, Vol. 4 No. 10, 2013, pp. 589-594. doi: 10.4236/msa.2013.410072.

1. Introduction

In Japan, L-menthol is preferably included as an algefacient in over-the-counter eye drops [1]. Because L-menthol is a hydrophobic compound, it has a tendency to be adsorbed onto the walls of eye-drop containers, which are commonly made of polyolefin resin. In contrast, hydrophobic compounds are hardly adsorbed onto hydrophilic polyester resins such as poly (ethylene terephthalate) (PET) [2]. Therefore, PET is suitable for eye-drop containers including L-menthol. However, it is well known that PET has a high moisture vapor transmission rate (MVTR) [3], i.e., a low vapor barrier property, which results in a short shelf-life of the product [4]. Because polypropylene (PP) exhibits a low MVTR [5], a blend of PET and PP might compensate for the disadvantage of each material and afford an innovative material for eye-drop containers.

The mechanical and thermal properties of PET/PP blends have been widely reported [6]. Nevertheless, there is very little information in literature regarding the adsorptive and barrier properties of PET/PP blends. Furthermore, studies have reported the improvement of mechanical characteristics of PET/PP blends by the addition of compatibilizing agents [7-11]. However, there are safety issues associated with the use of these agents in containers for pharmaceuticals. Therefore, in this study, the adsorptive, barrier, and mechanical properties of PET/PP blends in eye-drop containers fabricated without the addition of a compatibilizing agent were investigated.

2. Experimental

2.1. Materials

Isophthalic PET resin “MA1340P” with an intrinsic viscosity of 0.57 dL/g was supplied by Unitika Ltd., Japan. Random copolymer PP resin “MG03E” with a melt flow rate of 30 g/10 min was supplied by Japan Polypropylene Corporation, Japan. The properties of PET and PP resins are listed in Tables 1 and 2, respectively.

2.2. Sample Preparation

Table 3 lists the composition of PET/PP blends used in

Table 1. Properties of the PET resin used.

Table 2. Properties of the PP resin used.

Table 3. Compositions of the PET/PP blends.

this study. PET and PP were dried using a dehumidifying drier at 110˚C for 16 h and at 80˚C for 16 h, respectively. The raw materials were then compounded by a twin screw extruder (LABOTEX30HSS, Japan Steel Works Ltd., Japan); the compounding conditions are given in Table 4. The compounded materials were then pelletized by a pelletizing machine. The pellets were dried in a convection oven set at 90˚C for 16 h before injection molding to form cylindrical bottle specimens, as shown in Figure 1. Dumbbell-shaped specimens [Type A of JIS K7139 (ISO3167: 1993)] were formed using a PoYuen UM50 injection molding machine. The nozzle specimens for the eye-drop container were formed using a FANUK ROBOSHOT a50 injection molding machine, as shown in Figure 2.

3. Characterization

3.1. MVTR Measurement

Each bottle specimen was filled with 5 mL purified water

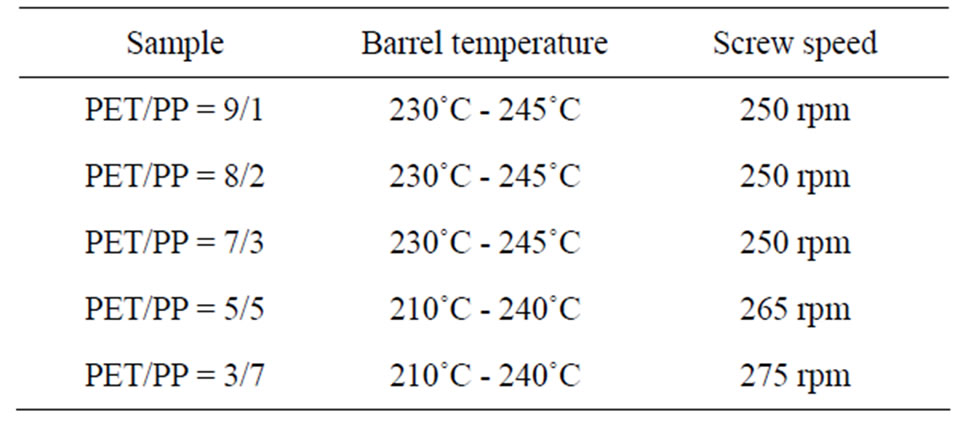

Table 4. Compounding conditions.

Figure 1. Cylindrical bottle specimen.

Figure 2. Nozzle specimen.

and then closed with a low-density polyethylene (LDPE) sealing cap, as illustrated in Figure 3. First, the initial weight of each bottle specimen was measured using an electronic chemical balance. For MVTR measurement, the bottle specimens were placed in a humidified chamber. The constant temperature and relative humidity were 40˚C and 20%, respectively. The weight of each specimen was measured as a function of time. Specifically, each bottle specimen was periodically removed from the chamber and weighed after 14 days. MVTR was calculated using the following formula:

3.2. Measurement of Residual L-Menthol

The experimental setup for measuring the residual rate of L-menthol is illustrated in Figure 4. The nozzle specimens were placed in a glass ampoule and filled with 6 mL of 0.01 wt% L-menthol. The glass ampoule was then heat sealed. Next, the ampoule was placed in a thermostatic oven at constant temperature of 50˚C. After 12 days, the ampoule was removed from the oven and the L-menthol content in the solution was measured via liquid chromatography (content after elapsed time). The residual rate of L-menthol was calculated using the following formula:

3.3. Mechanical Properties

3.3.1. Tensile Testing

Dumbbell-shaped specimens were prepared from each molded sample. The tensile strength and elongation were

Figure 3. Scheme for MVTR measurement.

measured using an Autograph Universal Testing Machine at 23˚C and 100 mm/min.

3.3.2. Compressive Testing

Figure 5 shows a scheme of the experimental setup used for compressive testing. Compressive testing was conducted with a load of 150 N and a speed of 300 mm/min on center of the cylindrical wall of each bottle sample.

3.4. Morphology Studies

Cross-sectional slices in the circumference direction of the cylindrical bottle specimens were examined using transmission electron microscopy (TEM).

4. Results and Discussion

4.1. MVTR

Figure 6 demonstrates the influence of PET content on the MVTR of the PET/PP blends after 14 days. It is clearly observed that MVTR significantly decreased with an increase in PP content. For pure PET, MVTR was 1.14%; however, for 90% PET, MVTR reduced to 0.82%

Figure 4. Scheme for measuring the residual rate of Lmenthol.

Figure 5. Scheme for compressive testing.

Figure 6. MVTR after 14 days.

at a dash. Thus, the MVTR of PET was improved by approximately 30% by blending with only 10 wt% of PP.

Similarly, between the 70% and 50% PET blends, the MVTR of PET was improved by approximately 33% with blending of only 20 wt% of PP. The reduced rates observed between the 100% PET and the 90% PET blend and between the 70% and 50% PET blends demonstrated significant differences.

The MVTR results were considered in relation to specimen morphology (Figure 7). All blend materials exhibited a sea–island structure. For 90%, 80%, and 70% PET blends, PP was dispersed with an elongated shape in the form of laminae and exhibited a lamellar structure. These results indicated that the barrier properties improved as a result of PP, which has a low MVTR, stratifying and dispersing within PET. Moreover, when the PP content was 50% or greater, the sea–island structure was reversed, and the barrier properties dramatically improved when PP became the sea layer. This indicates that the moisture barrier properties of the blends were effectively improved by the addition of a small amount of PP.

4.2. Residual Rate of L-Menthol

Figure 8 displays the influence of PET content in the PET/PP blends on the residual rate of L-menthol after 12 days. Residual rates of L-menthol in the 100%, 90%, 80%, and 70% PET specimens were unchanged. When the PET content was less than 50%, the adsorption of L-menthol decreased with increasing PP content in the blend.

The residual rates of L-methanol were considered in relation to specimen morphology (Figure 7). PET was the sea layer in the 70%, 80%, and 90% PET blends, indicating that the external layer exposed to L-menthol will be covered in PET. Hence, L-menthol was not adsorbed onto these blends. PP was the sea layer when the PET content was 50% and 30%. Therefore, L-menthol

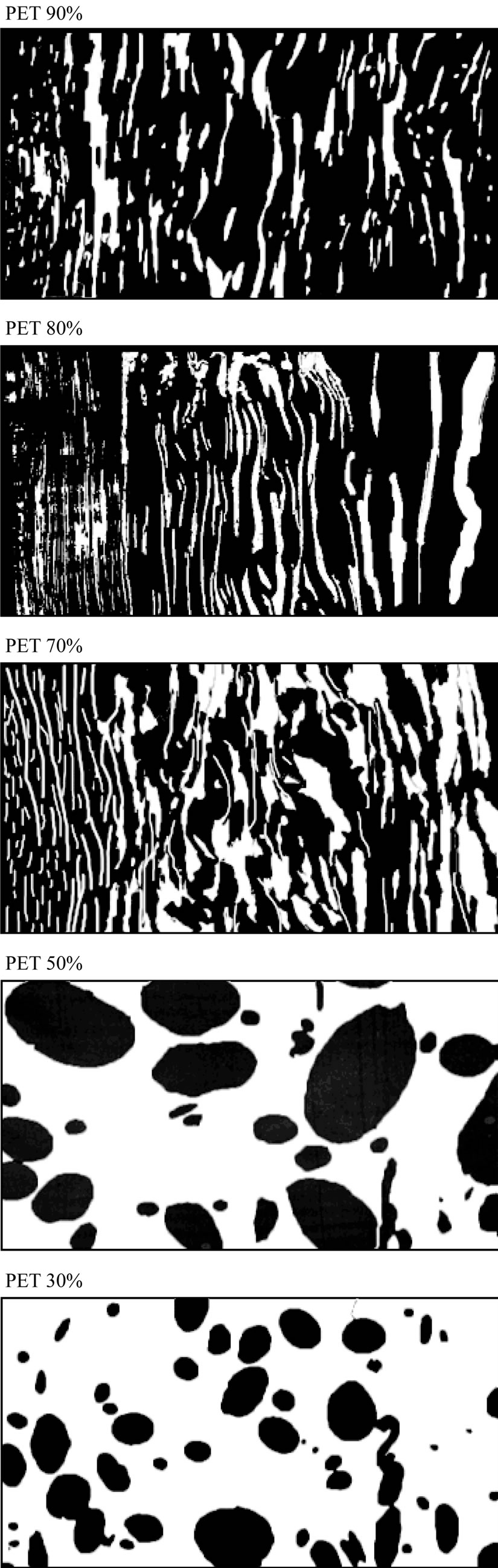

Figure 7. TEM images of PET/PP blends.

adsorption was expected to occur. The anti-adsorptive property of 30% PET was almost similar to that of 100% PP. Thus, it is difficult to conclude whether the addition of 30% PET was effective for reducing adsorption.

4.3. Mechanical Properties

Figures 9 and 10 show the tensile strength and tensile elongation results for the PET/PP blends. PET has low elongation and high strength, whereas PP has high elongation and low strength. The tensile strength of the blended materials decreased with increasing PP content, while the tensile elongation of the blended materials decreased with increasing PET content. The results show that strength of the blended materials was significantly lowered due to poor compatibility between PET and PP.

Figure 11 shows the front views of the fractured area of specimens after compressive testing. Compressive testing was conducted to examine whether the blends were sufficiently strong to be used in eye-drop containers. Pure PET and pure PP did not break under compressive

Figure 8. Residual rate of L-menthol after 12 days.

Figure 9. Tensile strength.

Figure 10. Tensile elongation.

Figure 11. Representative images of samples after compressive testing.

testing. The 30%, 80%, and 90% PET blends could bear the weight of compressive testing. However, the 50% and 70% PET blends failed upon compression.

5. Conclusions

A balance in the anti-adsorptive and vapor barrier properties was achieved by blending PET and PP, with the exception of the PET/PP = 3/7 blend. With respect to mechanical properties, the strength of PET/PP blends was reduced. However, the PET/PP blends, except the PET/PP = 7/3 and PET/PP = 5/5 blends, were able to bear the experimental load required for application in eye-drop containers.

Taken together, the results of this study indicate that the PET/PP = 9/1 and PET/PP = 8/2 blends are most applicable for use in eye-drop containers. In the future, methods are needed to improve the mechanical properties of the PET/PP = 5/5 and PET/PP = 7/3 blends, as they showed the most favorable balance between the MVTR and anti-adsorptive properties of L-menthol. As the next step, further experiments and analyses are required in terms of the solubility parameters of L-menthol, PET, and PP, which dominate the adsorption phenomena of the system.

Conflicts of Interest

The authors declare no conflicts of interest.
