Effect of Air Content on the Oxygen Diffusion Coefficient of Growing Media

Dominik Schmitz, Ruediger Anlauf, Peter Rehrmann

Osnabrueck University of Applied Sciences, Osnabrueck, Germany..

DOI: 10.4236/ajps.2013.45118

Abstract

An important parameter for describing oxygen availability in growing media is the air capacity, but this parameter does not include any information about the gas exchange with the surrounding atmosphere. The oxygen diffusion coefficient fulfills this requirement and may be better suited as a characteristic parameter to describe the oxygen regime. The measurement of the gas diffusion coefficient is a common method to describe the oxygenation in mineral soils, but this method has not been studied well on growing media yet. In this investigation four different growing media were used to measure the oxygen diffusion coefficient at two different bulk densities and four different water tensions in the laboratory. The effect of density and water tension on the oxygen diffusion coefficient in different growing media and the dependence on air content were investigated. The results show that both water tension and density have a major influence on oxygen diffusion. With increasing density and moisture content, a decrease of the oxygen diffusion coefficient can be observed. Between the substrates there are no significant differences regarding the oxygen diffusion coefficient at the same air content. Based on the oxygen diffusion coefficients of the substrates, the models describing the dependence of gas diffusion coefficients to air content in the literature were tested for the transferability to growing media. The Moldrup model [1] shows the best fit. The fit can be slightly further improved by modifying the tortuosity parameter.

Keywords

Gas Diffusivity; Pore Tortuosity; Air Capacity; Horticultural Substrate; Peat

1. Introduction

For the characterization of the chemical and physical properties of growing media, the parameters container capacity, air capacity as well as nutrient contents and nutrient storage capacity are most important [2-4]. Oxygen stress may induce a number of reactions in plants, such as a reduction in transpiration, nutrient uptake and growth [5]. Recently the meaningfulness of air capacity as the most important parameter describing oxygen supply to roots is discussed in the literature [6-9]. The air in growing media contains oxygen, carbon dioxide, nitrogen and water vapor. The oxygen concentration in the air in growing media can vary due to different oxygen consumption levels and different diffusion rates of atmospheric oxygen into the substrate. Thus, an inhibited gas exchange leads to reduced oxygen concentration. According to [10], the inhomogeneity of the pore distribution caused by compression can lead to strongly varying oxygen concentrations in the immediate vicinity. The air capacity, however, provides little information about the oxygen content in the root zone. The gas exchange between atmosphere and growing media is probably more important for the description of the oxygen supply to growing media than the air capacity [9, 11-13]. Primarily the air-filled continuous pores serve as a transport system for gas exchange. The rate of gas exchange is determined by the size and shape of these pores [4,14,15].

The determination of the oxygen diffusion coefficient played no major role in the analysis of growing media yet [16]. Investigations described in the literature are usually based on mineral soils [4,17].

Aims of this study were 1) to examine the effect of bulk density and water/air content of different horticultural growing media on the oxygen diffusion coefficient; 2) to evaluate the transferability of model functions relating the oxygen diffusion coefficient to air content in mineral soils to growing media; 3) to test if a better fit of these functions can be achieved by varying the tortuosity parameter describing the intricacy of the pore.

2. Theoretical Background

The air in growing media contains oxygen (O₂), carbon dioxide (CO₂), nitrogen (N₂) and water vapor (H₂O). The composition of air in growing media differs from the composition of atmospheric air (O₂: 20.9%vol; CO₂: 0.03%vol) by a higher concentration of carbon dioxide and water vapor and a lower content of oxygen [15,18]. The higher content of CO₂ and lower content of O₂ result from biological processes in the growing media, such as root respiration or microbial activity. In these processes oxygen is consumed and CO₂ is produced. The consumed O₂ and produced CO₂ can be compensated only slowly by atmospheric air through diffusion. This explains the lower O₂ content and increased CO₂ content in soils and growing media [18,19].

According to Raviv and Lieth [4] the understanding of the gas transport mechanisms is essential for the evaluation of the aeration in growing media; however this has not been adequately examined yet. The air in growing media is rather humid and because of the root respiration and microbial activity it is also enriched with CO₂. The O₂ content runs in opposite direction to the CO₂ content, because respirated oxygen is spent.

The diffusion coefficient of O₂ in air (1.98 × 10^{−5 m2}·s⁻¹) is much larger than that in water (1.90 × 10^{−9 m2}·s⁻¹) [18]. The gas exchange can be reduced by water in the substrate which primarily occupies the smaller pores so that the gases are confined to the larger pores. At higher water contents typical for growing media, the water also occupies part of the coarse pores and, thus, strongly reduces the oxygen diffusion rate. Compaction usually decreases the coarse pores and leads to lower gas exchange rates [4]. Also the structure of the growing media is an important factor for gas exchange. Substrates containing smaller particles usually have less continuous pores and, therefore, smaller gas diffusion rates [4,19,20]. In soil air, CO₂ is commonly 0.3% - 1% but can be much higher in warm soils with fresh organic matter [21]. Gruda et al. [22] indicate CO₂ content in growing media of about 1.4%vol at high microbial activity and inhibited gas exchange. Soil O₂ concentrations less than 10%vol indicate poor aeration [21].

For many gases in growing media sources and sinks are not precisely determined. For oxygen, however, the atmosphere is the source and the substrate is the sink. Therefore, the gas exchange between growing media and atmosphere is essential for the oxygen content and, thus, for the life of organisms and for plant growth in growing media [19].

The pore size is decisive for the intensity of the gas exchange between growing media and atmosphere [4]. The more macropores exist in growing media, the more gas exchange takes place between growing media and atmosphere. Small pore sizes and a disturbed continuity of pores act as a barrier to gas exchange [7,23].

Gas exchange can take place either through convection or diffusion. Convective gas exchange can occur due to barometric or temperature-related gas volume changes or flowing water. In total, however, the convective gas exchange is only about 10% of the total gas exchange; the rest of the gas exchange occurs by diffusion [18,19].

The diffusive gas exchange depends on the oxygen and carbon dioxide partial pressure. The higher CO₂ partial pressure in the air of growing media results in a CO₂ diffusion into the atmosphere. In contrast, the lower O₂ partial pressure in the air of growing media performs to a diffusion of atmospheric oxygen into the growing media.

Diffusion is driven by concentration gradients. The flux of gases (J_G) can be described with Fick’s law (Equation (1)) [4]:

(1)

with the flux of gases J_G [M∙L⁻²∙T⁻¹], the gas concentration c [M∙L⁻³], the effective gas diffusion coefficient D_s [L⁻²∙T⁻¹] and the diffusion length s [L].

The diffusion coefficient of soils D_s is often described in relation to the diffusion coefficient in free air D_a. This ratio is the relative diffusion coefficient D_s/D_a and has the advantage that it is independent of temperature, air pressure and type of gas [24]. The dependency of D_s/D_a on air content and pore volume is described by different models developed for mineral soils. Different models have been compiled by several authors [17,25,26]. As natural soils have a different pore structure than growing media, the latter need different functions to describe the dependency of the oxygen diffusion coefficient on air content [27]. The applicability of different functions for growing media was tested in preceding studies of the authors of this investigation (unpublished data). The tests showed that the function of Moldrup [1] (Equation (2)) with the tortuosity parameter m = 6 fits best:

(2)

where D_s is the gas diffusion coefficient in the growing media [L²∙T⁻¹], ε is the air content [L³∙L⁻³], D_a is the gas diffusion coefficient in free air [L²∙T⁻¹], f is the pore volume [L³∙L⁻³] and m a tortuosity parameter (3 for undisturbed soils or 6 for disturbed soils).

For the physical characterization of growing media different parameters are used. The pore volume (PV) is referred to as the proportion of the airand water-filled pore space in the total volume. The container capacity (CC) is the water content, which remains at a matric potential of −10 hPa in the medium. The air capacity (AC)

is the proportion of the pore volume, which is filled with air at a matric potential of −10 hPa [6].

3. Materials and Methods

Four types of commercially available growing media in two densities and four moisture levels were prepared (Table 1).

The standard substrate density (SSD) was determined by a standard method [28]. Since considerable substrate shrinking after wetting and drying to the required pF levels was observed in preliminary tests, densities of SDD plus 10% and SDD plus 20% were used which practically showed no more shrinking. Prior to measuring the oxygen diffusion coefficient, the substrate samples were filled with the respective densities to the double rings described in DIN EN 13041 [29]. In this study only the lower ring was required, because a defined density was set.

The water tension of the media was adjusted to pF 0.5, 1.0, 1.5 and 1.8 using an Eijkelkamp standard sand box apparatus [29,30]. After measuring the oxygen diffusion coefficient, the substrates were oven dried at 105˚C and the air content was calculated as the difference between pore volume and water content.

The physical properties of the growing media used were characterized as pore volume (PV), container capacity (CC) and air capacity (AC) (Table 2). There are

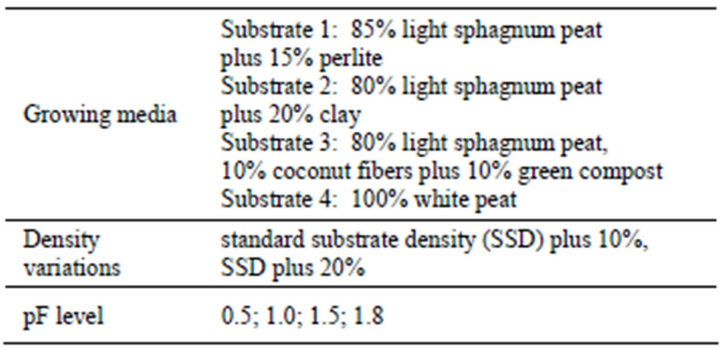

Table 1. Experimental variants.

Table 2. Physical characteristics of the growing media for the different densities used (cm³∙cm⁻³).

a. Pore Volume; b. Container Capacity; c. Air Capacity differences in their hydraulic characteristics due to the different composition of the growing media. An increase in density is accompanied by an increase in the container capacity and a decrease in the air capacity. Substrates 1 and 3 (peat/perlite and peat/coconut fibre/compost) had the highest air capacity whereas substrate 2 (peat/clay) had the lowest.

The particle size distribution of each substrate was determined according to DIN 11540 [31], with a set of eight sieves with a mesh size of 0.2 mm to 31.5 mm. Portions of substrate samples remaining on each screen were weighed and expressed as the percentage of total sample weight. The mean weight diameter (MWD) was calculated using Equation (3) [32]:

(3)

with the number of classes n, the average particle size f_i and the mass retained on the sieve divided by the total medium mass x_i.

Substrate 3 is the one with the finest particles, the lowest proportion of coarse particles larger than 2 mm (35.7%) and the smallest MWD (3.2 mm). The other substrates used have a proportion of coarse particles and a MWD of 44.4% and 4.7 mm (substrate 4), 50.0% and 4.5 mm (substrate 2) and 62.9% and 5.7 mm (substrate 1), respectively (Table 3).

The equipment used to measure the oxygen diffusion coefficient is based on the principle of Rolston and Moldrup [33]. Similar equipment was used for rockwool and perlite [34] and for peat based substrates [35]. The device is shown schematically in Figure 1: the measuring equipment consists of a PET container with a volume of 5390 cm³,

Table 3. Particle size distribution of the four different growing media (g∙g⁻¹).

Figure 1. Schematic illustration of the measuring equipment.

which is the diffusion chamber. On a highly perforated plate in the screw cap the sample is placed with the sample ring (383 cm³). The diffusion chamber contains an oxygen sensor connected to a data logger which records the oxygen concentration in the chamber every minute. Furthermore, there is an inlet and outlet for filling the diffusion chamber with nitrogen prior to the measurement, so that the oxygen concentration is about 1 % at the beginning of the measurement. A very slow fan inside the diffusion chamber provides sufficient turbulence of the gases.

The measurement is based on the formation of a gas concentration gradient within the substrate sample, i.e. between low O₂ concentration in the diffusion chamber (C_i) and the constant high O₂ concentration in the laboratory (C_a). Oxygen diffuses due to the concentration gradient. The oxygen diffusion coefficient can be calculated based on the change of oxygen concentration in the chamber per unit time [33].

The calculation of the oxygen diffusion coefficient is derived from the 1. Fick’s law (Equation 1). Based on Equation (1), the oxygen diffusion through the substrates can be described as [33] (Equation (4)):

(4)

where C_a is the O₂ concentration in the laboratory [%vol], t is the time [s], C_i the concentration in the chamber [%vol], V the volume of the diffusion chamber [cm³], D_s the Diffusion coefficient [cm²∙s⁻¹], l the height of the substrate sample [cm] and A the cross sectional area [cm²].

Equation 4 represents a mathematical linearization. By plotting the left part of the equation versus time (t), the slope m_s = ln (C_a/(C_a - C_i))/t can be calculated. Consequentially, the oxygen diffusion coefficient can be calculated as D_s = V·l·m_s/A.

This procedure could involve two potential sources of error: At the very beginning of the measurement the slope of the evaluation function is not linear. This could be solved by evaluating only the data between 20 and 120 minutes after the start of the measurement where the function was always linear. Another possible source of error could be the O₂ consumed within the growing media. However, the amount of O₂ consumed in the sample in two hours was very small in relation to the amount of O₂ diffusing through the sample due to the high concentration gradient. Therefore, no effect of the O₂ consumption on the O₂ diffusion coefficient is expected.

The statistical analysis was performed using the statistical program IBM SPSS Statistics 20, with a multifactorial analysis of variance. The conditions of normal distribution and homogeneity of variance were first checked with the Kolmogorov-Smirnoff test and the Levene test [36]. After taking the logarithm of the oxygen diffusion coefficient the conditions for the analysis of variance could be met.

4. Results

Figure 2 shows the oxygen diffusion coefficient and air content of the studied substrates and the respective moisture level (average of both density variations).The oxygen diffusion coefficient rises with decreasing moisture content. The diffusion coefficient at a very wet range (pF 0.5) is close to zero, but substrate 1 has a significantly higher gas diffusion coefficient. At moisture level pF 1.0, the oxygen diffusion coefficients are significantly higher. Between pF 1.5 and 1.8 there are no significant differences, only substrate 3 in moisture level pF 1.5 is significantly lower than the other substrates.

The relationship between air content and moisture level looks similar; air content rises with decreasing moisture levels. At moisture level pF 0.5 the air content of substrate 1 is the highest. The air contents at moisture level pF 1.0 are significantly higher, but there are no differences between the substrates. Between the moisture levels pF 1.5 and pF 1.8 there are no significant differences, except substrate 3 in moisture level pF 1.5 (lower) and substrate 1 in moisture level pF 1.8 (higher).

An analysis of variance shows that the factors density and air content (moisture level) have a significant influence on the oxygen diffusion coefficient. The tested substrates have no significant influence on the oxygen diffusion coefficient.

Figure 3 confirms that there is a strong relationship between oxygen diffusion coefficient and air content. The oxygen diffusion coefficient increases with increasing air content. Between the different substrates there are

Conflicts of Interest

The authors declare no conflicts of interest.
