Rank-Me: A Java Tool for Ranking Team Members in Software Bug Repositories ()
1. Introduction
A software bug repository contains information about the software bugs. A software bug report consist of some bug attributes like summary (or title) of the bug, description of the bug, date at which the bug is reported, assigned-to field (developer to whom the bug has been assigned, reported-by field (person by whom the bug has assigned), comments from the team members etc. Large scale projects maintain their bug information’s using bug tracking tools. Some of the popular bugs tracking tools are Bugzilla, Trac, JIRA, Perforce etc. An example of software bug repository using these tools is Mozilla Bugzilla, which has the information about the Mozilla project bugs. The present work reports a new algorithm to rate (rank) the team members on the basis of information available in bug repositories about their contribution.
1.1. Motivation
The motivation behind this work is to answer the following three questions: 1. Why to rate team members? 2. How to rate team members? 3. How this ranking will help? The answers to these questions give the motivation towards the proposed work, and are given in the following sections.
1.2. Why to Rate Team Members?
Rating team members in software bug repository helps in identifying the expert and good team members involved in software project. It is a measure by which various team members can be classified by the amount of effort each team member exerts in the project.
1.3. How to Rate?
The rating can be done using the vast information present in the software bug repository. The effort could be made in verity of ways; some of which are resolving or fixing the bugs for the different priority and severity levels. Person who has fixed critical severity and/or high priority bugs will get more score than one who has fixed low priority and/or minor severity bugs. Another effort could be on the basis of the number of times the user is providing the comments for the reported bugs to offer more information, and the number of times a team member is reporting new issues and bugs related to the software. Apart from this if the team member is tracking some bugs and is a part of bug thread communication (Carbon Copy mailing list), then also the effort needs to be calculated. Using all these efforts the scores for team member is calculated for their rating.
1.4. How This Ranking Will Help?
Rating the team members help in finding the experienced and efficient team members who can carry more responsibilities and can help in faster development of the software. The good rating persons show that they are having good experience in the software project and they can guide junior or new team members for effective bug resolutions and faster development of the software.
2. Related Work
Bug repositories are huge source of informations. Using bug mining, knowledge patterns can be generated. Weib, et al. reported a method to predict the software bug estimation [1,2], proposed predictors are designed using two data points—the title, and description of bugs. An approach is designed by Matter et al. [3] to automatically suggest developers who have the appropriate expertise for handling a bug report. The developer expertise model is designed using the vocabulary found in their source code contributions which is compared with the vocabulary of bug reports. An advantage of this approach is the record of previous bug reports is not required; the proposed technique is also able to recommend developers who are not involved in fixing the bugs earlier. Canfora and Cerulo [4] have developed a technique to identify the most appropriate developers to resolve a new change request and also to predict the set of impacted source files for this new change request.
Anvik et al. [5] proposed an approach to automate bug assignment using machine learning techniques, in this proposed technique, when a new report arrives, the classifier produced by the machine learning technique suggests a small number of developers suitable to resolve the report. The only problem with this technique is it has low precision and recall values for the suggested developers. Anvik and Murphy [6] did an empirical evaluation of two approaches to locate expertise. The two approaches are based on mining the source and bug repositories. In the first approach, source code check-in logs are examined for the modules that contain the fixed source files. In the second approach, the bug reports from bug repositories are analyzed to locate expertise. Panjer [7] has explored the feasibility of using data mining tools to predict the time to fix a bug based on basic information known at the beginning of a bug’s lifetime.
Nagwani and Verma proposed the prediction technique for the bug fix estimations [8], in which the estimation was perofmed using average fix time for the similar software bugs in the proposed technique. Nagwani and Verma [9] designed an open framework in java to pre-process the data available at online software bug repositories. The proposed framework accepts a URL (Uniform Resource Locator) for the online software bug repository, where user can specify the ranges of the software bug id’s. The bugs in the specified ranges are stored to the local machine where the framework provides the parsing and pre processing work for the retrieved software bugs. The processed software bugs can be taken directly from the local machine for the analysis. A framework for automated assignment of bug-fixing tasks is presented by Baysal et al. [10], in the proposed approach the knowledge about a developer’s expertise is used by analyzing the history of bugs previously resolved by the developer, in the proposed approach lacks the experimental evaluation due to number of reasons mentioned in the work.
A detailed literature review reveals that although the ranking mechanism is common at most of the places like applying the ranking in web search result [11] etc., but the concept of ranking the team members in software bug repositories is a novel technique and is yet to be reported. Gousios et al. [12] proposed a model by combining traditional contribution metrics with data mined from software repositories for developer contribution measurements. In the proposed model clusters of similar projects were created to extract weights which were applied to the actions performed by a developer on project assets to calculate a combined measurement of the developer’s contribution. The proposed model was designed for overall contribution of developers, but the problem with the proposed model is, the number of parameters is calculated using personal experience and traditional contribution, which may not be feasible or accurate at certain cases, whereas in the present work, the member ranking is performed for software bug repositories using information available in software bug repository, itself.
3. Methodology
The overall process of assigning ratings to the team members in software bug repository is shown in Figure 1. Using the information present in bug attributes of the bug reports, various scores are calculated for each team member. The major scores are bug fixing score using importance (priority and severity) of bugs, user comment scores, newly reported bug scores and CC mailing list scores for bug related communication in software bug repository. The aggregate scores are calculated using the four scores, and normalized for the ratings. This criterion is used to develop the rating of the team members present in software bug repository.
The overall score of i’th team member in the software bug repository can be calculated using (1). This score is the linear sum of four major scores. These four scores are bug fixing score (Scorei(Fix)) according to the priority and severity of the software bugs, the score of the comments (Scorei(C)) made by the team members in various bugs, the score of the team members who are added in the CC mailing list (Scorei(CC)) in the various software bugs and the last score is the score of number of times a team member has reported a software bug (Scorei(R)).
(1)
Figure 1. The rating methodology for the team members.
Scorei(Fix) can be again decomposed in two the two parts as given in (2).
(2)
Scorei(P) is bug fixing scores using different priority values and Scorei(S) is the bug fixing scores using different severity values. The calculation of Scorei(P) is based on assumption, that there are five different priorities available in software bug repositories named P1, P2, P3, P4, and P5 (Most of the bigger projects like Mozilla, MySql, JBoss etc. have five priority levels. Each of the five different priorities are assigned corresponding weights, as given in (3). The relationship between the various priorities weighting factor is given) in (4).
(3)
(4)
In the similar manner the severity score is also calculated using different weighting factor of different severities at different levels and is given in (5). The standard severity levels are typically the “Critical”, “Major”, “Normal”, “Enhancement”, “Trivial” and “Minor”. For these different severities different score-weights are assigned to fix or resolve a bug. The relationship between the various severity score is presented in (6). The symbol used in (3) and (5) for calculating the priority and severity scores are systematically arranged and summarized in Tables 1 and 2.
(5)

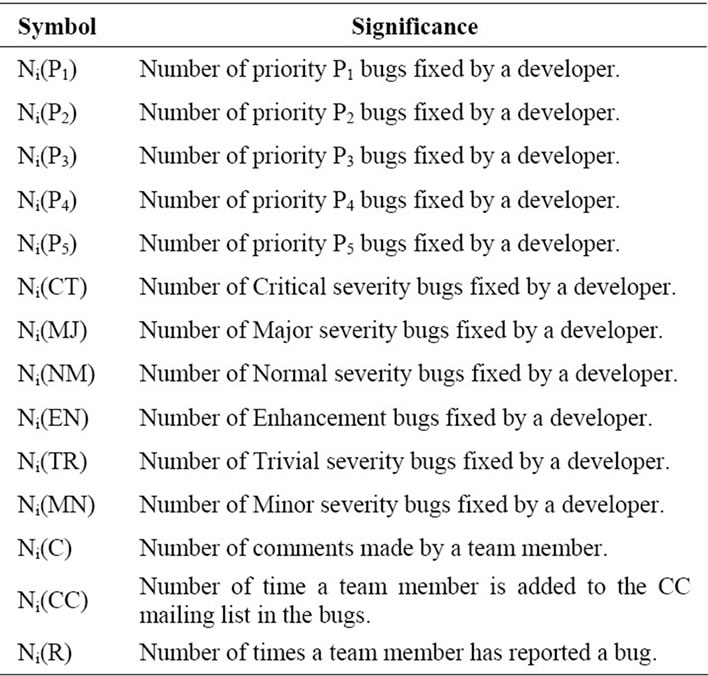

Table 1. Various symbols used in equations.
Table 2. Various weighting parameters and their meaning.
(6)
The score calculations for the bug comments, cc mailing list and number of bugs reported by the team member are given in (7) to (9) respectively.
(7)
(8)
(9)
where Ni(C), Ni(CC) and Ni(R) are the number of times the ith team member posted comment, number of time the ith team member is added to the CC mailing list and number of time the i’th team member has reported a software bug. C, CC and R are the weigh for the scores for the comments, CC mailing list and newly reported software bugs.
The methodology is elaborated further in the following continuation.
4. Pre-Processing and Data Preparation for Rating
Software bugs are available as HTML or XML file formats in online software bug repositories, where the software bugs are managed using various bug tracking tools like Bugzilla, Trac, Jira, Perforce etc. One instance of a software bug taken from Mozilla bug repository (available at: https://bugzilla.mozilla.org) is shown in Figure 2. Mozilla uses the Bugzilla bug tracking tool to manage the software bugs of Mozilla products. These bugs are required to be available in local machine in order to perform some analysis. Parsing is another major operation required in order to extract the various bug attributes information. In the present paper the framework proposed by Nagwani and Verma [10] is used for this purpose. Once the parsing is done, suitable attributes for team ranking are filtered from the parsed data. The attributes selected in this work are assigned-to, priority, severity, cc-list, and reported-by.
Apart from parsing, another important pre-processing operation is identification and elimination of spams from the various textual bug fields like comments, description etc. This will ensure that only the effective information is selected for the analysis. For instance, just to increase the comment count any user can put some ineffective information in comment section of any bug, which should not be counted for ranking of commented user since it is useless. For this purpose jASEN (java Anti Spam ENgine), an open source java based anti spam framework is used. The jASEN framework is available at http://www.jasen.org/
5. Score Transformation and Rating Normalization
Once the raw score for the team members participating in the software bug repository is calculated, the next important step is to transform the raw score into the newer range of score for smoothing the criteria of ratings. The
Figure 2. Snapshot of a Mozilla bug (bug id = 11012).
reason behind normalization of raw score is to make the rating outputs was to understand. For this purpose various score normalization techniques are available. Out of which the most popular is Min-Max normalization, as explained below.
(10)
where n' is the transformed value for the given value n for a particular attribute A, maxA and minA are the maximum and minimum values of an attribute A. Max- NEW and MinNEW are the new maximum and new minimum values; the new range where the given value is going to be transformed. The attribute “A” here is the score calculated for participating team members in a software bug repository.
Alternatively, normalization using decimal scaling and other standard normalization techniques can also be used. However in the example presented in this paper MinMax normalization technique is used with minimum value as 0 and maximum value as 5.
6. Visualizing the Member Ranking
Next the team member ratings have to be visualized using the ranking value calculated from the proposed algorithm. Two common rating visualization techniques are mentioned here as a reference. Figure 3 shows a star rating visualization to represent the rating in the range of [0…5], Where as Figure 4 represents the rating bar visualization for rating scores in the scale of 0 to 5.
7. Calculating Bug Ranking Using Member Ranking
The proposed team member ranking can now be used for calculating software bug ranks. The software bug rank can be used to represent the ordering of the bugs using the involvement of team members of different rank. Linear sum of rank of the team members involved in software bugs can used for calculating the software bug rank. A general way of calculating the software bug rank is given in (11).
(11)
After calculating the bug rank it can be normalized to a specific range to indicate various bug rank levels.
8. Implementation & Experiment
The implementation is performed for the given technique
Figure 3. A star rating visualization technique in the range [1…5].
Figure 4. A rating bar visualization technique in the range [1…5].
using Java as the programming language and MySql as the local database to store the processed information. The implementation is performed in the five stages.
1) Retrieving and Parsing the Software Bugs: In the first step the software bugs are retrieved at local system and parsing using tokenization for extracting the bug attributes and their corresponding values.
2) Creating local database for selected attributes: The extracted attributes are filtered for analysis and saved in the local database.
3) Eliminating the possible spams: In this stage the textual bug attributes are analyzed for possible spam. The information which is likely to be spam is ignored and never used for calculating the ranking of team members.
4) Generating Metadata for Ranking: Once the possible spams are eliminated the next step is to prepare the metadata for ranking. This includes counting the number of team members; number of bugs for each member, number of comments for each member etc. is performed in this stage.
5) Implementing the ranking algorithm: With the help of metadata generated in previous stage and using various user supplied weights given in Table 2, the algorithm given in section-2 is implemented in java.
6) Visualizing the ranking: As a post processing part after the calculation of ranking for the team members, using one of the visualization techniques can be used to visualize the normalized rank of a team member.
For experiment and simulation of the developed algorithm Mozilla bug repository is selected and around 1000 software bugs are selected using sequence sampling technique. These bugs are selected from bug-id 501 to 1500. The list of developers is generated, total 97 developers were found to whom these bugs were assigned. For each developer total numbers of bugs are counted, which indicates the involvement of a developer (or team member) in the process of bug resolution. The experiment for team member ranking demonstration is performed using the weight values of R = 5, C = 2, CC = 1, WP1 = 10, WP2 = 8, WP3 = 6, WP4 = 4, WP5 = 2, CT = 10, MJ = 8, NM = 6, EN = 4, and MN = TR = 2.
The output data about the top five contributors is computed and is shown in Table 3 for the selected 1000 sample (bug-id 501 to 1500) bugs from Mozilla bug repository. In this table the computation details of members are provided, who have contributed more in the software bug repository for the selected 1000 samples. For example “BUSTER” is one of the member whose bug fix score is 2796 (which is calculated using Equation (2) by combing the various bug fix scores for different priority and severity software bug), bug reported score is 0 (bug reported score is 0, since non of the selected bug samples are reported by “BUSTER”), comment score is 296, CC-listing score is 61, total score is 3449 and the transformed score is 5.0 since “BUSTER” got the maximum total score in the selected samples.
The fix score calculation break up for the team members is given in Table 4. For example “BUSTER” have worked on fixing 22 priority “P1” bugs etc., using these counts weighted sum is calculated for the different priority and severity bugs using the appropriate weights explained in Table 2. The totcal scores of the team members are calculated using Equation (2). The normalized marks are also shown in the last column of the table after the Min-Max normalization with MinNEW as 0 and MaNEW as 5.
Table 6 shows the breakup of the bug fix score using the different priorities and severities of the software bugs.
The bug fix value of the team member ‘LEGER’ is 0 which means he was not involved in bug fixing rather he was contributing by providing the “757” comments in the selected bug samples, which made him the top contributor. The sample rating criteria is shown in Table 5 (selected for the experiment) and the final output in form of the ratings of the top 5 contributors using the sample rating criteria is given in Table 6. The final output shows that the rating of only user
“BUSTER” is outstanding, and he is found to be very effective person for the 1000 sample software bugs.
9. Limitation of Proposed Work
Literature review reveals that the ranking technique like the proposed one is not yet implemented. Once this type of approach will be introduced for the software repositories, there is the possibility that some of the team members can start posting of ineffective information in such repositories. So for effective ranking of team member the management (project managers) has to monitor the effectiveness of the team members. Various weights given in Table 2 can be adjusted according to the manual monitoring in the bug repositories.
10. Conclusion & Future Scpope
A new algorithm to rate the participating team member in
Table 3. The top 5 scores from 1000 sample Mozilla bug reports.
Table 4. Bug fix scores for the the top 5 scorers in 1000 sample Mozilla bug reports.
Table 5. Sample criteria for team members rating.
Table 6. Ratings for top scorers in 1000 sample bug reports in Mozilla.
a software bug repository is presented in this paper. Various scores required to rate a team member are formulated and calculated by assigning proper weights to each score. Experiments are performed and validated over Mozilla bug repository, and the calculated ratings are validated and found to be in good agreement. Future scope of this work can be identifying the relevance of user comments and assigning the weight as per the relevance of the comment entered by the team member. Also the technique of team member’s contribution in terms of effectiveness can be evolved.
