Hierarchical Cellular Networks (HCN) offer more efficient channel utilization and better quality of service (QoS) under the high tele-traffic condition compared to the single-tier system. One of the important measures of QoS in HCN as in any single-tier system is the handoff dropping rate. Although the existing approaches such as guard channel and queuing can reduce forced termination probability, they also result in higher new call blocking probability. The channel sub-rating strategy has found to be an effective technique to reduce the handoff force termination probability while preserving the new call blocking probability in a single-tier system. In this paper, we propose a new call admission control scheme for HCN based on the channel sub-rating. Analytic models based on 1-D Markov process in microcell and 2-D Markov process in macrocell are developed. Experimental results show that our scheme achieves lower blocking and forced termination probabilities compared to the traditional guard channel scheme. The effect of channel sub-rating on the voice quality degradation is also studied. Results demonstrate that we can establish a good balance between the forced termination probability and the voice quality degradation by varying the number of sub-ratable full-rate channels.
1. Introduction
Cellular networks has experienced a rapid growth of the number of subscribers during the past decades, which places high demands on the system capacity [1–4]. The cell size can be reduced to accommodate more mobile users in a given area and higher frequency re-uses [5]. However, chances of mutual interferences and cellboundary crossings (handoffs) in small-cell systems are high [6]. The encountered handoffs can degrade one of the essential performance characteristics of cellular networks, i.e., forced termination probability—probability of dropping an active call. Handoff calls limit the call handling capacity of a cellular system due to higher delays and limited bandwidth source. One way of controlling the increase of traffic, while preserving the frequency reuse advantage of small-cell systems is to consider hierarchical cellular network (HCN) [7–8]. In HCN, cells of different sizes are organized into separate layers to provide high coverage and capacity over a given service area. For example, in the two-layer (micro/ macro) hierarchical structure [9], several small cells called microcell with a radii of a few hundred meters are organized as a microcell layer which is overlaid by a large macrocells whose radius is a few kilometers.
In HCN, upon entering the system, the mobile terminals can select the service layer based on their mobility or traffic patterns. For example, in the speedinsensitive selection mechanism [10], all new and handoff calls are first directed to the microcells; if there is no channel available in the microcells, calls can be overflowed to the macrocell. On the contrary, in the speed-sensitive strategy, the mobile terminals traveling at high speeds (fast-mobility subscribers) are normally serviced by the macrocell, whereas low-mobility subscribers are handled by the microcells [4,9–12]. Under the speed-sensitive layer selection strategy, the overflow operation can be used to transfer calls to the other layer if there is no sufficient resource in the current service layer [13–15].
For call admission control (CAC) in HCN, handoff call handling is particularly important because generally the forced termination of an ongoing call is considered less desirable than blocking of a new call. Thus, handoff calls have higher priority than new calls during the call admission control process. Several approaches have been proposed for handling handoff calls in HCN. Guard channels [3,9,16] are reserved for serving the handoff calls in both microcells and macrocells. Blocked handoff calls [1] are queued before there is any free channel available to reduce the force termination probability. Lagrange and Goldewski [10] proposed that only handoff calls can overflow from the microcell to the macrocell. Chung and Lee [11] proposed a mobility-dependent call admission control scheme that new calls are accepted according to some mobility-based acceptance probability while handoff calls are admitted when there are free channel available.
These existing schemes can effectively reduce the handoff call forced termination probability, but at the cost of the increment of new call blocking probability. In [5], a new channel assignment scheme called the subrating is introduced to address handoff call problem in the Personal Cellular System (PCS). Sub-rating means that an occupied full-rate channel can be temporarily divided into two channels at the half of the original rate: one to serve the existing call and the other to serve the handoff request. By using the channel sub-rating, it is shown that the forced termination probability is greatly reduced with a slight increase of the blocking probability of new calls. The channel sub-rating scheme was used in [17] to improve the performance of handoff packets for the cellular radio network. The proposed scheme which combines fixed channel assignment, sub-rating, and directed retry, gives a significant improvement in the QoS of the cellular radio network. In [18], Yamanaka and Shimohara applied channel sub-rating for handoff calls in CDMA cellular networks. However, in all of the aforementioned studies, the channel sub-rating is only used in a single-tier system. Even some preliminary results about the utilization of sub-rating in HCN were reported in [19], this paper gives a complete investigation of the sub-rating strategy for handoff calls in HCN. A general two-tiers HCN system model is considered in this paper. Performance models are developed for the microcell layer and macrocell layers respectively. Two important QoS merits, new call blocking probability and handoff call forced termination probability, are computed to evaluate the proposed call admission control scheme. Meanwhile, the degraded voice quality due to the half-rate channel is also investigated to study the effects of the sub-rating on the QoS. Furthermore, the partial sub-rating by decreasing the number of sub-ratable full-rate channel is taken into consideration to balance the forced termination probabilities and the voice quality.
The rest of the paper is organized as follows. The proposed CAC strategy with channel sub-rating and unidirectional call overflow is introduced in Section 2. In Section 3, the system model and performance analysis of micro/macro layers are described with details. Numerical results are presented in Section 4. Finally, concluding remarks are given in Section 5.
2. Call Admission Control With Sub-Rating
The HCN system supports both fast-mobility users and low-mobility users, e.g. pedestrians. We use the speedsensitive selection strategy, i.e., the macrocells handle the fast-mobility users while the microcells serve the low-mobility users. In the following, we describe the proposed CAC scheme with the channel sub-rating. Notice that some other techniques such as queuing [5] are orthogonal to the proposed scheme thus not investigated here.
The scheme is illustrated in Figure 1. In each microcell, slow new or handoff calls will be serviced with a full-rate channel if the total number of calls currently being serviced does not exceed the full capacity of the microcell. Otherwise, handoff requests are handled by using sub-rating that is an occupied full-rate channel but temporarily divided into two channels at a half of the original rate: one to serve the existing call and the other to serve the new incoming slow handoff request. To reduce the blocking probability of slow new calls, blocked slow new calls are allowed to overflow to the overlaying macrocell.
In a macrocell, fast new or handoff calls and overflowed new slow calls will be served with a full-rate channel if the number of calls exiting does not exceed the full capacity of the macrocell. Otherwise, new calls, including fast new calls and overflowed slow new calls will be blocked, while handoff calls including fast handoff calls and slow handoff calls incurred by the overflowed slow new calls are handled based on the sub-rating, similar to those at the microcell layer. The overflow of the fast calls from macrocell to microcell is not allowed because it will incur frequent handoff of the fast calls in the microcell layer due to small size of a microcell. Takeback is also not used as it needs the system to continuously monitor the available resource in the microcell layer [13].
3. System Model and Performance Analysis
3.1. System Model
For the analysis purpose, we introduce the system model of the two-tier HCN with the following assumptions.
• A macrocell in the macrocell layer is overlaid completely by N microcells in the microcell layer and there is no macrocell-only or microcell-only area.
• Cells in the same layer have the same shape and size.
• Each microcell contains Cm channels and each macrocell contains CM channels.
• The fast-mobility calls are first directed to a macrocell, while slow-mobility calls are first directed to a microcell.
• The velocity of mobile terminals is assumed not to change greatly during its call lifetime.
• The total new call arrival to a cluster formed by a macrocell and its associated N microcells follows a Poisson process with the mean arrival rate ln.
• The portion of slow new calls in total call arrivals to a cluster is a.
• The slow/fast handoff call arrival to a given cell at each layer is assumed to be an independent Poisson process with the mean arrival rates
, respectively.
• The overflowed slow new calls from the microcell layer arrive at the overlaying macrocell in accordance with a Poisson process with the mean rate
; and the slow handoff calls resulting from the overflowed slow new calls arrive at the macrocell in accordance with a Poisson process with the mean rate
.
• The call holding time in a macrocell or microcell is exponentially distributed with the mean rate
.
• The dwell time is the mobile residence time in a given cell. For a slow mobile, its dwell times are exponentially distributed with the mean rate
and
in the microcell and macrocell respectively. The dwell time of a fast mobile in the macrocell is exponentially distributed with the mean rate
.
Since the arrival process of the overflowed calls is generally not Poisson distributed, above assumptions are an approximation made for analytic tractability. Therefore, the slow and fast new call arrival rates can be obtained as
(1)
Also we can obtain the channel holding time of slow calls in a microcell (or macrocell) which is exponentially distributed with the mean rate of
. In the same manner, we can find that the channel holding time for fast calls in a macrocell is also exponentially distributed with mean
.
Based on the system model, we can perform the performance analysis of the proposed call admission control strategy in the two-layer HCN. In the analysis, we assume that all full-rate channels are sub-ratable and the model can be easily modified for partial sub-rating. The analysis is carried out separately for the microcell and macrocell layers.
Figure 1. CAC scheme with channel sub-rating and unidirectional calls overflow.
3.2. Performance Analysis of the Microcell Layer
Based on the above system model, the microcell layer in the two-layer HCN system can be modeled as a onedimension Markov process.
The state transition diagram of the Markov process is shown in Figure 2. In this diagram, a state is defined as the number of calls in progress in a microcell. For
,
represents that there are i full-rate busy channels being occupied in a microcell. If there are less than Cm busy channels, the arrived slow call (either a new call or a handoff call) is allocated one of those free channels. The Markov process moves from current state
to the next state
with the rate
. The transition rate from state
to
is given by
.
Figure 2. State transition diagram for the microcell.
For
,
represents that there are
full-rate busy channels, and
halfrate busy channels. When all full-rate channels in the microcell layer are busy, the arrived slow new call will be blocked while the slow handoff calls will be served by sub-rating a full-rate busy channel into two half-rate channels. If
, all channels are sub-rated, any arrived slow hand-off call will be blocked. The Markov process moves from
to
with the rate
. The transition rate from state
to
is given by
. The steady state probability
of state
in a microcell is given as follows
(2)
After the normalization condition that
it yields
(3)
From Equations (2) and (3), the respective probabilities of the new and handoff slow calls being blocked in a microcell,
and
, are expressed as
(4)
According to the CAC scheme described in Section 2, the new slow calls that are blocked at the microcell layer are not dropped but overflow to the overlaying macrocell (see Figure 2). Based on Equation (3), the aggregate mean arrival rate
of the overflowed slow new call from N microcells to the overlaying marocell can be determined as
(5)
3.3. Performance Analysis of the Macrocell Layer
Based on the above assumptions, the total call flow to an individual macrocell can be divided into the following four portions: 1) fast new calls with the arrival rate of
; 2) fast handoff calls with the arrival rate of
; 3) overflowed slow new calls with the arrival rate of
; 4) handoff calls resulting from the overflowed slow new calls with the arrival rate of
.
The call state process in the marcocell layer can be modeled by a two-dimensional Markov process as shown in Figure 3. For each state (i,j), i represents the number of fast calls including the fast new and handoff calls, and j is the number of slow calls including the overflowed slow new calls and the incurred slow handoff calls in the macrocell layer. The maximum channel capacity of a macrocell is
, which means
. In the state transition diagram,
and
cause the state change along the horizontal direction while
and
alter the state change along the vertical direction.
Following the state transition diagrams in Figure s 3 and 4, the equilibrium equations can be derived as follows
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Figure 3. State transition diagram for a macrocell.
Figure 4. Specific states in the state transition diagram.
(13)
where
for 0< i< CM,
for 0 < i £ CM,
for 0< j< CM, and
for 0< j£CM.
We use the Gauss-Seidel iterative method to solve the above linear equations and compute the steady-state probabilities
. The probabilities of fast new calls and overflowed slow new calls blocked in the macrocell layer,
and
, are then expressed as
(14)
The blocking probabilities of the fast handoff calls and the overflowed slow handoff calls,
and
, are expressed as
(15)
From (14) and (15), the total new and handoff slow call blocking probabilities including microcell and macrocell,
and
can be obtained respectively as
(16)
The arrival rates of slow and fast handoff calls can be obtained as in [5] using following three expressions.
;
;
(17)
Since the handoff rates and the stead state probabilities are mutually related, an iterative algorithm is employed here to compute them.
3.4. The Degradation Ratio
The sub-rating scheme is efficient under the limited channel resources because more handoff calls can be served. However, we need to consider the degradation of the voice quality due to the employment of sub-rating. In the following, the degradation ratios of voice quality for the microcell and microcell layers are evaluated.
The expected number
of the busy channels in the microcell layer is expressed as
(18)
The expected number
of the sub-rated channels in the microcell layer is obtained as follows
(19)
The degradation ratio of the voice quality in the microcell layer, DRm, is the portion of the call holding time that the mobile user experiences the degraded voice quality [20]. The mean degradation ratio of the voice quality, E[DRm], can be expressed as
(20)
Similarly the mean degradation ratio of the voice quality in the macrocell layer, E[DRM], can be obtained as
(21)
4. Numerical Results
In this section, numerical results derived from the model developed in Section 3 are presented to quantify the performance of the proposed scheme. The results are compared to the scheme with guard channel and unidirectional call overflow proposed in [9], referred as Shan03 in the plots. If otherwise not specified, the parameters and their values used for the experiments are those shown in Table 1 [11,21], where Cg and CG are the numbers of guard channels reserved in the microcell and macrocell for Shan03 scheme.
Table 1. Parameters and their values.
4.1. Case 1: Full Sub-Rating
In this part, we present the experimental results generated from the model developed in Section 3 where all the full-rate channels are considered to be sub-ratable.

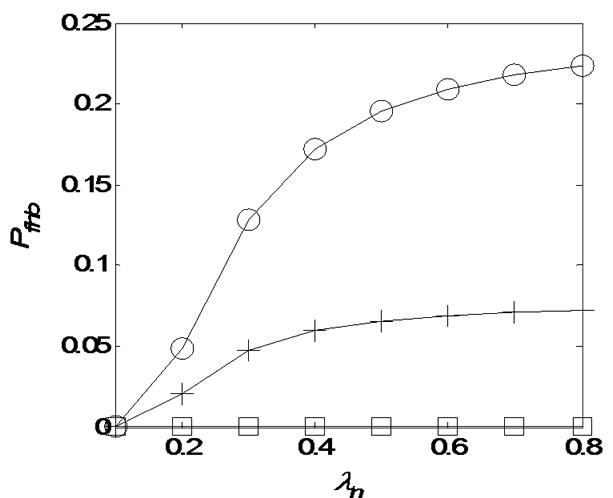

Figure 5 plots the slow/fast new call blocking probabilities and slow/fast handoff call forced termination probabilities under various total new call arrival rates for the proposed scheme and Shan03 Scheme. For Shan03 scheme, we investigate the performance with different guard channel numbers. It can be seen from Figures 5(b) & (d) that the slow/fast handoff call forced termination probabilities of the proposed scheme are almost zero and also much lower than those of Shan03, even in the case that two guard channels are reserved for handoff calls. Figures 5(a) & (c) reveal that when the number of guard channel is set to one, the new fast call blocking probability of Shan03 are almost the same as that of the proposed scheme while the new slow call blocking probability of Shan03 is slightly higher than that of the proposed scheme when the number of guard channel is set to two. The reason is that the proposed scheme allows the micro-macro overflow of the new slow calls when
Figure 6. The degradation ratios of the microcell and macrocell layers.
there is no free channel in the microcell. For Shan03 scheme, although reserving more guard channels can greatly reduce the handoff call forced termination probability, the new call blocking probability also increases significantly. The results demonstrate that the proposed scheme achieves better performance for both new and handoff calls than Shan03 scheme in all cases. By employing channel sub-rating strategy, the proposed CAC scheme can massively reduce the probability of forced termination of handoff calls while maintaining the new call blocking probability as low as possible.
Under the channel sub-rating strategy, when calls are in progress, the mobile user is expected to experience the degraded voice quality due to the half-rate channel.
Figure 6 plots the corresponding degradation ratios of the voice quality in the microcell and macrocell layers of Figure 5. Results indicate that the slow and fast mobility subscribers experience the degraded voice quality for a very short period of the total channel holding time when the total new call arrival rate is 0.1 calls/second. As the total new call arrival rate increases, the degradation ratios increase correspondingly. When the total new call arrival rate reaches 0.8 calls/second, the degradation ratios for the microcell and macrocell are about 10% and 8%, respectively. To reduce the degradation ratio, we can decrease the number of full-rate channel that can be sub-rated which in turn increases the handoff call forced termination probability. Next we will investigate partial sub-rating to balance the forced termination probabilities and the voice quality.
