Modelling and Forecasting of Crude Oil Price Volatility Comparative Analysis of Volatility Models ()

Faith Wacuka Ng’ang’a^{}, Meleah Oleche^{}

Institute of Mathematical Sciences, Strathmore University, Nairobi, Kenya.

**DOI: **10.4236/jfrm.2022.111008
PDF
HTML XML
447
Downloads
4,433
Views
Citations

Institute of Mathematical Sciences, Strathmore University, Nairobi, Kenya.

This paper aims at providing an in-depth analysis of forecasting ability of different GARCH (Generalized Autoregressive Conditional Heteroskedasticity) models and finding the best GARCH model for VaR estimation for crude oil. Analysis of VaR forecasting performance of different GARCH models is done using Kupiecs POF test, Christoffersens test and Backtesting VaR Loss Function. Crude oil is one of the most important fuel sources and has contributed to over a third of the world’s energy consumption. Oil shocks have influence on macroeconomic activities through various ways. Sharp oil price changes delay business investment because they raise uncertainty thus reducing aggregate output for some time. Analysis of crude oil prices trends is instrumental in informing the economy’s policy and decision making. Continued development and improvement of models used in analyzing prices improve forecasting accuracy which in turns leads to better costs and revenue prediction by businesses. The study uses Brent Crude Oil prices data over a period of ten years from the year 2011 to 2020. The study finds that the IGARCH T-distribution model is the best model out of the five models for VaR estimation based on LR.uc Statistic (0.235) and LR.cc Statistic (0.317) which are the least among the values realized. ME and RMSE for the five models used for forecasting have negligible difference. However, the IGARCH model stands out with IGARCH T-distribution being the best out of the five models in this study with ME of 0.0000963591 and RMSE of 0.05304335. We therefore conclude that the IGARCH T-distribution model is the best model out of the five models used in this study for forecasting Brent crude oil price volatility as well as for VaR estimations.

Keywords

GARCH Model, Volatility, Value at Risk, Modelling and Forecasting, Brent Crude Oil, Backtesting

Share and Cite:

Ng’ang’a, F. and Oleche, M. (2022) Modelling and Forecasting of Crude Oil Price Volatility Comparative Analysis of Volatility Models. *Journal of Financial Risk Management*, **11**, 154-187. doi: 10.4236/jfrm.2022.111008.

1. Introduction

1.1. Background

Commodity markets are briskly expanding and becoming more interesting to many investors in the financial world. The energy market has gained interest continually due to the volatile nature of energy commodity prices. The fundamental assets in energy markets include: electricity, oil, gas and carbon emissions. Past investigations in the field have shown that the prices involved in such markets have four major characteristics: seasonality, spikes, mean reversion and non-storability. The large variations in crude oil prices observed in recent years have caused a lot of concern among participants and regulators in the market. This is because oil price uncertainty has a significant impact on the economy.

Oil price volatility shows the magnitude of the rise and fall of oil prices over a period of time. Volatility arises when some error terms are larger than the rest. These error terms become responsible for the unique behaviour of the series. This is known as heteroscedasticity. Past studies have shown that besides global macroeconomic and geopolitical conditions, crude oil prices are also influenced by the fluctuations in supply and demand. Oil is a vital commodity and therefore, controlling the oil market is critical in ensuring that global supply and demand of oil are met. As a result of this need to control the market, there are some organizations created that play an important role in controlling this global supply and demand. One such organization is The Organization of the Petroleum Exporting Countries (OPEC). It aims at coordinating and unifying the petroleum policies of its member countries and ensuring the stabilization of oil markets, so as to secure an efficient, economic and regular supply of petroleum to consumers, steady earnings for producers, and fair returns on capital for those investing in the petroleum industry. The organization also provides information regarding international markets for its member countries.

Oil prices modelling and quantification of risk are popular topics due to the large effects oil price changes have on the economy. Value-at-Risk (VaR) is the most commonly used measure or risk. It measures the maximum loss of a portfolio over a certain time period by a given confidence interval. Although there are some theoretical studies about the shortcoming of VaR due to its lack of sub-additivity and convexity, acknowledge that there is still no better measure to quantify risk. Analysis of GARCH models using different distributions is important as selection of proper models will improve evaluation of VaR leading to better risk measurement and management in the crude oil market. Estimation of crude oil price volatility (risk) is vital in improving the measure for VaR

Research in modeling oil price volatility is inadequate. As seen by Sadorsky (2006) and Narayan and Narayan (2007), most studies use a particular structure of models to analyse time series and fail to pay attention to use of appropriate model selection criteria to determine what model to use as well as validate the choice of the model. An essential detail to note is that since volatility is time varying, the choice of appropriate model may change over the period of time.

The main objective of this study is to contribute to the development of energy markets through analysis of models used in modelling and forecasting crude oil price volatility and VaR estimation models. The focus is on GARCH family models which have been widely used to model time series. Time series is a set of well-defined data items collected at successive points at uniform time intervals. Mondal et al. (2014) acknowledges that Time series analysis is an important part of statistics that analyses the data set to study the characteristics of the data and helps in predicting future values of the series based on the characteristics. Over the last few years, modeling volatility of a financial time series has become a frequently researched area because volatility is considered an important concept for risk management and asset pricing. Volatility from the different GARCH models is then compared to test the significance of each model. The VaR results for the five models are also compared to find out if better VaR results for a GARCH models translates to better forecasting model. This study will; analyse properties of the selected data, ascertain existence of volatility in oil spot price, fit the models, perform VaR backtesting, forecast volatility using selected symmetric and asymmetric models, select the best model by comparing the volatility results from the models and provide an analysis to validate the choice of the selected models.

1.2. Problem Statement

There is no conclusive answer as to which is the best volatility model for forecasting volatility and VaR estimation. Changes in oil prices have a direct effect on prices of other commodities. As investors seek to estimate future prices enabling them to make investment decisions, it is equally important to measure the risk of loss for investments. Elder and Serletis (2010) in their study conclude that when oil price changes are unpredictable, there is a significant drop in real output. An investor’s goal is to always obtain maximum returns while taking considerably low risk. The use of GARCH models in VaR estimation and forecasting cannot be disputed. Aloui and Mabrouk (2010) computed the VaR using FIGARCH, FIAPARCH and HYGARCH. Cerović Smolović et al. (2017) study the performance of eight GARCH models and conclude that the TS GARCH, T GARCH and EGARCH are best for forecasting volatility in the Montenegrin emerging market.

However, there are many contradicting conclusions regarding the choice of volatility models to use. This poses a challenge to investors as the choice of volatility model directly affects the performance of the investor. Vlaar (2000) tested the GARCH model under different distribution assumptions on Dutch bond portfolios and concluded that the GARCH model under the Normal distribution dominates the common practice of using historical simulation models. Miletic and Miletic (2015) showed that GARCH models with a t-distribution of residuals in most analysed cases give a better VaR estimation than GARCH models with normal errors in the case of a 99% confidence level, while the opposite is true in the case of a 95% confidence level. concluded that the ARCH model and leptokurtic error distributions yielded the best results for VaR estimations while Angelidis et al. (2004) found no clearly superior model but concluded that leptokurtic distributions outperformed the Normal distribution; especially for the ARCH model. Few studies have been done focusing on both VaR estimation and volatility forecasting under the same conditions.

This study sheds light on the issue of volatility forecasting under risk management environment and on the evaluation procedure of various risk models while considering different distributions.

1.3. Objectives

The objectives of this study are:

1.3.1. Main Objective

To perform comparative analysis of different GARCH models to test their ability to forecast prices and estimate value at risk for Brent Crude Oil.

1.3.2. Specific Objectives

· To fit GARCH models and perform backtesting to find the best GARCH model for VaR.

· To estimate volatility using different GARCH family models.

· To carry out comparative study of different volatility models and validate the choice of the model used for forecasting.

1.4. Significance of the Study

Proper analysis of crude oil prices trends will help market participants to make informed choices and come up with policies to assist in trading. This will in turn open up the energy market to investors seeking a return, as well as traders who may wish to purchase the commodity. This study therefore aims at contributing to this through modelling the price volatility of crude oil. The focus is on comparative analysis of price volatility models where volatility estimated using different GARCH models is compared. The study also takes into account VaR where VaR results are compared with forecasting results to find out if the best GARCH model for VaR gives the best volatility forecast. The paper is arranged as follows: In Chapter 2 we review existing literature on energy markets and crude oil price volatility; In Chapter 3 we discuss the models to be used in modelling crude oil prices i.e. GARCH, EGARCH, IGARCH, TGARCH and GJR GARCH and various tests done to pick the best model; In Chapter 4, we discuss the parameter estimation results, VaR results, forecasting results and comparative analysis results. Finally, in Chapter 5, we conclude our study.

2. Past Studies

This section reviews relevant studies on: Past studies on energy commodities, market volatility and characteristics of oil markets, Causes of crude oil price volatility, Models used in modeling volatility, VaR estimation and Impact of crude oil price volatility.

2.1. Characteristics of Oil Markets

It is important to understand the characteristics of oil markets in order to model the prices. Morana (2001) and Bina and Vo (2007) acknowledge that a large number of empirical studies have concluded that characteristics of time series of crude oil prices are mainly volatility clustering, fat tail distribution, asymmetry and mean reversion. Askari and Hossein & Noureddine (2008) in their study find that oil price dynamics during the period 2002-2006 were characterized by high volatility, intensity jumps and strong upward drift. They also note that the oil price dynamics in the same period were associated with oil markets and world economy’s underlying fundamentals.

Doran and Ronn (2008) find that the inclusion of a market price of volatility risk is necessary to capture the degree of bias. They conclude that the market price of volatility risk is negative and significant for natural gas, crude oil, and heating oil and there is a seasonality in the volatility risk premium for natural gas.

2.2. Causes of Crude Oil Price Volatility

In order to be successful in the oil market, market participants and regulators strive to know how price changes occur as well as how markets react to these shocks. Kilian (2009) acknowledges that it is crucial to know the cause of a given oil price change. Is it demand or supply? This is because the action to take when it comes to stock prices, dividend yield components, and volatility depends on the origin of the oil price shock since they affect variables such as inflation and GDP (Gross Domestic Product).

Bastianin and Manera (2015) expound on the work of Kilian and Park (2009). They study the impact of oil price shocks on stock market volatility using Kilian’s (2009) structural Vector Autoregressive (VAR) model. Crude oil price changes are modelled as arising from three different sources: i.e. shocks to the supply of crude oil, to the aggregate demand for all industrial commodities and to oil-specific demand. They find that the impact of supply shortfalls is negligible and that volatility responds majorly to shocks hitting the aggregate and oil-specific demand.

Degiannakis et al. (2014) also build on Kilian (2009) work. They use the model by Kilian (2009) and research on the response of volatility to structural oil market shocks. They propose that volatility reacts only to unforeseen changes in total demand. Thus the supply-side and oil-specific demands have no role in market shocks. Demirbas et al. (2017) in their study conclude that oil price volatility depends on the combined effects of a number of invariant and variable factors. They also find that a drop in oil prices is brought about more by supply factors than demand factors.

2.3. Models Used in Modeling Crude Oil Price Volatility and VaR Estimation

From the above studies, it is evident that a lot of researchers have dedicated their time and resources in trying to understand crude oil volatility and risk measurement.

VaR measures the maximum loss a portfolio could incur over certain time period by a given confidence level. GARCH models are some of the most commonly used models for VaR estimations. Fan et al. (2008) estimated VaR of crude oil price using GARCH models, based on the Generalized Error Distribution (GED) and detected extreme risk spillover effect between Europe Brent and West Texas Intermediate (WTI) markets. Hung et al. (2008) investigated the influence of fat-tailed process on the performance of one-day-ahead VaR estimates about energy commodities using three GARCH models.

In order to improve the measure for VaR, an investor needs to estimate the volatility of crude oil price. Due to the presence of heteroscedasticity in the variance of financial instruments, ARCH and GARCH models were developed by Engle (1982) and Bollerslev (1986) respectively. From this, many extensions of the GARCH model have been developed to capture the changing volatility due to different factors in the time series. However, there is no definite answer as to which of the GARCH model types is the best at forecasting volatility for all types of financial data. Thus creating the need to have the models restricted to specific data sets.

GARCH models have been widely used in modelling volatility. Khindanova et al. (2004) state that GARCH models have been developed to model the volatility of finance data. Arouri et al. (2012) seek to find out if structural breaks and long memory are applicable in modeling and forecasting the conditional volatility of crude oil spot and futures prices using three types of GARCH models-linear GARCH, GARCH with structural breaks and FIGARCH. They conclude that the long memory evidence seen in the in sample period is not strongly supported by the out-of-sample forecasting.

The GARCH model has been found to be very efficient in modeling volatility. Despite these developments, Wang and Wu (2012) acknowledge that the simple GARCH (1, 1) model still is still important. This is due to the fact that the model converges much faster to a local maximum in quasi-maximum likelihood estimation and it still gives good forecasting results just as the other multivariate models.

Lama et al. (2015) however studies the simple GARCH model and find some weaknesses. He finds symmetric and asymmetric patterns in some time-series making the simple GARCH model inefficient for such time-series because it deals with the magnitude but not the positivity or negativity of the shocks. The simple GARCH model has thus turned out to be relatively inefficient in modeling and forecasting such series creating the need for extension of the GARCH family model so as to take into account the inefficiencies of simple GARCH models. This need was first answered by Nelson (1991) who developed the EGARCH model.

The use of GARCH models is evidently seen with some of the researches done using the models explained as; Morana (2001) uses the semi-parametric approach which uses the GARCH properties of Brent Market crude oil price volatility. Fong and See (2002) use a Markov regime-switching model allowing for GARCH-dynamics and sudden changes in mean and variance so as to model the conditional volatility of daily returns on crude-oil futures prices. The researchers note that regime-switching model performs better than non-switching models, no matter the evaluation criteria used in forecasting. Vo (2009) also uses a regime switching stochastic volatility model to studies the behaviour of oil prices of WTI market in order to forecast their volatility. He then models the volatility of oil return as a stochastic volatility process where the mean is affected by regime shifts.

2.4. Implication and Impact of Crude Oil Price Volatility

Liu et al. (2013) investigate the short- and long-term cross-market uncertainty transmission implied by OVX (Crude oil volatility index) and other volatility indices. They conclude that there are no strong long-run equilibrium relationships among these volatility indices, indirectly verifying the effectiveness of cross-market volatility portfolio strategies. They also acknowledge that there is significant short-term uncertainty transmission between oil and other major markets.

Elder and Serletis (2010) in their study conclude that when oil price changes are unpredictable, there is a significant drop in real output. This crucially affects measures of durable consumption and fixed investment in the US. Backus and Crucini (2000) also acknowledge that oil price changes may be responsible for variations in the international terms of trade.

Price volatility effects in the crude oil market are spreading to non-energy commodity markets. With the developments in the oil sector where fossil fuels have been substituted with bio-fuel and increased hedging of oil prices, the link between crude oil market and agriculture markets and metal markets has increased. Ji and Fan (2012) research focuses on oil price volatility effects on non-energy commodity markets. They achieve this by constructing a bivariate EGARCH model with time-varying correlation construction. They find significant spillover effects of crude oil market on non-energy commodity markets.

3. Model’s Description

This section introduces the models used to estimate crude oil price volatility and for VaR estimations. The choice of the modelling approach employed is determined from the characteristics of the historical crude oil spot price data. Energy prices have complex distribution/properties and as such there is no widely accepted answer to what the best models of price volatility are. The steps that are followed to model the volatility are as below; analyze historical data to find its properties; Test for stationarity of the series and check presence of ARCH effects; The Augmented Dickey-Fuller (ADF) test as well as the Philips Perron (PP) test are used to test for stationarity and Lagrange multiplier test is done to detect the presence of ARCH (Autoregressive Integrated Moving-Average) effects. Explain the five GARCH models used in this study and their estimation procedures for modelling and forecasting crude oil prices. VaR results are then compared with forecasting results to pick the best fitting model.

3.1. Data

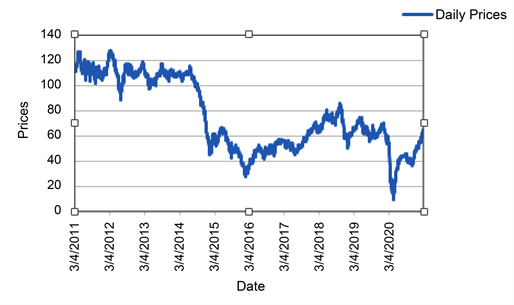

Daily Brent Crude oil spot prices for a period of ten years (2011-2020) are used to model the volatility. The choice of this data is because Brent Crude oil has remained supreme in oil market. Crude oil is either traded by themselves or the prices are reflected in other types of crude oil. The availability of the data is also a factor in making this choice.

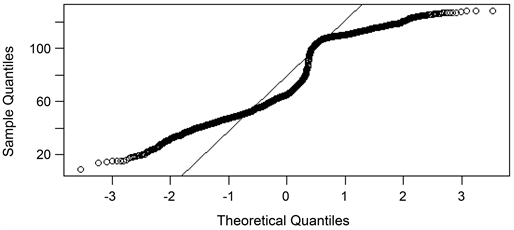

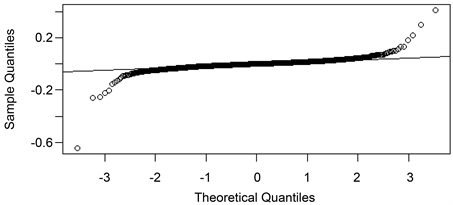

Data analysis is carried out to find various statistical properties of the data i.e. Mean, variance, skewness, kurtosis, log-returns, squared log-returns, hereroskedasticity. Existence of volatility from the data is also ascertained.

Lux et al. (2015) formalize financial returns as in Equation (1);

${r}_{t}={\mu}_{t}+{\sigma}_{t}{\u03f5}_{t}$ (1)

where ${r}_{t}=100\ast \left[\mathrm{ln}\left({p}_{t}\right)-\mathrm{ln}\left({p}_{t-1}\right)\right]$, $\mathrm{ln}\left({p}_{t}\right)$ is the log asset price,

${\mu}_{t}={E}_{t-1}\left[{r}_{t}\right]$ is the return series conditional mean,

${\sigma}_{t}$ is the volatility process and

${\u03f5}_{t}$ is standard normal distribution.

Defining ${X}_{t}={r}_{t}-{\mu}_{t}$, the centered returns are given by;

${X}_{t}={\sigma}_{t}{\u03f5}_{t}$ under the assumption that ${\mu}_{t}$ follows an AR(1) process.

The ARCH Lagrangian Multiplier (LM) test proposed by Engle (1982) is used to ascertain the existence of volatility in the data while Jarque Bera Test is used to test normality for the logreturns.

Part of the data is used for model building and validation. The rest of the data is used for forecasting. Analysis of the data is done using the R Statistical Software.

3.2. Mean Equation Selection

Various models are considered in the mean computation. According to Klein (1997), these models originated in the 1920s in the works of Udny Yule, Eugen Slutsky and other researchers. The first known application of the models was that of Yule in 1927 while analysing the time-series behavior of sunspots.

3.2.1. Autoregressive Model (AR)

An example of the AR model is the AR(1) model, given by Equation (2);

${y}_{t}={\alpha}_{0}+\alpha {x}_{t-1}+{\u03f5}_{t}$ (2)

where ${\u03f5}_{t}$ is a white noise series with mean 0 and variance ${\sigma}^{2}$

The general formulae for an AR process, AR(*p*) is as in Equation (3);

${y}_{t}={\alpha}_{0}+{\alpha}_{1}{x}_{1}+\cdots +{\alpha}_{p}{x}_{t-p}+{\u03f5}_{t}$ (3)

3.2.2. Moving Average Model (MA)

The general form of an MA(1) model is as in Equation (4);

${y}_{t}=\mu +{\u03f5}_{t}+\theta {\u03f5}_{t-1}$ (4)

where $\mu $ is a constant and ${\u03f5}_{t}$ is a white noise.

The general form of an MA process, MA(*q*) model is as in Equation (5);

${y}_{t}=\mu +{\u03f5}_{t}+\theta {\u03f5}_{t-1}+\cdots +{\theta}_{q}{\u03f5}_{t-q}$ (5)

where *q *> 0

3.2.3. Autoregressive Moving Average (ARMA(*p*, *q*))

An ARMA model is a combination of the AR and the MA processes. The AR part is a representation of the effects of previous observations. The MA part represents effects of previous random shocks (errors). It is specified as in Equation (6):

${y}_{t}={\displaystyle \sum {\alpha}_{i}{y}_{t-p}}+{\displaystyle \sum {\theta}_{i}{\u03f5}_{t-q}}$ (6)

3.3. Modelling ARCH Effects

The GARCH models are used in particular because of the following characteristics of financial time series data:

1) Fat Tails: A fat tailed distribution is a probability distribution that exhibits large skewness or kurtosis. When the distribution of financial time series is compared with the normal distribution, fatter tails are observed.

2) Volatility Clustering: The second stylized fact is periods of volatility clustering which mean that large and small values in the log-returns tend to occur in clusters, i.e. large changes tend to be followed by large changes and small changes tend to be followed by small changes. When volatility is high it is likely to remain high and when it is low, it is likely to remain low. Volatility clustering is nothing but accumulation or clustering of information. This feature reflects on the fact that news is clustered over time (Engle, 2004).

3) Mean reverting: The variance of the financial time series data often deviate from the mean. In most cases the reversion is not by a constant factor a property known as heteroscedaticity.

Checking for ARCH Effects

The main test for heteroscedaticity is the Lagrange multiplier (LM) test of Engle (1982). This test is equivalent to the F-statistic for testing ${\alpha}_{i}=0\text{\hspace{0.17em}}\left(i=1,2,\cdots ,m\right)$ in the linear regression model in Equation (7).

${y}_{t}^{2}={\alpha}_{0}+{\alpha}_{1}{y}_{t-1}^{2}+\cdots +{\alpha}_{m}{y}_{t-m}^{2}+{\u03f5}_{t}$ (7)

where $t=m+1,m+2,\cdots ,T$

${\u03f5}_{t}$ denotes the error term is a pre-specified integer and *T* is the sample size.

The hypothesis is as follows;

$\begin{array}{l}{H}_{0}:{\alpha}_{1}={\alpha}_{2}={\alpha}_{3}=\cdots ={\alpha}_{m}=0\\ {H}_{1}:{\alpha}_{1}={\alpha}_{2}={\alpha}_{3}=\cdots ={\alpha}_{m}\ne 0\end{array}$

According to the ARCH LM test the null hypothesis should be rejected when the *p*-values are below 0.5.

3.4. Stationarity Tests

A common assumption in many time series techniques is that the data is stationary. A stationary process is one where the process tends to come back to the mean i.e. mean reverting. This means a flat series without trends, constant variance and autocorrelation over time and no seasonality. According to Smigel (2021), stationarity is important in time series analysis because a predictable distribution enables forecasting. A series is said to have weak stationarity if mean and variance are constant but autocovariance and autocorrelation are dependent on the lag length and have strong stationarity if all time series characteristics are not dependent on time i.e. they are constant. There are two types of stationarity: Trend stationarity and Difference stationarity. If the process is found to be non-stationary, detrending of differencing is done to make the process stationary.

The GARCH (*p*, *q*) process is weakly stationary if
${\sum}_{i=1}^{q}}+{\displaystyle {\sum}_{j=1}^{p}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}{b}_{j}<1$.

3.4.1. Detrending

A trend stationary series is as below;

${y}_{t}=\mu +{\theta}_{t}+\psi \left(t\right){\u03f5}_{t}$ where; ${\theta}_{t}$ is the trend and

$\psi \left(t\right){\u03f5}_{t}={\u03f5}_{t}+\theta {\u03f5}_{t-1}+{\theta}_{2}{\u03f5}_{t-2}+\cdots $

${y}_{t}$ is a function coefficient of time and other factors. Detrending of ${y}_{t}$ makes the process stationary i.e. as in Equation (8)

${y}_{t}-{\theta}_{t}=\mu +\psi \left(L\right){\u03f5}_{t}$ (8)

3.4.2. Differencing

Suppose we have ${y}_{t}$, ${y}_{t}-{y}_{t-1}=\Delta {y}_{t}$. The series ${y}_{t}$ could be non-stationary but its change $\delta {y}_{t}$ is stationary. i.e.

${y}_{t}=\mu +{y}_{t-1}+\psi \left(L\right){\u03f5}_{t}$.

Since the process is non-stationary, the coefficient of ${y}_{t-1}=1$ i.e. unit root in Equation (9)

${y}_{t}-{y}_{t-1}={\mu}_{\psi}\left(L\right){\u03f5}_{t}$ (9)

makes the process stationary.

Differencing of a trend stationary process and detrending of difference stationary series can also be done.

Failure to have stationary series produces non-sensible regression results. There are two stationary status/levels of integration of a series i.e. stationarity at levels and difference stationarity series (first level differencing).

There are various tests for stationarity.

1) Dickey Fuller (DF) test

The DF test, accredited to Dickey and Fuller (1979) is as in Equation (10). Given

${y}_{t}=\theta {y}_{t-1}+{\u03f5}_{t};\text{\hspace{0.17em}}\text{\hspace{0.17em}}\Delta {y}_{t}=\left(\theta -1\right){y}_{t-1}+{\u03f5}_{t}$ (10)

The hypothesis is as;

$\begin{array}{l}{H}_{0}:\theta =1;\left(\theta -1\right)=0\\ {H}_{1}:\theta <1;\left(\theta -1\right)<0\end{array}$

If ${H}_{0}$ holds, then the series is non-stationary, if ${H}_{1}$ holds, then the series is stationary.

2) Augmented Dickey Fuller (ADF) Test

The ADF is an augmented version of the Dickey-Fuller test for a larger and more complicated set of time series models. The ADF statistic used in the test is a negative number. The more negative it is, the stronger the rejection of the hypothesis that there is a unit root at some level of confidence.

Accredited to Said and Dickey (1984), this test relies on the parametric transformation of the model. It can be represented as in Equation (11). Let;

${\Delta}_{t}={\theta}^{\ast}{y}_{t-1}+{\theta}_{1}^{\ast}\Delta {y}_{t-1}+{\theta}_{t}^{\ast}\Delta {y}_{t-2}+\cdots +{\theta}_{p}^{\ast}\Delta {y}_{t-p}+{\u03f5}_{t}$ (11)

Comparing DF test and ADF test, ADF whitens the errors more.

3) Philips-Perron test This test is accredited to Perron (1988). He suggested a non-parametric correction to ADF to account for autocorrelation associated with breaks/regime shifts in the data.

While ADF test is a parametric model, PP test uses a non-parametric statistical method to cater for the error term’s serial correlation. In this study, the ADF is used to test for stationarity because it can be used with serial correlation and is more powerful than DF test.

The hypothesis is:

$\begin{array}{l}{H}_{0}:\theta =1:\text{Nonstationary}\\ {H}_{1}:\theta <1:\text{Stationary}\end{array}$

We reject the null hypothesis when the test statistic is less than 0.5 and accept when it is greater than 0.5. A data series is said to be stationary if its mean and variance are constant over time and the value of covariance between two time periods doesn’t depend on time.

3.5. Normality Test

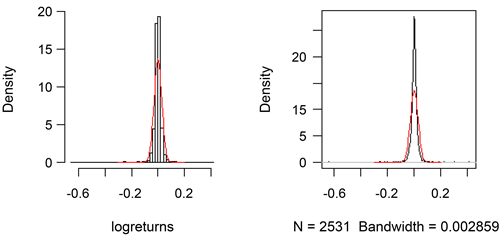

Jarque-Bera test is a goodness-of-fit measure of departure from normality, based on the sample kurtosis and skewness. The test is named after Carlos M. Jarque and Anil K. Bera. According to Jarque and Bera (1980), the test statistic JB is defined as in Equation (12):

$\text{JB}=\frac{n}{6}\left({s}^{2}+\frac{{\left(k-3\right)}^{2}}{4}\right)$ (12)

where *n* is the number of observations, *s* is the sample skewness while *k* is the sample kurtosis.

The statistic JB tests the null hypothesis that the data is from a normal distribution. The null hypothesis is a joint hypothesis of the skewness being zero and the excess kurtosis being zero, since samples from a normal distribution have an expected skewness of zero and an expected excess kurtosis of zero (which is the same as a kurtosis of 3). As the definition of JB shows, any deviation from this increases the JB statistic.

3.6. The Models Explained

The Box Jenkins’ ARIMA methodology had dominated time-series forecasting for long. However, the need for modelling volatile data gave way to development of other models. The ARCH model introduced by Engle (1982) describes the variance of the current error term as a function of the previous period’s actual sizes of the error terms. Engle (1982) also finds that the variance is also related to the squares of the previous error terms. The model is commonly employed in modeling financial time series that exhibit time-varying volatility and volatility clustering. The ARCH model is used when the error variance in a time series follows an AR model; if an ARMA model is assumed, the model becomes a GARCH model which was introduced by Bollerslev (1986). Upon analysis of our data, ARMA (2, 4) is found to be the best mean model to use among the selected lags. The study uses symmetric and asymmetric models for comparative analysis.

3.6.1. GARCH Model

The ARCH (autoregressive integrated moving-average) model and its generalized form GARCH models can capture stylized facts such as long and short memory, clustering effects and asymmetric leverage effects.

ARCH models assume that tomorrow’s return variance is an equally weighted average of the squared residuals of the last available data. This assumption may not meet the goal of the model as more recent events/data are viewed to be more relevant and should be allocated higher weights. The model also gives zero weights to events that are more than one month old which should not be the case because the events hold some information which could be important/instrumental in forecasting future volatility. The ARCH model estimates the weights of the parameters and allows the data to determine the best weights to use in forecasting the variance. The ARCH(*q*) model for the series
${\u03f5}_{t}$ is determined by specifying the conditional distribution of
${\u03f5}_{t}$ given news/information available upto time (*t* − 1). Let
${\psi}_{t-1}$ denote this new. ARCH(*q*) model for the series
${\u03f5}_{t}$ is given by Equation (13);

$\begin{array}{l}{\u03f5}_{t}/{\psi}_{t-1}~N\left(0,{v}_{t}\right)\\ {v}_{t}={a}_{0}+{\displaystyle \underset{i=1}{\overset{q}{\sum}}{a}_{i}{\u03f5}_{t-1}^{2}}\end{array}$ (13)

where
${a}_{0}>0$,
${a}_{i}\ge 0$ for all *i* and
${\sum}_{i=1}^{q}{a}_{i}}<1$ are the requirements to ensure non-negative and finite unconditional variance of stationary
${\u03f5}_{t}$ series. The weights are equal to unity.

Generalized ARCH (GARCH) model was developed to overcome ARCH models challenges. Just like ARCH model, GARCH model is a weighted average of past squared residuals. However, its weights reduce but never become zero. The model argues that the best predictor of next period’s variance is a weighted average of the long run average variance, the variance predicted for this period and the new information in this period i.e. the most recent squared residual. The model has the form as shown in Equation (14);

$\begin{array}{l}{\u03f5}_{t}=\xi {v}_{t}^{1/2}\\ {v}_{t}={a}_{0}+{\displaystyle \underset{i=1}{\overset{q}{\sum}}{a}_{i}{\u03f5}_{t-1}^{2}}+{\displaystyle \underset{j=1}{\overset{p}{\sum}}{b}_{j}{v}_{t-j}}\end{array}$ (14)

where $\xi ~IID\left(0,1\right)$. For the conditional variance to be positive; ${a}_{0}>0$, ${a}_{i}\ge 0$, $i=1,2,3,\cdots ,q$. ${b}_{j}\ge 0$, $j=1,2,\cdots ,p$ is sufficient.

Let ${\eta}_{t}={\u03f5}_{t}^{2}-{h}_{t}$, GARCH model can be expressed in terms of ARMA model as in Equation (15);

${\u03f5}_{t}^{2}={a}_{0}+{\displaystyle \underset{i=1}{\overset{\mathrm{max}\left(p,q\right)}{\sum}}\left({a}_{i}+{b}_{i}\right){\u03f5}_{t-i}^{2}}+{\eta}_{t}+{\displaystyle \underset{j=1}{\overset{p}{\sum}}{b}_{j}{\eta}_{t-j}}$ (15)

A GARCH model is therefore an extension of ARMA approach to squared series ${\u03f5}_{t}^{2}$. Using ARMA model as our mean model is as in Equation (16);

$E\left({\u03f5}_{t}^{2}\right)=\frac{{a}_{0}}{1-{\displaystyle {\sum}_{i=1}^{\mathrm{max}\left(p,q\right)}\left({a}_{i}+{b}_{i}\right)}}$ (16)

3.6.2. Exponential GARCH (EGARCH) Model

GARCH models assume that only the magnitude and not the positivity or negativity of unanticipated excess returns determine the future volatility. Accredited to Nelson (1991), the EGARCH model was developed to cater for the shortcomings of the GARCH models. The model allows for asymmetric effects between positive and negative shocks and has no restrictions on the parameters. The conditional variance ${h}_{t}$ is an asymmetric function of lagged distributions. In financial time-series, it has been stated that volatility behaves differently depending on if a positive or negative shock occurs( leverage effect) and describes how a negative shock causes volatility to rise more than, if a positive shock with the same magnitude had occurred. The model is as shown in Equation (17);

$\begin{array}{l}{\u03f5}_{t}\equiv {\xi}_{t}{v}_{t}^{1/2}\\ \mathrm{ln}\left({v}_{t}\right)\equiv {a}_{0}+\frac{1+{b}_{1}B+\cdots +{b}_{q-1}{B}^{q-1}}{1-{a}_{1}B+\cdots +{a}_{p}{B}^{p}}g\left({\u03f5}_{t-1}\right)\end{array}$ (17)

where:

$g\left({\u03f5}_{t}\right)\equiv \{\begin{array}{l}\left(\theta +\gamma \right){\u03f5}_{t}-\gamma E\left(\left|{\u03f5}_{t}\right|\right),\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{if}\text{\hspace{0.17em}}{\u03f5}_{t}\ge 0,\\ \left(\theta -\gamma \right){\u03f5}_{t}-\gamma E\left(\left|{\u03f5}_{t}\right|\right),\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{if}\text{\hspace{0.17em}}{\u03f5}_{t}<0,\end{array}$

*B* is the lag operator such that;

${B}_{g}\left({\u03f5}_{t}\right)\equiv g\left({\u03f5}_{t-1}\right)$

Lama et al. (2015) specify the logarithm of conditional variance and states that the model can also be represented as in Equation (18);

$\mathrm{ln}\left({v}_{t}\right)\equiv {a}_{0}+\beta \mathrm{ln}\left({v}_{t-1}\right)+\alpha \left|\frac{{\u03f5}_{t-1}}{\sqrt{{v}_{t-1}}}\right|+\gamma \frac{{\u03f5}_{t-1}}{\sqrt{{v}_{t-1}}}$ (18)

From the equation above, we can deduce that the leverage effect is exponential not quadratic. The forecasts of the conditional variance are also seen to be non-negative.

3.6.3. Integrated GARCH (IGARCH) Model

For the GARCH model, GARCH (*p*, *q*) process is weakly stationary if
${\sum}_{i=1}^{q}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}a+{\displaystyle {\sum}_{j=1}^{p}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}{b}_{j}<1$. Stationarity however does not require such a stringent restriction. The unconditional variance does not depend on time. The covariance is not stationary. Thus;
${\sum}_{i=1}^{q}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}a+{\displaystyle {\sum}_{j=1}^{p}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}{b}_{j}\equiv 1$

Developed by Engle and Bollerslev (1986), the model takes the form as in Equation (19);

${h}_{t}\equiv {a}_{0}+\left(1-{b}_{1}\right){\u03f5}_{t-1}^{2}+{b}_{2}{\sigma}_{t-1}^{2}$ (19)

The model can also be viewed as a product of omitted structural breaks rather than the result of true IGARCH behaviour.

3.6.4. Threshold Garch (TGARCH) Model

TGARCH model proposed by Zakoian (1994) is another model that can be used to handle leverage effects. It was designed to divide the distribution of the innovations into disjoint intervals and then approximate a piece-wise linear function for the conditional standard deviation and the conditional variance. If there are only two intervals, the division is normally at zero, i.e., the influence of positive and negative innovations on the volatility is differentiated. The TGARCH model of order can be written as in Equation (20);

$\begin{array}{l}{y}_{t}={\beta}_{0}+{\beta}_{1}{X}_{t}+{\u03f5}_{t}\\ {\sigma}_{t}^{2}=\omega +{\displaystyle \sum {\beta}_{j}{\sigma}_{t-j}^{2}}+{\displaystyle \sum {\alpha}_{i}{\u03f5}_{t-i}^{2}}+{\displaystyle \sum {\gamma}_{k}{\u03f5}_{t-k}{I}_{t-k}}\end{array}$ (20)

where;

${I}_{t-k}=1$ if ${\u03f5}_{t-k}<0$

${I}_{t-k}=0$ otherwise

If ${\u03f5}_{t-k}>0$, then it indicates good news. If ${\u03f5}_{t-k}\le 0$, it represent bad news.

If ${\u03f5}_{t-k}\le 0$, then ${I}_{t-k}=1$

Therefore;

$\sum {\gamma}_{k}{\u03f5}_{t-k}{I}_{t-k}}={\displaystyle \sum \gamma {\u03f5}_{t-k}$ where;

If ${\gamma}_{k}>0$, then bad news increase volatility

If ${\gamma}_{k}<0$, then bad news reduce volatility.

If ${\u03f5}_{t-k}>0$ then ${I}_{t-k}=0$,

Given the information above, impact on volatility can be summarised as below;

For good news = ${\alpha}_{i}$

For bad news = ${\alpha}_{i}+{\gamma}_{k}$.

3.6.5. Glosten-Jagannathan-Runkle GARCH (GJR GARCH) Model

Glosten, Jagannathan and Runkle (1993) proposed a modification of the original GARCH model using a dummy variable to capture asymmetric effects in financial time series. Equation (21) shows the general formula of the model:

$\begin{array}{l}{y}_{t}={\sigma}_{t}{\u03f5}_{t}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{where}\text{\hspace{0.17em}}\text{\hspace{0.05em}}{\u03f5}_{t}~iid\left(0,1\right)\\ {\sigma}^{2}={\alpha}_{0}+{\displaystyle \underset{i=1}{\overset{p}{\sum}}{\alpha}_{i}{y}_{t}^{2}}+{\displaystyle \underset{j=1}{\overset{q}{\sum}}{\beta}_{j}{\sigma}_{t-j}^{2}}+{\displaystyle \underset{i=1}{\overset{p}{\sum}}{\gamma}_{i}{I}_{t-i}{\alpha}_{t-i}^{2}}\\ {I}_{t-i}\equiv \{\begin{array}{l}1\text{\hspace{0.17em}}\text{\hspace{0.05em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.05em}}\text{if}\text{\hspace{0.17em}}{\alpha}_{t-1}<0\\ 0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{if}\text{\hspace{0.17em}}{\alpha}_{t-i}\ge 0\end{array}\end{array}$ (21)

${I}_{t-i}$ is a dummy variable that has a value of 1 when the yield is negative and 0 otherwise. The impact of the news, or shocks to the yield on the volatility depends on the sign of the parameter estimated by this dummy variable. In any case, this model, which allows for different responses of the volatility to positive or negative shocks and supposes that the minimum volatility is observed when there, is no news.

3.7. Backtesting Var

VaR can be viewed as a gauge that summarizes the worst loss over a target period that will not be exceeded for a given confidence level (Wipplinger, 2007). More formally, VaR is expressed as in Equation (22);

$Pr\left(L>\text{VaR}\right)=\alpha $ (22)

where *L* is the loss on a given day and is the significance level. VaR is therefore a quantile in the distribution of profit and loss that is expected to be exceeded only with a certain probability, formally expressed as in Equation (23);

$p={\displaystyle {\int}_{\infty}^{-\text{VaR}\left(p\right)}{f}_{q}\left(X\right)\text{d}X}$ (23)

In this paper; the VaR figures are given using a 1% significance level. VaR is computed using the conditional volatility of returns multiplied by the quantile of a given probability distribution. In our study, normal distribution is assumed thus the quantile is −2.33.

The VaR estimates in this paper will be evaluated using two tests: an unconditional and a conditional test of coverage originally developed by Kupiec (1995) and Christoffersen (1998) respectively.

Kupiec’s test

Kupiec’s test was developed to test whether the empirical proportion of violations congregate with the nominal proportion specified by the VaR significance level. According to Kupiec (1995), a likelihood ratio test can be constructed as shown in Equation (24);

$L{R}_{uc}=2\mathrm{ln}\left[{\left(1-\frac{E}{T}\right)}^{T-F}{\left(\frac{F}{T}\right)}^{F}\right]-2\mathrm{ln}{\left(1-p\right)}^{T-F}{p}^{F}$ (24)

where *T* is the number of out-of-sample estimates and *F* the observed number of violations. Hence,
$\frac{E}{T}$ is the empirical VaR size which follows the binominal distribution so
$F~B\left(T,p\right)$.
$L{R}_{uc}$ follows the chi-square distribution with one degree of freedom, i.e.
$L{R}_{uc}\text{\hspace{0.17em}}{\chi}_{\left(1\right)}^{2}$ under the null hypothesis;
$\frac{E}{T}=p$. Rejection of the null hypothesis implies that the empirical VaR size is significantly different from the stated VaR significance level, i.e. the nominal size.

Christoffersen’s test of independence

Ideally, a violation today does not reveal any information about the likelihood of a violation tomorrow, i.e. the violations occur independently of each other. A disadvantage with Kupiec’s test is its ability detect whether the violations occur independently or clustered in a sequence. Christoffersen (1998) developed a test to detect clusters of violations. The advantage with the Christoffersen test of independence is its deference to the conditionality in the volatility forecasts. Good volatility forecasts ought to respond to periods of high and low volatility and subsequently adjust its predictions accordingly after the volatility clusters.

The probability of two subsequent violations are therefore defined as in Equation (25);

${p}_{ij}=P\left({\eta}_{t}=i|{\eta}_{t-1}=j\right)$ (25)

Independence of violations is therefore defined as violations that do not occur in two subsequent days. A drawback with this test is arguably the definition of independence as a violation today followed by a violation the day after tomorrow is not detected in this test. Christoffersen (1998), suggests a likelihood ratio test of conditional coverage as in Equation (26);

$L{R}_{ind}=-2\mathrm{ln}\left[{\left(1-p\right)}^{T-F}{p}^{F}\right]+2\mathrm{ln}{\left(1-{\pi}_{01}\right)}^{{\eta}_{00}}{\pi}_{01}^{{\eta}_{01}}{\left(1-{\pi}_{11}\right)}^{{\eta}_{10}}{\pi}_{11}^{{\eta}_{11}}$ (26)

where
${\eta}_{ij}$ is the number of observations with the value *i* followed by *j* for
$i,j=0,1$ and
${\pi}_{ij}=\frac{{\eta}_{ij}}{{\displaystyle {\sum}_{j}{\eta}_{ij}}}$ are the corresponding probabilities.
$L{R}_{ind}\text{\hspace{0.17em}}{\chi}_{\left(i\right)}^{2}$ under the null hypothesis which states that the violations are independently distributed. Hence, a rejection of the null hypothesis infers that the violations are clustered and consequently not independent.

3.8. Model Selection Criteria

This section explains the model selection criteria used to select the model combination to use.

The Akaike Information Criterion (AIC) introduced by Akaike (1973) is used to select the mean model to be used. AIC, which is a penalized-likelihood criteria, is an estimate of a constant plus the relative distance between the unknown true likelihood function of the data and the fitted likelihood function of the model. A lower AIC means a model is considered to be closer to the true model.

The loglikelihood is used to select the best model for VaR estimation. The higher the loglikelihood, the better the model. Besides this, the information criteria are also used to pick the model. A good model had the highest loglikelihood or the lowest information criteria. Therefore, a higher log likelihood translates to a low information criteria. The information criteria used in this study are the Akaike, Bayes, Shibata and Hannan-Quinn.

Forecasting performance of the five models is analysed by comparing the errors i.e. comparing the forecasted returns with realized returns. This is done by comparing the mean error (ME), mean absolute error (MAE) and root mean square error (RMSE). The lesser the errors the better the more accurate the model is in forecasting correct return for Brent Crude Oil. ME, MAE and RMSE are calculated using the formulae in Equation (27)

$\begin{array}{l}\text{ME}=\frac{1}{n}{\displaystyle \underset{j=1}{\overset{n}{\sum}}\left({y}_{i}-{y}_{j}^{\ast}\right)}\\ \text{MAE}=\frac{1}{n}{\displaystyle \underset{j=1}{\overset{n}{\sum}}\left|{y}_{i}-{y}_{j}^{\ast}\right|}\\ \text{RMSE}=\sqrt{\frac{1}{n}{\displaystyle \underset{j=1}{\overset{n}{\sum}}{\left({y}_{i}-{y}_{j}^{\ast}\right)}^{2}}}\end{array}$ (27)

where;
${y}^{\ast}$ are the forecasted values and *y* the realized values.

4. Data Analysis

This study involves analysis the volatility of Brent Crude oil spot prices and VaR estimation using five models. Brent crude oil spot prices from the year 2011 to 2020 were used in the analysis. The data was sourced from https://www.macrotrends.net/2480/brent-crude-oil-prices-10-year-daily-chartMacrotrends. Part of the data was used for model building (in-samples)and the rest for out of sample forecasting.

4.1. Data Exploration

4.1.1. Spot Prices

The analysis is done by use of time series plots and descriptive analysis .The plot for Brent Crude Oil Prices for the period between 2011 and 2020 is as in Figure 1.

From Figure 1, it can be seen that the spot prices are highly volatile and have had a downward trend from the year 2011 to 2020. It is important to note the high drop in oil prices earlier in the year 2020 specifically between March 2020 and April 2021 which was fueled by the Covid-19 pandemic. This was a time when Corona Virus had spread to most countries and governments were starting to impose lockdown and restricting movement. This is a good example of how oil prices are affected by other factors in the world. Volatility clustering is also evident from the figure above i.e. prices will rise continuously for a period of time and drop continuously for a period of time throughout the entire study period from the year 2011 to 2020.

Figure 2 below is a QQ-plot for the spot prices which shows that the spot prices for the period are not normally distributed.

Table 1. Returns characteristics.

Figure 1. Daily Brent Crude Oil closing price.

Figure 2. QQ-plot for Brent Crude Oil spot prices.

4.1.2. Returns

To analyse the volatility of crude oil prices, we use oil returns for the same period. Returns can be comparable with each other while prices on the other hand always depend on the previous price. Returns are preferred when modelling volatility because prices are bounded to be non-negative and usually have a unit root, while log-returns can have any value, which makes them easier to model and one can achieve stationarity using log returns.

Time plots are used to determine the observable characteristics of the returns as presented in Figure 3 and Figure 4 which show the log returns and squared logreturns respectively.

From the plots it is evident that the financial time series exhibit common features. Variance is not constant throughout the figures, which is evidence of heteroscedasticity/mean reversion property. Volatility clustering can also be seen from the plots.

Figure 3. Daily brent crude oil log returns.

Figure 4. Daily brent crude oil squared log returns.

The ARCH Langrangian Multiplier Test further confirms these findings that there is presence of heretoscedasticity in the crude oil data.

aarch.test(logreturns,arch="box",alpha=0.05,lag.max = 2)

Box-Ljung test data: y^2 X-squared = 367.14, df = 2, p-value < 2.2e-16

alternative hypothesis: y is heteroscedastic

The descriptive statistics which includes; mean, standard deviation, kurtosis, skewness are utilized so as to describe the returns characteristics as shown in Table 1.

The kurtosis is greater than three and indicates that the returns have fat tails heavier than a normal distribution. The skewness is not equal to zero which indicates that the returns are not symmetric.

Figure 5 further helps us understand how the returns compare with the normal distribution of the same mean and standard deviation. Brent crude oil log returns plot have the same shape as normal returns curve but have a steaper curve than that of a normal distribution This shows presence of heavier tails than normal distribution.

4.2. Testing for Normality

The normal QQ-plot is used to analyze the distributional properties, that is, to check whether the return series is normally distributed. The normal QQ-plot represents a scatter plot of a given distribution. The greater the departure from this line the greater the evidence against the null hypothesis of being a normal distribution.

Figure 6 shows that the returns are relatively normally distributed with some outliers (appear further from the normal line) which can be taken to be the heavier tails seen in Figure 5 above. This plot show that normal distribution can be used to model the returns in this study but would not take care of the heavy tails.

The presence of heavy tails prompts us to consider the student t distribution which is known to have the ability to capture heavy tails. Figure 7 below shows QQ-plot for Brent Crude Oil prices fitted using t-distribution.

Figure 5. Comparison with normal distribution.

Figure 6. Returns QQ-plot.

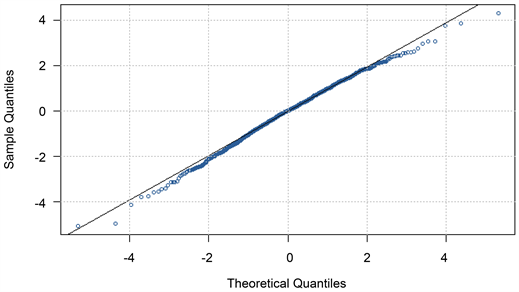

Figure 7. Returns student t QQ-plot.

The Jarque Bera (JB) test is applied so as to strengthen these results. The hypothesis is:

*H*_{0} The data is normally distributed.

*H*_{1} The data is not normally distributed.

jarque.bera.test(logreturns)

Jarque Bera Test

data: logreturns X-squared = 1607358, df = 2, *p*-value < 2.2e-16

The Jarque-Bera statistics high value shows that the null hypothesis of normality can be rejected at the 1% level of significance. The high excess kurtosis and negative skewness also supports this finding. The student t distribution is symmetric and bell-shaped, like the normal distribution. However, the t-distribution has heavier tails thus more prone to producing values that fall far from its mean. Since we cannot fully discredit normal distribution in this study, we chose to fit the volatility models using the normal distribution and t-distribution. T-distribution was added due to its ability to capture heavier tails which are evident from our analysis above.

4.3. Testing for Stationarity

To investigate whether the return series are stationary, the Augmented Dickey-Fuller (ADF) test was applied. The hypothesis was such that:

*H*_{0}: Non stationary.

*H*_{1}: Stationary.

The results for the test are as shown in Table 2.

The *p*-value is <0.05. This allows the rejection of the null hypothesis.

To confirm the results above, we use the Philips Perron (PP) test which is a non-parametric correction to ADF to account for autocorrelation associated with breaks/regime shifts in the data.

The results for the PP test are as shown in Table 3.

The *p* value for the PP test is less than 0.05 and is same as the *p* value for the ADF test. We therefore conclude that that the return series is stationary.

4.4. Determining the Mean Equation

The first step in the selection of the mean equation is to plot the sample Autocorrelation function (ACF) and Partial autocorrelation function (PACF). If the sample ACF dies off and the PACF cuts off at lag *p* that would indicate an AR (*p*) process. Similarly if the sample PACF dies off and the ACF cuts off at lag *q* the process would be an MA (*q*) process.

Figure 8 and Figure 9 below show the ACF and PACF plots.

Table 4 shows the AIC values for the selection of the mean equation.

From Table 4, ARMA (2, 0, 4) has the least AIC and is thus selected as the mean equation. This is in line with the finding that our series is stationary. No differencing or detrending was done to make the series stationary. Therefore, we will use ARMA mean equation and not ARIMA.

4.5. Modelling and Forecasting Volatility

This section aims at fitting the models that are being used to compare the volatility. This is done by;

1) Checking for the ARCH effects.

2) Fitting volatility models.

3) Back-testing.

4) Forecasting.

Table 2. ADF Test.

Table 3. PP Test.

Table 4. Mean model selection.

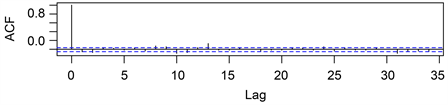

Figure 8. Returns ACF.

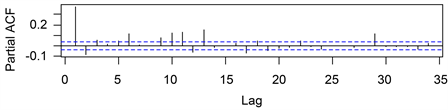

Figure 9. Series squared logreturns PACF.

4.5.1. Testing for ARCH Effects

The Lagrange multiplier (LM) test by Engle (1982) was applied to the residuals of simple time series models. The hypothesis is as follows:

$\begin{array}{l}{H}_{0}:{\alpha}_{1}={\alpha}_{2}=\cdots ={\alpha}_{m}=0\\ {H}_{1}:{\alpha}_{1}={\alpha}_{2}=\cdots ={\alpha}_{m}\ne 0\end{array}$

The ARCH-LM tests results provide strong evidence for rejecting the null hypothesis as shown in Table 5 below. This confirms that ARCH effects exist; hence, an ARCH or GARCH model should be employed in modeling the return time series.

4.5.2. Fitting Volatility Models

Although it can be difficult to estimate the order (*p*, *q*) to use while modelling, different studies have shown that the predictive effect of models does not necessarily improve with the increase in order (Hansen, P. R., Lunde, A., 2005 and Bollerslev, T., Chou, R.Y., Kroner, K.F 1992). We thus chose order (*p*, *q*) = (1, 1) in this study. GARCH, EGARCH, IGARCH, TGARCH AND GJR GARCH models were fitted.

The parameters for GARCH normal distribution are as shown in Table 6;

The parameter for GARCH student t distribution is as shown in Table 7;

The loglikelihood and information criteria values for the five models fitted with normal distribution are as shown in Table 8;

The loglikelihood and information criteria values for the five models fitted with student t distribution are as shown in Table 9.

Table 5. ARCH-LM Test.

Table 6. Models’ parameters—normal distribution.

Table 7. Models’ parameters—student’s t distribution.

Table 8. Loglikelihood and Information Criteria values—normal dist.

Table 9. Loglikelihood and Information Criteria values—student’s t dist.

A model that has the highest logarithm maximum likelihood function value is picked as the best model. The less the information criteria values, the better the model. From the two tables above, The EGARCH model has the highest log likelihood value and the lowest Information criteria values for both normal distribution and t-distribution. However, the t-distribution fits the data better as it has higher log likelihood value and less information criteria compared to normal distribution. This show that the EGARCH-t distribution is the best fitted model among the models tested.

News impact curves, introduced by Pagan and Schwert (1990), are useful tools to visualize the magnitude of volatility changes in response to shocks. The name comes from the interpretation of shocks as news influencing the market movements. News impact curves show the change in volatility against shocks in different size. The can be used to show asymmetric effects in volatility.

Figure 10 and Figure 11 are some examples of what news impact curves look like;

Having fitted the models, we now perform back-testing tests to see whether the models were fitted correctly.

4.6. VaR Backtesting

Calculation of the number of VaR exceptions (days when actual losses exceed VaR predictive results) is commonly used to estimate VaR in financial series. If the ratio of VaR exceptions is lower than the selected confidence level, the risk is overestimated and vice versa. It is important to note that the exact exceptions as per the confidence level are hardly observed. Statistical analysis is thus necessary to study whether exceptions is reasonable or not. VaR is usually calculated at the 99% or 95% confidence level. This is the loss that is expected to be exceeded only 1% or 5% of the time respectively.

Figure 10. GARCH.

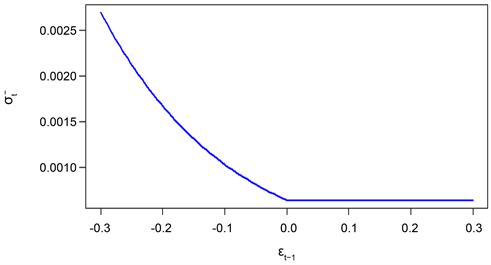

Figure 11. EGARCH.

In this study, we do a historical backtest in checking the model performance where estimated VaR is compared with the actual return over the period. If the return is more negative than the VaR, we have a VaR exceedance. In our case, a VaR exceedance should only occur in 1% of the cases (since we specified a 99% confidence level).

According to Li et al. (2016), the unconditional coverage test critical value is 3.841459; and the conditional coverage test critical value is 5.991465.

For Christoffersen test, the null hypothesis is: Correct Exceedances and Independence of Failures

From Tables 10-13, it can be informed that both unconditional and conditional L.R. statistics are smaller than critical value, which show that both Kupiec test and Christoffersen test don’t reject null hypothesis on 1%.These results also indicate that the models can produce accurate VaR forecasts and handle the ever-changing fluctuations in the return rate of Brent Crude Oil. The backtesting results for the five models for normal distribution and t-distribution are summarised as in Tables 10-13. All GARCH models passed both LRuc and LRcc tests. This is seen from the fact that the four tests results failed to reject the null hypothesis that the observed failure rate is equal to the failure rate suggested by

Table 10. Kupiec test—normal dist.

Table 11. Christoffersen test—normal dist.

Table 12. Kupiec test—T dist.

Table 13. Christoffersen test—T dist.

the confidence interval. This shows that the VaR models produced the correct number of exceedances at the 1% level. The simple GARCH, IGARCH and GJR models outperform the rest fof the normal dostribution. The IGARCH model is the best for t-distribution with the GARCH and GJR models following closely. The LR.uc Statistic and LR.cc Statistic for the IGARCH T distribution are the least. We therefore conclude that the IGARCH T distribution model is the best for VaR estimations.

The plots showing the backtesting results are as shown in Figure 12;

The plots show that the VaR results are lower than returns from the five GARCH models. This is a clear indication that the models were fitted correctly.

4.7. Forecasting

Since we have now confirmed that our risk models works reasonably well, we proceed to produce returns forecasts. Our data has 2530 log returns. Out of these, 2024 were used for model fitting. We now use the remaining 506 for comparison with forecasted values. We will therefore forecast 506 values using the five GARCH models. To compare the accuracy of the models we get the difference between the realized values and forecasted values to get the errors. The results are as shown in Table 14 and Table 15;

From Table 14 and Table 15, all the five models produce relatively good results. This shows that we cannot discredit the importance of any of the models in forecasting crude oil prices. However, IGARCH model outperforms all models with the simple GARCH model following closely. This shows that even with the development of new GARCH extension models, simple GARCH model is still relevant in modelling crude oil prices. The IGARCH—T distribution model has less errors than IGARCH—normal distribution. We threfore conclude that the IGARCH—T distribution is the best for Brent Crude Oil spot prices forecasting.

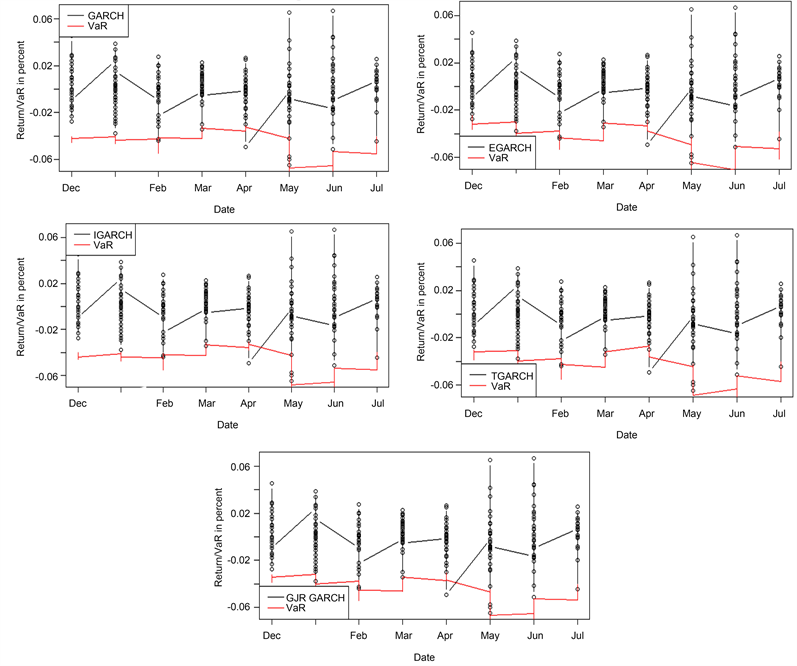

Figure 12. VaR backtesting.

Table 14. Errors summary—normal distribution.

Table 15. Errors summary—student T distribution.

5. Discussion, Conclusion and Recommendations

5.1. Discussion

We set out to analyse different volatility models and their ability to forecast crude oil price volatility. The study considered five volatility models due to their ability to capture various properties of data series. The models analysed in this study are; GARCH, EGARCH, IGARCH, TGARCH AND GJR GARCH models. Brent Crude Oil spot prices data was used in our study.

First, analysis of the logreturns was done. We found that the returns almost fit a normally distribution but have heavy tails. This led us to fitting the T-distribution in addition to the normal distribution. The T-distribution outperformed the normal distribution. This is a clear indication that T-distribution is better than normal distribution when the data in question has heavy tails/outliers. Presence of mean reversion and heteroscedasticity was also verified through plots and ARCH Langrangian Multplier test. These properties indicated that GARCH models were the best to be used for our study.

Fitting of the GARCH models was done to get the parameters. The higher the logarithm maximum likelihood value, the better the fitting of the model and the lower the information criteria, the better the model. The EGARCH model is the best fitted model based on the loglikelihood value of 5446.416 and AIC value of −5.3700 out of the fitted models. We then proceeded to do backtesting VaR test which indicated that all the five models were fitted correctly. However, of the five models, IGARCH—T distribution model was the best for VaR estimations based on the LR.uc Statistic of 0.235 and LR.cc Statistic of 0.317. We therefore concluded that the IGARCH T distribution is the best for VaR estimations for Brent Crude Oil prices.

After verifying that all the models work correctly, we proceeded and forecasted Brent crude oil daily prices. The forecasted log-returns were compared with the realized log-returns for the same period. All the GARCH model give relatively the same results for the error reports. However, the IGARCH model outperformed the other GARCH models across. The IGARCH T distribution gave the best estimates in all the tests done based on the low ME value of 0.0000963591 and RMSE of 0.05304335. We therefore conclude that the IGARCH-T distribution model is the best for forecasting Brent Crude Oil Spot prices.

5.2. Conclusion

From our study, we find that the fact that the EGARCH model is the best fitted model based on the highest log-likelihood value of 5446.416 and least AIC value of −5.3700 in this study does not translate to the model being the best for VaR estimation and volatility forecasting. The IGARCH model is the best for both VaR estimation based on the lowest LR.uc Statistic of 0.235 and lowest LR.cc Statistic of 0.317 and volatility forecasting based on the low ME value of 0.0000963591 and RMSE of 0.05304335 for Brent Crude Oil prices. This shows the importance of testing the models performance in all stages i.e. best fitted model, backtesting, forecasting performance so as to pick the best model.

From the above findings, we can conclude that; The VaR is still a useful tool in risk management. There is hardly any model that fits a commodity forever. Therefore, it is always better to compare all of the models and choose an appropriate one to forecast the VaR for a commodity in a long-term horizon.

Even for the same commodity of same country/companies, in different time periods, the appropriate model to predict its future VaR may vary too. It is therefore important for companies to consider the statistical properties of the time series in specified time periods when choosing risk management models.

The distribution used in modelling matters. From our study, we used the normal distribution and T-distribution. The T-distribution performed better across all the five models fitted. This was mainly attributed to the presence of heavy tail in the data. Therefore, the choice of the distribution is important in ensuring that we reduce forecasting errors.

5.3. Recommendation

The recommendations for practitioners are that investors should use both VaR estimation and forecasting performance of volatility models when evaluating investment risk. VaR almost always overestimates the risk. From the forecasting results, all models give almost similar errors indicating that all the models can be relied upon to give a close estimate of future prices. However, the study shows that IGARCH model gives better results for VaR estimations and volatility forecasting.

We lacked enough tools to include different volatility models in our study. The R-packages used in the study could only accommodate GARCH models leaving a gap for other types of models such as multifractal models. Further research is recommended to expand the type of volatility models used to models such as Markov Switching Multifractal Models. This would require development of R packages that can accommodate these models. The number of distributions used can also be increased to include distributions such as skewed Student-t and reparameterised Johnson distributions. We also recommend tests to be done with 5% level of significance.

Conflicts of Interest

The authors declare no conflicts of interest regarding the publication of this paper.

[1] | Akaike, H. (1973). Information Theory and an Extension of the Maximum Likelihood Principle. In B. N. Petrov, & F. Csaki, (Eds.), Proceedings of the 2nd International Symposium on Information Theory (pp. 267-281). Akademiai Kiado. Republished in S. Kotz, & N. L. Johnson (Eds.) (1992). Breakthroughs in Statistics, I (pp. 610-624). Springer-Verlag. |

[2] |
Aloui, C., & Mabrouk, S. (2010). Value-at-Risk Estimations of Energy Commodities via Long-Memory, Asymmetry and Fat-Tailed GARCH Models. Energy Policy, 38, 2326-2339. https://doi.org/10.1016/j.enpol.2009.12.020 |

[3] |
Angelidis, T., Benos, A., & Degiannakis, S. (2004). The Use of GARCH Models in VaR Estimation. Statistical Methodology, 1, 105-128. https://doi.org/10.1016/j.stamet.2004.08.004 |

[4] |
Arouri, M. E. H., Lahiani, A., Lévy, A., & Nguyen, D. K. (2012). Forecasting the Conditional Volatility of Oil Spot and Futures Prices with Structural Breaks and Long Memory Models. Energy Economics, 34, 283-293. https://doi.org/10.1016/j.eneco.2011.10.015 |

[5] |
Backus, D. K., & Crucini, M. J. (2000). Oil Prices and the Terms of Trade. Journal of International Economics, 50, 185-213. https://doi.org/10.1016/S0022-1996(98)00064-6 |

[6] |
Bastianin, A., & Manera, M. (2015). How Does Stock Market Volatility React to Oil Price Shocks? Macroeconomic Dynamics, 22, 666-682. https://doi.org/10.1017/S1365100516000353 |

[7] |
Bina, C., & Vo, M. (2007). OPEC in the Epoch of Globalization: An Event Study of Global Oil Prices. Global Economy Journal, 7, Article ID: 1850102. https://doi.org/10.2202/1524-5861.1236 |

[8] |
Bollerslev, T. (1986). Generalized Autoregressive Conditional Heteroskedasticity. Journal of Econometrics, 31, 307-327. https://doi.org/10.1016/0304-4076(86)90063-1 |

[9] |
Cerović Smolović, J., Lipovina-Božović, M., & Vujošević, S. (2017). GARCH Models in Value at Risk Estimation: Empirical Evidence from the Montenegrin Stock Exchange. Economic Research-Ekonomska Istraživanja, 30, 477-498. https://doi.org/10.1080/1331677X.2017.1305773 |

[10] |
Christoffersen, P. (1998). Evaluating Interval Forecasts. International Economic Review, 39, 841-862. https://doi.org/10.2307/2527341 |

[11] |
Degiannakis, S., Filis, G., & Kizys, R. (2014) The Effects of Oil Price Shocks on Stock Market Volatility: Evidence from European Data. The Energy Journal, 35, 35-56. https://doi.org/10.5547/01956574.35.1.3 |

[12] |
Demirbas, A., Al-Sasi, B. O., & Nizami, A.-S. (2017) Recent Volatility in the Price of Crude Oil. Energy Sources, Part B: Economics, Planning, and Policy, 12, 408-414. https://doi.org/10.1080/15567249.2016.1153751 |

[13] |
Dickey, D. A. & Fuller, W. A. (1979) Distribution of the Estimators for Autoregressive Time Series with a Unit Root. Journal of the American Statistical Association, 74, 427-431. https://doi.org/10.1080/01621459.1979.10482531 |

[14] |
Doran, J. S., & Ronn, E. I. (2008). Computing the Market Price of Volatility Risk in the Energy Commodity Markets. Journal of Banking & Finance, 32, 2541-2552. https://doi.org/10.1016/j.jbankfin.2008.04.003 |

[15] |
Elder, J., & Serletis, A. (2010). Oil Price Uncertainty. Journal of Money, Credit and Banking, 42, 1137-1159. https://doi.org/10.1111/j.1538-4616.2010.00323.x |

[16] |
Engle, R. (1982). Autorregressive Conditional Heteroskedasticity with Estimates of United Kingdom Inflation. Econometrica, 50, 987-1008. https://doi.org/10.2307/1912773 |

[17] |
Engle, R. (2004). Risk and Volatility: Econometric Models and Financial Practice. American Economic Review, 94, 405-420. https://doi.org/10.1257/0002828041464597 |

[18] |
Engle, R. F., & Bollerslev, T. (1986). Modelling the Persistence of Conditional Variances. Econometric Reviews, 5, 1-50. https://doi.org/10.1080/07474938608800095 |

[19] |
Fan, Y., Zhang, Y.-J., Tsai, H.-T., & Wei, Y.-M. (2008). Estimating Value at Risk of Crude Oil Price and Its Spillover Effect Using the GED-GARCH approach. Energy Economics, 30, 3156-3171. https://doi.org/10.1016/j.eneco.2008.04.002 |

[20] |
Fong, W. M., & See, K. H. (2002). A Markov Switching Model of the Conditional Volatility of Crude Oil Futures Prices. Energy Economics, 24, 71-95. https://doi.org/10.1016/S0140-9883(01)00087-1 https://EconPapers.repec.org/RePEc:eee:eneeco:v:24:y:2002:i:1:p:71-95 |

[21] |
Glosten, L. R., Jagannathan, R., & Runkle, D. E. (1993). On the Relation between the Expected Value and the Volatility of the Nominal Excess Return on Stocks. The Journal of Finance, 48, 1779-1801. https://doi.org/10.1111/j.1540-6261.1993.tb05128.x |

[22] |
Hossein, A., & Noureddine, K. (2008). Oil Price Dynamics (2002-2006). Energy Economics, 30, 2134-2153. https://doi.org/10.1016/j.eneco.2007.12.004 https://econpapers.repec.org/RePEc:eee:eneeco:v:30:y:2008:i:5:p:2134-2153 |

[23] |
Hung, J.-C., Lee, M.-C. & Liu, H.-C. (2008). Estimation of Value-at-Risk for Energy Commodities via Fat-Tailed GARCH Models. Energy Economics, 30, 1173-1191. https://doi.org/10.1016/j.eneco.2007.11.004 |

[24] |
Jarque, C. M., & Bera, A. K. (1980). Efficient Tests for Normality, Homoscedasticity and Serial Independence of Regression Residuals. Economics Letters, 6, 255-259. https://doi.org/10.1016/0165-1765(80)90024-5 |

[25] |
Ji, Q., & Fan, Y. (2012). How Does Oil Price Volatility Affect Non-Energy Commodity Markets? Applied Energy, 89, 273-280. https://doi.org/10.1016/j.apenergy.2011.07.038 |

[26] |
Khindanova, I., Atakhanova, Z., & Rachev, S. (2004). GARCH-Type Processes in Modeling Energy Prices. In S. T. Rachev (Ed.), Handbook of Computational and Numerical Methods in Finance (pp. 71-110). Birkhäuser. https://doi.org/10.1007/978-0-8176-8180-7_3 |

[27] |
Kilian, L. (2009). Not All Oil Price Shocks Are Alike: Disentangling Demand and Supply Shocks in the Crude Oil Market. American Economic Review, 19, 1053-1069. https://doi.org/10.1257/aer.99.3.1053 |

[28] |
Kilian, L., & Park, C. (2009). The Impact of Oil Price Shocks on the U.S. Stock Market. International Economic Review, 50, 1267-1287. https://doi.org/10.1111/j.1468-2354.2009.00568.x |

[29] | Klein, J. L. (1997). Statistical Visions in Time: A History of Time Series Analysis, 1662-1938. Cambridge University Press. |

[30] |
Kupiec, P. (1995). Techniques for Verifying the Accuracy of Risk Measurement Models. The Journal of Derivatives, 3, 73-84. https://doi.org/10.3905/jod.1995.407942 |

[31] |
Lama, A., Jha, G. K., Paul, R. K., & Gurung, B. (2015). Modelling and Forecasting of Price Volatility: An Application of GARCH and EGARCH Models. Agricultural Economics Research Review, 28, 73-82. https://doi.org/10.5958/0974-0279.2015.00005.1 |

[32] | Li, Y. X., Lian, J. G., & Zhang, H. K. (2016). Forecast and Backtesting of Var Models in Crude Oil Market. Research and Review: Journal of Statistics and Mathematical Sciences, 2, 131-140. |

[33] |
Liu, M. L., Ji, Q., & Fan, Y. (2013). How Does Oil Market Uncertainty Interact with Other Markets? An Empirical Analysis of Implied Volatility Index. Energy, 55, 860-868. https://doi.org/10.1016/j.energy.2013.04.037 |

[34] | Lux, T., Segnon, M., & Gupta, R. (2015). Modeling and Forecasting Crude Oil Price Volatility: Evidence from Historical and Recent Data. FinMaP-Working Paper, No. 31, Kiel University, FinMaP (Financial Distortions and Macroeconomic Performance). |

[35] | Miletic, M., & Miletic, S. (2015). Performance of Value at Risk Models in the Midst of the Global Financial Crisis in Selected CEE Emerging Capital Markets. Economic Research-Ekonomska Istraživanja, 28, 132-166. |

Journals Menu

Contact us

+1 323-425-8868 | |

customer@scirp.org | |

+86 18163351462(WhatsApp) | |

1655362766 | |

Paper Publishing WeChat |

Copyright © 2024 by authors and Scientific Research Publishing Inc.

This work and the related PDF file are licensed under a Creative Commons Attribution 4.0 International License.
