Electrochemical Deposition and Optimization of Thermoelectric Nanostructured Bismuth Telluride Thick Films

DOI: 10.4236/eng.2011.36079   PDF   HTML     6,501 Downloads   11,901 Views   Citations

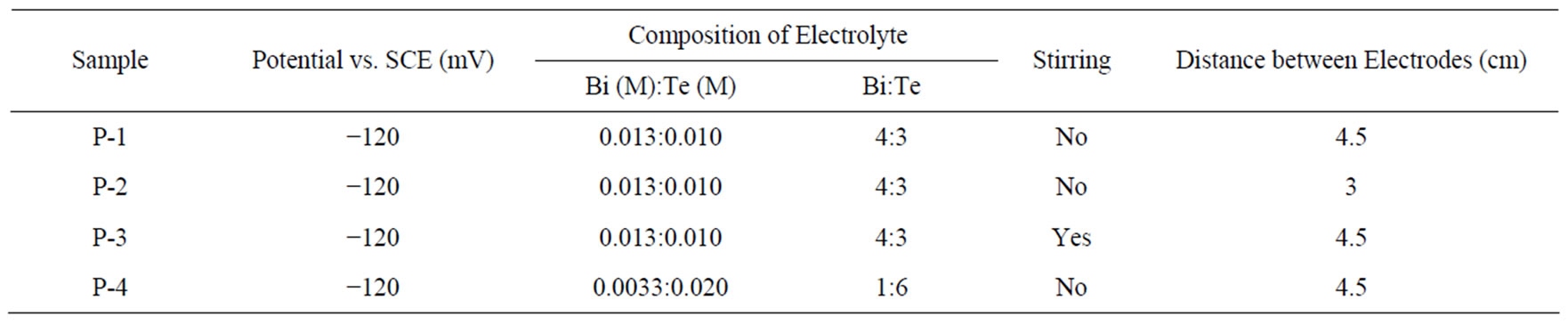

Bismuth telluride thick films are suitable for thermoelectric (TE) devices covering large areas and operating at small-to-moderate temperature differences (20 - 200 K). High efficiency and high coefficient of performance (COP) are expected to be achieved by using thick films in some cooling applications. Bismuth telluride thick films fabrication have been achieved with Galvanostatic and Potentionstatic deposition. Stoichiometric bismuth telluride thick film was obtained by Galvanostatic deposition at current density of 3.1 mAcm-2. Bismuth telluride films with average growth rate of 10 µmh-1 and different composition were obtained. Effects of current density and composition of electrolyte in Galvanostatic deposition were studied. The current density affected the film compactness, where films deposited at lower current density were more compact than those deposited at higher current density. The morphology of the films did not depend on the current density, but chemical composition was observed when different composition of electrolyte was used. Effects of distance between electrodes, composition of electrolyte solution, and stirring in Potentionstatic deposition were studied. The shorter the distance between electrodes, the higher the electric field, thus the higher current density was applied and the deposited film was less compact. The current density increased more rapidly with stirring during electrodeposition which leads to less compact film. Through this study, films electrode-posited from solution containing 0.013 M Bi(NO3)3.5 H2O, 0.01 M TeO2 and 1 M HNO3 at 3.1 mA cm-2 for 6 hours without stirring and with interelectrode distance of 4.5 cm were free-standing with average film thickness of 60 µm and optimum film composition of Bi2Te3. The crystallite size of the later films was found to be around 4.3 nm using Scherrer’s equation from XRD patterns. Also, negative Seebeck coefficient for the same samples was revealed with an average value of -82 μV.K-1.

Share and Cite:

H. Soliman and A. Kashyout, "Electrochemical Deposition and Optimization of Thermoelectric Nanostructured Bismuth Telluride Thick Films," Engineering, Vol. 3 No. 6, 2011, pp. 659-667. doi: 10.4236/eng.2011.36079.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] Y. Q. Cao, T. J. Zhu and X. B. Zhao, “Thermoelectric Bi2Te3 Nanotubes Synthesized by Low-Temperature Aqueous Chemi-cal Method,” Journal of Alloys and Compounds, Vol. 449, No. 1-2, January 2008, pp. 109- 112. doi:10.1016/j.jallcom.2006.01.116
[2] M. S. Dresselhaus, G. Chen, M. Y. Tang, R. Yang, H. Lee, D. Wang, Z. Ren, J. P. Fleurial and P. Gogna, “New Directions for Low-Dimensional Thermoelectric Materials,” Advanced Materials, Vol. 19, No. 8, April 2007, pp. 1043-1053. doi:10.1002/adma.200600527
[3] T. Cailat, A. Borshevsky and J. P. Fleurial, “Use of Mechanical Alloying to Prepare and Investigate New Potential Thermoelectric Materials,” Proc. XI Int. Conf. TEs., (Ed, K. R. Rao) Arlington, 1993, p. 9.
[4] C. H. Kuo, C. H. Hwanga, M. S. Jeng, W. S. Su, Y. W. Chou and J. R. Ku, “Thermoelectric Transport Properties of Bismuth Telluride Bulk Materials Fabricated by Ball Milling and Spark Plasma Sintering,” Journal of Alloys and Com-pounds, Vol. 496, No. 1-2, April 2010, pp. 687-690. doi:10.1016/j.jallcom.2010.02.171
[5] J. Zhou, S. Li, H. M. A. Soliman, M. S. Toprak, M. Muhammed, D. Platzek and E. Muller, “Seebeck Coefficient of Nanostructured Phospho-rus-Alloyed Bismuth Telluride Thick,” Journal of Alloys and Compounds, Vol. 471, No. 1-2, March 2009, pp. 278-281. doi:10.1016/j.jallcom.2008.03.088
[6] S. Li, M. S. Toprak, H. M. A. Soliman and J. Zhou, “Fabrication of Nanostructured Thermoelectric Bismuth Telluride Thick Films by Electro-chemical Deposition,” Chemistry of Materials, Vol. 18, No. 16, July 2006, pp. 3627-3633. doi:10.1021/cm060171o
[7] S. Li, H. M. A. Soliman, J. Zhou and M. S. Toprak, “Effects of An-nealing and Doping on Nanostructured Bismuth Telluride Thick Films,” Chemistry of Materials, Vol. 20, No. 13, July 2008, pp. 4403-4410. doi:10.1021/cm800696h
[8] Y. Miyazaki and T. Kajitani, “Preparation of Bi2Te3 Films by Electrodeposition,” Journal of Crystal Growth, Vol. 229, No. 1-4, July 2001, pp. 542-546. doi:10.1016/S0022-0248(01)01225-8
[9] H. P. Klug and L. E. Alexander, “X-Ray Diffraction Procedures,” John Wiley & Sons Inc., New York, 1954.
[10] P. Reinshaus, H. Sü?mann, M. Bohm, A. Schuck and T. Dietrich, “Use of Mechanical Alloying to Prepare and Investigate New Potential Thermoe-lectric Materials,” Proceedings of the 2nd European Sympo-sium on Thermoelectrics: Materials, Processing Techniques, and Applications, Krakow, 15-17 September 2004, European Thermoelectric Society, p. 90.
[11] D. Platzek, A. Zuber, C. Stiewe, G. B?hr, P. Reinshaus and E. Müller, “Anisotropy of the Seebeck Coefficient Detected by the Seebeck Scanning Microprobe,” Proceedings of the 22nd International Confer-ence on Thermoelectrics, LaGrande-Motte, 17-21 August 2003, IEEE, New York, 2004, p. 528.
[12] D. Platzek, G. Karpinski, C. Stiewe, P. Ziolkowski, M. Stordeur, B. Engers and E. Müller, “Spatial Resolution of the Seebeck Coefficient Measured on Thermoelectric Thin Films,” 3rd European Conference on Thermoelectrics, Nancy, 1-2 September 2005, European Ther-moelectric Society.
[13] M. Takahashi, Y. Oda, T. Ogino, S. Furuta, “Electrodeposition of Bi-Te Alloy Films,” Journal of the Electrochemical Society, Vol. 140, No. 9, September 1993, pp. 2550-2553. doi:10.1149/1.2220860
[14] M. S. Mar-tin-Gonzalez, A. L. Prieto, R. Gronsky, T. Sands and A. M. Stacy, “Insights into the Electrodeposition of Bi2Te3,” Journal of the Electrochemical Society, Vol. 149, No. 11, November 2002, pp. C546-C554. doi:10.1149/1.1509459
[15] J. P. Fleurial, A. Borshchevsky, M. A. Ryan, W. M. Phillips, J. G. Snyder, T. Caillat, E. A. Kolawa, J. A. Herman, P. Mueller and M. Nicolet, “Develop-ment of Thick-Film Thermoelectric Microcoolers Using Elec-trochemical Deposition,” Materials Research Society Sympo-sium Proceedings, Vol. 545, 1999, pp. 493-500.
[16] S. Mi-chel, S. Diliberto, C. Boulanger, N. Stein and J. M. Lecuire, “Galvanostatic and Potentiostatic Deposition of Bismuth Tellu-ride Films from Nitric Acid Solution: Effect of Chemical and Electrochemical Parameters,” Jour- nal of Crystal Growth, Vol. 277, No. 1-4, April 2005, pp. 274-283. doi:10.1016/j.jcrysgro.2004.12.164
[17] H. M. A. Soliman and H. H. Abdel-Rahman, “The Use of Rotating Cylinder Electrode to Study the Effect of 1,3- Dihydroxypropane on the Produc-tion of Copper Powder,” Journal of the Brazilian Chemical Society, Vol. 17, No. 4, 2006, pp. 705-714. doi:10.1590/S0103-50532006000400011
[18] T. M. Tritt and M. A. Subramanian, “Thermoelectric Materials, Phenomena, and Applications: A Bird’s Eye View,” MRS Bulletin, Vol. 31, No. 3, March 2006, pp. 188-198. doi:10.1557/mrs2006.44
[19] K. Tittes, A. Bund, W. Plieth, A. Bentien, S. Paschen, M. Plotner, H. Grafe and W. J. Fisher, “Electrochemical Deposition of Bi2Te3 for Thermoelectric Mi-crodevices,” Journal of Solid State Electrochemistry, Vol. 7, No. 10, May 2003, pp. 714-723. doi:10.1007/s10008-003-0378-8
