The Effects of Surface Water Velocity on Hyporheic Interchange

Timothy Sickbert, Eric W. Peterson

1School of Geology, Noble Research Center, Oklahoma State University, Stillwater, USA 2Department of Geography-Geology, Illinois State University, Normal, USA.
Department of Geography-Geology, Illinois State University, Normal, USA.

DOI: 10.4236/jwarp.2014.64035

Abstract

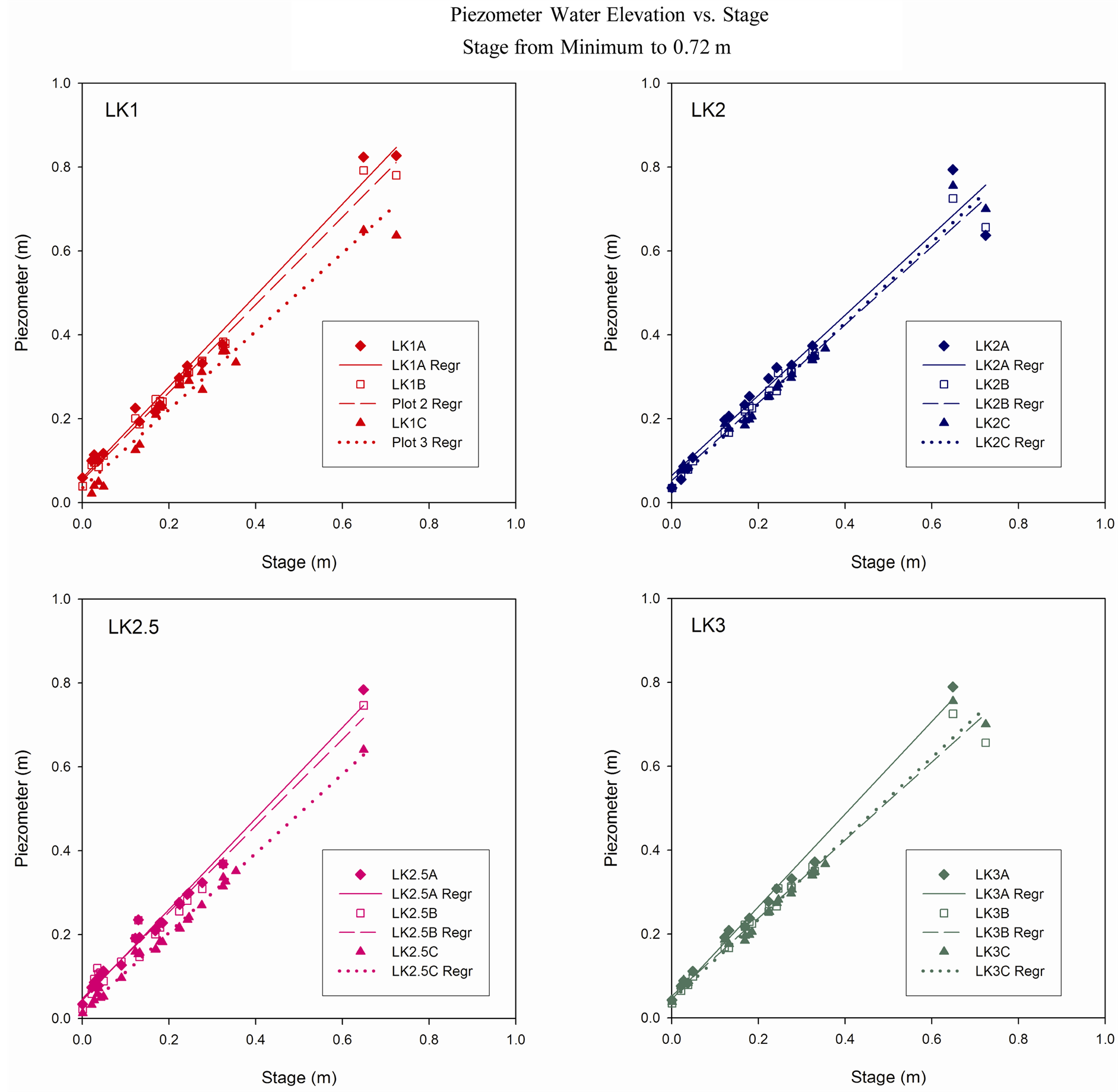

When evaluating hyporheic exchange in a flowing stream, it is inappropriate to directly compare stream stage with subsurface hydraulic head (h) to determine direction and magnitude of the gradient between the stream and the subsurface. In the case of moving water, it is invalid to ignore velocity and to assume that stage equals the net downward pressure on the streambed.  The Bernoulli equation describes the distribution of energy within flowing fluids and implies that net pressure decreases as a function of velocity, i.e., the Venturi Effect, which sufficiently reduces the pressure on the streambed to create the appearance of a downward gradient when in fact the gradient may be upward with stream flow drawing water from the subsurface to the surface. A field study correlating the difference between subsurface head and stream stage in a low-gradient stream indicates that the effect is present and significant: shallow subsurface head increases less quickly than stage while deeper subsurface head increases more quickly. These results can substantially improve conceptual models and simulations of hyporheic flow.

Keywords

Hyporheic Zone; Bernoulli Equation; Venturi Effect; Geomorphology; Fluvial; Groundwater/Surface Water Interaction; Streamflow

Conflicts of Interest

The authors declare no conflicts of interest.

References

[1]	Stanford, J.A. and Ward, J.V. (1988) The Hyporheic Habitat of River Ecosystems. Nature (London), 335, 64-66. http://dx.doi.org/10.1038/335064a0
[2]	Williams, D.D. (1984) The Hyporheic Zone as a Habitat for Aquatic Insects and Associated Arthropods. In: Resh, V.H. and Rosenberg, D.M., Eds., The Ecology of Aquatic Insects, Praeger Publishers, New York, 430-455.
[3]	Dole-Olivier, M.-J., Marmonier, P. and Beffy, J.-L. (1997) Response of Invertebrates to Lotic Disturbance: Is the Hyporheic Zone a Patchy Refugium? Freshwater Biology, 37, 257-276. http://dx.doi.org/10.1046/j.1365-2427.1997.00140.x
[4]	Schmid-Araya, J.M. (2000) Invertebrate Recolonization Patterns in the Hyporheic Zone of a Gravel Stream. Limnology and Oceanography, 45, 1000-1005. http://dx.doi.org/10.4319/lo.2000.45.4.1000
[5]	Grimm, N.B., Valett, H.M., Stanley, E.H. and Fisher, S.G. (1991) Contribution of the Hyporheic Zone to the Stability of an Arid-Land Stream. Verhandlungen der Internationalen Vereinigung fur Theoretische und Angewandte Limnologie, 24, 1595-1599.
[6]	Valett, H.M., Fisher, S.G., Grimm, N.B. and Camill, P. (1994) Vertical Hydrologic Exchange and Ecological Stability of a Desert Stream Ecosystem. Ecology, 75, 548-560. http://dx.doi.org/10.2307/1939557
[7]	Grimm, N.B. and Fisher, S.G. (1984) Exchange between Interstitial and Surface Water: Implications for Stream Metabolism and Nutrient Cycling. Hydrobiologia, 111, 219-228. http://dx.doi.org/10.1007/BF00007202
[8]	Mulholland, P.J., Marzolf, E.R., Webster, J.R., Hart, D.R. and Hendricks, S.P. (1997) Evidence That Hyporheic Zones Increase Heterotrophic Metabolism and Phosphorus Uptake in Forest Streams. Limnology and Oceanography, 42, 443-451. http://dx.doi.org/10.4319/lo.1997.42.3.0443
[9]	Triska, F.J., Kennedy, V.C., Avanzino, R.J., Zellweger, G.W. and Bencala, K.E. (1989) Retention and Transport of Nutrients in a Third-Order Stream in Northwestern California: Hyporheic Processes. Ecology, 70, 1893-1905.
[10]	Wondzell, S.M. and Swanson, F.J. (1996) Seasonal and Storm Dynamics of the Hyporheic Zone of a 4th-Order Mountain Stream, I: Hydrologic Processes. Journal of the North American Benthological Society, 15, 3-19.
[11]	Thibodeaux, L.J. and Boyle, J.D. (1987) Bedform-Generated Convective Transport in Bottom Sediment. Nature (London), 325, 341-343. http://dx.doi.org/10.1038/325341a0
[12]	Elliott, A.H. and Brooks, N.H. (1997) Transfer of Nonsorbing Solutes to a Streambed with Bedforms; Laboratory Experiments. Water Resources Research, 33, 137-151. http://dx.doi.org/10.1029/96WR02783
[13]	Storey, R.G., Howard, K.W.F. and Williams, D.D. (2003) Factors Controlling Riffle-Scale Hyporheic Exchange Flows and Their Seasonal Changes in a Gaining Stream; A Three-Dimensional Groundwater Flow Model. Water Resources Research, 39, 1034. http://dx.doi.org/10.1029/2002WR001367
[14]	Matos, J.E.R., Welty, C. and Packman, A.I. (2003) Stream-Groundwater Interactions: The Influence of Aquifer Heterogeniety and Stream Meandering on 2-D and 3-D Hyporheic Exchange Flows. Proceedings of MODFLOW and More 2003: Understanding through Modeling, Integrated Ground Water Modeling Center, Golden, 47-50.
[15]	Cardenas, M.B., Wilson, J.L. and Zlotnik, V.A. (2004) Impact of Heterogeneity, Bed Forms, and Stream Curvature on Subchannel Hyporheic Exchange. Water Resources Research, 40, W08307. http://dx.doi.org/10.1029/2004WR003008
[16]	Munson, B., Young, D. and Okiishi, T. (1998) Fundamentals of Fluid Mechanics. 3rd Edition, John Wiley & Sons, Inc., New York.
[17]	Peterson, E.W. and Benning, C. (2013) Factors Influencing Nitrate Within a Low-Gradient Agricultural Stream. Environmental Earth Sciences, 68, 1233-1245. http://dx.doi.org/10.1007/s12665-012-1821-x
[18]	Beach, V. and Peterson, E.W. (2013) Variation of Hyporheic Temperature Profiles in a Low Gradient Third-Order Agricultural Stream—A Statistical Approach. Open Journal of Modern Hydrology, 3, 55-66. http://dx.doi.org/10.4236/ojmh.2013.32008
[19]	Peterson, E.W., Sickhert, T.B. and Moore, S.L. (2008) High Frequency Stream Bed Mobility of a Low-Gradient Agricultural Stream with Implications on the Hyporheic Zone. Hydrological Processes, 22, 4239-4248. http://dx.doi.org/10.1002/hyp.7031
[20]	Baker, V.R. and Ritter, D.F. (1975) Competence of Rivers to Transport Coarse Bedload Material. Geological Society of America Bulletin, 86, 975. http://dx.doi.org/10.1130/0016-7606(1975)86<975:CORTTC>2.0.CO;2
