Application of Synthetic Meteorological Time Series in BROOK90: A Case Study for the Tharandt Forest in Saxony, Germany

Abstract Full-Text HTML Download Download as PDF (Size:3330KB) PP. 214-225
DOI: 10.4236/ojmh.2013.34026    3,325 Downloads   5,562 Views   Citations

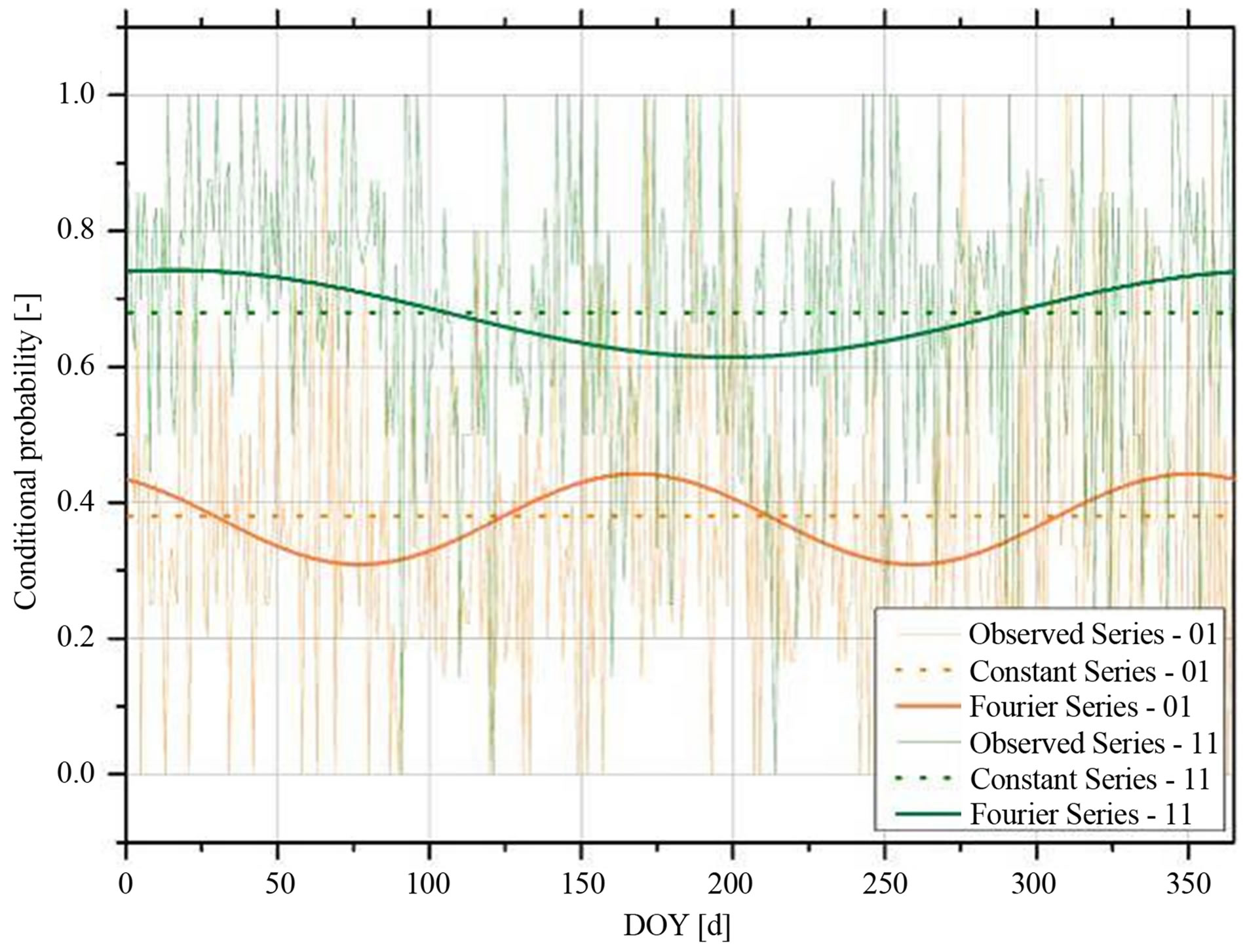

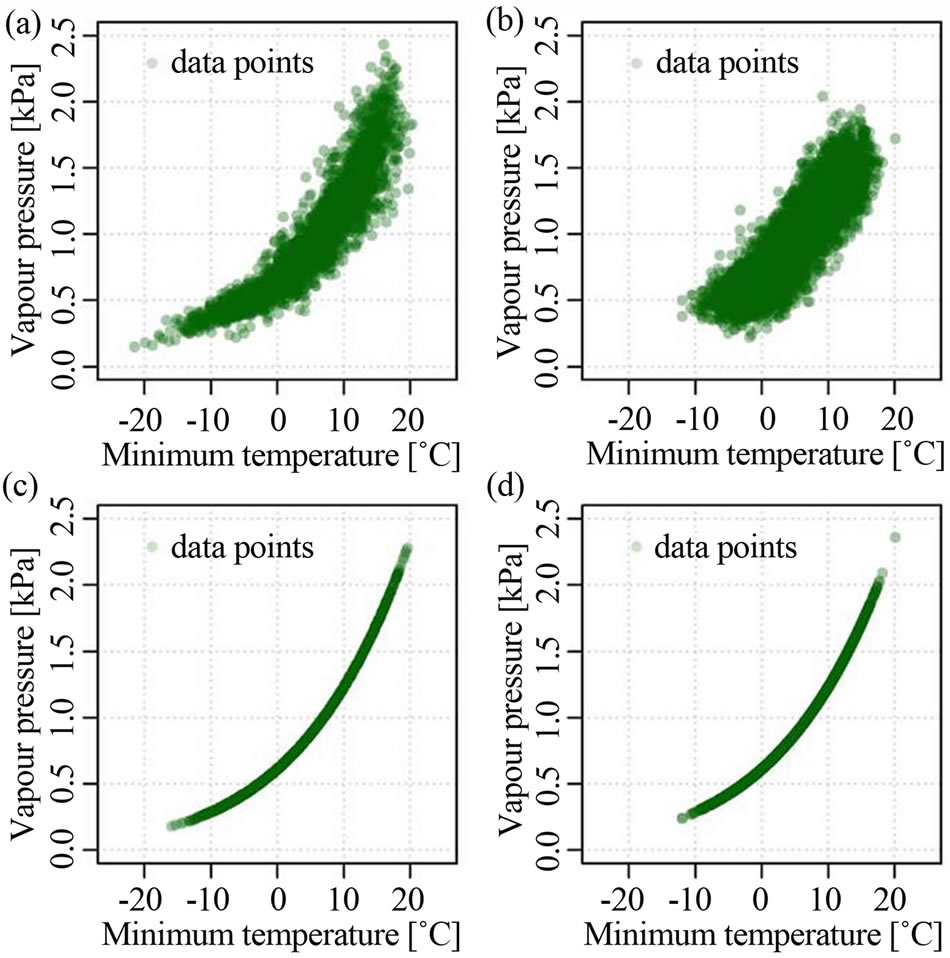

This study presents an extended version of a single site daily weather generator after Richardson. The model is driven by daily precipitation series derived by a first-order two-state Markov chain and considers the annual cycle of each meteorological variable. The evaluation of its performance was done by deploying its synthetic time series into the physical based hydrological model BROOK90. The weather generator was applied and tested for data from the Anchor Station at the Tharandt Forest, Germany. Additionally its results were compared to the output of another weather generator with spell-length approach for the precipitation series (LARS-WG). The comparison was distinguished into a meteoro-logical and a hydrological part in terms of extremes, monthly and annual sums and averages. Extreme events could be preserved adequately by both models. Nevertheless a general underestimation of rare events was observed. Natural correlations between vapour pressure and minimum temperature could be conserved as well as annual cycles of the hydro-logical and meteorological regime. But the simulated spectrums of extremes, especially, of precipitation and temperature, are more limited than the observed spectrums. While LARS-WG already finds application in practice, the results show that the data derived from the presented weather generator is as useful and reliable as those from the established model for the simulation of the water balance.

Cite this paper

K. Rico, G. Tino, F. Johannes and B. Christian, "Application of Synthetic Meteorological Time Series in BROOK90: A Case Study for the Tharandt Forest in Saxony, Germany," Open Journal of Modern Hydrology, Vol. 3 No. 4, 2013, pp. 214-225. doi: 10.4236/ojmh.2013.34026.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] DIN, “Drain and Sewer Systems outside Buildings,” Beuth-Verlag, Berlin, 2008.
[2] DWA, “Hydraulic Dimensioning and Verification of Drain and Sewer Systems,” Beuth-Verlag, Berlin, 2006.
[3] L. LeCam, “A Stochastic Theory of Precipitation. Proceedings of the 4th Berkley Symposium,” Mathematical Statistics and Probability, University of California Press, Berkley, 1961.
[4] K. R. Gabriel and J. Neumann, “A Markov Chain Model for Daily Rainfall Occurrences at Tel-Aviv,” Quarterly Journal of the Royal Meteorological Society, Vol. 88, No. 375, 1962, pp. 85-90.
[5] C. W. Richardson, “Stochastic Simulation of Daily Precipitation, Temperature and Solar Radiation,” Water Resources Research, Vol. 17, No. 1, 1981, pp. 182-190.
[6] D. Wilks and R. Wilby, “The Weather Generation Game: A Review of Stochastic Weather Models,” Progress in Physical Geography, Vol. 23, No. 3, 1999, pp. 329-357.
[7] J. P. Hughes, P. Guttorp and S. T. Charles, “A Non-Homogeneous Hidden Markov Model for precipitation Occurrence,” Applied Statistics, Vol. 48, No. 1, 1999, pp. 15-30.
[8] H. Chen, J. Guo, Z. Zhang and C.-Y. Xu, “Prediction of Temperature and Precipitation in Sudan and South Sudan by Using LARS-WG in Future,” Theoretical and Applied Climatology, Vol. 113, No. 3-4, 2012, pp. 363-375.
[9] A. Spekat, W. Enke and F. Kreienkamp, “New Development of Regional High Resoluted Circulation Patterns for Germany and Simulation of Regional Climate Scenarios with the Downscaling Model WETTREG on the Basis of Global Climate Simulations of ECHAM5/MPI-OM T63L31 2010 until 2100 for the SRES-Scenarios B1, A1B and A2,” Report, Umweltbundesamt, Berlin, 2007.
[10] B. Orlowsky, F.-W. Gerstengarbe and P. C. Werner, “A Resampling Scheme for Regional Climate Simulations and Its Performance Compared to a Dynamical RCM,” Theoretical and Applied Climatology, Vol. 92, No. 3-4, 2008, pp. 209-223.
[11] M. Safeeq and A. Fares, “Accuracy Evaluation of Clim-Gen Weather Generator and Daily to Hourly Disaggregation Methods in Tropical Conditions,” Theoretical and Applied Climatology, Vol. 106, No. 3-4, 2011, pp. 321-341.
[12] M. A. Semenov, R. J. Brook, E. M. Barrow and C. W. Richardson, “Comparison of the WGEN and LARS-WG Stochastic Weather Generators for Diverse Climates,” Climate Research, Vol. 10, No. 2, 1998, pp. 95-107.
[13] V. Y. Ivanov, R. L. Bras and D. C. Curtis, “A Weather Generator for Hydrological, Ecological, and Agricultural Applications,” Water Resources Research, Vol. 43, No. 10, 2007, pp. 1-21.
[14] M. Khalili, F. Brissette and R. Leconte, ”Effectiveness of Multi-Site Weather Generator for Hydrological Modeling,” Journal of the American water resources Association, Vol. 47, No. 2, 2011, pp. 303-314.
[15] J. Xia, “A Stochastic Weather Generator Applied to Hydrological Models in Climate Impact Analysis,” Theoretical and Applied Climatology, Vol. 55, No. 1-4, 1996, pp. 177-183.
[16] C. W. Richardson, “Weather Simulation for Crop Management Models,” Transactions of the American Society of Agricultural Engineers, Vol. 28, No. 5, 1985, pp. 1602-1606.
[17] C. A. Federer, C. Vorosmarty and B. Fekete, “Sensitivity of Annual Evaporation to Soil and Root Properties in Two Models of Contrasting Complexity,” Journal of Hydrometeorology, Vol. 4, No. 6, 2003, pp. 1276-1290.<1276:SOAETS>2.0.CO;2
[18] K. Mannsfeld and O. Bastian, “Landscape of Saxony— Catigorization of Manifold,” Landesverein Sochsischer Heimatschutz, Dresden, 2005.
[19] F. Haubrich, “The Tharandt Forest as Alegory of the Geology of Saxony,” Jahrestagung der Deutschen Boden-kundlichen Gesellschaft, Exkursionführer H5, Dresden, 2007.
[20] German Soil Science Society, “Soils without Borders— Anniversary of the German Soil Science Society, 02. bis 09. September 2007 in Dresden,” In: General Excursion Guide/ German Soil Science Society, 2007, Reports of the German Soil Science Society, Gottingen, 2007.
[21] P. Feger, K. Schwarzel, D. Menzer, C. Bernhofer, B. Kostner and F. Katzschner, “Anniversary of the German Soil Science Society—Soils without Borders, Dresden, Saxony, Germany,” Reports of the German Soil Science Society, Gottingen, 2007.
[22] H. Leser, “Diercke-Worterbuch Allgemeine Geographie,” Westermann, Braunschweig, 2005.
[23] C. Bernhofer, “Exkursions-und Praktikumsführer Tharandter Wald. Material zum ‘Hydrologisch-Meteorologischen Feldpraktikum’,” Tharandter Klimaprotokolle 6, TU Dresden, Dresden, 2005.
[24] T. Grünwald and C. Bernhofer, “A Decade of Carbon, Water and Energy Flux Measurements of an Old Spruce Forest at the Anchor Station Tharandt,” Tellus B, Vol. 59, No. 3, 2007, pp. 387-396.
[25] U. Spank, K. Schwarzel, M. Renner, U. Moderow and C. Bernhofer, “Effects of Measurement Uncertainties of Meteorological Data on Estimates of Site Water Balance Components,” Journal of Hydrology, Vol. 492, 2013, pp. 176-189.
[26] B. Sevruk, “Methodical Analysis of Systematic Measurement Errors of the Hellmann Rain Gauge for the Summer in Switzerland,” Versuchsanstalt für Wasserbau, Hydrologie u. Glaziologie, 1981.
[27] D. Richter, “Results of the Methodical Analysis of the Correction of Systematic Errors of the Hellmann Rain Gauge,” Selbstverlag des Deutschen Wetterdienstes, Offenbach am Main, 1995.
[28] H. Walter and H. Lieth, “Klimadiagramm-Weltatlas,” Gustav Fischer Verlag, Jena, 1967.
[29] J. Barron, J. Rockstrom, F. Gichuki and N. Hatibu, “Dry Spell Analysis and Maize Yields for Two Semi-Arid Locations in East Africa,” Agricultural and Forest Meteorology, Vol. 117, No. 1, 2003, pp. 23-37.
[30] N. Herrman, “Hohere Mathematik/für Ingenieure, Physiker und Mathematiker,” Oldenburg Verlag, München, Wien, 2007.
[31] M. A. Semenov and E. M. Barrow, “Use of a Stochastic Weather Generator in the Development of Climate Change Scenarios,” Climatic Change, Vol. 35, No. 4, 1997, pp. 397-414.
[32] M. S. Khan, P. Coulibaly and Y. B. Dibike, “Uncertainty Analysis of Statistical Downscaling Methods Using CGCM Predictors,” Hydrological Processes, Vol. 20, No. 14, 2006, pp. 3085-3104.
[33] S. Dyck and G. Peschke, “Grundlagen der Hydrologie,” Verlag für Bauwesen, Berlin, 1995.
[34] K. W. Hipel and A. I. McLeod, “Time Series Modelling of Water Resources and Environmental Systems,” Elsevier Scientific Publishing Company, Amesterdam, 1994.
[35] G. E. P. Box, G. M. Jenkins and G. C. Reinsel, “Time Series Analysis: Forecasting and Control,” Holden-Day, San Francisco, 1976.
[36] K. E. Taylor, “Summarizing Multiple Aspects of Model Performance in a Single Diagram,” Journal of Geophysical Research, Vol. 106, 2001, pp. 7183-7192.
[37] R. Kronenberg, K. Barfus, J. Franke and C. Bernhofer, “On the Downscaling of Meteorological Fields Using Recurrent Networks for Modelling the Water Balance in a Meso-Scale Catchment Area of Saxony, Germany,” Atmospheric and Climate Sciences, Vol. 3, No. 4, 2013, pp. 552-561.
[38] R. Kronenberg, J. Franke and C. Bernhofer, “Comparison of Different Approaches to Fit Log-Normal Mixtures on Radar-Derived Precipitation Data,” Meteorological Applications, Wiley Online Library, 2013.
[39] D. Lisniak, J. Franke and C. Bernhofer, “Circulation Pattern Based Parameterization of a Multiplicative Random Cascade for Disaggregation of Daily Rainfall under Non-stationary Climatic Conditions,” Hydrology and Earth System Sciences, Vol. 17, No. 7, 2013, pp. 2487-2500.
[40] D. Wilks, “Stochastic Weather Generators for Climate-Change Downscaling, Part II: Multivariable and Spatially Coherent Multisite Downscaling,” Climate Change, Vol. 3, No. 3, 2012, pp. 267-278. 10.1002/wcc.167
