Effect of Rotation, Magnetic Field and Initial Stresses on Propagation of Plane Waves in Transversely Isotropic Dissipative Half Space ()

Sushant Shekhar, Imtiyaz A. Parvez

Academy of Scientific and Innovative Research, New Delhi, India;CSIR Center for Mathematical Modelling and Computer Simulation, NAL Belur Campus, Bangalore, India.

**DOI: **10.4236/am.2013.48A015
PDF
HTML XML
6,149
Downloads
8,813
Views
Citations

Academy of Scientific and Innovative Research, New Delhi, India;CSIR Center for Mathematical Modelling and Computer Simulation, NAL Belur Campus, Bangalore, India.

The problem regarding the reflection of plane waves in a transversely isotropic dissipative medium is considered, in which we are studying about the reflection of incidence waves in initially stressed dissipative half space. After solving the governing equations, we find the two complex quasi-*P* (*qP*) and quasi-*SV* (*qSV*) waves. The occurrence of reflected waves is studied to calculate the reflection coefficient and the energy partition of incidence wave at the plane boundary of the dissipative medium. Numerical example is considered for the reflection coefficient and the partition of incident energy, in which we study about the effect of rotation, initial stresses and magnetic field.

Share and Cite:

Shekhar, S. and Parvez, I. (2013) Effect of Rotation, Magnetic Field and Initial Stresses on Propagation of Plane Waves in Transversely Isotropic Dissipative Half Space. *Applied Mathematics*, **4**, 107-113. doi: 10.4236/am.2013.48A015.

1. Introduction

In recent years, most of the researchers are interested to solve the problems related to electrically conducting elastic media permeated by uniform magnetic fields. The seismic wave propagation has been used for various studies related to magneto-elasticity on the Earth’s mantle and cores. By the knowledge related to reflection and refraction, the plane waves are the source of information used to image the Earth’s interior. Dissipation of the medium depends upon the internal structure. The initial stress in the medium may be developed due to some reasons such as slow process of creep, gravity, external forces, difference in temperature, etc.

Problem related to plane waves in transversely isotropic medium is very important for the possible application in various branches of science and technology such as earthquake science, acoustic, geophysics and optics etc. Biot [1] observed that the initial stresses have notable effect on the propagation on elastic waves in a medium. The problem related to reflection and refraction of elastic waves from the boundaries of different media has been discussed in the famous book by Achenbach [2]. Borejko [3] introduced the reflection and transmission coefficients for three dimensional plane waves in elastic media. By using the Biot’s theory [4] several researchers [5-9] have studied extensively the propagation of elastic waves. The problem related to reflection and refraction of qP and qSV waves at the interface of Fiber-reinforced medium has been discussed by Chattopadhyay and Venkateswarlu [10]. A huge amount of mathematical work has been performed for the propagation of elastic waves in dissipative medium; see for instance [11-14]. The problem related to thermo-magneto-dynamic stresses and perturbation of magnetic field vector in a non-homogeneous hollow cylinder has been studied by Kong et al. [15].

In the present study, we have used the Biot’s incremental deformation theory [4] for deriving the algebraic expressions of the reflection coefficients and energy ratios when plane waves of qP and qSV type are incident on the initially stressed dissipative half-space with stress free boundaries. The dispersion equations for reflection coefficients and energy ratios of incident qP and qSV waves on the free surface of the initially stressed dissipative medium have been derived and observed that in presence of initial stresses, magnetic field and rotation of the medium must affect the reflection coefficients and energy shares of reflected plane waves.

2. Formulation of the Problem

We consider the medium is a perfect electric conductor. The Maxwell’s equations of electromagnetic field for perfectly conducting elastic medium are given by Raychoudhuri and Banerjee [7].

(1)

where, is the Hamilton’s operator, is the magnetic permeability, is the current density vector, and are the induced electric field and the induced magnetic field both are developed due to application of initial magnetic field

We consider a transversely isotropic dissipative half space rotating about y-axis under constant magnetic field (along y-axis) and initial compressive stress P along x-axis (Figure 1).

The equations of motion in x-z plane for the present problem may be written in the forms, given by Biot [1,4]

(2)

where is density, is the rotational component and are incremental stress tensor in x-z plane.

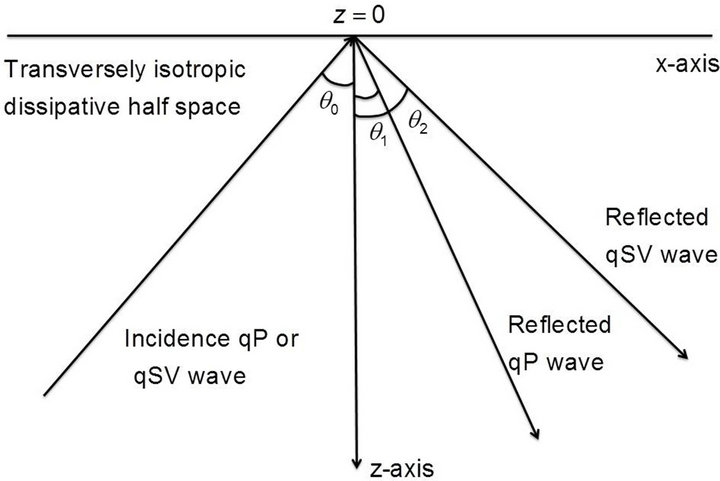

Figure 1. Geometry of the problem.

The stress-strain relation for transversely isotropic medium can be given by Biot [1]

(3)

where are the elastic coefficients.

For dissipative medium, the elastic coefficients must be of complex constants, can be written as

(4)

where are all real constants.

The incremental strain components are related to the displacement components which are given by the relation

(5)

Let the harmonic solution of Equation (2), for the propagation of plane waves, the displacement components are written as follows:

(6)

Where the index is assigns an arbitrary direction of propagation of the plane waves. are cosine of angle made by direction of propagation with the normal (z-axis), are the component of unit displacement vector, is the arbitrary constant and v_{n} and k_{n} are the velocity of propagation and corresponding wave number.

Substituting Equation (6) in (2) with the help of Equations (3)-(5) then we get the velocities correspond to quasi-P(qP) and quasi-SV(qSV) wave respectively.

(7)

(8)

For non-trivial solution of Equations (7) and (8), the determinant must be equal to zero. That gives two values of which are given by

(9)

(10)

where

The real and imaginary parts of Equations (9) and (10) represents the phase velocities and damping velocities of qP and qSV waves, respectively. From the Equations (9) and (10), we can say that both v_{P} and v_{SV} depend on initial stresses, rotation, magnetic field, damping and direction of propagation Also relation between the unit displacement vectors can be given as

. (11)

3. Reflection of Plane Waves from Stress Free Surface

We consider an initially stressed rotating magneto-elastic transversely isotropic dissipative half space absorbing the region In this section, we are discussing about the reflection coefficients for incident qP and qSV waves.

The displacement components of solid particles in transversely isotropic dissipative medium due to presence of an incidence wave and reflected waves are expressed as follows:

(12)

We are assuming the superscript for incident qP and qSV waves, (1) for reflected qP waves and (2) for reflected qSV waves.

The boundary conditions for the free surfaces are vanishing of incremental boundary forces. So, the two boundary conditions required to be satisfied at the plane are

(13)

Equation (13) can be written as

(14)

Equation (12) will satisfy the boundary conditions (14), if the following Snell’s law holds

(15)

with the relations

(16)

where

(17)

The amplitude ratios for incidence qP and qSV waves can be given by

(18)

The real part of Equation (18) allow to determine the reflection coefficients of the reflected qP and qSV waves at a given incident qP and qSV waves. The reflection coefficients are denoted by Z_{PP} (the incident qP wave is reflected as the qP wave), Z_{PS} (the incident qP wave is reflected as the qSV wave), Z_{SP} (the incident qSV wave is reflected as the qP wave) and Z_{SS} (the incident qSV wave is reflected as the qSV wave).

4. Energy Ratios

We are considering the surface element of unit area at the half space Our main purpose is to calculate the distribution of energy (of the incident wave) among the two reflected waves on this half space. Following Achenbach [2], the rate at which the incident energy transmitted per unit area is given by the scalar product of surface traction and particle velocity denoted by The time average of over a period, denoted by represents the average energy transmission per unit area per unit time.

The average energy flux, for a given surface with normal along z-direction is represented through the components is given by

(19)

The distribution of incident energy is given in the form of a matrix at the free surface of the dissipative medium.

(20)

The element of matrix is defined as follows:

(21)

where bar over entity implies complex conjugate. The sum of all non-diagonal entries of this matrix calculates the share of interaction energy in the medium. The diagonal entries E_{11} and E_{22} of the matrix (Equation (20)) denote the energy shares of reflected qP and qSV waves in the incident energy. The energy due to interaction between incident wave and two reflected waves is given by

The energy due to the interaction among the two reflected waves is given by

The conservation of the energy at the free-surface is given by the relation.

(22)

5. Numerical Results and Discussion

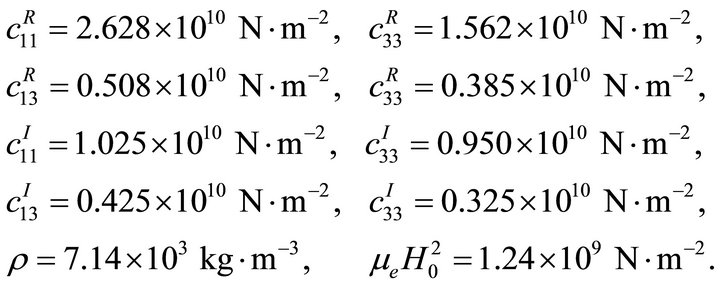

Material parameter for copper-alloy is chosen for the numerical model of magneto-elastic medium. The elastic and dynamic constants are given by [8,11]

The given values of various parameters are used to calculate the complex velocities (qP and qSV waves) reflection coefficients (Z_{PP}, Z_{PS}, Z_{SP} and Z_{SS}) and energy shares (E_{11}, E_{22}, E_{IR} and E_{RR}) in the dissipative medium. The variation of reflection coefficients and Energy ratios with angle of incidence (θ) are shown in Figures 2-5 (for incidence qP wave) and in Figures 6-9 (for incidence qSV wave).

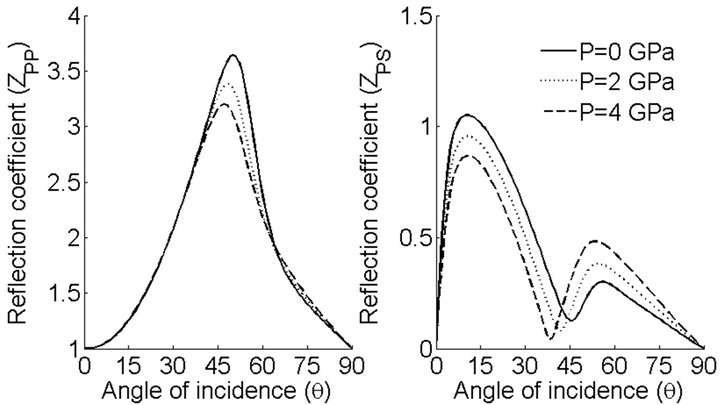

Figure 2. Reflection coefficients of qP and qSV waves with variations in incident angle (θ) and initial stress P for incident qP wave.

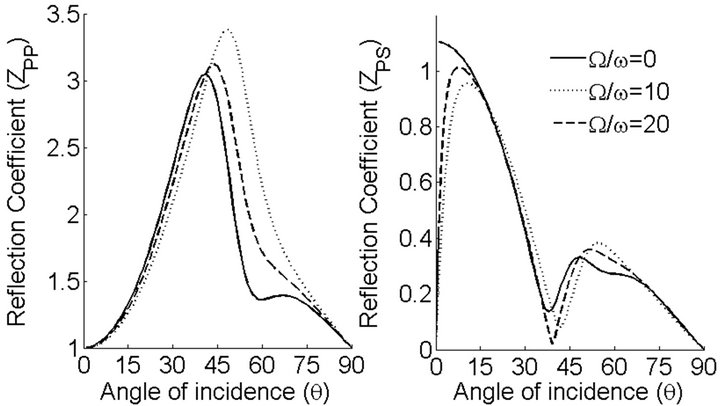

Figure 3. Reflection coefficients of qP and qSV waves with variations in incident angle (θ) and Effect of rotation parameter for incident qP wave.

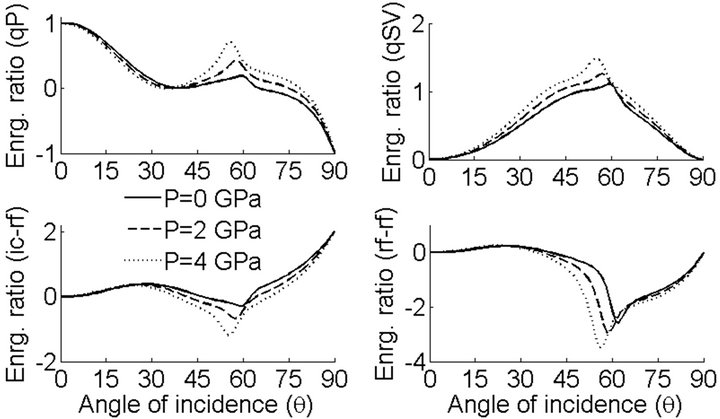

Figure 4. Energy shares of reflected (qP, qSV) waves, incident and reflected waves interaction and interaction among reflected waves, variations with incident angle (θ) and Initial stress (P) for incident qP wave.

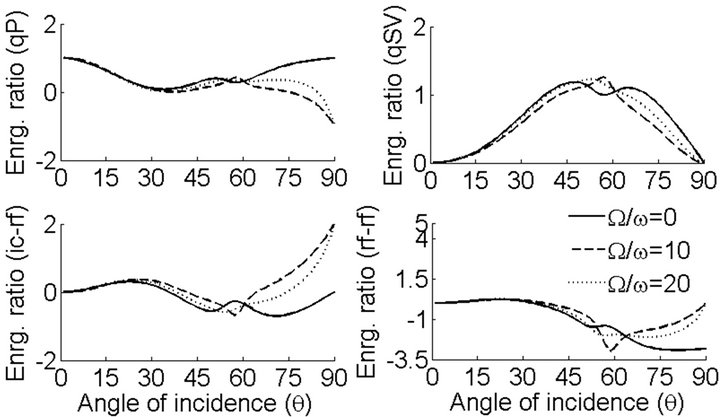

Figure 5. Energy shares of reflected (qP, qSV) waves, incident and reflected waves interaction and interaction among reflected waves, variations with incident angle (θ) and rotational parameter for incident qP wave.

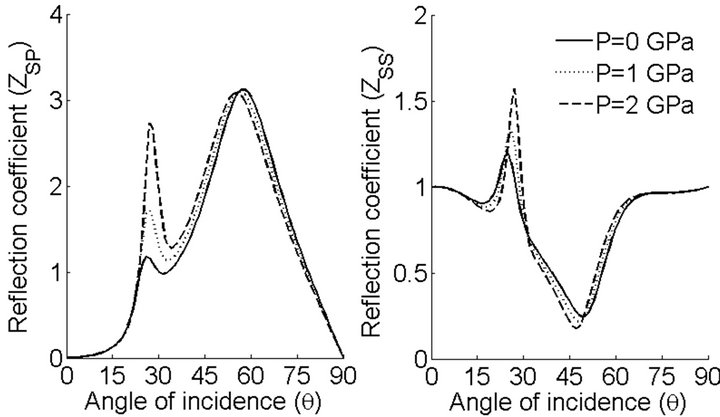

Figure 6. Reflection coefficients of qP and qSV waves with variations in incident angle (θ) and initial stress (P) for incident qSV wave.

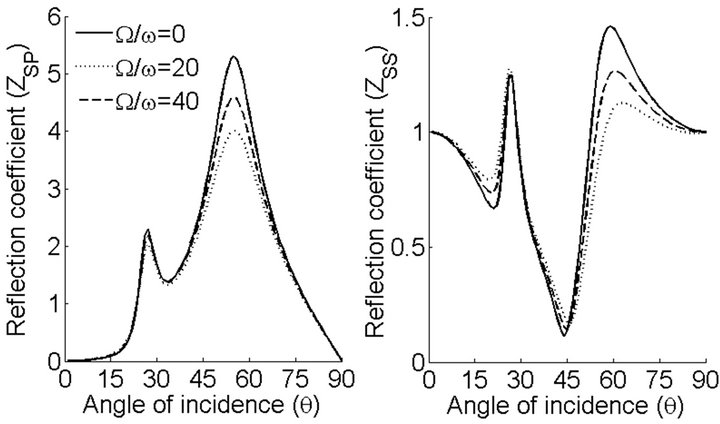

Figure 7. Reflection coefficients of qP and qSV waves with variations in incident angle (θ) and Effect of rotation parameter for incident qSV wave.

Figure 2 shows that the variation in the reflection coefficients (Z_{PP} and Z_{PS}) with respect to angle of incidence (θ) for different values of initial stress (P). The comparison of the solid and dashes lines shows that the reflection coefficients Z_{PP} and Z_{PS} change in presence of initial stresses for each angle of incidence of qP wave except grazing incidence. The effect of initial stresses is mini-

Conflicts of Interest

The authors declare no conflicts of interest.

[1] | M. A. Biot, “The Influence of Initial Stress on Elastic Waves,” Journal of Applied Physics, Vol. 11, No. 8, 1940, pp. 522-530. doi:10.1063/1.1712807 |

[2] | J. D. Achenbach, “Wave Propagation in Elastic Solids,” North-Holland Pub. Co., New York, 1973. |

[3] | P. Borejko, “Reflection and Transmission Coefficients for Three-Dimensional Plane Waves in Elastic Media,” Wave Motion, Vol. 24, No. 4, 1996, pp. 371-393. doi:10.1016/S0165-2125(96)00026-1 |

[4] | M. A. Biot, “Mechanics of Incremental Deformation,” Wiley, New York, 1965. |

[5] | S. Dey and D. Dutta, “Propagation and Attenuation of Seismic Body Waves in Initially Stressed Dissipative Me dium,” Acta Geophysica, Vol. 46, No. 3, 1998, pp. 351-366. |

[6] | R. W. Ogden and D. Sotirropoulos, “Reflection of Plane Waves from the Boundary of a Pre-Stressed Compressi ble Elastic Half-Space,” IMA Journal of Applied Mathe matics, Vol. 61, No. 1, 1998, pp. 61-90. doi:10.1093/imamat/61.1.61 |

[7] | S. K. Roychoudhuri and S. Banerjee, “Magneto-Thermo elastic Interaction in an Infinite Viscoelastic Cylinder of Temperature-Rate Dependent Material Subjected to a Pe riodic Loading,” International Journal of Engineering Science, Vol. 36, No. 5-6, 1998, pp. 635-643. doi:10.1016/S0020-7225(97)00096-7 |

[8] | M. D. Sharma, “Effect of Initial Stress on Reflection at the Free Surfaces of Anisotropic Elastic Medium,” Journal of Earth System Science, Vol. 116, No. 6, 2007, pp. 537-551. doi:10.1007/s12040-007-0049-8 |

[9] | R. D. Tooly, T. W. Spencer and H. F. Sagoci, “Reflection and Transmission of Plane Compressional Waves,” Geo physics, Vol. 30, No. 4, 1965, pp. 552-570. doi:10.1190/1.1439622 |

[10] | A. Chattopadhyay and R. L. K. Venkateswarlu, “Reflec tion and Refraction of Quasi P and SV Waves at the In terface of Fiber-Reinforced Media,” Advanced Studies in Theoretical Physics, Vol. 1, No. 2, 2007, pp. 57-73. |

[11] | A. N. Norris, “Propagation of Plane Waves in a Pre Stressed Elastic Media,” Journal of the Acoustical Society of America, Vol. 74, No. 5, 1983, pp. 1642-1643. doi:10.1121/1.390131 |

[12] | B. Singh and J. Arora, “Reflection of Plane Waves from a Free Surface of an Initially Stressed Transversely Iso tropic Dissipative Medium,” Applied Mathematics, Vol. 2, 2011, pp. 115-125. |

[13] | B. Singh and J. Arora, “Reflection of Plane Waves from Free Surface of an Initially Stressed Rotating Orthotropic Dissipative Solid Half Space,” Engineering, Vol. 4, No. 3, 2012, pp. 170-175. doi:10.4236/eng.2012.43022 |

[14] | M. M. Selim, “Reflection of Plane Waves at Free Surface of an Initially Stressed Dissipative Medium,” World Academy of Science, Engineering and Technology, Vol. 30, 2008, pp. 120-127. |

[15] | T. Kong, D. X. Li and X. Wang, “Thermo-Magneto-Dy namic Stresses and Perturbation of Magnetic Field Vector in a Non-Homogeneous Hollow Cylinder,” Applied Ma thematical Modelling, Vol. 33, No. 11, 2009, pp. 2939-2950. doi:10.1016/j.apm.2008.10.003 |
