High-Pressure Raman Study on Anglesite

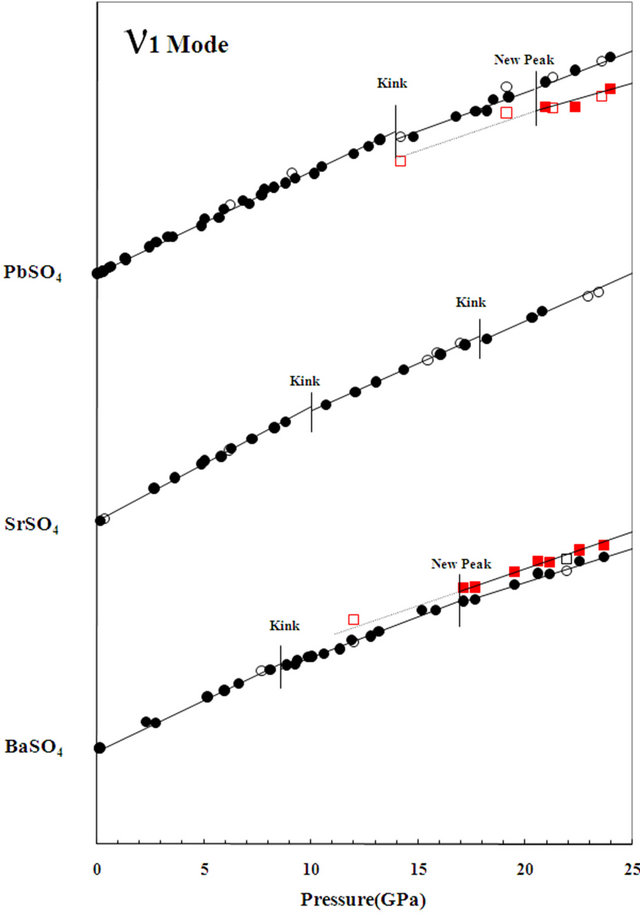

High-pressure Raman spectroscopic experiments of anglesite, PbSO4, were carried out in a diamond anvil cell up to about 35 GPa at room temperature. Two stages of changes in the pattern of wavenumber-versus-pressure plot were observed in most of the vibrational modes. The first stage of change is the kink in the slope of wavenumber-versus-pressure plot at about 14 GPa, indicating a change in the force constant of modes. Further compression up to 21 GPa causes the splitting in the S-O stretching modes, representing the distortion of SO4 tetrahedron. The behavior of transition observed in PbSO4 is similar to that of BaSO4 as well as those found in the solid solution series of BaSO4-SrSO4. Transitions taking place at higher pressure for anglesite is due to the relatively greater value of electronegativity for Pb2+, as compared with M2+ in other complex compounds of similar structure.


Share and Cite:

P. Lee, E. Huang, S. Yu and Y. Chen, "High-Pressure Raman Study on Anglesite," World Journal of Condensed Matter Physics, Vol. 3 No. 1, 2013, pp. 28-32. doi: 10.4236/wjcmp.2013.31005.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] E. Huang, J. Xu, J. F. Lin and J. Hu, “Pressure-Induced Phase Transitions in Gypsum,” High Pressure Research, Vol. 17, No. 1, 2000, pp. 57-75. doi:10.1080/08957950008200306
[2] P. L. Lee, E. Huang and S. C. Yu, “Phase Diagram and Equations of State of Barite, BaSO4,” High Pressure Research, Vol. 21, No. 2, 2001, pp. 67-77. doi:10.1080/08957950108201005
[3] P. L. Lee, E. Huang and S. C. Yu, “High-Pressure Raman and X-Ray Studies of Barite, BaSO4,” High Pressure Research, Vol. 23, No. 4, 2003, pp. 439-450. doi:10.1080/0895795031000115439
[4] E. Huang, R. J. Chen, A. Li, T. Yamanaka and J. Xu, “High Pressure Phase Transition in Al (OH)3: Raman and X-Ray Observations,” Geophysical Research Letters, Vol. 23, No. 22, 1996, pp. 3083-3086. doi:10.1029/96GL03023
[5] E. Huang, J. F. Lin, J. Xu, T. Huang, Y. C. Jean and H. S. Sheu, “Compression Studies of Gibbsite and Its High-Pressure Polymorph,” Physics and Chemistry of Minerals, Vol. 26, No. 7, 1999, pp. 576-583. doi:10.1007/s002690050221
[6] R. W. James and W. A. Wood, “The Crystal Structure of Barite, Celestite and Anglesite,” Proceedings of the Royal Society, Vol. 109A, No. 752, 1925, pp. 598-620.
[7] J. S. Lee and S. C. Yu, “A Study of Hokutolite Synthesis and Its Mineralogical Implications to Natural Occurrences,” Journal of the Geological Society of China, Vol. 39, No. 3, 1996, pp. 223-234.
[8] B. Takano, M. Yanagisawa and K. Watanuki, “Structure Gap in BaSO4-PbSO4 Solid Solution Series,” Mineralogical Journal, Vol. 6, No. 1, 1969, pp. 159-171.
[9] Y. H. Chen, E. Huang, S. C. Yu and P. L. Lee, “Raman Spectroscopy and X-Ray Diffraction Studies on Celestite,” Physica B: Condensed Matter, Vol. 405, No. 20, 2010, pp. 4386-4388.
[10] Y. H. Chen, E. Huang and S. C. Yu, “High-Pressure Raman Study on the BaSO4-SrSO4 Series,” Solid State Communications, Vol. 149, No. 45-46, 2009, pp. 20502052. doi:10.1016/j.ssc.2009.08.023
[11] H. R. Wang, “The Study on the Flux Growth Method of Hokutolite Crystals,” MS Thesis, National Chen-Kung University, Tainan, 1998, p. 59.
[12] W. P. Griffith, “Raman Spectroscopy of Minerals,” Nature, Vol. 224, No. 5216, 1969, pp. 264-266.
[13] H. K. Mao, J. Xu and P. M. Bell, “Calibration of the Ruby Pressure Gauge to 800 Kbar under Quasi-Hydrostatic Conditions,” Journal of Geophysical Research, Vol. 91, No. 135, 1986, pp. 4673-4676.
[14] P. Dawson, M. M. Hargreave and G. R. Wilkinson, “Polarized IR. Reflection, Absorption and Laser Raman Studies on a Single Crystal of BaSO4,” Spectrochimica Acta, Vol. 33A, No. 2, 1977, pp. 83-93.
[15] M. Miyake, I. Minato, H. Morikawa and S. I. Iwai, “Crystal Structures and Sulphate Constants of Barite, Celestite, and Anglesite,” American Mineralogist, Vol. 63, No. 5-6, 1978, pp. 506-510.
[16] S. D. Jacobsen, J. R. Smyth, R. J. Swope and R. T. Downs, “Rigid-Body Character of the SO4 Groups in Celestite, Anglesite and Barite,” Canadian Mineral, Vol. 36, No. 4, 1998, pp. 1053-1060.
