A New Current-Controlled-Power Technique for Small Signal Applications

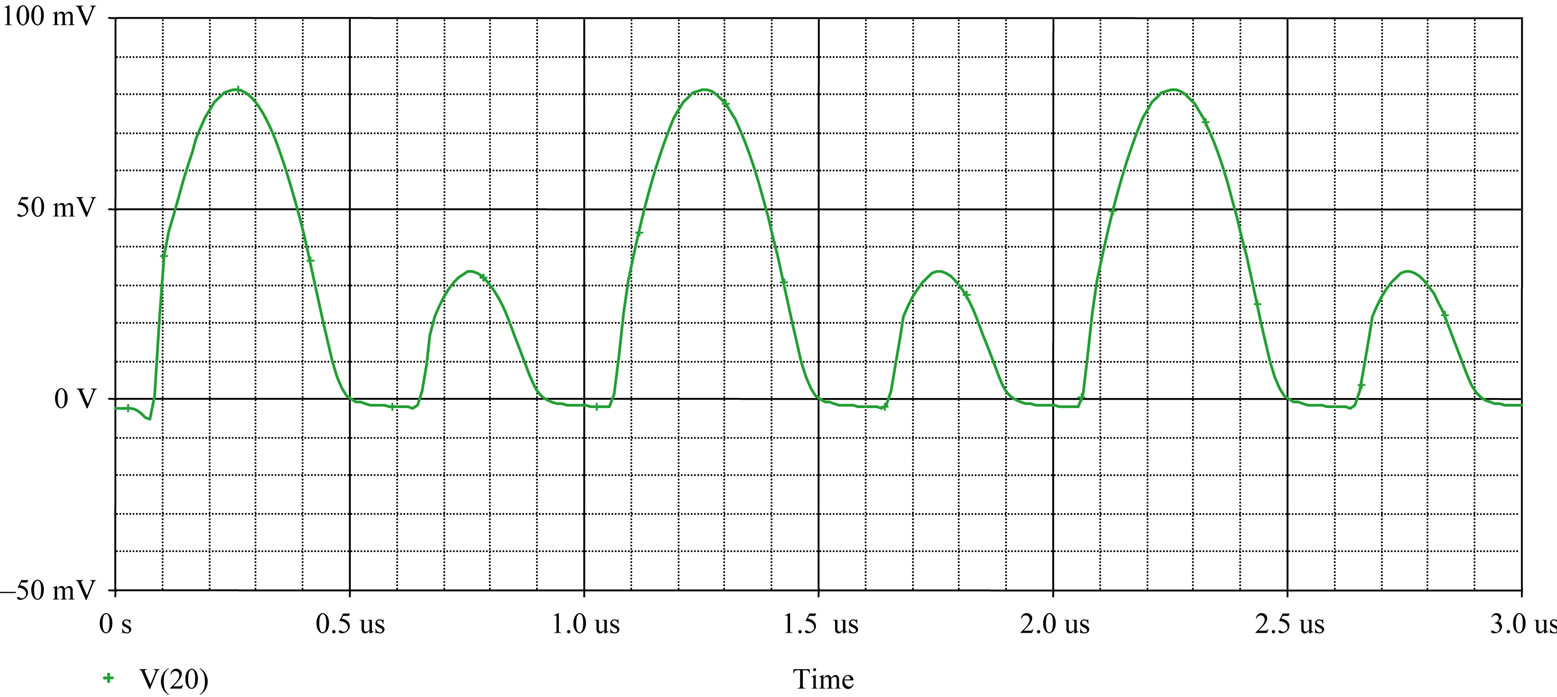

In this paper, a new current-controlled-power technique for small signal applications is presented. The proposed technique needs no passive devices (a resistor and a capacitor) but the well-known SCR technique needs, thus the proposed technique is very suitable for an IC process. An example application as a new current-controlled-power CMOS fullwave rectifier is also given. The example application is simulated by using the SPICE program. Simulation results show that the proposed technique can work well; the controlled-current from 0 μA to 5.5 μA produces the peak area amplitude from 100 mV to 0 mV to the load.

Share and Cite:

A. Monpapassorn, "A New Current-Controlled-Power Technique for Small Signal Applications," Circuits and Systems, Vol. 3 No. 2, 2012, pp. 161-165. doi: 10.4236/cs.2012.32021.

Conflicts of Interest

The authors declare no conflicts of interest.


[1] G. B. Rutkowski and J. E. Oleksy, “Solid-State Electronics,” McGraw-Hill, Singapore, 1992.
[2] A. Hastings, “The Art of Analog Layout,” Prentice-Hall, Upper Saddle River, 2006.
[3] B. Razavi, “Design of Analog CMOS Integrated Circuits,” McGraw-Hill, Singapore City, 2001.
[4] F. W. Hughes, “Op Amp Handbook,” Prentice-Hall, Upper Saddle River, 1993.
[5] E. Bruun, “CMOS High Speed, High Precision Current Conveyor and Current Feedback Amplifier Structures,” International Journal of Electronics, Vol. 74, No. 1, 1993, pp. 93-100. doi:10.1080/00207219308925816
[6] Z. Wang, “2-MOSFET Transresistor with Extremely Low Distortion for Output Reaching Supply Voltages,” Electronics Letters, Vol. 26, No. 13, 1990, pp. 951-952. doi:10.1049/el:19900620
[7] D. Johns and K. Martin, “Analog Integrated Circuit Design,” John Wiley & Sons, New York, 1997.
