Antennal epicuticular structure of camel crickets (Orthoptera: Rhaphidophoridae) for identifying the prey of Mustella sibrica Pallas

Abstract

Camel crickets (Orthoptera: Rhaphidophoridae) are a group of wingless and humpbacked Orthopteran insects. They are closed relatives to katydids and crickets; they were called spider crickets somewhere because of their long legs. Camel cricket plays an important role in the food web in various ecosystems. In the forest ecosystem, they live in the ground level of forestry under litters and fallen leaves, and some of them live beneath the log and hid themselves under loosen tree barks. They feed on decomposing organic substances and serve as decomposers in the food chain. It is a very common insect prey to insectivorous animals in natural and artificial vegetation. Guandaushi (GDS) is the experimental forest station of National Chung Hsing University, as the study site of long term ecological research (LTER) in Taiwan. And the camel cricket became an important subject and a dominant insect group in the LTER studies. They are the major parts of the insect preys of vertebrates, especially to the insectivorous mammals. According to our previous publication, 32.2% of the insect preys of Mustela sibirica Pallas are camel crickets in GDS forest ecosystem. There were 5 morpho-species of camel crickets by the characters of antennal epicuticular characters. The camel cricket was collected from various ways according to the LTER study during 1995-1998. The morphology of antennal epicuticular structure from totally 60 individuals was observed by using SEM. The epicuticular sculpture was described and classified into Type I and Type II by the SEM photographs. Type I has 8 patterns and Type II has 5 patterns in this study. The illustration and the pictorial key were provided here as the tool for further application. The morpho-species could not be identified due to the remainder being fragmented while examined. After the study, the SEM antennal epicuticular structures were classified and identified based upon the antennae sample of the morphospecies from the specimens of the 5 camel crickets which were collected from GDS forest ecosystem in this study. This is a part of the fundamental study for the protocol of ecosystem study. The protocol for identifying the insectivorous animal’s prey by the insect fragment of food remainders is necessary. One more, there were 7 of the 13 patterns of antennal epicuticular structure applied to analysis the 5 morpho-species provided as the case study for taxonomy.

Share and Cite:

Hu, C. , Yang, J. and Tu, W. (2014) Antennal epicuticular structure of camel crickets (Orthoptera: Rhaphidophoridae) for identifying the prey of Mustella sibrica Pallas. Advances in Entomology, 2, 1-7. doi: 10.4236/ae.2014.21001.

1. INTRODUCTION

The surfaces of insect antennae with various structures, such as sensory organs, hairs setae etc. are important and good characters to taxonomy. We used to describing some special and distinguishable structure applied as good diagnostic characters for the identification. There are many previous studies reported on antennal sensory plaque organs in the taxonomy and phylogeny of fulgoroidea of homoptera[1,2]. And recently, antennal sensory organ classified and evaluated as the taxonomic characters of nocturnal moth by SEM photography is published by our team [3]. Antennal epicuticular structure has been served as insect taxonomic character since long time ago, but not until the practice of the techniques of SEM and TEM, the ultra fine structure becomes possible in many other studies. In general, the number and the position or distribution type of cuticular receptors were used as important characters or land marks structures while studying on antennal morphology[4,5]. The identification using antennal structure is fairly common in identifying some groups of insects such as thrips, spring tails, dipterans etc., but not so common in identifying the fragments which mixed in the inclusion of food remainders pieces by pieces from mammal’s digestive ducts or the animal feces. This paper is an application of insect integument structure for investigating the prey of insectivorous animals. Moreover, to establish the character library in such detail, fine scale is special for identifying the fragmented pieces of remainders obtained from the mammal’s digestive ducts or their feces.

Camel crickets, Rhaphidophoridae belonging to Orthopteraarea group of middle size insects in Taiwan;the body size in general, is about 30mm in length. Filiform antennae are about 3-5 times longer than body length. Most camel crickets are humpbacked, and both male and female are wingless. The habitats of them are known as living on damp humus, and sometimes in rock caves or tree caves as well. Camel crickets are scavengers or saprophagous[6].

According to Yang etal. [7] and Hu [8], the most parts of insect fragments in the feces of MustelasibiricaPallas, 1977 (Carnivora: Mustelidae) and in digestive tracts of Crociduratadaekurodai Jameson & Jones, 1977 (Insectivora: Soricidae) are Rhaphidophoridae in Guandaushi forest ecosystem. Obviously, camel crickets are significant keystone species for insectivorous mammals in GDS forest ecosystem. This study will be very helpful in such food chain or food web investigation to analyze the trophic circulation in the ecosystem.

2.MATERIALS AND METHODS

The study was conducted at the Guandaushi forest (24˚04'N, 121˚01'E), Huisun Experimental Forest Station of National Chung Hsing University, Nantou. The camel crickets specimens were collected by pitfall traps (24×15×11cm) and fragments were collected from the feces of Mustelasibirica Pallas, 1977 (Carnivora: Mustelidae) while the Long Term Ecological Research investigated the insectivores animal’s prey insects (Table 1). All the possible specimens became as available in this study. We tend to provide the taxonomic identification tools for the applied entomological study in the future.

Preparation: The procedures for preparing to collect the antennal of camel cricket are described as following.

1) Antennal Sample: Cutting off 5-10 segment of antenna from the individual specimen which was collected from field by pitfall trap, and put into 70% alcohol solution for temporality preservation.

2) Cleaning: Ultrasonic (43 KHz) for 15 minutes to clean up the specimens to get rid of the contamination on the surface.

3) Dehydration: A gradient series of acetone and alcohol (70%, 85%, and 100%) at room temperature for dehydration.

4) Coating: Using gold in each specimen.

5) Observation: SEM (TOPCON ABT-150s) applied for this study.

Measurement: The measuring parts and the landmarks of the process or producing on the antennal surface are shown in Figures 1 and2. The surface and the face of electronic gun of SEM should be parallel to each other to prevent from the projection of the SEM photographs. The method followed previous study of Yang and Yen (2001) for sure the metric character is technically useful and reasonable.

3.RESULTS AND DISCUSSION

Five morpho-species of camel crickets have been found in this study (Table 1). However, it does not mean that there are 5 species of camel cricket in the LTER site, GDS subtropical forest ecosystem, Taiwan. The morphology of antennal epicuticular structure was observed by using SEM.

Totally 60 individuals were examined and described as detail as possible for the potential usage of the insectivores animal’s prey study in the future. There were 13 patterns of antennal epicuticular structure discriminated from the various surface structures. They were classified as two main groups, Type I the lobe-like and Type II the setae-like. The lobe-like group, Type I including 8 types were subdivided into 2 subgroups: complete lobe (Type I a-1) and separate lobes (Type I b-1). The setae-like group, Type II including 5 patterns was divided into 3 subgroups, i.e., short setae-like, long ridged setae-like and needle-like surface sculptures. The arrays of the surface sculpture were distinguished and described as linear, reticular and sinuate types. This result will make the application of insect fragments identification for investigating the insectivore animal’s prey became as possible and easier.

The patterns and array types of epicuticular structure could be the significant character sets for identifying camel crickets in GDS forest ecosystem. The key to types of antennal epicuticular structure of camel crickets in this study is provided in the following section (key to types and patterns of antennal epicuticular structure of camel

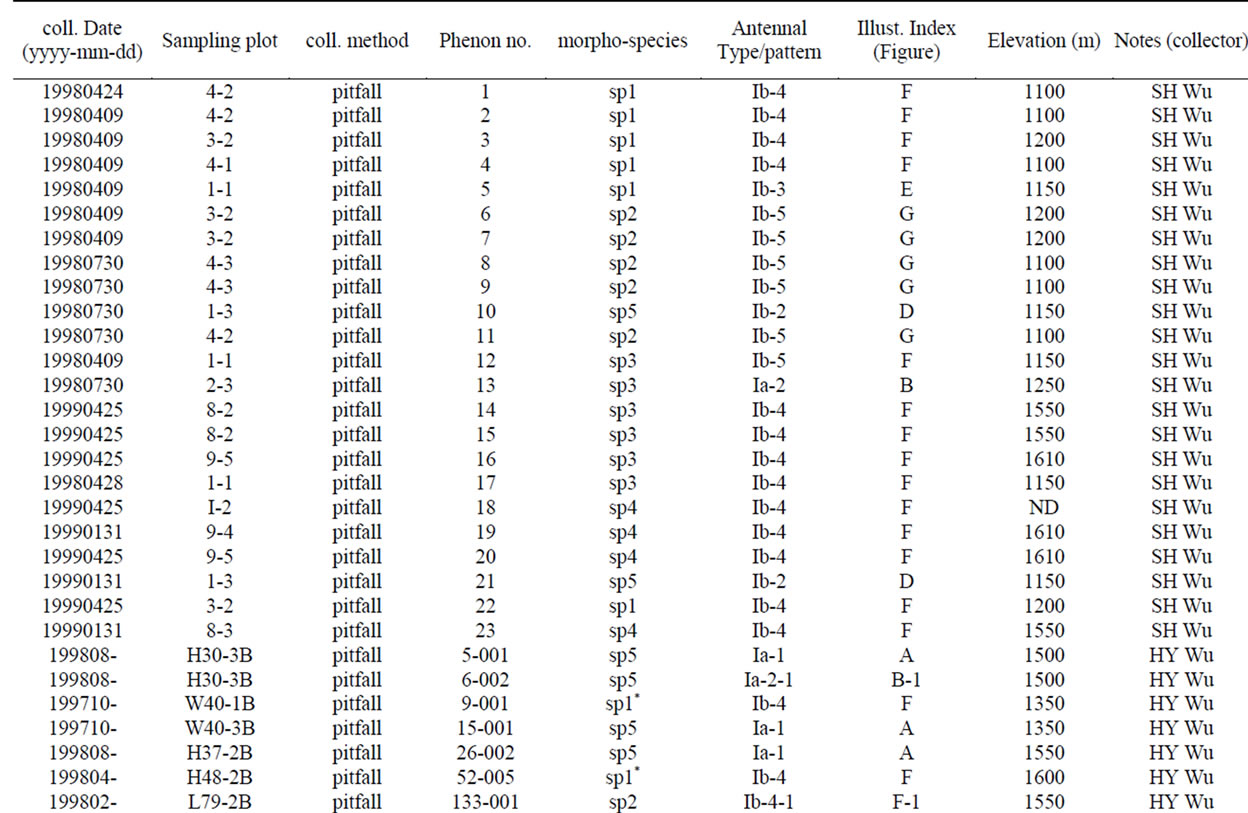

Table 1. Camel cricket samples collected from pitfall traps in GDS forest ecosystem, 60 specimens.

Figure 1.The land marks for measuring the antennal epicuticular structure of complete lobe-like patterns (Type I).

Figure 2. The land marks for measuring the antennal epicuticular structure of setae-like patterns (Type II).

crickets in GDS forest ecosystem). It is useful to other relevant studies, such as food web of terrestrial predator project study. There have been many projects under Long Term Ecological Research (LTER) in GDS forest ecosystem focused on insectivorous animal’s feeding behavior like as Kametal. [9], Yang etal.[7] and Hu etal. [10]. In general, animal prey investigation is based on the community inventory, but the accuracy prey which is intaken by predators must be evident by remainder in feces or inclusions in digestive ducts. This study used both the material collected directly from the remainder and from the pitfall trapped camel crickets for comparison and it makes the study possible from both remainder of feces and inclusions of intestine and fauna inventory. The camel cricket is common and dominant ground living insects in different ecosystem. The antenna fragments remanded in both feces and digestive ducts as the dominant parts of insect fragments. The materialsareeasy to collect for identification. The antennal surface is easier to observe by SEM. The characters of the epicuticular structure were defined in this paper and classified as 13patterns. The morpho-species could not be identified due to the remainder is fragmented while examined. After the study (Table 1), compared to the SEM antennal Epicuticular structures classification and identify to the morpho-species are shown in the Table 1. However, some SEM observation is lacking the comparison from the pitfall trapped specimen and still not able to identify to morpho-species in this study. Significantly, the community inventory is some very supported background information in this case. As a biological taxonomist, we would like to suggest the fauna inventory and taxonomic revision work is very important for such applied ecological studies.

It makes identification become as much easier while study on the feeding behavior of insectivore animals. In addition, this study could provide some information and inspiration for the taxonomic study of Rhaphidophoridaeto find and evaluate the better and good characters for diagnosis in between species and developing stages by the intra-specific variations.

Key to types and patterns of antennal epicuticular structure ofcamel crickets(Orthoptera: Rhaphidophoridae) in GDS forest ecosystem:

1aAntennal epicuticular surface sculpture in lobe like - 2

1bUnlike above ---------------------------------------------- 9

2aEach surface sculpture with single complete lobe --- 3 2bEach surface sculpture comprising of several separate lobes ----------------------------------------------------------- 4

3aLobe surface sculpture wider than middle long about 5.1: 1.0 (n=3)(Figure 3(a)) ------------------- Type I a-1

3bLobe surface sculpture wider than middle long about 9.4: 1.0 (n=1)(Figure 3(b)) ------------------- Type I a-2

4aMargin of lobe surface sculpture round --------------- 5

4bMargin of lobe surface sculpture angulate or irregular ------------------------------------------------------------------ 6

5aSurface sculpture comprises of 3-5 separate lobes, some lobes with ridge indistinct (Figure 3(c)) ----------- -------------------------------------------------------Type I b-1

5bSurface sculpture comprise of 5-10 separate lobes, without ridge (Figure 3(d)) --------------------- Type I b-2 6aSetae-like surface sculpture in between lobes -------- 7

6bNo-setae-like surface sculpture in between lobes ---- 8 7aLobe surface sculpture without lanceolate surface sculpture (Figure 3(h)) -------------------------- Type I b-6

7bLobe surface sculpture mixed with lanceolate surface sculpture (Figure 3(g)) -------------------------- Type I b-5 8aIndistinct margin of lobe surface sculpture free from antennal surface (Figure3(f)) ------------------- Type I b-4

8bDistinct margin of lobe surface sculpture free from antennal surface (Figure 3(e)) ----------------- Type I b-3

9aNeedle-like or lanceolate surface sculpture arranged sinuately ----------------------------------------------------- 10

9bNeedle-like or lanceolate surface sculpture not arranged sinuately ------------------------------------------------- 12 10aOnly short needle surface sculpture (Figure 3(i)) ------------------------------------------------------ Type II a-1 10bBoth short and long needle surface sculpture ---------------------------------------------------------- 11

11aLong needle about twice as long as short ones (Figure 3(j)) ------------------------------------------------------ Type II b-1

11bLong needle much longer than short ones (Figure 3(k)) ------------------------------------------------------ Type II b-2

12aLanceolate surface sculpture with ridge (Figure 3(l)) ------------------------------------------------------ Type II c-1

12bLanceolate surface sculpture without ridge (Figure 3(m)) ------------------------------------------------------ Type II c-2

Figure 3.Various types of antennal epicuticular structure of camel crickets (scale bar = 10μ).

Figure 4.Apply the clustering analysis with Jaccardcoeficience to analysis the 5 morpho-species by the 7 patterns of antennal epicuticular structure for example to show the usage of the potential taxonomic character which was provided in this paper. It is the case of application which based on the antennal epicuticular structure of camel crickets.

4.CONCLUSIONS

The camel cricket is sorted as 5 morpho-species by antennal epicuticular structure based on this study. However, the camel cricket fauna of GDS forest ecosystem is still unknown. It is necessary to do much effort to do the taxonomic revision to verify the fact of the camel cricket’s biodiversity in the forest ecosystem. The variation of the SEM morphology is sorted as two types and each is with 5 and 8 patterns respectively.

It is just the basic taxonomic character description and definition for the insect diagnosis for both intra-and interspecies in morphology. Taxonomists have to evaluate the good character for good taxonomy based on this study. After the study, the SEM antennal Epicuticular structures classification made the identification of the materials from the remanded fragments to the morpho-species become possible which is shown in the Table 1. The exception antennal pattern actually makes us aware that the community inventory to ecosystem studyissupportedbackgroundinformation in this protocol while the diet of insectivore animal’s feeding behavioris studied. As a biological taxonomist, we would like to suggest and emphasize the fauna inventory and taxonomic revision work should be very important for such applied scientific studies.

So, the result of the SEM morphology in this paper is just served as basic and important data and information to the protocol for the taxonomist while applying the taxonomic methodology to do identification.

The clustering analysis for example is showing the further application’s possibility to the antennal epicuticular structure (Figure 4). Although, the evaluation to such taxonomic characters is necessary while studying the revision work to camel crickets. This is the possible way for taxonomist to do co-laboratory study and publish paper with ecologist and others by sharing the credits.

Conflicts of Interest

The authors declare no conflicts of interest.

References

[1] Cheng, C.L. and Yang, C.T. (1996) Antennal sensory plaque organs of Fulgoridae (Homoptera: Fulgoroidea). Chinese Journal of Entomology, 16, 187-207.
[2] Shih, H.T. and Yang, C.T. (1996) Antennal sensory plaque organs of the Delphacidae (Homoptera: Fulgoroidea). Chinese Journal of Entomology, 16, 209-217.
[3] Aliou, D., Yang, J.T. and Lai, P.Y. (2013) Biomorphometric characteristics of different types of sensilla detected on the antenna of Helicoverpa armigera by scanning electron microscopy. Journal of Asia-Pacific Entomology, 16, 23-28. http://dx.doi.org/10.1016/j.aspen.2012.09.001
[4] Bland, R.G. (1991) Antennal and Mouthpart sensilla of tetrigidae (Orthoptera). Annals of the Entomological Society of America, 84, 197-200.
[5] Dickens, J.C., Hart, W.G., Light, D.M. and Jang, E.B. (1988) Tephritid olfaction: Morphology of the antennae of four tropical species of economic importance (Diptera: Tephritidae). Annals of the Entomological Society of America, 81, 325-331.
[6] Rentz, D.C.F. (1993) Orthopteroid insects in threatened habitats in Australia. Chapter 7. In: Gaston, K.J., New, T.R. and Samways, M.J., Eds., Perspectives in Insect Conservation, Andover, Hampshire, 125-138.
[7] Yang, J.T., Wu, H.Y. and Hu, C.Y. (1999) Preliminary report on the insect fragments in the feces of Mustela sibirica Pallas from Guan-daushi forest ecosystem, central Taiwan. Quarterly Journal of Forest Research, 21, 1-7. (in Chinese with English abstract)
[8] Hu, C.Y. (2001) Analysis on the fragments of the insect prey for Mustela sibirica and Crocidura kurodai in Guan-daushi forest ecosystem. Master’s Thesis, National Chung Hsing University, 94. (in Chinese with English abstract).
[9] Kam, Y.C., Chen, T.C., Yang, J.T., Yu, F.C. and Yu, K.M. (1998) Seasonal activity, resproduction, and diet of a Riparian frog (Rana swinhoana) from a subtropical forest in Taiwan. Journal of Herpetology, 32, 447-452. http://dx.doi.org/10.2307/1565464
[10] Hu, C.Y., Yang, J.T. and Wu, H.Y. (2002) Analysis of insect fragments in the digestive tract contents of Crocidura tadae kurodai from the Guan-daushi forest ecosystem, central Taiwan. Formosan Entomologist, 22, 147-155. (in Chinese with English abstract)
