Engineering, 2010, 2, 516-519
doi:10.4236/eng.2010.27068 Published Online July 2010 (http://www.SciRP.org/journal/eng)
Utilization of Local Available Materials to Stabilize Native
Soil (Earth Roads) in Tanzania—Case Study Ngara
Fikiri Fredrick Magafu, Wu Li
Faculty of Civil Engineering, China university of Geoscie n ces, Wuhan, China
Received March 5, 2010; revised March 5, 2010; accepted May 10, 2010
Abstract
The native soil behavior of unpaved low volume roads and their mode of failure were studied to establish
proper method of stabilizing native soils using local available materials. The use of lime and its positive ef-
fect to modify and stabilize Ngara soil in Tanzania is presented in this paper. There are many methods of
stabilizing soil to gain required engineering specifications. These methods range from mechanical to chemi-
cal stabilization. Most of these methods are relatively expensive to be implemeted by slowly developing na-
tions and the best way is to use locally available materials with relatively cheap costs affordable by their in-
ternal funds. Tanzania is a country having abundantly amount of Lime. Ngara native soil roads (unpaved ru-
ral roads) was studied under preliminary investigation and found to have higher plasticity, tendency of swel-
ling and shrinking, low bearing capacity when wet, compressive strength of soil to have higher sensitivity to
moisture and lower shear strength when wet. These soil behaviors deny road access to about 32 million peo-
ple in Tanzania (80% of population) during rainy season. The detailed investigations is still going on at
China university of Geosciences but other results from similar researches show that Ngara soils can be stabi-
lized by lime and gain the required engineering properties.
Keywords: Low Volume Roads, Higher Plasticity Index, Bearing Capacity, Shear Strength of Soil,
Engineering Properties of Soils, Engineering Specifications, Swell and Shrink age
1. Introduction
Road Fund Board of Tanzania was established in 1997
with the responsibility of collecting and disbursement of
internal funds to road agen ts for road mainten anc e activi-
ties. Tanzania is a slowly developing nation having a
total road n etwork of 85,525 [1] kilometers o ut of which
only 5,034 kilometers is paved. Low volume rural roads
consist of 56,625 kilo meters which is unpaved and hard-
ly passable throughout a year and serves more than 80%
of Tanzanian population [2] (about 32 million people).
Every place has its own definition of low volume
roads depending on social economic development of the
area. For developing countries, low volume roads are
those roads carrying less than 0.5 million equivalent
standard axle [3]. In reality the research conducted by
Southern African Development Community (SADC)
shows that in Tanzania low volume rural roads carries
less than 0.1 million equivalent standard axle during de-
sign period.
In this paper, as for the case of Ngara District in Tan-
zania, low volume roads are those district and village
roads that carry less than 0.1 million equivalent standard
axle of traffic during their design period. In actual, Ngara
district rural roads carry less than 0.05 millions standard
equivalent axle according to 2008 traffic count data
analysis [4]. The design period is 10 year s.
The engineering properties of native soil where un-
paved roads pass through are critical parameters in the
ability of road to carry and safely distribute stresses im-
posed upon it without failure. The failure of Ngara low
volume roads are caused mainly by the following rea-
sons:
1) The use of complicated design and maintenance
procedures adopted from developed countries.
Tanzania is using adopted design methods from USA
and European countries to design road pavements and
these methods have been in use even for low volume
roads. Not only the use of these methods lead to higher
construction costs that can not be met by roads fund
board money but also require cumbersome procedures and
modern equipments that most road maintenance agencies

F. F. MAGAFU ET AL.517
at district level do not have.
As a result many district engineers decide to do tem-
porary intervention maintenance to allow flow of traffic
with a lot of guess or traditional procedures (non scien-
tific methods). The uses of these temporary intervention
maintenance methods never eliminate the problems of
natural road pavement failure.
2) The increase of moisture content in soil exceeding
optimum moisture content.
Water seepage and percolation through permeable soil
have intense effect on the road performance. The mois-
ture environment in which the road pavement operates is
a major influence on its performance because the
strength, stability and stiffness of the pav ement materials
and sub grade are critically dependent on the moisture
content. If the native road soil gets moisture above opti-
mum moisture content then its ability to carry stress is
decreasing whereby with increase of moisture content it
turns to plastic state then starts to flow and failure oc-
curs.
3) Higher tire pressures and low total axle loading.
Due to both small number of available vehicles in ru-
ral areas and availability of vehicle models like Mitsubi-
shi Fuso Fighter of 4 tons that can carry up to 10 tons
(farm products) without exceeding total axle loading in
weigh bridges, consequently, most of the vehicles pass-
ing rural roads are not only overloaded in terms of car-
rying capacity but also have very higher tyre contact
pressure. The current prevailing tyre contact pressure is
estimated to be between 900-1000 kPa which is higher
than those used on key road performance experiments,
such as the AASHTO road test of 500kPa5. Higher tyre
pressures have big effect on the surface of the pavement
and to places where th ere is steep grades, poorly drained
area where there is moisture sensitive soils and low
strength material.
From Figure 1, we can see that at 0 cm depth vertical
stresses are higher but reduce wit h increase in de pth [6].

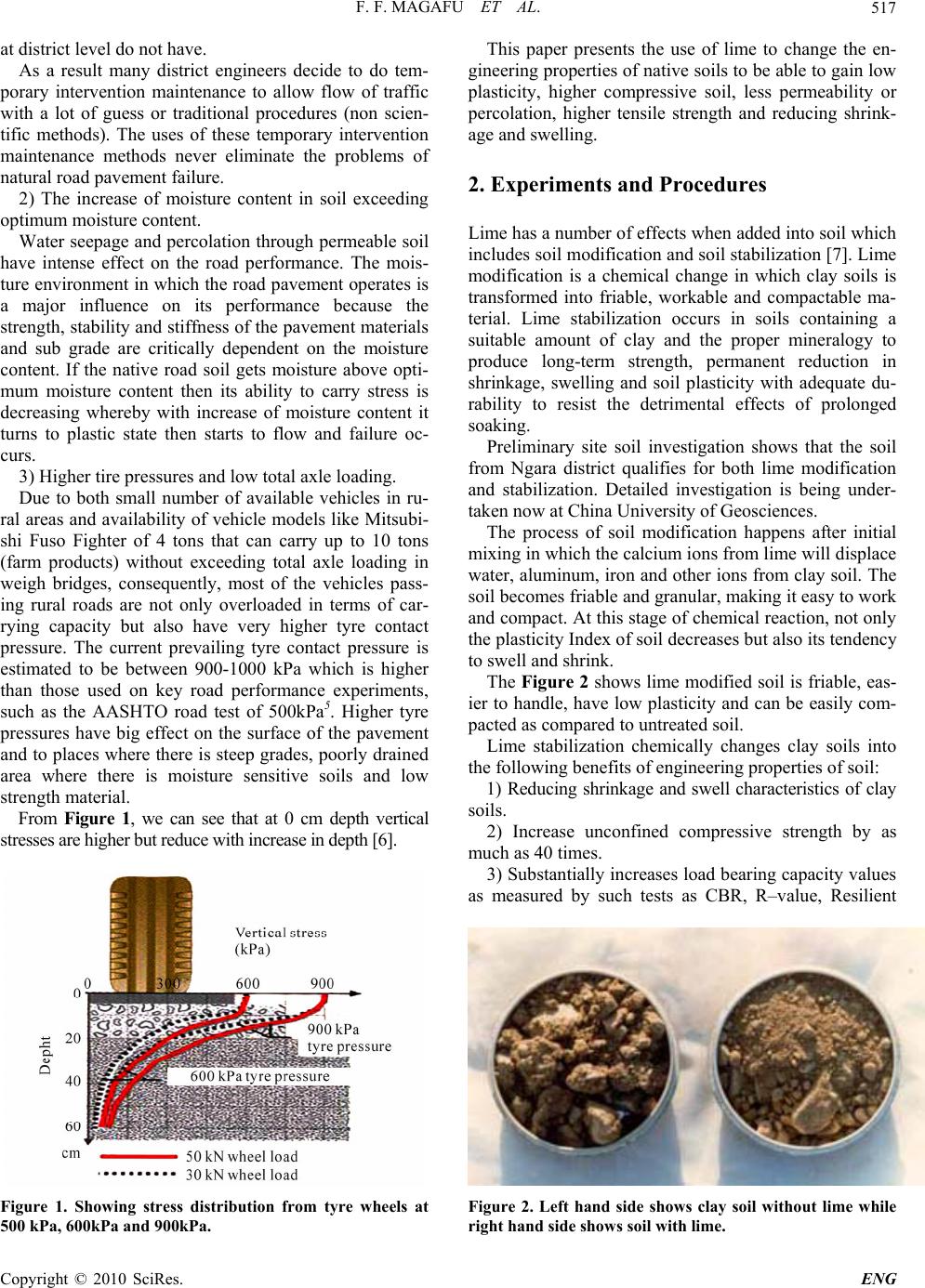

Figure 1. Showing stress distribution from tyre wheels at
500 kPa, 600kPa and 900kPa.
This paper presents the use of lime to change the en-
gineering properties of native soils to be ab le to gain low
plasticity, higher compressive soil, less permeability or
percolation, higher tensile strength and reducing shrink-
age and swelling.
2. Experiments and Procedures
Lime has a number of effects when added into soil which
includes soil mod ification and soil stab ilizatio n [7]. Lime
modification is a chemical change in which clay soils is
transformed into friable, workable and compactable ma-
terial. Lime stabilization occurs in soils containing a
suitable amount of clay and the proper mineralogy to
produce long-term strength, permanent reduction in
shrinkage, swelling and soil plasticity with adequate du-
rability to resist the detrimental effects of prolonged
soaking.
Preliminary site soil investigation shows that the soil
from Ngara district qualifies for both lime modification
and stabilization. Detailed investigation is being under-
taken now at China University of Geo s ciences.
The process of soil modification happens after initial
mixing in which th e calcium ion s from lime will disp lace
water, aluminum, iron and other ions from clay soil. The
soil becomes friable and granular, making it easy to work
and compact. At this stage of chemical reaction, not only
the plasticity Index of soil decreases but also its tendency
to swell and shrink.
The Figure 2 shows lime modified soil is friable, eas-
ier to handle, have low plasticity and can be easily com-
pacted as compared to unt reated soil.
Lime stabilization chemically changes clay soils into
the following benefits of engineering properties of soil:
1) Reducing shrinkage and swell characteristics of clay
soils.
2) Increase unconfined compressive strength by as
much as 40 times.
3) Substantially in creases load bearing capacity values
as measured by such tests as CBR, R–value, Resilient
Figure 2. Left hand side shows clay soil without lime while
right hand side shows soil with lime.

F. F. MAGAFU ET AL. 518
Modulus, and th e Texas Triaxial tests.
4) Develops beam strength in the stabilized layer and
greatly increases the tensile or flex ural strength.
5) Creates a water resistant barrier. Impedes migration
of surface water from above and capillary moisture from
below; thus helping to maintain found a tion strength.
The process of lime stabilization is taking part by par-
ticles of clay soils breakdown after the rise of pH value
of soil to at least abov e 10.5, which is the results of mix-
ing adequate quantities of lime and water in the soil. Sil-
ica and alumina are released from the soil and reacts with
calcium from the lime to form calcium–silicate–hydrates
(CSH) and calcium–aluminates–hydrates (CAH). CSH
and CAH compounds form the matrix that contributes to
the strength of lime–stabilized soil layer. At a time this
matrix is forming, the soil is transfor med from its hig hly
expansive to a more granular, relatively impermeable
material that can be compactable into layers with sig-
nificant load bearing capacity.
The pozzolanic reaction creates new material that is
permanent, durable, resistant to cracking, and signifi-
cantly impermeable. The structural layer formed is both
strong and flexible.
The Figure 3 shows the increase in CBR with reduc-
tion in optimum moisture con tent for li me treated so il [8]
Ngara rural native soil roads are basically facing the

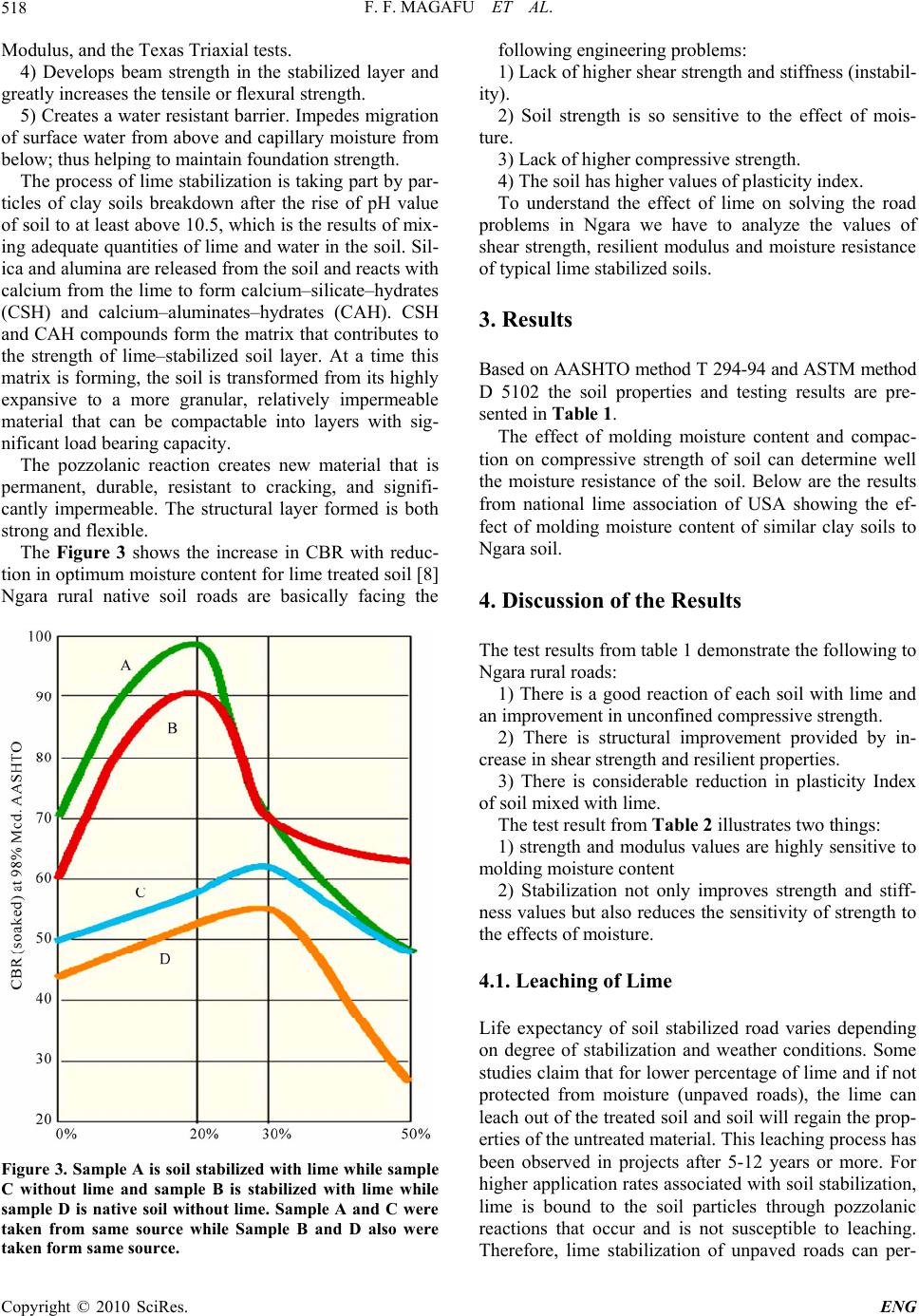

Figure 3. Sample A is soil stabilized with lime while sample
C without lime and sample B is stabilized with lime while
sample D is native soil without lime. Sample A and C were
taken from same source while Sample B and D also were
taken form same source.
following engineering problems:
1) Lack of higher shear strength and stiffness (instabil-
ity).
2) Soil strength is so sensitive to the effect of mois-
ture.
3) Lack of higher compressive strength.
4) The soil has higher values of plasticity index.
To understand the effect of lime on solving the road
problems in Ngara we have to analyze the values of
shear strength, resilient modulus and moisture resistance
of typical lime stabilized soils.
3. Results

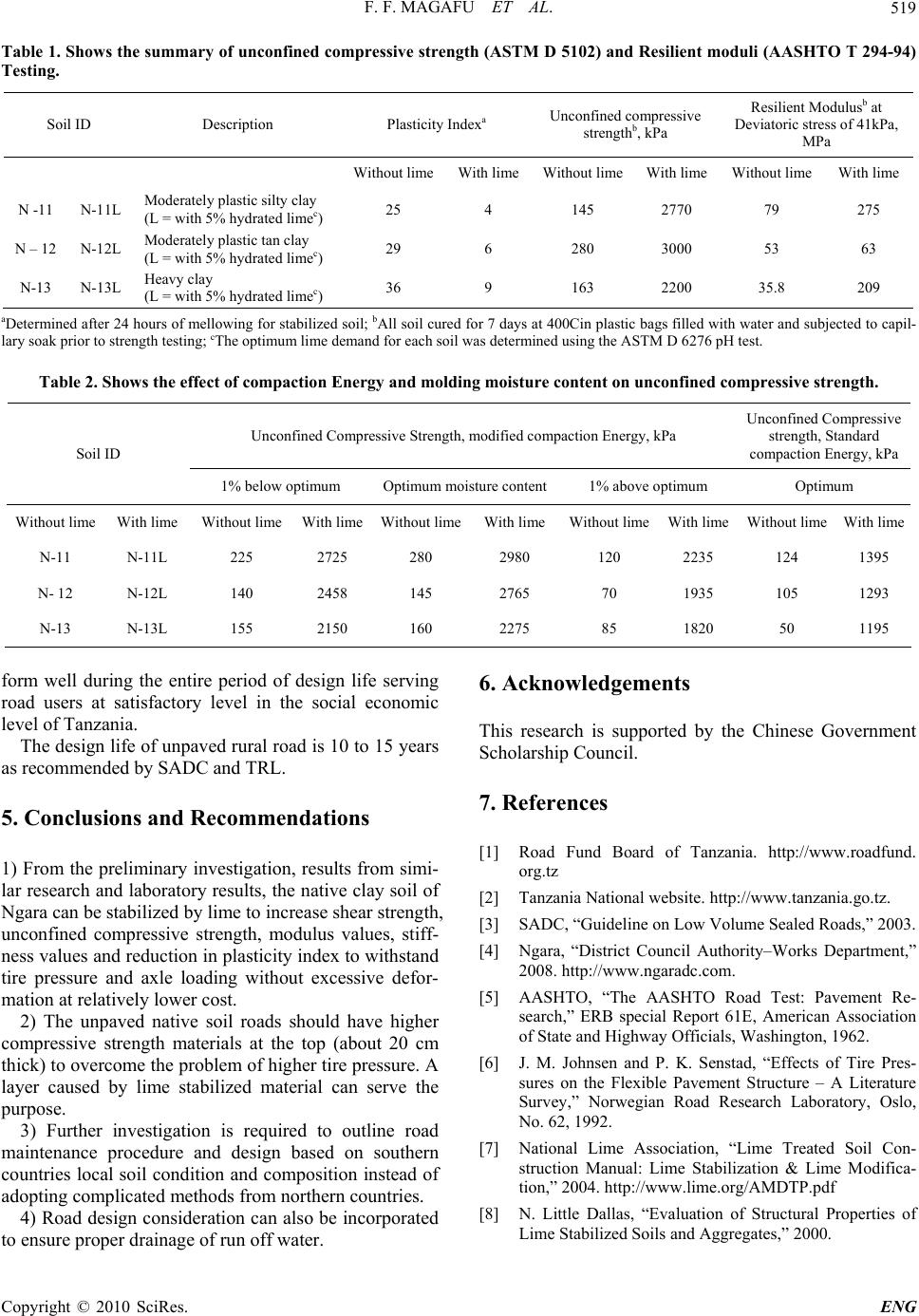

Based on AASHTO method T 294-94 and ASTM method
D 5102 the soil properties and testing results are pre-
sented in Table 1.
The effect of molding moisture content and compac-
tion on compressive strength of soil can determine well
the moisture resistance of the soil. Below are the results
from national lime association of USA showing the ef-
fect of molding moisture content of similar clay soils to
Ngara soil.
4. Discussion of the Results
The test results from table 1 demonstrate the following to
Ngara rural roads:
1) There is a good reaction of each soil with lime and
an improvement in unconfined compressive strength.
2) There is structural improvement provided by in-
crease in shear strength and resilient properties.
3) There is considerable reduction in plasticity Index
of soil mixed with lime.
The test result from Table 2 illustrates two things :
1) strength and modulus values are highly sensitive to
molding moisture content
2) Stabilization not only improves strength and stiff-
ness values but also reduces the sensitivity of strength to
the effects of moisture.
4.1. Leaching of Lime
Life expectancy of soil stabilized road varies depending
on degree of stabilization and weather conditions. Some
studies claim that for lower percentage of lime and if not
protected from moisture (unpaved roads), the lime can
leach out of the treated soil and soil will regain the prop-
erties of the untreated material. This leaching process has
been observed in projects after 5-12 years or more. For
higher application rates associated with soil stabilization,
lime is bound to the soil particles through pozzolanic
reactions that occur and is not susceptible to leaching.
Therefore, lime stabilization of unpaved roads can per-

F. F. MAGAFU ET AL. 519
Table 1. Shows the summary of unconfined compressive strength (ASTM D 5102) and Resilient moduli (AASHTO T 294-94)
Testing.
Soil ID Description Plasticity Indexa Unconfined compressive
strengthb, kPa
Resilient Modulusb at
Deviatoric stress of 41kPa,
MPa
Without limeWith limeWithout limeWith lime Without lime With lime
N -11 N-11L Moderately plastic silty clay
(L = with 5% hydrated limec) 25 4 145 2770 79 275
N – 12 N-12L Moderately plastic tan clay
(L = with 5% hydrated limec) 29 6 280 3000 53 63
N-13 N-13L
Heavy clay
(L = with 5% hydrated limec) 36 9 163 2200 35.8 209
aDetermined after 24 hours of mellowing for stabilized soil; bAll soil cured for 7 days at 400Cin plastic bags filled with water and subjected to capil-
lary soak prior to strength testing; cThe optimum lime demand for each soil was determined using the ASTM D 6276 pH test.
Table 2. Show s the effect of compaction Energy and molding moisture content on unconfined compressive strength.
Unconfined Compressive Stre ngth, modified compaction Energy, kPa Unconfined Compressive strength, Standard
compaction Energy, kPa Soil ID
1% below optimum Optimum moisture content1% above optimum Optimum
Without lime With lime Without lime With limeWithout limeWith limeWithout limeWith lime Without limeWith lime
N-11 N-11L 225 2725 280 2980 120 2235 124 1395
N- 12 N-12L 140 2458 145 2765 70 1935 105 1293
N-13 N-13L 155 2150 160 2275 85 1820 50 1195
form well during the entire period of design life serving
road users at satisfactory level in the social economic
level of Tanzania.
The design life of unpaved rural road is 10 to 15 years
as recommended by SADC and TRL.
5. Conclusions and Recommendations
1) From the preliminary investigation, results from simi-
lar research and laboratory results, the n ative clay soil of
Ngara can be stabilized by lime to increase shear strength,
unconfined compressive strength, modulus values, stiff-
ness values and reduction in plasticity index to withstand
tire pressure and axle loading without excessive defor-
mation at relatively lower cost.
2) The unpaved native soil roads should have higher
compressive strength materials at the top (about 20 cm
thick) to overcome the problem of high er tire pressure. A
layer caused by lime stabilized material can serve the
purpose.
3) Further investigation is required to outline road
maintenance procedure and design based on southern
countries local soil condition and composition instead of
adopting complicated methods from northern countries.
4) Road design consideration can also be incorporated
o ensure proper drainage of run off water. t
6. Acknowledgements
This research is supported by the Chinese Government
Scholarship Council.
7. References
[1] Road Fund Board of Tanzania. http://www.roadfund.
org.tz
[2] Tanzania National website. http://www.tanzania.go.tz.
[3] SADC, “Guideline on Low Volume Sealed Roads,” 2003.
[4] Ngara, “District Council Authority–Works Department,”
2008. http://www.ngaradc.com.
[5] AASHTO, “The AASHTO Road Test: Pavement Re-
search,” ERB special Report 61E, American Association
of State and Highway Officials, Washington, 1962.
[6] J. M. Johnsen and P. K. Senstad, “Effects of Tire Pres-
sures on the Flexible Pavement Structure – A Literature
Survey,” Norwegian Road Research Laboratory, Oslo,
No. 62, 1992.
[7] National Lime Association, “Lime Treated Soil Con-
struction Manual: Lime Stabilization & Lime Modifica-
tion,” 2004. http://www.lime.org/AMDTP.pdf
[8] N. Little Dallas, “Evaluation of Structural Properties of
Lime Stabilized Soils and Aggregates,” 2000.
