Wireless Sensor Network, 2012, 4, 59-64
http://dx.doi.org/10.4236/wsn.2012.43009 Published Online March 2012 (http://www.SciRP.org/journal/wsn)
Load Density Analysis of Mobile Zigbee Coordinator in
Hexagonal Configuration
S. R. Ramyah
Anna University, Chennai, India
Email: Srramyah@gmail.com
Received December 18, 2011; revised January 21, 2012; accepted February 12, 2012
ABSTRACT
Mobility is one of the major new paradigms of the current Internet, and this is driving most of the research activity in
networking thro ughout the World. The Mobility of Wireless Sensor Networks (WSN) has become a hot research theme
in recent years due to its wide range of applications ranging from medical research to military. The widely adopted
standard for wireless sensor network platform is IEEE 802.15.4/ZigBee. The IEEE 802.15.4/ZigBee is considered the
“technology of choice” due to low-power, cost-effective communication and the reliability they provide. In this paper,
we perform extensive network evaluation, to study the Effect of coordinator mobility on ZigBee mesh network, using
OPNET Modeler. In mobile coordinator, the type of the trajectory along with the node density and the traffic are the
major factors that decide the system performance. The results ob tained from the wide analysis of ZigBee mesh network
shows variation when the routers are placed at Hexagonal configuration with a mobile coordinator. In this paper, varia-
tions in load metric is analyzed in hexagonal configuration by enabling and disabling ACK. Thus the status of ACK
also plays a critical role in analysing load metrics.
Keywords: Zigbee; Mobile Coordinator; Load
1. Introduction
Recent research has intensively focused on the next gen-
eration communication systems that aim to meet the in-
creasing demand for services with higher data rates and
enhanced service qu ality. The idea b ehind this si mulation
model was triggered by the need to build a very reliable
model of the IEEE 802.15.4/ZigBee protocols for WSNs.
The wireless sensor network architecture consists of a
larg e number of wireless sensor nodes. The wireless sensor
nodes are miniature battery powered devices with very
less power consumption rates making them appropriate
for use in the remote areas. These sensor nodes are dis-
tributed randomly. A sensor can act as a Full Functional
Device (FFD) or a Reduced Functional Device (RFD) [1],
with at least one FFD acting as a Coordinator. The pri-
mary goal of the RFDs (end devices) is to gather the data
from the surrounding environment and route it to the
coordinator which has superior computing capabilities
and serves as gateway for the entire network.
Wireless networks have historically considered sup-
port for mobile elements as an extra overhead. However,
recent research has provided means by which network
can take advantage of mobile elements. Particularly, in
the case of wireless networks, mobile elements are delib-
erately built into the system to improve the lifetime of
the network, and act as mechanical carriers of data.
A number of researchers have proposed mobility as a
solution to this problem of data gathering. Mobile ele-
ments traversing the network can collect data from sen-
sor nodes when they come near it. Existing mobility in
the environment can be used [2-4] or mobile elements
can be added to the system, which have the luxury to be
recharged. This naturally avoids multi-hop and removes
the relaying overhead of nodes near the base station.
Various types of mobility have been considered for the
mobile element. These can be broadly classified as ran-
dom, predictable or con trolled. Random-walk mobility is
assumed to be independent of the network topology, traf-
fic flows and residual energy of nodes [2]. The predict-
able or fixed trajectory of a mobile sink is fully determi-
nistic as the sink always follows the same path through
the network. In some cases, the path actually selected is,
in fact, enforced by artificial or natural obstacles in the
environment. In the case of controlled mobility, the path
of the sink becomes a function of the current state of
network flows and nodes’ energy consumption, and it
keeps adjusting itself to ensure optimal network perfor-
mance at all times.
A number of studies [2,3,5-9] on the mobile coordina-
tor in WSNs have been published and most of them pro-
posed that the mobile coordinator is better option to re-
duce the formation of hot spots in the network.
C
opyright © 2012 SciRes. WSN
S. R. RAMYAH ET AL.
60
But none of them concentrated on the effect of the node
density due to the mobility of the coordinator. The goal
of this paper is to study the analysis of mobility of coor-
dinator on the Load of the network.
This paper is organized as: Section 2 gives a brief
overview of the IEEE 802.1 5.4 and the reason for adopt-
ing Zigbee, Section III discusses about OPNET modeler,
Section IV explains about the types of ZigBee devices
and their network topologies, Section 5 describes the
arrangement of nodes in the network and the trajectories
for the coordinator motion, Section 6 gives the assump-
tion and layout of network field, Section 7 analyses the
simulations performed using OPNET modeler and Sec-
tion 8 concludes the paper giving the results.
2. Overview of IEEE 802.15.4 (Zigbee)
ZigBee takes its name from the zigzag flying of bees that
forms a mesh network among flowers. It is an individu-
ally simple organism that works together to tackle com-
plex tasks. Zigbee (IEEE 802.15.4) standard intercon-
nects simple, low power and low processing capability
wireless devices. The Zigbee devices facilitate numerous
applications such as pervasive computing, national secu-
rity, monitoring and control etc. In recent years, the
technology has been gaining use in industrial and com-
mercial acceptance, this is clear from the wide spread use
in defence, monitoring and control, commercial use etc.
As shown in Figure 1 Zigbee architecture comprises
of 4 layers—Physical Layer, MAC Layer, Network and
Security Layer and Application Layer. Physical and
MAC Layer are defined as IEEE 802.15.4 standards
while the higher layers follow standards set by Zigbee
Alliance. Our simulation model implements the physical
layer of the IEEE 802.15.4 standard running at 2.4 GHz
Frequency band with 250 kbps d ata rate. The MAC layer
supports the beacon-enabled mode and implements slotted

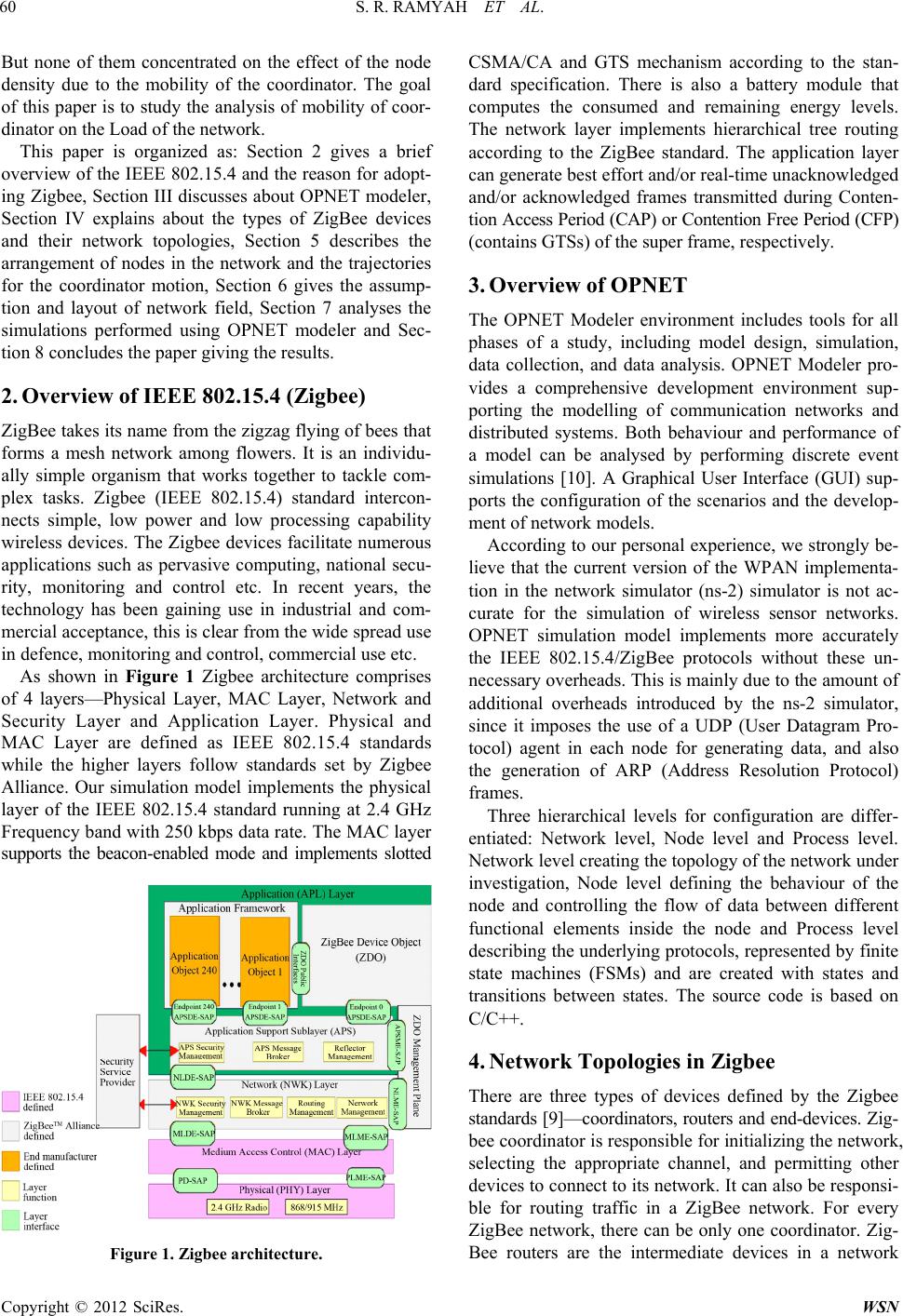

Figure 1. Zigbee architecture.
CSMA/CA and GTS mechanism according to the stan-
dard specification. There is also a battery module that
computes the consumed and remaining energy levels.
The network layer implements hierarchical tree routing
according to the ZigBee standard. The application layer
can generate best effort and/or real-time unacknowledged
and/or acknowledged frames transmitted during Conten-
ti on Access Period (CAP) or Con tention Free Period (CFP)
(contains GTSs) of t he s u per fr ame, respectively.
3. Overview of OPNET
The OPNET Modeler environment includes tools for all
phases of a study, including model design, simulation,
data collection, and data analysis. OPNET Modeler pro-
vides a comprehensive development environment sup-
porting the modelling of communication networks and
distributed systems. Both behaviour and performance of
a model can be analysed by performing discrete event
simulations [10]. A Graphical User Interface (GUI) sup-
ports the configuration of the scenarios and the develop-
ment of network models.
According to our personal experience, we strongly be-
lieve that the current version of the WPAN implementa-
tion in the network simulator (ns-2) simulator is not ac-
curate for the simulation of wireless sensor networks.
OPNET simulation model implements more accurately
the IEEE 802.15.4/ZigBee protocols without these un-
necessary overheads. This is mainly due to the amount of
additional overheads introduced by the ns-2 simulator,
since it imposes the use of a UDP (User Datagram Pro-
tocol) agent in each node for generating data, and also
the generation of ARP (Address Resolution Protocol)
frames.
Three hierarchical levels for configuration are differ-
entiated: Network level, Node level and Process level.
Network level creating the topolog y of th e networ k und er
investigation, Node level defining the behaviour of the
node and controlling the flow of data between different
functional elements inside the node and Process level
describing the underlying protocols, represented by finite
state machines (FSMs) and are created with states and
transitions between states. The source code is based on
C/C++.
4. Network Topologies in Zigbee
There are three types of devices defined by the Zigbee
standards [9]—coordinators, routers and end-devices. Zig-
bee coordinator is respon sible for initializing the netwo rk,
selecting the appropriate channel, and permitting other
devices to connect to its network. It can also be responsi-
ble for routing traffic in a ZigBee network. For every
ZigBee network, there can be only one coordinator. Zig-
Bee routers are the intermediate devices in a network
Copyright © 2012 SciRes. WSN
S. R. RAMYAH ET AL. 61
which route the data from the source to the destinatio n. A
router is able to pass on messages in a network, and is
also able to have child nodes connect to it, whether it be
another router, or an end device. These devices route the
data as well as sense the data from their surrounding en-
vironment. ZigBee end-devices are devices with least
computing capabilities. The power saving features of a
ZigBee network can be mainly credited to the end de-
vices. Because these nodes are not used for routing traf-
fic, they can be sleeping for the majority of the time, ex-
panding battery life of such devices.
The ZigBee standard also defines 3 possible types of
network Topology [1]: star, cluster-tree and peer-to-peer
(mesh). In the star topology, direct communication link is
established between devices and a single central control-
ler, called the PAN coordinator. In cluster-tree topology,
there is a parent child relationship between the nodes.
Each node passes its packet to this parent and it then
passes it further. In mesh topology, each device not only
transmits to its parent but also to all the neighbouring de-
vices as long as they are in range. It works on a proactive
routing mechanism in which each node broadcasts a mes-
sage and finds the shortest path on the basis of the replies
from the routers. It is better than other topologies due to
its powerful routing mechanism. Mesh to pology supports
“multi-hop” communications, through which data is passed
by hopping from device to device using the most reliable
communication links and the most cost-effective path
until its destination is reached. The multi-ho p ability also
helps to provide fault to lerance, in that if one device fails
or experiences interference, the network can reroute itself
using the remaining devices (Figure 2).
Mesh networking is a powerful way to route data.
Range is extended by allowing data to hop node to node
and reliability is increased by “self healing” the ab ility to
create alternate paths when one node fails or a connec-
tion is lost. One popular mesh networking protocol is
ZigBee, which is specifically designed for low-data rate,
low-power applications. Zigbee Mesh networking has
the following benefits:
Figure 2. Zigbee network mesh topology.
Flexibility: The physical placement of a wireless mesh
device is extremely flexible—as long as it is within
communications range of other devices within the
network, it can be placed nearly anywhere. Areas that
would be difficult, expensive, or even impossible to
cover within a wired network are accessible within
wireless networks.
Cost: Wireless removes the expense and time in-
volved in installing and maintaining dedicated wiring
to each device within the network.
Scalability: A single mesh network can support thou-
sands of individual devices. Adding new devices can
be as simple as putting the device where you want it,
and then turning it on.
Reliability and robustness: A mesh network can be
improved in many ways by adding more devices—
extending distance, adding redundancy, and improv-
ing link quality and the general reliability (Figure 3).
5. Router Configuration and Coordinator
Path
5.1. Arrangement of Routers
To avoid the deviatio n in the results due to random arran-
gement of routers, two specific router configurations are
used.
1) Square Configuratio n: In this configuration, routers
are arranged on the corners of a network field. The posi-
tion of routers is such as to cover the entire network field.
The routers are not in the radio range of each other.
2) Hexagonal Configuration: In this configuration,
routers are arranged so as to cover the entire network
field and forming a hexagon . The ver tices of th e hexagon
represent the routers. The routers are within the radio
range of two adjacent routers. It is shown in Figure 4.
From previous projects results, the Hexagonal con-
figuration provide best results than Square configuration.
Figure 3. Heavy lines show a signal that begins at a re duced-
function end device and passes through multiple routers to
reach a gateway functioning as a coordinator; lighter lines
show possible alternative signal paths.
Copyright © 2012 SciRes. WSN
S. R. RAMYAH ET AL.
62
Figure 4. Hexagonal configuration.
5.2. Coordinator Path Model
There are two different sink mobility models—random
sink mobility model and fixed sink mobility model [11].
1) Random Sink Mob ility Model: In this model the tra-
jectory of the sink movement comprises of the random
Sequence of segments distributed through the network.
2) Fixed Sink Mobility Model: In this model, the tra-
jectory of the sink movement is along a fixed path, and
during the entire simulation duration the sink keeps on
moving on the same path.
Since we take mobile coordinator we set the trajectory
as a Random mobility model.
6. Network Field Layout
The network setup consists of a network field within
which the end devices are present, which sense the data
and transmit via the routers (or directly) to the coordina-
tor (sink).
The network field is a square shaped region.
The end-devices are distributed in a complete random
manner.
The routers are arranged in Hexagonal configuration.
The coordinator is mobile and it takes random path.
The impact of external interferences is considered zero.
The network layout can be shown in Figure 5.
7. ZigBee Simulation Using OPNET
7.1. Simulation Parameters
The simulations analysed in this section are performed
on the OPNET Modeler v 14.5 [10]. ZigBee performs
route discovery to determine the optimal path for mes-
sages to take to its destination. This section will discuss
then analysis various cases simulated on OPNET. The
network field is of size 100 m × 100 m. The simula tio ns
are performed with 10, 20, 30, 40, and 50 end-devices.
The topology used is Peer-to-Peer (Mesh) Topology. In
the simulation, the distribution of end-devices is random.
Figure 5. Network layout.
The coordinator moves at a constant speed of 10 m/sec.
The overall simulation time is 3600 sec with the meas-
urements taken been aggregated at every 36 sec.
Table 1 shows the various networ k parameter s and pa-
rameter values use d du ri n g simulation.
7.2. Number of Nodes
In this section, we change number of nodes and number
of flows (keeping same flow/node ratio) and find out
effect of number of nodes for load with and without
ACK. Number of Nodes definitely affects for PAN
bridge performance. Bridge node should be the bottle-
neck node and performance degrades as the number of
nodes increases. As number of nodes increases, number
of flows also increases because flow/node ratio is fixed.
More flows make more congestion, therefore delay in-
creases.
Every node is explicitly defined as FFD or RFD, with
higher energy levels for FFD nodes.
For the ease of routing, it is assumed that each and
Every node is location aware node with respect to the
Base Station.
Depending on the distance of the node from the Base
Station and its radio range, a node calculate Number
of hops required to connect to BS in terms of NET-
WORK DEPT H.
7.3. Analysis of Simulation
In the analysis we will consider the load for different
node density and the effect of ACK on load in a Hex-
agonal Configuration of Routers.
1) Load for 10 end devices:
Copyright © 2012 SciRes. WSN
S. R. RAMYAH ET AL. 63
Table 1. Simulation parameters.
Network Parameter Parameter Value
Transmission Range 60 m
Packet Size 1024 bits
GTS Disabled
Acknowledge wait duration (sec) 0.05
Channel sensing Duration 0.1 sec
Mobility Model Random Mobility Model
Beacon Order 6
Super Frame Order 0
Beacon Disabled
Frequency Band 2.45 GHz
Packet Destination Coordinator
The static end devices are placed in a random manner
around the hexagonally arranged routers. Initially 10
nodes are placed. The coordinator is kept in a mobile
mode whose trajectory is set to random. The effect of
with 10 end devices without ACK is noted. It gives the
maximum load.
Effect of ACK on Load:
Now the Ack is enabled and the variations in result are
obtained. The result shows nodes with ACK have the
minimum load compared to nodes without ACK.
2) Load for 20 end devices:
Next 20 end devices are placed randomly around the
mobile coordinator. The results obtained shows that it pro-
vides the next m a ximum load.
Effect of ACK on Load:
Now the Ack is enabled and the variations in result are
obtained. The result shows nodes with ACK have the
minimum load compared to nodes without ACK. It pro-
vides the minimum load than with 10 nodes.
3) Load for 30 end devices:
Now 30 end devices are placed randomly around the
mobile coordinator. The effect of 30 devices without
ACK is noted. The results obtained shows that it pro-
vides the third maximum load.
Effect of ACK on Load:
Now the Ack is enabled and the variations in result are
obtained. The result shows nodes with ACK have the
minimum load compared to nodes without ACK. It pro-
vides the minimum load than with 10 and 20 nodes.
4) Load for 40 end devices:
The static end devices are placed in a random manner
around the hexagonally arranged routers. Now 40 nodes
are placed. The coordinator is kept in a mobile mode
whose trajectory is set to random. The effect of with 10
end devices without ACK is noted. It gives the fourth
maximum load.
Effect of ACK on Load:
When the Ack is enabled, variations in result are ob-
tained. The result shows nodes with ACK have the
minimum load compared to nodes without ACK. It pro-
vides the minimum load than with 10, 20 and 30 nodes.
5) Load for 50 end devices:
Finally 50 end devices are placed randomly around the
mobile coordinator. The results obtained shows that it
provides the least maximum load.
Effect of ACK on Load:
Now the Ack is enabled and the variations in result are
obtained. The result shows nodes with ACK have the
minimum load compared to nodes without ACK. It pro-
vides the minimum load than with previous number of
nodes.
Figures 6 and 7 show the load variations of 10, 20, 30,
40, and 50 nodes with and without ACK.
8. Conclusion
When the nodes are static and if each of the nodes is able
to communicate with its neighbouring node then there
Figure 6. Load without Ack.
Figure 7. Load with Ack.
Copyright © 2012 SciRes. WSN
S. R. RAMYAH ET AL.
Copyright © 2012 SciRes. WSN
64
will be minimum delay for establishing the routes to the
sink node and for association with the sink node. But if
the sink is moving then there can be association problems
for the normal sensor nodes with the sink node. The ma-
jor factors that decide the Network performance of Mo-
bile coordinators are the node density and the traffic.
Two key features required for this case scenarios are the
ACK enable and understanding the range capability of
ZigBee. Placing the end devices too close to the destina-
tion coordinator will result in traffic being sent directly,
rather than through the router, preventing observations
for the self-healing feature. Also the ACK enable was
required for the end devices to recognize that the failure
in the router has occurred, no longer receiving and rout-
ing traffic, in order to trigger route discovery. Thus the
load metric for different number of nodes in Hexagonal
configuration is obtained by enabling and disabling ACK.
If a trajectory has to be chosen for other reasons, then the
trajectory should give a considerable amount of time to
each route that is the link route for a segment of the net-
work. The load of th e network may b e affected w hen the
trajectory of the coordinator varies.
REFERENCES
[1] Sinem Coleri Ergen, “ZigBee/IEEE 802.15.4 Summary,”
10 September 2004.
[2] A. A. Somasundara, A. Ramamoorthy and M. B. Srivas-
tava, “Mobile Element Scheduling for Efficient Data Col-
lection in Wireless Sensor Networks with Dynamic Dead-
lines,” 25th IEEE International Real-Time Systems Sym-
posium (RTSS), Lisbon, 5-8 December 2004, pp. 296-305.
doi:10.1109/REAL.2004.31
[3] M. Shakya, J. Zhang, P. Zhang and M. Lampe, “Design
and Optimization of Wireless Sensor Network with Mo-
bile Gateway,” 21st International Conference on Advanced
Information Networking and Applications Workshops
(AINA’07), Niagara Falls, 21-23 May 2007, pp. 415-420.
[4] F. Zhao and L. Guibas, “Wireless Sensor Networks—An
Information Processing Approach,” Morgan Kaufmann
Publishers, Waltham, pp. 200-203.
[5] E. Ekici, Y. Gu and D. Bozdag, “Mobility-Based Com-
munication in Wireless Sensor Networks,” IEEE Com-
munications Magazine, Vol. 44, No. 7, 2006, pp. 56-62.
doi:10.1109/MCOM.2006.1668382
[6] J. Luo, J. Panchard, M. Piorkowski, M. Grossglauser and
J.-P. Hubaux, “MobiRoute: Routing towards a Mobile
Sink for Improving Lifetime in Sensor Networks,” 2nd
IEEE/ACM International Conference on Distributed Com-
puting in Sensor, San Francisco, 18-20 June 2006.
[7] Y. Bi, L. Sun, J. Ma, N. Li, I. A. Khan and C. Chen,
“HUMS: An Autonomous Moving Strategy for Mobile
Sinks in Data-Gathering Sensor Networks,” EURASIP
Journal on Wireless Communications and Networking,
2007, Article ID: 164574.
[8] Z. Vincze and R. Vida, “Multi-Hop Wireless Sensor Net-
works with MobileSink”, ACM Conference on Emerging
Network Experiment and Technology (CoNEXT’05), Tou-
louse, 24-17 October 2005.
[9] Z. Alliance, “Zigbee Specification v1.0,” June 2008.
http://www.zigbee.org
[10] OPNET Modeler Inc., November 2008.
http://www.opnet.com/solutions/network_rd/modeler.html
[11] N. Vlajic and D. Stevanovic, “Sink Mobility in Wireless
Sensor Networks: A (Mis)Match between Theory and Pra-
ctice,” Proceedings of the 2009 International Conference
on Wireless Communications and Mobile Computing, Leip-
zig, 12-14 October 2009.
