Gearbox Scheme in High Temperature Reactor Helium Gas Turbine System

Abstract Full-Text HTML XML Download Download as PDF (Size:767KB) PP. 85-88
DOI: 10.4236/wjnst.2012.23014    4,857 Downloads   8,642 Views   Citations

ABSTRACT

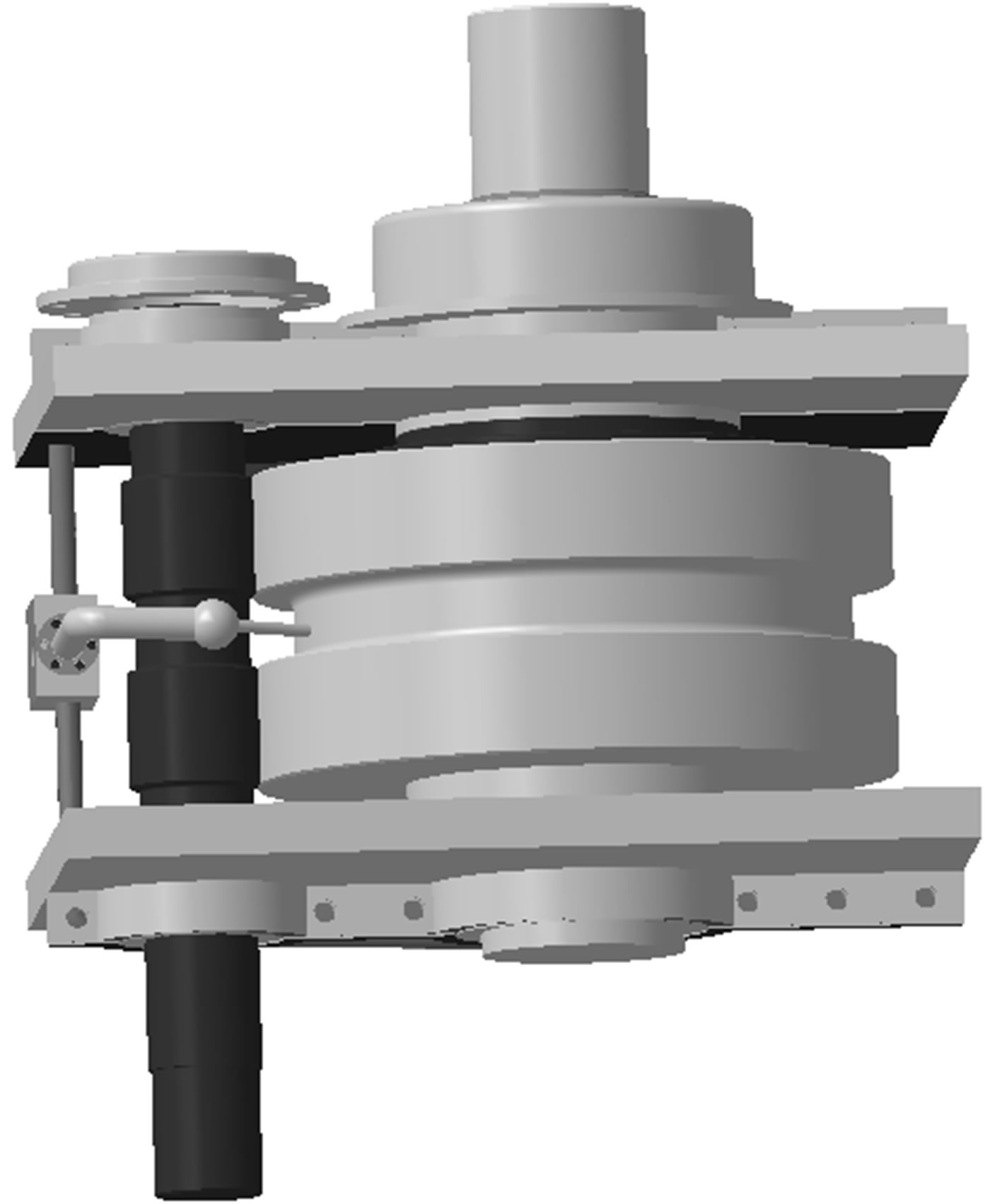

Helium Turbine is used in High Temperature Reactor Helium Gas Turbine (HTR-GT) system, by which the direct helium circulation between the reactor and turbine generator system will come true. Between helium turbine and generator, there is gearbox device which reduces the turbine rotation speed to normal speed required by the generator. Three optional gearbox schemes are discussed. The first is single reduction cylindrical gearbox, which consists of one high speed gear and one low speed gear. Its advantage is simple structure, easy to manufacture, and high reliability, while its disadvantage is large volume and misalignment of input and output axle. The second is planetary gear mechanism with static planet carrier. The third is planetary gear mechanism with static internal gear. The latter two gearbox devices have similar structure. Their advantage is small volume and high reduction gear ratio, while disadvantage are complicated structure, many gears, low reliability and low mechanical efficiency.

Conflicts of Interest

The authors declare no conflicts of interest.

Cite this paper

S. Liu and X. Sheng, "Gearbox Scheme in High Temperature Reactor Helium Gas Turbine System," World Journal of Nuclear Science and Technology, Vol. 2 No. 3, 2012, pp. 85-88. doi: 10.4236/wjnst.2012.23014.

References

[1] Z. X. Wu, D. Lin and D. Zhong, “The Design Features of the HTR-10,” Nuclear Engineering and Design, Vol. 218, No. 1-3, 2002, pp. 25-32.doi:10.1016/S0029-5493(02)00182-6
[2] Z. Y. Zhang and S. Y. Yu, “Future HTGR Developments in China after the Criticality of the HTR-10,” Nuclear Engineering and Design, Vol. 218, No. 1-3, 2002. pp. 249-257.doi:10.1016/S0029-5493(02)00204-2
[3] Y. L. Sun, Z. K. Zhang and Y. G. Zhang, “Preliminary Study on the HTR-10 Gas Turbine Cycle Design,” High Technology Letters, Vol. 11, No. 7, 2001, pp. 99-102.
[4]
