﻿ Traffic Flow Merging and Bifurcating at Junction on Two-Lane Highway

World Journal of Mechanics
Vol.2 No.4(2012), Article ID:21536,13 pages DOI:10.4236/wjm.2012.24025

Traffic Flow Merging and Bifurcating at Junction on Two-Lane Highway

Kazuhiro Tobita, Yuichi Naito, Takashi Nagatani

Department of Mechanical Engineering, Division of Thermal Science, Shizuoka University, Hamamatsu, Japan

Email: tmtnaga@ipc.shizuoka.ac.jp

Received May 14, 2012; revised June 17, 2012; accepted June 27, 2012

Keywords: Vehicular Dynamics; Traffic Jam; Junction; Dynamical Phase Transition; Weaving

ABSTRACT

In this paper we study the traffic states and jams in vehicular traffic merging and bifurcating at a junction on a two-lane highway. The two-lane traffic model for the vehicular motion at the junction is presented where a jam occurs frequently due to merging, lane changing, and bifurcating. The traffic flow is called the weaving. At the weaving section, vehicles slow down and then move aside on the other lane for changing their direction. We derive the fundamental diagrams (flow-density diagrams) for the weaving traffic flow. The traffic states vary with the density, slowdown speed, and the fraction of vehicles changing the lane. The dynamical phase transitions occur. It is shown that the fundamental diagrams depend highly on the traffic states.

1. Introduction

Mobility is nowadays one of the most significant ingredients of a modern society. Interchanges, junctions, and on ramp prevent mobility highly. Traffic networks often exceed the capacity. The traffic congestion often occurs in city traffic networks. Traffic flow is a self-driven many-particle system of strongly interacting vehicles [1-5]. The concepts and techniques of physics are applied to such complex systems as transportation systems. Several physical models have been applied to the vehicular flow [6-28]. The dynamical phase transitions such the jamming transitions between distinct traffic states have been studied from a point of view of statistical physics and nonlinear dynamics.

Traffic jams are a typical signature of the complex behavior of traffic flow. Traffic jams are classified into two kinds of jams: 1) spontaneous jam (or phantom jam) which propagates backward as the stopand go-wave and 2) stationary jam which is induced by slowdown or blockage at a section of roadway. If a sensitivity of driver is lower than a critical value, the spontaneous jam occurs. The jamming transition is very similar to the conventional phase transitions and critical phenomena [1,15]. When the sensitivity is higher than the critical value, the spontaneous jam does not appear, while the stationary jam induced by slowdown occurs [1,26].

Nagatani [25] and Hananura et al. [26] showed that the traffic flow on a highway with bottlenecks can be modeled by introducing the slowdown section into the highway. The bottleneck corresponds to the slowdown section where the maximal velocity in the optimal velocity function is reduced and less than that at the normal section. The stationary jam is formed just before the slowdown section. The vehicular traffic with slowdown section is similar to the synchronized traffic in the threephase theory. The extension of the optimal velocity model taken into account the slowdown corresponds to the nonunique case. By introducing the slowdown section instead of the bottleneck on a highway, one will be able to model the real traffic using the extended version of optimal velocity model.

In this paper, we introduce the slowdown and weaving sections instead of the bottleneck. Therefore, the bottleneck effect on the traffic flow is taken into account in our model.

In real traffic on toll roads, manual tollgates induce frequently the queuing just in front of traditional tollbooths because the delay occurs by collecting tolls manually (with cash). The electronic toll collection system (ETC) has been used to avoid the delay by the traditional tollgates on toll road. ETC operates together with traditional tollbooths. Very recently, the dynamic model has been presented for the traffic flow of electronicand manual-collection vehicles on a toll highway with electronic and manual tollgates. The traffic behavior has been studied for the toll highway with ETC and manual tollgates [27].

In real traffic, heavy congestion frequently occurs at the junction on a highway. Vehicles change their direction at the junction by changing to the other lane. The merging and bifurcating traffic flow is called weaving. When vehicles change their lane at the weaving section of junction, they slow down. The lane changing becomes easy by the slowdown because the speed is slower, the headway necessary for changing the lane is shorter. Also, the slowdown is stronger, the traffic is more congested at the junction. Thus, traffic congestion is induced by the slowdown when vehicles move aside on the other lane for changing their direction. There exist a few works for the weaving traffic flow at the junction on a highway [28-30]. Nishi et al. have studied the effect of vehicular configuration on the weaving traffic flow on a two-lane highway by using the cellular automaton model [28]. However, the slowdown effect on the weaving traffic flow has little been studied. At the junction, the traffic behavior changes with varying the fraction of vehicles changing their direction. It is little known how the fraction of vehicles changing their direction affect the fundamental diagram and traffic states.

Weaving traffic is a combined system of the traffic flow with off and on ramps. In the weaving section on a highway, traffic behaviors observed in offand on-ramps traffic occur simultaneously because inflow and outflow occurs simultaneously on each lane. Therefore, the weaving traffic in the present work is definitely different from off-ramp traffic or from on-ramp traffic. However, the present work for weaving traffic may be related to the congestion caused by isolated off ramp or on ramp if one is able to combine the on-ramp traffic with the off-ramp traffic.

In this paper, we present the dynamic model for the weaving traffic flow at the junction on a two-lane highway. The optimal-velocity model is applied to the weaving traffic flow on a two-lane highway. Then we study the traffic states and jams induced by the weaving at the junction on the two-lane highway. The dynamical states of weaving traffic flow are clarified. The fundamental diagrams for the weaving traffic on the two-lane highway are derived.

2. Model

We consider the situation such that many vehicles move ahead through a merging and bifurcating junction on a two-lane highway. Vehicles change their lane at the weaving section of the junction for changing their direction. We mimic the weaving traffic flow at the junction on the two-lane highway. There are two kinds of vehicles: the one is A-bound vehicle and the other B-bound vehicle. A-bound vehicles on lane 1 go ahead to A direction without changing their lane. B-bound vehicles on lane 1 try to change their lane from lane 1 to lane 2 and wish to go ahead to B direction. B-bound vehicles on lane 2 go ahead to B direction without changing their lane. Abound vehicles on lane 2 try to change their lane from lane 2 to lane 1 and wish to go ahead to A direction. Figure 1(a) shows the schematic illustration of the weaving traffic flow through the merging junction on the twolane highway. A-bound vehicles are indicated by dark (red) color. B-bound vehicles are indicated by light (blue) color. Two kinds of vehicles enter into the merging junction together. The weaving occurs at the merging section. Vehicles move ahead by changing their lane if necessary. Vehicles slow down to change their lane when they enter into the weaving (merging) section. Figure 1(b) shows the schematic illustration of the weaving traffic flow model on the two-lane highway.

We partitioned the two-lane highway with the merging junction into four sections. Section N1 is a normal region with maximal velocity where vehicles do not change their lane. Section S1 is a slowdown region with maximal velocity (where vehicles do not change their lane but slow down. Section S2 is a weaving region with maximal velocity where vehicles change their lane if necessary. Section N2 is an acceleration region with maximal velocity where vehicles do not change their lane but speed up. The lengths of Sections N1, S1, S2, and N2 are set as respectively. Two kinds of vehicles enter into the two-lane highway with mixing at a fraction. Vehicles slow down when they enter into Section S1. In Section S2, they change their lane with slowing down if necessary. After changing the lane, vehicles go ahead with accelerating.

Here, traffic flow is under the periodic boundary condition. In real traffic, vehicular traffic is under the open boundary. The open boundary condition affects the traffic behavior. Also, under the open boundary conditions, it is not easy to vary the values of vehicular density. To study the effect of the vehicular density on the traffic flow, one uses the periodic boundary condition.

We assume that vehicles are forced to slow down when they enter into sections of the slowdown and weaving. When vehicles enter into the weaving section S2, vehicles change their lane if the criteria of lane changing are satisfied. The speed is lower, the lane changing is easier. At highway junctions in Japan, the slowdown region is set just before the weaving region because the lane changing is easy. Therefore, we set the slowdown section just before the weaving section. In the weaving section, vehicles slow down and change the lane. Even if there exist no slowdown section, the present simulation result is effective because vehicles slow down in the weaving section.

When a vehicle tries to take his desired route in weaving traffic, it is important that the vehicle changes the lane successfully with no collisions. When the vehicle

(a)(b)

Figure 1. (a) Schematic illustration of the weaving traffic flow through the merging and bifurcating junction on the two-lane highway. A-bound vehicles are indicated by dark (red) color. B-bound vehicles are indicated by light (blue) color. Two kinds of vehicles enter into the junction with a mixed state. The weaving occurs at the merging section; (b) Schematic illustration of the weaving traffic flow model on the two-lane highway. We partitioned the two-lane highway with the junction into four sections.

enters into the desired lane, the vehicular speed and headway vary with time continuously. In weaving traffic, it is necessary and important that the physical quantities, space, and time are continuous variables. We prefer the differential equation model rather than the CA model. In the traffic model described in terms of the differential equation, the optimal velocity model is simple and is well studied. Therefore, we applied the optimal velocity model to the weaving traffic. Since the original optimal velocity model is an over-simplified model, we extended the original optimal velocity model to take into account the bottleneck effect (slowdown) and the lane changing.

Lane changing is implemented as a sideways movement. We assume that the vehicular movement is divided into two parts: one is the forward movement and the other is the sideways movement. We apply the optimal velocity model to the forward movement [1,15]. The optimal velocity model is described by the following equation of motion of vehicle i :

, (1)

where is the optimal velocity function, is the position of vehicle i at time t,

is the headway of vehicle i at time t, and is the sensitivity (the inverse of the delay time) [1].

A driver adjusts the vehicular speed to approach the optimal velocity determined by the observed headway. The sensitivity allows for the time lag that it takes the vehicular speed to reach the optimal velocity when the traffic is varying. Generally, it is necessary that the optimal velocity function has the following properties: it is a monotonically increasing function and it has an upper bound (maximal velocity). The vehicle length is taken to be zero.

Vehicles move with the normal velocity except for the slowdown sections. In the region of normal-speed section, the optimal velocity function of vehicles is given by

, (2)

where is the maximal velocity of vehicles on the roadway except for the slowdown sections and the position of turning point [1].

In the slowdown Section S1 and weaving Section S2, vehicles move with the forced speed and the vehicular velocity should be lower than the speed limits of slowdown. When vehicles enter into the slowdown and weaving sections, they obey the conventional optimal-velocity function with speed limit:

, (3)

where is the speed limit of slowdown and weaving sections, , and the position of turning point.

We consider the criteria for the lane changing. A driver of A-bound (B-bound) vehicle on the first (second) lane goes ahead on lane 1 (lane 2) without changing lane. A driver of A-bound (B-bound) vehicle on the second (first) lane change to the first (second) lane if the security criterion is satisfied. The security criterion is necessary to avoid the collision with the vehicles ahead or behind. The space between vehicles ahead and behind should be sufficiently large not to collide with the vehicles ahead and behind. The space is proportional to the maximal velocity. We propose the following security criterion. When the headway between his vehicle and the front vehicle on the target lane is larger than the prescribed distance and the headway between his vehicle and the back vehicle on the target lane is larger than the prescribed distance, it is successful for his vehicle to change the lane. We set the prescribed distance as.

We adopt the following lane changing rule for the two-lane highway:

and

for the security criterion,                 (4)

where is the headway between vehicle i and the vehicle ahead on the target lane and is the headway between vehicle i and the vehicle behind on the target lane. Figure 2(a) shows the schematic illustration of lane changing. After changing lane, the vehicle shifts just to the side in (a).

If the security criterion (4) is not satisfied, the following security rule is applied because the vehicle accelerates or decelerates for changing lane:

for the security condition.  (5)

Figure 2(b) shows the schematic illustration of lane changing. After changing lane, the vehicular position on the target lane changes to the following:

(6)

The dynamics is determined by Equations (1)-(6). Then, various dynamic states of traffic appear and traffic jams may occur. We study the dynamic states, traffic jams, and fundamental diagrams in the traffic flows described by the model in Figure 1(b).

For later convenience, we summarize the dynamic states and spontaneous jams for the conventional optimal velocity model. The conventional optimal velocity model with a single turning point exhibits two phases and a coexisting state of two phases. Below the critical point, the phase transition occurs [1].

In this paper, we restrict ourselves to such case that sensitivity is higher than the critical point, , because we do not investigate the spontaneous jam but study the traffic states induced by weaving.

3. Simulation and Result

We perform computer simulation for the traffic model shown in (b). We simulate the traffic flow under the periodic boundary condition. The number of vehicles is constant and conserved on the two-lane highway. When a vehicle goes out of the two-lane highway at x = L, it returns to either lane 1 or lane 2 at x = 0 at probability 1/2. At x = 0, returned vehicles on lanes 1 and 2 are classified into two kinds of vehicles randomly. Vehicles on the first lane at x = 0 become A-bound vehicles at probability and B-bound vehicles at probability where is the fraction of A-bound vehicles on lane 1. Vehicles on the second lane at x = 0 become B-bound vehicles at probability and A-bound vehicles at probability where is the fraction of B-bound vehicles on lane 2. The simulation is performed until the traffic flow reaches a steady state. We solve numerically Equation (1) with optimal velocity functions (2) and (3) under lane changing criteria (4)-(6) by using fourth-order Runge-Kutta method where the time interval is. We assume that vehicles try to change their lane every. We set.

We carry out simulation by varying the vehicular density for road length L = 500, sensitivity, maximal velocities and, and safety distance. First, we study the traffic behavior for the symmetric case (). Figure 3(a) shows the plots of traffic currents on lane 1 against density at and where, , , and. In (a)

(a) (b)

Figure 2. (a) Schematic illustration of lane changing. After changing lane, the vehicle shifts just to the side; (b) After changing lane, the vehicular position on the target lane changes to Equation (6).

, 30 percent vehicles on lanes 1 and 2 try to change their lane. The traffic currents are given for x = L. The density is the mean density over Sections N1, S1, S2, and N2. The open (red) and full (blue) circles indicate, respectively, the traffic currents of A-bound and B-bound vehicles on the first lane obtained by simulation. The open (green) triangles indicate the sum of traffic currents of A-bound and B-bound vehicles on the first lane. The upper solid curve represents the theoretical current curve for without slowdown sections. The lower solid curve represents the theoretical current curve for all slowdown sections of. The theoretical current is given by

, (7)

where the optimal velocities at the normal and slow speeds are presented by Equations (2) and (3) respecttively and is the initial headway.

If one takes = 2.0 as maximal velocity 90 km/h and unit length as 10m, the maximal current is 150 vehicles/5 minutes and its density is 20 vehicles/km. These values agree with real traffic data. Thus, one can translate the dimensionless quantities to the typical values.

Open (red) circles represent the currents of A-bound vehicles sorting successfully into the first lane. Full (blue) circles represent the currents of B-bound vehicles failed to sorting into the second lane. In this symmetric case, the current of A-bound vehicles on the first lane is consistent with that of B-bound vehicles on the second lane. Also, the current of B-bound vehicles on the first lane is consistent with that of A-bound vehicles on the second lane. Traffic states change with increasing density through the dynamical phase transitions. Traffic is classified into four states. The boundaries among the distinct traffic states give the transition points. In region Ⅰ at low density, all vehicles move nearly with the maximal velocity and vehicles sort successfully into the respective lanes. In region Ⅱ, the currents of A-bound and B-bound vehicles on first and second lanes saturate and keep a constant value. A-bound (B-bound) vehicles sort successfully into the first (second) lane. In region Ⅲ, the current of A-bound (B-bound) vehicles on the first (second) lane decreases with increasing density. A-bound and B-bound vehicles are successful to sort into the respective lanes. In region Ⅳ at high density, the currents decrease with increasing density. A-bound and B-bound vehicles mix on both lanes and fail to sort into the respective lanes.

We study the effect of fraction () on the fundamental diagram for the symmetric case. Figures 3(b)-(d) show the plots of traffic currents on lane 1 against density at (b), (c), and (d) where, , , , and. In (d), all vehicles on lanes 1 and 2 try to change their lane. The open (red) and full (blue) circles indicate, respectively, the traffic currents of A-bound and B-bound vehicles on the first lane obtained by simulation. The open (green) triangles indicate the sum of traffic currents of A-bound and B-bound vehicles on the first lane. With decreasing fraction, the current of vehicles failed changing lane in region Ⅳ increases. Region Ⅲ does not appear for (d). The transition point between regions Ⅰ and Ⅱ little change with fraction. Also, the transition point between regions Ⅲ and Ⅳ depend little on fraction. When the density is higher than transition point between regions Ⅲ and Ⅳ, vehicles fail to sort into the respective lane. The transition point is higher, vehicles are easier to change their lane. This transition point is very important for the traffic control.

We study the traffic patterns and velocity profiles of velocity for distinct traffic states Ⅰ-Ⅳ at shown in Figure 3(a). Diagrams (a)-(d) in Figure 4" target="_self"> Figure 4 show the traffic patterns at (a) density, (b), (c), and (d). The vehicular position is plotted on the two-lane highway at time t = 60000. An A-bound vehicle is indicated by a (red) dot. A B-bound vehicle is indicated by a (blue) bar. Figure 5" target="_self"> Figure 5 shows the plots of velocity against vehicular position on lanes 1 and 2. The velocity profiles on lanes 1 and 2 are plotted by open (red) and full (blue) circles respectively. Diagrams (a)-(d) are the velocity profiles at (a) density, (b), (c), and (d). The velocity profiles (a)-(d) correspond to the traffic patterns (a)-(d) respectively. Figures 4 and 5 are the typical patterns and profiles for distinct traffic states Ⅰ-Ⅳ in Figure 3(a). Pattern (a) and velocity profile (a) display the free traffic with no jam where all vehicles are successful to sort into respective lanes. Pattern (b) and velocity profile (b) exhibit the jammed state. The jam extends from slowdown Section S1 to normal Section N1. Also, all vehicles are successful to sort into respective lanes. Pattern (c) and velocity profile (c) display the congested state. The jam extends over the whole highway. Irrespective of the congestion, all vehicles are successful to sort into respective lanes. Pattern (d) and velocity profile (d) exhibit more congested state than pattern (c). Vehicles fail to sort into the respective lanes. A-bound and B-bound vehicles are mixed on lanes 1 and 2 at Section N2.

At a high density, some drivers do not get to take their desired route in this model because the drivers cannot change their lane at a high density. In real traffic, the high-density traffic does not occur because the operator controls the weaving traffic at the junction to avoid the heavy congestion of no lane changing. If the high-density traffic is allowed, it may happen that the drivers do not

(a)(b)(c)(d)

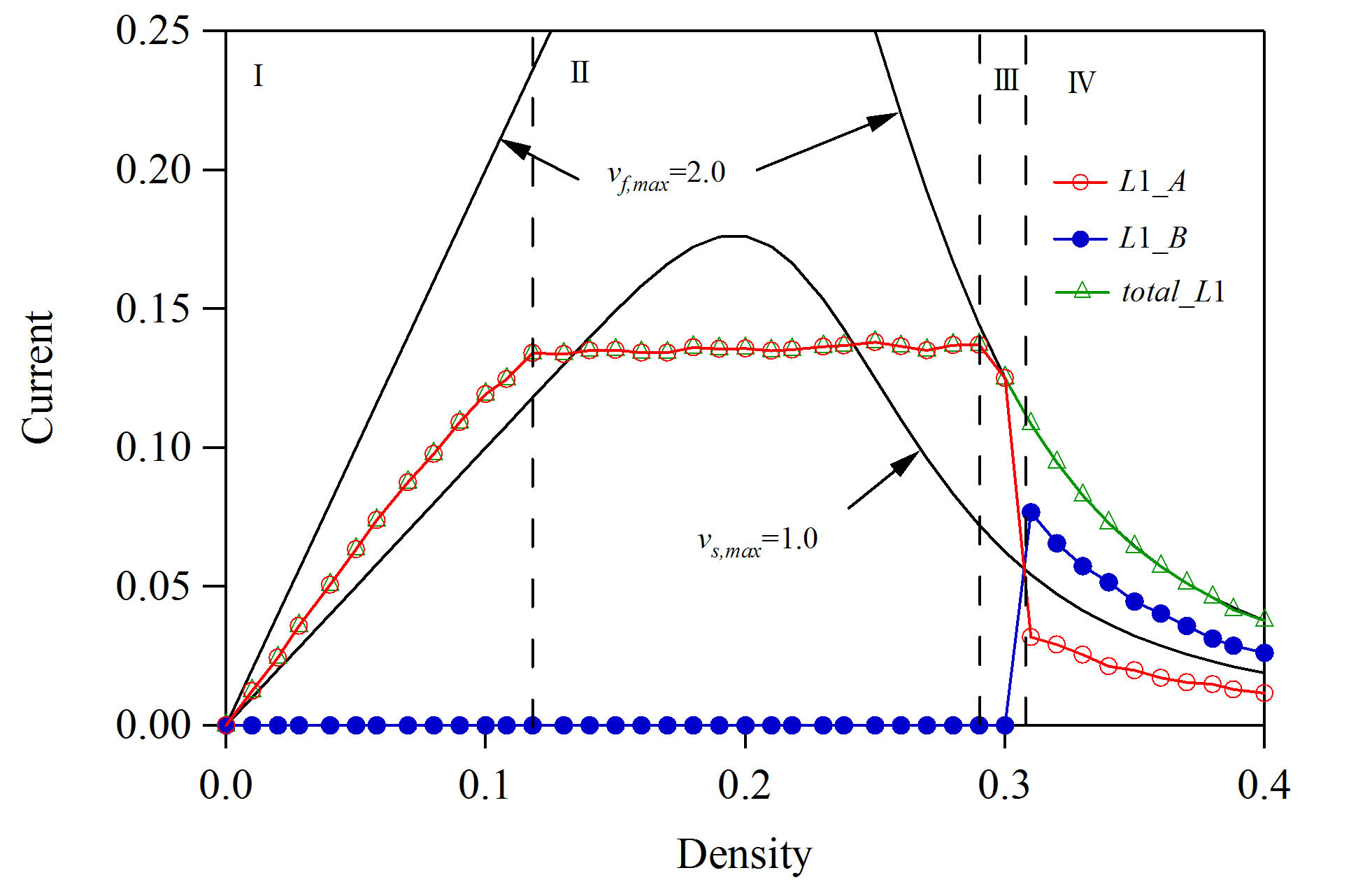

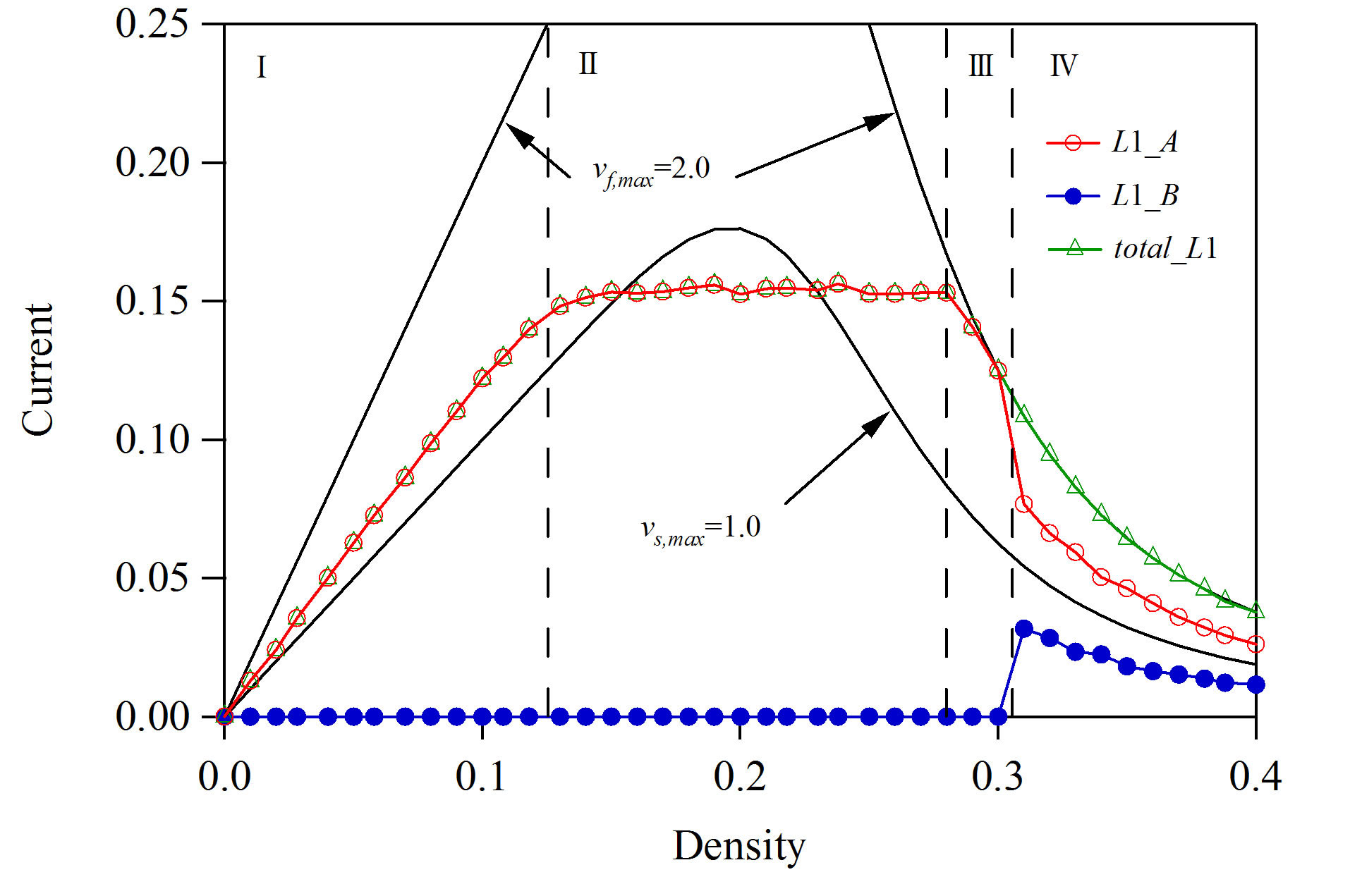

Figure 3. Plots of traffic currents on lane 1 against density at (a) cA = cB = 0.7; (b) cA = cB = 0.5; (c) cA = cB = 0.3; and (d) cA = cB = 0.0, where vs,max = 1.0, LN = 100, LS1 = 100, LS2 = 200, and LN2 = 100. Open (red) circles represent the currents of A-bound vehicles sorting successfully into the first lane. Full (blue) circles represent the currents of B-bound vehicles failed to sorting into the second lane. The upper solid curve represents the theoretical current curve for vf,max = 2.0 without slowdown sections. The lower solid curve represents the theoretical current curve for all slowdown sections of vs,max = 1.0.

(a)(b)(c)(d)

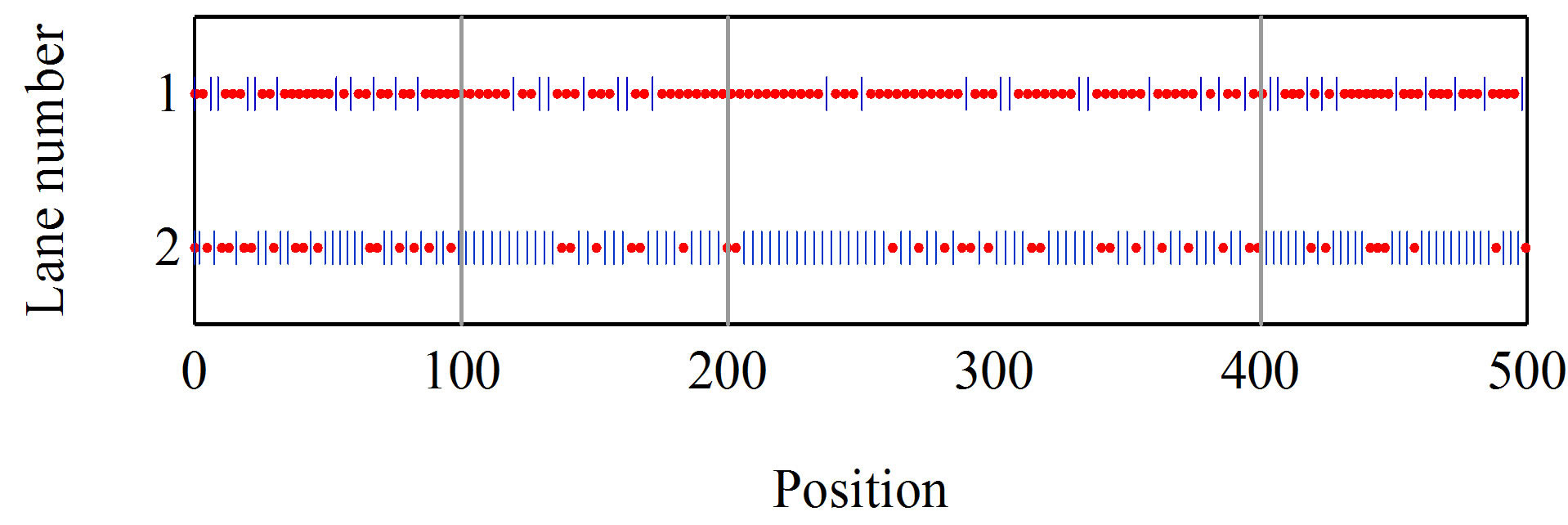

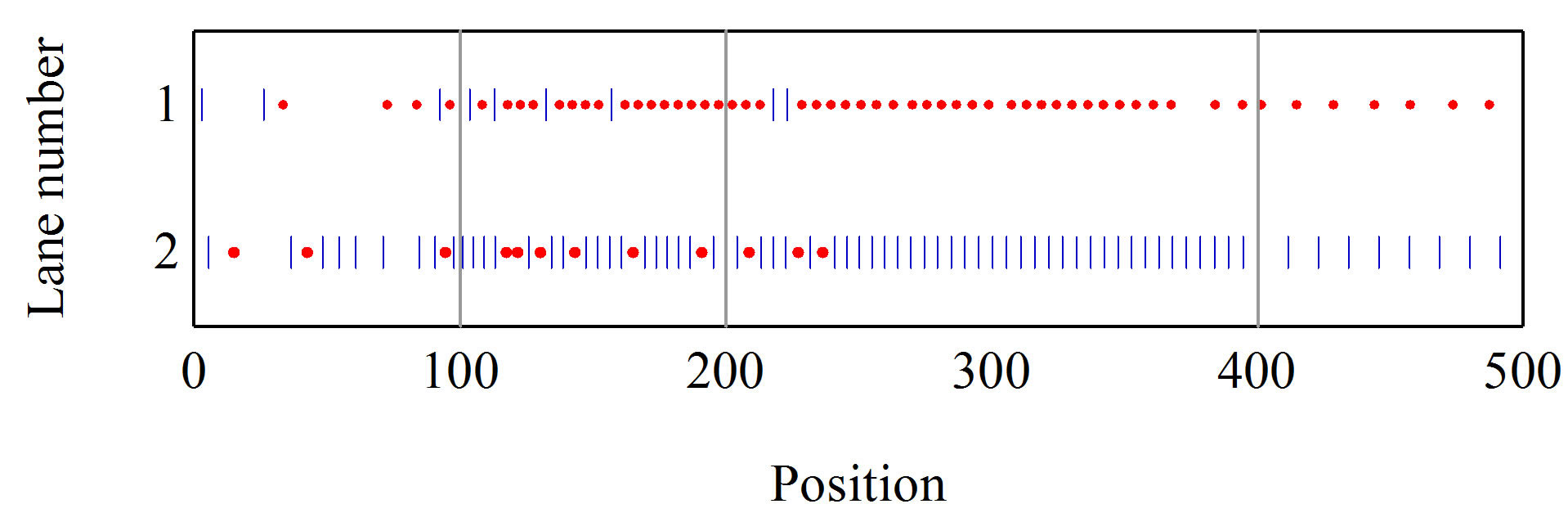

Figure 4. Traffic patterns for distinct traffic states I-IV at cA = cB = 0.7 shown in (a). Diagrams (a)-(d) show the traffic patterns at (a) density ρ = 0.06; (b) ρ = 0.15; (c) ρ = 0.30; and (d) ρ = 0.36. The vehicular position is plotted on the two-lane highway at time t = 60,000. An A-bound vehicle is indicated by a (red) dot. A B-bound vehicle is indicated by a (blue) bar.

(a)(b)(c)(d)

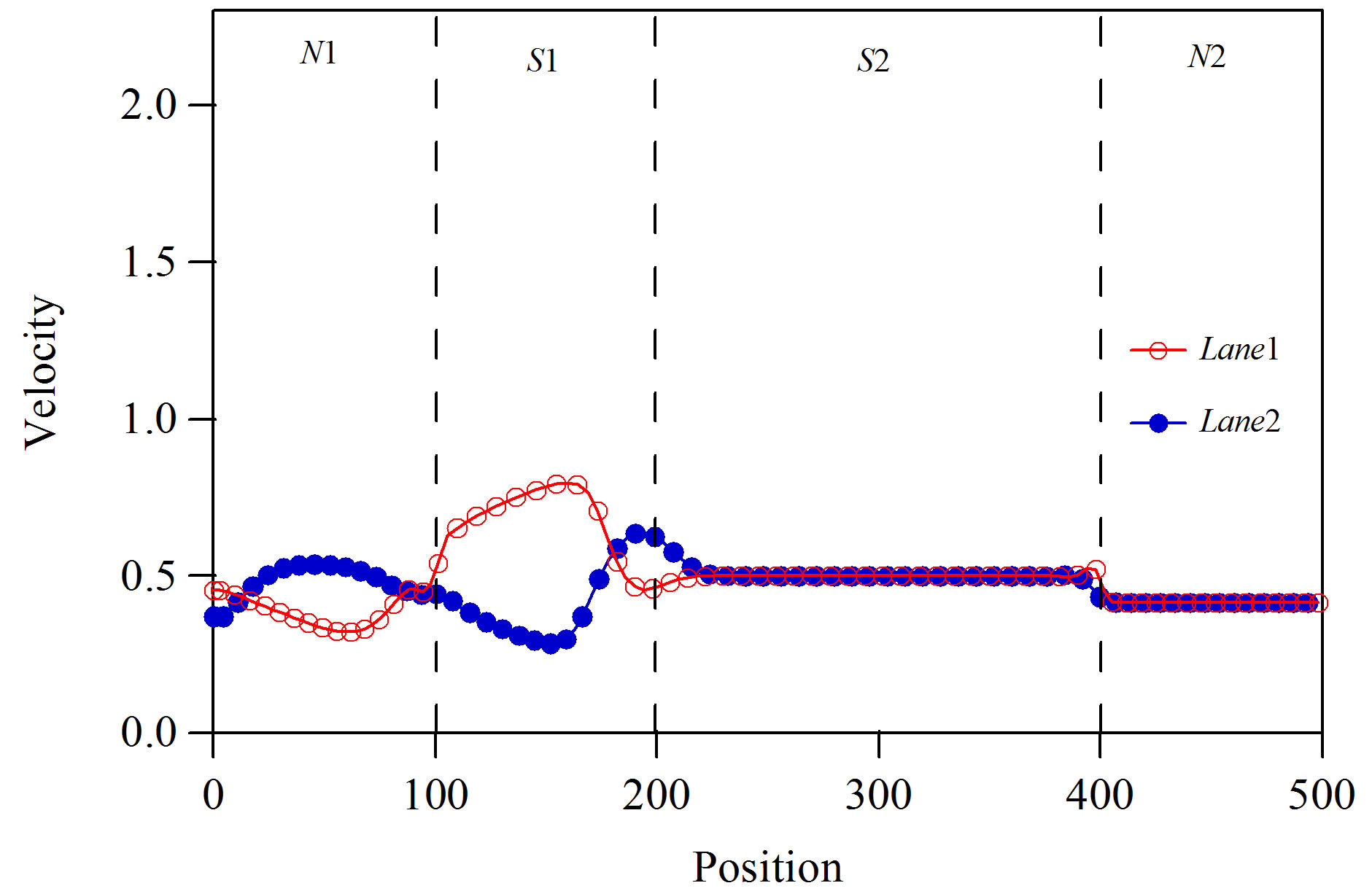

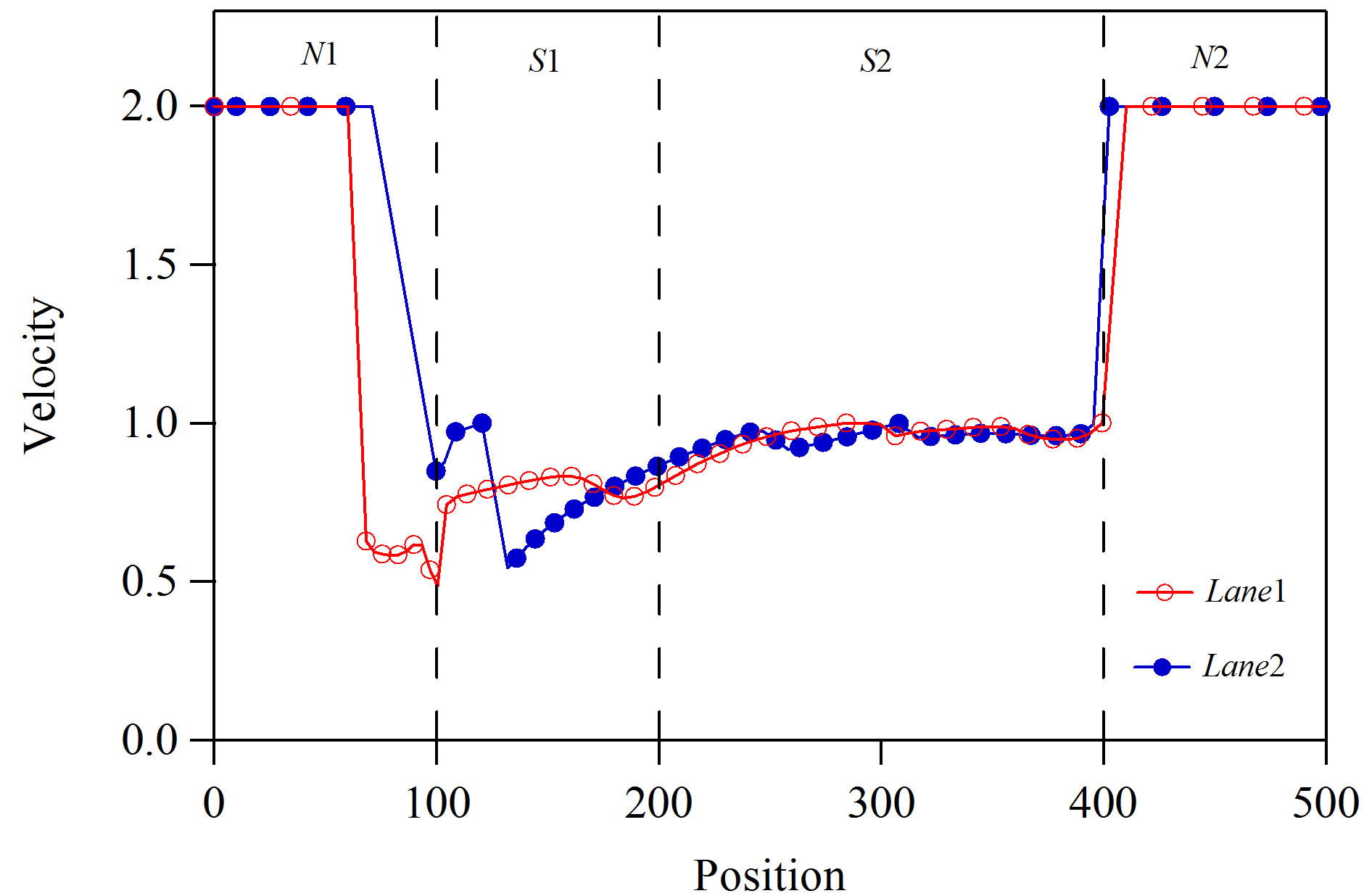

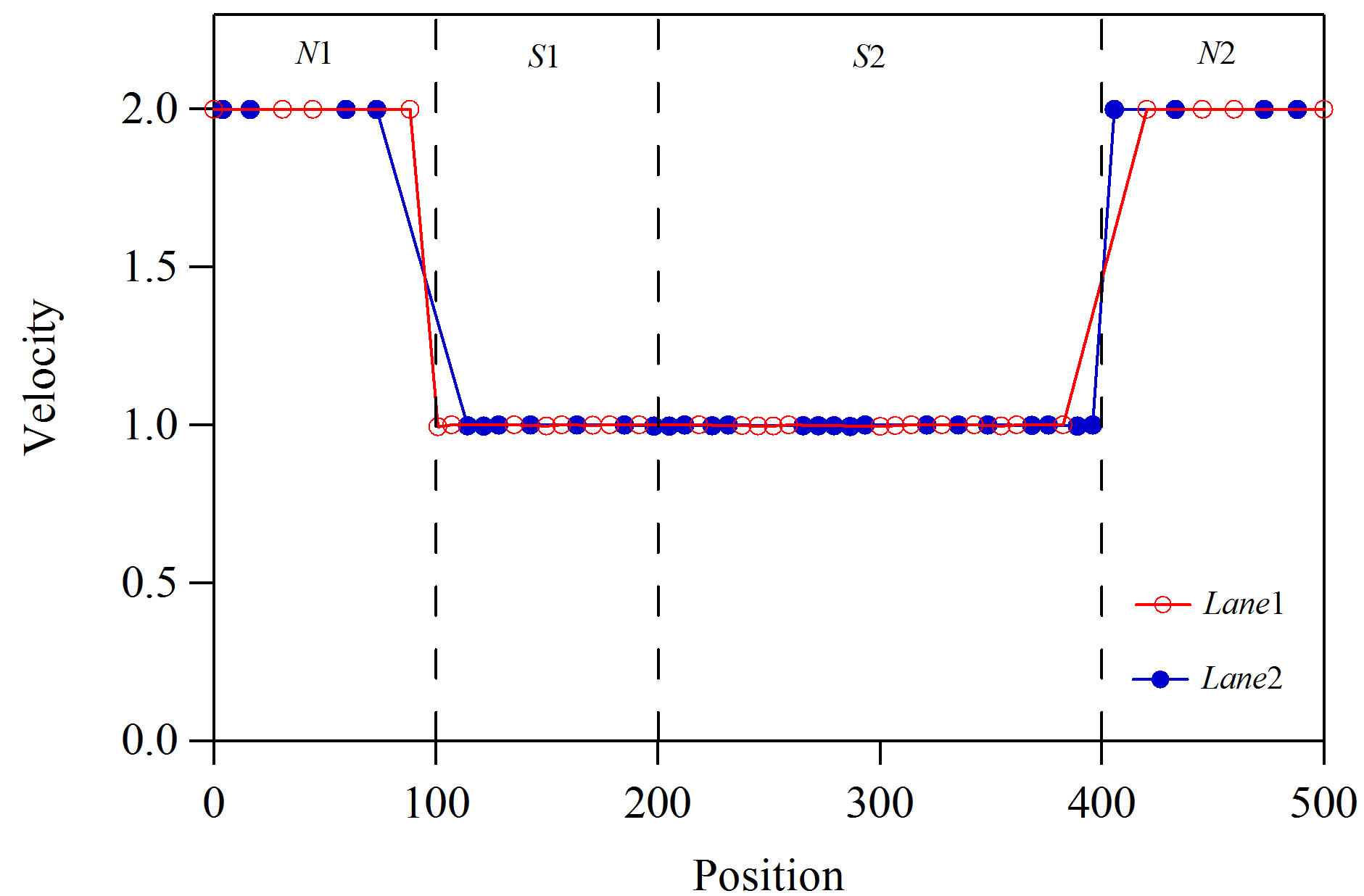

Figure 5. Plots of velocity against vehicular position on lanes 1 and 2. The velocity profiles on lanes 1 and 2 are plotted by open (red) and full (blue) circles respectively. Diagrams (a)-(d) are the velocity profiles at (a) density ρ = 0.06; (b) ρ = 0.15; (c) ρ = 0.30; and (d) ρ = 0.36. The velocity profiles (a)-(d) correspond to the traffic patterns (a)-(d) respectively.

take their desired route at a high density due to no possibility of the lane changing.

We study the effect of slowdown speed on the traffic behavior and fundamental diagram. We investigate the dependence of the dynamical transitions on the slowdown speed. Figure 6(a) shows the plots of traffic currents on lane 1 against density at and slowdown speed where, , , and. Figure 6(b) shows the plots of traffic currents on lane 1 against density at and slowdown speed. The open (red) and full (blue) circles indicate, respectively, the traffic currents of A-bound and B-bound vehicles on the first lane obtained by simulation. The open (green) triangles indicate the sum of traffic currents of A-bound and B-bound vehicles on the first lane. The upper solid curve represents the theoretical current curve for without slowdown sections. In Figure 6(a), the lower solid curve represents the theoretical current curve for all slowdown sections of. In Figure 6(b), the lower solid curve represents the theoretical current curve for all slowdown sections of. When the slowdown speed decreases, the value of maximal current (saturated current) becomes lower and the transition point between traffic states Ⅱ and Ⅲ is higher. With decreasing slowdown speed, the maximal current decreases. However, the sorting (lane changing) is possible until higher density. If drivers slow down until lower speed, they are successful to sort into respective lanes at higher density.

We study the effect of both slowdown speed and fraction on the fundamental diagram. Figure 7 shows the plots of total current on lane 1 against density where, , , and. The total current is given by the sum of currents of A-bound and B-bound vehicles on lane 1. The total current on lane 2 equals that on lane 1 in the symmetric case. Diagrams (a)-(d) in Figure 7 show the plots of total currents on lane 1 against density for slowdown speeds

at (a) fraction, (b), (c), and (d). Open (red) circles, open (blue) triangles, and open (green) squares indicate the total currents for slowdown speeds respectively. The lower solid curve

(a)(b)

Figure 6. Plots of traffic currents on lane 1 against density at cA = cB = 0.7 and slowdown speed (a) vs,max = 0.8 and (b) vs,max = 1.2 where LN = 100, LS1 = 100, LS2 = 200, and LN2 = 100. The open (red) and full (blue) circles indicate, respectively, the traffic currents of A-bound and B-bound vehicles on the first lane obtained by simulation. The open (green) triangles indicate the sum of traffic currents of A-bound and B-bound vehicles on the first lane.

(a)(b)(c)(d)

Figure 7. Plots of total current on lane 1 against density where LN = 100, LS1 = 100, LS2 = 200, and LN2 = 100. Diagrams (a)-(d) show the plots of total currents on lane 1 against density for slowdown speeds vs,max = 1.2, 1.0, 0.8 at (a) fraction cA = cB = 0.7; (b) cA = cB = 0.5; (c) cA = cB = 0.3; and (d) cA = cB = 0.0. Open (red) circles, open (blue) triangles, and open (green) squares indicate the total currents for slowdown speeds vs,max = 1.2, 1.0, 0.8 respectively.

represents the theoretical current for. When the fraction decreases, the number of vehicles trying the lane changing increases. With decreasing fraction, the maximal current (saturated current) decreases. This is due to the following reason. When the vehicles changing the lane increases, the headway becomes shorter at lane-changing Section S2. The speed reduces by shorter headway. The reduced speed results in the lower maximal current.

We study the effect of length at weaving Section S2 on the fundamental diagram. Figure 8 shows the fundamental diagrams for (a), (b), and (c) where, , , , and. Open (red) and full (blue) circles indicate the currents of A-bound and B-bound vehicles on lane 1 respectively. Open (green) triangles represent the total current (sum) of A-bound and B-bound vehicles on lane 1. Vehicles try to change their lane every time. In cases (a) and (b) that weaving length is larger than

, the fundamental diagram does not depend on because the weaving length is sufficiently large for vehicles to change their lane. In case (c), B-bound (A-bound) vehicles on lane 1 (lane 2) failed to change their lane within the weaving section because there is not a sufficient length for vehicles to change their lane. Thus, it is necessary and important that the length of weaving section is sufficiently larger than.

We consider the asymmetric case that the inflow on lane 1 is definitely different from that on lane 2. In the asymmetric case, when a vehicle goes out of the two-lane highway at x = L, it returns to lane 1 at x = 0 at probability and to lane 2 at x = 0 at probability. The symmetric case is. Furthermore, returned vehicles on lane 1 (lane 2) become A-bound (B-bound) vehicles at probability and B-bound vehicles (Abound) at probability. Figure 9 shows the fundamental diagrams for where, , , , , and. Diagram (a) shows the plots of currents on lane 1 against density. Open (red) and full (blue) circles

(a)(b)(c)

Figure 8. Fundamental diagrams for (a) LS2 = 150; (b) LS2 = 100; and (c) LS2 = 50 where vs,max = 1.0, cA = cB = 0.5, LN = 100, LS1 = 100, and LN2 = 100. Open (red) and full (blue) circles indicate the currents of A-bound and B-bound vehicles on lane 1 respectively.

(a)(b)

Figure 9. Fundamental diagrams for pr = 0.3 where cA = cB = 0.7, vs,max = 1.0, LN = 100, LS1 = 100, LS2 = 200, and LN2 = 100. Diagram (a) shows the plots of currents on lane 1 against density. Open (red) and full (blue) circles indicate the currents of A-bound and B-bound vehicles on lane 1 respectively. Diagram (b) represents the plots of currents on lane 2 against density. Full (blue) and open (red) circles indicate the currents of B-bound and A-bound vehicles on lane 2 respectively.

indicate the currents of A-bound and B-bound vehicles on lane 1 respectively. Open (green) triangles represent the sum of currents of A-bound and B-bound vehicles on lane 1. Diagram (b) represents the plots of currents on lane 2 against density. Full (blue) and open (red) circles indicate the currents of B-bound and A-bound vehicles on lane 2 respectively. B-bound vehicles on lane 1 failed to change lane 2 when the density is higher than the transition point between traffic states III and IV. The transition point between traffic states III and IV on lane 1 is lower than that on lane 2. B-bound vehicles on lane 1 are hard to change the lane because the second lane is more congested than the first lane. The saturated current on lane 2 is higher than that on lane 1 because B-bound vehicles are more than A-bound vehicles.

We compare the fundamental diagram of the asymmetric case with that of the symmetric case. shows the fundamental diagram where, , , , and. Diagrams (a)-(d) represent the plots of total current on lane 1 against density for (a), (b), (c), and (d)

. Open (red) and full (blue) triangles indicate the total current for the symmetric and asymmetric cases respectively. The current for the symmetric case is higher than that for the asymmetric case because the lane 2 is more congested than the lane 1 for the asymmetric case.

Thus, the traffic states and fundamental diagram for the weaving traffic vary with the density, the slowdown speed, and the fraction of vehicles changing the direction. A traffic state changes to different states through some dynamical phase transitions. The traffic flow in the weaving traffic at the junction shows the very complex behavior. In order to sort successfully into the respective lanes, it is necessary and important for the vehicular density to be lower than the relevant transition point.

We note the traffic flow under the open-boundary condition. Real-world traffic is under open boundary conditions, while our model is under periodic boundary conditions. The traffic flow with open boundary conditions is mainly determined by inflow and outflow densities. If the outflow density is low, the traffic behavior is governed by the inflow density. In the traffic model with periodic boundary condition, the traffic flow is governed by the mean density where the mean density is defined by [total number of vehicles]/[road length]. In traffic states at a steady state, the traffic phases for periodic boundary conditions are related to those for open boundary conditions via the mean density. When the outflow density is low, the inflow density is proportional to the mean density. The fundamental diagram of flow vs. inflow density under open boundary conditions is similar to that of flow vs. mean density under periodic boundary conditions. If the inflow density is translated to the mean density, the steady-state phases under open boundary conditions are relevant to those under periodic boundary conditions for the same value of mean density.

We perform the simulation for the open boundary condition. We derive the fundamental diagram for the open boundary condition. We compare the open-boundary traffic with the closed-boundary traffic. (a) shows the plot of current against inflow density where outflow density is zero. Open circles indicate the simulation result. The solid line represents the theoretical current curve. We transform the inflow density to the mean density. The mean density is calculated by [total number of vehicles]/[road length. (b) shows the plot of mean density against inflow density. The fundamental diagram (the current vs. mean density) for the open

(a)(b)(c)(d)

. Fundamental diagram where vs,max = 1.0, LN = 100, LS1 = 100, LS2 = 200, and LN2 = 100. Diagrams (a)-(d) represent the plots of total current on lane 1 against density for (a) cA = cB = 0.7; (b) cA = cB = 0.5; (c) cA = cB = 0.3; and (d) cA = cB = 0.0. Open (red) and full (blue) triangles indicate the total current for the symmetric and asymmetric cases respectively.

boundary condition, (c) is obtained by using (b). Open circles indicate the simulation result of open boundary and the solid curve represents that of periodic boundary. The open-boundary result agrees roughly with the periodic-boundary result. However, the high-density phase does not appear. Thus, the periodic-boundary traffic flow will be applied to the realword traffic.

If the inflow density is higher than the outflow density under open boundary conditions, the high density state does not occur but the low density state occurs (see Figure 11). Under periodic boundary conditions, two possible states depend on the mean density.

We applied the simplified rules to the lane changing. Generally, the vehicular motion of lane changing is very complex. In order to make the present model better, it will be necessary to improve the lane changing rules. Also, we mimicked the junction by two lanes. However, the junction in real traffic is composed of four lanes higher than two lanes. It will be necessary to extend the present model to the junction on four lanes.

4. Summary

We have investigated the traffic states and dynamical phase transitions in the merging and bifurcating traffic flow (weaving traffic) at the junction on a two-lane highway. We have presented the dynamical traffic model mimicking the weaving traffic at the junction. We have derived the fundamental diagrams (current-density diagrams) for the traffic flow on the weaving traffic. We have shown that there are four distinct traffic states and the traffic flow changes to the distinct states through three dynamical transitions. We have found the condition such that vehicles changing the direction are successful to sort themselves into their respective lanes. We have clarified that the traffic flow depends highly on the vehicular density, the slowdown speed, and the fraction of vehicles changing the direction.

The study will be the first to discuss whether the junction works successfully on a two-lane highway for the

(a)(b)(c)

. (a) Plot of current against inflow density for the open-boundary traffic where outflow density is zero. Open circles indicate the simulation result. The solid line represents the theoretical current curve; (b) Plot of mean density against inflow density; (c) Plot of current against mean density for the open boundary condition.

merging and bifurcating vehicles and to clarify the dependence of successful weaving traffic on the slowdown speed. This work will be useful to operate efficiently the junction on the highway.
