Mechanical Properties of Fly Ash Filled High Density Polyethylene
Iftekhar Ahmad and Prakash A. Mahanwar
Department of Polymer Engineering and Technology, Institute of Chemical Technology,
Mumbai University, Mumbai 400019, India
*Corresponding Author:
ABSTRACT
Effect of fly ash as filler in mechanical properties of HDPE is described in this study. Three
different particle size of fly ash was used. Concentration of fly ash was varied up to 40 % by
weight. The composites were prepared using twin screw extruder and then test specimens were
prepared by injection molding. Tensile, flexural and impact properties were tested. The
microstructure was investigated through scanning electron microscopy (SEM) of the fractured
samples. Both tensile and flexural strengths and moduli were found to increase with fly ash
addition. Tensile elongation drastically reduced at fly ash concentration greater than 10%. With
increasing fly ash concentration impact resistance decreased up to about 15% fly ash
concentration and then did not reduce significantly on further addition. Composites with
smallest size fly ash particles proved to be better in enhancing strength and relative elongation.
Modulus and impact resistance did not seem to depend much on particle size.
Key words: composites; fly ash; mechanical properties; polyethylene.
1. INTRODUCTION
In order to reduce the production cost of plastic products, and to improve certain characteristics,
one or more fillers are usually used as an addition to the resin matrix. The total production of fly
ash in India was approximately 111 million tons in 2004-05. About half of the fly ash is used in
cement and brick industries and for landfill purposes. Due to reduce environmental concerns and
disposal difficulties, the utilization of fly ash has become of great importance. Some studies have
pointed to the excellent compatibility between fly ash and polymers.1-3 Other researches have

184 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3
also shown the advantageous use of treated fly ash in a wide variety of polymer matrices.4-8
Although incidental success stories are published, a systematic approach on investigating the
influence of fly ash on polymer properties for the various different polymer types and the
enormous amount of possible formulations has not yet been properly undertaken. As a part of an
attempt into this direction, the present work deals with HDPE-fly ash composites. Various
mechanical properties of the composites were evaluated. Attempts have also been made to
correlate them. The properties shown by the composites will help in estimating their suitability
for various applications.
2. EXPERIMENTAL
2.1 Materials
Injection grade HDPE (M60075) was supplied by Reliance Industries Limited, having density of
0.960 g/cm3 and MFI of 8.2 g/10min (190°C, 2.16 kg). Fly ash was supplied by NTPC, Farakka
(West Bengal, India). Physical properties of the fly ash are tabulated in Table 1. Table 2 shows
general chemical composition of fly ash.

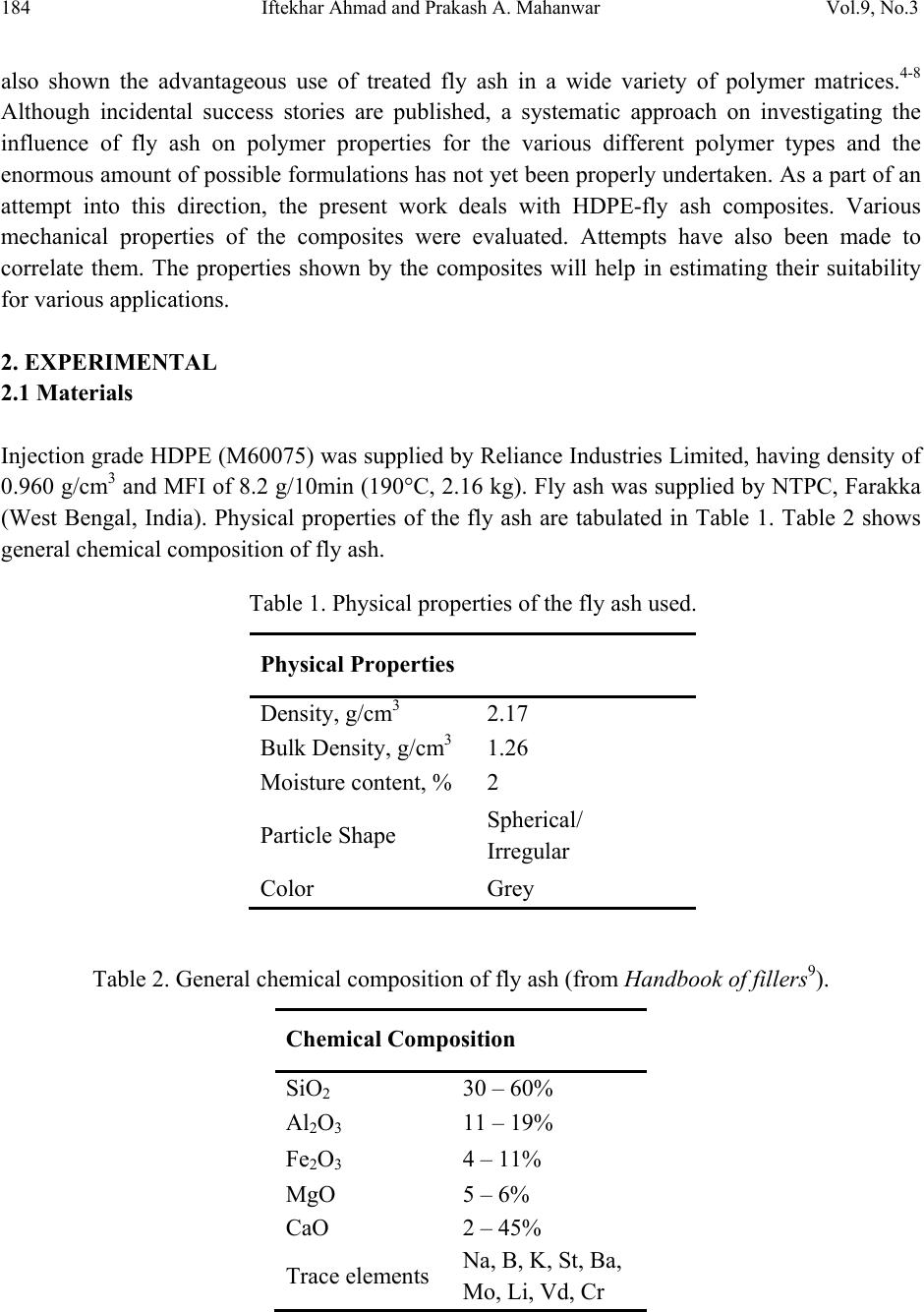

Table 1. Physical properties of the fly ash used.
Physical Properties
Density, g/cm
3
2.17
Bulk Density, g/cm
3
1.26
Moisture content, % 2
Particle Shape Spherical/
Irregular
Color Grey
Table 2. General chemical composition of fly ash (from Handbook of fillers9).
Chemical Composition
SiO2 30 – 60%
Al2O3 11 – 19%
Fe2O3 4 – 11%
MgO 5 – 6%
CaO 2 – 45%
Trace elements Na, B, K, St, Ba,
Mo, Li, Vd, Cr

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 185

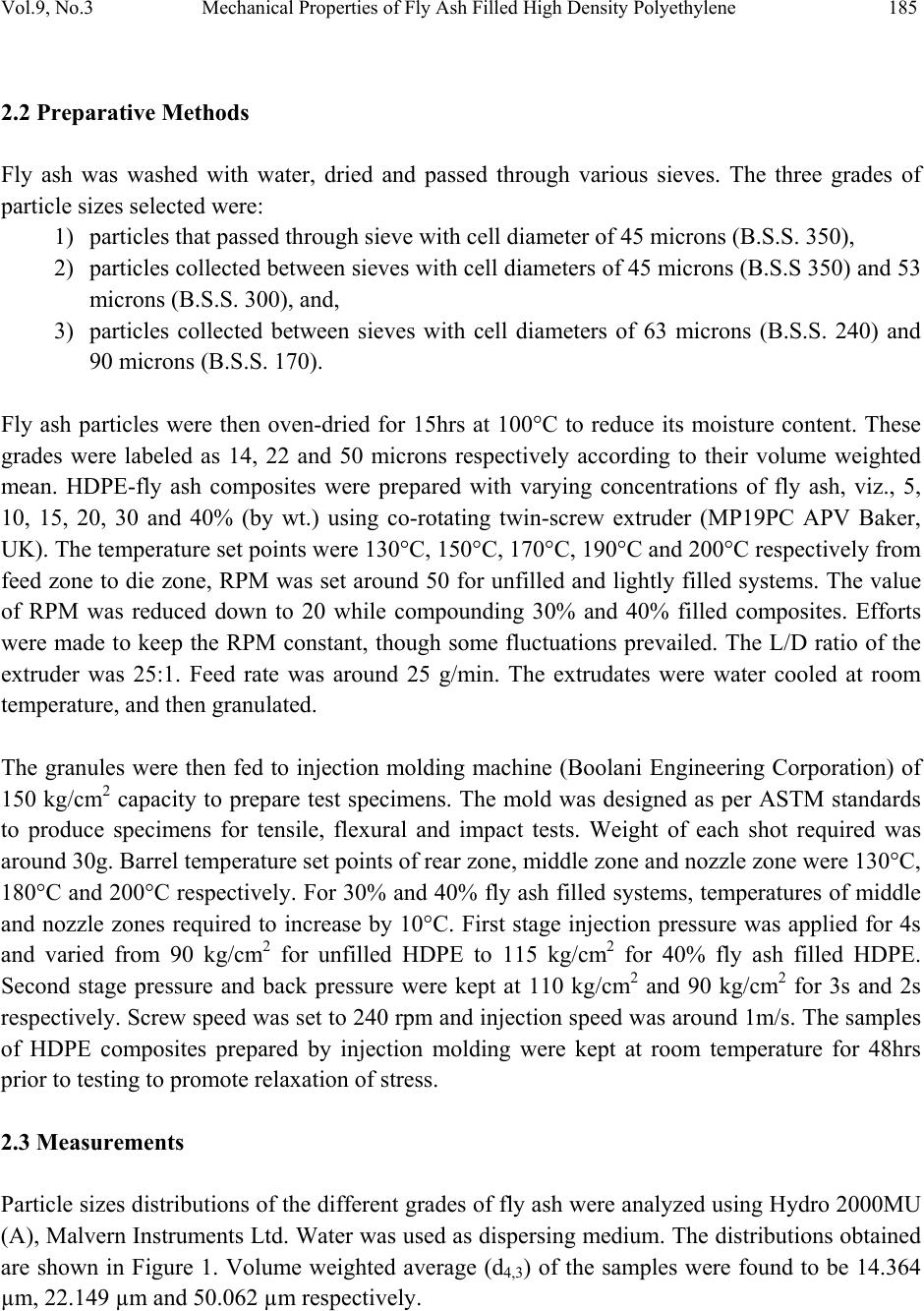

2.2 Preparative Methods
Fly ash was washed with water, dried and passed through various sieves. The three grades of
particle sizes selected were:
1) particles that passed through sieve with cell diameter of 45 microns (B.S.S. 350),
2) particles collected between sieves with cell diameters of 45 microns (B.S.S 350) and 53
microns (B.S.S. 300), and,
3) particles collected between sieves with cell diameters of 63 microns (B.S.S. 240) and
90 microns (B.S.S. 170).
Fly ash particles were then oven-dried for 15hrs at 100°C to reduce its moisture content. These
grades were labeled as 14, 22 and 50 microns respectively according to their volume weighted
mean. HDPE-fly ash composites were prepared with varying concentrations of fly ash, viz., 5,
10, 15, 20, 30 and 40% (by wt.) using co-rotating twin-screw extruder (MP19PC APV Baker,
UK). The temperature set points were 130°C, 150°C, 170°C, 190°C and 200°C respectively from
feed zone to die zone, RPM was set around 50 for unfilled and lightly filled systems. The value
of RPM was reduced down to 20 while compounding 30% and 40% filled composites. Efforts
were made to keep the RPM constant, though some fluctuations prevailed. The L/D ratio of the
extruder was 25:1. Feed rate was around 25 g/min. The extrudates were water cooled at room
temperature, and then granulated.
The granules were then fed to injection molding machine (Boolani Engineering Corporation) of
150 kg/cm2 capacity to prepare test specimens. The mold was designed as per ASTM standards
to produce specimens for tensile, flexural and impact tests. Weight of each shot required was
around 30g. Barrel temperature set points of rear zone, middle zone and nozzle zone were 130°C,
180°C and 200°C respectively. For 30% and 40% fly ash filled systems, temperatures of middle
and nozzle zones required to increase by 10°C. First stage injection pressure was applied for 4s
and varied from 90 kg/cm2 for unfilled HDPE to 115 kg/cm2 for 40% fly ash filled HDPE.
Second stage pressure and back pressure were kept at 110 kg/cm2 and 90 kg/cm2 for 3s and 2s
respectively. Screw speed was set to 240 rpm and injection speed was around 1m/s. The samples
of HDPE composites prepared by injection molding were kept at room temperature for 48hrs
prior to testing to promote relaxation of stress.
2.3 Measurements
Particle sizes distributions of the different grades of fly ash were analyzed using Hydro 2000MU
(A), Malvern Instruments Ltd. Water was used as dispersing medium. The distributions obtained
are shown in Figure 1. Volume weighted average (d4,3) of the samples were found to be 14.364
µm, 22.149 µm and 50.062 µm respectively.

186 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3
Figure 1. Particle size distribution of the various grades of fly ash used.
Tensile and flexural properties were tested as per ASTM D638 and D790 respectively using
universal tensile tester (LR 50k, Lloyd Instruments Ltd.). Specimens for tensile tests were
specified according to type-IV (ASTM D638-03). Tensile properties were checked at speed of 50
mm/min. Load cell of 5kN was used to sense the load. Five test specimens of each composite
were tested and their average value was calculated. Tensile strength at yield, elongation at break
and moduli of elasticity were determined. Procedure A was followed to carry out the flexural
tests. Width and depth of specimen were 12.5 and 6.5 mm respectively, support span length of
100mm was selected, and rate of crosshead motion was kept at 2.8 mm/min. All samples of
HDPE composites exhibited yielding behavior. Three specimens of each composite were tested
and their average value was reported. Flexural strength and tangent modulus values were
evaluated.
Izod impact properties were determined as per ASTM D256, method A, using Avery Denison
impact tester with pendulum capacity of 2.7 J. Dimensions of depth and width of the specimens
were 13mm by 13mm. These specimens were subjected to notch cutter for making notches prior
to impact test. Impact resistance was determined by taking average of five test specimens.
SEM images of the impact fractured surface of the composites were also obtained using JEOL
(JSM-6380), at an accelerated voltage of 15kV.
3. RESULTS AND DISCUSSION
Addition of fly ash in HDPE made the melt more viscous. It also made processing difficult
requiring higher temperature and more injection pressure. However, as expected, shrinkage ratio
of the composite decreased with increasing fly ash content.

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 187
The density of the composite increased with fly ash concentration. Particle size distribution of
various grades of fly ash and the various mechanical properties of the composites prepared are
discussed below.

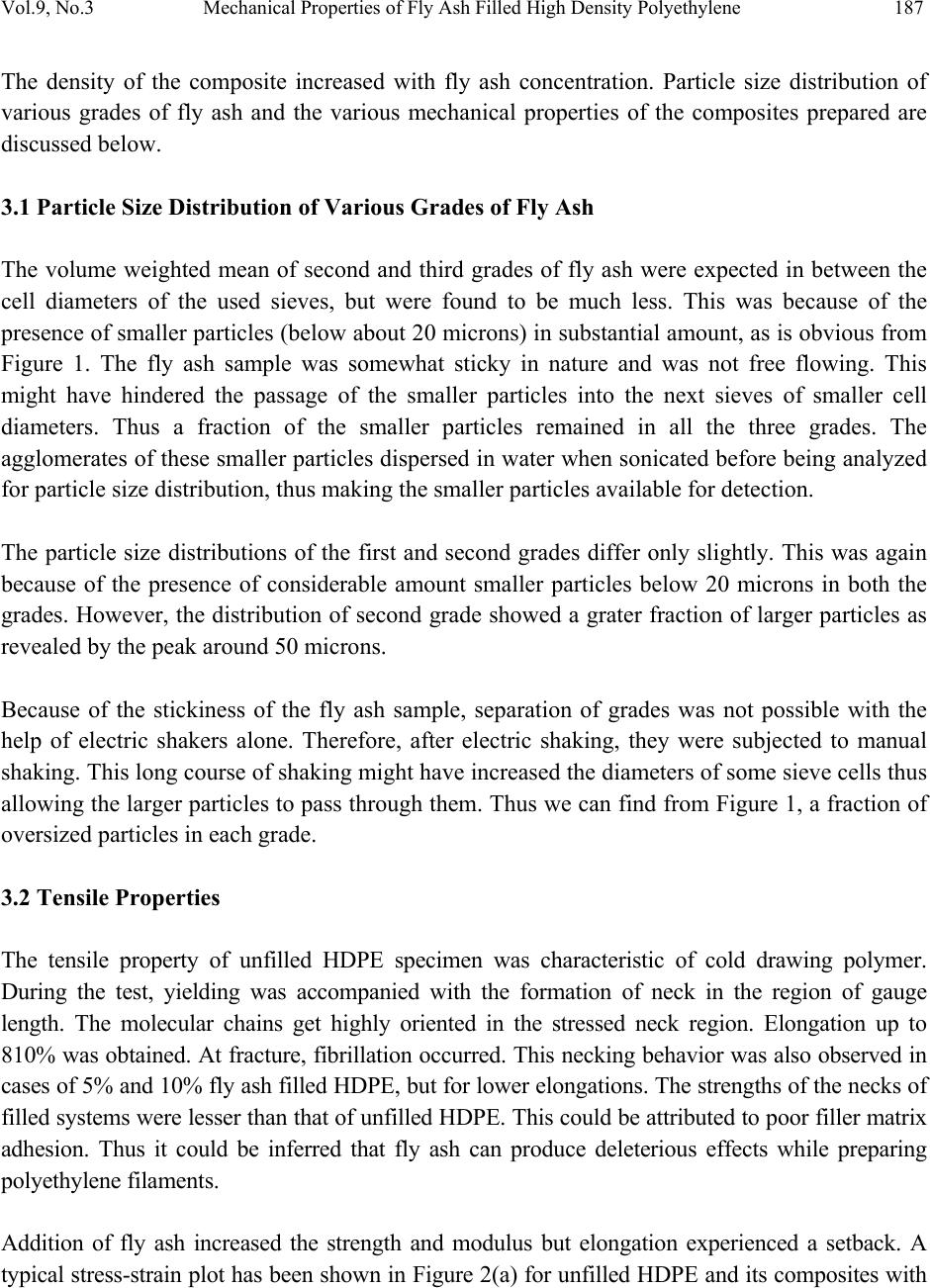

3.1 Particle Size D istribution of Various Grades of Fly Ash
The volume weighted mean of second and third grades of fly ash were expected in between the
cell diameters of the used sieves, but were found to be much less. This was because of the
presence of smaller particles (below about 20 microns) in substantial amount, as is obvious from
Figure 1. The fly ash sample was somewhat sticky in nature and was not free flowing. This
might have hindered the passage of the smaller particles into the next sieves of smaller cell
diameters. Thus a fraction of the smaller particles remained in all the three grades. The
agglomerates of these smaller particles dispersed in water when sonicated before being analyzed
for particle size distribution, thus making the smaller particles available for detection.
The particle size distributions of the first and second grades differ only slightly. This was again
because of the presence of considerable amount smaller particles below 20 microns in both the
grades. However, the distribution of second grade showed a grater fraction of larger particles as
revealed by the peak around 50 microns.
Because of the stickiness of the fly ash sample, separation of grades was not possible with the
help of electric shakers alone. Therefore, after electric shaking, they were subjected to manual
shaking. This long course of shaking might have increased the diameters of some sieve cells thus
allowing the larger particles to pass through them. Thus we can find from Figure 1, a fraction of
oversized particles in each grade.
3.2 Tensile Properties
The tensile property of unfilled HDPE specimen was characteristic of cold drawing polymer.
During the test, yielding was accompanied with the formation of neck in the region of gauge
length. The molecular chains get highly oriented in the stressed neck region. Elongation up to
810% was obtained. At fracture, fibrillation occurred. This necking behavior was also observed in
cases of 5% and 10% fly ash filled HDPE, but for lower elongations. The strengths of the necks of
filled systems were lesser than that of unfilled HDPE. This could be attributed to poor filler matrix
adhesion. Thus it could be inferred that fly ash can produce deleterious effects while preparing
polyethylene filaments.
Addition of fly ash increased the strength and modulus but elongation experienced a setback. A
typical stress-strain plot has been shown in Figure 2(a) for unfilled HDPE and its composites with

188 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3
fly ash at various concentrations. The initial region of the plot has been expanded and shown in
Figure 2(b) to get a better idea of stresses at yield and initial slopes of the curves.

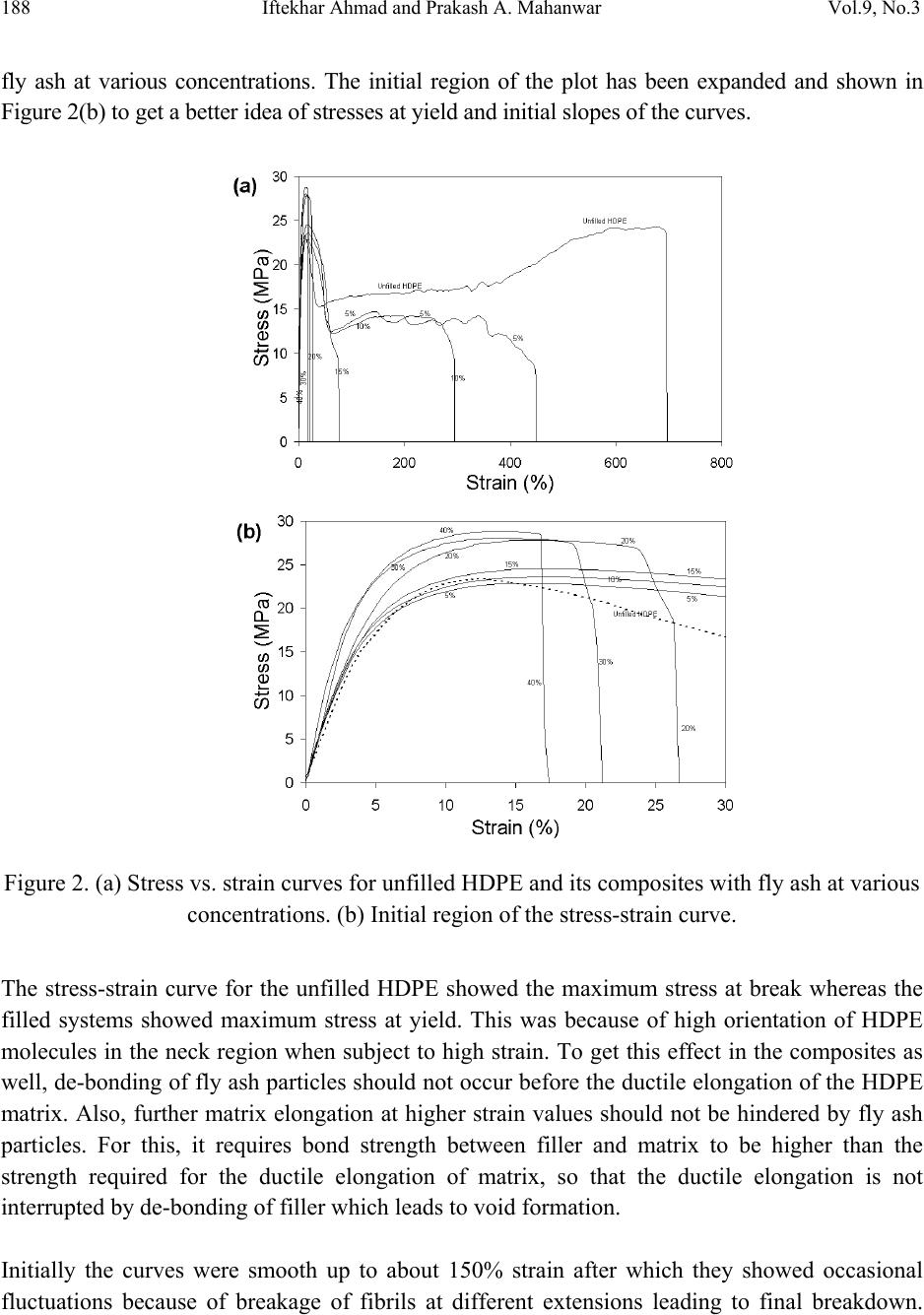

Figure 2. (a) Stress vs. strain curves for unfilled HDPE and its composites with fly ash at various
concentrations. (b) Initial region of the stress-strain curve.
The stress-strain curve for the unfilled HDPE showed the maximum stress at break whereas the
filled systems showed maximum stress at yield. This was because of high orientation of HDPE
molecules in the neck region when subject to high strain. To get this effect in the composites as
well, de-bonding of fly ash particles should not occur before the ductile elongation of the HDPE
matrix. Also, further matrix elongation at higher strain values should not be hindered by fly ash
particles. For this, it requires bond strength between filler and matrix to be higher than the
strength required for the ductile elongation of matrix, so that the ductile elongation is not
interrupted by de-bonding of filler which leads to void formation.
Initially the curves were smooth up to about 150% strain after which they showed occasional
fluctuations because of breakage of fibrils at different extensions leading to final breakdown.

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 189
This has been depicted diagrammatically in Figure 3. Thus, we can observe in Figure 2(a) that
there was no sudden break in the cases of unfilled HDPE and its composites with 5% and 10%
fly ash. Whereas, in the cases of highly filled HDPE, sudden break was observed.

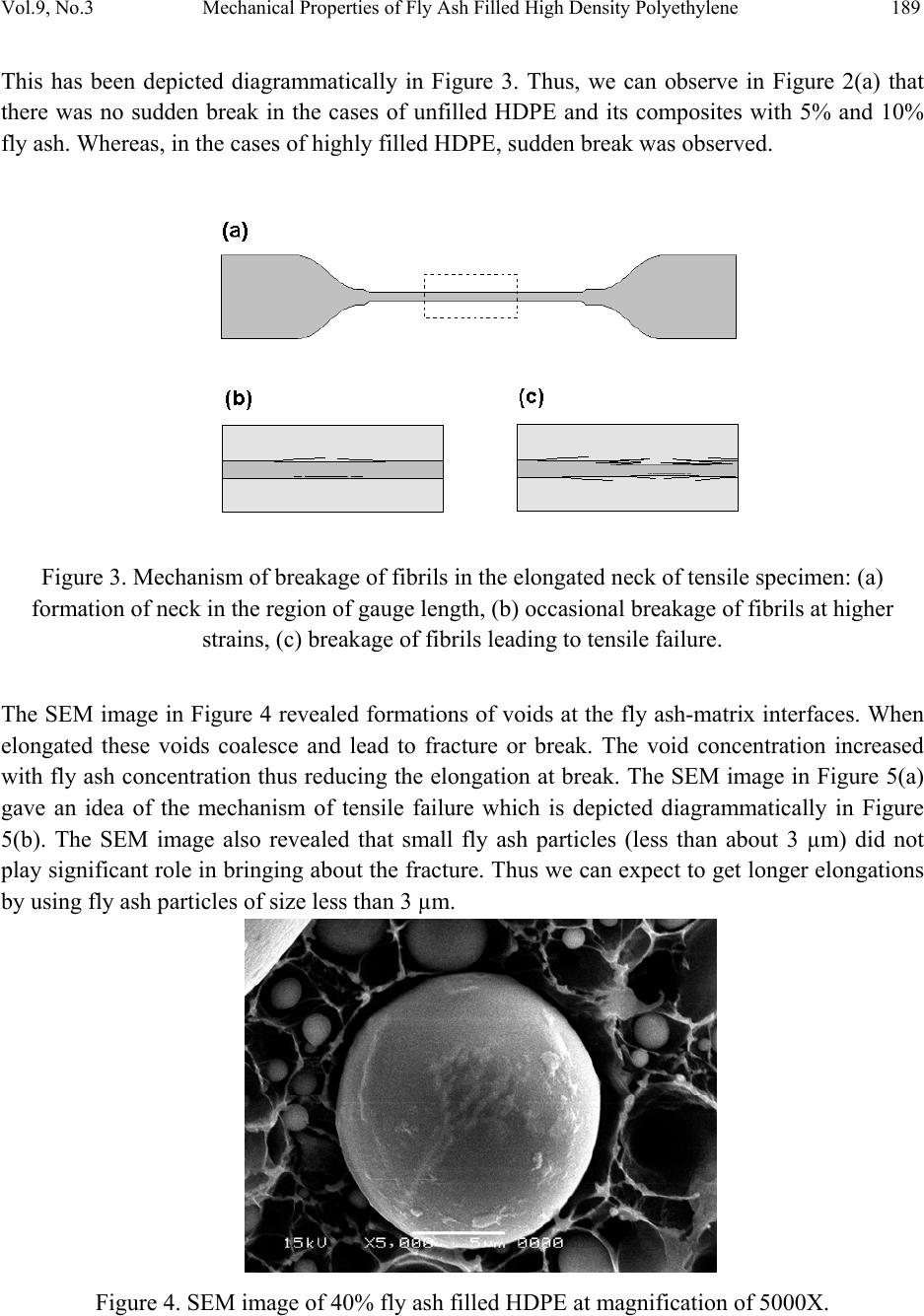

Figure 3. Mechanism of breakage of fibrils in the elongated neck of tensile specimen: (a)
formation of neck in the region of gauge length, (b) occasional breakage of fibrils at higher
strains, (c) breakage of fibrils leading to tensile failure.
The SEM image in Figure 4 revealed formations of voids at the fly ash-matrix interfaces. When
elongated these voids coalesce and lead to fracture or break. The void concentration increased
with fly ash concentration thus reducing the elongation at break. The SEM image in Figure 5(a)
gave an idea of the mechanism of tensile failure which is depicted diagrammatically in Figure
5(b). The SEM image also revealed that small fly ash particles (less than about 3 µm) did not
play significant role in bringing about the fracture. Thus we can expect to get longer elongations
by using fly ash particles of size less than 3 µm.
Figure 4. SEM image of 40% fly ash filled HDPE at magnification of 5000X.

190 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3
Figure 5. (a) SEM image of tensile fractured surface at 1000X showing the mechanism of failure.
(b) Schematic representation of steps involved in tensile fracture.
Tensile strength vs. fly ash concentration curves were plotted and depicted in Figure 6(a). These
curves did not follow any smooth pattern probably due to the non-homogeneous dispersion of fly
ash particles in polymer matrix. Addition of fly ash improved tensile yield strength but only at
certain concentrations. Improvements up to 22% were found from about 23.60MPa to 28.79MPa.
In the case fly ash particles with greatest size (50 micron), strength was found even to get
reduced by up to 4%. Tensile strengths did not change much with fly ash concentrations up to
10-15%. Significant increase in strength was found with 14 micron and 22 micron fly ash
particles when their concentration exceeded 15%. This reflected the contribution made by fly ash
particles to impart their own property to the polymer. Thus, strength increased with
concentration. This is possible when there is good interaction between fly ash and the matrix.
Thus, there must exist some adhesion between them. The SEM image in Figure 4 showed the
evidence of some adhesion as we can see some polymer attached to the cleaved surface of fly
ash.
In case of fly ash particles with smallest size (14 micron), increased surface area might have
allowed for better filler-matrix interaction thus increasing the chances to enhance the strength.
However, in some compositions of 22 and 50 micron, improvements in tensile strength were
very small and in some cases even got reduced. This might be because of reduced surface area,

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 191
and, ineffectiveness of fly ash particles as stress-bearing centers and might, in fact, provided loci
for stress release.

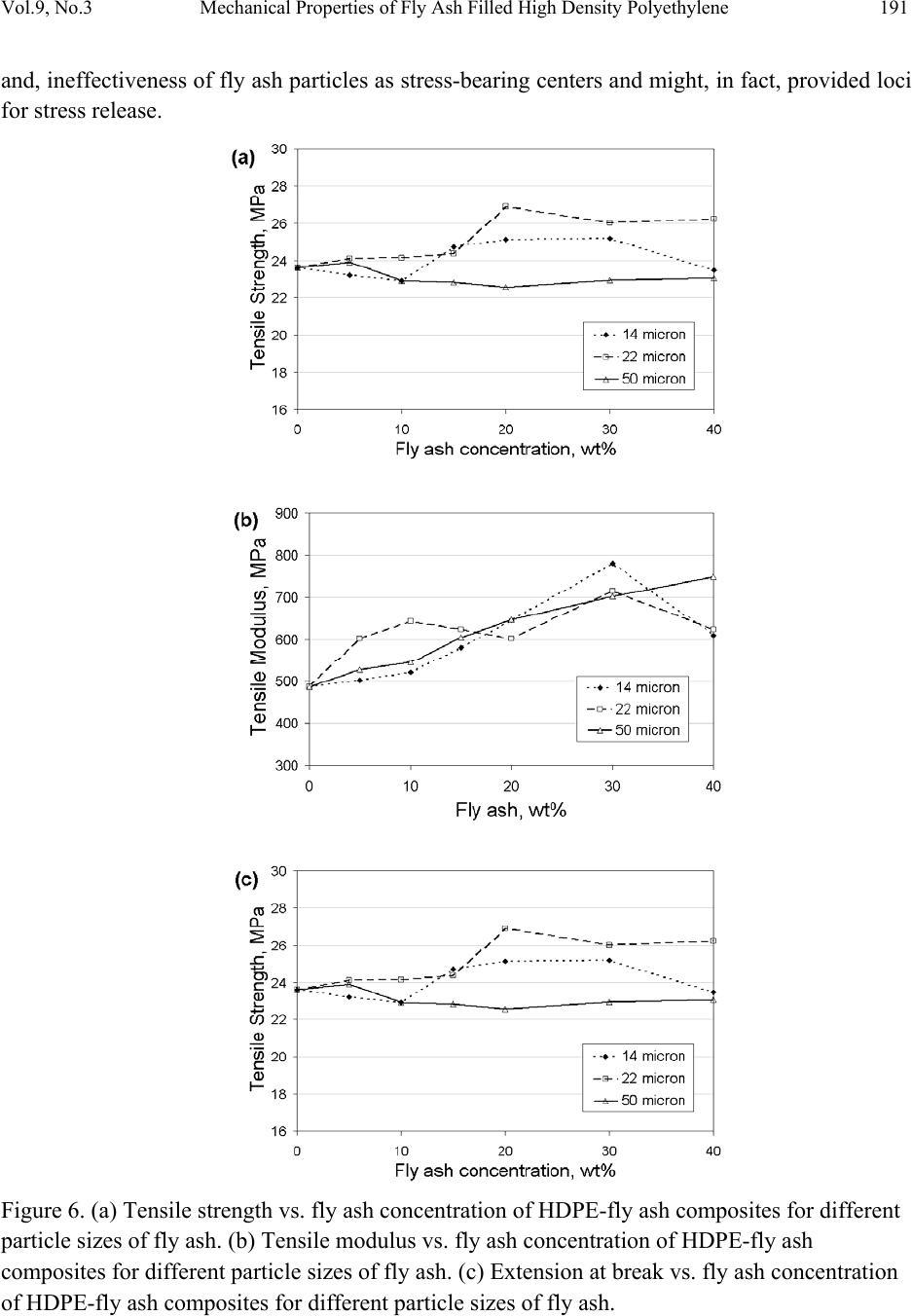

Figure 6. (a) Tensile strength vs. fly ash concentration of HDPE-fly ash composites for different
particle sizes of fly ash. (b) Tensile modulus vs. fly ash concentration of HDPE-fly ash
composites for different particle sizes of fly ash. (c) Extension at break vs. fly ash concentration
of HDPE-fly ash composites for different particle sizes of fly ash.

192 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3

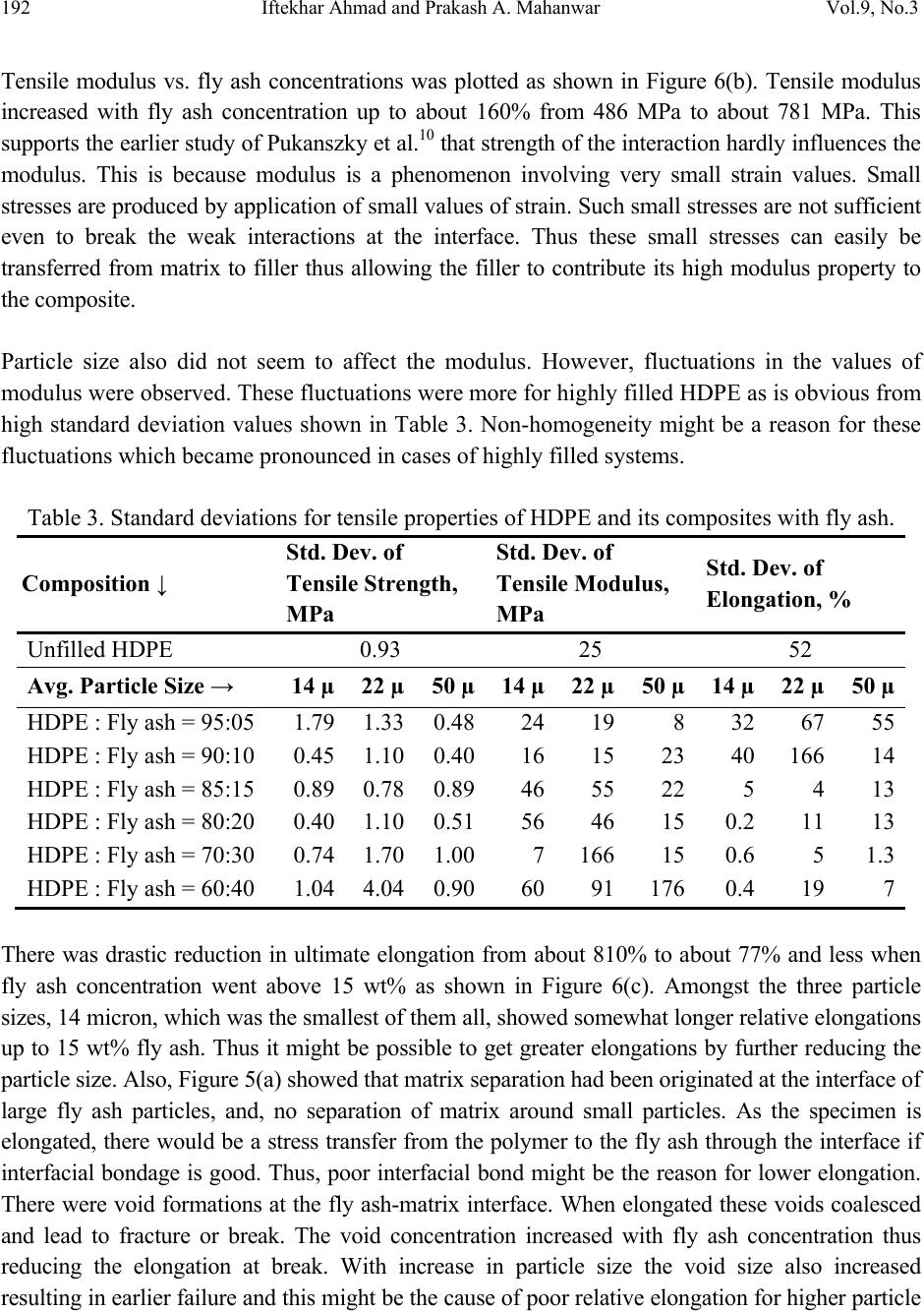

Tensile modulus vs. fly ash concentrations was plotted as shown in Figure 6(b). Tensile modulus
increased with fly ash concentration up to about 160% from 486 MPa to about 781 MPa. This
supports the earlier study of Pukanszky et al.10 that strength of the interaction hardly influences the
modulus. This is because modulus is a phenomenon involving very small strain values. Small
stresses are produced by application of small values of strain. Such small stresses are not sufficient
even to break the weak interactions at the interface. Thus these small stresses can easily be
transferred from matrix to filler thus allowing the filler to contribute its high modulus property to
the composite.
Particle size also did not seem to affect the modulus. However, fluctuations in the values of
modulus were observed. These fluctuations were more for highly filled HDPE as is obvious from
high standard deviation values shown in Table 3. Non-homogeneity might be a reason for these
fluctuations which became pronounced in cases of highly filled systems.
Table 3. Standard deviations for tensile properties of HDPE and its composites with fly ash.
Composition ↓ Std. Dev. of Tensile Strength,
MPa
Std. Dev. of
Tensile Modulus,
MPa
Std. Dev. of
Elongation, %
Unfilled HDPE 0.93 25 52
Avg. Particle Size → 14 µ 22 µ50 µ14 µ22 µ50 µ14 µ 22 µ 50 µ
HDPE : Fly ash = 95:05 1.79 1.330.482419832 67 55
HDPE : Fly ash = 90:10 0.45 1.100.4016152340 166 14
HDPE : Fly ash = 85:15 0.89 0.780.894655225 4 13
HDPE : Fly ash = 80:20 0.40 1.100.515646150.2 11 13
HDPE : Fly ash = 70:30 0.74 1.701.007166150.6 5 1.3
HDPE : Fly ash = 60:40 1.04 4.040.9060911760.4 19 7
There was drastic reduction in ultimate elongation from about 810% to about 77% and less when
fly ash concentration went above 15 wt% as shown in Figure 6(c). Amongst the three particle
sizes, 14 micron, which was the smallest of them all, showed somewhat longer relative elongations
up to 15 wt% fly ash. Thus it might be possible to get greater elongations by further reducing the
particle size. Also, Figure 5(a) showed that matrix separation had been originated at the interface of
large fly ash particles, and, no separation of matrix around small particles. As the specimen is
elongated, there would be a stress transfer from the polymer to the fly ash through the interface if
interfacial bondage is good. Thus, poor interfacial bond might be the reason for lower elongation.
There were void formations at the fly ash-matrix interface. When elongated these voids coalesced
and lead to fracture or break. The void concentration increased with fly ash concentration thus
reducing the elongation at break. With increase in particle size the void size also increased
resulting in earlier failure and this might be the cause of poor relative elongation for higher particle

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 193
sizes. Another possible reason is the higher surface area provided by smaller particles for
interacting with the matrix polymer.

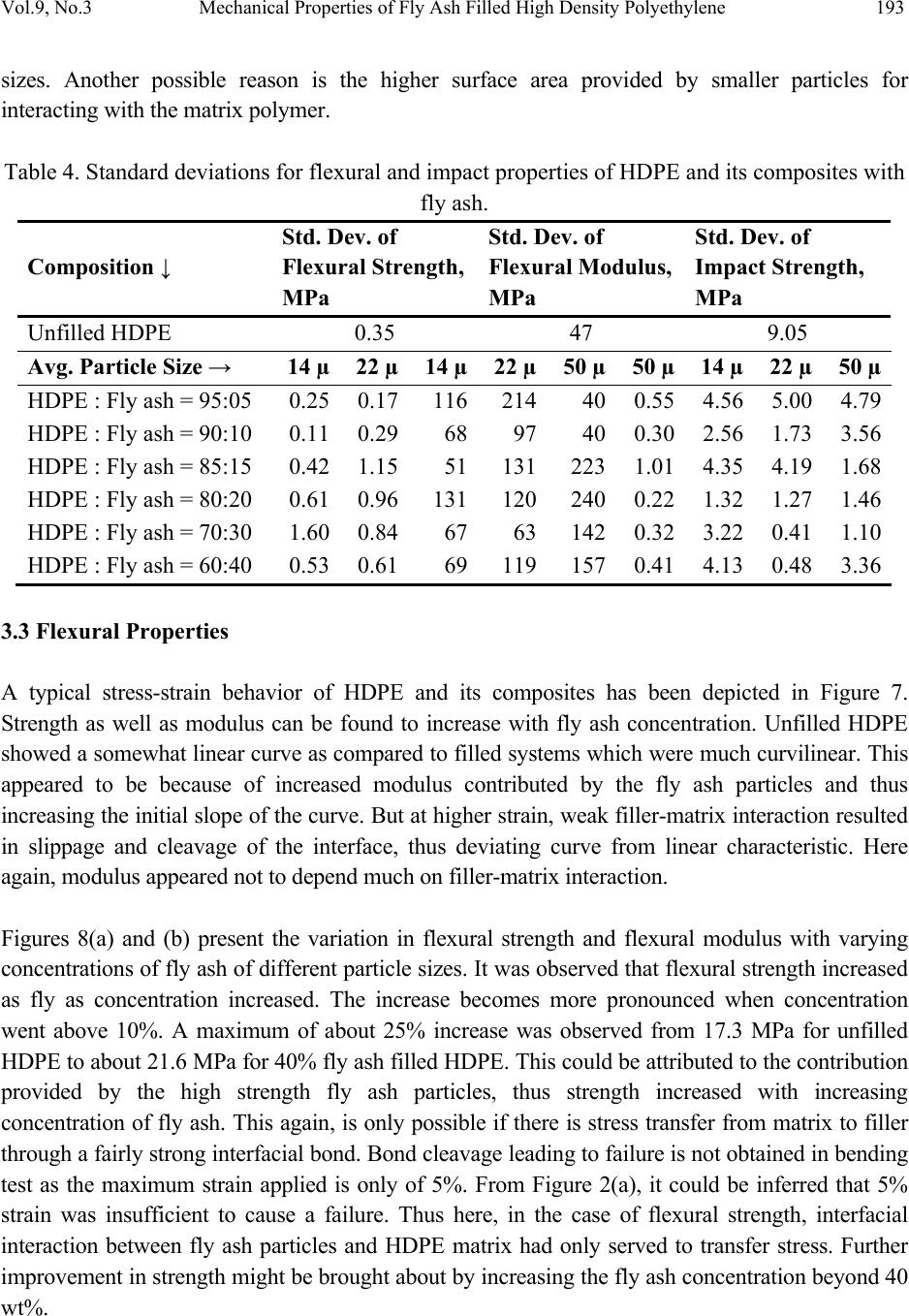

Table 4. Standard deviations for flexural and impact properties of HDPE and its composites with
fly ash.
Composition ↓ Std. Dev. of Flexural Strength,
MPa
Std. Dev. of
Flexural Modulus,
MPa
Std. Dev. of
Impact Strength,
MPa
Unfilled HDPE 0.35 47 9.05
Avg. Particle Size → 14 µ 22 µ14 µ22 µ50 µ50 µ14 µ 22 µ 50 µ
HDPE : Fly ash = 95:05 0.25 0.17116214400.554.56 5.00 4.79
HDPE : Fly ash = 90:10 0.11 0.296897400.302.56 1.73 3.56
HDPE : Fly ash = 85:15 0.42 1.15511312231.014.35 4.19 1.68
HDPE : Fly ash = 80:20 0.61 0.961311202400.221.32 1.27 1.46
HDPE : Fly ash = 70:30 1.60 0.8467631420.323.22 0.41 1.10
HDPE : Fly ash = 60:40 0.53 0.61691191570.414.13 0.48 3.36
3.3 Flexural Properties
A typical stress-strain behavior of HDPE and its composites has been depicted in Figure 7.
Strength as well as modulus can be found to increase with fly ash concentration. Unfilled HDPE
showed a somewhat linear curve as compared to filled systems which were much curvilinear. This
appeared to be because of increased modulus contributed by the fly ash particles and thus
increasing the initial slope of the curve. But at higher strain, weak filler-matrix interaction resulted
in slippage and cleavage of the interface, thus deviating curve from linear characteristic. Here
again, modulus appeared not to depend much on filler-matrix interaction.
Figures 8(a) and (b) present the variation in flexural strength and flexural modulus with varying
concentrations of fly ash of different particle sizes. It was observed that flexural strength increased
as fly as concentration increased. The increase becomes more pronounced when concentration
went above 10%. A maximum of about 25% increase was observed from 17.3 MPa for unfilled
HDPE to about 21.6 MPa for 40% fly ash filled HDPE. This could be attributed to the contribution
provided by the high strength fly ash particles, thus strength increased with increasing
concentration of fly ash. This again, is only possible if there is stress transfer from matrix to filler
through a fairly strong interfacial bond. Bond cleavage leading to failure is not obtained in bending
test as the maximum strain applied is only of 5%. From Figure 2(a), it could be inferred that 5%
strain was insufficient to cause a failure. Thus here, in the case of flexural strength, interfacial
interaction between fly ash particles and HDPE matrix had only served to transfer stress. Further
improvement in strength might be brought about by increasing the fly ash concentration beyond 40
wt%.

194 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3

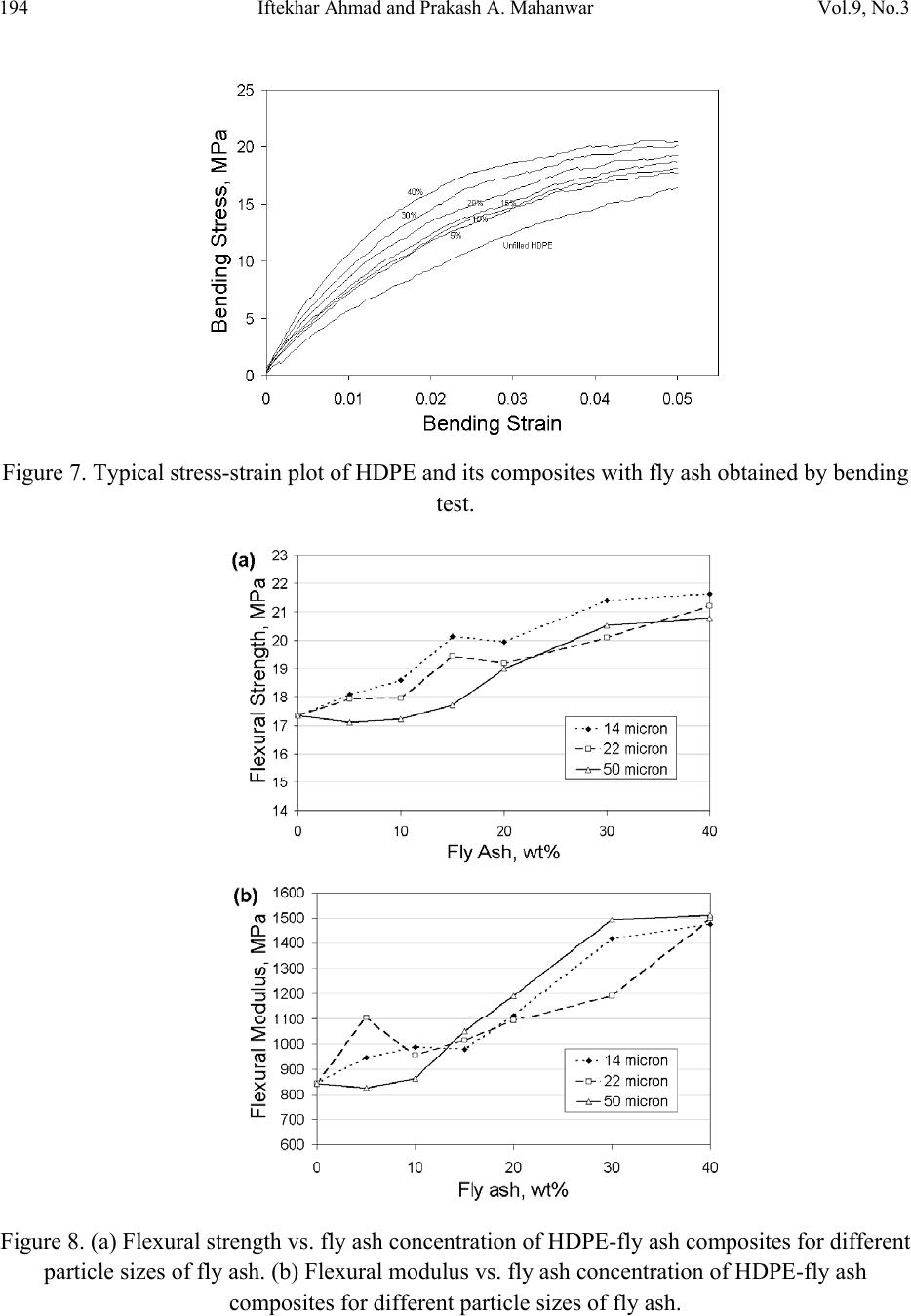

Figure 7. Typical stress-strain plot of HDPE and its composites with fly ash obtained by bending
test.
Figure 8. (a) Flexural strength vs. fly ash concentration of HDPE-fly ash composites for different
particle sizes of fly ash. (b) Flexural modulus vs. fly ash concentration of HDPE-fly ash
composites for different particle sizes of fly ash.

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 195
The smallest particle size (14 micron) used showed better strength at all concentrations. This might
be because of increased surface area exposed for interaction. Thus we can expect to further
increase the strength by using further small size of fly ash particles.
As expected, flexural modulus was found to increase with increasing fly ash concentration. Again,
this could be attributed to the contribution made by the fly ash particles to impart its own property
to the composite. The curve in Figure 8(b) revealed that initially there was around 13%
improvement in modulus up to 15% fly ash concentration. The increase in modulus became
pronounced for concentrations greater than 15%. Maximum modulus of about 1600 MPa was
achieved at 40% fly ash concentration which amounted to about 80% more than unfilled HDPE.
The greatest particle size (50 micron) showed greater increase in modulus at higher concentrations,
but had lower modulus at concentrations below 15%.
3.4 Impact Properties

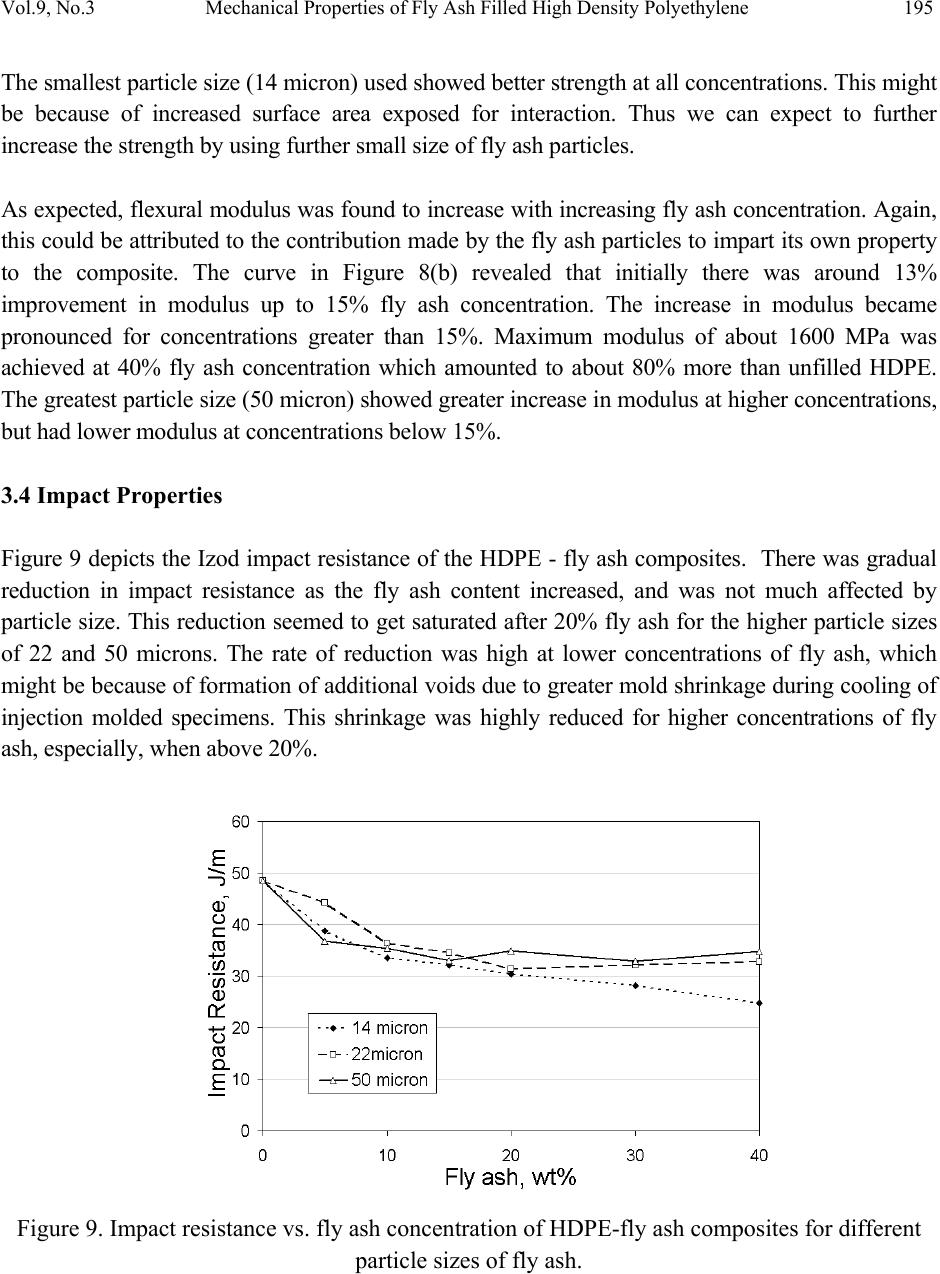

Figure 9 depicts the Izod impact resistance of the HDPE - fly ash composites. There was gradual
reduction in impact resistance as the fly ash content increased, and was not much affected by
particle size. This reduction seemed to get saturated after 20% fly ash for the higher particle sizes
of 22 and 50 microns. The rate of reduction was high at lower concentrations of fly ash, which
might be because of formation of additional voids due to greater mold shrinkage during cooling of
injection molded specimens. This shrinkage was highly reduced for higher concentrations of fly
ash, especially, when above 20%.
Figure 9. Impact resistance vs. fly ash concentration of HDPE-fly ash composites for different
particle sizes of fly ash.

196 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3

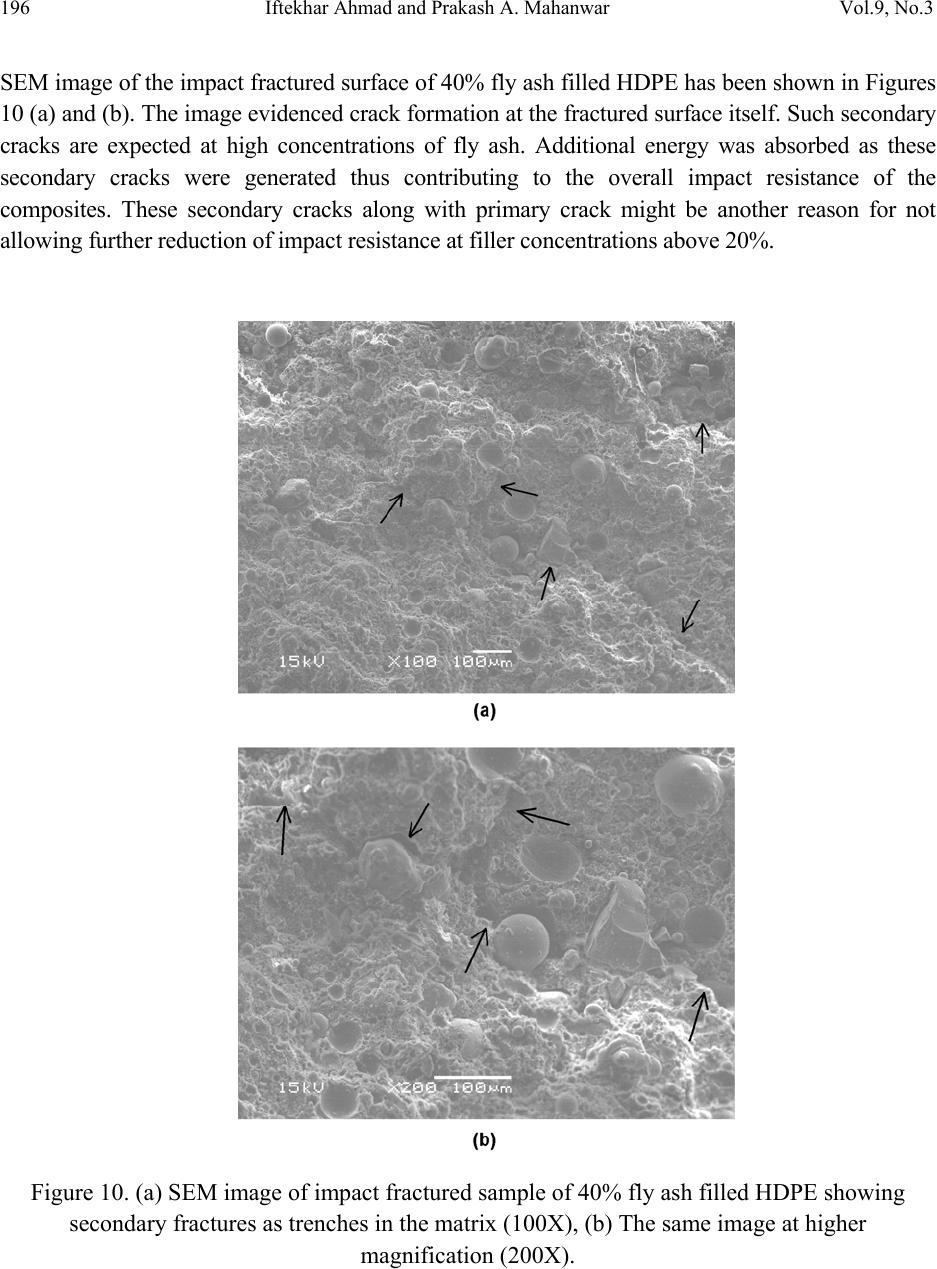

SEM image of the impact fractured surface of 40% fly ash filled HDPE has been shown in Figures
10 (a) and (b). The image evidenced crack formation at the fractured surface itself. Such secondary
cracks are expected at high concentrations of fly ash. Additional energy was absorbed as these
secondary cracks were generated thus contributing to the overall impact resistance of the
composites. These secondary cracks along with primary crack might be another reason for not
allowing further reduction of impact resistance at filler concentrations above 20%.
Figure 10. (a) SEM image of impact fractured sample of 40% fly ash filled HDPE showing
secondary fractures as trenches in the matrix (100X), (b) The same image at higher
magnification (200X).

Vol.9, No.3 Mechanical Properties of Fly Ash Filled High Density Polyethylene 197

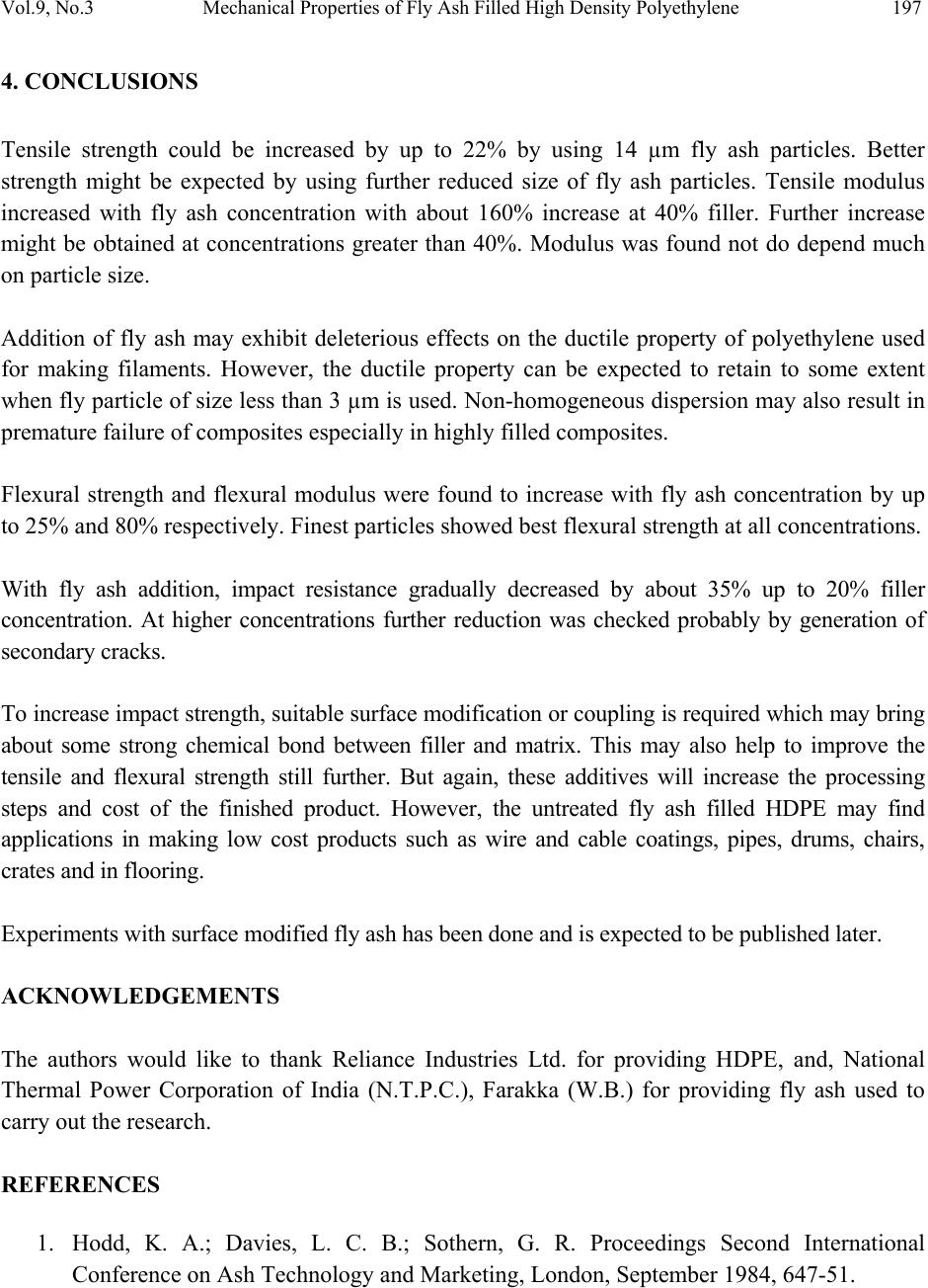

4. CONCLUSIONS
Tensile strength could be increased by up to 22% by using 14 µm fly ash particles. Better
strength might be expected by using further reduced size of fly ash particles. Tensile modulus
increased with fly ash concentration with about 160% increase at 40% filler. Further increase
might be obtained at concentrations greater than 40%. Modulus was found not do depend much
on particle size.
Addition of fly ash may exhibit deleterious effects on the ductile property of polyethylene used
for making filaments. However, the ductile property can be expected to retain to some extent
when fly particle of size less than 3 µm is used. Non-homogeneous dispersion may also result in
premature failure of composites especially in highly filled composites.
Flexural strength and flexural modulus were found to increase with fly ash concentration by up
to 25% and 80% respectively. Finest particles showed best flexural strength at all concentrations.
With fly ash addition, impact resistance gradually decreased by about 35% up to 20% filler
concentration. At higher concentrations further reduction was checked probably by generation of
secondary cracks.
To increase impact strength, suitable surface modification or coupling is required which may bring
about some strong chemical bond between filler and matrix. This may also help to improve the
tensile and flexural strength still further. But again, these additives will increase the processing
steps and cost of the finished product. However, the untreated fly ash filled HDPE may find
applications in making low cost products such as wire and cable coatings, pipes, drums, chairs,
crates and in flooring.
Experiments with surface modified fly ash has been done and is expected to be published later.
ACKNOWLEDGEMENTS
The authors would like to thank Reliance Industries Ltd. for providing HDPE, and, National
Thermal Power Corporation of India (N.T.P.C.), Farakka (W.B.) for providing fly ash used to
carry out the research.
REFERENCES
1. Hodd, K. A.; Davies, L. C. B.; Sothern, G. R. Proceedings Second International
Conference on Ash Technology and Marketing, London, September 1984, 647-51.

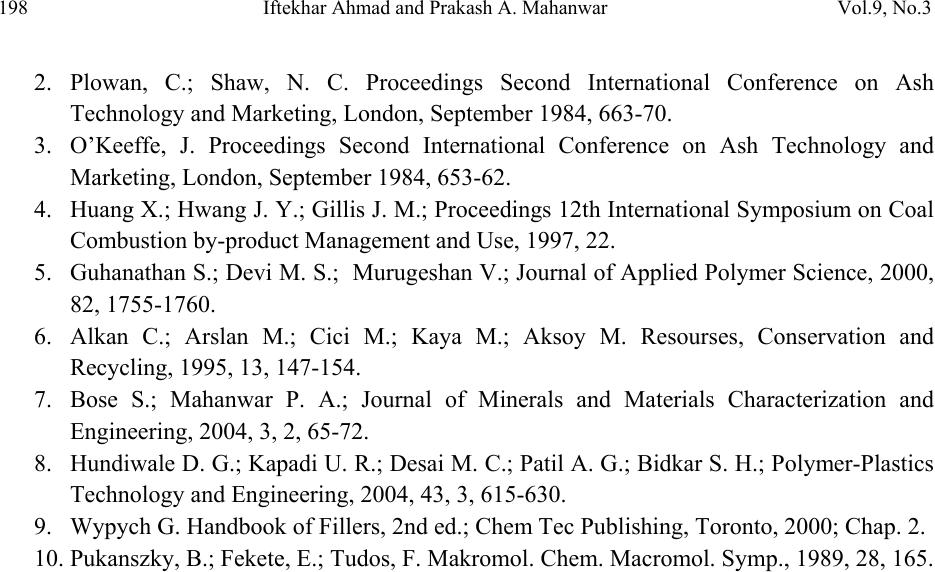

198 Iftekhar Ahmad and Prakash A. Mahanwar Vol.9, No.3
2. Plowan, C.; Shaw, N. C. Proceedings Second International Conference on Ash
Technology and Marketing, London, September 1984, 663-70.
3. O’Keeffe, J. Proceedings Second International Conference on Ash Technology and
Marketing, London, September 1984, 653-62.
4. Huang X.; Hwang J. Y.; Gillis J. M.; Proceedings 12th International Symposium on Coal
Combustion by-product Management and Use, 1997, 22.
5. Guhanathan S.; Devi M. S.; Murugeshan V.; Journal of Applied Polymer Science, 2000,
82, 1755-1760.
6. Alkan C.; Arslan M.; Cici M.; Kaya M.; Aksoy M. Resourses, Conservation and
Recycling, 1995, 13, 147-154.
7. Bose S.; Mahanwar P. A.; Journal of Minerals and Materials Characterization and
Engineering, 2004, 3, 2, 65-72.
8. Hundiwale D. G.; Kapadi U. R.; Desai M. C.; Patil A. G.; Bidkar S. H.; Polymer-Plastics
Technology and Engineering, 2004, 43, 3, 615-630.
9. Wypych G. Handbook of Fillers, 2nd ed.; Chem Tec Publishing, Toronto, 2000; Chap. 2.
10. Pukanszky, B.; Fekete, E.; Tudos, F. Makromol. Chem. Macromol. Symp., 1989, 28, 165.
