Finding the Optimal Percentage of Cluster Heads from a
New and Complete Mathematical Model on LEACH
A. B. M. Alim Al Islam1, Chowdhury Sayeed Hyder2, Humayun Kabir3,
Mahmuda Naznin4
1School of Electrical and Computer Engineering, Purdue University, West Lafayette, Indiana, USA
2Department of Computer Science and Engineering, Michigan State University, Michigan, USA
3,4Department of Computer Science and Engineering, Bangladesh University of Engineering and Technology, Dhaka,
Bangladesh
E-mail: abmalima@purdue.edu, hydercho@msu.edu, {mhkabir, mahmudanaznin}@cse.buet.ac.bd
Received November 29, 2009; revised December 18, 2009; accepted December 21, 2009
Abstract
Network lifetime is one of the important metrics that indicate the performance of a sensor network. Different
techniques are used to elongate network lifetime. Among them, clustering is one of the popular techniques.
LEACH (Low-Energy Adaptive Clustering Hierarchy) is one of the most widely cited clustering solutions due
to its simplicity and effectiveness. LEACH has several parameters that can be tuned to get better performance.
Percentage of cluster heads is one such important parameter which affects the network lifetime significantly.
At present it is hard to find the optimum value for the percentage of cluster head parameter due to the absence
of a complete mathematical model on LEACH. A complete mathematical model on LEACH can be used to
tune other LEACH parameters in order to get better performance. In this paper, we formulate a new and
complete mathematical model on LEACH. From this new mathematical model, we compute the value for the
optimal percentage of cluster heads in order to increase the network lifetime. Simulation results verify both the
correctness of our mathematical model and the effectiveness of computing the optimal percentage of cluster
heads to increase the network lifetime.
Categories and Subject Descriptors: [Sensor Networks] – Energy and resource management – Clustering.
Keywords: Wireless Senor Network, Clustering, Mathematical Model Network Lifetime, Energy Consump-
tion Rate, Renewal Reward Process
1. Introduction
With the advent of new technology and low production
costs, wireless sensor networks (WSN) prove to be useful
in myriad of diversified applications, although its original
development was motivated by military applications, such
as battlefield surveillance. Most of the WSN applications
involve monitoring, tracking, or controlling. Habitat
monitoring, object tracking, nuclear reactor control, fire
detection, and traffic monitoring are few examples of such
WSN applications. In a typical WSN application, sensor
nodes are scattered in a region from where they collect
data to achieve certain goals. Data collection may be
continuous, periodic or event based process.
Irrespective of data collection process different kinds of
management, such as power management, dynamic
topology (due to node failure) management, self-config-
uration management, resource management, and security
management are necessary for WSN. Power management
deals with the optimum energy usage in order to increase
network lifetime. Dynamic topology management dyna-
mically adjusts the topology in case of the death of an
existing node or the arrival of a new node. Self
configuration management enables the nodes to tune its
parameters on the fly. Resource management takes the
role to ensure effective resource (CPU and memory) shar-
ing among multiple tasks. Security management guaran-
tees protection against any theft or intrusion in the net-
work.
The importance of power management in WSN lies in
the fact that the sensor nodes come with limited powered
battery pre-installed. Moreover, the batteries cannot be
replaced in the sensor nodes once they are in operation.
For these reasons, the algorithms and protocols used in
WSN have to be energy efficient. Different techniques are
used to achieve energy efficiency like clustering, data
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
130
compression, dynamic power management etc. Among
these, clustering techniques have got wider popularity.
In clustering technique, deployed sensor nodes form
some groups called clusters. Each cluster has only one
cluster head node, which has the sole responsibility of
communicating with the base station. Other nodes in a
cluster are called followers. They collect and pass data to
the corresponding cluster head. The cluster head of a
cluster aggregates its own data with that of its followers.
Aggregated data is then sent to one or more sinks.
Compared to a sink, a cluster head generally remains
closer to the followers. For this reason, it takes less energy
to transmit data to the cluster head instead of transmitting
directly to the sink. This allows the sensor nodes to
conserve more energy and live longer in WSN. There are
many clustering techniques [17], and [8] available in the
literature. LEACH [1] is one of the simple but popular
clustering techniques used in WSN. LEACH rotates the
cluster head role very effectively among the sensor nodes
of a cluster based only on some locally available infor-
mation. Some modified LEACH [912] have also been
proposed. LEACH has some parameters that can be tuned
to make it more effective. The percentage of cluster heads,
which is an input to LEACH algorithm that indicates the
overall percentage of sensor nodes that can become
cluster head at any time, plays an important role to
achieve optimal energy consumption goal in a WSN.
However, it is difficult to get the optimum value for this
parameter due to the absence of a complete mathematical
model on LEACH.
In the mathematical model of [11], total energy con-
sumption in the sensor network is calculated against the
transmission of only one frame. In the mathematical
model in [13] and [14] total energy consumption in the
sensor network is calculated during a single round. En-
ergy consumption during a single round or a frame
transmission does not reflect the true energy consumption
of the sensor nodes in their lifetime. The long run or ex-
pected rate of energy consumption truly reflects the en-
ergy consumption of the sensor nodes in their lifetime as
the lifetime is inversely related to the long run rate of
energy consumption. However, none of the previous
LEACH mathematical models [11,13], and [14] has
computed long run rate of energy consumption by the
sensor nodes, which made them incomplete and not useful.
Therefore, it is necessary to derive a mathematical model
based on long run rate of energy consumption in the
sensor nodes in order to make it complete and useful to
compute the tunable parameters, such as the percentage of
cluster head. In this paper, we formulate a complete
mathematical model based on long run rate of energy
consumption in the sensor nodes that uses LEACH
clustering algorithm. We use this new mathematical
model to find the optimal value of percentage of cluster
heads and to tune other LEACH parameters.
In the next section, we briefly describe some related
works. We analyze the behavior of a random LEACH
node by simulation in Section 3. We devise a complete
mathematical model to realize this behavior in Section 4.
In Section 5, we prove the correctness of our proposed
mathematical model. In Section 6 and Section 7, we
conclude the paper and shed some lights on our future
work respectively.
2. Related Works
LEACH [1] introduced a simple mechanism for localized
coordination and control for cluster set-up and operation.
It also introduces the randomized rotation of the cluster
heads and the corresponding clusters. LEACH is a
self-organizing, and adaptive clustering protocol [1]. It
dynamically creates clusters in order to distribute the
energy load evenly among all of the sensor nodes. This
algorithm needs time synchronization. Cluster heads are
randomly rotated during each time interval. The resultant
cluster heads directly communicate with the base station.
In LEACH, the lifetime of the network is divided into
some discrete, disjoint time intervals. Each interval is
again subdivided into some subintervals as shown in
Figure 1. LEACH algorithm uses the percentage of cluster
head parameter to determine the number of subintervals in
an interval. The number of subintervals is the inverse of
the value of the above parameter and this value is set a
priori to the algorithm. Each subinterval begins with an
advertisement phase followed by a cluster set up phase. In
the advertisement phase, each node independently decides
whether to become a cluster head or not and advertise this
information to its neighbors. In the cluster set-up phase,
the clusters are organized based on the decisions made in
the advertisement phase. Then a steady-state phase fol-
lows. In this phase, the followers, i.e., the sensor nodes
except cluster heads, sends data to the corresponding
cluster head. The cluster heads accumulate and compress
the received data with its own data. Cluster heads finally
send the compressed data to the base station or sink. In
order to minimize cluster establishment overhead, the
duration of steady-state phase is kept longer than that of
cluster set-up phase.
At the very beginning of an advertisement phase, each
node decides whether it wants to become a cluster head
for the current round. This decision depends on the value
of the percentage of cluster heads as well as the number of
times the node has already become cluster head. A node n
chooses a random number between 0 and 1 and computes

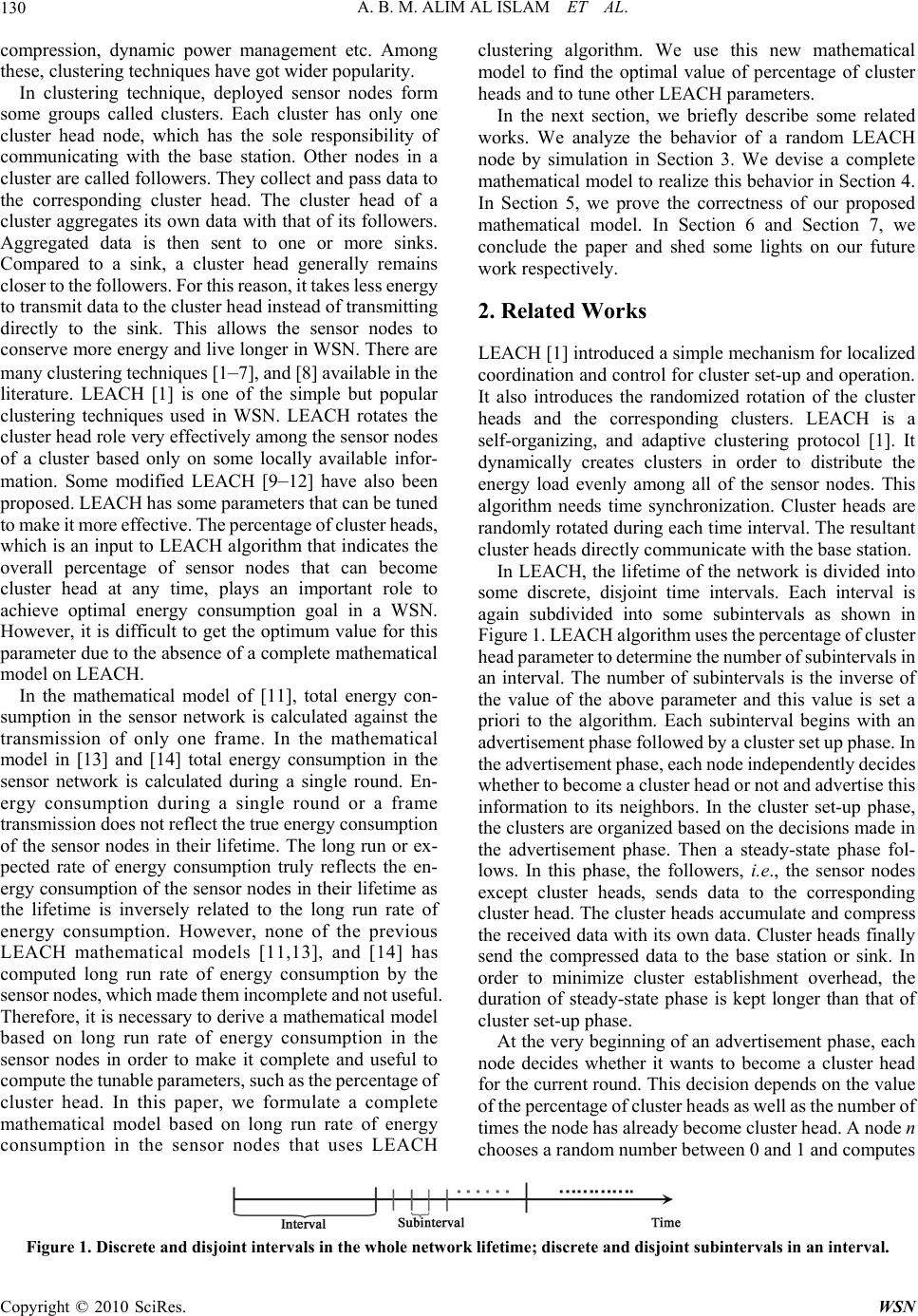

Figure 1. Discrete and disjoint intervals in the whole network lifetime; discrete and disjoint subintervals in an interval.
A. B. M. ALIM AL ISLAM ET AL. 131

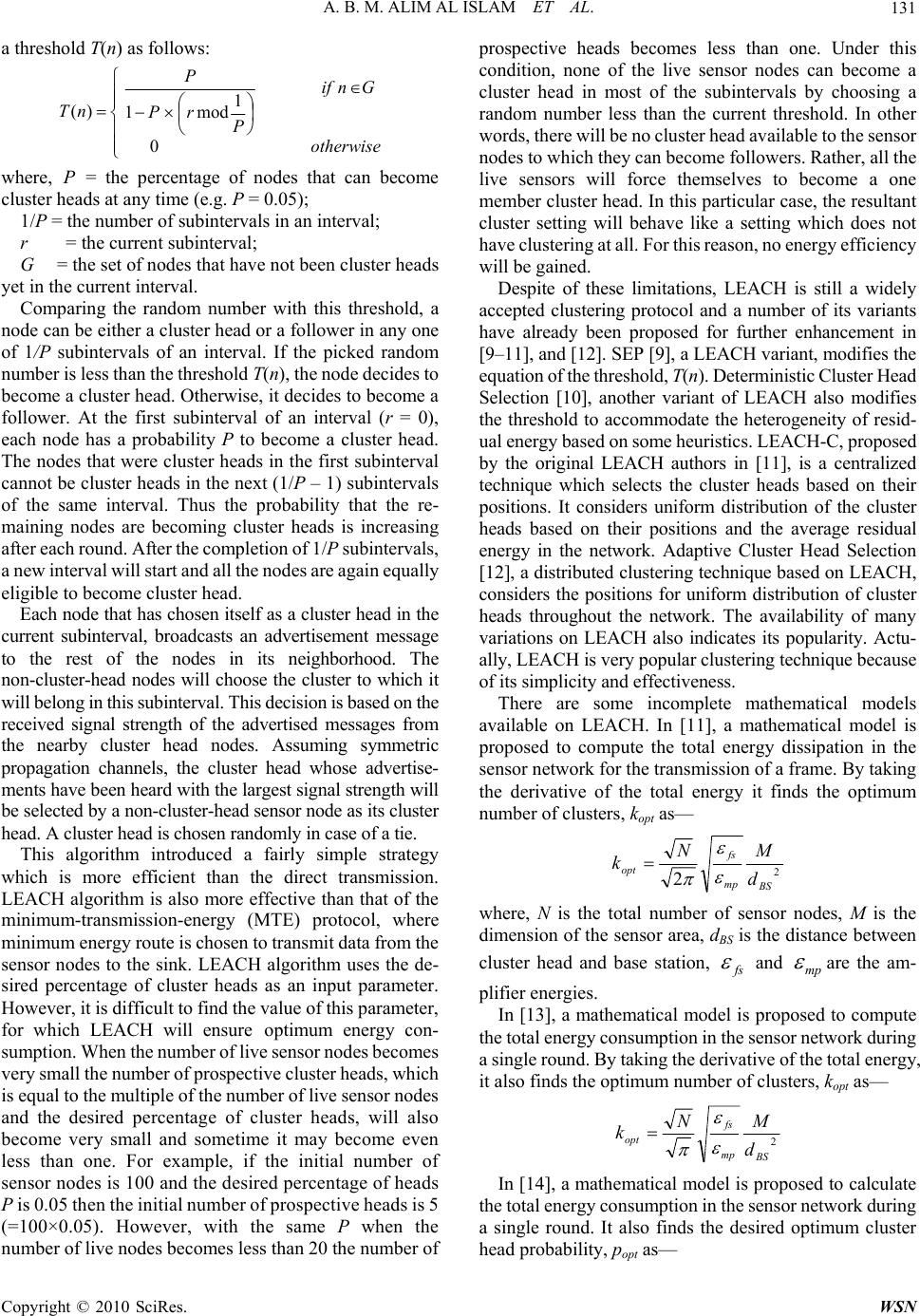

a threshold T(n) as follows:

otherwise
Gnif
P
rP
P
nT
0
1
mod1
)(
where, P = the percentage of nodes that can become
cluster heads at any time (e.g. P = 0.05);
1/P = the number of subintervals in an interval;
r = the current subinterval;
G = the set of nodes that have not been cluster heads
yet in the current interval.
Comparing the random number with this threshold, a
node can be either a cluster head or a follower in any one
of 1/P subintervals of an interval. If the picked random
number is less than the threshold T(n), the node decides to
become a cluster head. Otherwise, it decides to become a
follower. At the first subinterval of an interval (r = 0),
each node has a probability P to become a cluster head.
The nodes that were cluster heads in the first subinterval
cannot be cluster heads in the next (1/P – 1) subintervals
of the same interval. Thus the probability that the re-
maining nodes are becoming cluster heads is increasing
after each round. After the completion of 1/P subintervals,
a new interval will start and all the nodes are again equally
eligible to become cluster head.
Each node that has chosen itself as a cluster head in the
current subinterval, broadcasts an advertisement message
to the rest of the nodes in its neighborhood. The
non-cluster-head nodes will choose the cluster to which it
will belong in this subinterval. This decision is based on the
received signal strength of the advertised messages from
the nearby cluster head nodes. Assuming symmetric
propagation channels, the cluster head whose advertise-
ments have been heard with the largest signal strength will
be selected by a non-cluster-head sensor node as its cluster
head. A cluster head is chosen randomly in case of a tie.
This algorithm introduced a fairly simple strategy
which is more efficient than the direct transmission.
LEACH algorithm is also more effective than that of the
minimum-transmission-energy (MTE) protocol, where
minimum energy route is chosen to transmit data from the
sensor nodes to the sink. LEACH algorithm uses the de-
sired percentage of cluster heads as an input parameter.
However, it is difficult to find the value of this parameter,
for which LEACH will ensure optimum energy con-
sumption. When the number of live sensor nodes becomes
very small the number of prospective cluster heads, which
is equal to the multiple of the number of live sensor nodes
and the desired percentage of cluster heads, will also
become very small and sometime it may become even
less than one. For example, if the initial number of
sensor nodes is 100 and the desired percentage of heads
P is 0.05 then the initial number of prospective heads is 5
(=100×0.05). However, with the same P when the
number of live nodes becomes less than 20 the number of
prospective heads becomes less than one. Under this
condition, none of the live sensor nodes can become a
cluster head in most of the subintervals by choosing a
random number less than the current threshold. In other
words, there will be no cluster head available to the sensor
nodes to which they can become followers. Rather, all the
live sensors will force themselves to become a one
member cluster head. In this particular case, the resultant
cluster setting will behave like a setting which does not
have clustering at all. For this reason, no energy efficiency
will be gained.
Despite of these limitations, LEACH is still a widely
accepted clustering protocol and a number of its variants
have already been proposed for further enhancement in
[9–11], and [12]. SEP [9], a LEACH variant, modifies the
equation of the threshold, T(n). Deterministic Cluster Head
Selection [10], another variant of LEACH also modifies
the threshold to accommodate the heterogeneity of resid-
ual energy based on some heuristics. LEACH-C, proposed
by the original LEACH authors in [11], is a centralized
technique which selects the cluster heads based on their
positions. It considers uniform distribution of the cluster
heads based on their positions and the average residual
energy in the network. Adaptive Cluster Head Selection
[12], a distributed clustering technique based on LEACH,
considers the positions for uniform distribution of cluster
heads throughout the network. The availability of many
variations on LEACH also indicates its popularity. Actu-
ally, LEACH is very popular clustering technique because
of its simplicity and effectiveness.
There are some incomplete mathematical models
available on LEACH. In [11], a mathematical model is
proposed to compute the total energy dissipation in the
sensor network for the transmission of a frame. By taking
the derivative of the total energy it finds the optimum
number of clusters, kopt as—
2
2BS
mp
fs
opt d
MN
k
where, N is the total number of sensor nodes, M is the
dimension of the sensor area, dBS is the distance between
cluster head and base station, fs
and mp
are the am-
plifier energies.
In [13], a mathematical model is proposed to compute
the total energy consumption in the sensor network during
a single round. By taking the derivative of the total energy,
it also finds the optimum number of clusters, kopt as—
2
BS
mp
fs
opt d
MN
k
In [14], a mathematical model is proposed to calculate
the total energy consumption in the sensor network during
a single round. It also finds the desired optimum cluster
head probability, popt as—
C
opyright © 2010 SciRes. WSN
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
132

DAelecBSmp
fs
opt EEd
p
4
2
1

where, λ is the intensity of homogeneous spatial Poisson
process that indicates the sensor node density, Eelec is the
electronic energy required for coding, modulation, filtering
etc. and EDA is the energy required for data aggregation.
However, the lifetime of a sensor node is the inverse of
its long run rate energy consumption. Therefore, in order
to achieve elongated network lifetime of a sensor node,
the long run rate of energy consumption must be more
significant than the total energy consumption in an interval
or for one frame transmission. Unfortunately, none of the
mathematical models mentioned above consider the long
run rate of energy consumption by a sensor node in the
network. Moreover, none of these models consider the
situation, in which all the sensor nodes in the network, can
pick a random number higher than its respective threshold
and become one member cluster head all together. For
these reasons, all the previous mathematical models re-
main incomplete and less useful. We deduce a complete
mathematical model based on the long run rate of energy
consumption and considering the above mentioned situa-
tion in Section 4. In order to deduce the mathematical
model, we need to observe the inherent behavior of a
random LEACH node in terms of long run energy con-
sumption.
3. Observed Behavior of A Random Leach
Node
In this section, we analyze the behavior of a random
LEACH node in terms of long run energy consumption by
simulation in order to find a trend in the behavior. In our
simulation, expected energy consumption rate is calcu-
lated against different percentage of cluster heads.
A visual C++ program is developed for the simulation.
We use following network setting as shown in the simu-
lation runs:
The dimension of sensor area is 200×200.
Total number of heterogeneous sensor nodes in the
network is 100.
Initial energies of the sensor nodes are uniformly
distributed between 1J and 5J.
The sensor nodes are uniformly distributed over the
sensor area.
The base station is located at position (1500, 100).
We show the network setting in Figure 2. We plot the
energy consumption rate by a randomly chosen LEACH
node against the percentage of heads in Figure 3 from the
results of our simulation runs.
According to the graph in Figure 3,
1) Energy consumption rate initially decreases very
sharply with the increase of the percentage of cluster
heads and
2) There is an optimal point for which energy con-
sumption rate is the lowest. After the optimal point, the
energy consumption rate increases with the increase of the
percentage of cluster heads. In our simulation runs, this
optimal point is (0.057, 0.003433).
The pattern of the graph matches with that of the nor-
malized energy dissipation versus the percentage of
cluster heads in figure of [1]. We formulate a mathe-
matical model complying with this behavior of a LEACH
node in the next section. In Section 5, we compare the
trends observed in this section with that from our
mathematical model in order to proof that our mathe-
matical model is correct and explain the reasons of these
trends.
4. Proposed Mathematical Model for Leach
The primary reason behind the clustering technique is to
reduce the rate of energy consumption so that the life of a
wireless network elongates. Popular clustering techniques
leach [1] and its variants [9] and [10] can achieve this goal
if their parameters are set suitably. As of today, some
heuristics are used to choose the values for leach pa-
rameters. A complete mathematical model can serve bet-
ter than the heuristics to achieve an optimal rate of energy
consumption in WSN. Moreover, a mathematical model
can provide the ways to tune other application specific

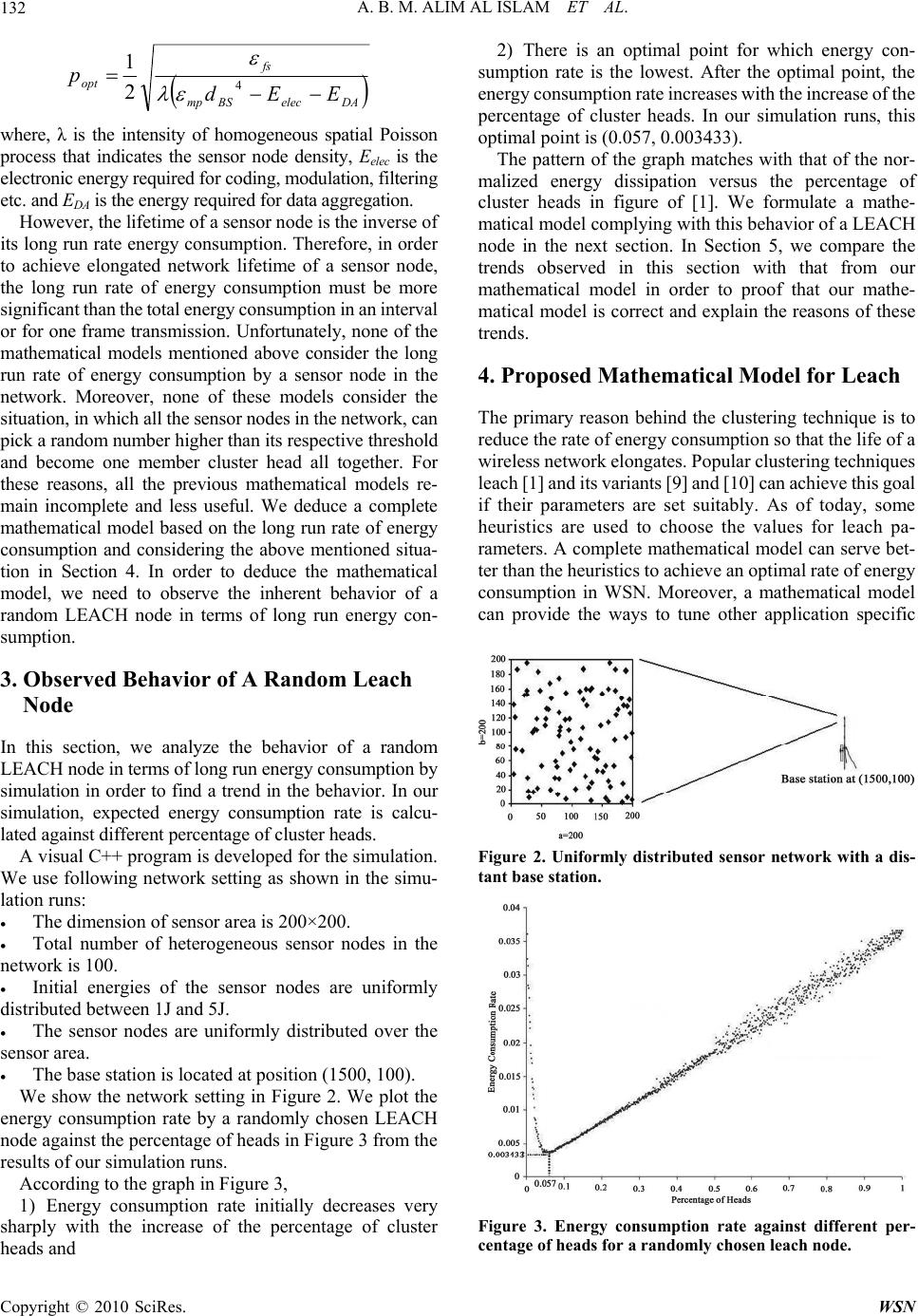

Figure 2. Uniformly distributed sensor network with a dis-
tant base station.
Figure 3. Energy consumption rate against different per-
centage of heads for a randomly chosen leach node.
A. B. M. ALIM AL ISLAM ET AL.133
parameters. We derive a complete mathematical model of
energy consumption rate of LEACH in this section.
4.1. Preliminaries
We use some basic assumptions about the sensor nodes
and the network settings while developing our mathe-
matical model for LEACH. We also use some base mod-
els in the formulation of our mathematical model. After
describing the basic assumptions, we describe the base
models.
1) Assumptions
In order to make our mathematical model fully aligned
with LEACH algorithm [1], we use following assump-
tions about the sensor nodes and network settings:
Nodes do not have any location information. This
assumption makes our model suitable for the applications
(for example, environmental monitoring) that use ran-
domly deployed sensor nodes.
All nodes can directly reach the BS. This assumption
ensures applicability of our model for single-hop clus-
tering [7].
The propagation channel is symmetric. Symmetry of
propagation channel implies that energy required to
transmit a message from node A to node B is the same as
energy required to transmit a message from node B to
node A for a given Signal to Noise Ratio (SNR).
2) Base Models
Heinzelman proposed an energy model namely first
order radio model for energy consumption in a wireless
network in [15]. Like other research works [1], [9], and
[10], we use this first order radio model to compute the
expected energy consumption rate in sensor networks.
Energy consumption, due to the reception and the
transmission of data in a sensor network, is a stochastic
process. Therefore, we use Renewal Reward Process [16],
[17], a widely known stochastic process, to capture the
nature of energy consumption due to data transmission
and reception by a sensor node. In the following subsec-
tions, we briefly describe these two base models.
3) Energy Model: Heinzelman First Order Radio
Model
A receiving sensor node consumes the energy while
receiving and processing a message. The amount of this
energy is proportional to the number of bits in the mes-
sage under processing. For example, if the message con-
tains k bit and the energy per bit is Eelec Joules, then the
energy used to run the circuitry will be (Eelec×k) Joules.
Therefore, the energy consumed by a receiving node to
receive and process a k-bits message is,
 
kEkE elecR X (1)
The energy needs to send k bit message over a distance
d is (amp x k×dλ) Joules, where amp is the energy con-
stant for the radio transmission and λ is the path loss ex-
ponent. While transmitting, a sensor node needs energy

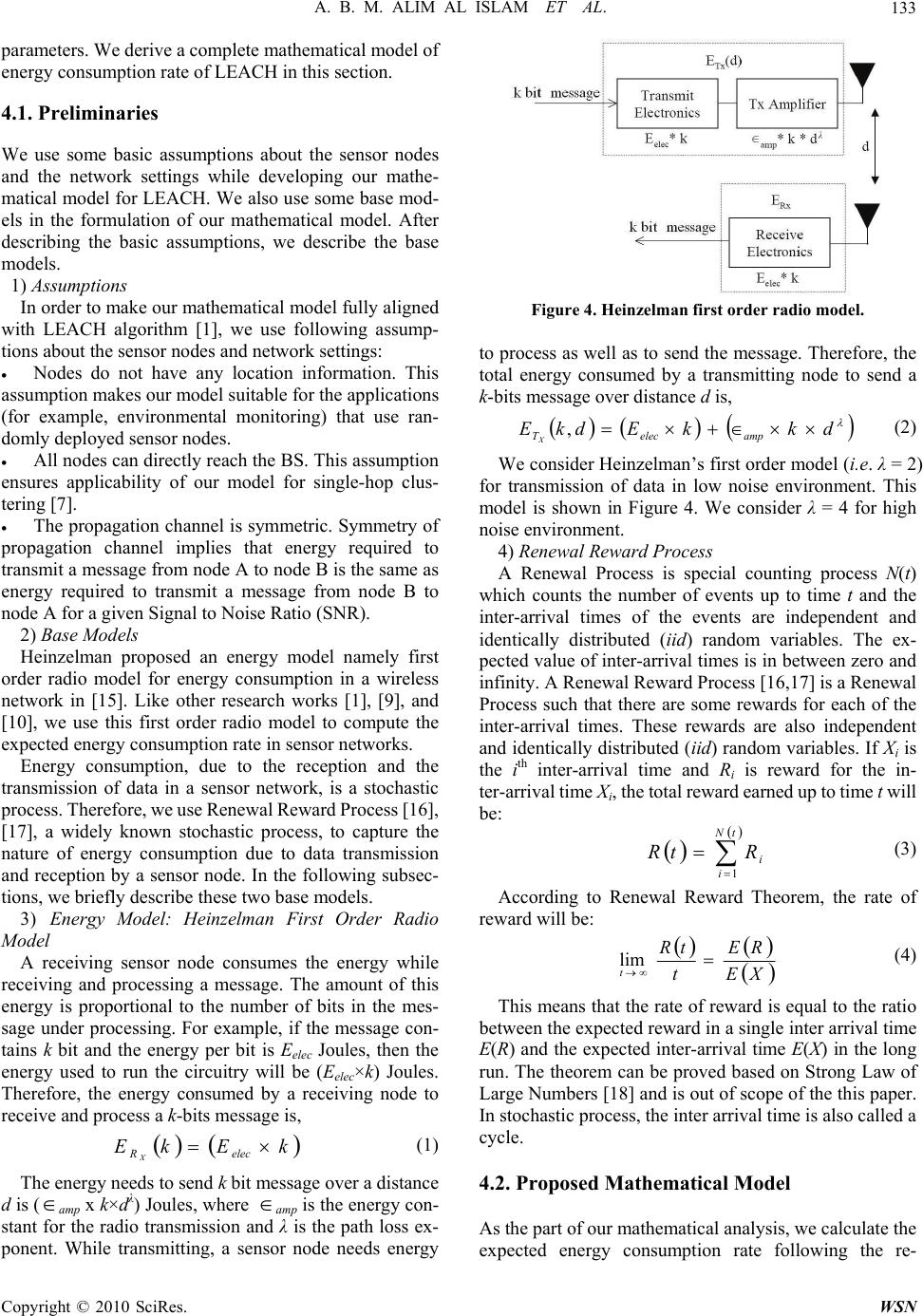

Figure 4. Heinzelman first order radio model.
to process as well as to send the message. Therefore, the
total energy consumed by a transmitting node to send a
k-bits message over distance d is,
dkkEdkE ampelecTX, (2)
We consider Heinzelman’s first order model (i.e. λ = 2)
for transmission of data in low noise environment. This
model is shown in Figure 4. We consider λ = 4 for high
noise environment.
4) Renewal Reward Process
A Renewal Process is special counting process N(t)
which counts the number of events up to time t and the
inter-arrival times of the events are independent and
identically distributed (iid) random variables. The ex-
pected value of inter-arrival times is in between zero and
infinity. A Renewal Reward Process [16,17] is a Renewal
Process such that there are some rewards for each of the
inter-arrival times. These rewards are also independent
and identically distributed (iid) random variables. If Xi is
the ith inter-arrival time and Ri is reward for the in-
ter-arrival time Xi, the total reward earned up to time t will
be:


tN
i
i
RtR
1
(3)
According to Renewal Reward Theorem, the rate of
reward will be:


XE
RE
t
tR
t

lim (4)
This means that the rate of reward is equal to the ratio
between the expected reward in a single inter arrival time
E(R) and the expected inter-arrival time E(X) in the long
run. The theorem can be proved based on Strong Law of
Large Numbers [18] and is out of scope of the this paper.
In stochastic process, the inter arrival time is also called a
cycle.
4.2. Proposed Mathematical Model
As the part of our mathematical analysis, we calculate the
expected energy consumption rate following the re-
Copyright © 2010 SciRes. WSN
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
134

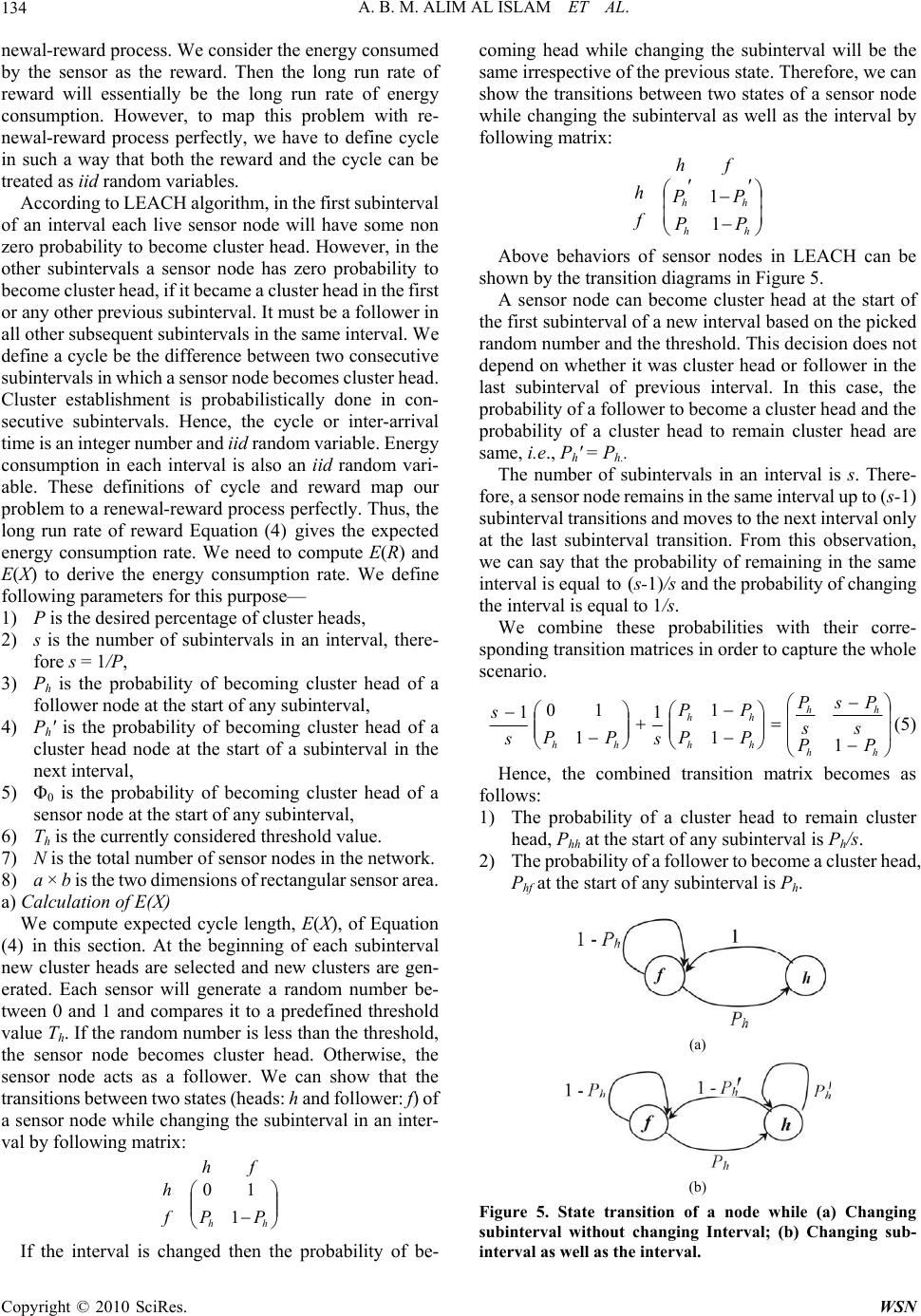

newal-reward process. We consider the energy consumed
by the sensor as the reward. Then the long run rate of
reward will essentially be the long run rate of energy
consumption. However, to map this problem with re-
newal-reward process perfectly, we have to define cycle
in such a way that both the reward and the cycle can be
treated as iid random variables.
According to LEACH algorithm, in the first subinterval
of an interval each live sensor node will have some non
zero probability to become cluster head. However, in the
other subintervals a sensor node has zero probability to
become cluster head, if it became a cluster head in the first
or any other previous subinterval. It must be a follower in
all other subsequent subintervals in the same interval. We
define a cycle be the difference between two consecutive
subintervals in which a sensor node becomes cluster head.
Cluster establishment is probabilistically done in con-
secutive subintervals. Hence, the cycle or inter-arrival
time is an integer number and iid random variable. Energy
consumption in each interval is also an iid random vari-
able. These definitions of cycle and reward map our
problem to a renewal-reward process perfectly. Thus, the
long run rate of reward Equation (4) gives the expected
energy consumption rate. We need to compute E(R) and
E(X) to derive the energy consumption rate. We define
following parameters for this purpose—
1) P is the desired percentage of cluster heads,
2) s is the number of subintervals in an interval, there-
fore s = 1/P,
3) Ph is the probability of becoming cluster head of a
follower node at the start of any subinterval,
4) Ph is the probability of becoming cluster head of a
cluster head node at the start of a subinterval in the
next interval,
5) Φ0 is the probability of becoming cluster head of a
sensor node at the start of any subinterval,
6) Th is the currently considered threshold value.
7) N is the total number of sensor nodes in the network.
8) a × b is the two dimensions of rectangular sensor area.
a) Calculation of E(X)
We compute expected cycle length, E(X), of Equation
(4) in this section. At the beginning of each subinterval
new cluster heads are selected and new clusters are gen-
erated. Each sensor will generate a random number be-
tween 0 and 1 and compares it to a predefined threshold
value Th. If the random number is less than the threshold,
the sensor node becomes cluster head. Otherwise, the
sensor node acts as a follower. We can show that the
transitions between two states (heads: h and follower: f) of
a sensor node while changing the subinterval in an inter-
val by following matrix:
hh PP
f
h
fh
1
10
If the interval is changed then the probability of be-
coming head while changing the subinterval will be the
same irrespective of the previous state. Therefore, we can
show the transitions between two states of a sensor node
while changing the subinterval as well as the interval by
following matrix:
hh
hh
PP
PP
f
h
fh
1
1
Above behaviors of sensor nodes in LEACH can be
shown by the transition diagrams in Figure 5.
A sensor node can become cluster head at the start of
the first subinterval of a new interval based on the picked
random number and the threshold. This decision does not
depend on whether it was cluster head or follower in the
last subinterval of previous interval. In this case, the
probability of a follower to become a cluster head and the
probability of a cluster head to remain cluster head are
same, i.e., Ph = Ph..
The number of subintervals in an interval is s. There-
fore, a sensor node remains in the same interval up to (s-1)
subinterval transitions and moves to the next interval only
at the last subinterval transition. From this observation,
we can say that the probability of remaining in the same
interval is equal to (s-1)/s and the probability of changing
the interval is equal to 1/s.
We combine these probabilities with their corre-
sponding transition matrices in order to capture the whole
scenario.
hh
hh
hh
hh
hh PP
s
Ps
s
P
PP
PP
s
PP
s
s
1
1
1
1
1
10
1(5)
Hence, the combined transition matrix becomes as
follows:
1) The probability of a cluster head to remain cluster
head, Phh at the start of any subinterval is Ph/s.
2) The probability of a follower to become a cluster head,
Phf at the start of any subinterval is Ph.
(a)
(b)
Figure 5. State transition of a node while (a) Changing
subinterval without changing Interval; (b) Changing sub-
interval as well as the interval.
A. B. M. ALIM AL ISLAM ET AL.135

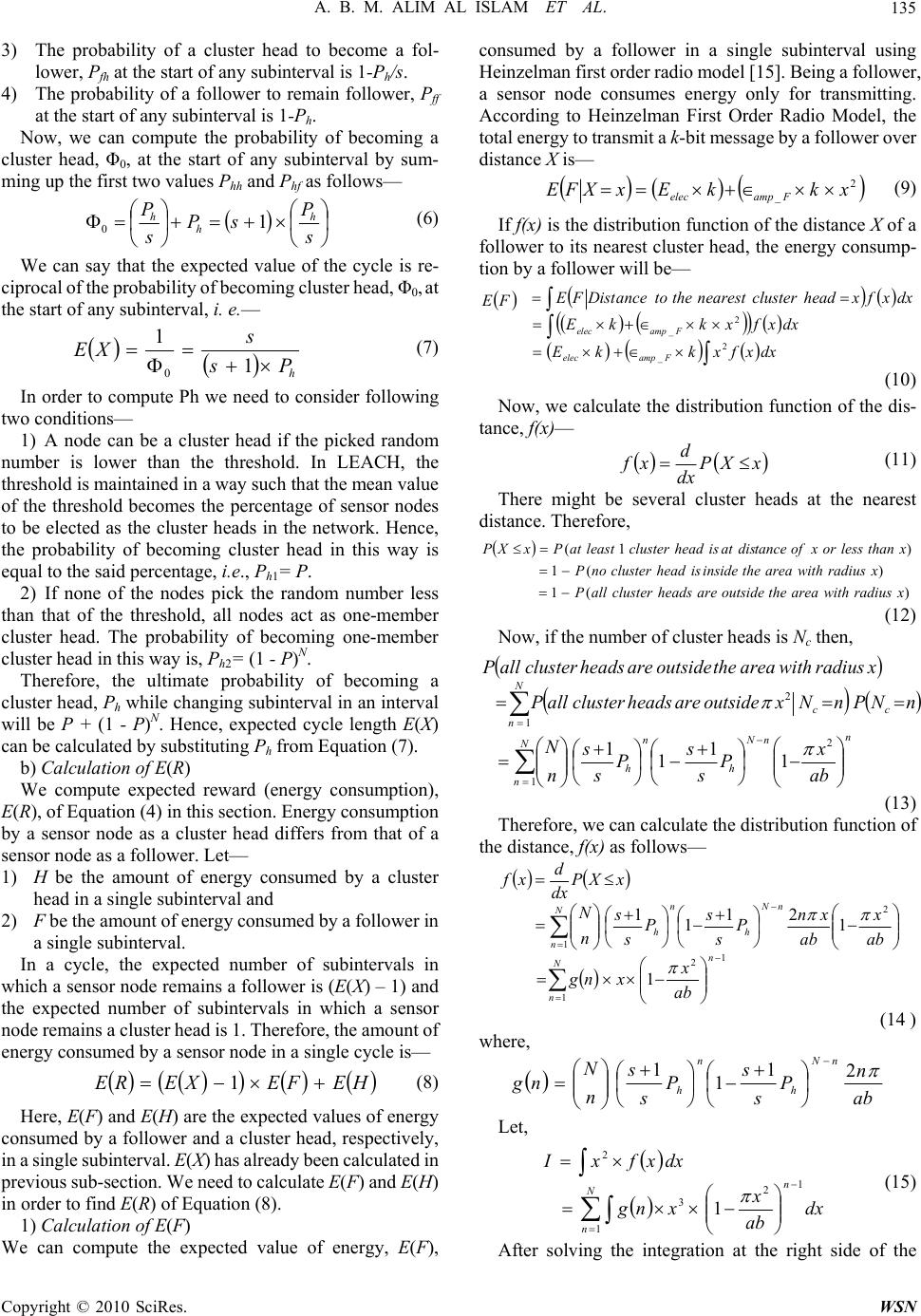

3) The probability of a cluster head to become a fol-
lower, Pfh at the start of any subinterval is 1-Ph/s.
4) The probability of a follower to remain follower, Pff
at the start of any subinterval is 1-Ph.
Now, we can compute the probability of becoming a
cluster head, Φ0, at the start of any subinterval by sum-
ming up the first two values Phh and Phf as follows—


s
P
sP
s
Ph
h
h1
0 (6)
We can say that the expected value of the cycle is re-
ciprocal of the probability of becoming cluster head, Φ0, at
the start of any subinterval, i. e.
 
h
Ps
s
XE 
1
1
0
(7)
In order to compute Ph we need to consider following
two conditions—
1) A node can be a cluster head if the picked random
number is lower than the threshold. In LEACH, the
threshold is maintained in a way such that the mean value
of the threshold becomes the percentage of sensor nodes
to be elected as the cluster heads in the network. Hence,
the probability of becoming cluster head in this way is
equal to the said percentage, i.e., Ph1= P.
2) If none of the nodes pick the random number less
than that of the threshold, all nodes act as one-member
cluster head. The probability of becoming one-member
cluster head in this way is, Ph2= (1 - P)N.
Therefore, the ultimate probability of becoming a
cluster head, Ph while changing subinterval in an interval
will be P + (1 - P)N. Hence, expected cycle length E(X)
can be calculated by substituting Ph from Equation (7).
b) Calculation of E(R)
We compute expected reward (energy consumption),
E(R), of Equation (4) in this section. Energy consumption
by a sensor node as a cluster head differs from that of a
sensor node as a follower. Let—
1) H be the amount of energy consumed by a cluster
head in a single subinterval and
2) F be the amount of energy consumed by a follower in
a single subinterval.
In a cycle, the expected number of subintervals in
which a sensor node remains a follower is (E(X) – 1) and
the expected number of subintervals in which a sensor
node remains a cluster head is 1. Therefore, the amount of
energy consumed by a sensor node in a single cycle is—
 
HEFEXERE  1

(8)
Here, E(F) and E(H) are the expected values of energy
consumed by a follower and a cluster head, respectively,
in a single subinterval. E(X) has already been calculated in
previous sub-section. We need to calculate E(F) and E(H)
in order to find E(R) of Equation (8).
1) Calculation of E(F)
We can compute the expected value of energy, E(F),
consumed by a follower in a single subinterval using
Heinzelman first order radio model [15]. Being a follower,
a sensor node consumes energy only for transmitting.
According to Heinzelman First Order Radio Model, the
total energy to transmit a k-bit message by a follower over
distance X is—
2
_xkkExXFE Fampelec  (9)
If f(x) is the distribution function of the distance X of a
follower to its nearest cluster head, the energy consump-
tion by a follower will be—









dxxfxkkE
dxxfxkkE
dxxfxheadclusternearestthetoanceDistFE
FE
Fampelec
Fampelec
2
_
2
_
(10)
Now, we calculate the distribution function of the dis-
tance, f(x)

xXP
dx
d
xf 
(11)
There might be several cluster heads at the nearest
distance. Therefore,
)(1
)(1
)1(
xradiuswithareatheoutsideareheadsclusterallP
xradiuswithareatheinsideisheadclusternoP
xthanlessorxofancetdisatisheadclusterleastatPxXP


(12)
Now, if the number of cluster heads is Nc then,



N
n
n
nN
h
n
h
N
n
cc
ab
x
P
s
s
P
s
s
n
N
nNPnNxoutsideareheadsclusterallP
xradiuswithareatheoutsideareheadsclusterallP
1
2
1
2
1
1
1
1
(13)
Therefore, we can calculate the distribution function of
the distance, f(x) as follows—
 



N
n
n
nN
h
N
n
n
h
ab
x
xng
ab
x
ab
xn
P
s
s
P
s
s
n
N
xXP
dx
d
xf
1
1
2
2
1
1
1
21
1
1

(14 )
where,

ab
n
P
s
s
P
s
s
n
N
ng
nN
h
n
h
2
1
1
1
Let,



N
n
n
dx
ab
x
xng
dxxfxI
1
1
2
3
2
1
(15)
After solving the integration at the right side of the
Copyright © 2010 SciRes. WSN
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
136

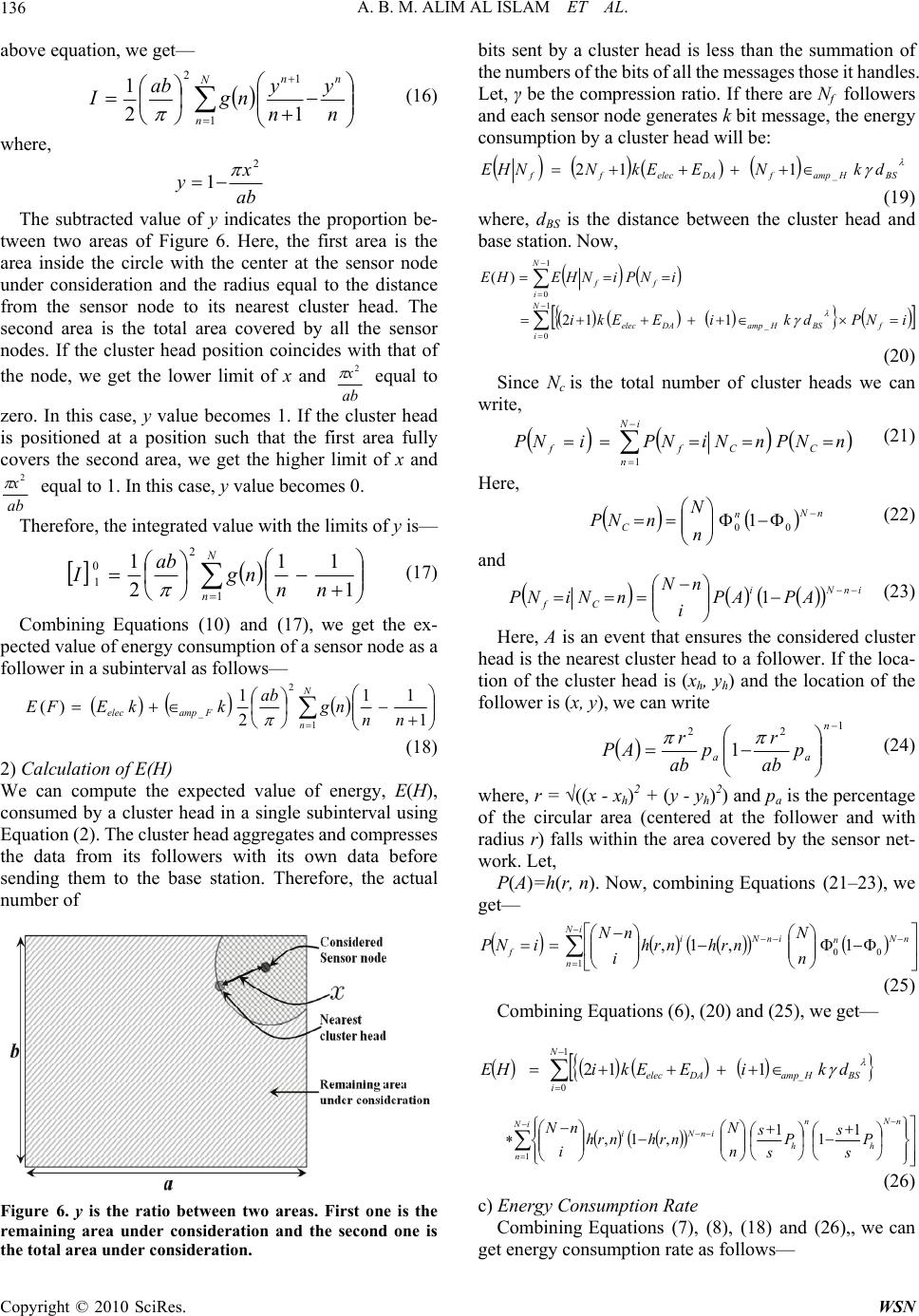

above equation, we get—

N
n
nn
n
y
n
y
ng
ab
I
1
1
2
12
1
(16)
where,
ab
x
y
2
1

The subtracted value of y indicates the proportion be-
tween two areas of Figure 6. Here, the first area is the
area inside the circle with the center at the sensor node
under consideration and the radius equal to the distance
from the sensor node to its nearest cluster head. The
second area is the total area covered by all the sensor
nodes. If the cluster head position coincides with that of
the node, we get the lower limit of x and
ab
x2
equal to
zero. In this case, y value becomes 1. If the cluster head
is positioned at a position such that the first area fully
covers the second area, we get the higher limit of x and
ab
x2
equal to 1. In this case, y value becomes 0.
Therefore, the integrated value with the limits of y is—


N
nnn
ng
ab
I
1
2
0
11
11
2
1
(17)
Combining Equations (10) and (17), we get the ex-
pected value of energy consumption of a sensor node as a
follower in a subinterval as follows—



 N
n
Fampelec nn
ng
ab
kkEFE
1
2
_1
11
2
1
)(
(18)
2) Calculation of E(H)
We can compute the expected value of energy, E(H),
consumed by a cluster head in a single subinterval using
Equation (2). The cluster head aggregates and compresses
the data from its followers with its own data before
sending them to the base station. Therefore, the actual
number of
Figure 6. y is the ratio between two areas. First one is the
remaining area under consideration and the second one is
the total area under consideration.
bits sent by a cluster head is less than the summation of
the numbers of the bits of all the messages those it handles.
Let, γ be the compression ratio. If there are Nf followers
and each sensor node generates k bit message, the energy
consumption by a cluster head will be:

BSHampfDAelecff dkNEEkNNHE _
112 
(19)
where, dBS is the distance between the cluster head and
base station. Now,







1
0
_
1
0
112
)(
N
i
fBSHampDAelec
N
i
ff
iNPdkiEEki
iNPiNHEHE
(20)
Since Nc is the total number of cluster heads we can
write,
 

iN
n
CCff nNPnNiNPiNP
1
(21)
Here,


nN
n
Cn
N
nNP

 00 1 (22)
and

 
inNi
Cf APAP
i
nN
nNiNP 
 1 (23)
Here, A is an event that ensures the considered cluster
head is the nearest cluster head to a follower. If the loca-
tion of the cluster head is (xh, yh) and the location of the
follower is (x, y), we can write

1
22
1

n
aa p
ab
r
p
ab
r
AP

(24)
where, r = ((x - xh)2 + (y - yh)2) and pa is the percentage
of the circular area (centered at the follower and with
radius r) falls within the area covered by the sensor net-
work. Let,
P(A)=h(r, n). Now, combining Equations (21–23), we
get—

  



iN
n
nN
n
inNi
fn
N
nrhnrh
i
nN
iNP
1
00 1,1,
(25)
Combining Equations (6), (20) and (25), we get—
  


N
i
BSHampDAelecdkiEEki
HE
1
0
_
112
 

iN
n
nN
h
n
h
inNi P
s
s
P
s
s
n
N
nrhnrh
i
nN
1
1
1
1
,1,
(26)
c) Energy Consumption Rate
Combining Equations (7), (8), (18) and (26),, we can
get energy consumption rate as follows—
A. B. M. ALIM AL ISLAM ET AL.137
 




 




1
01
1
2
_
,
1
1
11
2
11
1
lim
N
i
iN
n
h
N
n
Fampelech
t
niqipP
s
s
nn
ng
ab
kkEP
s
s
XE
RE
t
tR
(27)
where,
 
BSHampDAelec dkiEEkiip _
112
 
and,
N
h
n
h
inNiP
s
s
P
s
s
n
N
nrhnrh
i
nN
niq

1
1
1
,1,,

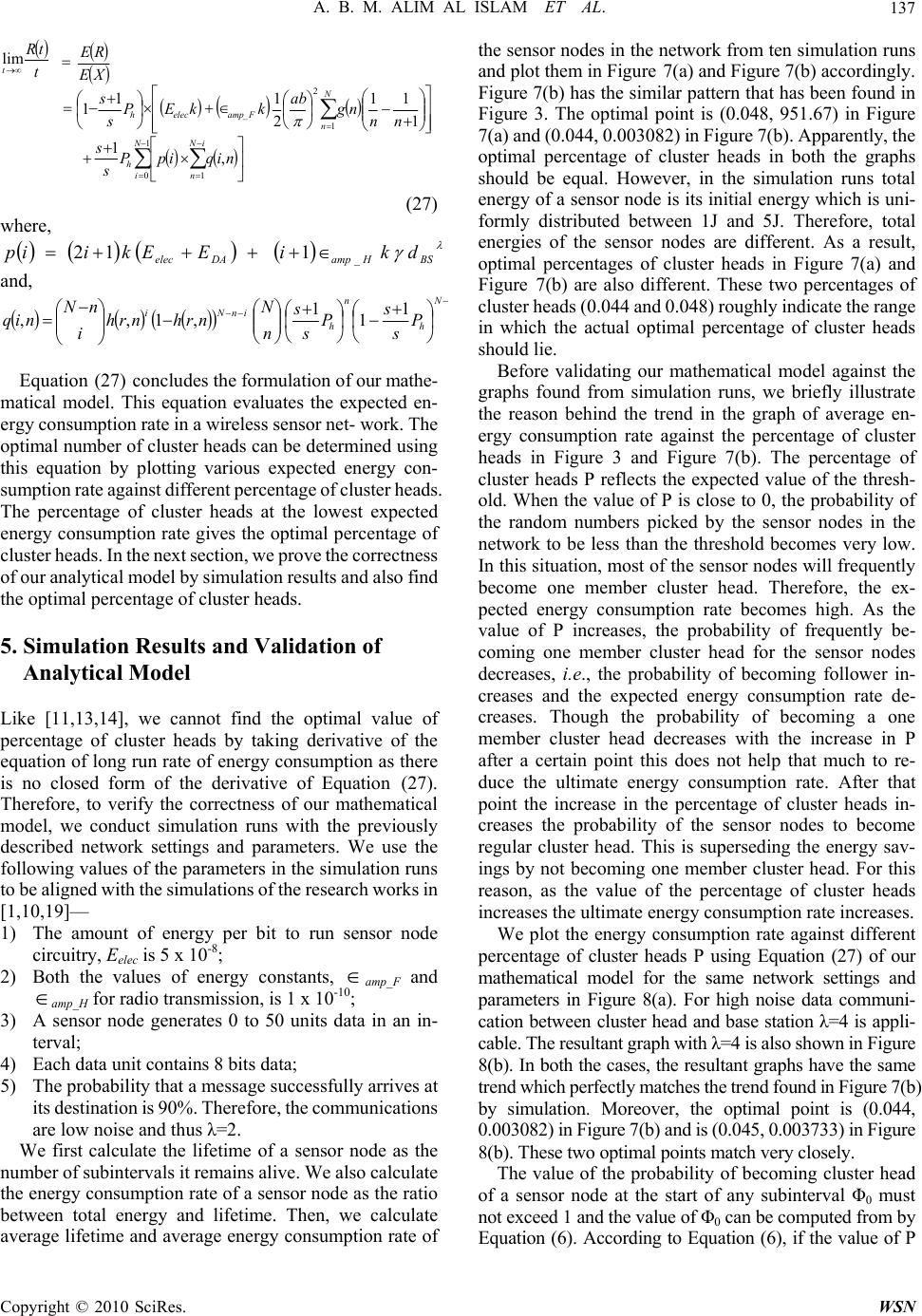

Equation (27) concludes the formulation of our mathe-
matical model. This equation evaluates the expected en-
ergy consumption rate in a wireless sensor net- work. The
optimal number of cluster heads can be determined using
this equation by plotting various expected energy con-
sumption rate against different percentage of cluster heads.
The percentage of cluster heads at the lowest expected
energy consumption rate gives the optimal percentage of
cluster heads. In the next section, we prove the correctness
of our analytical model by simulation results and also find
the optimal percentage of cluster heads.
5. Simulation Results and Validation of
Analytical Model
Like [11,13,14], we cannot find the optimal value of
percentage of cluster heads by taking derivative of the
equation of long run rate of energy consumption as there
is no closed form of the derivative of Equation (27).
Therefore, to verify the correctness of our mathematical
model, we conduct simulation runs with the previously
described network settings and parameters. We use the
following values of the parameters in the simulation runs
to be aligned with the simulations of the research works in
[1,10,19]—
1) The amount of energy per bit to run sensor node
circuitry, Eelec is 5 x 10-8;
2) Both the values of energy constants, amp_F and
amp_H for radio transmission, is 1 x 10-10;
3) A sensor node generates 0 to 50 units data in an in-
terval;
4) Each data unit contains 8 bits data;
5) The probability that a message successfully arrives at
its destination is 90%. Therefore, the communications
are low noise and thus λ=2.
We first calculate the lifetime of a sensor node as the
number of subintervals it remains alive. We also calculate
the energy consumption rate of a sensor node as the ratio
between total energy and lifetime. Then, we calculate
average lifetime and average energy consumption rate of
the sensor nodes in the network from ten simulation runs
and plot them in Figure 7(a) and Figure 7(b) accordingly.
Figure 7(b) has the similar pattern that has been found in
Figure 3. The optimal point is (0.048, 951.67) in Figure
7(a) and (0.044, 0.003082) in Figure 7(b). Apparently, the
optimal percentage of cluster heads in both the graphs
should be equal. However, in the simulation runs total
energy of a sensor node is its initial energy which is uni-
formly distributed between 1J and 5J. Therefore, total
energies of the sensor nodes are different. As a result,
optimal percentages of cluster heads in Figure 7(a) and
Figure 7(b) are also different. These two percentages of
cluster heads (0.044 and 0.048) roughly indicate the range
in which the actual optimal percentage of cluster heads
should lie.
Before validating our mathematical model against the
graphs found from simulation runs, we briefly illustrate
the reason behind the trend in the graph of average en-
ergy consumption rate against the percentage of cluster
heads in Figure 3 and Figure 7(b). The percentage of
cluster heads P reflects the expected value of the thresh-
old. When the value of P is close to 0, the probability of
the random numbers picked by the sensor nodes in the
network to be less than the threshold becomes very low.
In this situation, most of the sensor nodes will frequently
become one member cluster head. Therefore, the ex-
pected energy consumption rate becomes high. As the
value of P increases, the probability of frequently be-
coming one member cluster head for the sensor nodes
decreases, i.e., the probability of becoming follower in-
creases and the expected energy consumption rate de-
creases. Though the probability of becoming a one
member cluster head decreases with the increase in P
after a certain point this does not help that much to re-
duce the ultimate energy consumption rate. After that
point the increase in the percentage of cluster heads in-
creases the probability of the sensor nodes to become
regular cluster head. This is superseding the energy sav-
ings by not becoming one member cluster head. For this
reason, as the value of the percentage of cluster heads
increases the ultimate energy consumption rate increases.
We plot the energy consumption rate against different
percentage of cluster heads P using Equation (27) of our
mathematical model for the same network settings and
parameters in Figure 8(a). For high noise data communi-
cation between cluster head and base station λ=4 is appli-
cable. The resultant graph with λ=4 is also shown in Figure
8(b). In both the cases, the resultant graphs have the same
trend which perfectly matches the trend found in Figure 7(b)
by simulation. Moreover, the optimal point is (0.044,
0.003082) in Figure 7(b) and is (0.045, 0.003733) in Figure
8(b). These two optimal points match very closely.
The value of the probability of becoming cluster head
of a sensor node at the start of any subinterval Φ0 must
not exceed 1 and the value of Φ0 can be computed from by
Equation (6). According to Equation (6), if the value of P
Copyright © 2010 SciRes. WSN
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
138
(a)
(b)

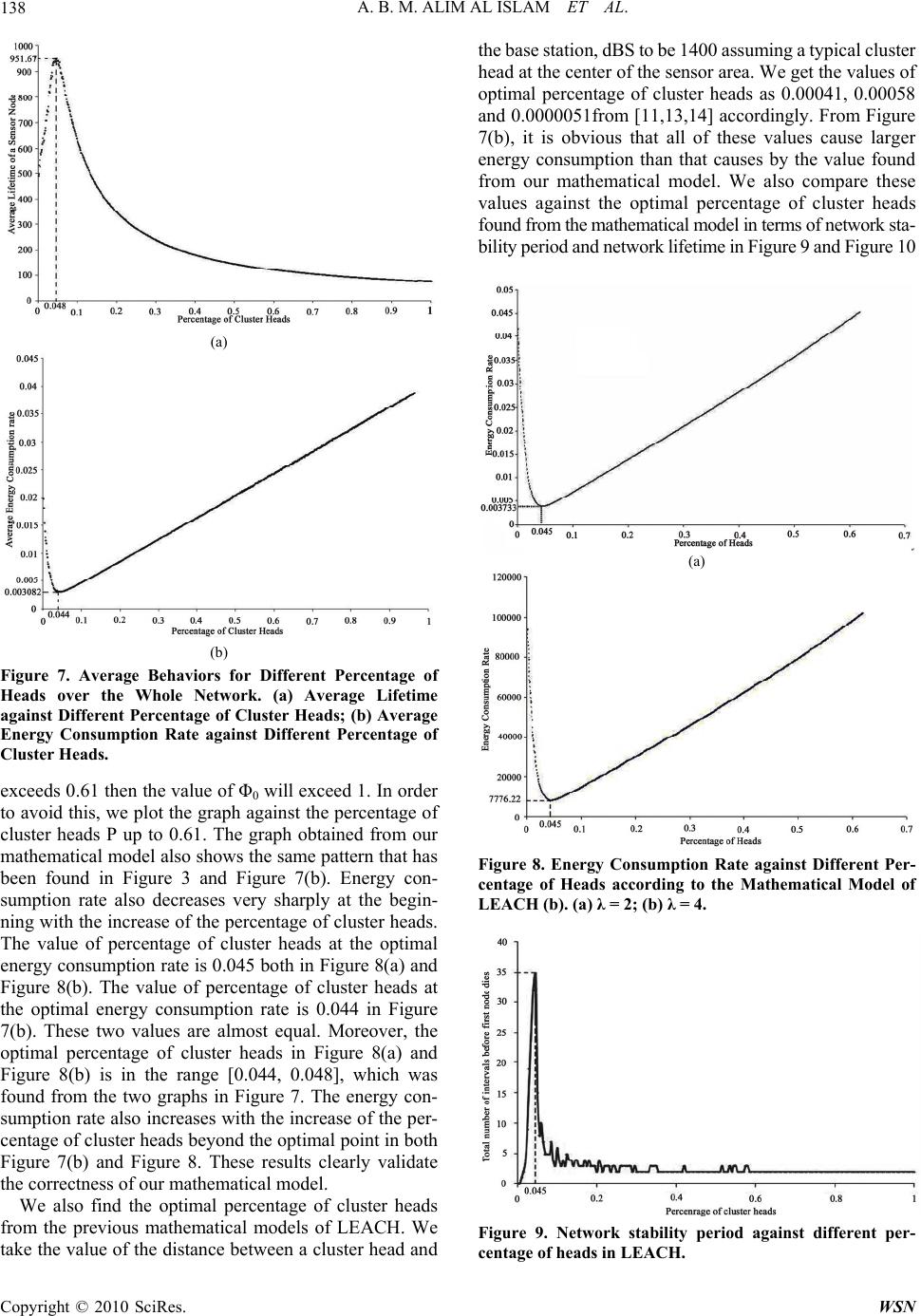

Figure 7. Average Behaviors for Different Percentage of
Heads over the Whole Network. (a) Average Lifetime
against Different Percentage of Cluster Heads; (b) Average
Energy Consumption Rate against Different Percentage of
Cluster Heads.
exceeds 0.61 then the value of Φ0 will exceed 1. In order
to avoid this, we plot the graph against the percentage of
cluster heads P up to 0.61. The graph obtained from our
mathematical model also shows the same pattern that has
been found in Figure 3 and Figure 7(b). Energy con-
sumption rate also decreases very sharply at the begin-
ning with the increase of the percentage of cluster heads.
The value of percentage of cluster heads at the optimal
energy consumption rate is 0.045 both in Figure 8(a) and
Figure 8(b). The value of percentage of cluster heads at
the optimal energy consumption rate is 0.044 in Figure
7(b). These two values are almost equal. Moreover, the
optimal percentage of cluster heads in Figure 8(a) and
Figure 8(b) is in the range [0.044, 0.048], which was
found from the two graphs in Figure 7. The energy con-
sumption rate also increases with the increase of the per-
centage of cluster heads beyond the optimal point in both
Figure 7(b) and Figure 8. These results clearly validate
the correctness of our mathematical model.
We also find the optimal percentage of cluster heads
from the previous mathematical models of LEACH. We
take the value of the distance between a cluster head and
the base station, dBS to be 1400 assuming a typical cluster
head at the center of the sensor area. We get the values of
optimal percentage of cluster heads as 0.00041, 0.00058
and 0.0000051from [11,13,14] accordingly. From Figure
7(b), it is obvious that all of these values cause larger
energy consumption than that causes by the value found
from our mathematical model. We also compare these
values against the optimal percentage of cluster heads
found from the mathematical model in terms of network sta-
bility period and network lifetime in Figure 9 and Figure 10
(a)
Figure 8. Energy Consumption Rate against Different Per-
centage of Heads according to the Mathematical Model of
LEACH (b). (a) λ = 2; (b) λ = 4.
Figure 9. Network stability period against different per-
centage of heads in LEACH.
A. B. M. ALIM AL ISLAM ET AL.139

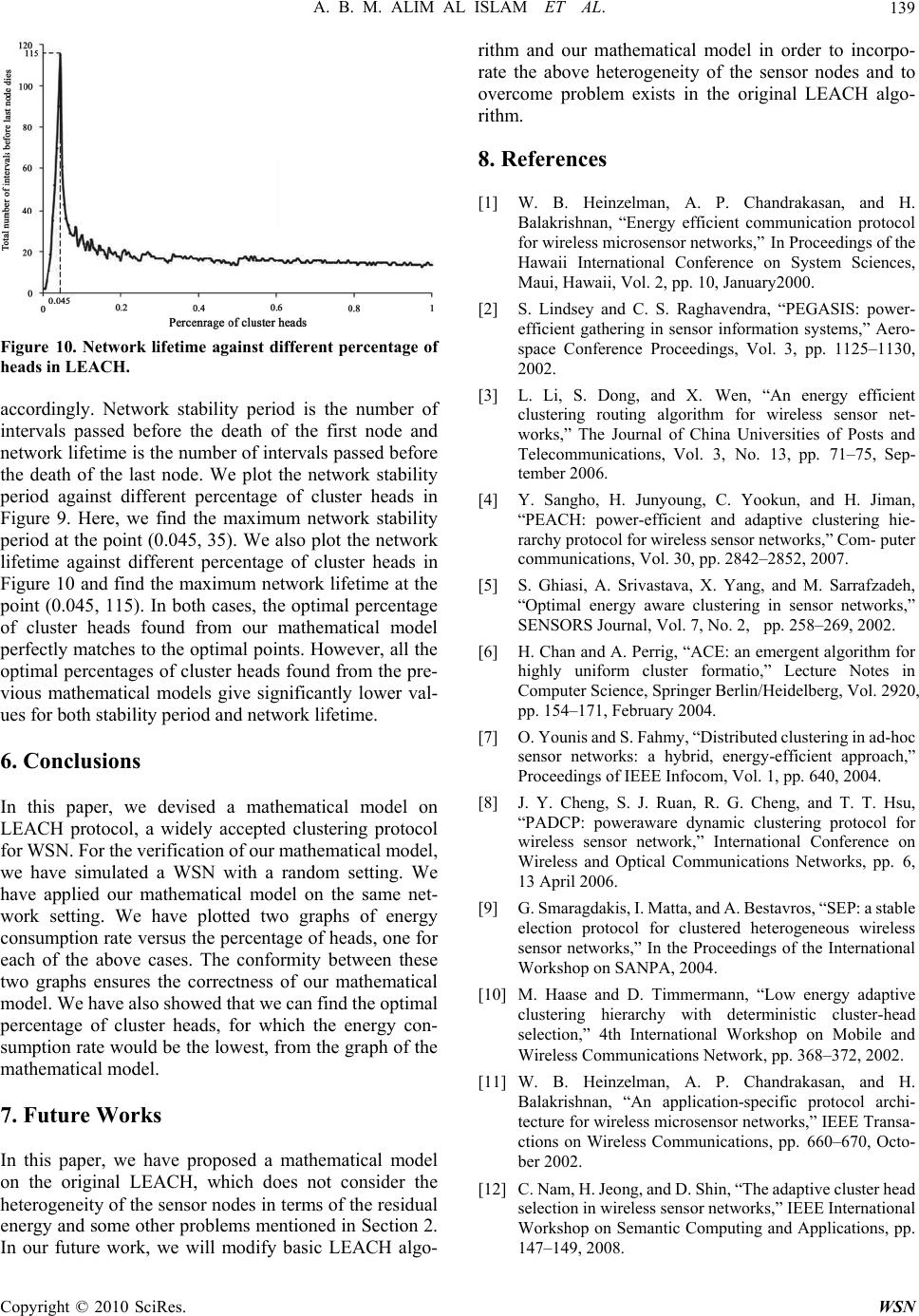

Figure 10. Network lifetime against different percentage of
heads in LEACH.
accordingly. Network stability period is the number of
intervals passed before the death of the first node and
network lifetime is the number of intervals passed before
the death of the last node. We plot the network stability
period against different percentage of cluster heads in
Figure 9. Here, we find the maximum network stability
period at the point (0.045, 35). We also plot the network
lifetime against different percentage of cluster heads in
Figure 10 and find the maximum network lifetime at the
point (0.045, 115). In both cases, the optimal percentage
of cluster heads found from our mathematical model
perfectly matches to the optimal points. However, all the
optimal percentages of cluster heads found from the pre-
vious mathematical models give significantly lower val-
ues for both stability period and network lifetime.
6. Conclusions
In this paper, we devised a mathematical model on
LEACH protocol, a widely accepted clustering protocol
for WSN. For the verification of our mathematical model,
we have simulated a WSN with a random setting. We
have applied our mathematical model on the same net-
work setting. We have plotted two graphs of energy
consumption rate versus the percentage of heads, one for
each of the above cases. The conformity between these
two graphs ensures the correctness of our mathematical
model. We have also showed that we can find the optimal
percentage of cluster heads, for which the energy con-
sumption rate would be the lowest, from the graph of the
mathematical model.
7. Future Works
In this paper, we have proposed a mathematical model
on the original LEACH, which does not consider the
heterogeneity of the sensor nodes in terms of the residual
energy and some other problems mentioned in Section 2.
In our future work, we will modify basic LEACH algo-
rithm and our mathematical model in order to incorpo-
rate the above heterogeneity of the sensor nodes and to
overcome problem exists in the original LEACH algo-
rithm.
8
. References
[1] W. B. Heinzelman, A. P. Chandrakasan, and H.
Balakrishnan, “Energy efficient communication protocol
for wireless microsensor networks,” In Proceedings of the
Hawaii International Conference on System Sciences,
Maui, Hawaii, Vol. 2, pp. 10, January2000.
[2] S. Lindsey and C. S. Raghavendra, “PEGASIS: power-
efficient gathering in sensor information systems,” Aero-
space Conference Proceedings, Vol. 3, pp. 1125–1130,
2002.
[3] L. Li, S. Dong, and X. Wen, “An energy efficient
clustering routing algorithm for wireless sensor net-
works,” The Journal of China Universities of Posts and
Telecommunications, Vol. 3, No. 13, pp. 71–75, Sep-
tember 2006.
[4] Y. Sangho, H. Junyoung, C. Yookun, and H. Jiman,
“PEACH: power-efficient and adaptive clustering hie-
rarchy protocol for wireless sensor networks,” Com- puter
communications, Vol. 30, pp. 2842–2852, 2007.
[5] S. Ghiasi, A. Srivastava, X. Yang, and M. Sarrafzadeh,
“Optimal energy aware clustering in sensor networks,”
SENSORS Journal, Vol. 7, No. 2, pp. 258–269, 2002.
[6] H. Chan and A. Perrig, “ACE: an emergent algorithm for
highly uniform cluster formatio,” Lecture Notes in
Computer Science, Springer Berlin/Heidelberg, Vol. 2920,
pp. 154–171, February 2004.
[7] O. Younis and S. Fahmy, “Distributed clustering in ad-hoc
sensor networks: a hybrid, energy-efficient approach,”
Proceedings of IEEE Infocom, Vol. 1, pp. 640, 2004.
[8] J. Y. Cheng, S. J. Ruan, R. G. Cheng, and T. T. Hsu,
“PADCP: poweraware dynamic clustering protocol for
wireless sensor network,” International Conference on
Wireless and Optical Communications Networks, pp. 6,
13 April 2006.
[9] G. Smaragdakis, I. Matta, and A. Bestavros, “SEP: a stable
election protocol for clustered heterogeneous wireless
sensor networks,” In the Proceedings of the International
Workshop on SANPA, 2004.
[10] M. Haase and D. Timmermann, “Low energy adaptive
clustering hierarchy with deterministic cluster-head
selection,” 4th International Workshop on Mobile and
Wireless Communications Network, pp. 368–372, 2002.
[11] W. B. Heinzelman, A. P. Chandrakasan, and H.
Balakrishnan, “An application-specific protocol archi-
tecture for wireless microsensor networks,” IEEE Transa-
ctions on Wireless Communications, pp. 660–670, Octo-
ber 2002.
[12] C. Nam, H. Jeong, and D. Shin, “The adaptive cluster head
selection in wireless sensor networks,” IEEE International
Workshop on Semantic Computing and Applications, pp.
147–149, 2008.
Copyright © 2010 SciRes. WSN
A. B. M. ALIM AL ISLAM ET AL.
Copyright © 2010 SciRes. WSN
140
[13] J. C. Choi and C. W. Lee, “Energy modeling for the
cluster-based sensor networks,” In Proceedings of the
Sixth IEEE International Conference on Computer and
Information Technology, pp. 218, September 20–22 2006.
[14] S. Selvakennedy and S. Sinnappan, “An energy-efficient
clustering algorithm for multihop data gathering in
wireless sensor networks,” Journal of Computers, pp. 1,
April 2006.
[15] W. B. Heinzelman, A. P. Chandrakasan, and H.
Balakrishnan, “Energy efficient communication protocol
for wireless microsensor networks,” In Proceedings of the
Hawaii International Conference on System Sciences,
Maui, Hawaii, January 2000.
[16] E. Popova and H. C. Wu, “Renewal reward processes with
fuzzy rewards and their applications to T-age replacement
policies,” European Journal of Operational Research, Vol.
117, pp. 606–617, 1999.
[17] R. Zhao and B. Liu, “Renewal process with fuzzy
interarrival times and rewards,” International Journal of
Uncertainty, Fuzziness and Knowledge based Systems,
Vol. 11, pp. 573–586, 2003.
[18] H. D. Brunk, “The strong law of large numbers,” Duke
Mathematical Journal, Vol. 15, pp. 181–195, 1948.
[19] http://www.xbow.com/Products/productdetails.aspx? sid=
156
