Efflux Pumps Modulation in Colorectal Adenocarcinoma Cell Lines: The Role of Nuclear Medicine

Abstract Full-Text HTML Download Download as PDF (Size:506KB) PP. 408-417
DOI: 10.4236/jct.2011.23056    4,171 Downloads   8,243 Views   Citations

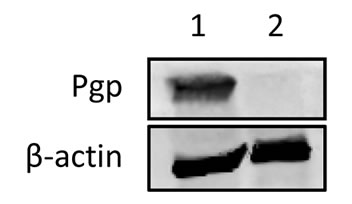

Introduction: Multidrug resistance (MDR) is one of the major problems of chemotherapy. Overexpression of efflux pumps, such as P-glycoprotein (Pgp), multiple resistance-related protein 1 (MRP-1) and lung resistance protein (LRP) can lead to MDR. Verapamil and L-buthionine-sulfoximine (BSO) are two modulators of these proteins. This study aims to compare 99mTc-Sestamibi transport kinetics in human colorectal adenocarcinoma cell lines, in the presence and absence of the MDR modulators verapamil and BSO. Material and Methods: MDR proteins expression was evaluated in sensitive (WiDr) and resistant (LS1034) human colorectal adenocarcinoma cell lines. Intracellular and plasma membrane Pgp and MRP1, and LRP expression was analyzed by flow-cytometry and western blot. Cellular transport kinetics was assessed using 99mTc-Sestamibi. MDR modulation was evaluated though retention studies in resistant cells after incubation with the modulators. Results: Pgp expression was significantly higher (p≤0.001) in resistant cells. These results were confirmed by western blot analysis. 99mTc-Sestamibi uptake and retention percentage were significantly higher (p<0.001 and p<0.01, respectively) in the sensitive cells for all time-points considered. In resistant cells there were no significant differences when we consider the curves as a whole, considering cells incubated versus non-incubated with MDR modulators. However, for the first minutes after incubation with 99mTc-Sestamibi, there were differences among the MDR modulators used (p<0.05). Conclusions: In vitro kinetic studies using 99mTc-Sestamibi could indicate MDR phenotype in colorectal adenocarcinoma cells. As the modulators used showed a reversion of the retention profile only for the first minutes, their administration should occur immediately before the administration of cytotoxic drugs.

Conflicts of Interest

The authors declare no conflicts of interest.

Cite this paper

J. Casalta-Lopes, A. Abrantes, M. Laranjo, J. Rio, A. Gonçalves, B. Oliveiros, A. Sarmento-Ribeiro and M. Botelho, "Efflux Pumps Modulation in Colorectal Adenocarcinoma Cell Lines: The Role of Nuclear Medicine," Journal of Cancer Therapy, Vol. 2 No. 3, 2011, pp. 408-417. doi: 10.4236/jct.2011.23056.


[1] M. M. Gottesman, T. Fojo and S. E. Bates, “Multidrug Resistance in Cancer: Role of ATP-Dependent Transporters,” Nature Reviews Cancer, Vol. 2, 2002, pp. 48-58. doi:10.1038/nrc706
[2] J. P. Gillet and M. M. Gottesman, “Multi-Drug Resistance in Cancer,” Methods in Molecular Biology, Vol. 596, 2010, pp. 47-76. doi:10.1007/978-1-60761-416-6_4
[3] P. Borst and R. O. Elferink, “Mammalian ABC Transporters in Health and Disease,” Annual Review of Biochemistry, Vol. 71, 2002, pp. 537-592. doi:10.1146/annurev.biochem.71.102301.093055
[4] E. M. Leslie, R. G. Deeley and S. P. Cole, “Multidrug Resistance Proteins: Role of P-Glycoprotein, MRP1, MRP2, and BCRP (ABCG2) in Tissue Defense,” Toxicology and Applied Pharmacology, Vol. 204, No. 3, 2005, pp. 216-237. doi:10.1016/j.taap.2004.10.012
[5] S. V. Ambudkar, C. Kimchi-Sarfaty, Z. E. Sauna and M. M. Gottesman, “P-Glycoprotein: From Genomics to Mechanism,” Oncogene, Vol. 22, 2003, pp. 7468-7485. doi:10.1038/sj.onc.1206948
[6] A. Stavrovskaya, “Cellular Mechanisms of Multidrug Resistance of Tumor Cells,” Biochemistry (Moscow), Vol. 65, No. 1, 2000, pp. 95-106.
[7] J. Ford and W. Hait, “Pharmacology of Drugs that Alter Multidrug Resistance in Cancer,” Pharmacological Reviews, Vol. 42, No. 3, 1990, pp. 155-199.
[8] S. P. Cole, G. Bhardwaj, J. H. Gerlach, J. E. Mackie, C. E. Grant, K. C. Almquist, A. J. Stewart, E. U. Kurz, A. M. Duncan and R. G. Deeley, “Overexpression of a Transporter Gene in a Multidrug-Resistant Human Lung Cancer Cell Line,” Science, Vol. 258, No. 5088, 1992, pp. 1650-1654. doi:10.1126/science.1360704
[9] G. D. Kruh and M. G. Belinsky, “The MRP Family of Drug Efflux Pumps,” Oncogene, Vol. 22, 2003, pp. 7537-7552. doi:10.1038/sj.onc.1206953
[10] G. Leonard, T. Fojo and S. Bates, “The Role of ABC Transporters in Clinical Practice,” The Oncologist, Vol. 8, No. 5, 2003, pp. 411-424. doi:10.1634/theoncologist.8-5-411
[11] E. Steiner, K. Holzmann, L. Elbling, M. Micksche and W. Berger, “Cellular Functions of Vaults and Their Involvement in Multidrug Resistance,” Current Drug Targets, Vol. 7, No. 8, 2006, pp. 923-934. doi:10.2174/138945006778019345
[12] M. A. Izquierdo, G. L. Scheffer, A. B. Schroeijers, M. C. de Jong and R. J. Scheper, “Vault-Related Resistance to Anticancer Drugs Determined by the Expression of the Major Vault Protein LRP,” Cytotechnology, Vol. 27, No. 1-3, 1998, pp. 137-148. doi:10.1023/A:1008004502861
[13] R. J. Scheper, H. J. Broxterman, G. L. Scheffer, P. Kaaijk, W. S. Dalton, T. H. van Heijningen, C. K. van Kalken, M. L. Slovak, E. G. de Vries and P. van der Valk, “Overexpression of a M(r) 110,000 Vesicular Protein in Non-P-Glycoprotein-Mediated Multidrug Resistance,” Cancer Research, Vol. 53, 1993, pp. 1475-1479.
[14] C. H. Lee, “Reversing Agents for ATP-Binding Cassette Drug Transporters,” Multi-Drug Resistance in Cancer, Vol. 596, 2010, pp. 325-340. doi:10.1007/978-1-60761-416-6_14
[15] H. Minderman, K. L. O. Loughlin, L. Pendyala and M. R. Baer, “VX-710 (Biricodar) Increases Drug Retention and Enhances Chemosensitivity in Resistant Cells Overexpressing P-Glycoprotein, Multidrug Resistance Protein, and Breast Cancer Resistance Protein,” Clinical Cancer Research, Vol. 10, 2004, pp. 1826-1834. doi:10.1158/1078-0432.CCR-0914-3
[16] D. R. Hipfner, R. G. Deeley and S. P. Cole, “Structural, Mechanistic and Clinical Aspects of MRP1,” Biochimica et Biophysica Acta, Vol. 1461, No. 2, 1999, pp. 359-376. doi:10.1016/S0005-2736(99)00168-6
[17] D. Piwnica-Worms, J. F. Kronauge and M. L. Chiu, “Uptake and Retention of Hexakis (2-Methoxyisobutyl Isonitrile) Technetium(I) in Cultured Chick Myocardial Cells. Mitochondrial and Plasma Membrane Potential Dependence,” Circulation, Vol. 82, 1990, pp. 1826-1838. doi:10.1161/01.CIR.82.5.1826
[18] D. Piwnica-Worms, M. L. Chiu, M. Budding, J. F. Kronauge, R. A. Kramer and J. M. Croop, “Functional Imaging of Multidrug-Resistant P-Glycoprotein with an Organotechnetium Complex,” Cancer Research, Vol. 53, No. 5, 1993, pp. 977-984.
[19] A. M. Abrantes, M. E. S. Serra, A. C. Gon?alves, J. Rio, B. Oliveiros, M. Laranjo, A. M. Rocha-Gonsalves, A. B. Sarmento-Ribeiro and M. F. Botelho, “Hypoxia-Induced Redox Alterations and Their Correlation with 99 mTc -MIBI and 99 mTc-HL-91 Uptake in Colon Cancer Cells,” Nuclear Medicine and Biology, Vol. 37, No. 2, 2010, pp. 125-132. doi:10.1016/j.nucmedbio.2009.11.001
[20] T. Mosmann, “Rapid Colorimetric Assay for Cellular Growth and Survival: Application to Proliferation and Cytotoxicity Assays,” Journal of Immunological Methods, Vol. 65, No. 1-2, 1983, pp. 55-63. doi:10.1016/0022-1759(83)90303-4
[21] I. Gil-Ad, A. Zolokov, L. Lomnitski, M. Taler, M. Bar, D. Luria, E. Ram and A. Weizman, “Evaluation of the Potential Anti-Cancer Activity of the Antidepressant Sertraline in Human Colon Cancer Cell Lines and in Colorectal Cancer-Xenografted Mice,” International Journal of Oncology, Vol. 33, No. 2, 2008, pp. 277-286.
[22] S. G. Smith, N. L. Lehman and R. G. Moran, “Cytotoxicity of Antifolate Inhibitors of Thymidylate and Purine Synthesis to WiDr Colonic Carcinoma Cells,” Cancer Research, Vol. 53, No. 23, 1993, pp. 5697-5706.
[23] Y. L. Lin and K. C. Chow, “rTSbeta as a Novel 5-Fluorouracil Resistance Marker of Colorectal Cancer: A Preliminary Study,” Annals of the Academy of Medicine, Vol. 39, No. 2, 2010, pp. 107-111.
[24] S. Hector, W. Bolanowska-Higdon, J. Zdanowicz, S. Hitt and L. Pendyala, “In vitro Studies on the Mechanisms of Oxaliplatin Resistance,” Cancer Chemotherapy and Pharmacology, Vol. 48, No. 5, 2001, pp. 398-406. doi:10.1007/s002800100363
[25] F. R. Luo, P. V. Paranjpe, A. Guo, E. Rubin and P. Sinko, “Intestinal Transport of Irinotecan in Caco-2 Cells and MDCK II Cells Overexpressing Efflux Transporters Pgp, cMOAT, and MRP1,” Drug Metabolism and Disposition, Vol. 30, No. 7, 2002, pp. 763-770. doi:10.1124/dmd.30.7.763
[26] A. T. Fojo, K. Ueda, D. J. Slamon, D. G. Poplack, M. M. Gottesman and I. Pastan, “Expression of a Multidrug- Resistance Gene in Human Tumors and Tissues,” Proceedings of the National Academy of Sciences of the United States of America, Vol. 84, No. 1, 1987, pp. 265-269. doi:10.1073/pnas.84.1.265
[27] N. H. Hendrikse, E. J. Franssen, W. T. van Der Graaf, C. Meijer, D. A. Piers, W. Vaalburg and E. G. de Vries, “99mTc-Sestamibi Is a Substrate for P-Glycoprotein and the Multidrug Resistance-Associated Protein,” British Journal of Cancer, Vol. 77, 1998, pp. 353-358. doi:10.1038/bjc.1998.57
[28] C. M. F. Gomes, A. J. Abrunhosa, E. K. J. Pauwels and M. F. Botelho, “P-Glycoprotein versus MRP1 on Transport Kinetics of Cationic Lipophilic Substrates: A Comparative Study Using [99mTc]Sestamibi and [99mTc]Tetrofosmin,” Cancer Biotherapy & Radiopharmaceuticals, Vol. 24, No. 2, 2009, pp. 215-227. doi:10.1089/cbr.2008.0539
[29] N. Perek, F. Koumanov, D. Denoyer, D. Boudard and F. Dubois, “Modulation of the Multidrug Resistance of Glioma by Glutathione Levels Depletion--Interaction with Tc-99M-Sestamibi and Tc-99M-Tetrofosmin,” Cancer Biotherapy & Radiopharmaceuticals, Vol. 17, 2002, pp. 291-302. doi:10.1089/10849780260179251
[30] D. E. Lorke, M. Krüger, R. Buchert, K. H. Bohuslavizki, M. Clausen and U. Schumacher, “In vitro and in vivo Tracer Characteristics of an Established Multidrug-Resistant Human Colon Cancer Cell Line,” Journal of Nuclear Medicine: Official Publication, Society of Nuclear Medicine, Vol. 42, No. 4, 2001, pp. 646-654.
[31] T. Muzzammil, M. J. Moore, D. Hedley and J. R. Ballinger, “Comparison of (99m)Tc-sestamibi and Doxorubicin to Monitor Inhibition of P-Glycoprotein Function,” British Journal of Cancer, Vol. 84, 2001, pp. 367-73. doi:10.1054/bjoc.2000.1621
[32] A. Cayre, N. Moins, F. Finat-Duclos, J. Maublant and P. Verrelle, “Comparative 99mTc-sestamibi and 3H-Daunomycin Uptake in Human Carcinoma Cells: Relation to the MDR Phenotype and Effects of Reversing Agents,” Journal of Nuclear Medicine: Official Publication, Society of Nuclear Medicine, Vol. 40, No. 4, 1999, pp. 672-676.
[33] C. L. Crankshaw, M. Marmion, G. D. Luker, V. Rao, J. Dahlheimer, B. D. Burleigh, E. Webb, K. F. Deutsch and D. Piwnica-Worms, “Novel Technetium (III)-Q Complexes for Functional Imaging of Multidrug Resistance (MDR1) P-Glycoprotein,” Journal of Nuclear Medicine: official publication, Society of Nuclear Medicine, Vol. 39, No. 1, 1998, pp. 77-86.
[34] L. Kabasakal, K. Ozker, M. Hayward, G. Akansel, O. Griffith, A. T. Isitman, R. Hellman and D. Collier, “Technetium-99m Sestamibi Uptake in Human Breast Carcinoma Cell Lines Displaying Glutathione-Associated Drug-Resistance,” European Journal of Nuclear Medicine, Vol. 23, No. 1, 1996, pp. 568-570. doi:10.1007/BF00833393
[35] T. Abe, K. Koike, T. Ohga, T. Kubo, M. Wada, K. Kohno, T. Mori, K. Hidaka and M. Kuwano, “Chemosensitisation of Spontaneous Multidrug Resistance by a 1,4-Dihydropyridine Analogue and Verapamil in Human Glioma Cell Lines Overexpressing MRP or MDR1,” British Journal of Cancer, Vol. 72, 1995, pp. 418-23. doi:10.1038/bjc.1995.348
[36] K. Utsunomiya, J. R. Ballinger, M. Piquette-Miller, A. M. Rauth, W. Tang, Z. F. Su and M. Ichise, “Comparison of the Accumulation and Efflux Kinetics of Technetium-99m Sestamibi and Technetium-99m Tetrofosmin in an MRP-Expressing Tumour Cell Line,” European Journal of Nuclear Medicine and Molecular Imaging, Vol. 27, No. 12, 2000, pp. 1786-1792. doi:10.1007/s002590000375
