Influence of the Addition of Sand and Compaction on the Mechanical and Thermal Performances of Plaster ()
1. Introduction
In Algeria, there are several buildings constructed with plaster. The sustainability of these buildings is comparable to that of buildings based with cement in regions where rainfall regime is characterized by alternating short rain and long periods of drying sunny.
Experience has shown that it is possible to mix plaster and sand, in order to achieve savings. However, the properties of new materials obtained are obviously different from those of plaster itself, which implies different means of implementation [1-10,13-14].
The most traditional process of achieving the precasted plaster elements is simple molding, but this one requires a higher mixing ratio for mortar than for the pure gyp-sum, leading to a drop in mechanical strength.
Compaction is a process of consolidation in addition to reducing the amount of mixing water, it reduces also the voids contained in the material itself. This creates an increase in the density and consequently the mechanical properties. Table 1 summarizes the main findings found in the literature on dry and wet resistance to compression of the plaster’s mortar.
In this work we study the mechanical and thermal behavior of several mortars based on plaster and dune sand.
2. Experimentation
2.1. Materials
The materials used in this study are from the south of Algeria. The plaster density is 1.36, the dune sand one is 2.73.
The chemical components Table 2 and grading curves Figure 2 are given below.

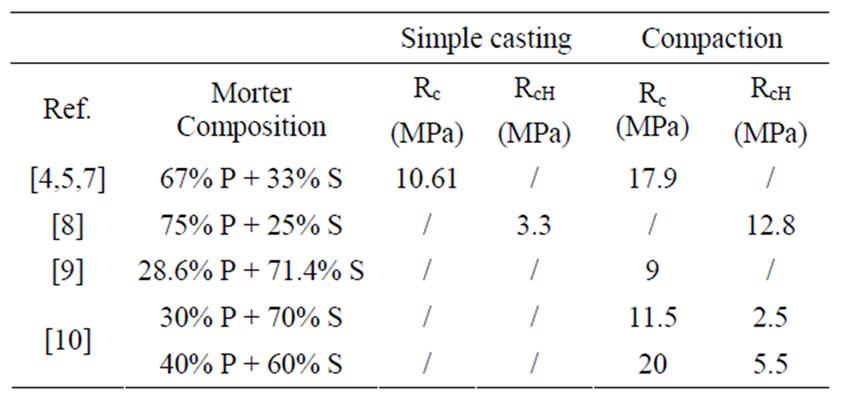

Table 1. Results listed in the literature.
On Figure 1, the grading curves illustrating the granular skeleton of plaster and dune sand, show that the dune sand has a particle size more or less tight (ranging from 80 μm to 800 μm ) compared to plaster’s one.
On the Table 3 are given the compositions and mixing ratio of the mortars simply casted. Plaster is noted P and
Table 2. Chemical analysis of the plaster and dune sand.
Figure 1. Grading curves of the plaster and sand.
Table 3. Compositions and mixing ratio of the mortars simply casted.
sand is noted S. W for water and B for binder (plaster in our case)
According to the tests to be carried out; we conceived three different sized specimens:
2.2. Tests
2.2.1. Mechanical Tests
Simply casted
In accordance with ISO DIS 3051 and 527 NA [11-12] “Plaster: determination of mechanical properties.” The specimens for mechanical testing are prismatic with the following dimensions:
Length: 160 mm;
Width: 40 mm;
Thickness: 40 mm.
2.2.2. Thermal Tests
To determine the thermal conductivity we used two different techniques: the method of the boxes and that of CT meter.
The samples were parallelepipeds of: 270 mm wide and 50 mm for measuring the thermal conductivity by the boxes method and 110 mm side and 50 mm thick for the measure with the CT meter. The results obtained by both methods are similar.
As various studies published on the plaster mortars, [1-10,13,14] it was found that:
• The addition of sand makes the mixture thicker and increases the mixing ratio W/B required to obtain a given consistency, which slowed the setting of the plaster.
• No improvement of the mechanical performance depending on the addition of sand (14MPa for the plaster to 2.92 MPa for the mortar containing (maximum of sand) 67% sand and 33% gypsum). In addition, the bad adherence between the gypsum particles and sand caused the erosion of the specimens.
Compaction
To obtain plaster’s mortars, with an important dosage of sand, and insuring at the same time a good mechanical strength, it is necessary to develop new processes for implementation; in order to run quickly with the minimum need for water. The compaction seems being a good solution [1-10]. The Table 4 gives the compositions and mixing ratio of the compacted mortars.
Compaction is performed on fresh material, through a manual press designed originally for the manufacture of Concrete of Stabilized Earth Figure 2, adapted to our needs. The manufactured specimens have specific dimensions of 110 mm² × 230 mm² and a thickness “e” which varies from 35 mm to 80 mm.
The specimens for the different tests (mechanical, and thermal), were collected by cutting as adequate samples sizes for each test. The specimens for the different tests have been kept since mold release and throughout the period preceding the tests in a closed area, where we guaranty a uniform relative humidity and a constant temperature. Those for the determination of wet performances (RCh et RfH) were immersed for 48 h before the test.
3. Results
3.1. Mechanical Strength
Due to the compaction process, considerable improvements are noticed. We recorded significant improvement in mechanical strength of all mortars including plaster itself, taken as a reference material, which is in consistency with the literature [1-10]. This improvement appears since the young age and grows significantly with a pronounced slope until the 14th day, where it becomes less accentuated. In the following figures, we note the bending resistance noticed Bs and compressive strength noticed Cs. The indexes 0, 1 mn and 5 mn represent the compaction duration For mortar named M2, we were able to achieve more than 7 MPa in bending strength, which represents an evolution from 28% to 31% respectively for 1 mn and 5 mn of compaction compared to the same mortar simply sank. As for the compressive strength, we managed to achieve over 20 MPa, the equivalent of an increase between 62% and 68% for the same time compacting raised as illustrated in Figures 3 and 4.
It should be reported that in terms of moisture, the behaviour of materials based on plaster is very different
Table 4. Compositons and mixing ratio of mortars compacted.
Figure 3. Bending strength of dry plaster mortar.
Figure 4. Compressive strength of dry plaster mortar.
from the materials based on cement.
• A wetted concrete cement marks a very weak decrease in its mechanical properties;
• The mechanical properties of a material based on plaster falls by the presence of moisture, that is why, we must consider the mechanical characteristics obtained in wet state.
That’s why, in the dimensioning of plaster structures especially the carrier elements, we must take into account the wet performances.
However it should be noted that for specimens, despite the wide gap that still exists between the wet and dry mechanical performances as shown on the Figures 5 and 6; the compaction has kept them (even those acquired after 48 hours of immersion) beyond the threshold imposed by the recommendations of plaster building.
This positive effect is explained when we understand that it is the porous structure of plaster which is the source of its great sensitivity to water, in front of this major inconvenience, compaction was a major point by reducing the volume of voids in the crystal structure.
It has prevented water from penetrating deep Hence a reduction between 15% and 30% of its water absorption,
Figure 5. Bending strenght of plaster mortars in wet state.
Figure 6. Compressive strength of plaster mortar in wet state.
this allows ease of evaporation later, making the material two to three times less capillar and its speed is reduced by saturation rate ranging from 20% to 60%.
3.2. Thermal Performances
The thermal performances (thermal conductivity Figure 7 and resistance Figure 8 were also significantly influenced by the addition of sand. This addition acted adversely on the thermal conductivity. This one has evolveed positively to low slope with the sand addition [2,3,7].
With an implementation by compaction, thermal conductivity at different sand dosages undergoes a more important evolution; the new values are almost double the same mortar simply casted. This increase is induces by the density increment which occurs following the reducetion of volumes of voids by the compaction.
Knowing that the thermal resistance is inversely proportional to the thermal conductivity and a material is more insulating when its thermal resistance is large. This representative performance for the various mortars
Figure 7. Thermal conductivity of various plaster mortars at different times of compaction.
Figure 8. Thermal resistance of various plaster mortars at different times of compaction.
including the pure plaster, fell with the addition of sand and this decrease is more significant for larger time of compaction.
4. Conclusions
The optimum between mechanical and thermal characteristics is obtained for the mortar called M2, despite its decreased thermal performance; it is the mortar that marked the better thermal performance and gives an acceptable thermal insulation compared to the two most commonly used materials in construction: the hollow brick and concrete with an M2 double bulkhead 0.30 md thickness separated by an air space of 0.05 m, and the resulting wall is too broad.
Its thermal efficiency is specifically improved, when we adopt a provision in double walls of of 0.15 m of this mortar separated by a plate of polystyrene 0.05 m. Insulating capacity increases. The wall thermal resistance increases and becomes twice more important than that of the wall of hollow brick aforesaid.
Also the use of this plaster mortar as carrier element in a structure which does not exceed three levels, allows considerable saving particularly, in the regions where sand and plaster are relatively abundant and cheap. That should procure a significant number of advantages such as:
• The development of natural resources and the opportunity of conducting an independent policy of building;
• No need to use complicated technologies, therefore no necessity to use a high qualified Workforce.
• The lightness of elements, which is a valuable quality for the workforce and enables saves on transport and handling equipment.
• Regulating the whole national economy, while providing reasonable solutions to the problem of housing;
5. Recommendations
To build with mortar plaster [1]:
• We must ensure the quality of soil foundations by a preliminary geotechnical study;
• In presence of water in the vicinity of the construction, it is essential to have a drain table;
• The foundations are made of materials unalterable to water (reinforced concrete, masonry or stone rubble);
The bearing walls should be arranged as much as possible symmetrically to the main axis of the building.
