Received 30 March 2016; accepted 15 April 2016; published 18 April 2016

ABSTRACT

This paper focuses on the duplex stainless steel processability and presents many practical technological approaches which are applied in many steel companies on how to improve the processability. First, take into consideration an appropriate hot working temperature; second, make sure cooling rate higher than 15˚C/s; and third, conduct annealing treatment before delivery.

Keywords:

Stainless Stainless, Processability, σ Precipitation

Subject Areas: Metal Material

1. Introduction

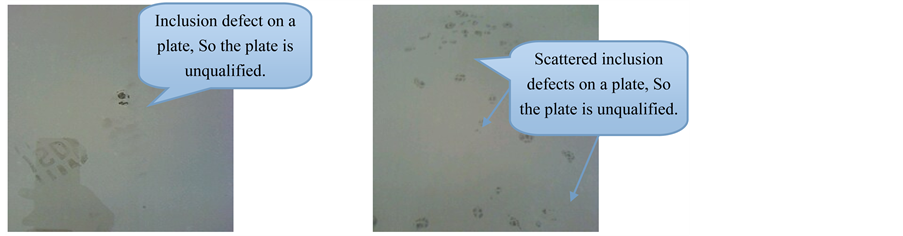

Baosteel is a top list steel company around the world and can deliver many kinds of duplex stainless steel (DSS in short) products, including the steel grade of S32101, S32205, S31803, S32507 etc. Every year Baosteel produces duplex stainless steel tens of thousands tons. But duplex stainless steel is difficult to make. One challenge is inclusion defects in the billets; another is crack defect after hot working because of the precipitating of brittle phase. Figure 1 shows the inclusion defects on a plate. Figure 2 shows the cracks on a DSS plate. So in most of the steel companies, the yield rate of duplex stainless steel may be as low as 60% - 65%, compared to as high as that of 80% - 85% for austenite stainless steel. For Baosteel it’s also very important to understand why these defects occur and manage to decrease or even resolve these difficulties to improve the quality and increase the yield ratio to enhance Baosteel’s competence ability in DSS.

The duplex stainless steel (brief in DSS) is a kind of good-performance stainless steel because of high strength, good corrosion resistance and low cost attributing by its low nickel content, with ferrite and austenite roughly accounting for about 50% to 50% respectively, the main elements including 0.01% - 0.08% C, 18% - 26% Cr, 3% - 8% Ni, sometimes also having Mo, Cu, W, Nb, N. If it is compared to ferrite steel, it has better

plasticity, tenacity, better anti-intergranular corrosion capacity and easy to be welded, higher heat conductivity, no brittleness at ambient temperature. If it is compared to austenite steel, it has higher tensile strength, better chloride anti-stress corrosion and anti hole corrosion ability of which people evaluate it by corrosion equivalent PRE = %Cr + 3.3(%Mo) + 1.65%W + 16(%N). At the same time, it is also a nickel-saving ecofriendly stainless steel. DSS is applied widely in oil and gas industry, chemical industry, pulp and paper industry, water systems, desalination plants, pollution control equipments, chemical tankers for its better cost performance.

But because it constitutes high Cr and Mo, many brittle compounds like σ, χ and R will precipitate from the high temperature of 900˚C till the low temperature of 400˚C. So it’s necessary to make sure cool rapidly through that temperature range.

1.1. Duplex Stainless Steels and Market Applications

Duplex grades production, worldwide, represent nowadays about 300,000 tonnes about 1% of the total Stainless Steel production. DSS products mainly are plates, tubes, bars, wires, coils. For those productions weight savings are often obtained taking advantage of their high mechanical properties. Most of the applications concerns highly corrosion resistance properties encountered in process industry. (Chemical, petrochemical, off-shore, chemical tankers, pulp and paper industry, pollution control equipments (Flue Gas Desulfurization), desalination, sea- water applications, see Figures 3-5 from Google picture). In those applications DSS have always been very competitive compared to 317 and 904 grades due to their reduced Nickel content and high mechanical properties compared to austenitic which make it possible to reduce thicknesses.

Figures 3-5 are the main application for DSS [1] .

1.2. DSS Corrosion Resistance

According to Michael Mcguire [2] , DSS has much better corrosion resistance performance compared to other stainless steel. Usually pitting resistance ability for stainless steel is evaluated by PREN = %Cr + 3.3(%Mo) +

1.65(%W) + 16(%N), PREN, short of Pitting Resistance Equivalent Number, a measurement of the corrosion resistance of stainless steel. that is why DSS has much better pitting resistance capability than other stainless steel. PREN value for stainless steel. See Table 1.

Figure 6 and Figure 7 [2] shows DSS grade such as S32750, S31803 have much higher critical pitting temperature and stress corrosion cracking temperature than S30403 and S31603 in chlorine containing solution.

2. Expected Researching Purpose

How to eliminate, decrease or alleviate those defects occurring in duplex stainless steel processes and make DSS more processable and less defects, is a worthy topic for insiders to put more efforts to think if some technological approach can be found to improve its quality and enhance its yield rate to say 10% higher to maybe 70% - 75%.

3. Characteristics of α and γ Phase in DSS

The duplex stainless steel constitutes mainly of C, Si, Mn, Cr, Ni, Mo, Cu, N, V, Ti etc. α phase is BCC (body- centered cubic) structure and γ is FCC (face-centered cubic).

α is relatively soft and easily to be deformed and in contrast γ is harder and difficult to be deformed, so the deformation begins from α and later to γ. Cracks will occur when the deformation can’t smoothly transmit from α to γ. But many factors have significant influence on deformation process.

3.1. Element Contents

First, element contents exert obvious impact on duplex stainless steel’s deformation ability. Generally, the contents of Si, Mo, Cr, V, Ti increase the α phase amount and that of C, N, Ni, Cu, Mn contribute more to γ phase amount. It is reported that whenever the γ percentage is more than 20% and less than 80%, cracks is more likely to occur (see Figure 8).

3.2. Schaeffler Microstructure Chart

According to schaeffler’s test, the element contents have direct influence on duplex stainless steel’s microstructure, determining the percentages of A(γ), F(α) and M (martensite). See Figure 9.

But S32304, S32205 and S32507 both have the roughly 50% α and 50% γ, so they have the worse deformation ability in stainless steel. It’s a big challenge to make them easy to process.

4. The Most Important Technical Parameters on DSS Formation

4.1. Hot Working Temperature Consideration

If temperature exceeds 1300˚C, only one phase of α is maintained, theoretically it’s good for deformation, but its negative aspect is the grain size of α will grow up rapidly and oppositely it make the thermoplasticity of duplex stainless steel drop dramatically and present fragile behaviour. So it’s harmful to increase the temperature too high. On the other hand, if the temperature do not climb to 1000˚C, so many types of brittle phases such as σ, χ, R will appear with worst plasticity to make it difficult to deform. As a result it’s appropriate to choose a temperature between 1050˚C and 1200˚C when being hot worked.

Chi-Shang Huang, Chia-Chang Shih [3] 2005 found that σ phase precipitates at about 600˚C - 1000˚C, of which it is a phase rich in chromium and molybdenum. And it not only will cause substantial damage to ductility and toughness of steel material, but it will also undermine corrosion resistance of DSS. Figure 10(a) and Figure 10(b) are the photograph taken by Optical Microscope and Scanning Electron Microscope.

4.2. N content, σ Phase Control, Cooling Rate Consideration

σ phase is harmful to DSS because it is fragile and vulnerable to corrode. But N can decrease the σ phase amount effectively, see Figure 11. It can be found that the more the nitrogen content is, the less is the σ phase content. This is because nitrogen is an austenitic stabilizing element. It will directly increase the austenitic phase content and decrease the percentage of ferritic phase in DSS, thereby indirectly leaving less room for σ phase

after precipitation to develop. Consequently, the addition of nitrogen content does help slow down the precipitation rate of σ phase.

Henrik Sieurin, Rolf Sandström 2005 [4] found that the volume fraction of σ phase is related to temperature and time, see Figure 12. The precipitation starts at around 920˚C. The maximum of σ phase precipitation is found around 850˚C. No sigma phase appears below 650˚C. The longer stayed at 850˚C, the more of the σ phase precipitation [5] [6] .

T.H. Chen, J.R. Yang 2001 [7] and L.H. Chiu, W.C. Hsieh, C.H. Wu 2003 [8] found that the σ phase amount precipitated change dramatically with the cooling rate. In order to avoid σ phase precipitation, the cooling rate should approximately be in the range more than 0.25 K∙S⁻¹. See Figure 13 and Figure 14.

4.3. Intermetallic Phase Percentage Volume in DSS

J.-O. NILSSON, P. KANGAS, T. KARLSSON, and A. WILSON [9] got the Volume percentage of intermetallic phase through the approach of ISO 9042, found the precipitation of intermetallic phase has significant influence on impact toughness, as well as observed the Cr2N and σ articles through backscattered image by EPMA and distribution of element N, Cr, Mo through X-ray when DSS aged at 900˚C/72h. See Table 2, Figure 15 and Figure 16 [10] .

They [9] also observed the backscatter electron micrograph by SEM when DSS aged for 72 h at various temperatures. Bright one is σ article and dark is Cr₂N. See Figure 17.

The phase diagram was calculated through Thermo-Calc [9] shows the stability areas of liquid, austenite, ferrite, Cr₂N, σ phase, and M₂₃C₆. See Figure 18.

Also the phase fractions of liquid, austenite, ferrite, Cr₂N, σ phase, and M₂₃C₆ [9] is calculated by Thermo- Calc. See Figure 19.

4.4. Recommended Hot Rolling and Annealing Temperature for DSS

According to Michael Mcguire [2] , DSS should implement annealing process before the end usages to achieve the equilibrium composition within both the ferrite and austenite and rebalance the volume fraction of the ferrite and austenite as well as dissolve the unwanted intermetallic phase. See Table 3.

4.5. Welding of DSS Technology

It’s important to consider the welding parameters such as Filler, heat input, shielding gas, preheat or not, max interpass, etc. See Table 4 for recommendation [11] .

5. Conclusions

It’s recommended to make DSS retain at the temperature between 1050˚C to 1200˚C, which can restrain the α grow and intermetallic phase precipitate to make DSS have a good deformation ability.

Nitrogen plays an important role for DSS’s deformation ability and its higher pitting corrosion resistant and chlorine stress corrosion ability as well as higher strength. So adding more N to the DSS is doubtless an economical and effective way to gain better performances.

It is imperative for DSS to be annealed at the temperature of 1050˚C - 1100˚C before end usage. Because it can obtain the equilibrium composition within both the ferrite and austenite, rebalance the volume fraction of the ferrite and austenite as well as dissolve the unwanted intermetallic phase.

Always make sure to cool DSS whenever it experiences a hot working process as rapidly as you can. Only at a more than 0.25˚C per second can it retain and avoid the brittle phase like α to precipitate. It means the min cooling rate of 15˚C/s or 900˚C/min.

Many aspects should be taken into account for DSS when welding. First, filler of 2209 is suitable for 2101, 2304 and 2205; filler of 25Cr-10Ni-4Mo-N is suitable for 2507. Second, it’s a key point to make sure controlling heat input at a 5 - 25 KJ/cm level, applying Argon + 3% N₂ as yielding gas, with inter pass temperature on higher than 150˚C.
