Journal of Biosciences and Medicines, 2013, 1, 14-18 JBM
http://dx.doi.org/10.4236/jbm.2013.12004 Published Online October 2013 (http://www.scirp.org/journal/jbm/)
Digital biomedical electrical impedance to mography based
on FPGA
Jiani Wu1, Xiaoyan Chen1, Zhonglin Ding2
1School of Electronic and Automation, Tianjin University of Science & Technology, Tianjin, China
2School of Computer Science and Information Engineering, Tianjin University of Science & Technology, Tianjin, China
Received 2013
ABSTRACT
A digital biomedical electrical impedance tomogra-
phy (EIT) system is developed with the aid of FPGA.
The key elements of EIT system are described specif-
ically in the paper. The functions are realized to gen-
erate excitation source, switch electrode channels,
deal collected signals, demodulate measured voltages
etc. The system is tested by a circular tank with 16
stainless electrodes attached around the boundary.
The adjacent incentive adjacent measurement mode
is adapted to collect boundary voltages of the inter-
esting field. By testing, the system works with 36 dB
signal-to-noise ratio (SNR) when 1 mA 100 KHz cur-
rent is applied into a homogenous tank.
Keywords: Electrical Impedance Tomography; FPGA;
Direct Digital Synthesis; Orthogonal Sequenc e s
Demodulation
1. INTRODUCTION
Electrical impedance tomography (EIT) is one of the
major research topics in biomedical engineering. It is a
medical imaging technology developed in thirty years
after morphological and structure imaging technology.
EIT system consists of the electrode array, data acquisi-
tion system (DAS) and image reconstruction. DAS trans-
fers the measured electrical data to computer for subse-
quent reconstruction. The quality of the reconstructed
image depends on the accuracy of the collected data and
the reconstruction algorithms mostly. Therefore, it is
essential to design a stable and accuracy DAS for EIT
system.
At the beginning of the research, around 1980s, the
electrical processor are not as powerful and integrated as
now, microprocessor is taken the charge of coordinating
the whole system. Mark I and Mark II established by
Sheffield University are the examples [1,2]. With the
development of the digital processing technology, DSP
became the most popular processor used in EIT system
for a certain long time. Mark3a and Mark3b [3], OX-
BACT 3 and 4 [4], A CT3 [5] and Dartmouth EIT system
[6] are the representatives. In OXBACT system, Oxford
Brookes University used TMS320C40 as the con troller ;
Dartmouth researchers used ADSP-21065L to build their
mul ti -frequencies EIT system. These systems worked
well and made great contribution to EIT research.
FPGA is one of the most popular electric circuit design
methods at p resent, which is developed on the basis of
PAL and GAL, and has the advantages of high perfor-
mance, big scale integration, programmable ability. In
recent years, some Chinese research groups have used
FPGA to develop EIT system, such as, Tianjin University
used FPGA to construct a EIT system for lung ventilation
monitoring [7]; Zhengzhou University used FPGA em-
bedded NIOS II processor to develop a 128 electrodes
rotating EIT data acquisition system [8]; the Fourth Mil-
itary Medical University developed a FPGA EIS system
to image the human brain [9].
From the developing view, the digital integrated DAS
will bring great promotion to improve EIT clinical ap-
plications.
In this paper, XC3S500E-5FG320 of Spartan3E is
used as the core controller to implement DAS, which has
a large number of resources in FPGA, so it is easy to
realize various hardware modules by VHDL (Very high
speed integrated circuit Hardware Description Language),
which can reduce PCB areas, save development time,
and improve the reliability of the system. The cored ele-
ments of the DAS are described specifically as follow-
ing.
2. STRUCTURE
The DAS includes six components: excitation source,
switches, signal processing circuits, orthogonal se-
quences demodulation, data buffer and communication
interface, as shown in Figure 1. The PicoBlaze micro-
controller embedded in FPGA coordinates the parts work
effectively [10].

J. N. Wu et al. / Journal of Biosciences and Medicines 1 (2013) 14-18
15
Figure 1. DAS principle figure.
The working pr oc ess of th e syste m can b e described as
following.
A sine current signal with small amplitude and fixed
frequency is applied to a pair of electrodes. The di fferen-
tial voltages on the other neighboring electrodes are col-
lected in sequence. Each measured voltage is amplified
and filtered through the signal processing circuits firstly.
Then, the voltages are converted to 14 bits digital signals
by an alog-to-digital converter AD9240 secondly. Through
orthogonal sequence demodulation, the real and imagi-
nary parts of the measured voltages are acquired and sent
to reconstruction computer for imaging finally. As adja-
cent incentive measure working mode is used, the meas-
ured voltages are 208. The excitation electrodes and the
measured electrodes are chosen by multiplexed switches
controlled by FPGA.
3. HARDWARE DESIGN
3.1. Clock Distribution
The precision of the clock is very important for a high-
speed digital system, which determines work statu s and
accuracy. There are three digital clock manager (DCM)
modules integrated in XC3S500E outputting 50 MHz, 5
MHz and 125 MHz pulse signals respectively. 50 MHz
signal is set to be t he FPGA working clo ck ; 5 MHz clock
signal is con nected to AD9240, as a sampling clock sig-
nal; 125 MHz clock signal is connected to AD9754, as a
digital-to-analog conversion clock signal.
3.2. Excitation Source
In order to meet the requirements of stability, accuracy,
dynamic range and signal-to-noise ratio of excitation
source, direct digital s ynthesis technology (DDS) is used
to achieve a programmable excitation source [11]. DDS
module is built by DDS compiler in IP core. The fre-
quency and the phase of the excitation current are deter-
mined by two different control words separately,
PINC
and POFF. Phase incremental control word
PINC
and
phase offset control word
POFF
are both set in DDS
compiler. The frequency is determined by
( )
n
2
Bout
clk
f
PINC f
ϑ
θ =∆= ×
(1)
where,
( )
n
B
ϑ
is the width of phase accumulator,
out
f
is
the output frequen c y and
clk
f
is the clock frequency.
The POFF word is related to the starting phase, is de-
cided by
()
22
Bn
POFF
ϑ
ϕ
π
= × (2)
where,
ϕ
is the initial phase. The phase can be adjusted
continuously by POFF.
In this design, the frequency of excitation source is
100 KHz,
PINC
is 0068DB8BH, no spurious dynamic
range is 80 dB, and the frequency resolution is 0.0234
Hz.
The digital voltage signal is converted into analog
signal by high-speed digital-to-analog converter AD9754,
and filtered by second-order Butterworth low-pass filter
circuits composed by AD8066. After that, a periodic si-
nusoidal analog voltage signal is gen erated.
Under the medical application, safe current excitation
(amplitude is less than 5 mA) is taken into design. The
voltage signal is turned into safe current signal through
the voltage-control-current source (VCCS) module,
which is realized by improved Howland circuit com-
posed by AD8021, as shown in Figu re 2. In the design, 1
mA 100 kHz safe current is achieved.
3.3. Analog Switch Array and Logic Control
Four piece s of a na l og switch c hi ps MAX4598 a re us ed to
choose incentive electrodes, due to its 45 Ω on-resistance,
1 Ω resistance between channels, −80 dB @ 1 MHz,
crosstalk between channels, and −90 dB @ 1 MHz off-
isolation . A n analog switch array chip MT8816 is adopted
to select the measured electrodes, as of its small distor-
tion, wide switching bandwidth, and s mall on-resistance.
This strategy can reduce complexity and instability of
circuit, and improve the reliability of system as well as
the consistency of various channels. In order to save IO
ports of FPGA, four data-buffering chips 74HC574 are
used as buffers.

J. N. Wu et al. / Journal of Biosciences and Medicines 1 (2013) 14-18
16
Figure 2. Improved Howland circuit.
3.4. Signal Processing Circuit
The signal processing circuit includes three parts: filtra-
tion, amplification, and analog -to-digital conv ersion. Th e
structure of signal p rocessing circuit s is shown in Figure
3. Considering the weakness of the signal, twice ampli-
fications are applied. As common disturbances are ex-
isted in the measured voltages, differential amplification
is adopted firstly. AD8130 is a differential amplifier with
high common mode rejection ratio at high frequency and
high input impedance. The second amplification is com-
pleted by a programmable gain amplifier THS7001. The
amplified times are set by PicoBlaze. There is a second-
order low-pass filter in THS7001 also. The filtered signal
is sent to an analog-to-digital converter AD9240 with 14
bits precision.
3.5. Orthogonal Sequences Demodulation and
UART
To take full advantages of FPGA, orthogonal sequence
demodulation method is used to overcome the disadvan-
tages appeared in analog demodulation [12]. This strate-
gy can save time, improve reliability. When DDS gene-
rates a sine excitation signal, another cosine reference
signal is achieved at the same time with the same fre-
quency, which ensures the reference signal has the same
characteristics with the excitation signal and guarantees
the demodulation accuracy. The orthogonal sequence
demodulation is illustrated in Fi gure 4.
The sine signal and cosine signal of the DDS are re-
spectively multiplied and accumulated by MAC. The real
and imaginary parts of the voltages are calculated as
formulae (3)-(7).
( )
2
cosun An
N
πθ

= +


(3)
( )
2
cosrn n
N
π

=


(4)
Figure 3. Principle of signal processing circuit.
Figure 4. Principle of orthogonal sequences demodulation.
( )
2
sinqn n
N
π

=

(5)
( )( )
1
0
1
0
22
cos cos
1cos
2
N
n
N
n
R rnun
nA n
NN
NA
ππ
θ
θ
−
=
−
=
=
 
= +
 
 
=
∑
∑
(6)
( )( )
1
0
1
0
22
sin cos
1sin
2
N
n
N
n
I qnun
nA n
NN
NA
ππ
θ
θ
−
=
−
=
=
 
= +
 
 
=
∑
∑
(7)
where, u(n) is measured signal; r(n) is reference signal;
q(n) is orthogonal reference signal.
θ
is a phase shift
caused by medium or circuit; N is the sampling points. In
this design, N is set to 300. Namely, demodulation will
be executed after each voltage is sampled 300 times. The
range of n is from 0 to
1N−
. R is the real part matrix of
the voltage, and I is the imaginary matrix of the voltage.
After orthogonal sequences demodulation, real part
and imaginary part are respectively stored in FIFO1 and
FIFO2, which are two asynchronous first-in first-out
(FIFO) memorie s with 256 written depths, 32-bit written
width, 1024 read depth, 8-bit read width, constructed by
IP core generator.
The data in FIFO are sent to the PC by Universal
Asyn-chronous Receiver Transmitter (UART). Even
though there are various ways for communication [13],
UART module can simplify the circuits.
4. SOFTWARE DESIGN
According to PicoBlaze instruction system, con trol codes

J. N. Wu et al. / Journal of Biosciences and Medicines 1 (2013) 14-18
17
are written in Notepad++, and stored as a PSM format
file. And the PSM file is compiled by KCPSM3 compi-
lers, genera t i n g a VHDL file s t orage user programs. Then
the VHDL file and PicoBlaze microprocessor soft core
are loaded to ISE project, and configure each input and
output ports. System software control flow chart is
shown in Figu re 5.
The working process is: the PC sends star t instructions
to PicoBlaze microprocessor; the microprocessor initia-
lizes system settings, and begins to choose excitation
electrodes, measuring electrodes; after measuring the
first data, the next pair of measurement electrodes is se-
lected and measured, until 13 measurements are finished.
Then choose the next pair of incentive electrodes, the
measurements will continue until 16 channels are excited.
Datasets are immediately sent to reconstruction computer
after processing. The program will repeatedly execute
until it receives the stop instruc tio n from the computer.
5. RESUL TS AND DISCUSSION
To evaluate the system, we carried out tests on a homo-
genous tank with water in it. The circular tank has 16
stainless electrodes attached around the boundary, as
shown in Figure 6. A measured differential voltage is
displayed in Figure 7, as an example, the wave re-
presents the differential voltage between E3 and E4 when
E1 and E2 a re injected electrodes.
Figure 5. System software control flow chart.
Figure 6. Physical model of the system.
Figure 7. Measured voltage between E3 and E4 when
excitation current injects into E1and E2.
0
5
10
15
20
25
30
35
40
45
110192837465564738291100 109 118 127136 145 154 163 172 181 190199 208
sample points
voltage amplitude(V)
Figure 8. Measured voltage of a homogenous field.
The signal-to-noise ratio (SNR ) of the system is cal-
culated according to
22
1
10 10
(v )
SNR 20log20logv
L
i
i
v
v
σ
=
−
=−=−
∑
(8)
where,
v
is the average voltages,
i
v
is the ith meas-
ured voltage in a measuring period, L is the measuring
time s .
By 500 times tests, the SNR can achieve 36 dB.
The complex amplitude of a frame including 208
measured voltages is plotted as Figure 8.
From the figure, we know that the channels’ consis-
tency is not as good as expected. There are several fac-
tors affecting the consistency, such as electrodes size,
installation spacing, communication cables’ impedance,
mul ti p lexer cir cu its and the layout of the board, etc
[14-16]. Therefore, we will put more efforts to improve
the system from the above aspects.
6. CONCLUSION

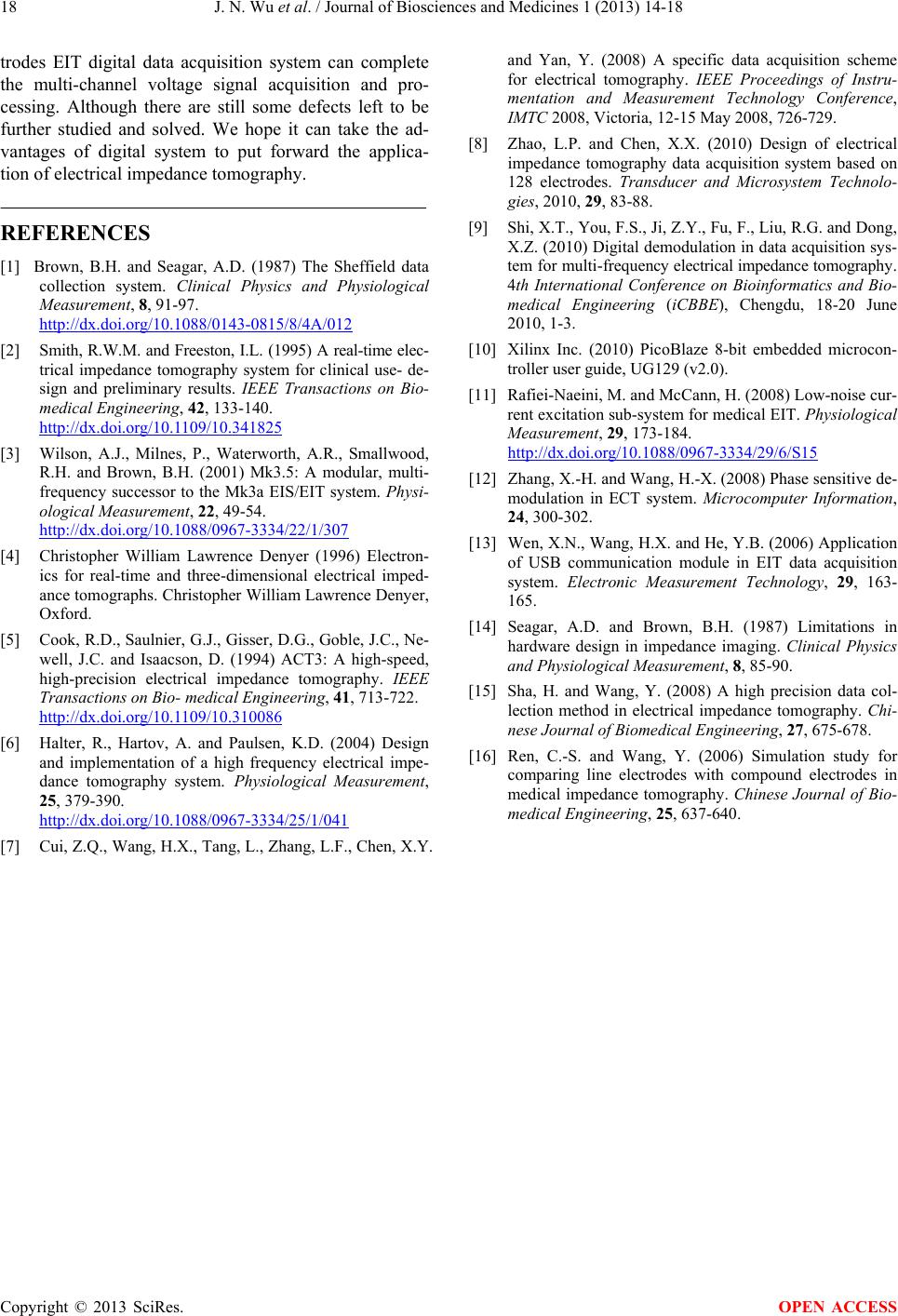

It can be seen from the experimental results, 16 elec-

J. N. Wu et al. / Journal of Biosciences and Medicines 1 (2013) 14-18
18
trodes EIT digital data acquisition system can complete
the multi-channel voltage signal acquisition and pro-
cessing. Although there are still some defects left to be
further studied and solved. We hope it can take the ad-
vantages of digital system to put forward the applica-
tion of electrical impedance tomography.
REFERENCES
[1] Brown, B.H. and Seagar, A.D. (1987) The Sheffield data
collection system. Clinical Physics and Physiological
Measurement, 8, 91-97.
http://dx.doi.org/10.1088/0143-0815/8/4A/012
[2] Smith, R.W.M. and Freeston, I.L. (1995) A real-time elec-
trical impedance tomography system for clinical use- de-
sign and preliminary results. IEEE Transactions on Bio-
medical Engineering, 42, 133-140.
http://dx.doi.org/10.1109/10.341825
[3] Wilson, A.J., Milnes, P., Waterworth, A.R., Smallwood,
R.H. and Brown, B.H. (2001) Mk3.5: A modular, multi-
frequency successor to the Mk3a EIS/EIT system. Physi-
ological Measurement, 22, 49-54.
http://dx.doi.org/10.1088/0967-3334/22/1/307
[4] Christopher William Lawrence Denyer (1996) Electron-
ics for real-time and three-dimensional electrical imped-
ance tomographs. Christopher William Lawrence Denyer,
Oxford.
[5] Cook, R.D., Saulnier, G.J., Gisser, D.G., Goble, J.C., Ne-
well, J.C. and Isaacson, D. (1994) ACT3: A high-speed,
high-precision electrical impedance tomography. IEEE
Transactions on Bio- medical Engineering, 41, 713-722.
http://dx.doi.org/10.1109/10.310086
[6] Halter, R., Hartov, A. and Paulsen, K.D. (2004) Design
and implementation of a high frequency electrical impe-
dance tomography system. Physiological Measurement,
25, 379-390.
http://dx.doi.org/10.1088/0967-3334/25/1/041
[7] Cui, Z.Q., Wang, H.X., Tang, L., Zhang, L.F., Chen, X.Y.
and Yan, Y. (2008) A specific data acquisition scheme
for electrical tomography. IEEE Proceedings of Instru-
mentation and Measurement Technology Conference,
IMTC 2008, Victori a, 12-15 May 2008, 726-729.
[8] Zhao, L.P. and Chen, X.X. (2010) Design of electrical
impedance tomography data acquisition system based on
128 electrodes. Transducer and Microsystem Technolo-
gies, 2010, 29, 83-88.
[9] Shi, X.T., You, F.S., Ji, Z.Y., Fu, F., Liu, R.G. and Dong,
X.Z. (2010) Digital demodulation in data acquisition sys-
tem for multi-frequency electrical impedance tomography.
4th International Conference on Bioinformatics and Bio-
medical Engineering (iCBBE), Chengdu, 18-20 June
2010, 1-3.
[10] Xilinx Inc. (2010) PicoBlaze 8-bit embedded microcon-
troller user guide, UG129 (v2.0).
[11] Rafiei-Naeini, M. and McCann, H. (2008) Low-noise cur-
rent excitation sub-system for medical EIT. Physiological
Measurement, 29, 173-184.
http://dx.doi.org/10.1088/0967-3334/29/6/S15
[12] Zhang, X.-H. and Wang, H.-X. (2008) Phase sensitive de -
modulation in ECT system. Microcomputer Information,
24, 300-302.
[13] Wen, X.N., Wang, H.X. and He, Y.B. (2006) Application
of USB communication module in EIT data acquisition
system. Electronic Measurement Technology, 29, 163-
165.
[14] Seagar, A.D. and Brown, B.H. (1987) Limitations in
hardware design in impedance imaging. Clinical Physics
and Physiological Measurement, 8, 85-90.
[15] Sha, H. and Wang, Y. (2008) A high precision data col-
lection method in electrical impedance tomography. Chi-
nese Journal of Biomedical Engineering, 27, 675-678.
[16] Ren, C.-S. and Wa ng, Y. (2006) Simulation study for
comparing line electrodes with compound electrodes in
medical impedance tomography. Chinese Journal of Bio-
medical Engineering, 25, 637-640.
