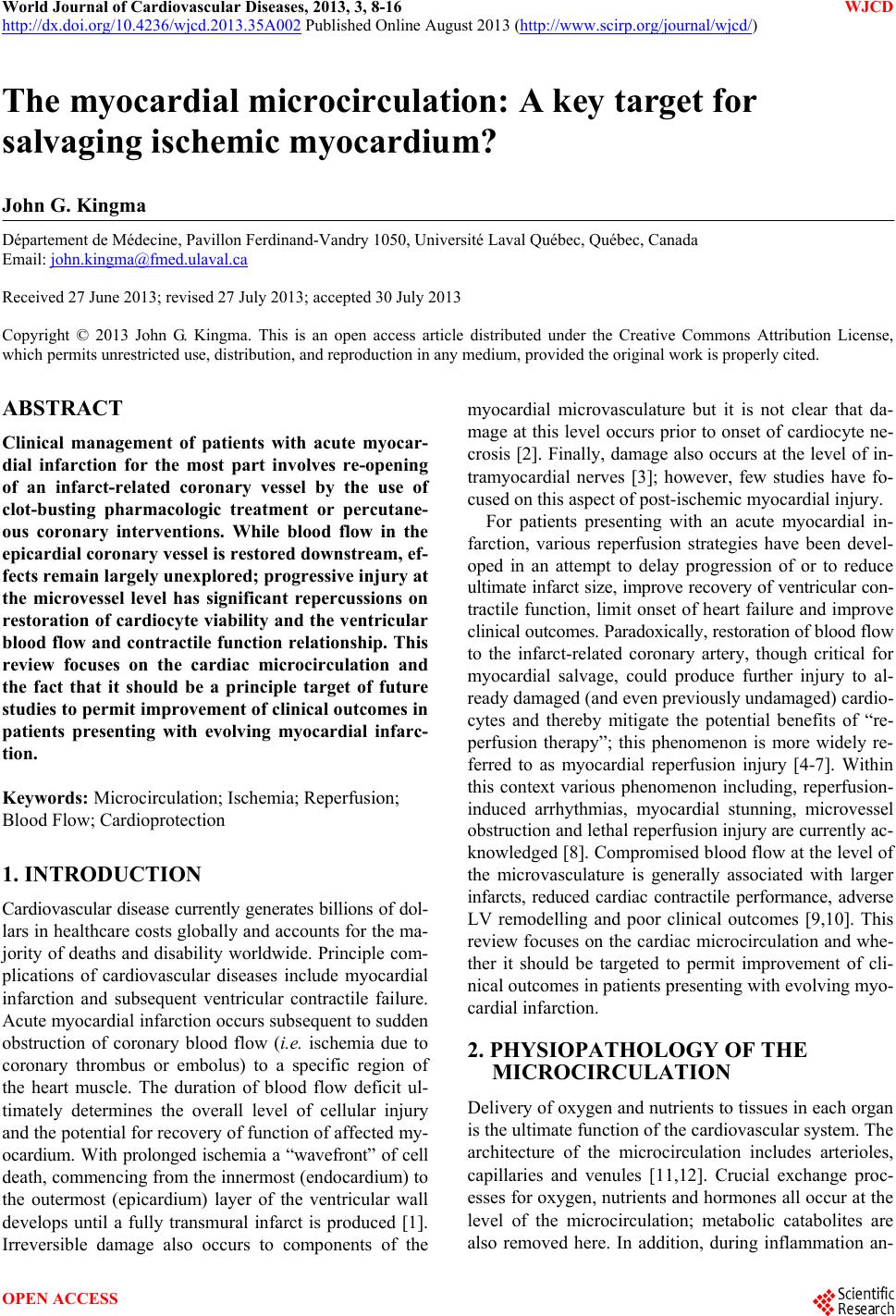

World Journal of Cardiovascular Diseases, 2013, 3, 8-16 WJCD
http://dx.doi.org/10.4236/wjcd.2013.35A002 Published Online August 2013 (http://www.scirp.org/journal/wjcd/)
The myocardial microcirculation: A key target for
salvaging ischemic myocardium?
John G. Kingma
Département de Médecine, Pavillon Ferdinand-Vandry 1050, Université Laval Québec, Québec, Canada
Received 27 June 2013; revised 27 July 2013; accepted 30 July 2013
Copyright © 2013 John G. Kingma. This is an open access article distributed under the Creative Commons Attribution License,
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Clinical management of patients with acute myocar-
dial infarction for the most part involves re-opening
of an infarct-related coronary vessel by the use of
clot-busting pharmacologic treatment or percutane-
ous coronary interventions. While blood flow in the
epicardial coronary vessel is restored downstream, ef-
fects remain largely unexplored; progressive injury at
the microvessel level has significant repercussions on
restoration of cardiocyte viability and the ventricular
blood flow and contractile function relationship. This
review focuses on the cardiac microcirculation and
the fact that it should be a principle target of future
studies to permit improvement of clinical outcomes in
patients presenting with evolving myocardial infarc-
Keywords: Microcirculation; Ischemia; Reperfusion;
Blood Flow; Cardioprotection
Cardiovascular disease currently generates billions of dol-
lars in healthcare costs globally and accounts for the ma-
jority of deaths and disability worldwide. Principle com-
plications of cardiovascular diseases include myocardial
infarction and subsequent ventricular contractile failure.
Acute myocardial infarction occurs subsequent to sudden
obstruction of coronary blood flow (i.e. ischemia due to
coronary thrombus or embolus) to a specific region of
the heart muscle. The duration of blood flow deficit ul-
timately determines the overall level of cellular injury
and the potential for recovery of function of affected my-
ocardium. With prolonged ischemia a “wavefront” of cell
death, commencing from the innermost (endocardium) to
the outermost (epicardium) layer of the ventricular wall
develops until a fully transmural infarct is produced .
Irreversible damage also occurs to components of the
myocardial microvasculature but it is not clear that da-
mage at this level occurs prior to onset of cardiocyte ne-
crosis . Finally, damage also occurs at the level of in-
tramyocardial nerves ; however, few studies have fo-
cused on this aspect of post -i s c hemic myocardial injury.
For patients presenting with an acute myocardial in-
farction, various reperfusion strategies have been devel-
oped in an attempt to delay progression of or to reduce
ultimate infarct size, improve recovery of ventricular con-
tractile function, limit onset of heart failure and improve
clinical outcomes. Paradoxically, restoration of blood flow
to the infarct-related coronary artery, though critical for
myocardial salvage, could produce further injury to al-
ready damaged (and even previously undamaged) cardio-
cytes and thereby mitigate the potential benefits of “re-
perfusion therapy”; this phenomenon is more widely re-
ferred to as myocardial reperfusion injury [4-7]. Within
this context various phenomenon including, reperfusion-
induced arrhythmias, myocardial stunning, microvessel
obstruction and lethal reperfusion injury are currently ac-
knowledged . Compro mised blood flow at the level of
the microvasculature is generally associated with larger
infarcts, reduced cardiac contractile performance, adverse
LV remodelling and poor clinical outcomes [9,10]. This
review focuses on the cardiac microcirculation and whe-
ther it should be targeted to permit improvement of cli-
nical outcomes in patients presenting with evolving myo-
2. PHYSIOPATHOLOGY OF THE
Delivery of oxygen and nutrients to tissues in each organ
is the ultimate function of th e card iovascu lar syste m. The
architecture of the microcirculation includes arterioles,
capillaries and venules [11,12]. Crucial exchange proc-
esses for oxygen, nutrients and hormones all occur at the
level of the microcirculation; metabolic catabolites are
also removed here. In addition, during inflammation an-
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16 9
tibodies, fibrinogen, elements of the complement system
and inflammatory cells all enter injured tissues at the
level of the microcirculation. Chemical and physical
factors that regulate microvessel functions have been
widely investigated; a specific focal point has been the
production of endogenously produced compounds that
could affect endothelial cells or underlying smooth mus-
cle cells in different disease processes [13-15].
In the heart, the microcirculation comprises a dense in-
tramyocardia l network of micro vessels that originat e from
a proximal arterial system . The latter is divided into
three compartments: 1) epicardial coronary (conductive)
arteries, 2) pre-arterioles and 3) intramural arterioles;
each of these compartments has the capacity to modulate
capacitance and tone so that blood flow is matched to
oxygen requirements [17,18]. Krogh first described the
regulation of the capillary circulation in relation to tissue
oxygen supply , and showed in the heart that during
exercise (with an increase in oxygen demand) capillary
vessels could be recruited to enable adequate distribution
of blood flow. A small number of coronary capillaries
are open under resting conditions in the heart; when oxy-
gen demand is higher additional cap illaries are recruited.
In the setting of coronary artery disease vasodilatory ca-
pacity of the microvasculature is reduced and aerobic
threshold (i.e. critical equilibrium between oxygen sup-
ply and demand) of ischemic myocardium is reached
much sooner. Metabolic, neural and myogenic mechani-
sms regulate blood flow within the vascular network;
higher blood flows require a corresponding increase in
vessel diameter particularly at the level of the microvas-
Cardiocyte viability post-ischemia is integrally linked
to the ability of the microvasculature to deliver oxygen
and nutrients either via pre-existing coronary or collat-
eral networks or promotion of new vessel growth (arteri-
ogenesis). Transmural distribution of coronary collaterals
varies considerably between species and is genetically
determined [20,21]; consequently, post-ischemic devel-
opment of cardiocyte injury is directly dependent on the
location of functional collateral vessels across the ven-
tricular wall. Development of functional collateral ves-
sels cannot be predicted in advance of an acute corona-
ry event; neither can we predict which patients have the
ability to develop collateral vessels after an acute insult
. However, an extended time frame is necessary for
new vessel growth [23,24]. Existing small vessels may
also undergo a process of endogenous remodeling via sti-
mulation of molecular and cellular processes . There
is ample reference in the scientific literature regarding
recruitment of coronary collateral vessels at the onset of
ischemia. It would seem more reasonable to use the ter-
minology of microvessel recruitment as initially suggest-
ed by Krogh ; questions as to whether arterial vessels
recruited during the acute ischemic event are true collat-
eral vessels or pre-existing arterioles/capillaries that op en
because of local changes in external influences on the
myocardial wall independent of the vessels themselves is
not trivial and should be addressed. External factors such
as intramyocardial tissue pressure, coronary perfusion
pressure and location within the ventricular wall all in-
fluence coronary collateral circulation. The functional ef-
ficacy of coronary collaterals remains controversial; cli-
nical evidence of improved ventricular function post-is-
chemia remains anecdotal. On a similar note reduced
infarct size, incidence of arrhythmias and mortality due
to the presence of functional coronary collateral circula-
tion remains speculative.
3. EFFECT OF ISCHEMIA
Acute obstruction of a coronary vessel initiates profound
pathological changes in cardiocytes (within the area of
no blood flow or anatomic area at risk) due to abrupt
stoppage of biochemical and metabolic pathways. Re-
duced oxygen delivery halts oxidative phosphorylation at
the mitochondrial level and lead s to mitochondrial mem-
brane depolarization, depletion of intracellular energy
phosphate stores and inhibition of myocyte contractile
function. Ultrastructural changes at the level of cardio-
cytes include cellular swelling, sub sarcolemmal blebbing,
cytoplasmic membrane-bound vacuoles, swollen mito-
chondria, nuclear chromatin clumping and margination
. Within the coronary vessels vascular endothelial
cells become swollen and deformed with small intralu-
minal protrusions; these cells also demonstrate nuclear
chromatin clumping and margination, fewer pinocytotic
vesicles and intercellular separation . The described
cellular injury represents a small portion of the ultra-
structure changes that occur briefly after onset of coro-
nary occlusion. Reversibility of these ultrastructure al-
terations is possible but entirely dependent on duration of
the ischemic insult. Mechanisms responsible for abnor-
mal blood flow to damaged myocardium have not been
clearly established; capillary damage and external capil-
lary compression due to edema, micro-embolization of
microthrombi from atherosclerotic plaque or platelet
aggregation and neutrophil plugging remain potential can-
didates for poor transmural distribution of blood flow
For patients presenting with cardiac symptoms reduc-
ing the time from chest pain onset to arriv al at the hospi-
tal coronary intervention unit remains the first p riority. In
the pre-hospital phase different ambulatory therapeutic
strategies have been shown with varying degrees of suc-
cess to delay development of cardiocyt e injury. M ost phar-
macologic compounds have not yet shown consistent
benefit with respect to reduction of ischemic injury, pre-
serving cardiac function and improving patient outcomes;
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16
the reasons for the poor performance are currently the
subject of debate and ongoing research [31,32]. Timely
restoration of blood flow to an infarct-related artery may
be the most effective strategy to limit ischemic injury
and cardiocyte necrosis. While a host of experimental
and clinical studies have reported that it is possible to
limit development of post-ischemic myocardial injury
[32-35], for the most part a delay and not a reduction of
ultimate infarct size has been demonstrated. No pharma-
cologic treatment has been shown to sufficiently limit
infarct size; potential reasons being; 1) timing of admini-
stration and dosage of potentially cardioprotective treat-
ments, and 2) heterogeneity of comorbidities within the
patient populations .
Myocardial infarction produces a persistent reduction
in contractile function due to loss of cardiocytes and re-
placement by fibrotic tissue . Even when ischemia is
alleviated by restoration of blood flow to the infarct-
related artery before the onset of irreversible cardiocyte
death contractile dysfunction can persist—this is more
commonly referred to as “myocardial stunning” [37,38].
When myocardium is subjected to repetitive reversible
ischemia over an extended period card iocyte remodelling
can occur at both the cellular and molecular levels .
Within the ischemic zone viable chronically dysfunctio-
nal myocardium has also been reported in the absence of
persistent perfusion abn ormalities—this is commonly re-
ferred to as “myocardial hibernation” [40-42]. While loss
of cardiocytes and cellular hypertrophy play a role in
persistent ventricular contractile dysfunction pathologic
fibrosis to replace necrotic cardiocytes within the ische-
mic zone is also important . The extent of patho-
physiological remodeling that occurs is partly dependent
on the degree of coronary perfusion to the ischemic vas-
cular bed ; reductions in blood flow could result in
activation of endogenous metabolic pathways that could
result in a down-regulation of myocardial oxygen require-
ments [39,45,46]. Cellular adaptive mechanisms such as
down-regulation of mitochondrial proteins or up-regula-
tion of stress and cytoskeletal proteins all impact the abi-
lity of the failing heart to adjust to changes in cardiac
workload [47,48]. Additional studies are needed to un-
derstand cardiocyte as well as vascular remodeling after
restoration of blood flow to an infarct-related coronary
Transient ischemia produces persistent regional car-
diac contractile dysfunction even in the absence of cardi-
ocyte necrosis [49-53]. A direct relation has been repor-
ted between blood flow and contractile function ;
this relation is superimposable at rest and during ex ercise
under normal conditions (i.e. no underlying coronary ar-
tery disease) [53,54]. We recently documented, in ca-
nine hearts subjected to transient ischemia, that the flow-
function relation was influenced by nitric oxide bioavai-
lability resulting in a perfusion-function mismatch .
4. EFFECT OF REPERFUSION
Timely opening of an infarctrelated artery is essential for
the salvage of viable cardiocytes within the anatomic
area at risk; however, on reperfusion vessel injury could
occur resulting in local or downstream obstruction of the
vessel lumen. Endothelial injury and obstruction of cap-
illaries therefore remains a primary consideration for the
success of potential reperfusion therapies. Restoration of
blood flow within an infarct-related artery (i.e. conduit
vessel) is generally accomplished by pharmacologic
thrombolytic therapy or percutaneous angioplasty [32,
34]. While restoration of blood flow in the conduit vessel
is readily observed it do es not assure transmural distribu-
tion of blood flow at the level of the microvasculature.
This is probably due to the transmural heterogeneity for
distribution of microvascular resistance where resistance
is higher in the endocardial tissue layer compared to the
epicardium ; however, this gradient is reversed
within the microcirculation . Circulation to the
deeper myocardial layers may remain abnormal and
would probably be insufficient to maintain normal car-
diocyte function and ventricular contraction . We
raise the question as to whether more attention should be
paid in both pre-clinical and clin ical studies to the role of
the coronary microcirculation and its distribution across
the ventricular wall on development of ischemic injury
and post-ischemic ventricular remodeling. While restora-
tion of blood flow to the vascular bed of an infarct-re-
lated artery clearly delays development of tissu e necrosis
this may also be a mixed blessing since additional cardi-
ocyte damage may occur to a population of reversibly
injured myocytes within the area at risk. Thus, myocar-
dial reperfusion is often viewed in the context of being a
“double-e dged sword” .
5. LETHAL REPERFUSION INJURY
After successful reperfusion of an infarct-related artery
further cellular necrosis could be induced in cardiocytes
that were believed to be viable at the end of the ischemic
event; this phenomenon is commonly referred to as lethal
myocardial reperfusion injury . Potential pathways
responsible for lethal myocardial reperfusion injury in-
clude oxidative stress, intracellular calcium overload,
rapid restoration of physiological pH to ischemic myo-
cardium, dysfunctional mitochondrial permeability tran-
sition pore and inflammation. These mechanisms and
their contribution to lethal myocardial reperfusion injury
have recently been reviewed . Whether lethal myocar-
dial reperfusion injuries actually occur remains contro-
versial; several studies suggest it may account for up to
50 percent of final infarct size [6,59]. The choice of
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16 11
reperfusion strategy may therefore impact on the overall
severity of lethal reperfusion injury inasmuch as one
adheres to the dogma that reperfusion can actually be
detrimental to post-ischemia cardiocyte survival.
More attention is being paid in the clinical setting to the
phenomenon of “no-reflow” which results from endothe-
lial cell injury during ischemia and develops within the
ischemic vascular bed after opening an infarct-related
artery. Interacting factors that contribute to no-reflow
include ischemic injury, reperfusion injury, distal vessel
embolization and microvessel susceptibility to injury
; all of these elements are associated with profound
disturbances of vasoregulatory pathways . Ischemia-
reperfusion damage is central to the physiopathology of
no-reflow which results in impaired LV remodeling, ven-
tricular dysfunction and clearly impacts survival. After
opening of the infarct-related vessel regional blood flow
is initially hyperemic and then progressively declines
[27,62-66]; the area of no-reflow progresses across the
LV wall from the endocardium, is constrained to the
ischemic area [2,26,58], and may depend on degree of
collateral blood flow to ischemic region during coronary
occlusion . The causal link between microvascular
and myocardial damage remains to be established [62,63,
67]; reduction of no-reflow and tissue necrosis has been
documented with pharmacologic interventions given at
the time of reperfusion . Mechanisms responsible for
no-reflow are probably quite similar across species in-
cluding humans and include endothelial injury, accumu-
lation of inflammatory cells, reactive oxygen intermedi-
ates and the coagulation cascade. While no-reflow may
not produce cardiocyte necrosis the overall consensus is
that improvements in coronary collateral flow to the
ischemic vascular bed will produce less ventricular re-
modeling; in a retrospective clinical study of cardiovas-
cular disease Rezkalla et al. reported no-reflow in more
than a third of patients . Intracoronary pharmaco-
logic treatment in these patients resulted in normalization
of flow to ischemic myocardium and, more importantly,
7. CARDIAC CONDITIONING AND
Cardiac conditioning represents a potential breakthrough
for protection of the ischemic heart. Murry et al. initially
described “ischemic preconditioning” in dogs exposed to
intermittent cycles of nonlethal coronary occlusion and
reperfusion prior to a period of sustained coronary occlu-
sion . In this study infarct size was consistently
smaller in hearts pretreated by the conditioning stimulus
prior to index ischemia; however, cardioprotection was
not sustained when the duration of coronary occlusion
was extended to 3 hours. Since the publication of this
landmark paper a host of studies have attempted to eluci-
date underlying mechanisms responsible for this endo-
genous cellular protective phenomenon with the hope of
identifying mediators amenable to pharmacologic ma-
nipulation for clinical utilisation [71-73]. In the current
paradigm the conditioning stimulus generates endoge-
nous ligands including adenosine, opioids and catecho-
lamines that trigger cellular transduction pathways and
mediate protective signals from the cell membrane to mi-
tochondria where end-effectors induce protection [72,
74]. Although most studies have focused on pro tection in
the heart conditioning pre-treatment protection has been
reported for all organs studied [75-78]. To date, cardiac
conditioning has been achieved using anesthetic, phar-
macological and even remote interventions; the similar-
ity of mechanisms forwarded for the different condition-
ing stimuli suggest the existence of a cross-tolerance
phenomenon [79,80]. Even though significant progress
has been made in the identification of innate protective
pathways involved translation of the overall benefits of
conditioning into clinical practice remains a challenge.
The key requirement for organ conditioning is reper-
fusion of the ischemic tissues. In humans, protection of
the coronary vasculature by various conditioning mano-
euvers has not been clearly established but in several
reports better myocardial perfusion (higher TIMI score
or myocardial blush grade and coronary flow reserve)
has been reported [81,82]. Prevention of vessel dysfunc-
tion by cardiac conditioning remains controversial; in
animal models cardiac conditioning has been shown to
conserve endothelial function and increase regional myo-
cardial blood flow [62,83-87]. Vascular injury produced
by myocardial ischemia-reperfusion ranges from mild
functional impairment of endothelium-dependent vasodi-
latation, to increased permeability and severe structural
alterations to no-reflow. A recent elegant study by Sky-
schally et al. examined the impact of microembolization
at the onset of coronary reperfusion on myocardial in-
farction in a porcine experimental preparation of ische-
mia-reperfusion . They showed that no-reflow and
tissue necrosis were significantly attenuated in post-con-
ditioned animals and suggested that embolization of mi-
crovessels located primarily at the border zone (i.e. be-
tween ischemic and non-ischemic myocardium) prevent-
ed an increase in cardiocyte necrosis. Whittaker and Pr-
zyklenk previously hypothesized that the border zone
was most susceptible to further damage during post-is-
chemic reperfusion of the infarct-related artery . On
the other hand, several recent clinical studies using post-
conditioning failed to show cardioprotection thus confir-
ming the need for further study [90,91].
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16
8. SUMMARY AND CONCLUSIONS
Progress has been substantial over the past several dec-
ades regarding angioplasty technologies for rapid resto-
ration of blood flow in infarct-related conduit vessels in
humans. Keeping afflicted vessels open by implantation
of a coronary stent is also effective; however, consider-
able efforts are ongoing to limit problems associated
with their use. While it is clear that these interventions
are successful in the majority of patients to restore/main-
tain patency of conductive arteries and trigger myocar-
dial salvage much less is known about the recovery of
cardiocyte viability and distribu tion of blood flow within
the infarct core (i.e. deeper myocardial tissue layers). In
the clinical setting direct anatomical quantification of
blood flow in the myocardial microcirculation remains
elusive. However, coronary microvascular abnormalities
could explain clinical signs of myocardial isch emia often
observed in patients with normal coronary angiograms
(cf. Herrmann et al. for recent review ). Microvessel
dysfunction in patients is generally estimated by the use
of vasodilator agents in conjunction with positron emis-
sion tomography or cardiovascular magnetic resonance
techniques . Myocardial contrast echocardiography
is also used to assess microvessel perfusion [93,94]; us-
ing this technique it has been reported that microvessel
obstruction occurs in 30 - 40 percent of patients with re-
perfused ST-elevation acute myocardial infarction in
which optimal TIMI (Thrombolysis in Myocardial In-
farction) flow was achieved . The consensus of clini-
cal findings with myocardial contrast echocardiography
is that poor perfusion of the deeper myocardium with
adequate restoration of epicardial blood flow is a primary
risk factor for ventricular remodelling and major adverse
cardia c ev en ts [95 ,96 ]. In ad ditio n , co ron a r y flow re se rv e
can be directly measured the catheterisation laboratory;
Posa et al. recently documented the occurrence of mi-
crovessel obstruction immediately post-opening of the
infarct-related artery in a collateral circulation poor por-
cine model of ischemia-reperfusion . Coronary re-
serve is spatially variable [98-101]; myocardial regions
with reduced intrinsic coronary reserve could be most
vulnerable to transient, repetitive ischemic events that
culminate in microareas of cardiocyte necrosis. In pre-
clinical studies organ blood flow under diverse experi-
mental conditions can be more readily evaluated by the
use of microspher es . Marked pro gressive r eduction
of blood flow and capillary filling in the canine heart
following acute myocardial ischemia has been reported
even after initial demonstration of adequate blood flow
in epicardial coronary arteries [66,103]. Poor blood flow
at the level of the microvessels could be due to increased
microcirculatory resistance distal to the site of conduit
vessel occlusion ; clinical studies have not ye t ev a lu -
ated microvessel responses or ultrastructural changes in
viable but dysfunctional myocardium. It is suggested that
progressive vascular remodeling of coronary resistance
vessels could adversely influence acute metabolic and
autoregulatory adjustments and thereby contribute to
poor ventric ul ar function.
In conclusion, protection against post-ischemic injury
remains an important goal in patients with coronary ar-
tery disease. The majority of pharmacologic compounds
developed to date to delay progression of ischemic injury
have not shown great promise against no-flow and its
consequences—this is probably due to progressive loss
of microvessel function post-ischemia. Therefore apprai-
sal of changes in the coronary microcirculation within
the ischemic vascular bed is absolutely central to the
maintenance of cellular viability (including cardiocytes,
coronary vascular cells and cardiac nerves) and restora-
tion of ventricular contractile function. Future pre-clini-
cal and clinical studies must take into account post-ische-
mic changes occurring at the level of the myocardial mi-
crovessel network and probably most-importantly within
the deeper layers of the ventricular wall. Failure to do so
will undoubtedly reduce th e therapeutic potential that fu-
ture interventions might have for patients with acute my-
 Reimer, K.A., Lowe, J.E., Rasmussen, M.M. and Jenn-
ings, R.B. (1977) The wavefront phenomenon of ische-
mic cell death: I. Myocardial infarct size vs. duration of
coronary occlusion in dogs. Circulation, 56, 786-794.
 Kloner, R.A., Rude, R.E., Carlson, N., Maroko, P.R., De-
Boer, L.W.V. and Braunwald, E. (1980) Ultrastructural
evidence of microvascular damage and myocardial cell
injury after coronary artery occlusion: Which comes first?
Circulation, 62, 945-952. doi:10.1161/01.CIR.62.5.945
 Matsunari, I., Schricke, U., Bengel, F.M., Haase, H.U.,
Barthel, P., Schmidt, G., Nekolla, S.G., Schoemig, A. and
Schwaiger, M. (2000) Extent of cardiac sympathetic neu-
ronal damage is determined by the area of ischemia in pa-
tients with acute coronary syndromes. Circ ulation, 101,
 Braunwald, E. and Kloner, R.A. (1985) Myocardial reper-
fusion: A double-edged sword? The Journal of Clinical
Investigation, 76, 1713-1719. doi:10.1172/JCI112160
 Piper, H.M., Garcia-Dorado, D. and Ovize, M. (1998) A
fresh look at reperfusion injury. Cardiovascular Research,
38, 291-300. doi:10.1016/S0008-6363(98)00033-9
 Yellon, D.M. and Hausenloy, D.J. (2007) Myocardial re-
perfusion injury. The New England Journal of Medicine,
357, 1121-1135. doi:10.1056/NEJMra071667
 Hearse, D.J. (1977) Reperfusion of the ischemic myocar-
dium. Journal of Molecular and Cellular Cardiology, 9,
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16 13
 Hausenloy, D.J. and Yellon, D.M. (2013) Myocardial is-
chemia-reperfusion injury: A neglected therapeutic target.
The Journal of Clinical Investigation, 123, 92-100.
 Ito, H., Okamura, A., Iwakura, K., Masuyama, T., Hori,
M., Takiuchi, S., Negoro, S., Nakatsuchi, Y., Taniyama, Y.,
Higashino, Y., Fujii, K. and Minamino, T. (1996) Myocar-
dial perfusion patterns related to thrombolysis in myocar-
dial infarction perfusion grades after coronary angiopla-
sty in patients with acute anterior wall myocardial infarc-
tion. Circulation, 93, 1993-1999.
 Ito, H., Maruyama, A., Iwakura, K., Takiuchi, S., Masuya-
ma, T., Hori, M., Higashino, Y., Fujii, K. and Minamino,
T. (1996) Clinical implications of the “no reflow” phe-
nomenon. A predictor of complications and left ventricu-
lar remodeling in reperfused anterior wall myocardial in-
farction. Circulation, 93, 223-228.
 Palade, G.E., Simionescu, M. and Simionescu, N. (1979)
Structural aspects of the permeability of the microvascu-
lar endothelium. Acta Physiologica Scandinavica, S463,
 Granger, D.N. (1998) Physiology and pathophysiology of
the microcirculation. Dialogues in Cardiovascular Medi-
cine, 3, 123-140.
 Granger, D.N. and Korthuis, R.J. (1995) Physiologic me-
chanisms of postischemic tissue injury. Annual Review of
Physiology, 57, 311-332.
 Harrison, D.G. (1997) Cellular and molecular mechani-
sms of endothelial cell dysfunction. The Journal of Cli-
nical Investigation , 100, 2153-2157.
 Drexler, H. and Hornig, B. (1996) Importance of endothe-
lial function in chronic heart failure. Journal of Cardi-
ovascular Pharmacology, 27, S9-S12.
 White, S.K., Hausenloy, D.J. and Moon, J.C. (2012) Ima-
ging the myocardial microcirculation post-myocardial in-
farction. Current Heart Failure Reports, 9, 282-292.
 Camici, P.G. and Crea, F. (2007) Coronary microvascular
dysfunction. The New England Journal of Medicine, 356,
 Chilian, W.M. (1997) Coronary microcirculation in health
and disease. Summary of an NHLBI workshop. Circula-
tion, 95, 522-528. doi:10.1161/01.CIR.95.2.522
 Krogh, A. (1919) The supply of oxygen to the tissues and
the regulation of the capillary circulation. The Journal of
Physiology, 52, 457-474.
 James, T.N. (1970) The delivery and distribution of coro-
nary collateral circulation. Chest, 58, 183-203.
 De, B.M. and Schaper, W. (1971) Quantitative histology
of the canine coronary collateral circulation in localized
myocardial ischemia. Life Science, 10, 857-868.
 Newman, P.E. (1981) The coronary collateral circulation:
Determinants and functional significance in ischemic heart
disease. American Heart Journal, 102, 431-445.
 Kersten, J.R., Pagel, P.S., Chilian, W.M. and Warltier,
D.C. (1999) Multifactorial basis for coronary collaterali-
zation: A complex adaptive response to ischemia. Cardio-
vascular Research, 43, 44-57.
 Kersten, J.R. and Warltier, D.C. (1999) Modulation of the
adaptive response to myocardial ischemia by coexisting
disease. American Journal of Physiology, 276, H2268-
 Heil, M. and Schaper, W. (2004) Influence of mechanical,
cellular, and molecular factors on collateral artery growth
(arteriogenesis). Circulation Research, 95, 449-458.
 Kloner, R.A., Ganote, C.E. and Jennings, R.B. (1974) The
“no-reflow” phenomenon after temporary coronary occlu-
sion in the dog. The Journal of Clinical Investigation, 54,
 Schwartz, B.G. and Kloner, R.A. (2012) Coronary no re-
flow. Journal of Molecular and Cellular Cardiology, 52,
 Ito, H., Okamura, A., Iwakura, K., Masuyama, T., Hori, M.,
Takiuchi, S., Negoro, S., Nakatsuchi, Y., Taniyama, Y.,
Higashino, Y., Fujii, K. and Minamino, T. (1996) Myo-
cardial perfusion patterns related to thrombolysis in my-
ocardial infarction perfusion grades after coronary angio-
plasty in patients with acute anterior wall myocardial
infarction. Circulation, 93, 1993-1999.
 Heusch, G., Kleinbongard, P., Bose, D., Levkau, B., Hau-
de, M., Schulz, R. and Erbel, R. (2009) Coronary micro-
embolization: from bedside to bench and back to bedside.
Circulation, 120, 1822-1836.
 Luo, A.K. and Wu, K.C. (2006) Imaging microvascular
obstruction and its clinical significance following acute
myocardial infarction. Heart Failure Reviews, 11, 305-
 Hausenloy, D.J., Baxter, G., Bell, R., Botker, H.E., Da-
vidson, S.M., Downey, J., Heusch, G., Kitakaze, M., Le-
cour, S., Mentzer, R., Mocanu, M.M., Ovize, M., Schulz,
R., Shannon, R., Walker, M., Walkinshaw, G. and Yellon,
D.M. (2010) Translating novel strategies for cardiopro-
tection: The Hatter Workshop Recommendations. Basic
Research in Cardiology, 105, 677-686.
 Schwartz, L.L., Kloner, R.A., Arai, A.E., Baines, C.P.,
Bolli, R., Braunwald, E., Downey, J., Gibbons, R.J., Got-
tlieb, R.A., Heusch, G., Jennings, R.B., Lefer, D.J., Ment-
zer, R.M., Murphy, E., Ovi ze, M., Ping, P., Przykle nk, K.,
Sack, M.N., Vander Heide, R.S., Vinten-Johansen, J. and
Yellon, D.M. (2011) New horizons in cardioprotection:
Recommendations from the 2010 National Heart, Lung,
and Blood Institute Workshop. Circulation, 124, 1172-
 Kloner, R.A. and Jennings, R.B. (2001) Consequences of
brief ischemia: Stunning, preconditioning, and their clini-
cal implications: Part 1. Circulation, 104, 2981-2989.
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16
 Hausenloy, D.J. and Yellon, D.M. (2009) Myocardial pro-
tection: Is primary PCI enough? Nature Clinical Practice
Cardiovascular Medicine, 6, 12-13.
 Reimer, K.A., Jennings, R.B., Cobb, F.R., Murdock, R.H.,
Greenfield, J.C., Becker, L.C., Bulkley, B.H., Hutchins,
G.M. , Schwartz Jr., R.P., Bailey, K.R. and Passamani, E.R.
(1985) Animal models for protecting ischemic myocar-
dium (AMPIM): Results of the NHLBI cooperative study.
Comparison of the unconscious and conscious dog mo-
dels. Circulation Research, 56, 651-665.
 Sharma, V., Bell, R.M. and Yellon, D.M. (2012) Targeting
reperfusion injury in acute myocardial infarction: A re-
view of reperfusion injury pharmacotherapy. Expert Opi-
nion on Pharmacotherapy, 13, 1153-1175.
 Bolli, R. (1992) Postischemic myocardial stunning: Pa-
thogenesis, pathophysiology, and clinical relevance. In:
Yellon, D.M. and Jennings, R.B., Eds., Myocardial Pro-
tection: The Pathophysiology of Reperfusion and Reper-
fusion Injury, Raven Press, New York, 1992, 105-149.
 Bolli, R. (1992) Myocardial ‘stunning’ in man. Circu-
lation, 86, 1671-1691. doi:10.1161/01.CIR.86.6.1671
 Canty Jr., J.M. and Fallavollita, J.A. (2005) Hibernating
myocardium. Journal of Nuclear Cardiology, 12, 104-119.
 Tubau, J.F. and Rahimtoola, S.H. (1992) Hibernating
myocardium: A historical perspective. Cardiovascular
Drugs and Therapy, 6, 267-271.
 Heusch, G. (1998) Hibernating myocardium. Physiolo-
gical Reviews, 78, 1055-1085.
 Heusch, G., Schulz, R. and Rahimtoola, S.H. (2005)
Myocardial hibernation: A delicate balance. American
Journal of Physiology: Heart and Circulatory Physiology,
288, H984-H999. doi:10.1152/ajpheart.01109.2004
 Beltrami, C.A., Finato, N., Rocco, M., Feruglio, G.A.,
Puricelli, C., Cigola, E., Quaini, F., Sonnenblick, E.H.,
Olivetti, G. and Anversa, P. (1994) Structural basis of
end-stage failure in ischemic cardiomyopathy in humans.
Circulation, 89, 151-163. doi:10.1161/01.CIR.89.1.151
 Canty Jr., J.M. and Suzuki, G. (2012) Myocardial per-
fusion and contraction in acute ischemia and chronic
ischemic heart disease. Journal of Molecular and Cellu-
lar Cardiology, 52, 822-831.
 Kelly, R.F., Cabrera, J.A., Ziemba, E.A., Crampton, M.,
Anderson, L.B., McFalls, E.O. and Ward, H.B. (2011)
Continued depression of maximal oxygen consumption
and mitochondrial proteomic expression despite suc-
cessful coronary artery bypass grafting in a swine model
of hibernation. The Journal of Thoracic and Cardiovas-
cular Surgery, 141, 261-268.
 Liem, D.A., Manintveld, O.C., Schoonderwoerd, K.,
McFalls, E.O., Heinen, A., Verdouw, P.D., Sluiter, W. and
Duncker, D.J. (2008) Ischemic preconditioning modulates
mitochondrial respiration, irrespective of the employed
signal transduction pathway. Translational Research, 151,
 Page, B., Young, R., Iyer, V., Suzuki, G., Lis, M., Koro-
tchkina, L., Patel, M.S., Blumenthal, K.M., Fallavollita,
J.A. and Canty Jr., J.M. (2008) Persistent regional down-
regulation in mitochondrial enzymes and upregulation of
stress proteins in swine with chronic hibernating myocar-
dium. Circulation Research, 102, 103-112.
 Hu, Q., Suzuki, G., Young, R.F., Page, B.J., Fallavollita,
J.A. and Canty Jr., J.M. (2009) Reductions in mitochon-
drial O2 consumption and preservation of high-energy
phosphate levels after simulated ischemia in chronic
hibernating myocardium. American Journal of Physio-
logy: Heart and Circulatory Physiology, 297, H223-H232.
 Gall Jr., S.A., Maier, G.W., Glower, D.D., Gaynor, J.W.,
Cobb, F.R., Sabiston Jr., D.C. and Rankin, J.S. (1993)
Recovery of myocardial function after repetitive episodes
of reversible ischemia. American Journal of Physiology:
Heart and Circulatory Physiology, 264, H1130-H1138.
 Gallagher, K.P., Matsuzaki, M., Koziol, J.A., Kemper,
W.S. and Ross Jr., J. (1984) Regional myocardial per-
fusion and wall thickening during ischemia in conscious
dogs. American Journal of Physiology: Heart and Cir-
culatory Physiology, 247, H727-H738.
 Heyndrickx, G.R., Baig, H., Nellens, P., Leusen, I., Fish-
bein, M.C. and Vatner, S.F. (1978) Depression of regional
blood flow and wall thickening after brief coronary
occlusions. American Journal of Physiology: Heart and
Circulatory Physiology, 234, H653-H659.
 Vatner, S.F. (1980) Correlation between acute reductions
in myocardial blood flow and function in conscious dogs.
Circulation Research, 47, 201-207.
 Heusch, G. (2008) Heart rate in the pathophysiology of
coronary blood flow and myocardial ischaemia: Benefit
from selective bradycardic agents. British Journal of
Pharmacology, 153, 1589-1601.
 Ross Jr., J. (1991) Myocardial perfusion-contraction ma-
tching. Implications for coronary heart disease and hiber-
nation. Circulation, 83, 1076-1083.
 Kingma, J.G., Simard, D. and Rouleau, J.R. (2011) Mo-
dulation of nitric oxide affects myocardial perfusion-con-
traction matching in anesthetised dogs with recurrent no-
flow ischemia. Experimental Physiology, 96, 1293-1301.
 DeFily, D.V. (1998) Control of microvascular resistance
in physiological conditions and reperfusion. Journal of
Molecular and Cellular Cardiology, 30, 2547-2554.
 Chilian, W.M. (1991) Microvascular pressures and resis-
tances in the left ventricular subepicardium and suben-
docardium. Circulation Research, 69, 561-570.
 Krug, A., Du Mesnil, D.R. and Korb, G. (1966) Blood
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16 15
supply of the myocardium after temporary coronary
occlusion. Circula t io n R e se arch, 19, 57-62.
 Staat, P., Rioufol, G., Piot, C., Cottin, Y., Cung, T.T.,
L’Huillier, I., Aupetit, J.F., Bonnefoy, E., Finet, G., Andre-
Fouet, X. and Ovize, M. (2005) Postconditioning the
human heart. Circulation, 112, 2143-2148.
 Guo, A.Q., Sheng, L., Lei, X. and Shu, W. (2013) Phar-
macological and physical prevention and treatment of
no-reflow after primary percutaneous coronary inter-
vention in ST-segment elevation myocardial infarction.
Journal of International Medical Research, 41, 537-547.
 Niccoli, G., Burzotta, F., Galiuto, L. and Crea, F. (2009)
Myocardial no-reflow in humans. Cardiology, 54, 281-
 Reffelmann, T., Hale, S.L., Li, G. and Kloner, R.A. (2002)
Relationship between no reflow and infarct size as in-
fluenced by the duration of ischemia and reperfusion.
American Journal of Physiology: Heart and Circulatory
Physiology, 282, H766-H772.
 Reffelmann, T. and Kloner, R.A. (2002) Microvascular
reperfusion injury: Rapid expansion of anatomic no re-
flow during reperfusion in the rabbit. American Journal
of Physiology: Heart and Circulatory Physiology, 283,
 Galiuto, L. and Iliceto, S. (1998) Myocardial contrast
echocardiography in the evaluation of viable myocardium
after acute myocardial infarction. American Journal of
Cardiology, 81, 29G-32G.
 Galiuto, L., DeMa ria, A.N., May -Newma n, K., Del, B.U.,
Ohmori, K., Bhargava, V., Flaim, S.F. and Iliceto, S.
(1998) Evaluation of dynamic changes in microvascular
flow during ischemia-reperfusion by myocardial contrast
echocardiography. Cardiology, 32, 1096-1101.
 Ambrosio, G., Weisman, H.F., Mannisi, J.A. and Becker,
L.C. (1989) Progressive impairment of regional myocar-
dial perfusion after initial restoration of postischemic
blood flow. Circulation, 80, 1846-1861.
 Golino, P., Maroko, P.R. and Carew, T.E. (1987) The
effect of acute hypercholesterolemia on myocardial
infarct size and the no-reflow phenomenon during coro-
nary occlusion-reperfusion. Circulation, 75, 292-298.
 Matsumura, K., Jeremy, R.W., Schaper, J. and Becker,
L.C. (1998) Progression of myocardial necrosis during re-
perfusion of ischemic myocardium. Circulation, 97, 795-
 Rezkalla, S.H., Dharmashankar, K.C., Abdalrahman, I.B.
and Kloner, R.A. (2010) No-reflow phenomenon fol-
lowing percutaneous coronary intervention for acute my-
ocardial infarction: Incidence, outcome, and effect of
pharmacologic therapy. Journal of Interventional Car-
diology, 23, 429-436.
d oi: 10. 1111 /j .1540 - 8183.2010.00561.x
 Murry, C.E., Jennings, R.B. and Reimer, K.A. (1986)
Preconditioning with ischemia: A delay of lethal cell
injury in ischemic myocardium. Circulation, 74, 1124-
 Ovize, M., Baxter, G.F., Di, L.F., Ferdinandy, P., Garcia-
Dorado, D., Hausenloy, D.J., Heusch, G., Vinten-Jo-
hansen, J., Yellon, D.M. and Schulz, R. (2010) Post-con-
ditioning and protection from reperfusion injury: Where
do we stand? Position paper from the Working Group of
Cellular Biology of the Heart of the European Society of
Cardiology. Card iovas cular Research, 87, 406-423.
 Yellon, D.M. and Downey, J.M. (2003) Preconditioning
the myocardium: From cellular physiology to clinical
cardiology. Physiological Review s, 83, 1113-1151.
 Downey, J.M., Davis, A.M. and Cohen, M.V. (2007)
Signaling pathways in ischemic preconditioning. Heart
Failure Reviews, 12, 181-188.
 Hausenloy, D.J. and Yellon, D.M. (2009) Preconditioning
and postconditioning: Underlying mechanisms and cli-
nical application. Ath ero scl ero sis , 204, 334-341.
 Lu, Y.Z., Wu, C.C., Huang, Y.C., Huang, C.Y., Yang, C.Y.,
Lee, T.C., Chen, C.F. and Yu, L.C. (2012) Neutrophil
priming by hypoxic preconditioning protects against epi-
thelial barrier damage and enteric bacterial translocation
in intestinal ischemia/reperfusion. Laboratory Investiga-
tion, 92, 783-796. doi:10.1038/labinvest.2012.11
 Ko, J.K. and Cho, C.H. (2011) Adaptive cytoprotection
and the brain-gut axis. Digestion, 83, 19-24.
 Meng, R., Asmaro, K., Meng, L., Liu, Y., Ma, C., Xi, C.,
Li, G., Ren, C., Luo, Y., Ling, F., Jia, J., Hua, Y., Wang,
X., Ding, Y., Lo, E.H. and Ji, X. (2012) Upper limb
ischemic preconditioning prevents recurrent stroke in
intracranial arterial stenosis. Neurology, 79, 1853-1861.
 Koch, S., Sacco, R.L. and Perez-Pinzon, M.A. (2012)
Preconditioning the brain: Moving on to the next frontier
of neurotherapeutics. Stroke, 43, 1455-1457.
 Lynch III, C. (1999) Anesthetic preconditioning: Not just
for the heart? Anesthesiology, 91, 606-608.
 Minguet, G., Joris, J. and Lamy, M. (2007) Precondi-
tioning and protection against ischaemia-reperfusion in
non-cardiac organs: A place for volatile anaesthetics? Eu-
ropean Journal of Anaesthesiology, 24, 733-745.
 Ma, X.J., Zhang, X.H., Li, C.M. and Luo, M. (2006)
Effect of postconditioning on coronary blood flow velo-
city and endothelial function in patients with acute myo-
cardial infarction. Scandinavian Cardiovascular Journal,
40, 327-333. doi:10.1080/14017430601047864
 Laskey, W.K., Yoon, S., Calzada, N. and Ricciardi, M.J.
(2008) Concordant improvements in coronary flow re-
serve and ST-segment resolution during percutaneous
coronary intervention for acute myocardial infarction: A
benefit of postconditioning. Catheterization and Cardio-
Copyright © 2013 SciRes. OPEN ACCESS
J. G. Kingma / World Journal of Cardiovascular Diseases 3 (2013) 8-16
Copyright © 2013 SciRes.
vascular Interventions, 72, 212-220.
 Laude, K., Beauchamp, P., Thuillez, C. and Richard, V.
(2002) Endothelial protective effects of preconditioning.
Cardiovascular Research, 55, 466-473.
 Reffelmann, T. and Kloner, R.A. (2002) Is microvascular
protection by cariporide and ischemic preconditioning
causally linked to myocardial salvage? American Journal
of Physiology: Heart and Circulatory Physiology, 284,
 Zhao, Z.Q., Corvera, J.S., Halkos, M.E., Kerendi, F.,
Wang, N.P., Guyton, R.A. and Vinten-Johansen, J. (2003)
Inhibition of myocardial injury by ischemic postcondi-
tioning during reperfusion: Comparison with ischemic
preconditioning. American Journal of Physiology: Heart
and Circulatory Physiology, 285, H579-H588.
 Kaeffer, N., Richard, V., Francois, A., Lallemand, F.,
Henry, J.P. and Thuillez, C. (1996) Preconditioning pre-
vents chronic reperfusion-induced coronary endothelial
dysfunction in rats. American Journal of Physiology, 271,
 Richard, V., Kaeffer, N., Tron, C. and Thuillez, C. (1994)
Ischemic preconditioning protects against coronary endo-
thelial dysfunction induced by ischemia and reperfusion.
Circulation, 89, 1254-1261.
 Skyschally, A., Walter, B. and Heusch, G. (2012) Coro-
nary microembolization during early reperfusion: Infarct
extension, but protection by ischaemic postconditioning.
European Heart Journal. doi:10.1093/eurheartj/ehs434
 Whittaker, P. and Przyklenk, K. (1994) Reduction of
infarct size in vivo with ischemic preconditioning: Mathe-
matical evidence for protection via non-ischemic tissue.
Basic Research in Cardiology, 89, 6-15.
 Freixa, X., Bellera, N., Ortiz-Perez, J.T., Jimenez, M.,
Pare, C., Bosch, X., De Caralt, T.M., Betriu, A. and
Masotti, M. (2012) Ischaemic postconditioning revisited:
Lack of effects on infarct size following primary percu-
taneous coronary intervention. European Heart Journal,
33, 103-112. doi:10.1093/eurheartj/ehr297
 Sorensson, P. , Saleh, N., Bouvier, F., Bohm, F., Settergren,
M., Caidahl, K., Tornvall, P., Arheden, H., Ryden, L. and
Pernow, J. (2010) Effect of postconditioning on infarct
size in patients with ST elevation myocardial infarction.
Heart, 96, 1710-1715. doi:10.1136/hrt.2010.199430
 Herrmann, J., Kaski, J.C. and Lerman, A. (2012) Coro-
nary microvascular dysfunction in the clinical setting:
From mystery to reality. European Heart Journal, 33,
 Dwivedi, G., Janardhanan, R., Hayat, S.A., Lim, T.K.,
Greaves, K. and Senior, R. (2010) Relationship between
myocardial perfusion with myocardial contrast echocar-
diography and function early after acute myocardial in-
farction for the prediction of late recovery of function.
International Journal of Cardiology, 140, 169-174.
 Hayat, S.A. and Senior, R. (2008) Myocardial contrast
echocardiography in ST elevation myocardial infarction:
Ready for prime time? European Heart Journal, 29, 299-
 Bolognese, L., Carrabba, N., Parodi, G., Santoro, G.M.,
Buonamici, P., Cerisano, G. and Antoniucci, D. (2004)
Impact of microvascular dysfunction on left ventricular
remodeling and long-term clinical outcome after primary
coronary angioplasty for acute myocardial infarction. Cir-
culation, 109, 1121-1126.
 Dwivedi, G., Janardhanan, R., Hayat, S.A., Swinburn,
J.M. and Senior, R. (2007) Prognostic value of myocar-
dial viability detected by myocardial contrast echocardi-
ography early after acute myocardial infarction. Cardi-
ology, 50, 327-334. doi:10.1016/j.jacc.2007.03.036
 Posa, A., Pavo, N., Hemetsberger, R., Csonka, C., Csont,
T., Ferdinandy, P., Petrasi, Z., Varga, C., Pavo, I.J., Laszlo
Jr., F., Huber, K. and Gyongyosi, M. (2010) Protective
effect of ischaemic preconditioning on ischaemia/reper-
fusion-induced microvascular obstruction determined by
on-line measurements of coronary pressure and blood
flow in pigs. Thrombosis and Haemostasis, 103, 450-460.
 Hoffman, J.I. (1995) Heterogeneity of myocardial blood
flow. Basic Research in Cardiology, 90, 103-111.
 Hoffman, J.I.E. (1987) A critical view of coronary reserve.
Circulation, 75, 1-6.
 Austin, R.E.J., Aldea, G.S., Coggins, D.L., Flynn, A.E.
and Hoffman, J.I.E. (1990) Profound spatial hetero-
geneity of coronary reserve. Discordance between pat-
terns of resting and maximal myocardial blood flow.
Circulation Research, 67, 319-331.
 Bassingthwaighte, J.B., King, R.B. and Roger, S.A. (1989)
Fractal nature of regional myocardial blood flow hetero-
geneity. Circulation Research, 65, 578-590.
 Kingma Jr., J.G., Simard, D. and Rouleau, J.R. (2005)
Comparison of neutron activated and radiolabeled micro-
sphere methods for measurement of transmural myocar-
dial blood flow in dogs. Journal of Thromb osis and T hrom-
bolysis, 19, 201-208.
 Alhaddad, I.A., Kloner, R.A., Hakim, I., Garno, J.L. and
Brown Jr., E.J. (1996) Benefits of late coronary artery
reperfusion on infarct expansion progressively diminish
over time: relation to viable islets of myocytes within the
scar. American Heart Journal, 131, 451-457.
 Fearon, W.F., Aarnoudse, W., Pijls, N.H., De, B.B.,
Balsam, L.B., Cooke, D.T., Robbins, R.C., Fitzgerald, P.J.,
Yeung, A.C. and Yock, P.G. (2004) Microvascular resis-
tance is not influenced by epicardial coronary artery ste-
nosis severity: Experimental validation. Circulation, 109,
