Treatment of Wrinkles and Acne Scars Using the
TriFractional, a Novel Fractional Radiofrequency
Technology—Clinical and Histological Results
Alex Levenberg1, Andrea Gat2, Marie Christine Branchet3, Sylvie Boisnic3
1Physicians Center, Plastic Surgery Department, Tel Aviv, Israel; 2Dermatopathology Unit, Sourasky Medical Center, Tel Aviv,
Israel; 3GREDECO Research Group, Paris, France.
Email: leveplas@netvision.net.il
Received June 12th, 2012; revised July 15th, 2012; accepted July 31st, 2012
ABSTRACT
Introduction: The need for cosmetic facial enhancement procedures with minimal down time and low risk has led to
the development of methods for non-surgical skin rejuvenation. Various ablative lasers were developed, which remove
the full skin surface in a controlled manner. However, the prolonged recovery and the significant risks prompted the
development of fractional lasers which ablate the skin in a fractional manner, leaving untreated areas to improve healing
process. In the past few years, fractional radiofrequency (RF) systems have been introduced that enable controlled skin
resurfacing accompanied with dermal collagen remodeling. The new TriFractional technology from Pollogen® is de-
signed to enable skin resurfacing and treatment of wrinkles using RF energy. The objective of the current research was
to evaluate the safety and effectiveness of the novel TriFractional technology using the TriFractional applicator (A3F)
for micro-ablative skin resurfacing and the treatment of wrinkles and acne scars. Methods: Healthy volunteers con-
sented to undergo TriFractional treatments for various aesthetic indications. In addition, in-vivo and ex-vivo histologi-
cal results showing immediate and long term effects of the TriFractional technology were obtained. A portion of the
subjects underwent the complete TriLipo Med Procedure which includes 2 TriFractional treatments spaced one month
apart, with 2 TriLipo RF + Dynamic Muscle Activation (DMA) face treatments two weeks after each TriFractional
treatment. Results: Subjects experienced an improvement of wrinkles, skin texture and acne scars along with facial
contouring. No significant adverse effects were detected post-treatment. Histology findings demonstrated immediate
and long term TriFractional effects on both epidermal and dermal skin layers. Conclusions: TriFractional is a prom-
ising technology for skin resurfacing, treatment of wrinkles and improvement of additional aesthetic indications such as
acne scars. The TriLipo MED procedure is a unique combination approach for total facial rejuvenation and contour-
ing.
Keywords: Radiofrequency; TriFractional; Wrinkles; Acne Scars; Collagen
1. Introduction
The growing market demand for cosmetic facial enhan-
cement and rejuvenation procedures with minimal down
time and low risk, has led to the development of methods
for non-surgical skin rejuvenation.
Laser skin resurfacing was first introduced in the mid
1990’s to precisely remove the upper layers of photo da-
maged, aged skin as an alternative to chemical peels.
While enabling impressive clinical results, the first gen-
eration of laser resurfacing systems were associated with
prolonged healing and high complication rates, particu-
larly in darker skin patients [1,2]. These limitations re-
sulted from the fact that the entire epidermis and papil-
lary dermis were removed, often over large skin areas such
as the entire face.
A new generation of laser resurfacing systems was in-
troduced in 2003 with the development of a fractional la-
ser (Reliant) [3,4]. Instead of treating an entire skin area,
this laser treats a condensed matrix of small “islets” of
tissue leaving intact skin in-between these islets. Heal-
ing is immediately initiated from these intact skin areas
resulting in reduced downtime and reduced complica-
tions. Since the introduction of this first fractional laser
system, a myriad of “fractional” laser systems, mostly
based on CO2 and Erbium YAG laser technology, have
been developed and cleared for marketing worldwide [5].
RF energy is a form of electromagnetic energy. When
applied to tissue, rapidly oscillating electromagnetic fields
cause movement of charged particles within the tissue
Copyright © 2012 SciRes. JCDSA

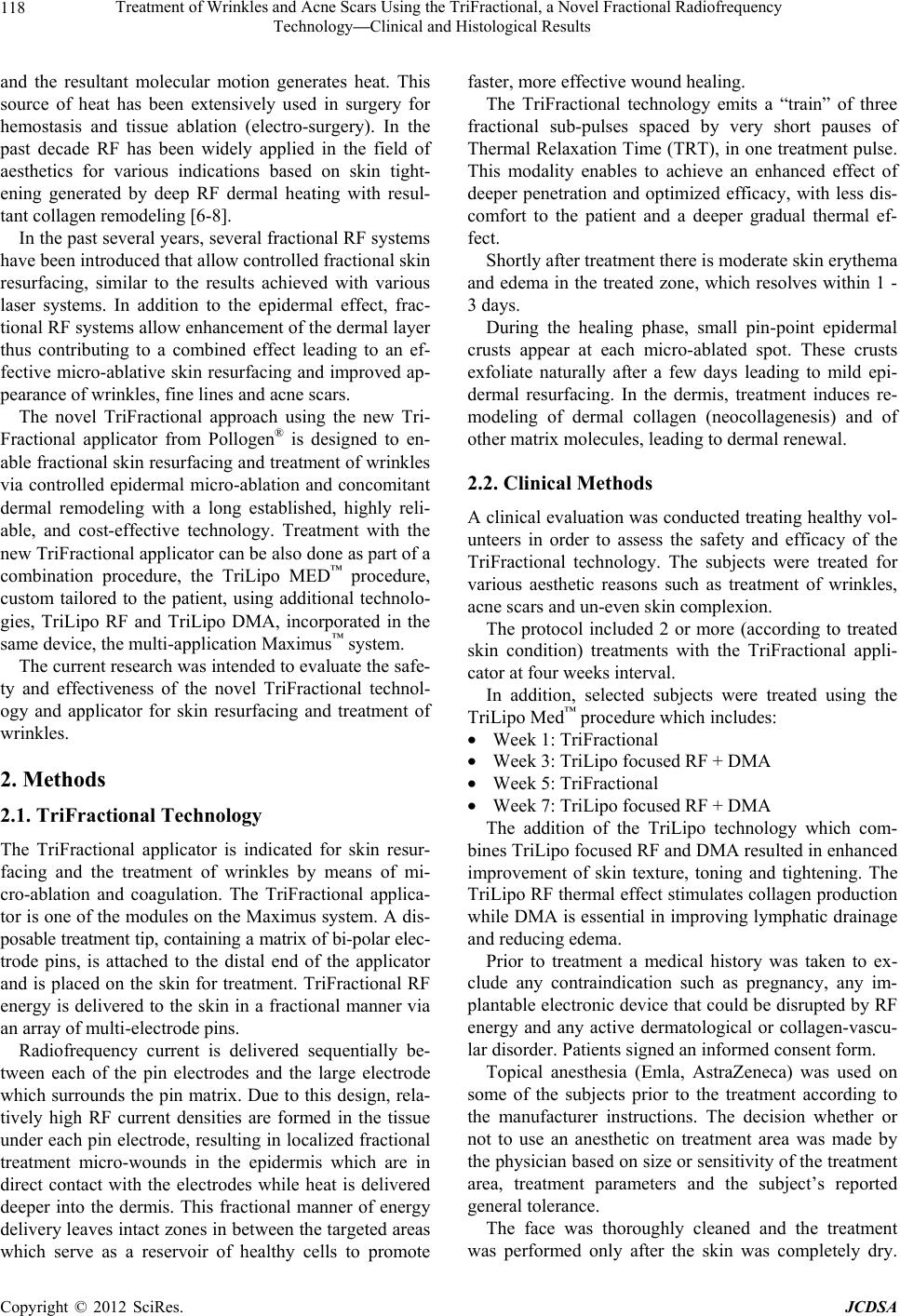

Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
118
and the resultant molecular motion generates heat. This
source of heat has been extensively used in surgery for
hemostasis and tissue ablation (electro-surgery). In the
past decade RF has been widely applied in the field of
aesthetics for various indications based on skin tight-
ening generated by deep RF dermal heating with resul-
tant collagen remodeling [6-8].
In the past several years, several fractional RF systems
have been introduced that allow controlled fractional skin
resurfacing, similar to the results achieved with various
laser systems. In addition to the epidermal effect, frac-
tional RF systems allow enhancement of the dermal layer
thus contributing to a combined effect leading to an ef-
fective micro-ablative skin resurfacing and improved ap-
pearance of wrinkles, fine lines and acne scars.
The novel TriFractional approach using the new Tri-
Fractional applicator from Pollogen® is designed to en-
able fractional skin resurfacing and treatment of wrinkles
via controlled epidermal micro-ablation and concomitant
dermal remodeling with a long established, highly reli-
able, and cost-effective technology. Treatment with the
new TriFractional applicator can be also done as part of a
combination procedure, the TriLipo MED procedure,
custom tailored to the patient, using additional technolo-
gies, TriLipo RF and TriLipo DMA, incorporated in the
same device, the multi-application Maximus system.
The current research was intended to evaluate the safe-
ty and effectiveness of the novel TriFractional technol-
ogy and applicator for skin resurfacing and treatment of
wrinkles.
2. Methods
2.1. TriFractional Technology
The TriFractional applicator is indicated for skin resur-
facing and the treatment of wrinkles by means of mi-
cro-ablation and coagulation. The TriFractional applica-
tor is one of the modules on the Maximus system. A dis-
posable treatment tip, containing a matrix of bi-polar elec-
trode pins, is attached to the distal end of the applicator
and is placed on the skin for treatment. TriFractional RF
energy is delivered to the skin in a fractional manner via
an array of multi-electrode pins.
Radiofrequency current is delivered sequentially be-
tween each of the pin electrodes and the large electrode
which surrounds the pin matrix. Due to this design, rela-
tively high RF current densities are formed in the tissue
under each pin electrode, resulting in localized fractional
treatment micro-wounds in the epidermis which are in
direct contact with the electrodes while heat is delivered
deeper into the dermis. This fractional manner of energy
delivery leaves intact zones in between the targeted areas
which serve as a reservoir of healthy cells to promote
faster, more effective wound healing.
The TriFractional technology emits a “train” of three
fractional sub-pulses spaced by very short pauses of
Thermal Relaxation Time (TRT), in one treatment pulse.
This modality enables to achieve an enhanced effect of
deeper penetration and optimized efficacy, with less dis-
comfort to the patient and a deeper gradual thermal ef-
fect.
Shortly after treatment there is moderate skin erythema
and edema in the treated zone, which resolves within 1 -
3 days.
During the healing phase, small pin-point epidermal
crusts appear at each micro-ablated spot. These crusts
exfoliate naturally after a few days leading to mild epi-
dermal resurfacing. In the dermis, treatment induces re-
modeling of dermal collagen (neocollagenesis) and of
other matrix molecules, leading to dermal renewal.
2.2. Clinical Methods
A clinical evaluation was conducted treating healthy vol-
unteers in order to assess the safety and efficacy of the
TriFractional technology. The subjects were treated for
various aesthetic reasons such as treatment of wrinkles,
acne scars and un-even skin complexion.
The protocol included 2 or more (according to treated
skin condition) treatments with the TriFractional appli-
cator at four weeks interval.
In addition, selected subjects were treated using the
TriLipo Med procedure which includes:
Week 1: TriFractional
Week 3: TriLipo focused RF + DMA
Week 5: TriFractional
Week 7: TriLipo focused RF + DMA
The addition of the TriLipo technology which com-
bines TriLipo focused RF and DMA resulted in enhanced
improvement of skin texture, toning and tightening. The
TriLipo RF thermal effect stimulates collagen production
while DMA is essential in improving lymphatic drainage
and reducing edema.
Prior to treatment a medical history was taken to ex-
clude any contraindication such as pregnancy, any im-
plantable electronic device that could be disrupted by RF
energy and any active dermatological or collagen-vascu-
lar disorder. Patients signed an informed consent form.
Topical anesthesia (Emla, AstraZeneca) was used on
some of the subjects prior to the treatment according to
the manufacturer instructions. The decision whether or
not to use an anesthetic on treatment area was made by
the physician based on size or sensitivity of the treatment
area, treatment parameters and the subject’s reported
general tolerance.
The face was thoroughly cleaned and the treatment
was performed only after the skin was completely dry.
Copyright © 2012 SciRes. JCDSA
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
119
One treatment of the TriFractional applicator with a
high power pulse (150 msec) was performed.
Subjects were provided with a “patient-controlled manual
switch” which enabled them to stop the treatment should
they experience significant discomfort. The TriFractional
treatment parameters for each subject were defined ac-
cording to the area being treated and the severity of the
condition. During the first visit, the first few pulses were
of low power level, in order to assess the immediate re-
sults. Once the initial skin response was assessed the
physician decided on the power level according to sub-
ject’s skin condition.
Subjects were asked to provide feedback regarding the
pain level during treatment and were also questioned
about the recovery process following each TriFractional
treatment. Typically erythema and edema appeared and
lasted for 1 - 3 days. A fractional eschar (matrix) pattern
typically appeared 1 to 2 days post treatment and lasted 3
days to one week, depending on the skin characteristics
and treatment strength. Subjects were instructed to use
sun screen continuously to avoid risk of pigmentary
changes.
2.3. Histology
To demonstrate the TriFractional effect on epidermal and
dermal skin layers, preliminary tests were performed on
porcine skin followed by comprehensive in-vivo and ex-
vivo histological examinations.
2.3.1. Porcine Skin
Fresh porcine abdomen and ear skin samples were ex-
posed to different TriFractional energy levels.
2.3.2. In-Vivo Human Abdominal Skin
One abdominal patient consented to a series of TriFrac-
tional pulses prior to her scheduled mini abdominoplasty.
Pulses of the High power default settings (160 msec)
were performed at one week and one day before the sur-
gery. Skin samples of treated and untreated control area
were taken from this patient during her abdominoplasty
procedure for histological analysis. Formalin fixed, par-
affin embedded sections were prepared and stained with
H&E for pathological examination by Patho-Lab Diag-
nostics Ltd., Nes Ziona, Israel. Pathological examination
was performed by Andrea Gat, M.D., Head of Dermato-
pathology Unit, Sourasky Medical Center, Tel Aviv, Is-
rael.
2.3.3. Ex-Vivo Human Skin Study
The Gredeco ex vivo skin model for maintaining skin frag-
ments (harvested from donors undergoing plastic surgery)
in survival condition and artificially aging by Ultraviolet
(UV) irradiation, was used as previously described by
Boisnic and Branchet [7].
Histological modifications of the skin were analyzed
at different intervals between Day 0 (D0) and Day 10
(D10), using H&E staining.
Immunohistochemical analysis of mitotic index of the
epidermis was done on D2. An antibody Ki67 (Dako,
clone MIB-1, marker cells in the M, S, G1, G2 phases
of the cell cycle) was used. The immunodetection was
made with an indirect technique of immunoperoxy-
dase in 4 levels, amplified (kit DAKO) and stained in
red by AEC (3-amino-9-ethylcarbazole).
The results were expressed in % of positive epithelial
cells.
Morphometrical analysis of collagen fibers was done
at D10.
Serial sections of 4 µm thickness were obtained and
specifically stained with a picric acid solution containing
0.1% Sirius red. Collagen was analyzed by computerized
morphometrical analysis. For a quantitative analysis of
these macromolecules, a computerized image analysis of
each section was made. The stained slides were exam-
ined using a microscope (Leitz) (magnification ×160)
connected with a camera unit (XC-75 CE type) and a
microprocessor (Q520).
The surface of collagen bundles were measured in µm2
and the relative collagen content of the dermis was then
expressed as a percentage.
For both the analyses of epidermal mitotic index and
quantitative collagen content, samples with more than
one pulse on the same area were included to amplify the
reaction comparing to control samples.
2.3.4. Statistical Analysis
The statistical significance of changes recorded was de-
termined using the Student’s t-test when p < 0.05 was
considered as statistically significant.
3. Results
3.1. TriFractional Facial Treatments Results
The results of the TriFractional treatments included re-
duction of fine wrinkles, improved appearance of acne
scars, a general improvement of skin texture and scar tis-
sue, skin brightening, skin tightening, improvement of
skin irregularities and reduction in pore size. The sub-
jects treated with the TriLipo Med procedure displayed
an additional facial contouring effect especially visible
on the jaw-line area.
No significant undesired effects were experienced by
the subjects and they reported a tolerable pain level. All
subjects expressed satisfaction with the clinical results.
Figures 1 - 3 demonstrate results of TriFractional treat-
Copyright © 2012 SciRes. JCDSA
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
Copyright © 2012 SciRes. JCDSA
120
treatment.
ments. Figure 1 shows impressive peri-oral wrinkles im-
provement after two TriFractional treatments. Figure 3 demonstrates impressive improvement of se-
vere acne scars following TriFractional treatments.
Figure 2 demonstrates results following one TriFrac-
tional treatment for improvement of skin non-homoge-
nous complexion post chemical peel, causing perioral hy-
popigmentation. Results demonstrated a substantial im-
provement after only one TriFractional treatment with a
short recovery time. One week post treatment there were
no scabs or other residual signs of the TriFractional
3.2. TriLipo MED Procedure Results
Figures 4 - 6 demonstrate the effect of the TriLipo MED
procedure for improvement of wrinkles and scars and for
general facial contouring.
Figure 1. Peri-oral wrinkles improvement. Before (left) and after two TriFractional treatments (right).
Figure 2. Skin revitalization. Before (left), after one week post one TriFractional treatment (right).
Figure 3. Treatment of acne scars. Baseline, multiple acne scars with uneven skin (left), 2 weeks post one TriFractional treat-
ment (middle), 2 weeks post 3 TriFractional treatments (right).
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
121
Figure 4. TriLipo MED Procedureacne scars and skin texture improvement. Before (left) and after (right).
Figure 5. TriLipo MED Procedure showing the improvement of wrinkles and skin tightening. Before (left) and after (right).
The subjects underwent treatments with the TriFrac-
tional applicator on selected problematic areas, and addi-
tional complementary treatments with the TriLipo RF
and DMA applicator on the entire face. Results indicate a
significant facial contouring in lower cheeks and jaw line
as well as improvement of wrinkles and acne scars. These
results clearly demonstrate the additive value of the uni-
que TriLipo MED procedure, combining TriFractional,
TriLipo RF and TriLipo DMA technologies for facial skin
rejuvenation and facial contouring.
3.3. Histological Results
3.3.1. Porcine Skin Histologies for Preliminary
Evaluation
In all treated porcine skin samples there is thermal injury
in the epidermis alone or up to and including the upper
dermis, depending on the treatment parameters and thick-
ness of skin fragment. The epidermal changes are char-
acterized by elongation of nuclei, and by epidermal ne-
crosis to various extents. The dermal changes are char-
acterized by condensation in the dermal connective tis-
sue.
Depth of injury is in direct correlation to the energy
level used. In samples from abdomen skin treated with
low power, epidermal injury was the least prominent and
only the basal lower spinous epidermis layer was invol-
ved and the dermis was spared. The epidermal changes in
this series were focal with skip area of normal epidermis
in between the involved foci. All the other series showed
both epidermal and dermal injury correlated with the le-
vel of energy in terms of depth and width.
Copyright © 2012 SciRes. JCDSA
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
122
Figure 6. TriLipo MED Procedure showing skin tightening
and improvement of lips appearance. Before (left) and after
(right).
The ear skin samples are significantly more sensitive
compared to abdomen skin samples, and even at low en-
ergy levels, there are areas of significant damage.
The histological results of the effect of varying power
levels on the porcine skin emphasize the importance of
careful selection of the treatment parameters. Figures 7
and 8 demonstrate the histological findings immediately
following TriFractional treatment.
3.3.2. In Vivo Human Abdominal Skin
Samples taken one day after treatment showed epidermal
necrosis in the involved area and an affect on the papil-
lary as well as upper reticular dermal collagen areas.
Skip areas are visible between affected areas. Neutro-
philic infiltrate was present (Figure 9).
Samples taken 1 week after treatment show intact (re-
generated) epidermis in foci covered with scale crust
(sign of previous damage). Dermal collagen affected areas
are demonstrated. Minimal lymphocytic infiltrate was
present (Figure 10).
3.3.3. Ex-Vivo Human Skin Study
Histologies show epidermal modifications with a modi-
fied or necrotic appearance within 3 quarters of the epi-
dermis or within all of the epidermis. In other cases, lim-
ited destruction of the epidermis was found with second-
dary elimination of the necrosis shaped zone appearing
as a squamous crust. In even rarer cases, alterations were
very moderate, with condensed or vacuous spaces ob-
served in the cytoplasm of the keratinocytes.
From D3 to D10 partial reparation was observed with
the elimination of the crust (parakeratosis zone and ne-
crotic debris), and regeneration of the basal cell layer
under the modified epithelial zone (Figure 11).
3.3.4. Evaluation of Mitotic Index of Epidermis
The immunodetection realized just adjacent to the RF
Figure 7. Porcine abdomen skin fragment treated with low
energy (H&E stain, ×200). Normal skin “with a skip area”
between 2 electrodes (left). Epidermal thermal effect under
electrode. Elongation of epidermal nuclei mainly in basal
layer and lower spinous layer. No thermal effect observed
in dermis (right).
Figure 8. Porcine abdomen skin fragment treated with rela-
tively high energy (H&E stain, ×100). Epidermis: areas of
thermal damage with elongated epidermal nuclei at both si-
des (area under electrodes). In between at ~0.5 mm width,
effect is moderate. At bottom of skip area elongated nuclei
are seen due to penetrated heat dispersion effect. Conden-
sation of upper dermis is seen. Depth of injury ~0.5 mm.
treatment zones using antibody Ki67 revealed a statisti-
cally significant augmentation of positive epithelial cells
(Figure 12). The percent of these mitotic cells rose from
an average of 3.07% ± 1.57% in experimentally aged
skin to 8.9% ± 3.03% in the skin treated by TriFractional
RF (p = 0.0017). This represents an increase of nearly 3
times the amount of positive epithelial cells between ex-
perimentally aged skin and experimentally aged skin treated
by fractional RF.
Copyright © 2012 SciRes. JCDSA
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
Copyright © 2012 SciRes. JCDSA
123
Figure 9. In-vivo abdominal skin histology 1 day after treat-
ment (H&E stain, ×200). Epidermal damage covered by
crust, dermal effect and neutrophilic infiltrate are demon-
strated.
Figure 10. In-vivo abdominal skin histology 1 week after
treatment (H&E stain, ×200). The epidermis is regenerated
and covered with scale crust, dermal effect and lymphocytic
infiltrate are demonstrated.
Figure 11. Ex-vivo UV aged skin histology at D3 (up) and D10 (bottom) in survival medium (H&E stain magnification ×400: 1
cm = 19 µm). Left: untreated. Right: treated with TriFractional RF pulse. D3 treated sample demonstrate epidermal scarring
with the formation of a new epidermis while old epidermis is eliminating. Condensation of upper dermal collagen fibers is
observed. D10 treated samples demonstrate moderate alteration of the epidermis and dermis.
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
124
Figure 12. Ex-vivo UV aged skin histology at D2 in survival medium. Immunohistochemical analysis of mitotic cells in the epi-
dermis (Ki67, ×400: 1 cm = 19 µm). Left: untreated. Right: treated with TriFractional RF pulse. Increase of mitotic cells in
the zone adjacent to the fractional RF treatment area is demonstrated.
3.3.5. Histological Quantification of Dermal Collagen
by Computerized Image Analysis
Morphometry of collagen revealed a statistically signifi-
cant augmentation from 62.7% ± 1.75% average collagen
for experimentally aged skin to 72.5% ± 4.07% collagen
for skin treated by fractional RF (p = 0.00019). This cor-
responds to 15.5% increase of collagen content (Figure
13).
4. Discussion and Conclusions
During the past years, the fractional treatment concept
became trendy as it offers a controlled skin treatment of
specific tiny areas with enhanced healing through the
surrounding untreated areas. Extensive attempts have
been made to investigate the clinical and histopathology-
cal effects of fractional energy sources on dermal and
epidermal structures.
Several fractional RF systems have recently been clear-
ed for marketing based on published clinical results with
these RF fractional systems [9-11].
Hruza et al. [9] evaluated the effect of a fractional RF
applicator (Matrix RF by Syneron) for skin rejuvena-
tion and wrinkle reduction. Their histological findings,
immediately post-treatment, revealed demarcated zones
of ablation/coagulation/necrosis and subnecrosis up to a
depth of 450 micron. Higher energy levels generated
deeper effects. Subjects undergoing facial treatment had
minimal pain, no permanent side effects, or significant
downtime. The investigators’ assessment of improvement
in skin texture was greater than 40% for approximately
50% of subjects. Higher energy levels and lower cover-
age rates produced better aesthetic results along with less
pain. They concluded that RF fractional skin resurfacing
results in a safe, tolerable and effective improvement in
skin texture and reduction of wrinkles. The depth of tis-
sue ablation, coagulation and necrosis and the relative
proportions of these phenomena were found to be con-
trollable and could be modulated to optimize treatment of
variable dermatologic conditions.
Another study [10] further evaluating the effect of the
eMatrix system by Syneron, confirmed that the treat-
ment improved skin appearance while addressing some
of the limitations of ablative resurfacing and non ablative
skin rejuvenation. Authors reported that unlike fractional
ablative laser treatments, which mostly affect the epider-
mis, the sublative technique has less impact on the epi-
dermis and most of the effect is in the dermis. They con-
cluded that healing is rapid and downtime is minimal
thus treatment is appropriate for all skin types and is an
effective alternative for patients with darker skin.
The current study demonstrates the safety and efficacy
of the novel fractional RF technology, the TriFractional.
The evaluation provides clinical and histological evidence
supporting the TriFractional being a promising technol-
ogy for skin rejuvenation, treatment of wrinkles and acne
scars and for general improvement of skin texture, with
minimal down time and minimal discomfort to the pa-
tient. Histological results confirmed the TriFractional im-
pact on epidermal renewal and dermal regeneration and
demonstrated the biological mechanism of the effect. Im-
mediate effect as well as effect following a few days was
demonstrated in various histological models, while ex-
vivo results support the in - viv o findings. Combining the
TriFractional treatment with intermediate TriLipo RF and
TriLipo DMA using the TriLipo MED Procedure, en-
hances facial toning and enables a holistic approach to
facial rejuvenation and enhancement.
In summary, the fractional mode of the treatment en-
ables a faster, more effective healing process, eliminating
patient downtime resulting in a safe, tolerable, effective
skin rejuvenation.
Copyright © 2012 SciRes. JCDSA
Treatment of Wrinkles and Acne Scars Using the TriFractional, a Novel Fractional Radiofrequency
TechnologyClinical and Histological Results
125
Figure 13. Ex-vivo UV aged skin histology at D10 in survival medium. Histological analysis of dermal collagen stained by
sirius red (×400: 1 cm = 19 µm). Left: untreated. Right: treated with TriFractional RF pulse. Increase of collagen fibers in the
dermis under the fractional RF treatment zone is demonstrated.
5. Disclosures
Dr. Levenberg acts as a medical director for Pollogen.
The other authors received from Pollogen research grants
for the corresponding study projects.
REFERENCES
[1] C. A. Nanni and T. S. Alster, “Complications of CO2
Laser Resurfacing: An Evaluation of 500 Patients,” Der-
matologic Surgery, Vol. 24, No. 3, 1998, pp. 315-320.
[2] E. L. Tanzi and T. S. Alster, “Side Effects and Complica-
tions of Variable Pulsed Erbium: YAG Laser Skin Re-
surfacing: Extended Experience with 50 Patients,” Plastic
and Reconstructive Surgery, Vol. 111, No. 4, 2003, pp.
1524-1529. doi:10.1097/01.PRS.0000049647.65948.50
[3] D. Manstein, G. S. Herron, R. K. Sink, et al., “Fractional
Photothermolysis: A New Concept for Cutaneous Remo-
deling Using Microscopic Patterns of Thermal Injury,”
Lasers in Surgery and Medicine, Vol. 34, No. 5, 2004, pp.
426-438. doi:10.1002/lsm.20048
[4] H. J. Laubach, Z. Tannous, R. R. Anderson and D. Man-
stein, “Skin Responses to Fractional Photothermolysis,”
Lasers in Surgery and Medicine, Vol. 38, No. 2, 2006, pp.
142-149. doi:10.1002/lsm.20254
[5] E. P. Tierney, R. F. Eisen and C. W. Hanke, “Fractionated
CO2 Laser Skin Rejuvenation,” Dermatology and Ther-
apy, Vol. 24, No. 1, 2011, pp. 41-53.
doi:10.1111/j.1529-8019.2010.01377.x
[6] H. Kaplan and A. Gat, “Clinical and Histopathological
Results Following TriPollar Radiofrequency Skin Treat-
ments,” Journal of Cosmetic and Laser Therapy, Vol. 11,
No. 2, 2009, pp. 78-84.
[7] S. Boisnic and M. C. Branchet, “Ex Vivo Human Skin Eva-
luation of Localized Fat Reduction and Anti-Aging Effect
by TriPollar Radio Frequency Treatments,” Journal of Cos-
metic and Laser Therapy, Vol. 12, No. 1, 2010, pp. 25-31.
doi:10.3109/14764170903376232
[8] A. Levenberg, “Clinical Experience with a TriPollar Ra-
diofrequency System for Facial and Body Aesthetic Treat-
ments,” European Journal of Dermatology, Vol. 20, No.
5, 2010, pp. 615-619.
[9] G. Hruza, A. F. Taub, S. L. Collier and S. R. Mulholland,
“Skin Rejuvenation and Wrinkle Reduction Using a Frac-
tional Radiofrequency System,” Journal of Drugs in Der-
matology, Vol. 8, No. 3, 2009, pp. 259-265.
[10] L. Brightman, M. P. Goldman and A. F. Taub, “Sublative
Rejuvenation: Experience with a New Fractional Radio-
frequency System for Skin Rejuvenation and Repair,”
Journal of Drugs in Dermatology, Vol. 8, No. 11, 2009,
pp. 9-13.
[11] N. S. Sadick, M. Sato, D. Palmisano, et al., “In Vivo Ani-
mal Histology and Clinical Evaluation of Multisource Fra-
ctional Radiofrequency Skin Resurfacing (FSR) Applica-
tor,” Journal of Cosmetic and Laser Therapy, Vol. 13, No.
5, 2011, pp. 204-209.
Copyright © 2012 SciRes. JCDSA
